Press Release

Angewandte Chemie International Edition
doi.org/10.1002/anie.201908553

Nr. 24/2019
August 28, 2019

Colorful Microreactors Utilize Sunlight

Energy-Efficient Solar Photochemistry with Luminescent Solar Concentrators

© Wiley-VCH, re-use with credit to 'Angewandte Chemie' and a link to the original article.

The sun is the most sustainable energy source available on our planet and could be used to power photochemical reactions. In the journal Angewandte Chemie, scientists present a widely applicable, cost-effective photomicroreactor. It is based on “Luminescent Solar Concentrators“, which harvest, convert, and make photons available for chemical reactions. Thus, the researchers were able to synthesize various substances, including two pharmaceuticals.

Contact: Timothy Noel, Eindhoven University of Technology (Netherlands)
Registered journalists may download the original article here:
Energy-Efficient Solar Photochemistry with Luminescent Solar-Concentrator-Based Photomicroreactors

To date, research into the use of sunlight has focused on solar electricity, solar thermal, and solar fuels, while the solar-powered synthesis of chemicals is still in its infancy. Light energy can power chemical reactions; for example, by moving a catalyst into an excited state and thereby accelerating a reaction or even making it possible in the first place. However, the sun as a light source is disadvantageous in certain respects because the bulk of the solar spectral irradiance (the radiant flux received by a surface per unit area) falls within the relatively narrow visible range. Moreover, fluctuations in irradiance are caused by phenomena such as passing clouds.

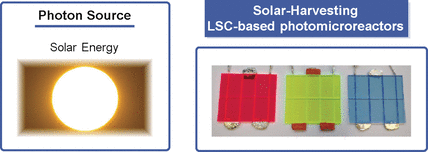

The scientists from the Eindhoven University of Technology (the Netherlands) and the Max-Planck Institute of Colloids and Interfaces (Potsdam, Germany) now show for the first time that a diverse set of photon-driven transformations can be efficiently powered by solar irradiation. The secret of success is their specially designed, cost-effective “photomicroreactor” based on luminescent solar concentrators (LSCs).

The LSCs consist of light-guiding slabs made of polymethylmethacrylate (PMMA) doped with special luminophores that capture photons from the solar spectrum and subsequently release them as fluorescence with longer wavelength characteristics for use by the luminophore. In this way, the sunlight is concentrated into a narrow wavelength range, and daylight and weather-dependent fluctuations of the spectral distribution become negligible.

Tiny channels made of a solvent-resistant polymer are embedded into the LSC slabs, which contain the reaction mixture. A light sensor that monitors the light intensity is connected to an integrated circuit that autonomously adjusts the flow rate of the mixture: the lower the light intensity the slower the mixture passes the channel, thereby receiving the light dose needed for an adequate reaction yield. In so doing, fluctuations in sunlight irradiance are compensated for and the quality of the product remains consistent.

The selection of the doping luminophores depends on the wavelength needed for excitation of the catalyst. The team led by Timothy Noël generated red, green, and blue LSC reactors for reactions catalyzed by the photocatalysts methylene blue for the red device, eosin Y and rose Bengal for the green, and ruthenium-based metal complexes for the blue reactor. “Using these devices, we succeeded in synthesizing the antiworm drug ascaridole and an intermediate of the antimalarial drug artemisinin, besides others,” says Noël. “A solar-based production approach is of high interest for products with high added value, such as fine chemicals, drugs, and fragrances. It would be particularly suited to limited resource settings.”

(3341 characters)

About the Author

Timothy Noël is as an associate professor and he chairs the Micro Flow Chemistry & Synthetic Methodology group at Eindhoven University of Technology. His research on photochemistry in microfluidic reactors was awarded the 2017 DECHEMA award and he is the Editor-in-Chief of the Journal of Flow Chemistry.
