1 Introduction

Type 2 diabetes mellitus (T2DM) ranks as the eighth most prevalent cause of mortality and morbidity, emerging as a significant global public health issue [1]. Cardiovascular disease (CVD) continues to be the leading cause of death and disability in individuals with T2DM [2]. Accumulating evidence shows that patients with T2DM exhibit a 2–4 times greater likelihood of developing CVD than those without T2DM, resulting in a higher disease burden, hospitalization, and treatment costs [3, 4]. Therefore, timely identification of individuals at high risk for CVD is essential for initiating early prevention strategies, providing prompt treatment, and ensuring effective disease management. Various risk prediction models have been developed and validated for CVD in patients with T2DM [5-7]. However, the productive performance and quality of such models are uneven and depend heavily on the quality and availability of datasets.

Missing data is a pervasive and significant challenge during the development of prediction models, especially when utilizing extensive datasets. This missingness can result in biased estimations, diminished statistical power, and inaccurate conclusions, thereby compromising the predictive performance of the model and diminishing its decision-making efficacy in clinical practice. The Transparent Reporting of a multivariable prediction model for the Individual Prognosis or Diagnosis (TRIPOD) initiative has been proposed. It recommends that authors transparently report the occurrence and extent of missing values in both the development and validation sets, as well as detail the methods used to address any missing data during the analysis [8]. Thus, other researchers and policymakers must adequately assess the potential usefulness of prediction models. However, compliance with these reporting guidelines appears to be constrained among studies that apply prediction models, particularly when missing data are often inadequately addressed or disregarded.

Multiple approaches have been developed to address missingness, including complete case analysis (CCA) and imputation-based methods. These strategies are always valid under specific circumstances [9, 10]. Moreover, many reviews of prediction models have found that the approaches for addressing missing values are inadequately explained or exhibit unclear applications [11]. A recent review examined the patterns of missing data and strategies for addressing them in predictive research for undiagnosed T2DM, while the handling of missing data in prediction models for CVD among individuals with T2DM remains unexplored [12].

Therefore, this study aimed to systematically review the prediction model of CVD for individuals with T2DM as the primary outcome and analyze the presence of missing data, missing scenarios, and the application of different strategies for processing missing data.

2 Methods

2.2 Study Selection

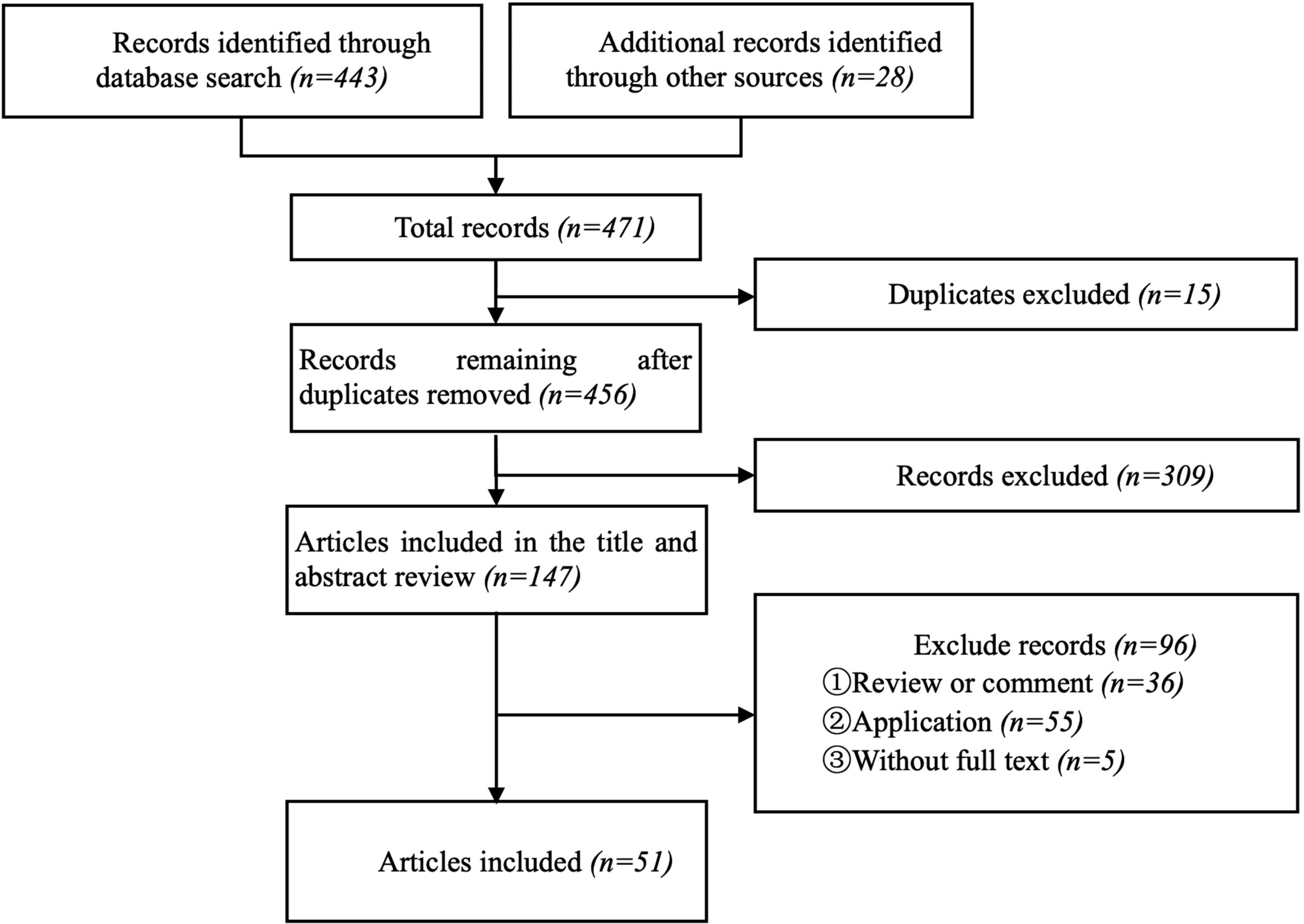

Figure 1 displays this study's Preferred Reporting Items for Systematic reviews and Meta-Analyses flow diagram. The following eligibility criteria for studies were applied: (1) patients diagnosed with T2DM; (2) studies focused on developing prediction models; (3) outcome(s) of the predictive model was CVD or included CVD; and (4) English-language. Reviews, studies that only reported the external validation stage, and papers for which full-text versions were unavailable were excluded. Two reviewers (W.H.R. and K.Y.F.) independently reviewed the article titles and abstracts. Discrepancies were evaluated by another reviewer (H.X.L).

3 Results

The preliminary literature search identified 471 articles. After removing duplicate entries and applying the inclusion and exclusion criteria, 51 articles were included for further review (Figure 1).

3.3 Strategies for Handling Missing Data

A total of 38 out of 40 articles that reported missing values also included a description of the strategies applied to handle missing data [5, 13-18, 20, 21, 26, 27, 29, 30, 32, 33, 35-37, 39, 45-54, 56-58, 61, 62, 40, 42-44], and 11 studies consisting of an external validation stage [5, 14, 26, 27, 30, 39, 42, 44, 50, 53, 58] (Table S2).

3.3.1 Development Stage

In development studies, the most common approach for missing values was imputation (27/38) [5, 14-16, 18, 20, 21, 26, 27, 30, 32, 33, 35, 39, 40, 42, 43, 45, 47-50, 53, 54, 57, 58, 62], followed by deletion (17/38) [13, 17, 29, 36, 37, 39, 44, 46, 47, 51-53, 56, 61, 20, 30, 43]. Simple imputation (SI) [15, 16, 18, 21, 27, 39, 49, 54, 57, 62] and multiple imputation (MI) [5, 14, 20, 30, 32, 33, 35, 36, 40, 42, 43, 50, 53, 58, 26] were reported in 10 and 15 studies, respectively, while one study utilized both SI and MI [48]. The last observation carried forward (n = 3) [27, 49, 62] was the most common method among studies using SI; the other methods included mean, median, and mode imputation. Multivariate imputation by chained equations (MICE) (6/15) was reported as the common MI method for addressing missing values [5, 26, 32, 48, 53, 58]. One study reported a fully conditional specification method [20]. Among studies that used deletion methods, 13 of the 17 articles applied CCA to handle missing data [13, 17, 20, 29, 30, 36, 37, 39, 43, 44, 46, 51, 61]. Four studies [39, 43, 44, 47] applied a machine learning method (two used random forest imputation [44, 47]) to address missing data (Figure 2).

3.3.2 External Validation Stage

Of the 11 studies with an external validation stage that reported missingness [14, 26, 27, 30, 39, 41, 42, 44, 50, 53, 58], six applied imputation methods to handle missing data [14, 27, 30, 42, 50, 53], three used deletion strategies [26, 44, 58], and one applied both methods [39]. Among the five articles that employed the MI strategy [14, 30, 42, 50, 53], only one reported the use of MICE [53]. Another study reported mean, median, and mode imputations [39]. In addition, CCA was applied in four studies that utilized the deletion approach [26, 39, 44, 58]. Six studies [14, 27, 39, 42, 44, 50] demonstrated a consistent approach to address missing data among the 11 studies [14, 26, 27, 30, 39, 41, 42, 44, 50, 53, 58] that included both development and external validation stages. Only two studies utilized imputation-based methods during the development stage and opted for deletion strategies during the external validation stage [26, 58] (Figure 3).

4 Discussion

Prediction models are being increasingly developed to support clinical decision-making. Missing data is prevalent during the development and validation of prediction models, necessitating careful handling to prevent any negative impact on their quality. The present review's findings revealed that most (78.4%, 40/51) of the included studies on CVD risk among patients with T2DM reported missing data, and 74.5% (38/51) applied missing data handling approaches. Imputation was a commonly utilized approach, although most studies lacked detailed statistical information on the methods used. Notably, the frequency of missing data reports and the utilization of MI methods during the model development stage in the included articles demonstrated an increase subsequent to the publication of the TRIPOD guidelines. However, a comprehensive understanding is lacking regarding the proper selection and application of different methods, which may have implications for model development efficacy.

Missing predictor values pose obstacles to the development and practical implementation of predictive models, specifically affecting their predictive abilities. Interestingly, the missing data problem has garnered greater focus during the development stage than during the external validation and implementation stages [63, 64]. This phenomenon was also observed in our review, in which almost 78.4% (40/51) of included studies reported missing data during the development stage, while only 75% (12) reported them during the external validation stage. This difference may be associated with the lack of predictor variable management during the validation and implementation of a predictive model for novel patient populations.

Elucidating missing data characteristics is imperative to understanding data quality and making informed decisions regarding the selection of suitable data processing techniques. The missing data percentages and mechanisms are very important in evaluating the associated circumstances [65, 66]. In this review, only 22 studies that reported missing data included the overall number (n = 6) or missing data frequency (n = 16). The missing data percentage varied from < 1%–97.81%, showing great heterogeneity. This may be attributed primarily to the data sources utilized in developing the models' intricate nature, encompassing cohort, field survey data, and electronic medical records. Missing data mechanisms can be categorized as ‘missing completely at random (MCAR), MAR, or MNAR, depending on the reasons for missing data [67].

Analyzing missing data characteristics enables researchers to make informed decisions regarding the appropriate addressing strategies based on assumptions about data patterns. MCAR is rarely used and always involves negligible data, whereas scenarios involving MAR and MNAR are more likely. In this review, only two missingness mechanisms were reported, suggesting that many researchers continue to overlook the significance of accurately reporting missing data.

To correct the bias resulting from improper handling of missing data, TRIPOD emphasizes the significance of including missing data processing as a crucial study component [8]. As mentioned earlier, the rise in missing data reports and the use of MI methods in the model development phase post-TRIPOD suggests that adherence to the TRIPOD guidelines may enhance the quality of prediction model studies, particularly in processing missing data. Evidence regarding missing data strategies dates to the 1970s, and many mature statistical methods have been proposed, including CCA and imputation-based methods [68]. Processing relies on complete data and involves removing all cases with missing values to acquire a complete dataset for analysis. This method is user-friendly and widely adopted by clinical researchers [68]. A previous systematic review of 152 prediction model studies utilizing machine learning suggested that the predominant method for addressing missing values is deletion (65/96), mostly via CCA (43/96), followed by imputation [69]. However, drawbacks include alterations in the original data distribution, potentially leading to an increase in bias, standard error, and imprecision in the regression coefficient estimates.

Imputation aims to predict missing values by obtaining values through the relationships within and between variables, including SI and MI. MI is the most popular missing data-handling method in medical statistics. Our findings also indicated that the imputation-based method was more widely used than the deletion strategies in both the development and external validation stages. This suggests that imputation-based missing data approaches are progressively expanding and gaining acceptance among medical researchers, thereby broadening their scope. However, one study suggested that MI was more suitable when using research data, such as those from cohort studies that exhibit a low percentage of missing data and generally reasonable levels of MAR [11]. When using “real-world” data, such as those from electronic health systems, missingness (typically informative and with a high rate using the MNAR mechanism), including missing indicators, could substantially improve predictive model performance [70, 71].

The application of the appropriate missing data handling method during the development and validation stages of predictive model is related to integrated missingness scenarios that consider missingness mechanisms, missingness patterns, and percentages of missing values. It indicates that researchers ought to comprehensively account for these factors when addressing missing values in predictive models. Compared with CCA, MI can reduce bias and enhance the model's predictive performance, particularly when the missing data mechanism is MAR. Other recently developed approaches address missing data by incorporating missing indicator variables, employing pattern-mixing models, utilizing tree-based integration, or applying machine learning techniques to circumvent inference challenges associated with missing data [64]. Furthermore, a lack of consistency in the strategies for addressing missing data during the development and validation stages can lead to an over or underestimation of the clinical prediction models [11, 72]. In this review, seven studies applied the same strategies to address missing data among the 13 studies that incorporated both development and external validation stages. In addition, among the studies with external validation, the details of the missing data strategies were fewer than those of model development. This may be attributed to the lack of emphasis on external validation and prediction model implementation, as evidenced by previous research findings [64]. The TRIPOD statement recommends the inclusion of information regarding the missing data percentage, missingness rationales, and notable distinctions between patients with complete versus incomplete data. Arguably, the reporting level is a critical foundation for evaluating the predictive model's efficacy. Provision of details is a crucial scientific research and reporting requirement to enable study replication. However, most studies that applied methods to handle missing data lacked sufficient detail. Thus, the methodological quality of predictive models must urgently be improved to promote good practices for handling missing data.

This review had some limitations. Some relevant studies might have been missed due to reliance on a single database. Nevertheless, we believe that the review comprehensively covers most of the literature through the application of a snowballing supplementary search. Furthermore, studies that were only in the external validation or deployment stages were not included. However, given that our study is built upon the same research framework that compared missing data processing strategies at various prediction model stages, its findings are more generalizable. Moreover, the analysis focused exclusively on models designed to predict CVD risk in patients with T2DM, which may differ from models used to predict CVD in other populations.

5 Conclusion

The issue of missing data in the development stage of CVD risk prediction models among patients with T2DM has gained much attention; however, insufficient consideration is paid to the validation stage. Notably, there is still room for improvement in selecting appropriate methods and providing details for handling missing data during the development and validation of CVD risk prediction models in T2DM patients. Additionally, the missingness mechanism should be carefully considered.
