2.1 Increased Plasma Annexin V Levels Are Associated With Neurological Benefits in Patients Exhibiting the Penumbra

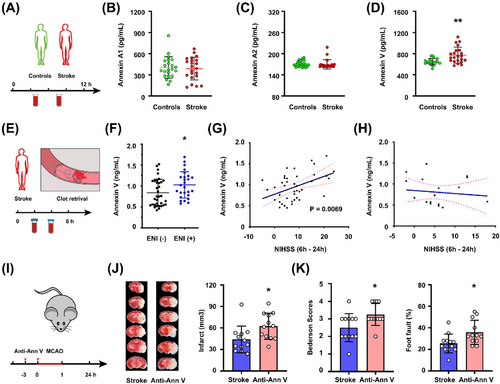

First, we used a case–control gene expression dataset from GEO (GSE58294) to evaluate the potential differential mRNA expression of Annexin V in 69 cardioembolic stroke samples and 23 normal control samples. We found that Annexin V expression levels were 1.525, 1.485, and 1.714 times higher than those in control samples at less than 3, 5, and 24 h after ischemic onset, respectively, by using an online analysis tool GEO2R (https://www.ncbi.nlm.nih.gov/geo/geo2r/) [20] (Table S1). Then, healthy controls (n = 22) and stroke patients (n = 22) with first episode of ischemic stroke and presentation within 12 h of onset of symptoms were included (Figure 1A, demographic data in Table S2). We found that Annexin A1 and Annexin A2 concentrations were no significant differences in stroke patients (Figure 1B, C). However, plasma Annexin V levels were higher in stroke patients when compared to healthy controls (Figure 1D).

Then, we investigated if early neurological improvement (ENI) in acute ischemia individuals was linked to a greater plasma Annexin V level. In patients undergoing EVT, ENI was previously characterized as a decline of 8 or more points on the National Institutes of Health Stroke Scale (NIHSS) or an NIHSS score of 0 or 1 at 24 h (Figure 1E, F) [21, 22]. We consecutively enrolled a total of 60 patients receiving EVT within 6 h after symptom onset. These patients' initial clinical and demographic traits were similar and presented in Table S3. We found that plasma Annexin V concentrations in patients with ENI (n = 26) were higher than those in patients without ENI (n = 34) (mean 1.02 vs. 0.83, p = 0.028). Next, we analyzed the effect of penumbra existence on the association between plasma Annexin V concentrations and NIHSS change between baseline and 24 h (△NIHSS). A positive correlation was found between high Annexin V concentrations and △NIHSS (p = 0.0069) in patients exhibiting penumbra (n = 41) based on computer tomography perfusion imaging or magnetic resonance perfusion (Figure 1G). However, we did not find the correlation in patients without penumbra (n = 19; p = 0.63) (Figure 1H). Thus, a higher Annexin V level might be associated with a better outcome in stroke patients exhibiting penumbra after EVT.

Lastly, we assessed whether specific Annexin V inhibition by monoclonal antibody could affect stroke outcomes in a mouse model of stroke. In normal mice, anti-Annexin V antibody (40 µg/kg) reduced plasma Annexin V approximately 40% after 3 h administration (Figure S1A). When compared to control mice following 60 min of middle cerebral artery occlusion (MCAO), mice injected with anti-Annexin V antibody prior to ischemia experienced a greater infarction and a worse neurologic deficit 24 h after stroke onset (Figure 1I–K). Moreover, TUNEL+ cells were increased in penumbra areas in mice receiving anti-Annexin V 24 h after stroke, as compared to those receiving vehicle (Figure S1B, C).

Collectively, these results suggested that a higher Annexin V concentration might be beneficial to stroke outcomes.

2.2 Annexin V Inhibits PS Exposure and Exert Benefits Only in Transient MCAO Models

According to reports, recombinant Annexin V can cross the BBB and prevent the exposed PS from attaching to its binding partners [12, 23]. Thus, we hypothesized that preventing PS exposure might be feasible to attenuate ischemic damages after stroke.

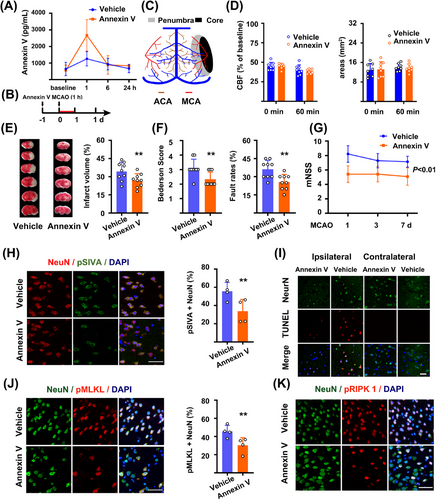

We assessed whether recombinant Annexin V could affect stroke outcomes in a mouse model of stroke. In normal mice, plasma Annexin V levels rose sharply 60 min after intravenous injection (Figure 2A). Annexin V levels in the brains remained unchanged, but rose to a higher level than those receiving vehicle at 24 h after injection (Figure S2A). We intravenously injected Annexin V twice [12], then subjected animals to transient MCAO (Figure 2B). There were no significant differences in the core and penumbra regions between the two groups at time points 0 and 60 min after stroke based on laser speckle imaging (LSI) recordings (Figure 2C, D, Figure S2B–D). Annexin V administration reduced infarct sizes 24 h after 60min MCAO (Figure 2E). Consistent with the reduced infarct sizes, neurological scores were also improved both at 24 h and throughout 7 days in mice receiving Annexin V (Figure 2F, G). More importantly, pSIVA⁺(PS exposure) neurons in penumbra areas were reduced in mice receiving Annexin V administration (Figure 2H). Apoptosis and necroptosis markers were reduced in penumbra areas in mice receiving Annexin V 24 h after stroke, as compared to those receiving vehicle, including TUNEL⁺, pMLKL⁺, and pRIPK1⁺ neurons (Figure 2I–K, Figure S2E, F).

The penumbra is the conceptual target for reperfusion-therapy in ischemic stroke. However, the penumbra will collapse and turn into the infarct when focal ischemia continues. Thus, to test the potential benefits of Annexin V on the penumbra, we performed the same procedure of Annexin V administration in a mice model of permanent occlusion as a negative control. In contrast to the transient MCAO models, there were no differences in both infarct sizes (Figure S2G) and neurological score between the two groups (Figure S2H). Thus, these data indicated that recombinant Annexin V crossed the BBB, targeted the penumbra, and conferred neurological benefits in ischemia/reperfusion models after stroke.

2.3 Tmem30a is Upregulated in the Penumbra Region Shortly After Ischemic Stroke

Due to the contrast results of Annexin V in ischemia/reperfusion and permanent ischemia, we hypothesized that potential mechanisms might derive from the penumbra. We previously established a thrombus and thrombolysis model in rhesus monkeys [24, 25]. In brief, MCA occlusion was confirmed radiographically by digital subtraction angiography after the clot injection (Figure 3A, B, arrow). Based on widely accepted definition of penumbra in stroke models and patients [26, 27], the mismatch between perfusion and diffusion-weighted MR images (PWI/DWI mismatch), we got the penumbra tissues and their normal counterpart tissues at approximately 3 h after ischemic onset (Figure 3C, D, Figure S3A). We confirmed the biopsy sites for penumbra by another definition, which is the presence of a DWI-fluid-attenuated inversion recovery (FLAIR) mismatch in patient selection (Figure S3B) [28].

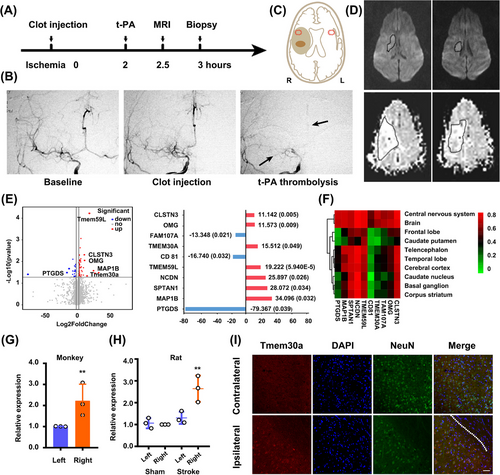

We made a comparison of transcriptional profiling between penumbra tissues (3 h after stroke) in the ipsilateral and contralateral hemisphere to identify individual differences in the brain tissues potentially underlying acute ischemic responses. RNA-seq analysis found that a total of 89 mRNAs (23 down and 66 up) changed dramatically with a value of log 2 (fold change) > 1.5. Among the top 10 differentially expressed mRNAs (Figure 3E), four of them were expressed at low level in normal tissue (Figure 3F, https://hb.flatironinstitute.org/gene), in which only Tmem30a and OMG were significantly upregulated after focal ischemia. Gene ontology analysis showed that regulation of biological quality, localization, and signaling were ranked as the top three most important factors in biological process analysis; protein binding was the most significant factor in the molecular function analysis; and plasma part, neuron part, and cell projection as the top three important factors in the cellular component analysis (Figure S4A–C). As a β-subunit of P4-type ATPase, Tmem30a is essential for the maintenance of asymmetric distribution of phospholipids. Thus, we speculated that Tmem30a might act as a signal to preserve neuron in the primary stage of focal ischemia.

Real-time PCR (RT-PCR) further showed an increased expression of Tmem30a in the penumbra of the ipsilateral hemisphere in both monkey and rat stroke models (Figure 3G, H). Moreover, Tmem30a co-localized with NeuN⁺ neurons in the penumbra tissues (Figure 3I), while control images from the opposite hemisphere exhibited less double staining neurons (Figure S4D). Additionally, we did not observe the co-localization of Tmem30a with GFAP⁺ astrocytes or Iba1⁺ microglia in the penumbra tissues (Figure S4E). These data indicated that Tmem30a were upregulated in neurons within the penumbra in two stroke models.

2.4 Tmem30a Upregulation is Necessary for Less PS Exposure and Neural Benefits in Oxygen Glucose Deprivation/Reoxygenation Models

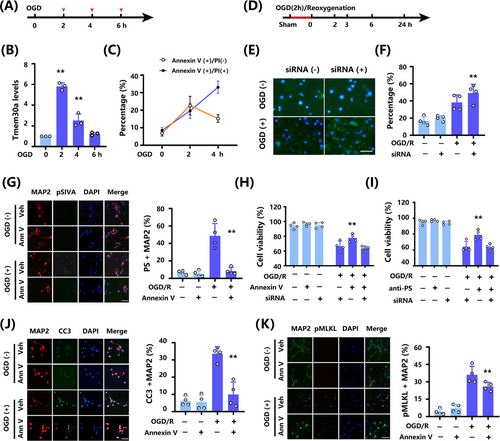

To study the mechanisms underlying the association among Tmem30a levels, PS exposure, and Annexin V changes, first we explore the association between Tmem30a levels and various duration of ischemia in a permanent oxygen glucose deprivation (OGD) model (Figure 4A). We found that Tmem30a mRNA levels were increased initially (2 h), but continuously decreased with the extended duration (4 and 6 h) of ischemia (Figure 4B). Then, in a 2h OGD and reoxygenation (OGD/R) model, increased Tmem30a mRNA levels were observed when we collected neuron at 0, 2, 3, 6, and 24 h after reoxygenation, the highest Tmem30a level at 3 h (Figure S5A, B).

Then, we explored the association between Tmem30a level and PS exposure. When testing for PS exposure, Annexin V-FITC staining is frequently utilized. Early apoptosis is indicated by Annexin V-FITC (+) and PI (−) staining, whereas late apoptosis is represented by dual positive staining of Annexin V and PI [29, 30]. Two-hour OGD resulted in significantly increased Annexin V+/PI− neurons and Annexin V+/PI+ neurons, 4h permanent OGD exhibited significantly decreased Annexin V+/PI− neurons but parallel Annexin V+/PI+ neurons, and no Annexin V+/PI− or Annexin V+/PI+ neurons after the 6-h permanent OGD (Figure 4C). These data suggest that permanent ischemia led to a decreased Tmem30a level and a shift from early neuron cell death to late death. Next, we performed OGD/R studies to further explore the association of Tmem30a and PS exposure (Figure 4D). siRNA-Tmem30a administration reduced Tmem30a expression and increased PS exposure in neurons after 2h OGD and 3h reoxygenation (Figure 4E, F). These findings indicated that reducing Tmem30a level after OGD/R led to a higher PS exposure.

Next, we used two PS blockers, Annexin V recombinant protein and anti-PS antibody, to explore the association between PS blocking and cell viability in OGD/R models. Recombinant Annexin V did not induce pSIVA⁺ (PS exposure) in normal neuron culture, but reduced pSIVA⁺ neuron after OGD/R (Figure 4G). Moreover, both PS blockers increased cell viability after OGD/R (Figure 4H, I). More importantly, we found that siRNA Tmem30a could offset these protective effects by PS blockers based on an OGD/R cell model (Figure 4H, I). These findings indicated that Tmem30a was necessary for neural protection due to less PS exposure in OGD/R models.

Furthermore, we explored potential mechanisms. We found that CC3⁺ MAP2 cells (Figure 4J), pMLKL⁺ MAP2 (Figure 4K), and pRIPK1⁺ MAP2 (Figure S5C) were increased after OGD/R, while CC3⁺ MAP2, pMLKL⁺ MAP2, and pRIPK1⁺ MAP2 neurons were reduced by administrating recombinant Annexin V. Moreover, recombinant Annexin V treatment did not increase CC3⁺ NeuN, pMLKL⁺ NeuN, and pRIPK1⁺ NeuN under non-OGD condition. These data indicated that recombinant Annexin V decreased apoptosis and necroptosis of neurons after OGD/R.

2.5 Upregulation of Tmem30a Confers Neurological Benefits in Ischemia/Reperfusion Models

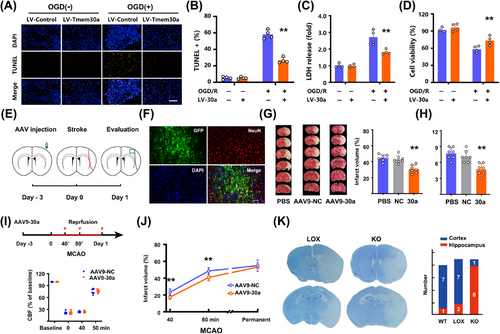

To explore the role of Tmem30a, we over-expressed Tmem30a in neurons and subjected them to 2-h OGD/R as an in vitro ischemia/reperfusion model. We observed that TUNEL+ percentage was significantly decreased in LV-Tmem30a neurons after OGD, as compared with LV-negative control (NC) neurons (Figure 5A, B). We also found that cell viability was markedly increased in LV-Tmem30a-treated neurons after OGD/R (Figure 5C, D). Collectively, these data suggested that upregulation of Tmem30a alleviated OGD/R-induced neuron death.

We further explored whether overexpressing Tmem30a in vivo also reduced ischemic damages. Rats were injected with AAV9-Tmem30a or AAV9-NC into MCA-supplying regions (Figure 5E). Viral GFP (green), anchored with Tmem30a, mainly co-localized with NeuN (Figure 5F). Additionally, AAV9-Tmem30a injection nearly doubled the expression of Tmem30a (Figure S6A) and AAV9-Tmem30a was more notable when compared with the counterpart side (Figure S6B). In Figure 5G, overexpressing Tmem30a reduced cerebral infarct volumes when compared to models receiving vehicle and AAV9-NC 24 h after stroke. In addition, overexpressing Tmem30a also significantly decreased both 12-point (Figure 5H) and longa scores (Figure S6C), as compared to those receiving vehicle and AAV9-NC. Finally, overexpression of Tmem30a also reduced apoptosis marker cleaved caspase-3 (CC3) and necroptosis marker (p-MLKL) and increased anti-apoptosis marker Bcl-xL and BCL-2 in the penumbra regions 24 h after stroke (Figure S6D–I). These data indicated that decreased apoptosis and necroptosis in the penumbra might account for these neurological benefits.

It is difficult to monitor real-time cerebral blood flow (CBF) changes in rat models. Thus, we used a mouse model of MCAO and monitored CBF changes to rule out the potential interference of perfusion status. AAV9-Tmem30a were injected to the prospective stroke sites 3 days before stroke in C57BL/6 mice (Figure 5I). RT-PCR results confirmed Tmem30a levels were increased (Figure S7A). We first developed a less severe model with 40min MCAO and 24-h reperfusion. CBF levels were comparable between two groups (Figure 5I). AAV9-Tmem30a injection led to a smaller infarct size and a better neurological score than those with AAV9-NC (Figure 5J, Figure S7B). We also repeated these experiments with a more severe 80-min MCAO and 24-h reperfusion. Similar results were also observed (Figure S7C–E). However, there were no differences in both infarct sizes (Figure 5J) and neurological score when using a permanent occlusion model in mice (Figure S7F–H). The above data indicated that Tmem30a upregulation could mitigate penumbra damages after ischemia/reperfusion, but not stroke damages after permanent ischemia.

To further confirm the role of Tmem30a, we generated neuron-specific Tmem30a-deficient mice. However, these mice, induced by Nestin-Cre, were not viable [17]. Thus, we generated a Tmem30a forebrain-neuron-specific knockout mouse (designated Tmem30a FnKO mice) by crossing Tmem30a^loxP/+; Cam2-Cre mice to Tmem30a^loxP/loxP animals. The Tmem30a^loxP/loxP mice were used as controls. Tmem30a FnKO mice showed no change in the MCA area (Figure S8A, B) or alteration of CBF before, during, and after 60 min MCAO (Figure S8C, D) compared to Tmem30a^loxP/loxP littermate mice, indicating that the cerebrovascular system was not affected by Tmem30a deficiency. Moreover, Tmem30a FnKO mice was comparable to wild-type (WT) C57BL/6 mice in the Nissl and HE staining of hippocampus and neocortex.

Then, we explored the effect of focal ischemia on Tmem30a forebrain-specific knockouts. Previously, the striatum and hippocampus were considered as a representative core area and penumbra area, respectively, in rodent MCAO models [31].

In this study, eight out of nine Tmem30a FnKO mice exhibited a severe loss of hippocampal neurons, as compared with only one out of eight WT littermates and two out of nine Tmem30a^loxP/loxP mice after 60min MCAO and 24h reperfusion (Figure 5K). Moreover, Tmem30a FnKO mice also exhibited a larger infarct size in TTC staining after MCAO, as compared with their WT littermates and Tmem30a^loxP/loxP mice (Figure S8E, F). Therefore, compared to their WT littermates and Tmem30a^loxP/loxP mice, Tmem30a FnKO mice were more likely to have ischemia injury in forebrain areas.

Taken together, these multiple independent lines of evidence suggest that upregulation of Tmem30a will confer neurological benefits after stroke, but neurological benefits are notable in models of ischemia/reperfusion, not in those of permanent ischemia.

2.6 Tmem30a is Imperative for Neurological Benefits of Recombinant Annexin V

Both recombinant Annexin V and upregulating Tmem30a led to neurological benefits in ischemia/reperfusion models. Then, we further explored whether Tmem30a is necessary for penumbra protection due to Annexin V administration (PS blocking) after stroke.

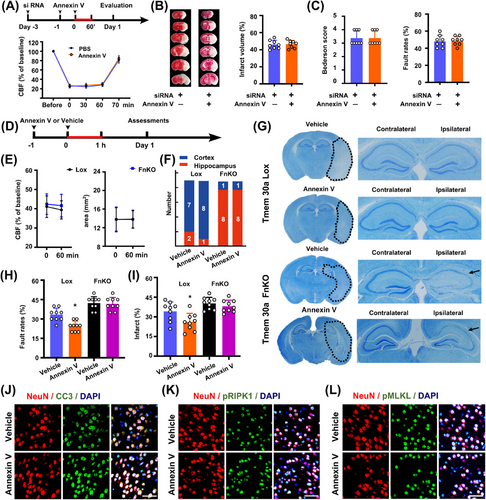

Intracerebroventricular injection of siRNA-Tmem30a decreased Tmem30a mRNA levels in cortex, increased infarct volumes, and exacerbated neurological scores in mouse models subjected to 60 min ischemia/24 h reperfusion, as compared with those receiving siRNA-NC (Figure 6A, Figure S9A–E). Then, we tested whether Annexin V administration could mitigate neurological damages in mice receiving siRNA-Tmem30a. However, Annexin V treatment could not reduce infarct sizes and improve neurological functions after 60 min ischemia/24 h reperfusion in mice receiving siRNA-Tmem30a pre-injection (Figure 6B, C). Moreover, injection of Annexin V could not reduce the number of TUNEL⁺ cells after 60 min ischemia/24 h reperfusion in mice receiving siRNA-Tmem30a pre-injection (Figure S9F, G).

These data suggest that neurological benefits of Annexin V treatment might be dependent on Tmem30a expression.

Furthermore, we administrated Annexin V in both Tmem30a FnKO and Tmem30a^loxP/loxP mice to find out whether Tmem30a is imperative for attenuating penumbra damages by reducing PS exposure after stroke. There were no significant differences in CBF levels and penumbra areas during the 60-min MCAO between the two groups based on LSI recordings (Figure 6D, E). But, Annexin V administration did not reduce the damage in hippocampus regions in Tmem30a FnKO mice, which were notably different from Tmem30a^loxP/loxP mice (Figure 6F, G). Additionally, Annexin V treatment only reduced infarct sizes and improved neurological scores 24 h after stroke in Tmem30a^loxP/loxP mice, while it did not do so in Tmem30a FnKO mice (Figure 6H, I). These findings further proved prevention of PS exposure by Annexin V is dependent on Tmem30a for neuroprotection after stroke.

Lastly, we also examined apoptosis and necroptosis markers in penumbra areas 24 h after 60min ischemia. We found that CC3⁺, pMLKL⁺, and pRIPK1⁺ neurons were decreased after Annexin V administration in Tmem30a^loxP/loxP mice, but there were no differences in CC3⁺, pMLKL⁺, and pRIPK1⁺ neurons in Tmem30a FnKO mice (Figure 6J–L, Figure S10A–C).

4.1 Study Population

The human study part 1 was carried out at Xuanwu Hospital Capital Medical University, one center in China, in compliance with the Declaration of Helsinki. We recruited 22 patients who had experienced their first ischemic stroke; both informed consent and the study methodology were approved by the institutional review board; the inclusion criteria were as follows: age ≥ 18 years; the patient had to have experienced their first ischemic stroke and present within 12 h of the onset of symptoms, which was defined by the “last known.” Neurologists also recruited 22 age-matched healthy controls from the patients' relatives, primarily spouses, to assess for cerebrovascular events.

The clinical human study part 2 was conducted at one center in the China (Xuanwu Hospital Capital Medical University) and performed in accordance with the principles of the Declaration of Helsinki. Both informed consent and the study methodology were approved by the institutional review board. Consecutive eligible patients, who suffered from a proximal arterial occlusion in the anterior circulation artery and were treated with endovascular treatment (EVT) within 6h after symptom onset, were enrolled.

The prerequisites for inclusion were as follows: 18 years of age or older; digital-subtraction angiography, computed tomographic angiography, or magnetic resonance angiography–detected acute ischemic stroke caused by blockage of the distal intracranial carotid artery, M1 or M2 segment of the middle cerebral artery, or A1 or A2 segment of the anterior cerebral artery; evaluation of the ischemic penumbra prior to EVT was done using computed tomographic perfusion or magnetic resonance perfusion; femoral artery puncture (EVT) was performed within 6 h of the onset of symptoms. The time the patient was last seen well was used to determine the onset of stroke symptoms [51, 52].

4.2 Animal Models

All animal treatments were carried out strictly in compliance with the National Institutes of Health's Care and Use of Laboratory Animals guidelines, and all experimental methods were authorized by Capital Medical University's Institutional Animal Investigation Committee. A total of 175 (21–22 g) male C57BL/6 mice were purchased from SiPeiFu Biotechnology Co. (Beijing, China) and 50 knockout male mice (21–22 g) from C57/BL6 background were provided by Professor Xianjun Zhu. Vital River Laboratory supplied 27 male SD rats weighing between 280 and 300 g. They were kept in clear cages (five or less per cage), free access to food and water, and an ambient temperature of 21–25°C and 40%–80% humidity. Wild-type SD rats were randomly assigned to sham (n = 10), tMCAO (n = 10), and AAV9-30A (n = 7), while knockout mice were randomly divided into TMEM30A Lox (n = 18), TMEM30A knockout (n = 18), and TMEM30A knockout plus Annexin V treatment (n = 14) groups.

The survival rate of permanent MCAO mice and the 7-day tMCAO models was approximately 50%. The survival rate of animal was 100% in other types of models.

Exclusion criteria were as follows: Penumbra areas were defined as CBF values approximately 30%–50% of the baseline values during the 60-min period. We operationally defined the core areas as perfusion deficits areas (< 50%) minus the penumbra areas. Excluded were any animals whose baseline LDF values did not significantly decrease to less than 30% during MCAO.

4.3 RNA-Sequencing Analysis for Penumbra Tissues of Rhesus Monkeys

4.4 Neurological Deficits

Longa score and 12-scoring scale were used for the analysis of neurological deficits in rats. Bederson score and Foot fault were examined for evaluation of neurological deficits in mice [53].

4.5 Bederson Score for Mouse Models

The Bederson score was used to assess neurological deficits during the acute phase of stroke [53]. In short, animals that exhibit forelimb bending without any other anomaly are classified as having Grade 1 (minor deficiencies). Animals with forelimb flexion and reduced resistance to lateral push toward the paretic side are classified as having Grade 2 (modest defects). Animals that exhibit circling behavior in addition are given a Grade 3 rating (severe defects). Grade 4 animals are those that rotate longitudinally after a stroke, while Grade 5 animals do not move.

4.6 Cell Viability Assay

At 24 h following OGD, cell viability was assessed using CCK8 (DojinDo, Tokyo, Japan) by observers who were blind to the experimental groups. In short, each culture well received 10 µL of CCK8 reagent, and the neurons were then treated for 2 h at 37°C. The absorbance reader (Thermo Scientific, MA, USA) was used to measure the absorbance at 450 nm. The percentage of the naive control was used to represent the neurons' vitality.

4.7 ELISA

In brief, both plasma and brain sample isolated and homogenized mechanically according to instruction. All procedures were based on instruction for Annexin V ELISA testing. The levels of Annexin V in tissue supernatants and plasma samples were assessed using an enzyme-linked immunosorbent assay Kit (Cloud-Clone Corp, Wuhan, China). Using a Varioskan LUX multi-function microplate reader (Thermo Scientific, MA, USA), the absorbance at 450 nm was determined. The standard curve of Annexin V was used to measure the samples' concentration.

4.8 Annexin V Treatment

Annexin V was purchased from Biovision and dissolved in PBS. Annexin V (1 mg/kg) or PBS was intravenously injected into wild-type mice, Tmem30a^loxP/loxP Tmem30a HnKO, once the day prior to MCAO onset. Another injection of Annexin V was given right before MCAO. To assess the putative therapeutic potential of Annexin V in stroke outcomes, we assessed the effect of PS blocker at different time points (0, 30, 60, and 90 min) after MCAO.

4.9 Statistical Analysis

We performed statistical analysis using SPSS 19.0. All data are shown as the mean ± SEM and were analyzed using either two-way ANOVA, one-way ANOVA followed by Bonferroni's post hoc test (for comparisons of more than two groups), or two-tailed Student's t test (for comparisons of two groups). At p < 0.05, differences were deemed significant.
