Volume 11, Issue 4 e818
REVIEW ARTICLE
Open Access

Interleukin-6 levels can be used to estimate cardiovascular and all-cause mortality risk in dialysis patients: A meta-analysis and a systematic review

Zeyu Chen

Corresponding Author

Zeyu Chen

Department of Cardiology, The First People's Hospital of Ziyang, Ziyang, China

Correspondence Zeyu Chen, Department of Cardiology, The First People's Hospital of Ziyang, 66 West Rende Rd, Yanjiang District, Ziyang 641300, Sichuan, China.

Email: [email protected]

Contribution: Conceptualization, Formal analysis, Supervision, Writing - review & editing

Search for more papers by this author
Yan Wang

Yan Wang

Department of Nephrology, The First People's Hospital of Ziyang, Ziyang, China

Contribution: Formal analysis, Methodology, Writing - original draft, Writing - review & editing

Search for more papers by this author
First published: 26 April 2023
Citations: 9

Zeyu Chen and Yan Wang contributed equally to this work.

Abstract

Background

Although previous studies have explored the correlation of interleukin (IL)−6 with mortality risk in dialysis patients, the findings have been conflicting. Hence, this meta-analysis aimed to comprehensively assess the use of IL-6 measurement for estimating cardiovascular mortality and all-cause mortality in dialysis patients.

Methods

The Embase, PubMed, Web of Science, and MEDLINE databases were searched to identify relevant studies. After screening out the eligible studies, the data were extracted.

Results

Twenty-eight eligible studies with 8370 dialysis patients were included. Pooled analyses revealed that higher IL-6 levels were related to increased cardiovascular mortality risk (hazard ratio [HR] = 1.55, 95% confidence interval [CI]: 1.20–1.90) and all-cause mortality risk (HR = 1.11, 95% CI: 1.05–1.17) in dialysis patients. Further subgroup analyses suggested that higher IL-6 levels were associated with elevated cardiovascular mortality in hemodialysis patients (HR = 1.59, 95% CI: 1.36–1.81) but not in peritoneal dialysis patients (HR = 1.56, 95% CI: 0.46–2.67). Moreover, sensitivity analyses indicated that the results were robust. Egger's test revealed potential publication bias among studies exploring the correlation of IL-6 levels with cardiovascular mortality (p = .004) and all-cause mortality (p < .001); however, publication bias was not observed when using Begg's test (both p > .05).

Conclusions

This meta-analysis reveals that higher IL-6 levels could indicate higher risks of cardiovascular mortality and all-cause mortality in dialysis patients. These findings suggest that monitoring IL-6 cytokine may help to enhance dialysis management and improve the general prognosis of patients.

1 INTRODUCTION

Dialysis, which is one option for kidney replacement therapy, is commonly applied among patients with end-stage kidney disease or acute kidney injury.1 Most patients require life-long maintenance dialysis and this number is increasing globally.2 Unfortunately, dialysis patients present with a high mortality rate due to multiple reasons.3, 4 Cardiovascular system-related issues are the most common causes of mortality among this group, accounting for 26.8%–40.2% of all deaths.5, 6 Hence, some novel biomarkers have been identified to estimate cardiovascular mortality in dialysis patients to improve their overall management.7-9

Interleukin 6 (IL-6), a pro-inflammatory cytokine with a 26 KDa molecular weight, is closely involved in regulating inflammation, atherosclerosis progression, and cardiovascular diseases.10-13 Moreover, an increasing number of studies have investigated the correlation of IL-6 with cardiovascular mortality in dialysis patients, but the findings have been inconsistent. For instance, several studies report that higher IL-6 levels are related to increased cardiovascular mortality risk in dialysis patients, while other studies do not observe this correlation.7, 14-17 Similarly, most studies report that increased IL-6 is related to all-cause mortality in dialysis patients, whereas some studies do not reach a similar conclusion.18-22 Therefore, it is necessary to pool these data and conduct a meta-analysis to obtain one confirmative conclusion.

Hence, this meta-analysis aimed to comprehensively investigate the potency of IL-6 measurement for estimating cardiovascular mortality risk and all-cause mortality risk in dialysis patients.

2 METHODS

2.1 Search strategy

To screen the studies that assessed the correlation of IL-6 with cardiovascular mortality and all-cause mortality in dialysis patients, we searched the Embase, PubMed, Web of Science, and MEDLINE databases from January 2000 to July 2022. The keywords used for searching were as follows: “interleukin-6,” “IL-6,” “interleukin 6,” “IL 6,” “mortality,” “death,” “survival,” “cardiovascular,” “CV,” “cardiac,” “myocardial infarction,” “dialysis,” “hemodialysis,” “HD,” “peritoneal dialysis,” and “PD.”

2.2 Study selection

Study screening was carried out independently by two researchers. First, the studies were searched using a predesigned information extraction form, and then the titles and abstracts were assessed. Second, the full-text articles that satisfied the inclusion criteria were downloaded, checked, and validated. Next, studies that met the exclusion criteria were eliminated, with the reasons for exclusion were noted. Finally, the ability to extract data from the included studies was established. The reference lists of the included studies were also examined and to identify additional eligible studies. A consultation with a third investigator was conducted in cases of dispute.

Studies that met the following criteria were considered eligible: (a) study focused on the correlation of IL-6 with cardiovascular mortality and all-cause mortality; (b) patients received dialysis (hemodialysis or peritoneal dialysis); (c) patients were over 18 years old; (d) study had extractable and analyzable data; and (e) had at least 1 year of follow-up. Studies were excluded based on the following criteria: (a) non-English study; (b) systematic review, meta-analysis, case study, case report, or animal study; and (c) duplicated study.

2.3 Data extraction

The data extraction was completed independently by two researchers, and in the event of a dispute, a consultation with a third researcher was performed. The extracted data included author name, publication year, sample size, patient age, dialysis type, cardiovascular mortality,7, 14-17, 23-26 and all-cause mortality.15, 17-23, 27-40 In addition, the hazard ratio (HR), as well as the 95% confidence intervals (CI), of IL-6 level with cardiovascular mortality and all-cause mortality were also collected.

2.4 Statistics

Data analysis and figure construction were completed using Stata (v.14.0, StataCorp). The methodological index for nonrandomized studies tool was used for quality assessment of the included studies, which involved eight dimensions and has a score ranging from 0 to 16.41 The Cochrane χ2 test was used for heterogeneity analysis: the fixed effects model was used when the heterogeneity was not statistically significant (I2 ≤ 50.0% and p ≥ .05), whereas the random effects model was used in cases of significant heterogeneity (I2 > 50.0% and p < .05).42 Sensitivity analysis was carried out to assess the robustness of the data and to identify sources of heterogeneity: the statistical analyses were performed after excluding one study at a time and then the results were compared with the previous analyses. Egger's test and Begg's test were conducted to evaluate publication bias, and p < .05 for either test indicated potential publication bias.

3 RESULTS

3.1 Study screening and selection

Initially, 1824 studies were retrieved from the online databases. Then, 728 duplicate studies were excluded. Subsequently, 1096 studies were screened, among which 1004 studies were excluded after title and abstract screening. Then, 92 full-text articles were assessed for eligibility, among which 64 articles were excluded due to the absence of relevant data. Finally, 28 studies with 8370 patients were included in this meta-analysis (Figure 1).

Details are in the caption following the image
Study screening and selection process.

3.2 Characteristics of the included studies

The key information of the included studies is listed in Table 1. Subsequently, a quality assessment was conducted on these included studies (Table 2). The total quality assessment score of the included studies ranged from 12 to 14, indicating a high quality of the included studies.

Table 1. Details of the included studies.
No. Author Publication year Continent Sample size, n Age (years), mean ± SD Dialysis type Outcomes
1 Roberto Pecoits-Filho27 2002 Europe 173 53.0 ± 1.0 Hemodialysis or peritoneal dialysis All-cause mortality
2 C Löwbeer18 2003 Europe 115 52.0 ± 1.0 Hemodialysis or peritoneal dialysis All-cause mortality
3 Kamyar Kalantar-Zadeh28 2004 America 378 54.5 ± 14.7 Hemodialysis All-cause mortality
4 Hirokazu Honda7 2006 Europe 176 54.0 ± 12.0 Hemodialysis or peritoneal dialysis Cardiovascular mortality
5 Rulan S Parekh14 2008 America 1041 57.9 ± 15.0 Hemodialysis or peritoneal dialysis Cardiovascular mortality
6 Madhumathi Rao29 2008 America 182 62.2 ± 12.3 Hemodialysis All-cause mortality
7 Maria A Pachaly30 2008 America 112 47.0 ± 14.0 Hemodialysis All-cause mortality
8 James B Wetmore31 2008 America 236 62.7 ± 4.3 Hemodialysis All-cause mortality
9 Angela Yee-Moon Wang15 2009 Asia 231 55.5 ± 16.3 Peritoneal dialysis Cardiovascular mortality, all-cause mortality
10 Seung Hyeok Han16 2009 Asia 107 51.5 ± 11.2 Peritoneal dialysis Cardiovascular mortality
11 Yukiko Hasuike32 2009 Asia 120 52.1 ± 0.9 Hemodialysis All-cause mortality
12 lia Beberashvili19 2010 Asia 81 64.3 ± 11.9 Hemodialysis All-cause mortality
13 Nazanin Noori33 2011 America 279 54.0 ± 15.0 Hemodialysis All-cause mortality
14 Vincenzo Panichi34 2011 America 753 60.0 ± 15.0 Hemodialysis All-cause mortality
15 Giovanni Tripepi35 2011 Europe 225 53.7 ± 16.3 Hemodialysis All-cause mortality
16 Wookyung Chung36 2012 Asia 100 53.0 ± 13.0 Hemodialysis All-cause mortality
17 Katarzyna Janda23 2013 Europe 55 53.0 ± 13.0 Peritoneal dialysis Cardiovascular mortality, all-cause mortality
18 Julie Calixto Lobo24 2013 America 45 54.6 ± 14.8 Hemodialysis Cardiovascular mortality
19 Mark Lambie37 2013 America 959 55.6 ± 15.3 Peritoneal dialysis All-cause mortality
20 Shelly Lichtenberg38 2015 Asia 57 62.9 ± 16.1 Hemodialysis All-cause mortality
21 Jia Sun17 2016 Europe 543 54.4±NA Hemodialysis or peritoneal dialysis Cardiovascular mortality, all-cause mortality
22 Cesar Flores Gama20 2017 America 153 60.5 ± 14.7 Hemodialysis All-cause mortality
23 Tobias Feldreich25 2018 Europe 228 63.0 ± 14.0 Hemodialysis Cardiovascular mortality
24 Li-Rong Yu21 2018 America 1124 61.6 ± 14.5 Hemodialysis or peritoneal dialysis All-cause mortality
25 Le Viet Thang26 2019 Asia 236 44.5 ± 14.7 Hemodialysis Cardiovascular mortality
26 Zanzhe Yu22 2019 America 257 55.0 ± 14.9 Peritoneal dialysis All-cause mortality
27 Neil Roy39 2021 America 96 50.4 ± 12.8 Hemodialysis or peritoneal dialysis All-cause mortality
28 Susana Rocha40 2021 Europe 308 68.7 ± 13.6 Hemodialysis All-cause mortality
  • Abbreviation: NA, not available.
Table 2. Quality assessment.
Studies A clearly stated aim Inclusion of consecutive patients Prospective collection of data Endpoints appropriate to the aim of the study Unbiased assessment of the study endpoint Follow-up period appropriate to the aim of the study Loss of follow-up < 5% Prospective calculation of the study size Total
Pecoits-Filho27 2 1 2 2 2 2 2 0 13
Löwbeer et al.18 2 2 2 2 2 1 2 0 13
Kalantar-Zadeh et al.28 2 1 2 2 2 2 2 0 13
Honda et al.7 2 1 2 2 2 2 2 0 13
Parekh et al.14 2 1 2 2 2 1 2 0 12
Rao et al.29 2 1 2 2 2 1 2 0 12
Pachaly et al.30 2 1 2 2 2 2 2 0 13
Wetmore et al.31 2 1 2 2 2 2 2 0 13
Wang et al.15 2 1 2 2 2 1 2 0 12
Han et al.16 2 1 2 2 2 2 2 0 13
Hasuike et al.32 2 2 2 2 2 2 2 0 14
Beberashvili et al.19 2 1 2 2 2 2 2 0 13
Noori et al.33 2 1 2 2 2 2 2 0 13
Panichi et al.34 2 2 2 2 2 2 2 0 14
Tripepi et al.35 2 1 2 2 2 1 2 0 12
Chung et al.36 2 1 2 2 2 1 2 0 12
Janda et al.23 2 2 2 2 2 2 2 0 14
Lobo et al.24 2 1 2 2 2 2 2 0 13
Lambie et al.37 2 1 2 2 2 2 2 0 13
Lichtenberg et al.38 2 1 2 2 2 2 2 0 13
Sun et al.17 2 2 2 2 2 2 2 0 14
Gama et al.20 2 1 2 2 2 1 2 0 12
Feldreich et al.25 2 1 2 2 2 2 2 0 13
L-R Yu et al.21 2 2 2 2 2 2 2 0 14
Thang et al.26 2 1 2 2 2 2 2 0 13
Z Yu et al.22 2 2 2 2 2 2 2 0 14
Roy et al.39 2 1 2 2 2 1 2 0 12
Rocha et al.40 2 2 2 2 2 1 2 0 13

3.3 Correlation of IL-6 with cardiovascular mortality

There was heterogeneity among published articles regarding the relationship between IL-6 and cardiovascular mortality in dialysis patients (I2 = 76.9%).7, 14-17, 23-26 Furthermore, the pooled analysis showed that higher IL-6 levels were related to increased cardiovascular mortality risk in dialysis patients (HR: 1.55, 95% CI: 1.20–1.90) (Figure 2). Subgroup analyses stratified by different dialysis modalities showed that IL-6 could predict cardiovascular mortality risk in hemodialysis or peritoneal dialysis patients (HR: 1.70, 95% CI: 1.12–2.29) and hemodialysis patients (HR: 1.59, 95% CI: 1.36–1.81) but not in peritoneal dialysis patients (HR: 1.56, 95% CI: 0.46–2.67) (Figure 3).

Details are in the caption following the image

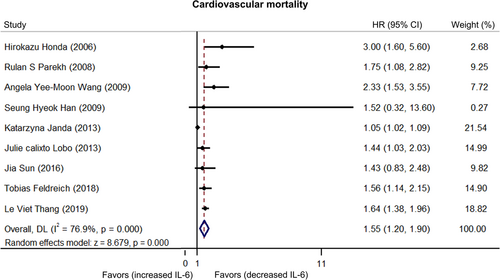

Higher interleukin-6 (IL-6) related to increased cardiovascular mortality risk. If the finally calculated hazard ratio (HR) value and its corresponding 95% confidence interval (CI) located in the side of “favors (increased IL-6),” then it favored that increased IL-6 was correlated with lower cardiovascular mortality. On the contrary, if the finally calculated HR value and its corresponding 95% CI located in the side of “favors (decreased IL-6),” it favored that decreased IL-6 was correlated with lower cardiovascular mortality.
Details are in the caption following the image

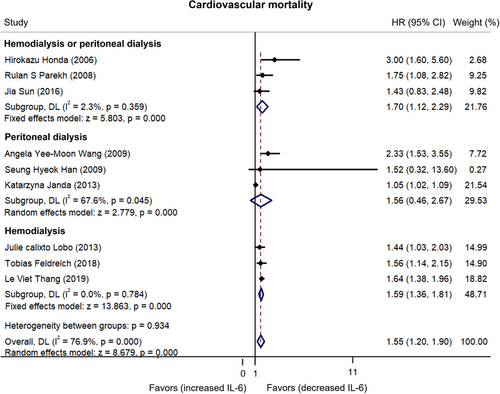

Subgroup analyses of cardiovascular mortality. If the finally calculated hazard ratio (HR) value and its corresponding 95% confidence interval (CI) located in the side of “favors (increased IL-6),” then it favored that increased interleukin-6 (IL-6) was correlated with lower cardiovascular mortality. On the contrary, if the finally calculated HR value and its corresponding 95% CI located in the side of “favors (decreased IL-6),” it favored that decreased IL-6 was correlated with lower cardiovascular mortality.

3.4 Correlation of IL-6 with all-cause mortality

Heterogeneity existed among published articles regarding the relationship between IL-6 and all-cause mortality in dialysis patients (I2 = 66.9%).15, 17-23, 27-40 Moreover, pooled data showed that higher IL-6 levels were related to increased all-cause mortality in dialysis patients (HR: 1.11, 95% CI: 1.05–1.17) (Figure 4). Subgroup analyses stratified by different dialysis modalities revealed that increased IL-6 levels were related to elevated all-cause mortality risk in hemodialysis or peritoneal dialysis patients (HR: 2.09, 95% CI: 1.36–2.83) and hemodialysis patients (HR: 1.12, 95% CI: 1.04–1.20) but not in peritoneal dialysis patients (HR: 1.83, 95% CI: 0.90–2.76) (Figure 5). To clarify why IL-6 was only correlated with cardiovascular mortality and all-cause mortality risk in hemodialysis patients but not in peritoneal dialysis patients, we performed sensitivity analysis. The results revealed that IL-6 predicted cardiovascular mortality (HR: 2.312, 95% CI: 1.313–3.310) and all-cause mortality (HR: 2.330, 95% CI: 1.528–3.133) in peritoneal dialysis patients after excluding the study carried out by Janda et al.23 (Supporting Information: Table 1).

Details are in the caption following the image

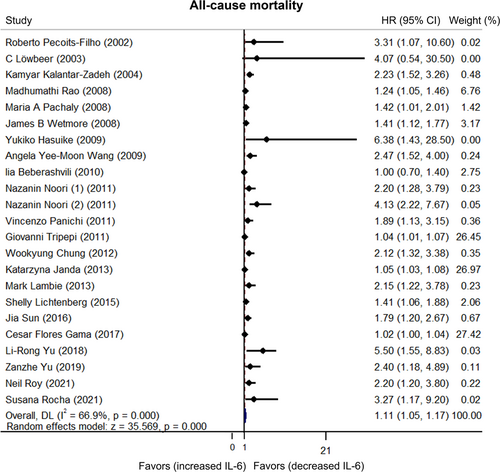

Higher interleukin-6 (IL-6) linked with increased all-cause mortality risk. If the finally calculated hazard ratio (HR) value and its corresponding 95% confidence interval (CI) located in the side of “favors (increased IL-6),” then it favored that increased IL-6 was correlated with lower all-cause mortality risk. On the contrary, if the finally calculated HR value and its corresponding 95% CI located in the side of “favors (decreased IL-6),” it favored that decreased IL-6 was correlated with lower all-cause mortality risk.
Details are in the caption following the image

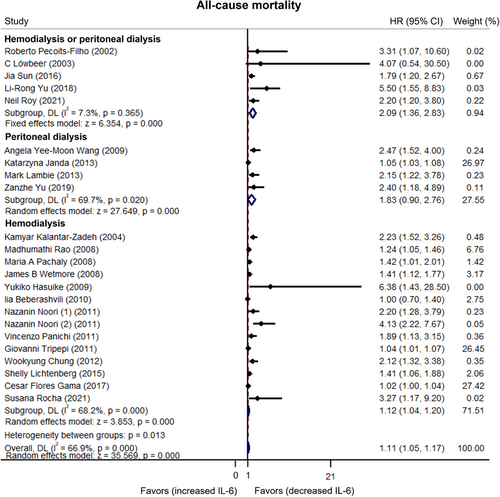

Subgroup analyses of all-cause mortality. If the finally calculated hazard ratio (HR) value and its corresponding 95% confidence interval (CI) located in the side of “favors (increased IL-6),” then it favored that increased interleukin-6 (IL-6) was correlated with lower all-cause mortality risk. On the contrary, if the finally calculated HR value and its corresponding 95% CI located in the side of “favors (decreased IL-6),” it favored that decreased IL-6 was correlated with lower all-cause mortality risk.

3.5 Sensitivity and publication bias

Sensitivity analyses were conducted, and it was observed that the HR did not change obviously after excluding studies individually, thus indicating the robustness of our results (Table 3). Moreover, Egger's test and Begg's test were conducted to evaluate publication bias. The results of Egger's test indicated that there was potential publication bias for cardiovascular mortality (p = .004) and all-cause mortality (p < .001), but these findings were not significant according to Begg's test (both p > .05) (Table 4).

Table 3. Sensitivity analysis.
Omitted study HR 95% CI
Lower Upper
Cardiovascular mortality
Honda et al.7 1.506 1.162 1.849
Parekh et al.14 1.531 1.162 1.899
Wang et al.15 1.476 1.133 1.819
Han et al.16 1.553 1.198 1.909
Janda et al.23 1.631 1.426 1.835
Lobo et al.24 1.582 1.183 1.981
Sun et al.17 1.570 1.191 1.949
Feldreich et al.25 1.555 1.166 1.944
Thang et al.26 1.519 1.143 1.896
All-cause mortality
Pecoits-Filho27 1.108 1.047 1.169
Löwbeer et al.18 1.109 1.048 1.171
Kalantar-Zadeh et al.28 1.096 1.039 1.154
Rao et al.29 1.096 1.035 1.158
Pachaly et al.30 1.103 1.042 1.164
Wetmore et al.31 1.094 1.035 1.154
Wang et al.15 1.101 1.042 1.159
Hasuike et al.32 1.109 1.048 1.170
Beberashvili et al.19 1.113 1.050 1.176
Noori et al.33 1.103 1.043 1.163
Noori et al.33 1.102 1.044 1.161
Panichi et al.34 1.104 1.044 1.164
Tripepi et al.35 1.171 1.085 1.257
Chung et al.36 1.101 1.042 1.161
Janda et al.23 1.185 1.092 1.277
Lambie et al.37 1.104 1.044 1.164
Lichtenberg et al.38 1.100 1.039 1.160
Sun et al.17 1.101 1.041 1.160
Gama et al.20 1.198 1.105 1.292
L-R Yu et al.21 1.102 1.043 1.160
Z Yu et al.22 1.106 1.045 1.166
Roy et al.39 1.104 1.044 1.164
Rocha et al.40 1.108 1.047 1.169
  • Abbreviations: CI, confidence interval; HR, hazard ratio.
Table 4. Publication bias.
Items Begg's test Egger's test
Cardiovascular mortality 1.000 0.004
All-cause mortality 0.958 <0.001

4 DISCUSSION

Inconsistent findings regarding the correlation of IL-6 with cardiovascular mortality in dialysis patients have been observed.7, 14-17 For instance, the majority of studies report that higher IL-6 levels are related to increased cardiovascular mortality risk in dialysis patients.7, 14, 15 However, a small proportion of studies also disclose that higher IL-6 levels are not related to cardiovascular mortality risk in these patients.16, 17 Therefore, this meta-analysis was conducted, and pooled results from nine publications indicated that higher IL-6 levels could indicate increased cardiovascular mortality risk in dialysis patients. The possible mechanism of this effect may be that (1) IL-6 binds to its receptor IL-6R and gp130 to further activate multiple signaling pathways (such as the Janus kinase/signal transduction and activator of transcription pathway, mitogen-activated protein kinase pathway, and phosphatidylinositol 3-kinase/protein kinase-B pathway) to promote the development of atherosclerosis and chronic inflammation, which serve as key pathophysiological events for subsequent myocardial infarction and cardiovascular mortality in dialysis patients.43-47 (2) IL-6 might also cause sudden cardiac death (SCD) through other mechanisms such as acting with direct electrophysiological effects. In detail, Inflammatory cytokines including the IL-6 could regulate the sympathetic tone and lead to poor heart rate variability, tachycardia, and cardiac electrical instability, contributing to SCD.48, 49 Hence, increased IL-6 levels were related to elevated cardiovascular mortality risk in dialysis patients in our pooled analysis.

Apart from cardiovascular mortality, the predictive value of IL-6 in estimating all-cause mortality in dialysis patients has also remained unclear. Although most studies report that increased IL-6 is associated with higher all-cause mortality risk in dialysis patients, two studies do not reach the same conclusion.18-22 Instead, they revealed that higher IL-6 levels are not related to all-cause mortality risk in dialysis patients.18, 19 In the present meta-analysis, our pooled data showed that IL-6 could forecast all-cause mortality risk in dialysis patients, which could be explained as follows: (1) increased IL-6 indicates an upregulation of inflammatory status in dialysis patients, which could be attributed to infection (including catheter-related infection, peritonitis, bloodstream infection, and so on), metabolic syndrome, and severe pneumonia; these factors could lead to mortality in dialysis patients.50-54 (2) IL-6 is related to cardiovascular mortality, as shown in a previous analysis, which is also a strong contributor to all-cause mortality. Therefore, higher IL-6 levels were associated with elevated all-cause mortality in dialysis patients in our pooled analysis.

The mortality rate may differ in dialysis patients with different dialysis modalities. Several studies have reported a higher all-cause mortality risk in hemodialysis patients than in peritoneal dialysis patients.6, 55 However, another study reports that dialysis modality is not associated with the mortality rate in patients with heart failure.56 One meta-analysis reports a similar mortality rate between patients undergoing hemodialysis and patients undergoing peritoneal dialysis.57 To determine the potency of IL-6 measurement in patients who received different dialysis modalities, subgroup analyses were performed. The findings indicated that IL-6 could estimate both cardiovascular risk and all-cause mortality risk in hemodialysis patients and mixed type dialysis patients but not in peritoneal dialysis patients (IL-6 was a nonsignificant predictor of mortality risk in peritoneal dialysis patients). These interesting findings may be explained as follows. The study carried out by Janda et al.23 weighed heavily in the subgroup, which may inhibit IL-6 from predicting cardiovascular mortality and all-cause mortality in peritoneal dialysis patients; therefore, further studies with a larger sample size could be carried out to verify this finding. Apart from that, another reason for the discriminatory finding regarding the correlation of IL-6 with the mortality between hemodialysis and peritoneal dialysis patients was that: patients with hemodialysis might undergo higher IL-6 levels compared with those patients receiving the peritoneal dialysis according to the previous study,58 which implicated that intrinsic IL-6 was of more dysregulated in hemodialysis patients compared with the peritoneal dialysis patients. It might result in more cardiovascular-related death events and a stronger correlation (IL-6 with cardiovascular mortality) in hemodialysis patients.

In our study, Egger's test revealed potential publication bias, which could be explained by the fact that we extracted data from Cox's regression model analyses in these published articles, and researchers might only report significant results rather than nonsignificant results. Therefore, publication bias affected our study and served as one of the major limitations. Other inherent limitations of meta-analyses also affected the current study, such as the existence of heterogeneity, thereby limiting the generalizability of our findings. Additionally, most included studies in the current meta-analysis were observational in nature; thus, some confounding factors might still exist and the actual risk could be underestimated.

In conclusion, our pooled data from this meta-analysis indicate that higher IL-6 levels could estimate the risk of cardiovascular mortality and all-cause mortality in dialysis patients. These findings indicate that monitoring IL-6 may be helpful for enhancing dialysis management and improving general prognosis of patients.

AUTHOR CONTRIBUTIONS

Zeyu Chen: Conceptualization (lead); supervision (lead); formal analysis (equal); writing – review and editing (equal). Yan Wang: Methodology (lead); formal analysis (lead); writing – original draft (lead); writing – review and editing (equal).

ACKNOWLEDGMENTS

We appreciate Ruoyu Deng for his contribution to this work when the comments of the two researchers were not compliant with each other.

    CONFLICT OF INTEREST STATEMENT

    The authors declare no conflict of interest.

    DATA AVAILABILITY STATEMENT

    The data sets generated and/or analyzed during the current study are available from the corresponding author on reasonable request.
