1 INTRODUCTION

Venous thromboembolism clinically manifested as deep vein thrombosis or pulmonary embolism.^{1, 2} It is globally the third major cause of acute cardiovascular death² as a major health problem. Rapid and accurate diagnosis is crucial for the clinical management of patients with acute pulmonary embolism (APE). However, APE encompasses a wide clinical spectrum of severity,^{3, 4} ranging from asymptomatic disease to hemodynamic instability and shock. Due to the nonspecific clinical signs and symptoms, a diagnosis of APE is frequently extremely challenging.³

In patients with suspected PE, multidetector computed tomographic pulmonary angiography (CTPA) is the preferred method for imaging the pulmonary vasculature.¹ Echocardiography examination is not a routine diagnostic procedure in hemodynamic stable APE patients,⁵ but might detect an increase in right ventricular wall thickness or a jet velocity of tricuspid insufficiency beyond values compatible with acute right ventricular pressure overload.⁶ In addition to these indirect signs, emboli in the pulmonary artery may occasionally be found in certain nonstandard echocardiographic views.¹ Herein, we report 1 case of intermediate-risk APE patient with visualized pulmonary arterial thrombus by transthoracic echocardiography (TTE).

2 CASE PRESENTATION

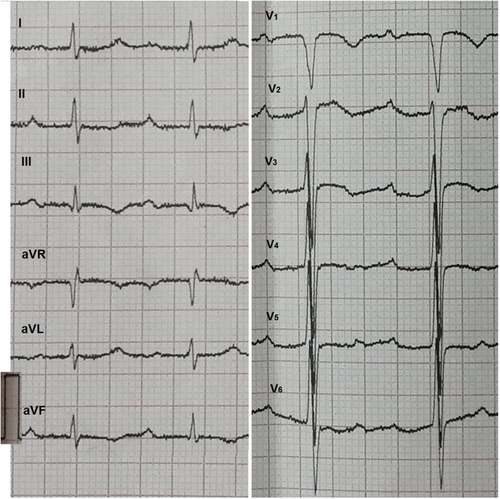

A 74-year-old man was admitted to our hospital with a 12-day history of decreased exercise capacity and dyspnea. At presentation, he was afebrile with a blood pressure of 130/110 mmHg, heart rate of 80/min, and respiratory rate of 20/min. The physical examination was within normal limits. Electrocardiography showed sinus rhythm with first-degree atrioventricular block, S wave in lead I, q wave and inverted T wave in lead III (Figure 1). Laboratory evaluation was significant for elevated D-dimer of 4450.08 ng/ml and brain natriuretic peptide level of 4398 ng/L. Complete blood count and coagulation studies were within normal limits. TTE was performed, and right ventricular (RV) dysfunction was defined as dilatation of the right ventricle (right/left ventricle diameter ratio 1.2 in the apical four-chamber view) combined with elevated systolic gradient through the tricuspid valve (53 mmHg), lack of relevant left ventricular (LV) dysfunction or valvular heart disease. Further evaluation with TTE revealed a pulmonary artery clot of about 19 × 32 mm seen at the right pulmonary artery, 21 mm from the bifurcation of the pulmonary artery (Figure 2A,B, Video S1, S2). Meanwhile, venous Doppler studies of bilateral lower extremities showed right popliteal vein thrombosis. Computed tomography pulmonary angiography (CTPA) revealed several pulmonary emboli in right pulmonary artery (Figure 2C). The patient was diagnosed with intermediate-risk APE as systemic systolic blood pressure on admission ≥90 mmHg with echocardiographic right ventricular overload and elevated serum levels of BNP. The patient was started on anticoagulation with low molecular weight heparin and oral warfarin. TTE was re-evaluated after 11 days, the RV diameter was decreased combined with pulmonary artery thrombus decreased to 10 ×13 mm (Figure 2D,E, Video S3, S4). The systolic gradient through the tricuspid valve was 43 mmHg. The patient showed significant clinical improvement and was discharged home after being transitioned to oral warfarin.

3 DISCUSSION

Direct and effective observation of pulmonary arterial thrombus in echocardiography is helpful for immediate diagnosis and appropriate treatment, especially when CTPA is not available rapidly and in pregnant patients or other situations warranting avoidance of radiation. It is very unusual to visualize a pulmonary artery thrombus in TTE. Therefore, we expect to improve the current TTE diagnosis of APE through the modified view mentioned in this case report.

3.2 The modified echocardiography view

TTE views recommended in current guidelines include parasternal long-axis view, four-chamber view, parasternal short axis view, and subcostal view.¹ These views can clearly evaluate the right ventricular pressure overload and dysfunction caused by APE, but the detection of thrombus with farther pulmonary artery bifurcation is insufficient.

In this case report, we recommend a modified right parasternal view, which allows real visualization of the thrombosis in pulmonary arteries. We demonstrate how TTE permits to obtaining the view, this requires tilting the patient into a steep left lateral decubitus position. First, two-dimensional echocardiograms of the parasternal long-axis view were obtained. Then, right pulmonary artery view was obtained by placing the transducer inclination 30–45 degrees to the chest wall at the second intercostal space immediately to the right of the sternum (Figure 3).

The modified view provides the unique opportunity to view the ascending aorta and distal right pulmonary artery by placing the transducer inclination 30–45 degrees to the chest wall at the second intercostal space immediately to the right of the sternum. It can directly observe the pulmonary artery farther away, increasing the possibility of thrombosis being found. Thus, the view could be included in the routine TTE of APE or in echocardiographic screening of suspected PE such as acute chest pain patients. This may provide assistance for detection and formulation of treatment strategies, especially when CTPA cannot be performed immediately.

4 CONCLUSION

A modified TTE view could provide correct diagnosis by identifying the clot size and location visually. Knowledge of the echocardiography results of APE would aid the diagnosis.
