![[Figure 7]](/d/issues/2025/07/00/wa5151/wa5151fig7mag.jpg)
|

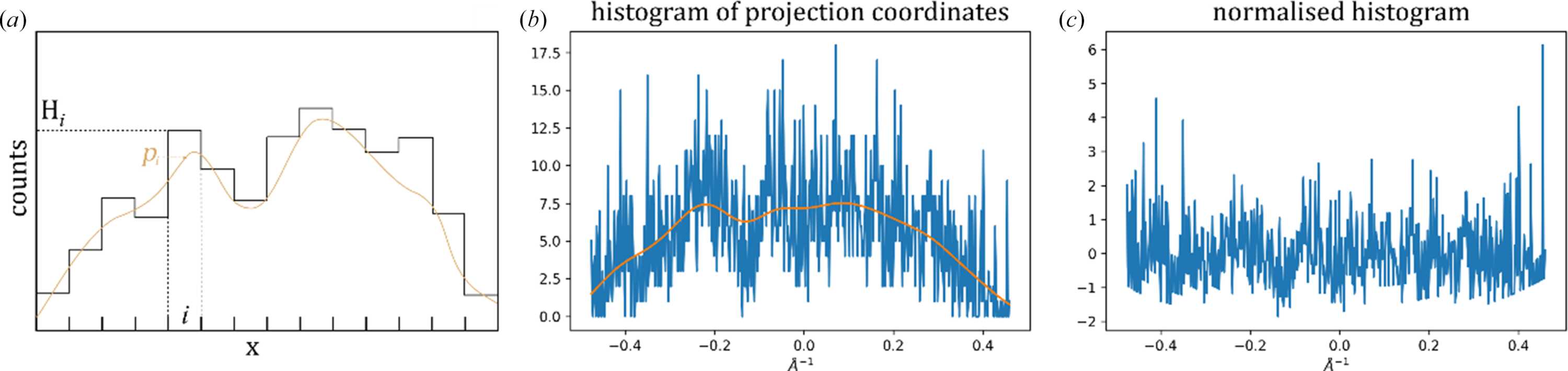

| Figure 7 Histogram-normalization procedure. (a) Schematic illustration of a sample histogram with the number of counts Hi in the ith bin. We use a Gaussian filter (see text) to make a smooth averaging of the histogram (pi, shown in brown), which is then used for histogram normalization (see equation 6 ![[link]](https://journals.iucr.org/logos/arrows/d_arr.gif){kind=small} ). (b) A sample histogram from mesh-scan diffraction data; the orange line indicates a
smooth moving average of the histogram. (c) The normalized histogram from (b), using the moving average as the offset and its square root as a scale factor (see
equation 6). |
![[Figure 7]](https://journals.iucr.org/10.1107/S2059798325005145/wa5151fig7.jpg)
 |
