![[Figure 6]](/d/issues/2025/07/00/wa5151/wa5151fig6mag.jpg)
|

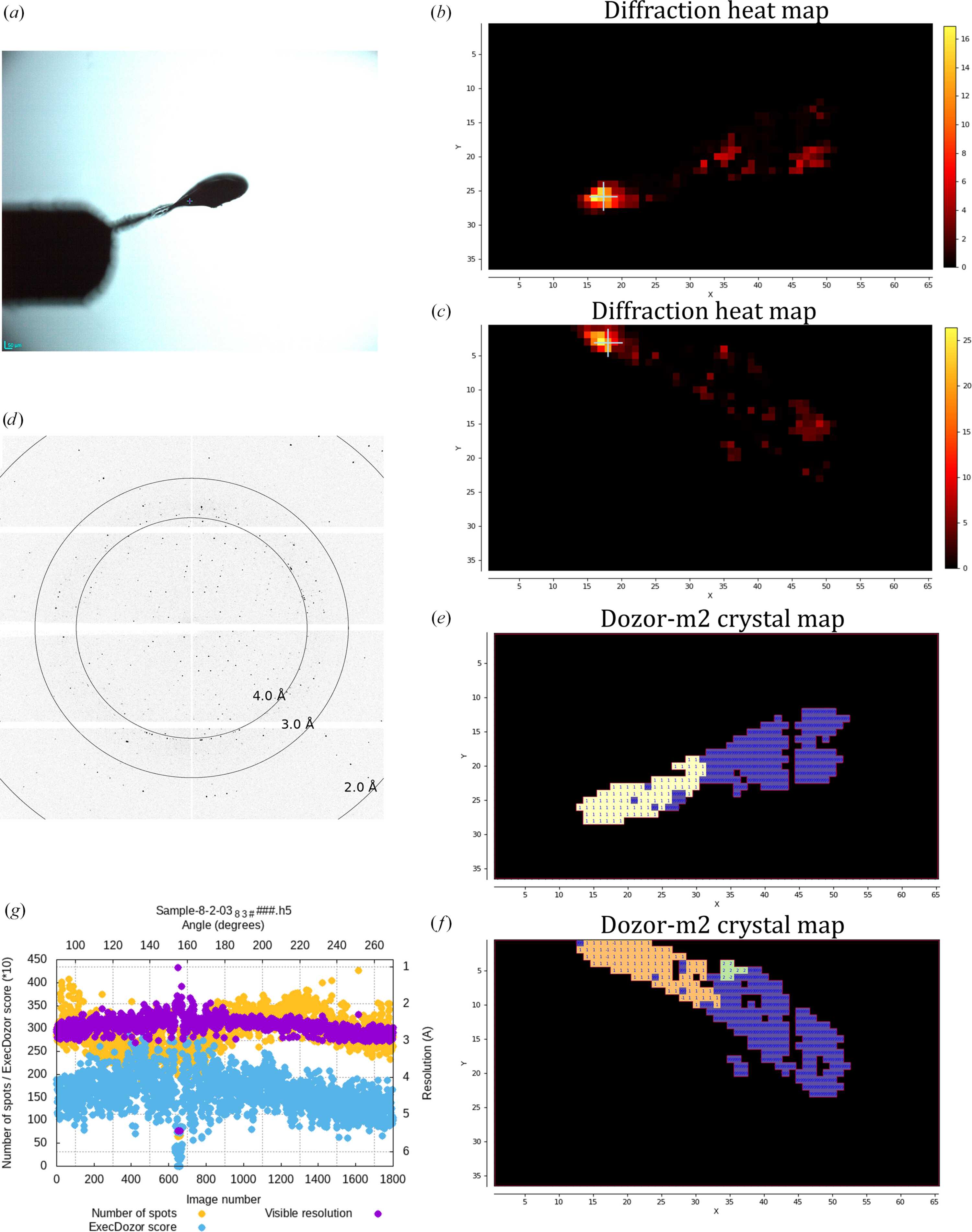

| Figure 6 Data collection from a crystal of thermolysin diffracting to moderate resolution (∼2.5 Å). (a) A snapshot of a sample holder containing the crystal. (b, e) Two diffraction heat maps of the mesh scans separated by 90° of sample rotation. X and Y are the two axes of the scan; X is parallel to the goniometer rotation axis, whereas Y is the laboratory vertical axis. Units on the axes are scan steps, which are equal to the beam size (10 µm). (c, f) Two crystal maps for the mesh scans generated by Dozor-m2. Different colours are used to show distinct crystal areas, which are arbitrarily numbered, and the numbers are shown for each pixel; regions with overlapping diffraction patterns or contaminated by salt diffraction are shown in violet and numbered 999. (d) A sample diffraction image from the mesh scans. (g) Data-collection plot for the position selected by the method. |
![[Figure 6]](https://journals.iucr.org/10.1107/S2059798325005145/wa5151fig6.jpg)
 |
