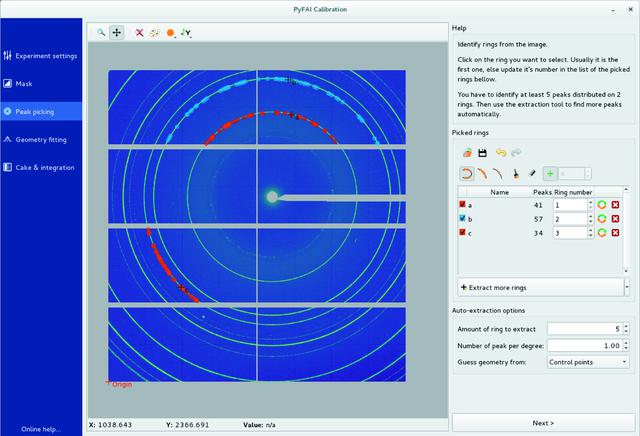

Figure 4

The peak-picking tool automatically selects a group of contiguous local maxima in the image close to the clicked peak which then needs to be assigned to the correct calibrant ring number in the right-hand side panel.


Journal logo JOURNAL OF

SYNCHROTRON

RADIATION
ISSN: 1600-5775
Volume 27| Part 2| March 2020| Pages 558-566

https://doi.org/10.1107/S1600577520000776
