2.1 Experimental Design

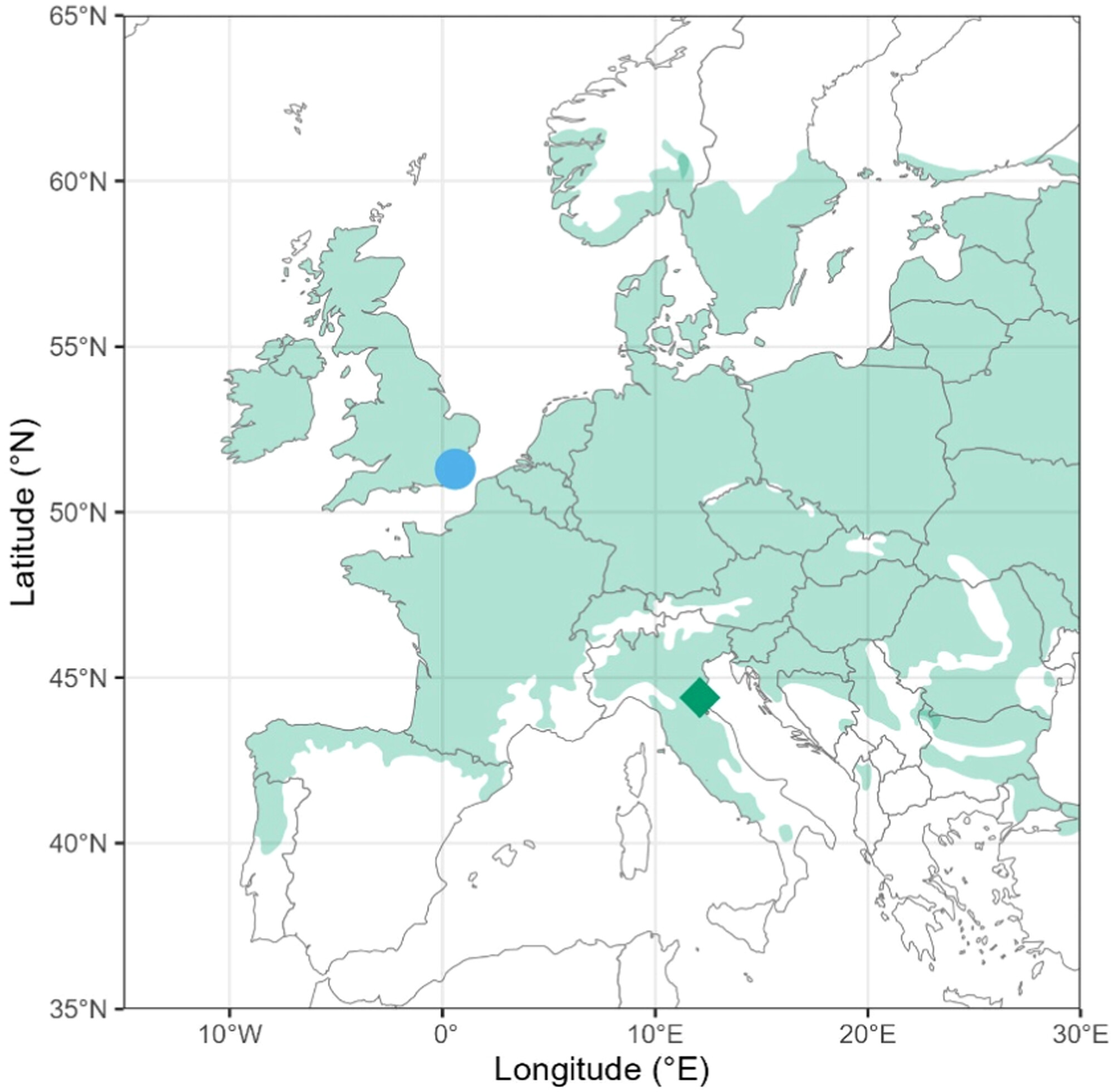

The Climate Match experimental trial at Hucking in Kent, South East England (51.29 N, 0.63 E), was established in 2011 (Barsoum 2015). The experimental trial was planted with 3-year-old saplings of European ash (Fraxinus excelsior), pedunculate oak (Q. robur), sweet chestnut (Castanea sativa) and wild cherry (Prunus avium). Trees of three provenances—local, French and Italian—were planted in the experiment, with French and Italian trees selected from nurseries in warmer and drier regions of continental Europe, which represent climatic conditions expected to match the climate of the United Kingdom by the years 2050 and 2080, respectively (Figure 1, Barsoum 2015). Sweet chestnut is an introduced species in the United Kingdom, so it was only represented by French and Italian provenances in the experiment. The entire experimental trial area is protected from mammalian herbivore damage by fencing and for several years following planting each tree had a protective vole guard.

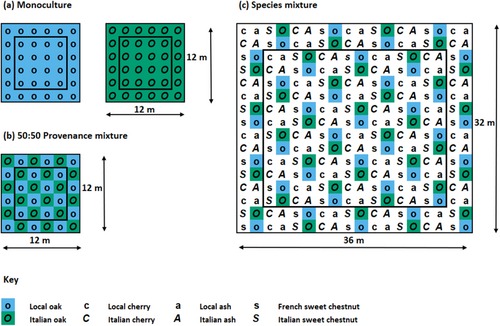

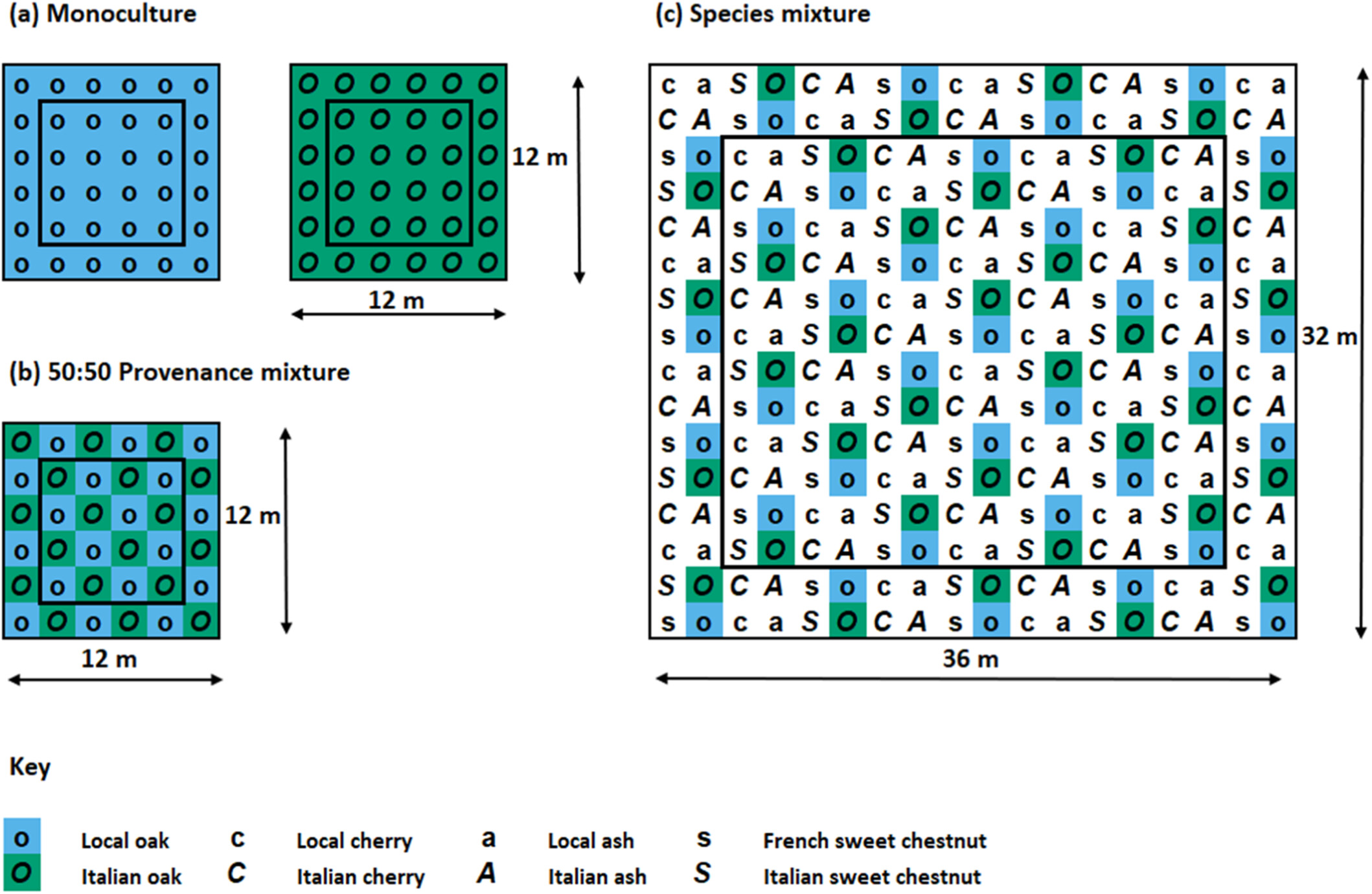

The experiment consists of trees planted 2 m apart in 12 × 12 m monoculture and provenance mixtures plots, as well as in 36 × 32 m species mixture plots containing local and Italian provenance trees of all four species (except sweet chestnut, which is instead represented by French and Italian trees; Figure 2). A regular planting pattern was used in all plots, which were replicated three times across adjacent blocks (Barsoum 2015).

The ash dieback fungus Hymenoscyphus fraxineus has been present in the United Kingdom since at least 2012 and is abundant in southeast England (Mitchell et al. 2014). By the time our fieldwork was conducted in the summer of 2021, ash dieback had caused a very high rate of mortality among the ash trees at the Kent experimental site, causing the near-complete absence of ash within species mixture plots. As a result, species mixture plots only contained three species and tree density in these plots was often lower than in monoculture and provenance mixture plots.

2.2 Tree Selection

Fieldwork was conducted in late June to early July of 2021 when the short-shoot leaves (i.e., leaves which had emerged during spring budburst rather than lammas shoots which only emerge in summer) on all oaks were fully expanded. Local and Italian oaks were sampled in monocultures, 50:50 provenance mixture plots and species mixture plots (Figure 2). French oaks were not used in this study due to their absence in species mixture plots. Five trees per provenance were randomly selected for sampling within each plot, avoiding the outmost trees to control for edge effects. When repeated for each of the three blocks, this gave a total of 90 sampled trees (with 45 trees of each provenance).

2.3 Tree Growth and Apparency Measurements

If a neighbouring tree was dead or missing, its height was recorded as 0 m. Trees in all plot types had been planted in evenly spaced rows 2 m apart; therefore, the eight closest neighbours surrounding each focal tree were on average 2.41 m apart when diagonal neighbours were accounted for. A positive apparency value indicated that the focal tree was on average taller (more apparent) than its closest neighbours, and negative values indicate that it was on average shorter (less apparent).

2.4 Chewing Insect Herbivory Scoring

Four randomly chosen lower branches (1–1.5 m from the ground) on each focal tree were used for insect-chewing herbivory assessments. Short-shoot leaves (i.e., leaves which had emerged in the spring and rather than newly flushed lammas growth) were used for herbivory assessments and subsequent trait measurements as temporal variation in leaf traits and herbivory is lower for more mature leaves (Feeny 1970; Salminen et al. 2004). A total of 25 short-shoot leaves were assessed from each branch and categorised into the following percentage categories of leaf-chewing damage: 0%, 0.1%–5%, 5%–25%, 25%–50%, 50%–75% and 75+% (Muiruri et al. 2019). To calculate the average herbivory score for each branch, the midpoint of each damage category (e.g., 15% for the 5%–25% category) was multiplied by the number of leaves which fell into it and then divided by 25. The sum of these calculations for each damage category gave the herbivory score value for each branch, and the average of the four branches gave the herbivory score for each tree.

2.5 Leaf Trait and Light Measurements

Leaf thickness was measured using digital callipers on five undamaged short-shoot leaves per tree from outer areas of branches at breast height. Taking care to select points in between the main veins, two thickness measurements were taken per leaf, from which average values were calculated.

Light was measured at four evenly spaced positions directly above sampled leaves around each focal tree using an LM-50KL light meter (LATNEX, Toronto, Ontario). This was done between 10 a.m. and 2 p.m. on a clear day in mid-July to reduce variation in light intensity between measurements. Light was measured in units of lux (range ≈ 2500–110 000 lux), which were then converted to units of photosynthetic photon flux density (µMol/m²/S) by dividing by the conversion factor of 54 (Thimijan and Heins 1983).

A total of 10 undamaged short-shoot leaves were randomly sampled from the outer areas of several branches at breast height around each focal tree and were stored in a cool box until processing. A subset of 5 of the 10 leaves from each tree was photographed with a scale bar, and their leaf area was measured using the ImageJ software (Schneider et al. 2012). All leaves were then freeze-dried (Krakowska-Sieprawska et al. 2022), and the five leaves which were photographed were weighed so that SLA could be calculated by dividing the area of fresh leaves by their dry mass.

The 10 freeze-dried leaves sampled from each tree were pooled together and ground to a fine powder using a pestle and mortar. A sample of leaf powder (10 mg) from each tree was then added to 1 mL of 70% methanol (10 mg/mL). Each sample was spiked with 0.1 mg/mL of reference compound chrysin which was used to quantify compounds. Solutions were left for 24 h and were then centrifuged to separate the leaf material from the supernatant. The resulting aliquots were transferred to 2-mL vials and stored at −20°C until analysis.

The metabolite profiles of leaf extracts were collected using the ESI-LC-MS system, which consisted of an UltiMate 3000 Standard (SD) HPLC system (Thermo Scientific, the United States) coupled to a 100-Hz diode array detector (DAD) and an Ion trap Velos Pro (Thermo Scientific) mass spectrometer. Chromatography was performed using a Luna C18 column (150 mm × 3 mm i.d., 3 μm, Phenomenex, the United States) at 30°C using a mobile phase gradient of 0:90:10 to 90:0:10 (acetonitrile:water:acetonitrile + 1% formic acid) over 20 min. 90% acetonitrile was held for 5 min and the mobile phase returned to initial conditions over 2 min, where it was held for a further 3 min (flow rate 400 μL/min).

Phenolic compounds were identified by comparing retention times, UV spectra and fragmentation patterns to chemical libraries and literature sources (Buche et al. 2021; Mady et al. 2023; Moilanen, Sinkkonen, and Salminen 2013; Molleman et al. 2024; Salminen et al. 2004; Tikkanen and Julkunen-Tiitto 2003; Visakorpi et al. 2019). Molecular formulae were confirmed by comparing assigned formulae to those found using a separate high-resolution LC-MS system on which a small subset of oak leaves had been run.

Analysis of chemical data was performed using AnalyzerPro XD (SpectralWorks, the United Kingdom). Peak area values for all major peaks in negative ionisation mode were calculated in proportion to the reference compound chrysin, which was given a nominal peak area value of 1. This generated a list of peaks with average mass and retention time values and peak areas for all run samples. The phenolic compounds which were identified using LC-MS as described above were then matched to this list, which gave the peak area for each identified phenolic compound in each leaf sample. Total phenolic abundance was calculated by summing peak areas of all identified phenolic compounds, while total flavonoids, condensed tannins and hydrolysable tannins were calculated by adding the peak areas of individual compounds assigned to each class. Due to a lack of reference compounds, individual peaks were putatively assigned.

2.6 Statistical Analysis

All statistical analyses were conducted in R version 4.2.2 (R Core Team 2021). Linear mixed models (LMMs) were run using the packages lme4 (Bates et al. 2015) and lmertest (Kuznetsova, Brockhoff, and Christensen 2017). To determine the influence of provenance and stand diversity on tree growth, leaf traits and herbivory, LMMs were run with provenance (local or Italian), stand diversity (provenance monoculture, provenance mixture and species mixture) and their interaction as fixed factors and plot-nested within block as a random factor. Post hoc Tukey tests were then run to investigate the pairwise differences between monocultures, provenance mixture and species mixtures using the package emmeans (Lenth et al. 2024).

Structural equation models (SEMs) were then constructed using the package piecewiseSEM (Lefcheck 2016) to explore whether the effects of stand diversity on herbivory were meditated by light availability, tree apparency and leaf traits and whether herbivory was correlated with stand diversity, apparency and leaf traits. SEMs were constructed separately for Italian and local oaks to investigate how relationships between factors differ between oaks of different provenance.

Measures of DBH and phenolic compound concentrations were square-root transformed to meet assumptions of normality, while herbivory measurements were log-transformed.

3.1 Effects of Provenance and Stand Diversity on Tree Growth, Herbivory and Leaf Traits

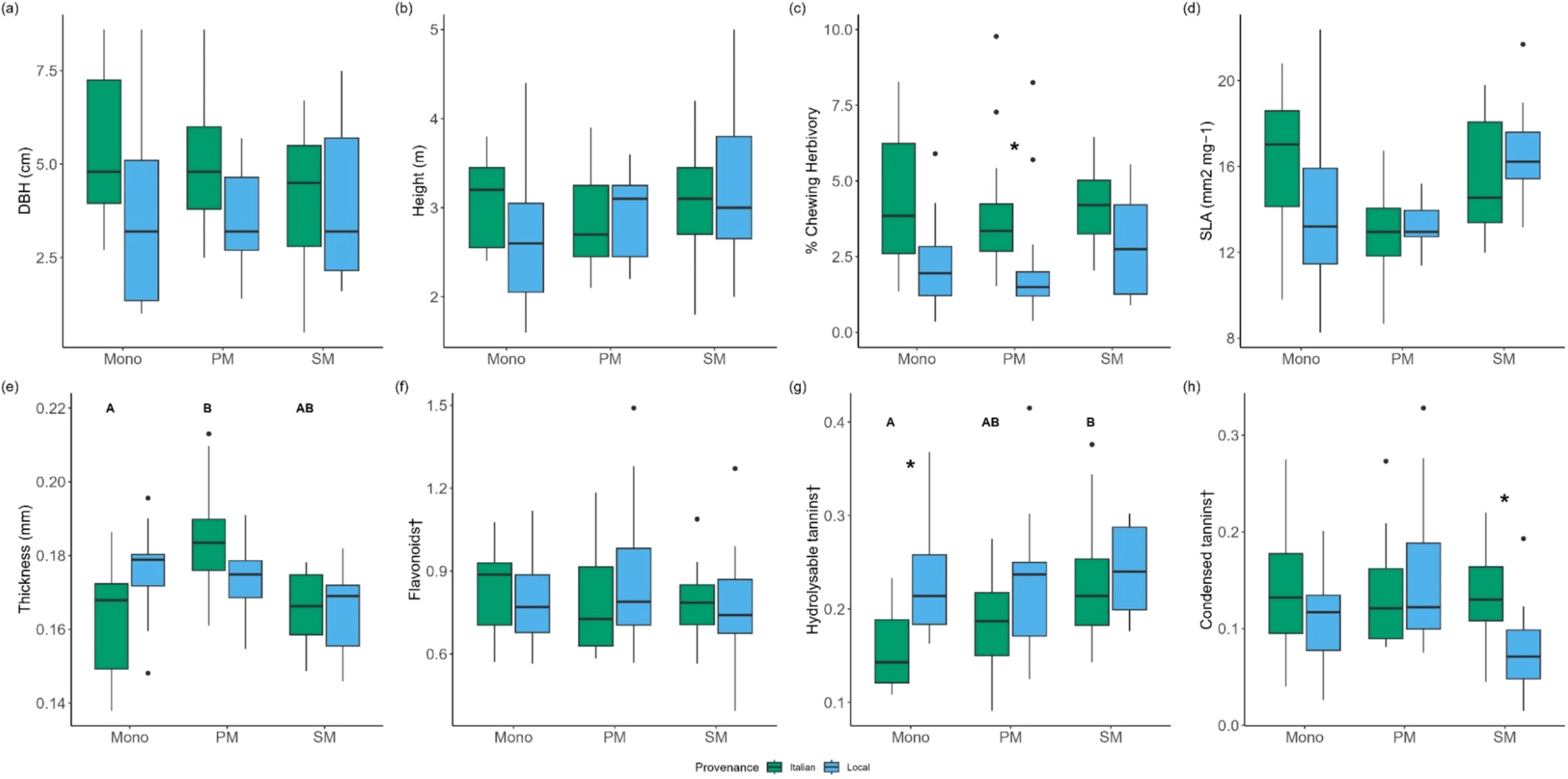

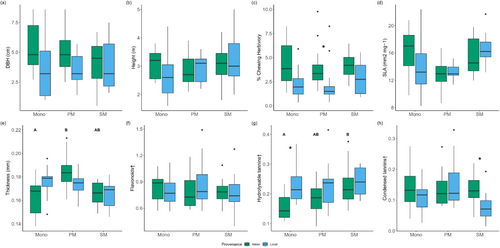

Italian oaks had a greater DBH than local oaks (4.86 ± 1.96 cm vs. 3.81 ± 2.05 cm, p = 0.018, Figure 3a), but the two provenances had similar height (Italian = 3.00 ± 0.56 m, local = 2.93 ± 0.76 m, p = 0.647, Figure 3b). Neither DBH nor height was affected by stand diversity (Table 1).

Chewing herbivory was significantly influenced by tree provenance and was almost twice as high on Italian oaks (mean ± SD = 4.68 ± 2.82%) as on local oaks (mean ± SD = 2.42 ± 1.78%). No overall effect of stand diversity on herbivory was found (Table 1); however, post hoc analysis showed that the difference in herbivory between local and Italian oaks was greatest in provenance mixture plots (Figure 3c).

A marginally significant effect of stand diversity on leaf thickness was found along with a significant interaction between stand diversity and provenance effects (Table 1). Post hoc analysis revealed that leaf thickness of Italian oaks was significantly lower in monocultures than in provenance mixtures, whereas stand diversity had no effect on the leaf thickness of local oaks (Figure 3e). SLA did not differ between the two oak provenances and was not affected by stand diversity.

A total of 50 phenolic compounds were identified in sampled leaves (Table S1). No qualitative differences in phenolic profiles were observed between local and Italian oaks as all identified phenolic compounds were present in oak leaves of both provenances. Moreover, neither total phenolics nor flavonoids were influenced by provenance, stand diversity or their interaction.

Local oaks were found to contain higher concentrations of hydrolysable tannins but lower concentrations of condensed tannins than Italian oaks (Table 1). Hydrolysable tannin concentrations were significantly influenced by stand diversity with Italian oaks in particular having lower concentrations of hydrolysable tannins in provenance monocultures than Italian oaks growing in species mixture plots (Figure 3g). For condensed tannins, there was a significant interaction between stand diversity and provenance effects (Table 1), and post hoc tests showed that Italian oaks contained higher concentrations of condensed tannins than local oaks only in species mixture plots (Figure 3h).

3.2 Structural Equation Model Analysis

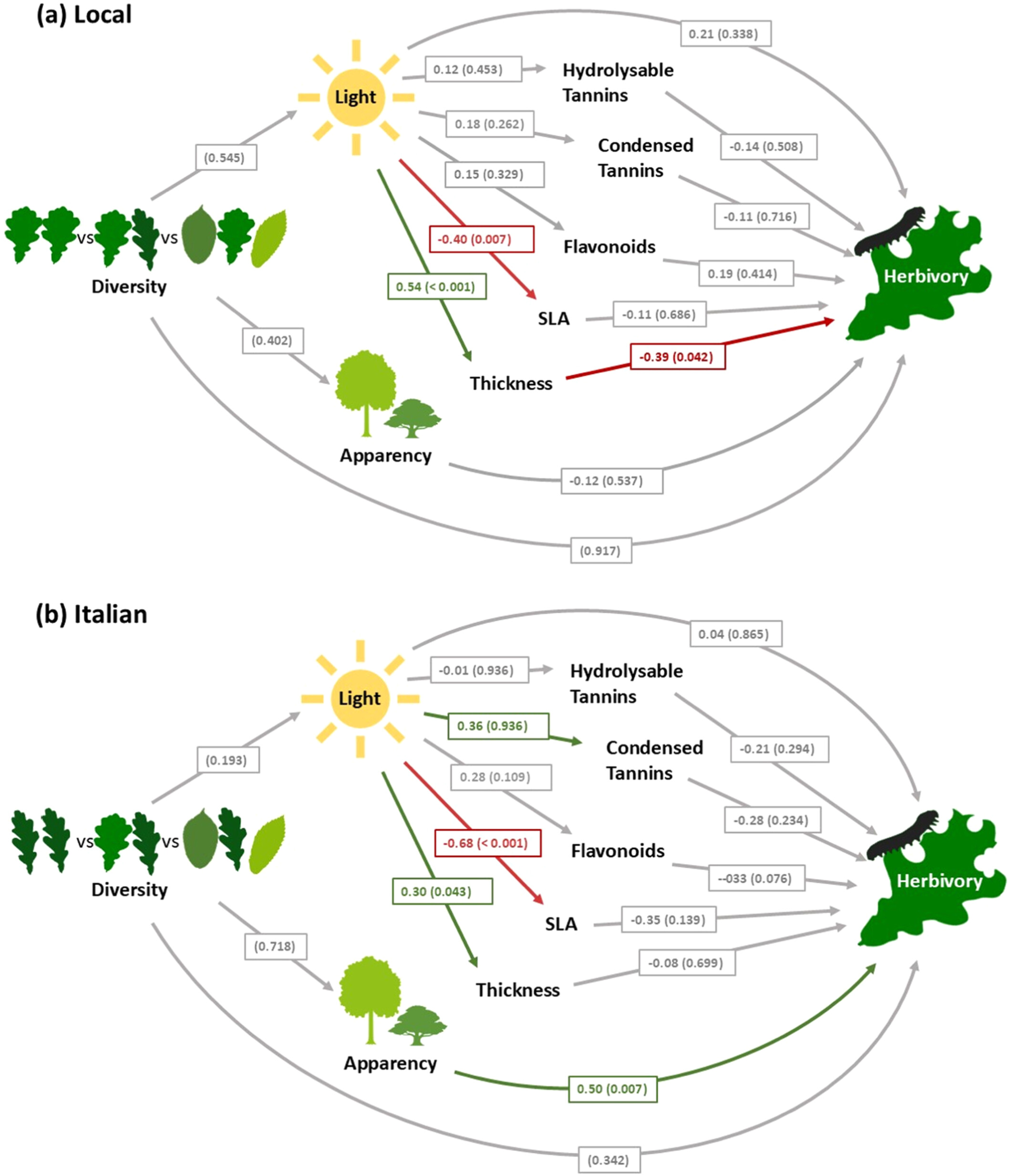

Structural equation models (SEMs) revealed a strong influence of light availability on oak leaf traits, with a significant positive effect on leaf thickness and a significant negative effect on SLA in both local and Italian oaks (Figure 4). Moreover, light availability had a significant positive effect on condensed tannins in Italian oaks but not in local oaks.

Although light availability varied greatly from tree to tree, it was not significantly influenced by stand diversity for either local or Italian oaks, with high- and low-light environments recorded in all plot types. SEM analysis also confirmed that stand diversity had no direct effect on herbivory or tree apparency (Figure 4).

The only measured leaf trait that significantly influenced herbivory was leaf thickness, where thicker leaves had significantly lower herbivory, but only for local oaks (Figure 4a). No other leaf traits had significant relationships with herbivory in either local or Italian oaks, but herbivory in Italian oaks was positively associated with tree apparency (Figure 4b).

4.1 Effects of Provenance on Insect Herbivory and Leaf Traits

As conspicuous, long-lived species, oaks encounter sustained herbivory pressures throughout their lifespans and have evolved a suite of defensive traits including thick, tough leaves which contain several classes of defensive compounds such as flavonoids, hydrolysable tannins and condensed tannins (Feeny 1970; Forkner, Marquis, and Lill 2004; Moctezuma et al. 2014; Pearse 2011; Roslin and Salminen 2008). We investigated whether higher chewing-insect herbivory experienced by Italian oaks could be explained by differences in phenolic compounds and physical leaf traits.

We found that the leaves of local oaks contained higher concentrations of hydrolysable tannins while the leaves of Italian oaks contained higher relative concentrations of condensed tannins. These two classes of tannins share common biosynthetic precursors; therefore, increased production of hydrolysable tannins may be at the expense of lower condensed tannin production and vice versa (Marsh et al. 2017; Salminen and Karonen 2011). There is some evidence that condensed tannins protect leaves against drought and UV-B-induced oxidative stresses (Close and McArthur 2002; Gourlay et al. 2022), which might explain why they were found at higher concentrations in Italian oaks.

We did not find a relationship between any measured chemical traits and chewing herbivory, implying that higher herbivory in Italian oaks is not due to lower concentrations of hydrolysable tannins. The effects of phenolic compounds on herbivores cannot easily be generalised and have been found in previous studies to depend on the concentrations of specific compounds, as well as herbivore specialisation, feeding guild and life stage (Roslin and Salminen 2008; Salminen and Karonen 2011). More nuanced effects of tannins and other phenolic compounds may therefore have been found if other categories of herbivory had been measured (e.g., leaf miners; Jia et al. 2023) and if the respective proportions of chewing damage due to different species could have been quantified (Moctezuma et al. 2014). Moreover, variation in other leaf traits which were not measured in this study such as leaf toughness, sugar content or foliar nitrogen concentration could have explained higher herbivory rates on Italian oaks (Awmack and Leather 2002; Pearse 2011).

Interestingly, SEM analysis revealed that predictors of herbivory differed between local and Italian oaks (Figure 4), with increasing leaf thickness correlated with lower herbivory in local oaks and greater tree apparency increasing herbivory in Italian oaks. This shows that the mechanisms governing plant–herbivore interactions can vary between tree provenances. Italian oaks, which were already more susceptible to herbivory than local oaks, received more herbivory when they were more apparent to herbivores and did not benefit from the protection that leaf thickness provides to more herbivore-resistant local oaks.

4.2 Phenological Mechanisms

Leaf tannins in Q. robur follow a predictable shift across the growing season, with an increase in condensed tannins and a decrease in hydrolysable tannins from budburst in spring through summer to autumn (Feeny 1970; Salminen et al. 2004; Vanhakylä and Salminen 2023). The timing of budburst is a conserved trait within individual oaks (Crawley and Akhteruzzaman 1988) and is linked to provenance (Sampaio et al. 2016; Sinclair et al. 2015; Wright et al. 2021). Data collected at the Climate Match experiment in 2012 and 2013 (Barsoum, unpublished) shows that Italian oaks undergo budburst 7–10 days earlier than the local oaks, which could explain the relative differences in tannin concentrations between the two oak provenances.

Hydrolysable tannins are thought to cause oxidative stress in insect guts (Salminen and Karonen 2011), and their peak in concentration directly after budburst hypothesised to optimise defences against intense springtime herbivory (Barber and Fahey 2015; Feeny 1970; Visakorpi et al. 2019). Early budburst in Italian oaks could thus have resulted in a phenological mismatch between peak hydrolysable tannin concentrations and peak springtime herbivore abundance, leading to less well-defended leaves at the time of most intense herbivory (Sinclair et al. 2015). Alternatively, Italian oaks may have suffered more herbivory because their leaves had been exposed to insect communities for a longer time period at the time of sampling (Barber and Fahey 2015; Sampaio et al. 2016).

Further fieldwork including continuous leaf trait measurements and herbivory assessments across the entire growing season is required to confirm whether phenological mismatches place climate-matched oaks at increased risk of chewing herbivory.

4.3 Stand Diversity, Light and Apparency

We found that stand diversity exhibited a direct but limited effect on leaf traits, with Italian oaks expressing significantly higher leaf thickness in provenance mixture plots than in monoculture plots and higher concentrations of hydrolysable tannins in species mixture plots compared to monoculture plots. Niche-partitioning effects may explain this effect of stand diversity; increased competition for water between drought-resistant Italian oaks in monocultures could lead to increased leaf thickness as an adaptation to reduce transpiration rates (Gouveia and Freitas 2009), while increased nutrients available due to intraspecific variation in rooting depths in species mixture plots could increase investment into chemical defences (Liu et al. 2022). This explanation however fails to account for the lack of neighbourhood effects on local oaks.

By explicitly measuring light intensity, we found that light availability had consistent effects on leaf thickness and SLA, which were independent of stand diversity. Despite this, we found no direct link between light availability and herbivory, suggesting that light-mediated leaf trait variation may only play a limited role in influencing chewing herbivory in oaks. In addition, we found a significant positive correlation between tree apparency and herbivory, although only for Italian oaks.

Inconsistent effects of stand diversity on oak leaf traits and herbivory have been reported in previous studies. For instance, Moreira, Glauser and Abdala-Roberts (2017) found no effect of stand diversity on SLA and phenolic profiles but found a significant reduction in herbivory for oaks growing in species mixtures. In contrast, Castagneyrol et al. (2017) described an increase in SLA and a decrease in leaf toughness and thickness in oak species mixtures compared to monocultures but no variation in herbivory. Applying our findings on the influence of tree apparency and light availability reveals a pattern in previous research: oaks experience reductions of herbivory in species mixture when apparency is reduced due to taller neighbours (Castagneyrol et al. 2013; Moreira, Glauser, and Abdala-Roberts 2017; Setiawan et al. 2016); and the variation of leaf traits is greatest between monocultures and species mixtures when there were large differences in light environments, either due to light-blocking neighbours or because leaves were sampled at lower and more shaded branches (Castagneyrol et al. 2017, 2019; Galmán et al. 2022; Moore and Francis 1991). In short, differences in light availability and tree apparency appear to exert a more predictable influence on leaf traits and herbivory than stand diversity per se.

The effects of stand diversity on growing conditions and plant–herbivore interactions may only become noticeable in years or decades after stand establishment when trees have had considerable time to develop (Jucker et al. 2016). The lack of canopy closure due to the young age of the Climate Match experiment may thus explain why we failed to find a link between stand diversity, apparency and light availability in our study (Field et al. 2019). This may have been further compounded by ash dieback, which reduced tree density in the species mixture plots and opened large gaps in the canopy, thereby minimising the effects of taller neighbours around slow-growing oak trees.
