1 INTRODUCTION

CKD has a high prevalence in worldwide population.1 Even though with multiple pathological changes, various types of CKD are characterized with the common pathological feature of renal fibrosis. However, to date, there are not completely effective therapeutics to renal fibrosis.2 Although dialysis and transplantation serve as the alternative treatments to renal fibrosis, they could only provide very limited remission for the frequent occurrence of cardiovascular complications in dialysis patients and high rate of recurrence of the original diseases in the transplanted kidneys.3, 4 Hence, to better understand the underlying mechanisms and identify therapeutic targets of renal fibrosis would be of great importance to CKD.

As the most abundant cells in kidneys, renal tubular cells play fundamental roles in executing renal functions.5 Upon damage, they could undergo apoptosis, epithelial-mesenchymal transition, cellular senescence and dedifferentiation. Large bodies of evidences have reported that damaged tubular cells could secret transforming growth factor-β1 (TGF-β1), the critical mediator leading to interstitial fibroblasts activation. However, the underlying mechanisms of renal tubular cell injury need to be elucidated.

As a G-protein–coupled seven-span transmembrane receptor, C-X-C motif chemokine receptor 4 (CXCR4) serves as the key molecule to leash haematopoietic stem cells to quiescence in bone marrow.6 Recently, some reports indicate CXCR4 plays a crucial role in various types of CKD such as rapidly progressive glomerulonephritis (RPGN), IgA nephropathy (IgAN), lupus and tubulo-interstitial nephritis.7-11 Although CXCR4 exists in various types of cells such as podocytes, macrophages and endothelial cells, it is predominantly localized in tubular cells, especially proximal tubular epithelial cells.7, 8, 10, 12 Through the binding of CXC chemokine ligand 12 (CXCL12; stromal cell–derived factor 1 (SDF-1)), CXCR4 exerts multiple effects in cell survival, differentiation and injury.6, 7, 13 However, the role of CXCR4 in renal tubular cell injury and the underlying mechanisms remain poorly understood.

Wnt/β-catenin signalling is a conserved developmental pathway that plays a critical role in organ development.14 Different from its silent expression in normal adult's kidneys, Wnt/β-catenin signalling is dramatically up-regulated in CKD-affected kidneys. The activation of Wnt/β-catenin signalling is highly associated with oxidative stress, inflammation and cellular senescence.15-18 Upon the binding of Wnt ligands to the receptors frizzled (Fzd) and lipoprotein receptor–related protein (LRP) 5/6, GSK3β activity is repressed, and then, β-catenin would be released and activated to trigger cell injury and renal fibrosis. Although β-catenin could be up-regulated in multiple cells such as podocytes, interstitial fibroblasts, endothelial cells and inflammatory cells,15, 17, 19-21 it is predominantly localized in renal tubular cells in injured kidneys.18, 22 These observations suggest the potential relationship between CXCR4 and β-catenin in renal tubular cell injury and fibrosis.

In this study, we examined CXCR4 and β-catenin signalling and assessed their relationship in vivo and in vitro. The results indicate CXCR4 plays a crucial role in mediating renal tubular cell injury and is associated with activation of β-catenin. Furthermore, JAK/STAT/GSK3β pathway mediates SDF-1α/CXCR4-induced activation of β-catenin. These findings suggest that CXCR4 mediates renal fibrosis through activating JAK/STAT/GSK3β/β-catenin pathway.

2 MATERIALS AND METHODS

3 RESULTS

3.1 CXCR4 is up-regulated in fibrotic kidneys and accompanied by activation of β-catenin

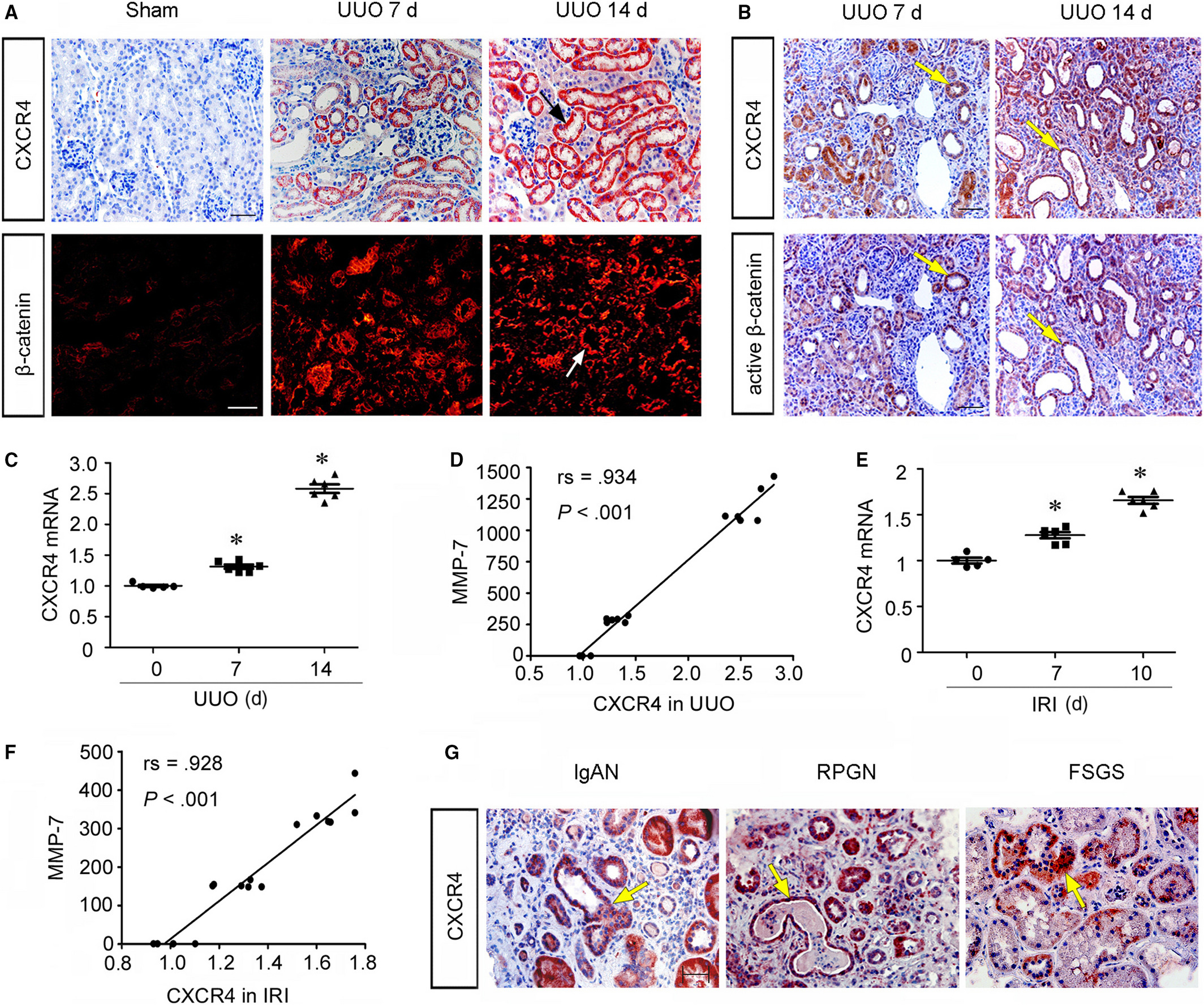

To identify the role of CXCR4 in renal fibrosis, we first examined the expression of CXCR4 and CXCL12 (SDF-1α), the ligand of CXCR4, in various CKD models. The protein expression of CXCL12 (SDF-1α) was elevated time-dependently in UUO and IRI mice (Figure S1). Consistently, as shown in Figure 1A, the expression of CXCR4 was time-dependently up-regulated in UUO mice and predominantly localized in renal tubular cells. Furthermore, the expression of β-catenin was also evidently up-regulated in UUO-affected kidneys, especially at the late stage of UUO. Notably, both CXCR4 and β-catenin expression were up-regulated in renal tubular cells. To clarify the correlation between CXCR4 and β-catenin, we examined the colocalization of CXCR4 and active β-catenin in sequential paraffin-embedded kidney sections. As shown in Figure 1B, the expression of CXCR4 largely colocalized with active β-catenin in tubular cells. We then analysed mRNA expression levels of CXCR4 and MMP-7, an important downstream target of β-catenin.24 As shown in Figure 1C and Figure S2, CXCR4 and MMP-7 mRNA levels were significantly up-regulated in UUO mice in a time-dependent fashion. Notably, there was a significant positive correlation between CXCR4 and MMP-7 (Figure 1D). Similarly, in IRI kidneys, CXCR4 and MMP-7 mRNA abundance also increased and positively correlated (Figure 1E and F, Figure S2). It is notable that the increased abundance of CXCR4 mRNA was much less than that of MMP-7, suggesting the amplification in signalling cascades. We next investigated CXCR4 expression in humans with immunoglobulin A nephropathy (IgAN), rapidly progressive glomerulonephritis (RPGN) and focal segmental glomerulosclerosis (FSGS). A shown in Figure 1G, CXCR4 was predominantly localized in renal tubular cells in human diseased kidneys, suggesting the intimate correlation of CXCR4 in tubular cell injury and renal fibrosis.

3.2 Blockade of CXCR4 ameliorates renal fibrosis in UUO mice

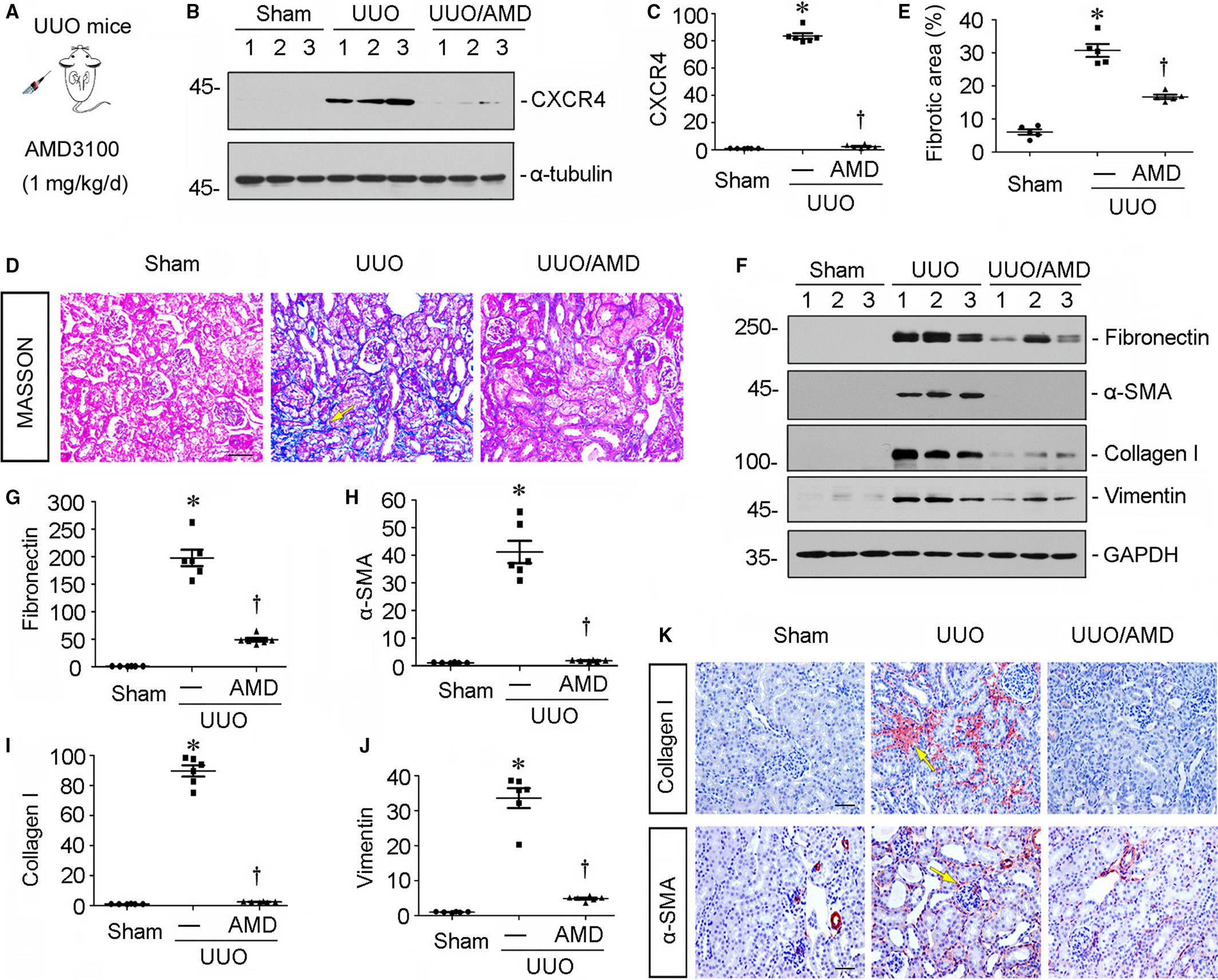

To investigate the potential role of CXCR4 in renal fibrosis, we injected mice with AMD3100,7 a specific inhibitor of CXCR4 signalling in UUO model (Figure 2A). The mice were killed 7 days after UUO surgery. The expression of CXCR4 was first analysed. As shown in Figure 2B and C, the protein expression of CXCR4 was significantly up-regulated in UUO mice. However, treatment with AMD3100 obviously inhibited the expression of CXCR4. We then performed Masson trichrome staining and the quantification of renal fibrotic lesions. As shown in Figure 2D and E, treatment with AMD3100 significantly retarded renal fibrosis in UUO mice. Similar results were observed when the protein expression levels of fibronectin, α-SMA, collagen I and vimentin were assessed by Western blot analyses (Figure 2F-J). Furthermore, the immunostaining results of collagen I and α-SMA also confirmed the therapeutic effects of AMD3100 on matrix deposition in UUO mice (Figure 2K).

3.3 Blockade of CXCR4 represses β-catenin activation in UUO mice

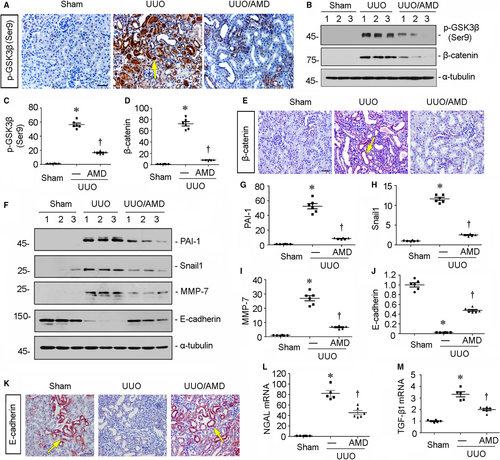

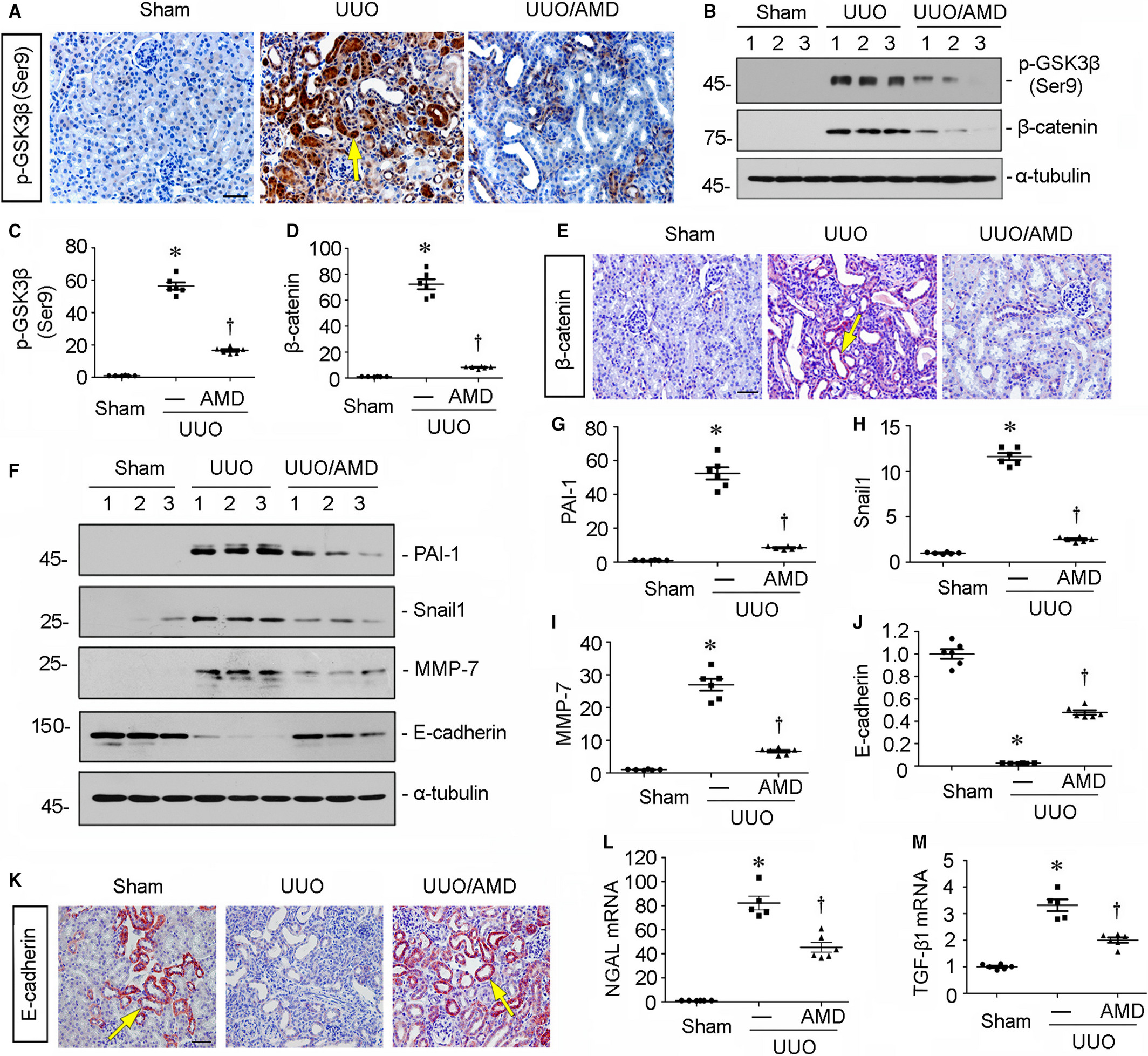

We then examined the correlation between CXCR4 and β-catenin. First, we assessed the expression of GSK3β, a serine/threonine protein kinase that mediates β-catenin degradation and its phosphorylation at Ser9 suggests the deactivation of GSK3β.25 As shown in Figure 3A, B and C, the protein expression of p-GSK3β (Ser9) was extremely up-regulated in UUO mice, but blocked by administration of AMD3100, the antagonist of CXCR4 receptor.7 Similar results were observed when the expression of β-catenin was analysed by Western blot (Figure 3B and D) and immunohistochemical staining (Figure 3E). We next checked renal expression of plasminogen activator inhibitor-1 (PAI-1), Snail 1 and matrix metalloproteinase-7 (MMP-7), the three downstream targets of β-catenin and the important players in tubular epithelial-mesenchymal transition and fibrotic injury.26, 27 As shown in Figure 3F-I, all of them were significantly up-regulated in UUO mice, but inhibited by administration of AMD3100. Moreover, the expression of E-cadherin, an important protein maintaining normal epithelial integrity,28 was greatly down-regulated in UUO-affected kidneys. However, it was largely preserved by treatment with AMD3100 (Figure 3F, J, and K). To further confirm the role of CXCR4 in tubular cell injury, we examined the mRNA expression of neutrophil gelatinase–associated lipocalin (NGAL) and transforming growth factor-β1 (TGF-β1), two markers of tubular cell injury29, 30 by quantitative real-time PCR. As shown in Figure 3L and M, administration of AMD3100 significantly blocked UUO-induced up-regulation of NGAL and TGF-β1. It was previously reported that signalling crosstalk between β-catenin and TGF-β1 is an important mechanism in tubular epithelial cell injury.31 Hence, these data further suggest that CXCR4 plays an important role in tubular cell injury and is associated with β-catenin activation.

3.4 Blockade of CXCR4 mitigates renal fibrosis in UIRI mice

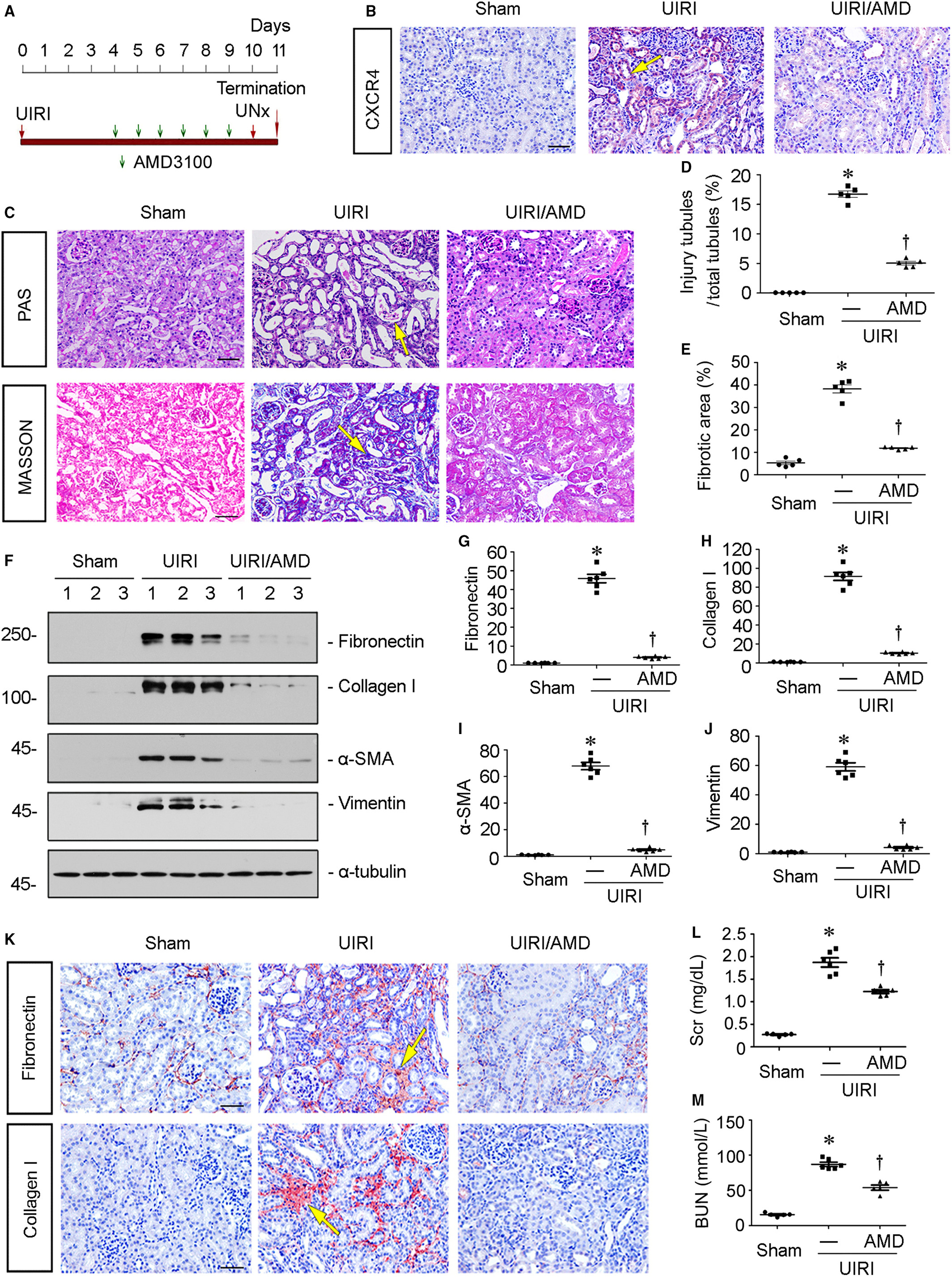

To further confirm the role of CXCR4 in renal fibrotic lesions, we carried out the mouse model of unilateral ischaemia-reperfusion injury (UIRI). Groups of mice were subjected to UIRI and administered AMD3100 at the dose of 1 mg/kg/d (Figure 4A). The immunostaining results revealed that the up-regulation of CXCR4 in UIRI mice was blocked by administration of AMD3100 (Figure 4B). Furthermore, PAS staining showed tubular cell injury, characterized by tubular dilation, hyaline casts and tubular atrophy with thickened basement membranes, as well as detached epithelial cells in tubular lumens, was dramatically induced in UIRI mice. However, these effects were clearly blocked by administration of AMD3100 (Figure 4C). Similarly, Masson trichrome staining showed AMD3100 largely decreased the fibrotic lesions in UIRI mice (Figure 4C).The extent levels of tubular cell injury and fibrotic lesions were assessed by a semiquantitative analysis and presented in Figure 4D and E. Consistently, the protein expression levels of fibronectin, collagen I, α-SMA and vimentin were tested by Western blot analyses. As shown in Figure 4F-J, all of them were significantly inhibited by administration of AMD3100. Similar results were observed when fibronectin and α-SMA were analysed by immunostaining (Figure 4K). We then tested the levels of serum creatinine (Scr) and blood urea nitrogen (BUN). As shown in Figure 4L and M, treatment with AMD3100 significantly reduced their up-regulation in UIRI mice. These data further indicate that CXCR4 activation serves as a major driver of tubular cell injury and renal fibrosis.

3.5 Blockade of CXCR4 represses β-catenin signalling in UIRI mice

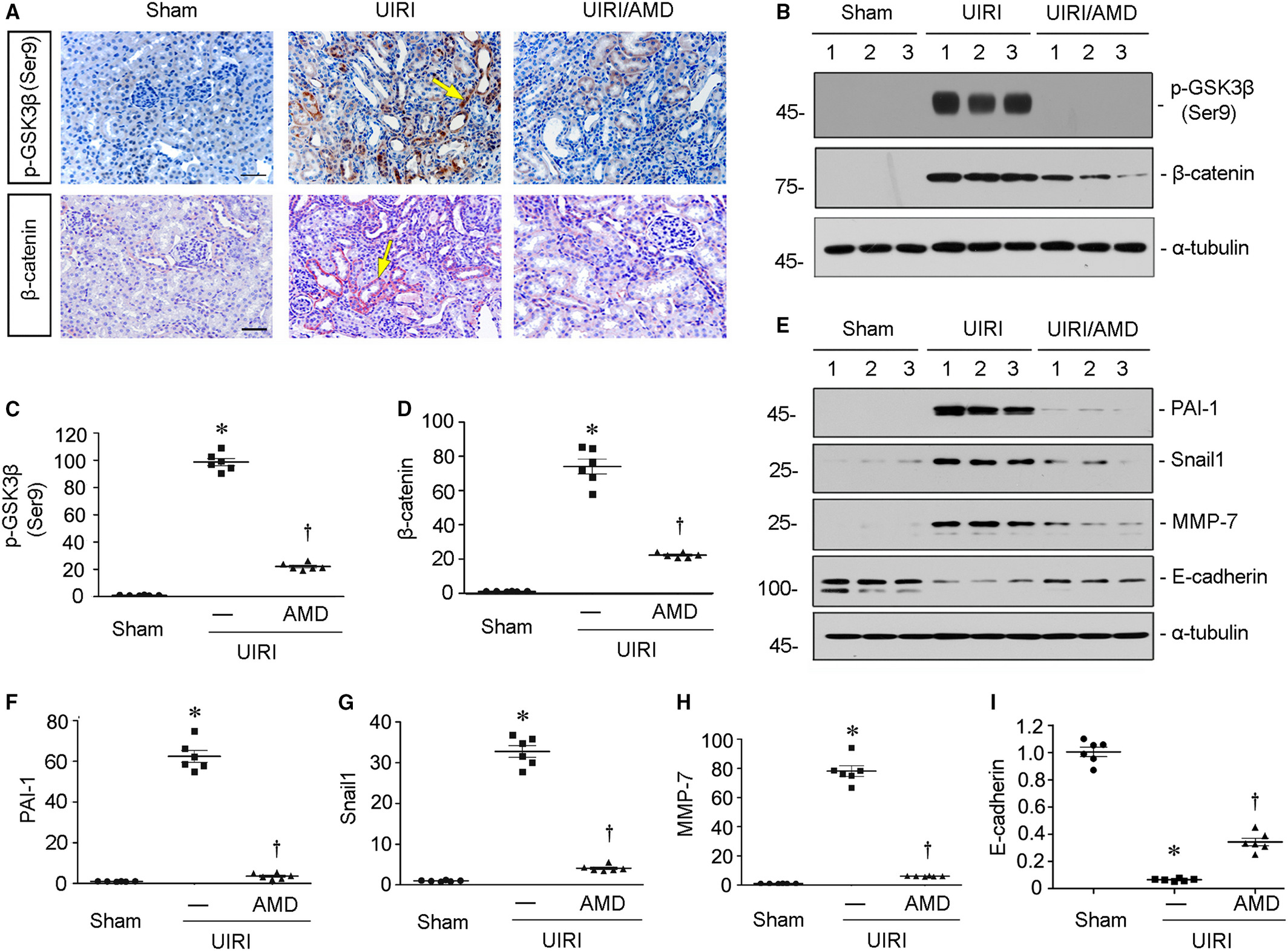

We then assessed β-catenin signalling in UIRI mice. First, the expression of p-GSK3β (Ser9) was assessed. As shown in Figure 5A, B and C, administration of AMD3100 significantly inhibited the up-regulation of p-GSK3β (Ser9) in UIRI mice. Consequently, the expression of β-catenin was induced by UIRI injury but inhibited by treatment with AMD3100 (Figure 5A, B and D), suggesting the role of CXCR4 in β-catenin activation. Similarly, the protein expression levels of PAI-1, Snail 1 and MMP-7, the downstream targets of β-catenin, were significantly down-regulated by treatment with AMD3100 in UIRI mice (Figure 5E-H). We next analysed E-cadherin, the tubular epithelial cell marker. As shown in Figure 5E and I, the down-regulation of E-cadherin induced by UIRI injury was significantly reversed by administration of AMD3100.

3.6 Inhibition of β-catenin retards CXCR4-aggravated renal fibrosis in UUO model

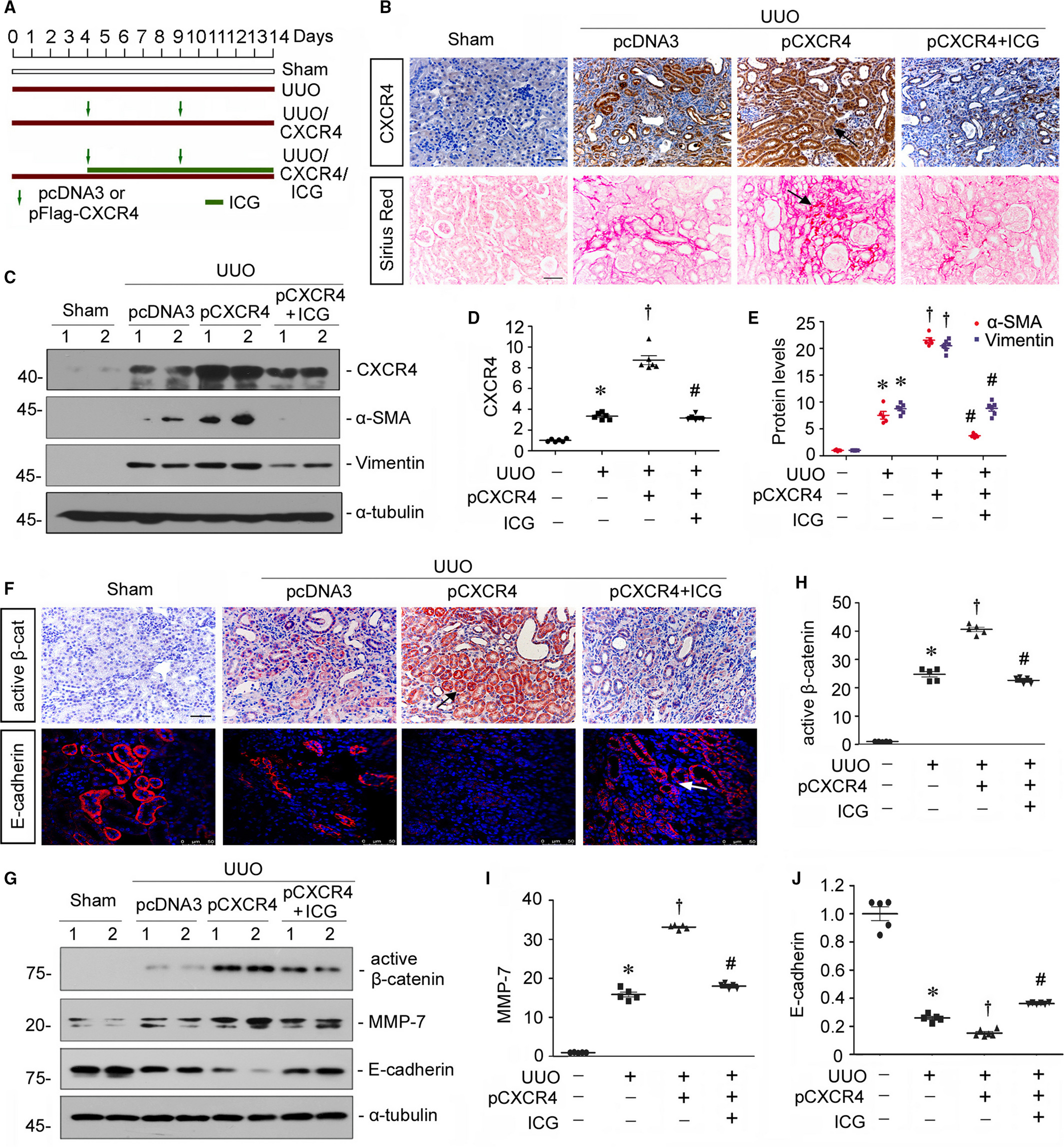

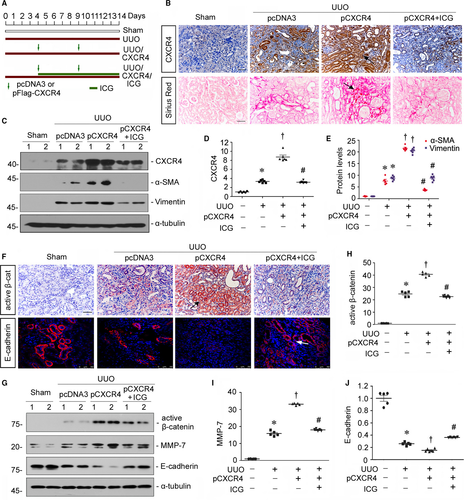

To further establish the role of CXCR4 in β-catenin signalling, mice were delivered a flag-tagged CXCR4 expression plasmid (pFlag-CXCR4) by a hydrodynamic-based gene therapy23 and administered ICG-001, a small molecule inhibiting β-catenin-mediated gene transcription in a CBP-dependent manner,22 after UUO surgery (Figure 6A).The expression of CXCR4 was identified by immunohistochemistry and Western blot analyses. As shown in Figure 6B-D, CXCR4 protein level was up-regulated in UUO mice, predominantly in renal tubular cells, but further elevated by injection of CXCR4 plasmid. However, administration of ICG-001 could greatly inhibit it. We next investigated renal fibrotic lesions through Sirius red staining, a technique that collagen fibre would be stained as red colour. As shown in Figure 6B, ectopic expression of CXCR4 evidently aggravated renal fibrosis in UUO mice. However, administration of ICG-001 largely retarded CXCR4-induced renal fibrotic lesions. Similar results were observed when the protein expression levels of α-SMA and vimentin were assessed by Western blot analyses (Figure 6C and E). We next assessed β-catenin signalling. As shown in Figure 6F, the expression of active β-catenin was significantly induced by ectopic expression of CXCR4 in UUO mice, but diminished by administration of ICG-001. Similar results were observed when the protein expression level of active β-catenin was analysed by Western blot analyses (Figure 6G and H). Furthermore, the protein expression level of MMP-7 was also significantly inhibited by treatment with ICG-001 (Figure 6G and I). Moreover, administration of ICG-001 significantly reversed CXCR4-aggravated down-regulation of E-cadherin in UUO mice (Figure 6F, G and J). These data further suggest the mediating role of β-catenin in CXCR4-induced renal fibrosis.

3.7 CXCR4/β-catenin axis plays a critical role in cell injury in vitro

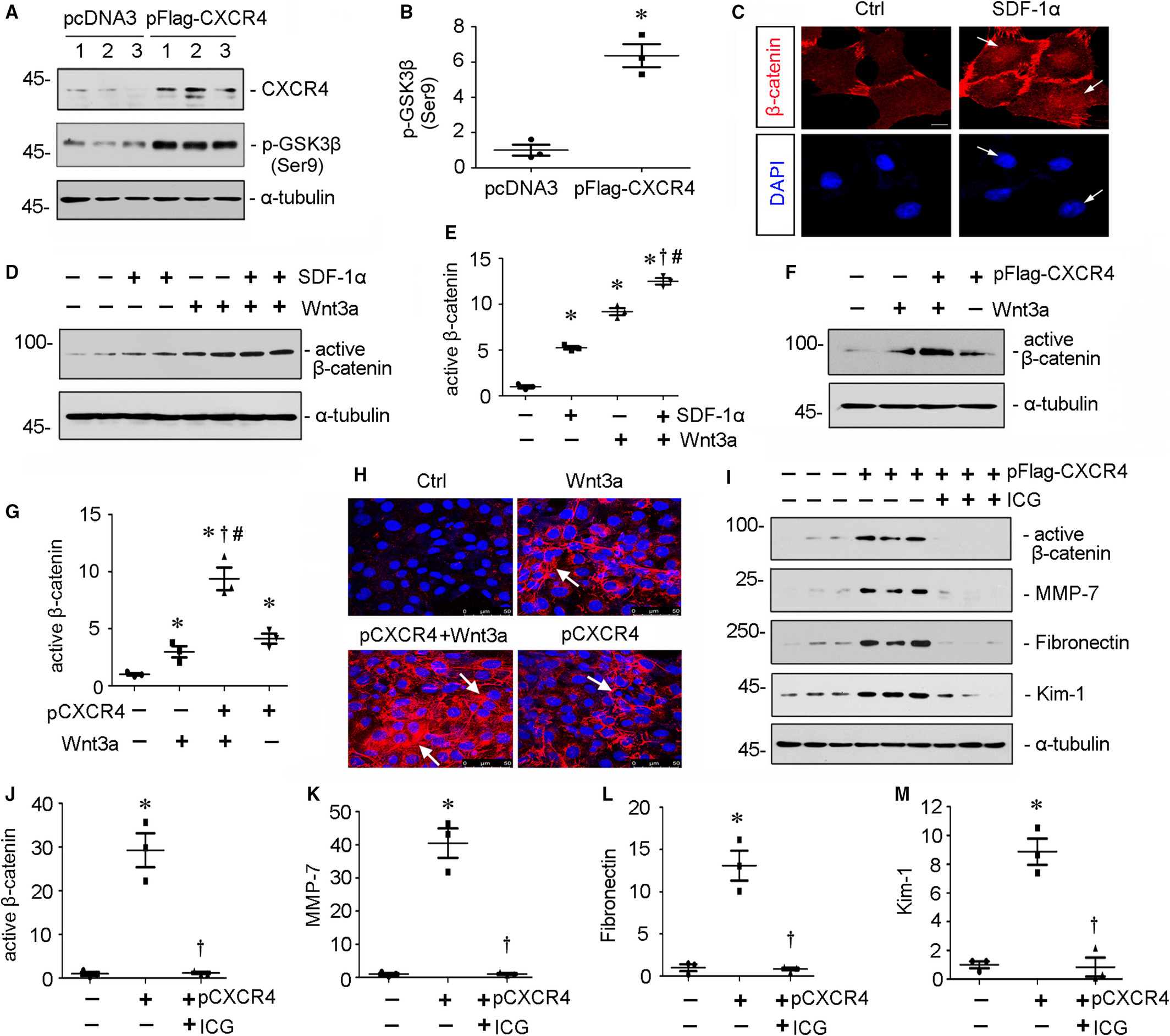

To further figure out the important role of β-catenin activation in CXCR4-induced tubular injury, we performed analysis in a human proximal tubular cell line (HKC-8). First, HKC-8 cells were transfected with CXCR4 expression plasmid (pFlag-CXCR4) or treated with SDF-1α, the ligand of CXCR4. As shown in Figure 7A and B, overexpression of CXCR4 triggered the up-regulation of p-GSK3β (Ser9), a deactivated form of GSK3β which allows β-catenin stabilization and activation. Furthermore, treatment with SDF-1α induced the nuclear translocation of β-catenin in HKC-8 cells (Figure 7C), suggesting the induction of β-catenin activation. We next treated HKC-8 cells with SDF-1α in the absence or presence of Wnt3a, a canonical Wnt which triggers activation of β-catenin. As shown in Figure 7D and E, SDF-1α and Wnt3a could induce the activation of β-catenin, respectively. SDF-1α significantly increased the expression of active β-catenin after co-culture with Wnt3a recombinant protein. Similar results were observed when HKC-8 cells were transfected with CXCR4 expression plasmid and co-cultured with Wnt3a (Figure 7F and G). Then, we checked fibrotic injury in HKC-8 cells. The immunofluorescence staining of fibronectin showed that CXCR4 had a cooperative effect with Wnt3a in cell fibrotic injury (Figure 7H). Furthermore, we pretreated HKC-8 cells with ICG-001 and then transfected with pFlag-CXCR4 plasmid. Western blot analyses indicated administration of ICG-001 significantly inhibited the up-regulation of active β-catenin and its target MMP-7 by ectopic expression of CXCR4 (Figure 7I-K). Moreover, treatment with ICG-001 also largely inhibited CXCR4-induced up-regulation of fibronectin and Kim-1, a glycoprotein serving as a marker of tubular injury (Figure 7I, L and M).32 These findings strongly suggest that β-catenin activation has a decisive role in meditating CXCR4 signalling.

3.8 JAK/STAT pathway mediates activation of β-catenin in CXCR4 signalling

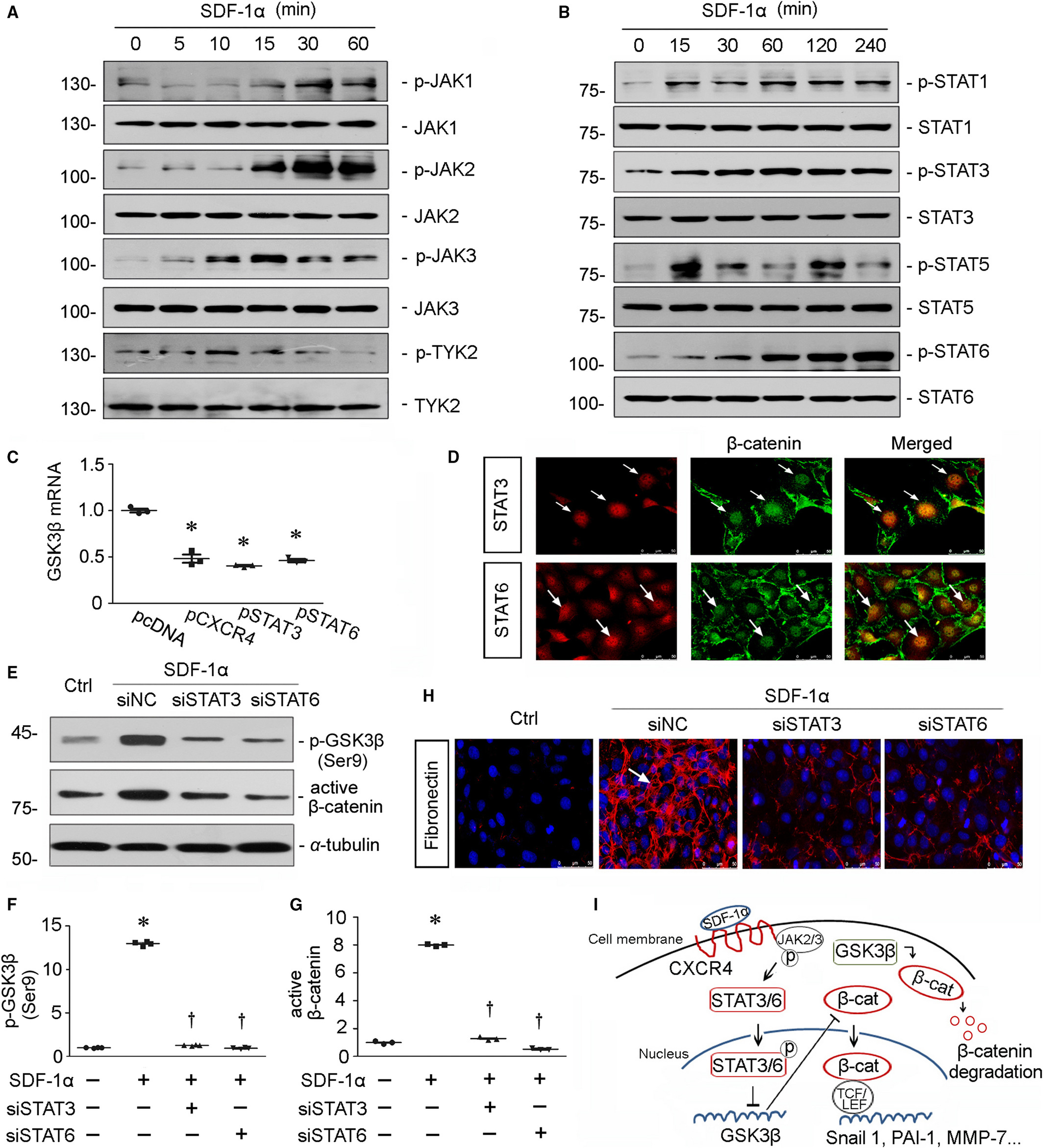

It was previously reported that the cytoplasmic domain of CXCR4 protein involves in JAK2 and STAT3 phosphorylation.33 To further clarify the underlying mechanisms of CXCR4 in activation of β-catenin, JAK/STAT pathway was studied in SDF-1α-treated HKC-8 cells. As shown in Figure 8A and B, administration of SDF-1α induced the phosphorylation of JAK2/STAT3 and JAK3/STAT6 in a time-dependent manner, suggesting the potential role of JAK/STAT pathway in CXCR4 signalling. We next assessed the role of STAT3 or STAT6 in CXCR4-induced β-catenin signalling. HKC-8 cells were transfected with CXCR4, STAT3 or STAT6 expression plasmid and then assessed the abundance of GSK3β mRNA. As shown in Figure 8C, ectopic expression of CXCR4, STAT3 or STAT6 could all significantly decrease the mRNA level of GSK3β. Furthermore, treatment with SDF-1α induced the colocalization of β-catenin with STAT3 or STAT6 (Figure 8D). Administration of SDF-1α also induced the up-regulation of p-GSK3β (Ser9) and active β-catenin protein expression (Figure 8E-G). However, siRNA-mediated inhibition of STAT3 or STAT6 blocked these effects in SDF-1α-treated cells. Similar results were observed when the expression of fibronectin was assessed by immunofluorescence staining (Figure 8H). These data undoubtedly demonstrate that JAK2/STAT3 and JAK3/STAT6 signalling play the important roles in CXCR4-induced β-catenin activation. Taken together, as summarized in Figure 8I, it is concluded that through the binding of SDF-1α to CXCR4, JAK2 and JAK3 are phosphorylated to trigger the activation and nuclear translocation of STAT3 and STAT6, which repress the transcription of GSK3β and the assembly of the β-catenin degradation complex. The release of β-catenin from degradation complex in the cytoplasm would lead to the accumulation of nuclear β-catenin, which mediates fibrotic injury in tubular cells through binding to transcription factors TCF/LEF.

3.9 Blockade of CXCR4 inhibits the activation of JAK/STAT in vivo

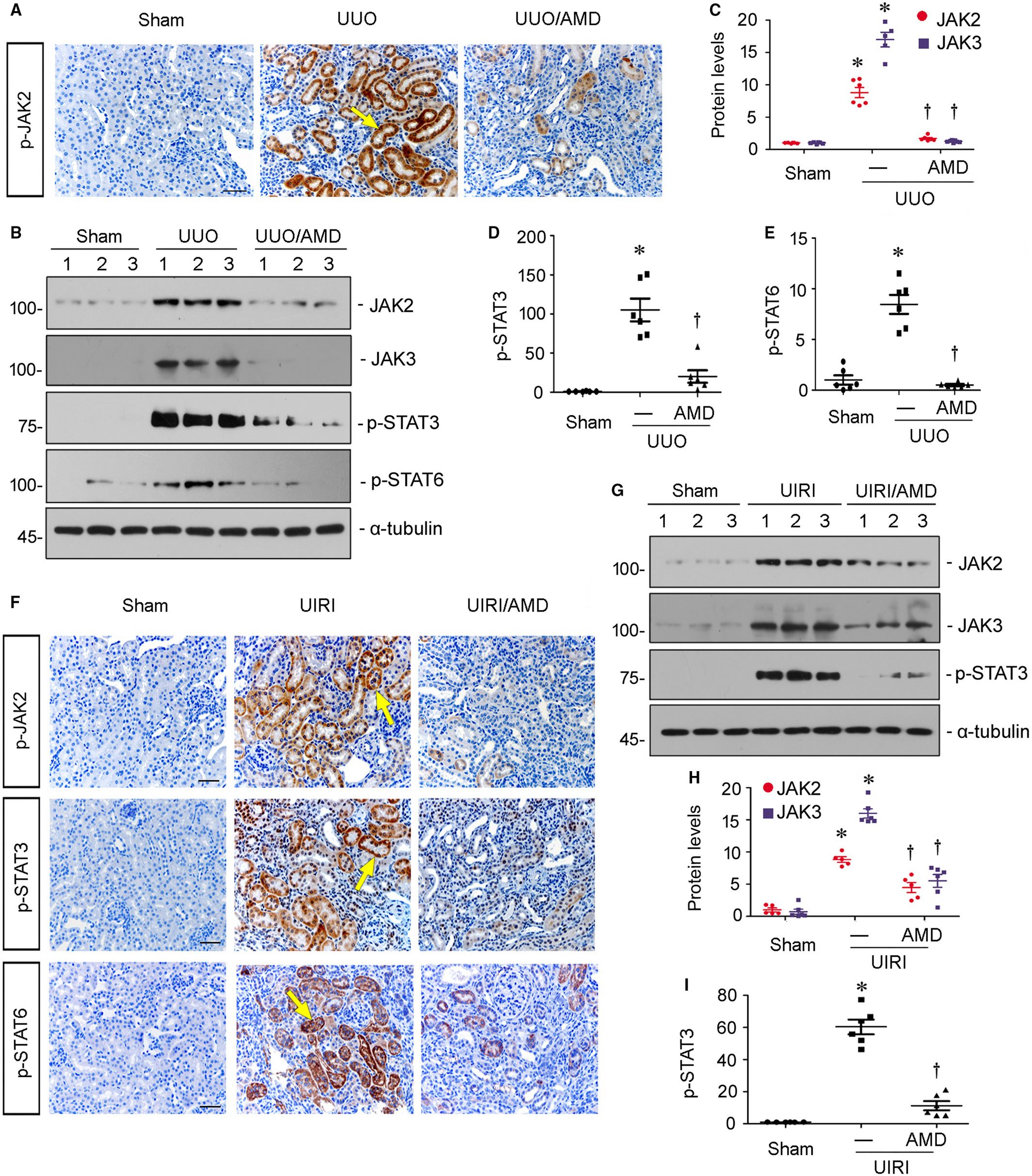

To further testify the modulation of JAK/STAT pathway by CXCR4, we next analysed the activity of JAK2/STAT3 and JAK3/STAT6 in UUO and UIRI mice administered AMD3100. The detailed experimental designs were presented in Figures 2A and 4A. As shown in Figure 9A, the expression of p-JAK2 was evidently up-regulated in renal tubular cells in UUO mice. Administration of AMD3100 greatly decreased the expression of p-JAK2 in UUO mice. Similar results were observed when the protein expression levels of JAK2, JAK3, p-STAT3 and p-STAT6 were assessed by Western blot analyses (Figure 9B-E). Consistently, in UIRI mice, administration of AMD3100 clearly diminished the up-regulation of p-JAK2, p-STAT3 and p-STAT6 (Figure 9F). Similar results were observed when the protein expression levels of JAK2, JAK3 and p-STAT3 were assessed by Western blot analyses (Figure 9G-I). These results further clarify the mediating roles of JAK/STAT in CXCR4 signalling.

3.10 Knockdown of CXCR4 blocks renal fibrosis through inhibition of JAK/STAT/GSK3β/β-catenin pathway

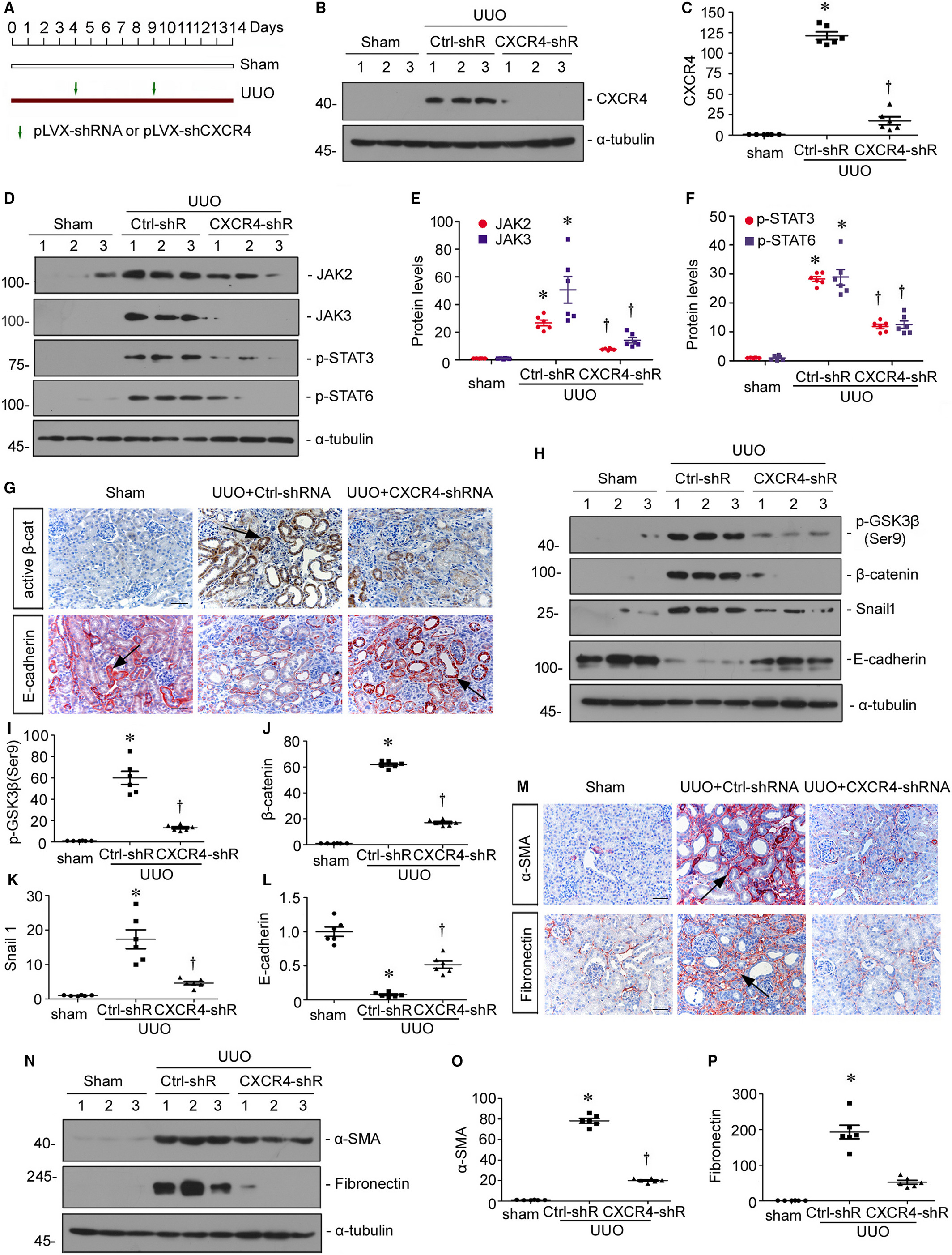

To further prove the role of CXCR4 in renal fibrosis, we knocked down renal CXCR4 expression in vivo. The mice were injected with shRNA vector encoding the interference sequence of CXCR4 (pLVX-shCXCR4) through a hydrodynamic-based gene delivery approach. The detailed experimental design was shown in Figure 10A. The efficacy of CXCR4 knockdown was confirmed by Western blot analyses (Figure 10B and C). We then examined the expression of JAK/STAT signalling. As shown in Figure 10D-F, knockdown of CXCR4 significantly decreased the activation of JAK2, JAK3, p-STAT3 and p-STAT6 in UUO mice. Consequently, the activation of p-GSK3β (ser9), β-catenin and Snail 1 induced in UUO mice were greatly prevented by knockdown of CXCR4 (Figure 10G-K). In addition, the expression of E-cadherin was restored by interference of CXCR4 in UUO mice (Figure 10G, H and L). We next assessed the fibrotic lesions. As shown in Figure 10M-P, the expression levels of α-SMA and fibronectin were induced in UUO mice, but significantly diminished by interference of CXCR4. These results further demonstrated that CXCR4 triggers renal fibrosis through induction of JAK/STAT/GSK3β/β-catenin pathway.

4 DISCUSSION

More than 10% of the global populations are suffering from CKD. Unfortunately, a large portion of them would inevitably progress into the end-stage renal disease (ESRD).34 Renal fibrosis is the common feature of morphologic changes in various types of CKD. However, because of the complicated mechanisms,35, 36 renal fibrosis is an intractable problem to nephrologists worldwide.

Renal fibrosis is initially characterized by the excessive matrix deposition in the interstitial area. With the progression of disease, the massive collagen deposition in the interstitial area could invade nearby nephron, the basic structural and functional unit of the kidney, and spread quickly. In humans with a variety of nephropathies and experimental CKD models, it is often seen that tubular cells may undergo cell injury in different ways with the secretion of fibrosis-related molecules, especially in the late stage of disease.37, 38 Large numbers of reports show that tubular epithelial cells could transit into mesenchymal, dedifferentiated and senescent phenotypes to secret matrix-synthesizing molecules such as TGF-β1 and proinflammatory cytokines such as IL-6.18, 26 Notably, TGF-β1 and IL-6 are the major mediators in interstitial fibroblast activation and macrophage bursting,39, 40 two key factors in the progression of renal fibrosis. These suggest tubular cell injury occupies a fundamental position in controlling the fate of CKD patients.41 Hence, to deeply understand the molecular mechanisms of tubular cell injury would undoubtedly provide new insights and strategies in the management of CKD.

C-X-C motif chemokine receptor (CXCR) family is a member of seven-transmembrane receptors, which exerts chemoattractant effects on leucocytes and other cell types in controlling cell activation and guiding cell movements under basal and inflammatory conditions.42 There are 8 members of C-X-C motif chemokine receptors (CXCR1-8), which play the critical roles in immune, neurodegenerative and cardiovascular diseases.43-45 Recent reports show that several C-X-C motif chemokine receptors also play the fundamental roles in the progression of CKD, such as CXCR1,46 CXCR647 and particularly CXCR4.7, 8, 10 It was reported in our previous study, in glomeruli of CKD patients and mouse models, CXCR4 expression is up-regulated predominantly in podocytes and is responsible for oxidative stress.7 Furthermore, in lupus nephritis patients, CXCR4 aggravates the severity of diseases through activating CD19 + B cells and CD4 + T cells.9, 48 Another report shows macrophage-expressed CXCR4 aggravates renal fibrosis.8 In that study, they also found ablation of tubular CXCR4 attenuates renal fibrosis. However, the role of CXCR4 in tubular cell injury and the underlying mechanisms need to be elucidated in detail.

β-catenin is the downstream effector of Wnt signalling in tubular cell senescence,18 podocyte dedifferentiation 15and fibroblast activation.49 Although β-catenin expression is silent in normal adult kidneys, it is reactivated at an early stage and keeps activation in the progression of CKD.50, 51 β-catenin could express in various cells; however, it is predominantly located in tubular cells in injured kidneys.23 Except Wnt signalling, β-catenin also plays a functional role in the signal transduction of ET-1 receptor, a member of G-protein–coupled receptors (GPCRs).52 Interestingly, CXCR4 is a receptor that belongs to the superfamily of GPCRs. These prompt us to check the correlation between CXCR4 and β-catenin.

We first assessed the expression of CXCR4 and β-catenin in experimental mouse models. The results show that CXCR4 and β-catenin were both up-regulated predominantly in injured tubular cells in a time-dependent manner. The results of staining on sequential sections further claim the co-localization of CXCR4 and β-catenin in tubular cells. Furthermore, the expression of CXCR4 has a positive correlation to the expression of MMP-7 and triggers signal amplification of MMP-7, the downstream target of β-catenin (Figure 1). We also found in humans with IgAN, RPGN and FSGS, the up-regulation of CXCR4 was mainly localized in tubular cells (Figure 1). Large amounts of recent reports have shown that β-catenin is up-regulated in tubular cells and plays a critical role in cell injury in these diseases.53-55 Hence, these data suggest that CXCR4 has a potential role in tubular cell injury and is associated with β-catenin activation.

We next performed the analysis in experimental mouse models and in cultured tubular cells. In UUO and UIRI mice, blockade of CXCR4 by AMD3100 significantly inhibited the activation of p-GSK3β/β-catenin signalling, thereby protected against renal fibrotic lesions and preserved kidney functions (Figures 2-5). We also testified the effects of ICG-001, the inhibitor of β-catenin signalling, on CXCR4-aggravated renal fibrosis. Interestingly, administration of ICG-001 could significantly block CXCR4-induced renal fibrosis (Figure 6), further suggesting the mediating role of β-catenin in CXCR4 cascade. The in vitro studies show that CXCR4 cooperatively acted with Wnt on β-catenin signalling activation and fibrotic lesions (Figure 7). Meanwhile, SDF-1α, the ligand of CXCR4, evidently induced the phosphorylation and activation of JAK2/STAT3 and JAK3/STAT6 (Figure 8), the two key effectors of signalling cascade in JAK/STAT pathways.56 Furthermore, overexpression of STAT3 or STAT6 repressed GSK3β transcription, and siRNA-mediated inhibition of STAT3 or STAT6 could significantly inhibit SDF-1α-induced β-catenin activation and fibrotic lesions (Figure 8). The mediating roles of JAK/STAT in CXCR4 signalling were also proved in AMD3100-administered and CXCR4 gene-silenced CKD mouse models (Figures 9 and 10). These data clearly demonstrate that β-catenin signalling mediates CXCR4 cascade in tubular cell injury. The regulation of GSK3β by JAK/STAT pathway plays a central role in CXCR4-induced β-catenin activation. Consistently, it was reported that the cytoplasmic domain of CXCR4 protein could phosphorylate JAK2.33

One of the novel findings in the present study is that the transcription factors STAT3 and STAT6 could regulate GSK3β/β-catenin signalling in renal tubular cells (Figure 8).This observation, for the first time, unequivocally links intercellular messenger's signals to β-catenin activation, which would provide broad implications beyond tubular pathology. GSK3β is the serine/threonine protein kinase mediating β-catenin degradation.57 Compared with the inhibitors of β-catenin signalling such as ICG-001,58 GSK3β inducers would undoubtedly provide unique inhibition to β-catenin signalling, as it would trigger the degradation of β-catenin other than the single inhibition of transcriptional activity. Additionally, although Wnt inhibitors such as DKK1 have inhibitory effects on activation of β-catenin,59 however, the broad-spectrum inhibition of multiple Wnts activity would certainly induce both good and bad effects as some Wnts may have the blocking effects on renal fibrosis.60, 61 Hence, to develop the therapeutics from the promoters of GSK3β would provide new insights to block the reactivated β-catenin signalling in tubular cell injury and renal fibrosis. In motion, a clinical trial of JAK2 inhibitor in diabetic kidney diseases is ongoing with good signs for protecting efficacy.62 Although JAK/STAT pathways exert various functions in renal fibrosis,63-66 we believe that GSK3β/β-catenin signalling is an important downstream effector that should not to be ignored. We admit CXCR4 could mediate diverse signalling including JAK/STAT pathway,67 which also plays an important role in renal fibrosis.68 However, our studies explicitly establish a role of CXCR4 in activation of β-catenin signalling. Furthermore, JAK/STAT signalling plays very important roles in activation of β-catenin triggered by CXCR4. Our studies provide new insights into the intricate mechanisms and give potential implications in the treatment of renal fibrosis and CKD.
