Anthropogenic global shifts in biospheric N and P concentrations and ratios and their impacts on biodiversity, ecosystem productivity, food security, and human health

2.1 Effects of drivers of global change on N:P ratios of water, soil, and plants

Many recent studies have reported increases in the N:P ratio in the soil, water, and plants of terrestrial and aquatic ecosystems (Blanes, Viñegla, Merino, & Carreira, 2013; Crowley et al., 2012; Hessen, 2013; Huang, Liu, et al., 2016; Jirousek, Hajek, & Bragazza, 2011; Lepori & Keck, 2012; Xu, Pu, Li, & Zhu, 2019; Yu et al., 2018; Zivkovic, Disney, & Moore, 2017) in response to “high levels of atmospheric N deposition” (Table 1).

Some studies, however, have not clearly detected changing patterns in soil–plant C:N:P stoichiometry along natural gradients of N deposition (Stevens et al., 2011). The decrease in N deposition in some areas of North America and Europe in recent decades has substantially decreased N:P ratios in lakes (Gerson, Driscoll, & Roy, 2016; Isles, Creed, & Bergstrom, 2018). Atmospheric P deposition is also increasing due to the rising levels of anthropogenic emissions of P to the atmosphere (3.5 Tg P/year), which have led to current net continental and oceanic rates of P deposition of 2.7 and 0.8 Tg P/year, respectively (Wang, Balkanski, et al., 2015). This deposition has been particularly intense in areas of the world with emerging economies, such as eastern Asia, which may account for the low N:P ratios reported in some freshwater systems in Japan (Miyazako et al., 2015).

The P cycle and N:P ratios are affected by many drivers of global change other than anthropogenic emissions of N and P (Table 1). Higher concentrations of “atmospheric CO₂” are correlated with decreases in plant N and P concentrations and increases in the ratios of C:N and C:P (Deng et al., 2015; Penuelas & Estiarte, 1997; Penuelas & Matamala, 1990; Sardans, Rivas-Ubach, & Penuelas, 2012b), but the effects on plant N:P ratios are less clear. For example, recent meta-analyses have found that rising CO₂ concentrations have led to decreases in N:P ratios in different plant tissues (Deng et al., 2015) and woody plants but not herbaceous plants or mosses (Yue et al., 2017). Yuan and Chen (2015) in a meta-analysis of 315 studies with non-differentiation of plant organs observed an overall decrease in N:P ratios in controlled field conditions under elevated levels of CO₂. However, another review of 215 studies (Sardans, Grau, et al., 2017), mostly under controlled field conditions, revealed that increased atmospheric concentrations of CO₂ led to decreased N:P ratios in roots, but not in leaves. Moreover, King et al. (2015) reported increased N:P ratio in one phytoplankton species, decreased N:P ratio in three other species, and no change in N:P ratio in other three species under high levels of CO₂, thus suggesting that the effects of CO₂ enhancement on stoichiometry appear to be species dependent. It is thus likely that the ongoing increases in atmospheric CO₂ concentrations are reducing N:P ratios in plants, which would be apparently consistent with the GRH for plants under favorable growth conditions (Sterner & Elser, 2002). The hypothesis that atmospheric increases in CO₂ stimulate higher plant uptakes of P than N (Deng et al., 2015) thus remains to be unequivocally demonstrated but begins to have some observational and experimental support (Table 1).

Less information is available regarding the “relationships of the rise in atmospheric CO₂ concentration with N and P concentrations and N:P ratio in soil.” Huang et al. (2014) observed that a rise in atmospheric CO₂ concentration did not change total soil P concentrations but increased P-available to plants and decreased more recalcitrant soil-P. Increased CO₂ concentrations can indirectly decrease soil N and P concentrations by several mechanisms including higher plant N and P demands, higher N and P resorption rates, and higher exudates production and N and P uptake (Jin, Tang, & Sale, 2015; Liu, Appiah-Sefah, & Apreku, 2018; Van Vuuren et al., 2008). However, the potential impact of CO₂ enhancement of soil N:P ratios also remains inconclusive.

“The changes in N and P concentrations and N:P ratios in soil-plant systems in response to warming” vary with biome and soil type (Sardans, Grau, et al., 2017; Sardans, Penuelas, Estiarte, & Prieto, 2008; Yue et al., 2017). They also suggest that low soil N and P concentrations tend to be associated with higher temperatures along natural long-term climatic gradients, but the reverse occurs for phenotypic responses of species to N in short-term field studies with climatic manipulation (Yuan et al., 2017). Several studies have indeed reported decreases in aboveground plant N:P ratios under warming that were attributed to the greater allocation of P to stems and/or to greater plant growth capacity (Dudareva, Kvitkina, Yusupov, & Yevdokimov, 2018; Wang, Ciais, et al., 2018; Wang, Liu, et al., 2019). The effects of warmer temperatures on plant and soil C:N:P ratios along natural gradients are not easy to distinguish from those of precipitation, radiation, or atmospheric N deposition, which frequently correlate with the geographical temperature gradient (Jiao et al., 2016).

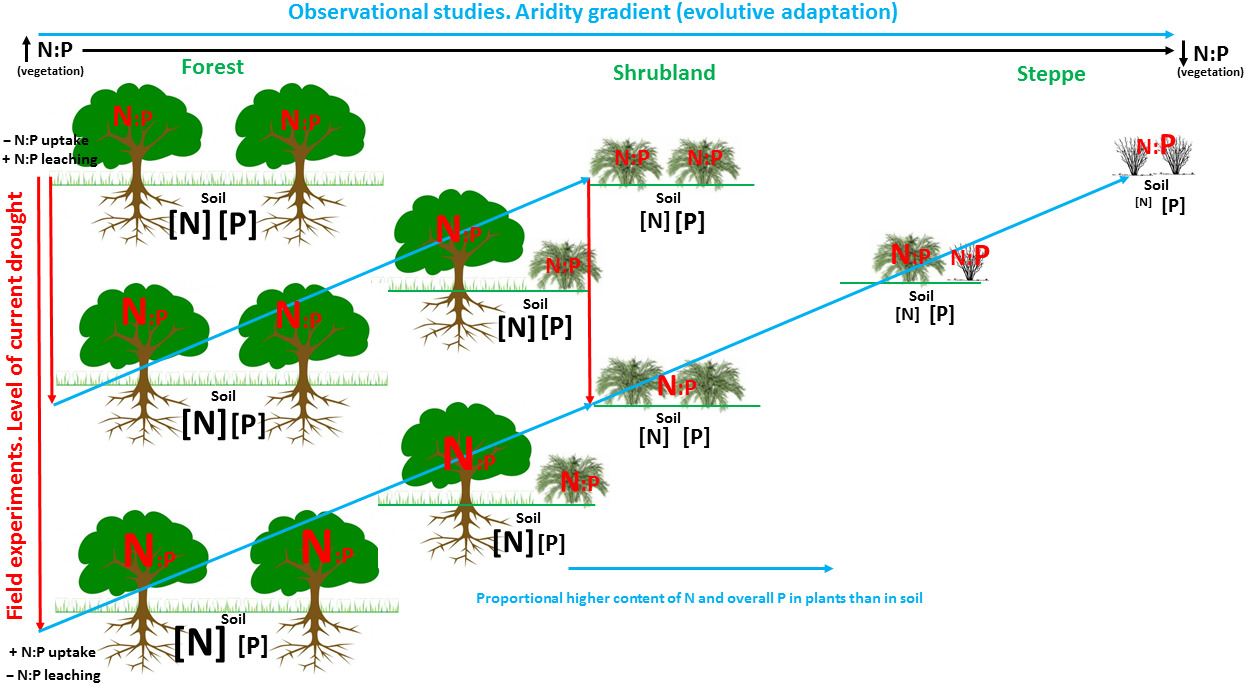

The projected total land surface occupied by warm semiarid surfaces may become 38% larger in 2100 compared to the present (Huang, Ji, et al., 2016; Huang et al., 2017; Rajaud & de Noblet-Ducoudré, 2017). “The effects of aridity (combination of high temperatures with low precipitation) on plant N:P ratios” along natural long-term climatic gradients also differ from the effects in field studies with climatic manipulation (Luo, Xu, et al., 2018; Luo, Zuo, et al., 2018; Yuan et al., 2017). Increases in canopy N and P concentrations and decreases in plant C:P and N:P ratios have been recorded along transects of increasing aridity. Future increases in aridity are also likely to lead to lower N:P ratios in atmospheric depositions (Lin, Gettelman, Fu, & Xu, 2018; Zarch, Sivakumar, Malekinezhad, & Sharma, 2017). In contrast, plant N and P concentrations have tended to decrease and N:P ratios have tended to increase (He & Djistra, 2014; Yuan & Chen, 2015) in short-term manipulation studies where water availability decreased (Jiao et al., 2016; Luo, Zuo, et al., 2018; Figure 4), despite between-site variations in foliar N and P concentrations (Luo, Zuo, et al., 2018; Sardans & Penuelas, 2007, 2013a, 2013b; Sardans, Grau, et al., 2017; Sardans, Penuelas, Estiarte, et al., 2008; Sardans, Penuelas, Prieto, & Estiarte, 2008). These increases in foliar N:P ratios in response to experimental drought are generally because low soil-water contents limit P uptake more than N uptake (Luo, Xu, et al., 2018; Luo, Zuo, et al., 2018; Sardans, Grau, et al., 2017; Sardans & Penuelas, 2013a; Urbina et al., 2015). Plants notably respond to sudden conditions of drought and warming in manipulated field experiments with increased allocations of N, P, and potassium (K) to roots, leading to lower root N:P ratios associated with higher primary metabolism linked to growth, protein synthesis, and pathways of energy transfer (Gargallo-Garriga et al., 2014, 2015). In contrast, shoots have lower concentrations of N and P and higher N:P ratios linked to the activation of anti-stress metabolic pathways (Gargallo-Garriga et al., 2014, 2015).

“Contrasting responses of soil nutrients to short- and long-term drought conditions” have also been reported, where soil N and P concentrations tended to decrease with aridity in natural (long-term) gradients but tended to increase in some biomes and soil types under conditions of short-term drought (Yuan et al., 2017; Figure 4). Delgado-Baquerizo et al. (2013) observed a negative effect of aridity on the concentration of soil organic C and total N, but a positive effect on the concentration of inorganic P in semiarid and arid areas. In these conditions, P and N shift from soil to plants, so plant communities adapted to long-term drought conditions retain higher levels of N and P (Luo, Xu, et al., 2018; Luo, Zuo, et al., 2018). These effects are consistent with observations of lower ratios of N:P in water from deeper soil layers and indicate P limitation in soil under arid climatic conditions (Sardans & Penuelas, 2014). Long evolutionary processes likely drive the conservative use of nutrients in droughted environments.

Our understanding of the impacts of “extreme climatic events” on plant–soil stoichiometry is limited. For example, Wang, Sardans, Tong, et al. (2016) observed that rapid production of litter in coastal wetland during typhoons led to larger and faster releases of N and P, characterized by low N:P ratios, but the associated potential impacts on soil microbial communities and trophic chains were unclear. The projected increases in extreme climatic events indicate that quantifying the impacts on N and P cycles and their ratios is essential.

“Invasion by non-native plants” is an emerging driver of global environmental change (Seabloom et al., 2015), where establishment depends on differences in the uptake and use efficiency of nutrients between native and invasive species (Daehler, 2003; Gonzalez et al., 2010; Penuelas et al., 2010; Sardans, Bartrons, et al., 2017). The impacts of invasive species on N and P cycles and stoichiometry on the plant–soil system may vary between nutrient-rich and nutrient-poor ecosystems (Gonzalez et al., 2010; Matzek, 2011; Sardans, Bartrons, et al., 2017). For example, successful invasive species have higher capacities to take up and efficiently use nutrients that are limited (Aragon, Sardans, & Penuelas, 2014; Sardans, Bartrons, et al., 2017; Ulm et al., 2016; Wang, Sardans, et al., 2018; Wang, Wang, et al., 2015), so the concentrations of N and P in photosynthetic tissues tend to be higher in invasive than native species. Total soil N concentrations and availabilities of N and P correlated with higher mineralization capacity are higher for invasive species, particularly in nutrient-poor environments (Sardans, Bartrons, et al., 2017). A higher capacity for N and P resorption in invasive species may account for these differences in concentrations and ratios of N and P (Sardans, Bartrons, et al., 2017 and references therein). The possible effects of anthropogenic changes in soil and water N:P ratios on competitive relationships between native and invasive species have received little attention, but changes in soil elemental composition and stoichiometry have been linked with the success of alien species (Sardans, Bartrons, et al., 2017). Further research is clearly required to improve our understanding of the relationships between successful species invasion and ecosystem N and P cycles and stoichiometry, including the role of the interaction with other drivers of global environmental change. For example, increased flooding intensity in coastal wetlands due to sea-level rise drives the effects of invasive plant species on N and P cycling (Wang, Sardans, Zeng, et al., 2016; Wang, Wang et al., 2015, 2018).

“Anthropogenic land-use changes” are heterogeneous, but they tend to be associated with changes in soil N and P concentrations and N:P ratios (Liu et al., 2018; Urbina, Grau, Sardans, Ninot, & Penuelas, 2019; Wang et al., 2014; Zhao et al., 2015; Zhou, Boutton, & Wu, 2018a, 2018b). For example, invasion by shrubs on grassland previously grazed by livestock is frequently associated with changes in soil–plant N and P concentrations and N:P ratios (Bui & Henderson, 2013; Urbina et al., 2019). These changes go in parallel to a transition from rapid nutrient cycling, with high concentrations of N and P in the plant–soil system, to slower N and P cycling, with lower concentrations of N and P in the system, and higher accumulations of N and P stocks in the higher aboveground shrub biomass (Urbina et al., 2019; Zhou, Boutton, & Wu, 2018a, 2018b) that has a larger capacity to obtain nutrients from deep soil layers (Blaser, Shanungu, Edwards, & Venterink, 2014). These trends, however, vary with the traits of the shrub species (Eldridge et al., 2011; Knapp et al., 2008; Zhou et al., 2018b). Shifts in soil N:P ratios during processes of habitat transition may vary with soil layer, but soil N:P ratios tend to increase in the upper layers (Feng & Bao, 2018; Zhou et al., 2018a, 2018b).

If croplands replace tropical forests, which have high rates of biological N fixation, the rates may decrease as a result of this anthropogenic land-cover change. These likely effects of land use change have not been investigated, even though they may have strong impacts on both N and P, on N because of increased leaching and biological N fixation, and on P because of erosion and replacing a community adapted to retain P by others that are not.

So, in summary, the current global trend is generally toward “increasing N:P ratios in water, soil and plants, but with many exceptions.” For example, widespread P enrichment of crop soil has led to declines in N:P ratios in several parts of the world (Delgadillo-Vargas, Garcia-Ruiz, & Forero-Álvarez, 2016; Penuelas, Sardans, Alcañiz, & Poch, 2009; Wang, Wang, et al., 2015; Wironen, Bennett, & Erickson, 2018). The differences in immobilization, leaching, and volatilization between the two elements lead to higher soil retention of P than N (Penuelas et al., 2012, 2013). This trend in P retention tends to be more pronounced where the density of livestock, particularly pigs, and/or poultry is high (Arbuckle & Downing, 2001; Gomez-Garrido, Martinez-Martinez, Cano, Buyukkilic-Yanardag, & Arocena, 2014; Hentz et al., 2016; Penuelas, Fernández-Martínez, et al., 2019; Wironen et al., 2018), because the manure waste generated is characterized by very low N:P ratios (Humer, Schwarz, & Schedle, 2015; Oster et al., 2018). In conclusion, whereas in cropland soils and surrounding habitats such as lakes and ponds directly receiving non-treated or diffuse wastes and leachates, N:P ratio has decreased in last decades, in the majority of other continental and coastal areas N:P tends to rise as a result of a greater spread capacity of N than P.

2.2 Spatial heterogeneity in anthropogenic N and P imbalances: River basins as case studies

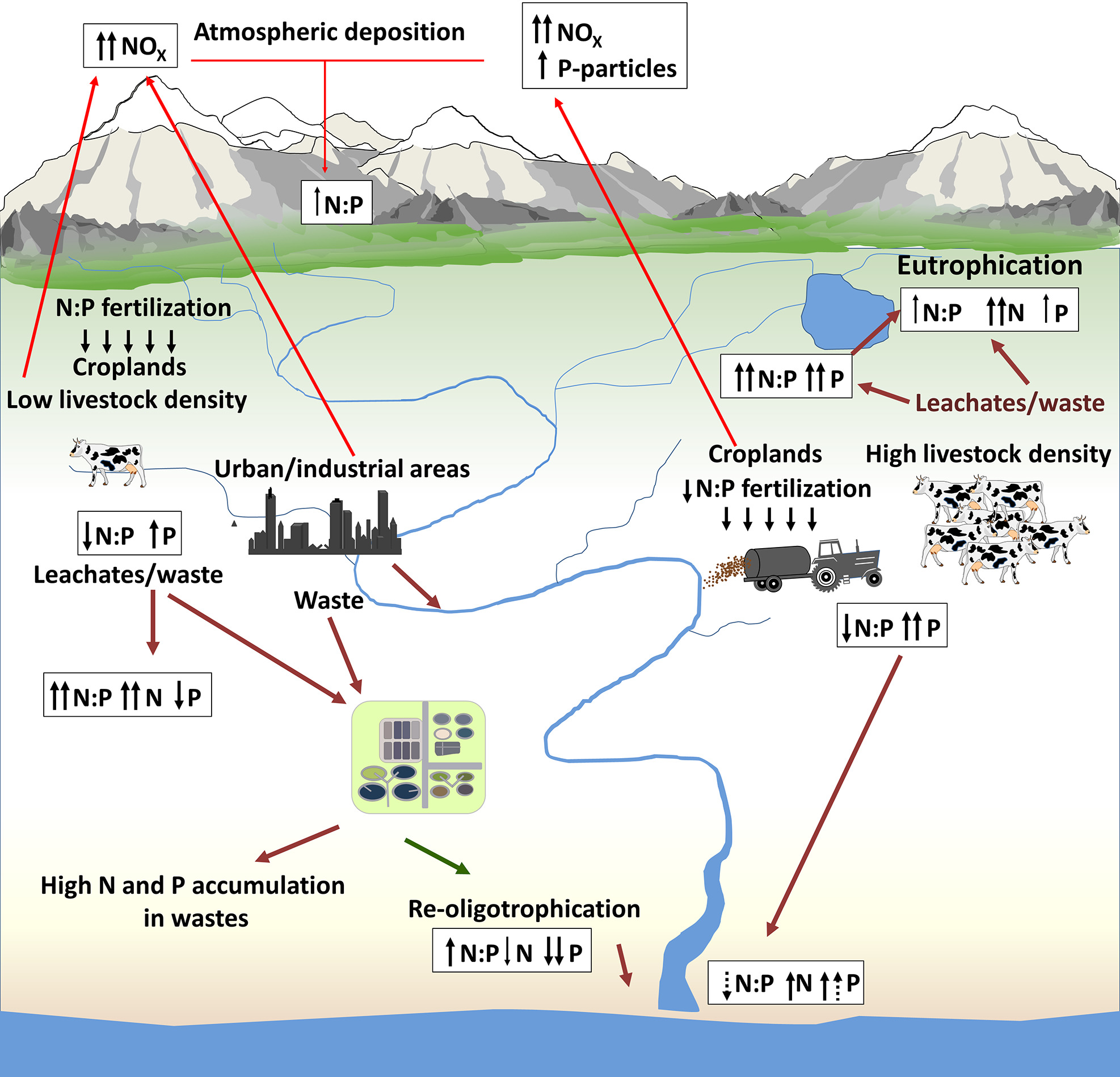

The study of N and P concentrations and N:P ratios in rivers and basins allows the analysis of the effects of multiple human activities on nutrient budgets (Zhang, Li, & Li, 2019; Zhang, Liu, et al., 2019) across a range of land uses (Romero et al., 2019; Sardans et al., 2012a; Zhang, Li, et al., 2019; Figure 5). Environments where N is transported by aquatic systems, such as in the lower stretches of rivers and estuaries (Capriulo et al., 2002; Chai, Yu, Song, & Cao, 2006; Harrison, Yin, Lee, Gan, & Liu, 2008; Li et al., 2010; Turner, Rabalais, Justic, & Dortch, 2003; Yin & Harrison, 2007; Zhang et al., 1999) and along coasts (Chen, Ji, Zhou, He, & Fu, 2014; Lipizer, Cossarini, Falconi, Solidoro, & Fonda Umani, 2011; Turner, Rabalais, & Justic, 2006; Wei & Huang, 2010; Yin, Song, Sun, & Wu, 2004), or by deposition, such as in remote lakes (Arbuckle & Downing, 2001; Hessen, Andersen, Larsen, Skjelkvale, & Wit, 2009; Liess, Drakare, & Kahlert, 2009) and forest and grassland ecosystems (Du et al., 2016; Fenn et al., 1998; Franzaring, Holz, Zipperle, & Fangmeier, 2010; Prietzel & Stetter, 2010; Schmitz et al., 2019; Veresoglou et al., 2014; Wang, Sardans, et al., 2017), tend to be enriched more rapidly by N than P, thereby increasing the N:P ratios (Figure 5). This trend has been exacerbated by the progressive replacement of P-rich with N-rich detergents (Sardans et al., 2012b and references therein). The exceptions occur in areas with growing diffuse livestock densities (Frost, Kinsman, Johnston, & Larson, 2009; Zhang, Brady, Boynton, & Ball, 2015) and in countries with emerging economies and demography, such as Turkey, Mexico, and India where the loads of non-treated wastes with great charges of human and animal dejections to rivers are increasing (Bizsel & Uslu, 2000; Ramesh, Robin, & Purvaja, 2015; Ruiz-Fernández et al., 2007; Sardans et al., 2012b; Figure 5). These trends are recent, but the ongoing construction and use of wastewater treatment plants (Tong et al., 2019) have led to emergent re-oligotrophication of water and improved management of fertilization (Kara et al., 2012). Wastewater treatment plants generally retain approximately 60% of N and 80% of P, so treated water released to the aquatic system has low N and P concentrations and high N:P ratios (Ibañez & Penuelas, 2019; Figure 5). The number of wastewater treatment plants will likely increase, so assessing the potential impacts of re-oligotrophication will be important. For example, anoxic conditions may change to more aerobic conditions, and increases in water N:P ratios associated with low N and P concentrations may increase the abundance of aerobic species with low growth rates (Sterner & Elser, 2002; Sardans et al., 2012b).

N and P concentrations and ratios at regional scales generally tend to differ between agricultural areas with no or low levels of livestock and areas with higher densities of livestock. The ratios of N:P inputs tend to be higher in areas with low livestock densities that are treated with inorganic fertilizer (Dupas et al., 2015; Romero et al., 2019; Sardans et al., 2012b; Sun et al., 2017). Instead, leachates tend to be rich in P, with low N:P ratios (Szögi, Vanotti, & Hunt, 2015) in areas with high densities of livestock, particularly monogastric (nonruminant) livestock, such as poultry and pigs, so large amounts of P are released through estuaries to oceans, as observed in some Indian rivers (Ramesh et al., 2015), associated with deposition with low N:P ratios (Wang, Liu, Xu, Dore, & Xu, 2018; Figure 5).

3.1 Cascading effects

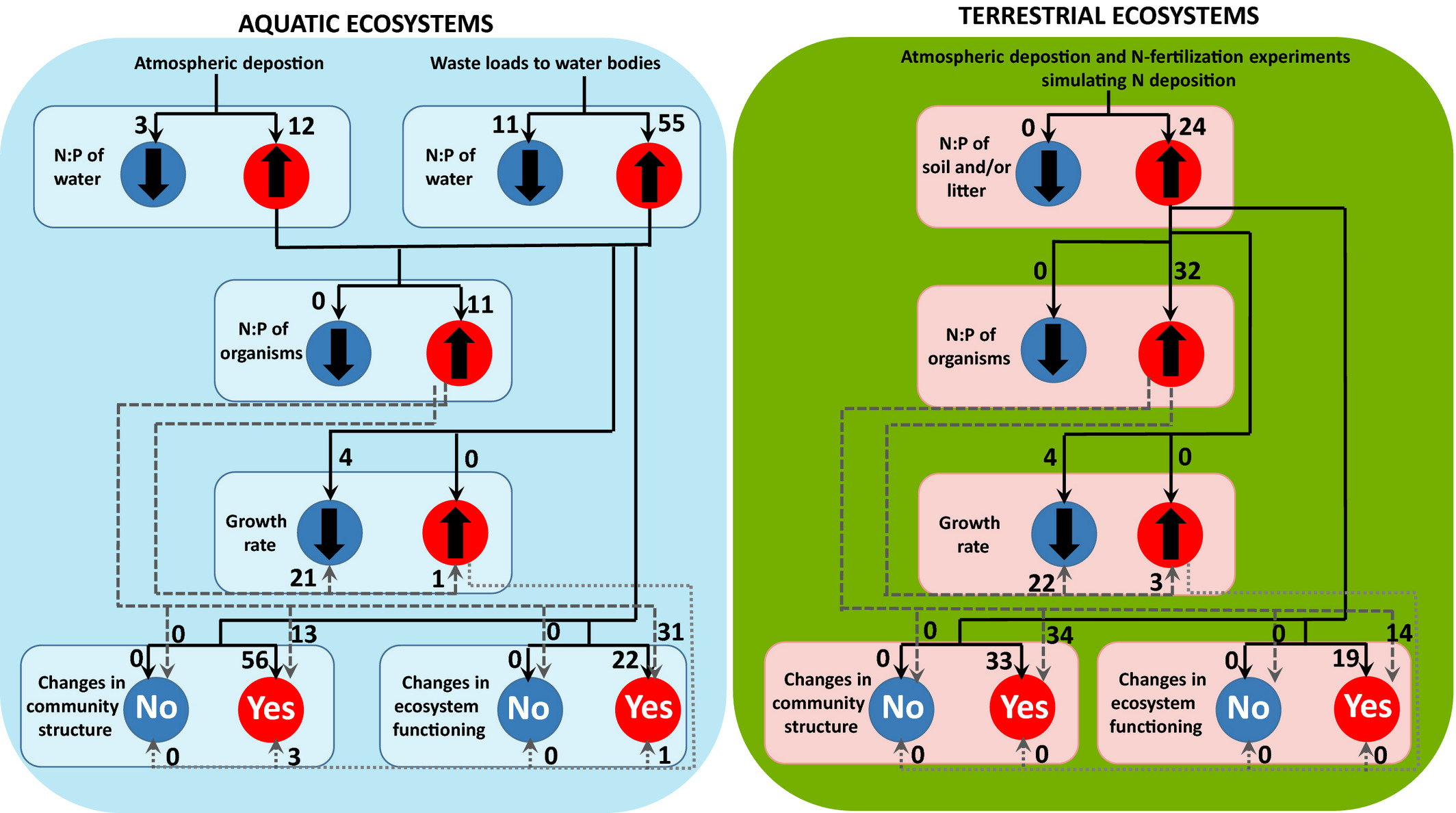

The cascades of effects due to anthropogenic shifts in N:P ratios are similar in aquatic systems (lakes, estuaries, streams) and terrestrial ecosystems, where water and planktonic N:P ratios tend to increase in response to atmospheric deposition, leading to lower “growth rates,” complexity of community structure, and trophic diversity (Figure 6; Table S1). Exceptions to these trends, however, have been recorded for aquatic systems, such as a decrease in N:P ratios in Japan due to the increasing deposition of P from dust dispersed from countries in southeastern Asia (Miyazako et al., 2015), and for European and North American lakes in areas with recent reductions in N deposition (Gerson et al., 2016; Isles et al., 2018). Although most studies of urban and crop wastes and leachate loads to rivers and estuaries (83.3%) have found increasing N:P ratios associated with increasing N:P ratios from human inputs, other studies (13.7%) tended to find decreasing ratios in areas with high livestock densities (Arbuckle & Downing, 2001; Johnson, Heck, & Fourqurean, 2006; Figure 6; Table S1).

Increasing evidence has established links between phylogeny and the elemental compositions of microbes, plants, and animals, including N and P concentrations and N:P ratios (Bartrons, Sardans, Hoekman, & Penuelas, 2018; Godwin & Cotner, 2018; González et al., 2018; González, Dézerald, Marquet, Romero, & Srivastava, 2017; Penuelas, Fernández-Martínez, et al., 2019; Sardans et al., 2015). Anthropogenic increases in environmental and organismic N:P ratios in aquatic and terrestrial systems are generally associated with cascades of effects that benefit organisms with lower growth rates and lead to shifts in species community composition and function (Apple, Wink, Wills, & Bishop, 2009; Arnold, Shreeve, Atkinson, & Clarke, 2004; Ballantyne, Menge, Ostling, & Hosseini, 2008; Bishop et al., 2010; Carrillo, Villar-Argaiz, & Medina-Sánchez, 2001; Cernusak, Winter, & Turner, 2010; Chen, Yin, O'Connor, Wang, & Zhu, 2010; Elser, Peace, et al., 2010; Hall, 2009; Laliberté et al., 2013; Sasaki, Yoshhihara, Jamsran, & Ohkuro, 2010; Schindler et al., 2008; Shurin, Gruner, & Hillebrand, 2006; Wardle et al., 2008; Wassen, Olde Venterink, Lapshina, & Tanneberger, 2005). Increases in plant N:P ratios can upregulate secondary metabolism and downregulate primary metabolism linked to growth and energy transfer, whereas decreases in N:P ratios have the opposite effect, especially when both N and P are not limiting (Gargallo-Garriga et al., 2014; Penuelas & Sardans, 2009; Rivas-Ubach, Sardans, Pérez-Trujillo, Estiarte, & Penuelas, 2012).

Changes in N and/or P availability and associated shifts in N:P ratios drive changes in species competition and dominance in communities of terrestrial plants (Sardans, Rodà, & Penuelas, 2004; Zhang, Liu, et al., 2019), animals (Jochum et al., 2017), microbes (Delgado-Baquerizo et al., 2017; Fanin, Fromin, Biatois, & Hättenschwiler, 2013; Ren et al., 2017; Shao et al., 2017; Zechmeister-Bolstenstren et al., 2015), and plankton (Elser, Andersen, et al., 2009; Elser, Kyle, et al., 2009; Grosse, Burson, Stomp, Huisman, & Boschker, 2017; He, Li, Wei, & Tan, 2013; Moorthi et al., 2017; Plum, Husener, & Hillebrand, 2015). Changes in media (water or soil) N:P ratios affect the structure of terrestrial (Fanin et al., 2013; Scharler et al., 2015; Zechmeister-Bolstenstren et al., 2015) and aquatic (Sitters, Atkinson, Guelzow, Kelly, & Sullivan, 2015) food webs, but associated impacts on community diversity are unclear. For example, some studies have reported increases in N:P ratios due to N deposition or land-use change associated with reduced diversity of microbes (Zhang, Chen, & Ruan, 2018), plants (DeMalach, 2018; Güsewell, Bailey, Roem, & Bedford, 2005), and animals (Vogels, Verbek, Lamers, & Siepel, 2017; Wei et al., 2012), but other studies have found increases in microbial (Aanderud et al., 2018; Ren et al., 2016; 2017) and plant (Laliberté et al., 2013; Pekin, Boer, Wittkuhn, Macfarlane, & Grieson, 2012; Wassen et al., 2005; Yang et al., 2018) diversity. The diversity of plant species has been associated with an optimum plant N:P mass ratio near 20 (Sasaki et al., 2010), but the tendency for biodiversity to depend on concentrations of N and P in soil hinders the establishment of a generalized hypothesis for the relationship between N:P ratios and diversity for all components of terrestrial communities (DeMalach, 2018).

Uncertainty of the effects of N:P ratios on community diversity derives from studies in which higher plant community diversity has been correlated with higher N:P ratios and lower variation of plant N:P ratios. Higher plant community diversity may be driven by optimizing nutrient uptake (Abbas et al., 2013), but other studies have found higher variation in N:P ratios among sympatric species (Alexander, Jenkins, Rynearson, & Dyhrman, 2015; Urbina et al., 2015, 2017), indicating that these species tend to maintain different elemental stoichiometries to avoid direct competition. For example, greater partitioning of resources among niches (in this case, N and P) has been demonstrated in sympatric species of diatoms under field conditions, where the expression of genes in the N and P metabolic pathways varied (Alexander et al., 2015).

Links between N:P ratios and species diversity are clearer in marine and freshwater ecosystems, particularly lakes. For example, the typically negative relationships between N:P ratios and the diversities of zoo- and phytoplankton (He et al., 2013) are associated with the shortened pathways and lower transfer rates of matter and energy along trophic webs under P limitation (Elser et al., 2000). Nutrient limitation and high N:P ratios are consistently associated with shifts from fast- to slow-growing species in all types of media (Busch et al., 2018; Penuelas et al., 2013), and soil microbial and decomposer faunal compositions are consistently associated with soil and litter N:P ratios (Barantal, Schimann, Fromin, & Hättenschwiler, 2014; Delgado-Baquerizo et al., 2017; Eo & Park, 2016; Lee et al., 2015, 2017; Leflaive et al., 2008; Ren et al., 2017; Su et al., 2015).

Impacts of changes from N to P limitation on the relationships between bacteria and hosts (and vice versa) are strong due to the short life cycles of bacteria. Host selection in the cyanobacterium Synechococcus is more discriminant under N than P limitation, leading to changes in the co-evolution of microbial communities associated with hosts that depend on intermediate N:P ratios (Larsen, Wilhelm, & Lennon, 2019). Similarly, changes in key ecosystem processes indirectly involved in community species composition, such as the transfer of energy and elements through trophic levels and nutrient cycling, have been correlated with changes in organismic N:P ratios (Ågren, 2004; Arnold et al., 2004; Güsewell & Gessner, 2009; Güsewell & Verhoeven, 2006; Penuelas et al., 2013; Vanni, Flecker, Hood, & Headworth, 2002; Zhang, Bai, & Han, 2004 and references therein). The directions of effects on community diversity and ecosystem structure in terrestrial and marine ecosystems due to shifts in N:P ratios, however, are inconsistent (DeMalach, 2018), so an understanding of the response mechanisms and generalities in ecosystems, particularly terrestrial ecosystems, is lacking.

Recent studies of the C:N:P ratios in mammalian dung have found strong impacts on plant diversity (Valdés-Correcher, Sitters, Wassen, Brion, & Venterink, 2019), indicating that top-down effects of changes to ecosystem community structure may be driven by N:P ratios and nutrient cycling. More research, however, is needed to support this hypothesis. Several drivers of global change, such as N deposition and increasing aridity, together with imbalances in anthropogenic N:P ratios, are generally shifting ecosystem N:P ratios that in turn affect species community composition and diversity. Soil, water, and organismic N:P ratios have thus been associated with basic traits of ecosystem structure and function, such as growth, photosynthetic activity, investment in reproduction, structure of trophic webs, life-history strategy, and species diversity (Carnicer et al., 2015; Penuelas et al., 2013, Penuelas, Ciais, et al., 2017; Sardans et al., 2012b and references therein).

3.2 N:P ratios and the capacity of terrestrial ecosystems to capture C

N:P ratios in ecosystems with the largest capacity to accumulate large amounts of C, such as forests and major estuaries, have tended to increase, including tropical forests that are usually P limited (Du et al., 2016; Penuelas et al., 2013; Sardans et al., 2012a). These increases in N:P ratios may limit the capacity of terrestrial ecosystems, mainly tropical forests, to store C (Goll et al., 2017; Penuelas, Ciais, et al., 2017; Wang, Zhang, et al., 2019). The availability of key nutrients, such as K and P, are predicted to decrease the sensitivity of ecosystems to increasing CO₂ emissions and warming (Fernández-Martínez et al., 2014; Penuelas, Ciais, et al., 2017; Wang, Zhang, et al., 2019). For example, climate-system models have predicted that limited P availability and corresponding imbalances in N:P ratios will decrease the capacity of terrestrial ecosystems to remove CO₂ (Goll et al., 2017; Penuelas et al., 2013, 2017; Sun et al., 2017; Wang, Zhang, et al., 2019). Similarly, other studies report that recent climatic warming has increasingly decreased the capacity of the biosphere to store C (Fernández-Martínez et al., 2019), and only forests with nutrient-rich soil had higher net primary production (NPP) in response to increases in gross primary productivity (Fernández-Martínez et al., 2014). Recent improvements to models, such as including N and P cycles in C-cycling models, have predicted that the capacity of the biosphere to store C will decrease when N:P ratios become unbalanced (Wang, Ciais, et al., 2018). Recent studies of the feedbacks and interactive effects of shifts in N:P ratios on climate change mediated by effects on the capacity of ecosystems to store and release CO₂, where N and P cycles have been incorporated into general C and climatic models (Goll et al., 2017; Penuelas et al., 2013; Wang, Goll, et al., 2017), challenge current understanding of the impacts of the interactive effects of global change. Closing this knowledge gap is a priority for future studies. These models have questioned whether changes in P and N availability and N:P ratios may alter the capacity of the biosphere to fix C from anthropogenic CO₂ emissions. Simulated changes in NPP and increases in vegetation and soil-C storage in response to rising CO₂ levels and longer growing seasons in the Northern Hemisphere have likely been overestimated (Hungate, Dukes, Shaw, Luo, & Field, 2003; Penuelas, Ciais, et al., 2017). Recent progress in implementing mechanistic N and P schemes in models of the terrestrial C cycle, however, underscores the importance of nutrient feedbacks, with reductions in productivity of up to 50% in the 21st century (Goll et al., 2012). No consensus, though, has yet been reached on future spatial patterns, the degree of nutrient limitation (Zaehle & Dalmonech, 2011), and associated interactions with the coupled system of climate and the C cycle, despite these advances.

Increases in NPP with more N and P must be balanced with increased decomposition with greater N and P supply. Increasing N:P ratios may actually lead to lower decomposition rates and hence greater C storage. If, however, there is less NPP feeding C pools, the net effect could be less storage. The stoichiometric constraints on microbial decomposition would play a key role in these changes in C storage and turnover. The relationship between litter N:P ratio and litter decomposition is not simple. Some studies have observed that litter decomposition is mostly related to lignin and/or secondary compounds concentrations, and only weakly dependent on litter N:P ratio both in tropical forests (Hättenschwiler & Jørgensen, 2010) and high latitude ecosystems (Aerts, Bodegom, & Cornelisse, 2012). Other studies have observed that litter decomposition rates were positively (Zhang, Gao, et al., 2018) or negatively (Wang, Sardans, Tong, et al., 2016) related to N:P ratios. These relationships between litter decomposition rates and N:P ratio strongly depend of the level of concentrations of N and P (Güsewell & Gessner, 2009). Litter with N:P > 22 has P-limited decomposition (Güsewell & Freeman, 2005). In the frame of growth rate hypothesis, lower N:P ratios should increase microbial growth rate and thus favor fast litter decomposition but only when both N and P are in high concentration; instead, a positive relationship or no relationship between N:P ratio and growth rate of microorganisms occurs under low N and P concentrations.

Declining health (high mortality and defoliation) has been recorded in forests with long-term and persistently high atmospheric loads of N (Carnicer et al., 2015), imbalances in soil nutrients, and increasing P limitation (Schmitz et al., 2019; Veresoglou et al., 2014). The capacity of temperate forests to store P increases with age (Sardans & Penuelas, 2015), and proportional allocation among organs is linked to growth-trait strategies. For example, more N is allocated to leaves than roots in slower growing species (Sardans & Penuelas, 2013b). The N:P ratios of plant organs may be involved in the phenomenon of masting, which intensifies at extreme low and high values of N:P (Fernández-Martínez et al., 2019). Anthropogenic nutrient imbalances and the declining health of temperate forests in the Northern Hemisphere (Schmitz et al., 2019; Veresoglou et al., 2014) may thus affect the capacity of forest ecosystem services, such as C storage. Such impacts on ecosystem function and service delivery remain to be quantified.

4.1 Food security

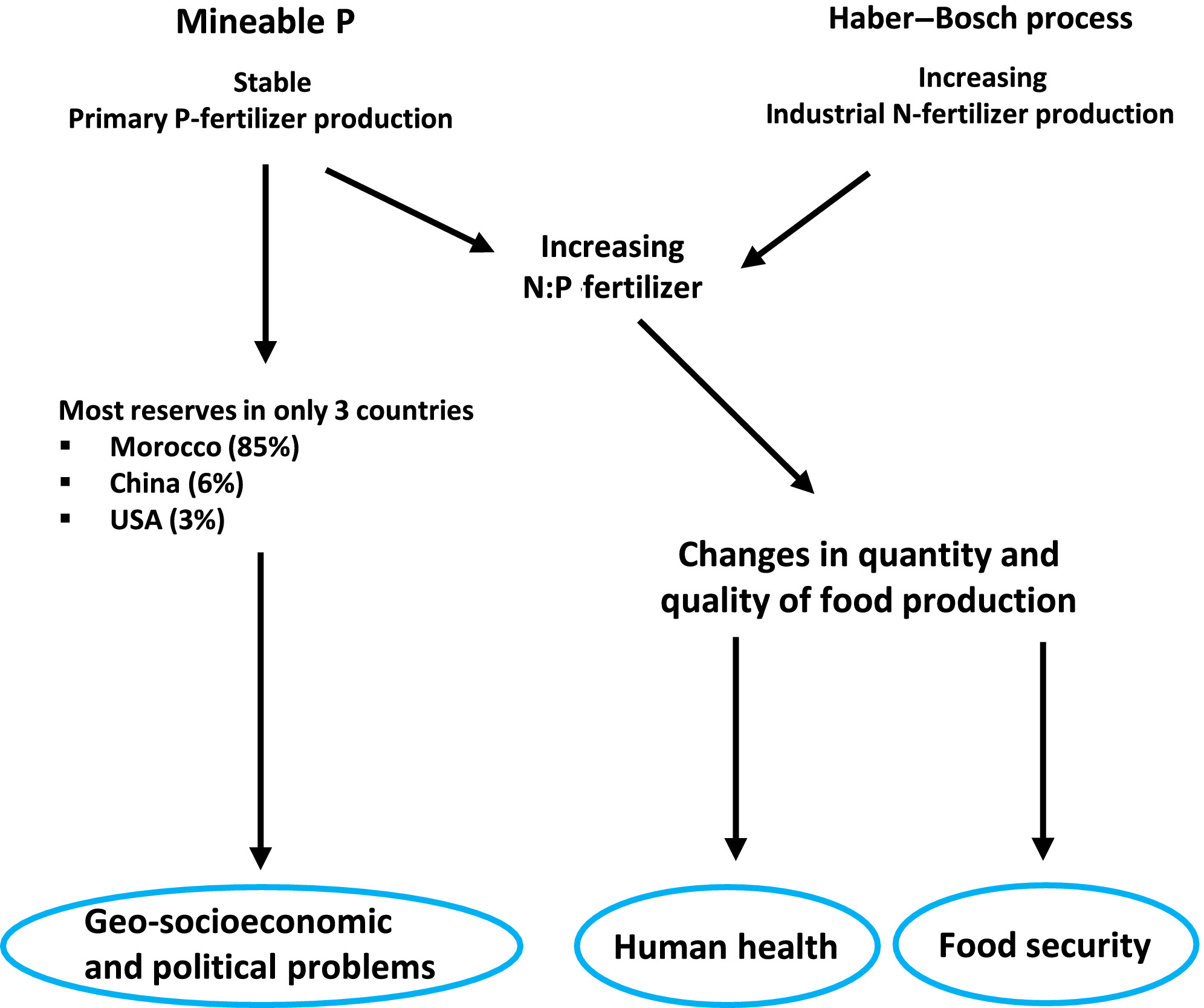

Agriculture may face a potential long-term “scarcity of P” (MacDonald et al., 2011; Obersteiner, Penuelas, Ciais, Velde, & Janssens, 2013), likely due to the exhaustion of mineable P reserves (Cordell & White, 2011) and lack of financial access to P fertilizers in poorer countries due to high and fluctuating market prices (Obersteiner et al., 2013). The scarcity of P has long been debated, but ongoing increases in global reserves of mineable P have obscured the potential risk of physical long-term P scarcity (Cordell & White, 2011), although the limited access of many countries still poses a risk to global food security (Figure 7). The emergence of the global biospheric imbalanced N:P ratio has increased the complexity of the implications of P scarcity (Lu & Tian, 2017; Penuelas et al., 2013), including risks to food production in agroecosystems (Lu & Tian, 2017; van der Velde et al., 2014). Most P reserves are in only three countries, with Morocco estimated to contain 85% of the global share, followed by China with 6% and the United States with 3% (MacDonald et al., 2011), exacerbating the global problem of supplying P fertilizers.

Recent reports about environmental problems related to P availability and imbalances in N:P ratios and the P trilemma among rich, poor, and P supplier countries (Obersteiner et al., 2013) have attempted to address issues and solutions for P availability (Figure 7). Some issues for avoiding the impacts of potential P scarcity on global food security for an increasing human population are important (Obersteiner et al., 2013; Rosemarin & Ekane, 2016), including increased demand and prices for P fertilizers that will likely render them inaccessible to poor and food-insecure countries (Kahsay, 2019; Obersteiner et al., 2013). Projections of demands for P fertilizers estimate a doubling of current levels by 2050 (Mogollón, Beusen, Grinsven, Westhoek, & Bouwman, 2018), consistent with short-term predictions (Jedelhauser, Mehr, & Binder, 2018; Matsubae, Kajiyama, Hiraki, & Nagasaka, 2011; Withers, Doody, & Sylvester-Bradley, 2018; Withers, Rodrigues, et al., 2018).

The predicted growth in P demand may be exacerbated by additional demands, such as for fertilizing grassland for livestock production, estimated at about 4–12 Tg P/year globally (Mogollón, Beusen, et al., 2018), and for fish farms, especially in eastern Asia (Vass, Wangeneo, Samanta, Adhikari, & Muralidhar, 2015). P reserves under these scenarios are expected to become depleted within the next 40–400 years, depending on the method of projection (Cordell, Schmid Neset, & Prior, 2012; Cordell & White, 2011, 2015; Elser & Bennett, 2011; Penuelas et al., 2013). The prospect of exhausting P reserves is a particular concern for P-poor cropland in sub-Saharan Africa, South America, India, Australia, and Russia, especially where farmer income and the capacity of crop production are low (Cordell, Jackson, & White, 2013; MacDonald et al., 2011; Rao, Srivastava, & Ganeshamurty, 2015; Sanyal et al., 2015), such as in sub-Saharan Africa, where low P content and high N:P ratios in some areas are alarming (Sileshi, Nhamo, Mafongoya, & Tanimu, 2017).

Geopolitical tensions associated with P scarcity (Obersteiner et al., 2013) are likely to increase between economically rich and poor P consumers, food-insecure P consumers, and P-producing countries (Matsubae et al., 2011; Obersteiner et al., 2013). These tensions indicate the increasing imbalances in N:P ratios due to socioeconomic and asymmetric (access to N vs. P) differences in anthropogenic inputs of biologically active N and P to the biosphere (Penuelas et al., 2013). Imbalances in total emitted anthropogenic N:P ratios to the biosphere increased exponentially during 1961–2013, with multiple detrimental effects. For example, P limitation has increased in several crops, predominantly in Africa and Asia, which may affect future responses to N fertilization (Lu & Tian, 2017). The accumulated addition of P for 2000–2050 has been estimated at 1,232 Tg P across the four Millennium Ecosystem Scenarios (Penuelas et al., 2013), so the P deficit for cereal crops may increase exponentially, especially in large areas of Africa and Russia (Penuelas et al., 2013; van der Velde et al., 2014).

In addition to the problems of P scarcity, “P cycling” has become a global concern, due to the very low solubility of P and its propensity to be adsorbed on some soil components and to precipitate to form diverse salt species, depending on the pH and mineral components of the soil (Arai & Livi, 2013; Dumas, Frossard, & Scholz, 2011; Srinivasarao, Singh, Ganeshamurthy, Singh, & Ali, 2007). Long-term continuous inputs of P fertilizer in cropland have led to estimates that 50% of total globally applied P fertilizer during 2002–2009 has accumulated in the soil (Lun et al., 2018; Xi et al., 2016). No chemical forms of P are directly available for uptake by crop plants, so efforts to improve P-use efficiency constitute a key global challenge (Bai et al., 2016; Li et al., 2015; 2016; Liu et al., 2016; Sattari, Bouwman, Giller, & Ittersum, 2012; Withers, Rodrigues, et al., 2018).

The threefold global increase in “livestock production for human consumption” over the last five decades has been a key driver of scarcity, environmental distribution, and decrease in the efficiency of P use (Liu et al., 2017). Globally, 70% of livestock comprises monogastric animals, such as poultry and pigs, which cannot absorb P from phytates and produce manure with very high P concentrations and low N:P ratios that lead to very low P-use efficiency (Oster et al., 2018; Prasad et al., 2015; Wang, Ma, Strokal, Chu, & Kroeze, 2018). Land used for the intensive production of monogastric animals and that is fertilized with their manure exacerbates environmental imbalances in N:P ratios (MacDonald et al., 2011; Penuelas, Fernández-Martínez, et al., 2019; Sileshi et al., 2017). A change in human diet to one with a larger proportion of plant-based food may be an effective tool to improve P-use efficiency (Reijnders, 2014; Withers et al., 2015). Studies have indicated that food security may be assured by improving P recycling by the application of a range of technologies and improved and efficient management of N and P fertilization to avoid imbalances in N:P ratios and subsequent associated cascades of environmental and economic problems (Cordell et al., 2012; Rahman et al., 2019; Rosemarin & Ekane, 2016; Weikard, 2016).

4.2 Human health

Changes in N, P, and N:P ratios cascade up the trophic chain, potentially to humans from food production, when the effects of overfertilization and imbalances in N:P ratios in crops may become apparent (Penuelas, Gargallo-Garriga, et al., 2019; Penuelas, Janssens, et al., 2017). N fertilization has historically been excessive in rich countries and has led to the overproduction of food, and the low use of fertilizers has staved off malnutrition in poor countries (Smil, 2002). Men born in rich countries in the 1980s were an average of 1.5 cm taller than men born in the 1960s, whereas the height of males born in the same decades in poor countries did not differ (Penuelas, Janssens, et al., 2017). Differences in per capita N, P, and N:P intake explained these differences in the “height of men” born in rich countries better than did socioeconomic and sanitary variables, such as gross domestic product, the human development index, and birth weight according to FAO, OCDE, and WHO integrated data analyses (Penuelas, Janssens, et al., 2017). Some “malign neoplasms,” particularly of the colon and lung, contain higher concentrations of P and lower N:P ratios than do healthy organs and surrounding tissue (Elser, Kyle, Smith, & Nagy, 2007a, 2007b). High N and P intakes from an increased consumption of animal-based foods in some developed countries would therefore likely lead to higher heights, albeit with a higher risk of mortality from cancer.

The intensification of crop management and use of fertilizers (especially N) have changed the composition of food intake per capita. Penuelas, Gargallo-Garriga, et al. (2019) reported that the global intensification of N fertilization may increase the “allergenic proteins” concentrations in wheat increasing the mean annual per capita intake of these proteins at global scale thus rising the risk of higher prevalence of “some illness such as coeliac pathology”. Using wheat as an example, global N fertilization increased from 9.84 to 93.8 kg N ha⁻¹ year⁻¹ during 1961–2010 (Curtis, 2019), similar to the overall rate of increase (10.5% year⁻¹) across all types of farmland (from 11.3 to 107.6 Tg N/year; Lu & Tian, 2017). The increases in N availability have led to increased concentrations of gluten (Klikocka et al., 2016; Litke, Gaile, & Ruza, 2018; Zheng et al., 2018) and the gliadins in gluten (Daniel & Triboi, 2000; Guardia et al., 2018; Kindred et al., 2008). These gliadins are responsible for triggering (Dubois et al., 2018; Morrell & Melby, 2017; Petersen et al., 2015) and maintaining (Akobeng & Thomas, 2008; Gil-Humanes et al., 2014; Hischenhuber et al., 2006) celiac disease. Indeed, the higher availability of N has been associated with higher expression of gliadin genes (Shewry, Tatham, & Halford, 2001).

Evidence suggests that P is accumulating in some cropland soils (Yuan et al., 2018; Figure 7), which increases uptake by crop plants that may increase P concentrations in food and therefore dietary intake. Some studies have reported high levels of P uptake by crops (Fernandes, Soratto, Souza, & Job, 2017; Gomez, Magnitskiy, & Rodriguez, 2019; Selles, McConkey, & Campbell, 1999; Zhang, Greenwood, White, & Burns, 2007) and non-crop plants (Da Ros, Soolanayakanahally, Guy, & Mansfield, 2018; Ostertag, 2010; Xu & Timmer, 1998) under high soil P concentrations. However, the potential relationship between the global accumulations of P in crop soil and P concentrations in the food produced and subsequent consequences on human health are currently unknown. Future research on effects of dietary increases in P intake is warranted since health problems, such as “bone health, risk of cancer, and heart failure, have been linked to the increased use of P” additives in foods (Dhingra et al., 2010; Takeda, Yamamoto, Yamanaka-Okumura, & Taketani, 2014; Wulaningsih et al., 2013), albeit with inconsistent effects when P intake is excessive (Cooke, 2017). Sufficient evidences of a shift in food composition at elemental and molecular level produced by changes in N and P crop management are available. Human health can be affected, which opens a new potential perspective in medical studies.
