2.1 Rigor

Animal studies were conducted in accordance with the guidelines established by the NIH and the Institutional Animal Care and Use Committee (IACUC) at the University of Arizona. The Animal Research: Reporting In Vivo Experiments (ARRIVE) guidelines were followed (Kilkenny et al., 2010). Surgeries/injuries were performed on 16 WT Aged mice. Two WT Aged mice died from brain injury-induced pulmonary edema <30 min after injury (Saber et al., 2020). Therefore, a total of 30 mice were used for data analyses: 16 3xTg-AD mice and 14 WT Aged TBI mice. No animals were excluded from analyses of sleep-related outcomes. One 3xTg-AD mouse was excluded from analysis of blood flow data because of sample processing error. One 3xTg-AD mouse and one WT Aged mouse were excluded from analysis of cytokines data because of measurement errors. All of the information for the primary antibodies used in this manuscript can be found in Table 1.

2.2 Animals and experimental timeline

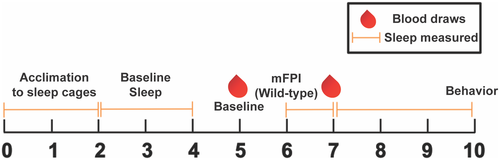

A schematic of the study design is provided in Figure 1. We used 16-month-old female 3xTg-AD mice (n = 16) and female age-matched C7BL/6;129X1/SvJ;129S1/S wild-type (WT Aged) controls (n = 16), because mortality substantially increases for 3xTg-AD mice beyond this age (Torres-Lista et al., 2017). As is common practice with 3xTg-AD mice, only females were used in this study because 3xTg-AD males have inconsistent and less severe pathology (Belfiore et al., 2019; Rosenberg et al., 2018; Yang et al., 2018). Mice were ordered from The Jackson Laboratory (Sacramento, CA, RRID:SCR_004633), bred at Arizona State University, and transferred to the University of Arizona where they acclimated for at least 2 weeks prior to initiation of the study. Mice were housed in a 14:10 light–dark period (lights on at 6:00 a.m.; 200 lux cool, white fluorescent light) at a constant temperature (23°C ± 2) and given food and water ad libitum.

The scope of this study was an 11-day experimental timeline. Mice were singly housed and acclimated to a non-invasive sleep cage for 3 days (days 0–2). Baseline sleep parameters were collected for 48 consecutive hours (days 3–4). On day 5, all mice were removed from their sleep cages, blood was collected, and subcutaneous saline was administered; WT Aged mice also received surgical preparation for diffuse brain injury. On day 6, WT Aged mice received a diffuse brain injury via midline fluid percussion injury (mFPI). Thereafter, all mice were immediately returned to their sleep cage and 24 hr of uninterrupted sleep parameters were collected. On day 7, blood was collected via submandibular vein. Mice were then placed back in sleep cages for 2 days and uninterrupted sleep parameters were collected (days 8 and 9). On day 10, mice were tested in an open field and on a novel object recognition task. All experimentation occurred between 8:00 a.m. and 10:00 a.m. to allow for uninterrupted sleep measurements at all other hours, except for day 10 when behavior was evaluated. All behavior testing was conducted in the same room to avoid potential confounding of novel locations on behavioral responses.

2.3 Midline fluid percussion injury

WT Aged mice were subjected to mFPI as previously described (Rowe et al., 2016; Rowe, Harrison, Zhang, et al., 2018). Mice were anesthetized using 5% isoflurane mixed in 100% oxygen for 2 min and then transferred to a stereotaxic frame with continuous delivery of isoflurane at 2.5% via nose cone. Body temperature was maintained using a Deltaphase isothermal heating pad (Braintree Scientific Inc., Braintree, MA, USA). While anesthetized, a midline incision was made exposing the area between bregma and lambda. A 3-mm outer diameter trephine was used to make a circular craniectomy between bregma and lambda on the midline without disrupting the dura. An injury hub was made from the female portion of a Luer-Loc needle hub and was fixed over the craniectomy site using cyanoacrylate gel and methyl acrylate (Hygenic Corp, Akron, OH, USA). The hub was filled with saline. A cap made from a modified syringe tip was placed in the hub to prevent debris from entering the hub. Animals were returned to a heated recovery cage and monitored until ambulatory before being returned to their individual sleep cages.

Mice were re-anesthetized 24-hr post-surgery using 5% isoflurane delivered for 2 min. The cap was removed from the injury-hub assembly and the craniectomy was visually inspected for an intact dura and undisturbed sinus. The hub was filled with sterile saline and attached to the fluid percussion device (Custom Design and Fabrication, Virginia Commonwealth University, Richmond, VA) using extension tubing (Baxter, #2C5643). Following confirmation of a toe pinch response, the pendulum was released from a pre-determined height onto the fluid-filled cylinder causing a fluid pulse directly onto the dura, which resulted in a diffuse brain injury. Immediately after injury, the hub was removed, and animals were placed on their side and monitored for clinical signs of apnea, seizure-like activity, and return of the righting reflex. After mice spontaneously righted, the craniectomy was inspected for uniform herniation, hematoma, and an intact dura, and the incision was sutured. Animals were returned to a heated recovery cage and monitored until ambulatory. Mice were returned to their individual sleep cages ≤ 2 hr post-injury. Injured mice were evaluated the first day post-injury for post-operative check-ups by physical examination and documentation of body weight, physical appearance, and swelling around the suture site. Animals retained in this study had to have a hematoma without asymmetrical herniation, visual evidence of a change in breathing (apnea, irregular, rapid, etc.), and a righting reflex time between 4 and 8 min.

2.4 Collection of sleep–wake parameters

Sleep and wake activity were measured using a non-invasive piezoelectric sleep cage system (Signal Solutions, Lexington, KY, USA), which classified sleep behavior according to previously described methods (Harrison et al., 2015; Rowe, Harrison, Morrison, et al., 2019; Saber et al., 2019). This non-invasive method has been validated with electroencephalogram (EEG) and human observations, and has demonstrated a classification accuracy (sleep vs. wake) of >90% in mouse sleep research (Mang et al., 2014). Each cage had an open bottom that allowed direct placement on a polyvinylidene difluoride sensor on the cage floor, and the sensors were coupled to an input differential amplifier to generate pressure signals. Sleep was characterized by regular breathing movements associated with sleep (3 hertz, regular amplitude signals; (Donohue et al., 2008). Mice that were characterized as exhibiting wake behavior had the absence of this sleep signal and the presence of higher amplitude, irregular spiking, associated with volitional movements. The piezoelectric signals were analyzed over tapered 8-s windows at a 2-s interval, from which a decision statistic was computed and classified by a linear discriminate classifier as “sleep” or “wake.” Data collected from the sleep cages were binned at each hour using a rolling average of the percentage sleep. Data were also binned by length of individual sleep bouts to calculate the hourly mean bout length (duration). This allowed us to calculate average sleep and bout length for every hour. Sleep bouts required a minimum of 4-s epochs. Data were also collected for cumulative minutes slept within each 24-hr period. To assess sleep fragmentation, the frequencies of individual sleep bouts with different episode durations were analyzed (Giordano et al., 2020; Rowe, Harrison, Morrison, et al., 2019). Sleep bouts were assigned to one of eight bins of exponentially increasing durations (4–7, 8–15, 16–31, 32–63, 64–127, 128–255, 256–511, and >512 s) and the frequency of the number of bouts in each bin was calculated. Each 24-hr period was grouped into three periods; the first light period (10:00 a.m. to 7:59 p.m.), the dark period (8:00 p.m. to 5:59 a.m.), and the second light period (6:00 a.m. to 9:59 a.m.). The start of the first light period (10:00 a.m.) was the start of the post-injury sleep in mice subjected to TBI. For baseline sleep, measurements for percent sleep, cumulative minutes slept, and frequency of individual sleep bouts were averaged across days 3 and 4 of the study timeline. For baseline sleep reported in hourly increments, the data collected at each hour on days 3 and 4 were averaged and a single value was calculated as the baseline value for that hour. For cumulative sleep and frequency of individual sleep bouts, baseline data from days 3 and 4 were averaged and a single baseline value is reported.

2.5 Open field

On day 10 of the experiment, the open field task was used to assess anxiety-like behavior (Rowe, Harrison, Morrison, et al., 2019). Mice were placed in the corner of an empty arena (45.7 cm W × 45.7 cm L × 30.5 cm H; Volume = 0.064 m³) and allowed to explore freely for 10 min. Movement was tracked by an overhead camera. Time in center (16-cm² area) and total distance traveled were calculated using EthoVision XT 10 software (Noldus Information Technology, Leesburg, VA, USA; RRID:SCR_00044).

2.6 Novel object recognition task

The novel object recognition (NOR) task was used to assess cognitive performance (Rowe et al., 2014b), which consisted of three phases: acclimation, training, and testing. Mice were acclimated to clean individual plastic testing cages (30.5 cm W × 40.7 cm L × 20.3 cm H; Volume = 0.025 m³) for 1 hr. The same plastic cage was used for all three phases to prevent potential confounding of placing mice in a new cage for novel object testing. Two identical objects (plastic toys) were placed in opposing quadrants of the testing cage for the training phase. Mice were subsequently placed in the center of the testing cage and given 10 min to explore the objects and then returned to their sleep cages for 3 hr. For the testing phase, one of the original objects was replaced with a novel object. Mice were placed in the center of their individual plastic testing cages and given 10 min to explore the objects. Exploration of the object was defined as nose to object. The animals were tracked using an overhead camera. The time (sec) spent exploring the novel object (t_novel) and the old object (t_old) were recorded using EthoVision XT 10 software. A discrimination index bounded between −1 and 1 was calculated:

Preference for the new object was defined as DI from 0.25 to 1, preference for the old object from −1 to −0.25, and no preference from −0.25 to 0.25 (Lueptow, 2017).

2.7 Flow cytometry analysis of blood

Seventy-five microliter of whole blood (~7.5 × 10⁵ immune cells) was first blocked with Fc block (1:500) for 10 min and then incubated in the following antibodies: CD45 (Biolegend, code 103112; 1:200, RRID:AB_312977), CD11b (Biolegend, code 101208; 1:200, RRID:AB_312791), Ly6C (Biolegend, code: 128033; 1:100, RRID:AB_2562351), Ly6G (Biolegend, code: 127624; 1:200, RRID:AB_10640819), NK1.1 (Biolegend, code: 108732; 1:100, RRID:AB_2562218), CD3 (BD Biosciences, code 555273; 1:100, RRID:AB_2732058), B220 (Biolegend, code: 562922; 1:200, RRID:AB_11203896), and Siglec F (BD Biosciences, code: 565934; 1:100, RRID:AB_2722581). Blood was lysed with red blood cell lysis buffer (Biolegend, code: 420301; 1X in deionized water) and washed with FACs buffer (1X Hanks balanced buffer solution treated with 0.5 g BSA, 25 mM Hepes, 0.05% sodium azide) (Saber et al., 2019). The viability dye 7AAD (Biolegend, code: 420404) was used for live/dead staining. Eighty thousand CD45⁺ events were collected to keep analysis of myeloid cell populations consistent across all samples. After gating out debris and dead cells, CD45⁺ events were subsequently gated on CD11b⁺ events to identify myeloid cells. To specifically focus on monocyte and neutrophil populations, Nk1.1, Cd3, B220, and SiglecF were used to gate out natural killer cells, T cells, B cells, and eosinophils, respectively. Cells were then gated on Ly6C. Populations of interest were defined as CD11b⁺Ly6C^high monocytes and CD11b⁺Ly6G⁺ neutrophils. The total number of events of interest were taken as a ratio to CD11b⁺ cells to calculate percentage of cells of interest.

2.8 Cytokine measurement

Approximately 75 µl of blood was centrifuged to collect approximately 40 µl of plasma from each animal at 8:00 a.m. on days 5 and 7 (Saber et al., 2019). Cytokine plates (MILLIPLEX MAP Mouse Cytokine/Chemokine Magnetic Bead Panel - Immunology Multiplex Assay) were used to assess interleukin (IL)-6, IL-1β, and tumor necrosis factor (TNF)-α levels in peripheral blood at day 5 (baseline) and day 7 (1-day post-TBI for WT Aged mice). All samples were diluted in 1:1 assay buffer and run in triplicate in representative 96-well plates. Manufacturer's instructions were followed and a handheld magnet (EMD Millipore Catalog #40-285) was used for all plate washes. Samples were incubated at 4°C for 16 hr. Pre-mixed Luminex® magnetic beads containing fluorescent dye bonded to antibodies of interest were measured on a Bio-Plex® 200 system (Milliplex Map mouse cytokine/chemokine magnetic panel, code: MCYTOMAG-70k). All plates were run in duplicate sets and were averaged and analyzed between groups.

2.9 Immunohistochemistry and immunofluorescence

Brains were collected within 24 hr after behavior testing was completed and were analyzed for AD and TBI pathology. Immunofluorescence was used to visualize amyloid plaque and microglia colocalization, and immunohistochemistry (3,3′-diaminobenzidine; DAB) was used to confirm amyloid pathology and microglial activation. Briefly, mice were euthanized with Euthasol® (0.002 ml/g; Patterson veterinary, 07-805-9296) and perfused with cold 1× phosphate-buffered saline (PBS). Brains were collected and drop-fixed in 4% paraformaldehyde in PBS. After 48 hr, brains were transferred into a 30% sucrose solution before being embedded in optical cutting temperature (OCT) compound. Free-floating coronal sections (30 µm) were collected and stored at 4°C in PBS with 0.05% sodium azide. Sections were washed three times for 5 min each in PBS before being boiled at 90°C in 10 mM sodium citrate for 5 min. For florescent staining, sections were blocked in 5% normal horse serum (NHS)/0.3% Triton X-100 in 1× PBS (Blocking solution) at room temperature for 1 hr and then incubated with primary antibodies anti-B-amyloid (Biolegend, 800712; 1:250, RRID:AB_2734548) and Iba1 (Wako, 019-19741; 1:500, RRID:AB_839504) over night at 4°C. The following day, sections were washed in 0.1% PBST (phosphate-buffered solution with Triton X-100) and incubated for 1 hr in Alexa Fluor® 594 (Jackson immuno, 715-585-152; 1:500, RRID:AB_2340855) and Alexa Fluor® 488 (Jackson immuno, 715-545-150; 1:500, RRID:AB_2340846) to visualize amyloid and Iba1, respectively. Sections were mounted and cover slipped with DAPI-Fluoromount-G^TM mounting medium (Fisher Scientific, 0B010020) and imaged within 48 hr of staining.

For immunohistochemistry, sections were incubated in 0.3% H₂O₂ in PBS for 30 min then blocked at room temperature for 1 hr. Sections were then incubated with anti-B-amyloid or Iba1 antibody (4°C overnight). The following day, sections were washed three times for 5 min in 0.1% PBST then incubated for 1 hr at room temperature in secondary antibodies conjugated to biotin (1:1,000; Vector Laboratories, BA-1100). Sections were washed in PBST and incubated with Avidin/Biotinylated enzyme complex (ABC reagent; Vector Laboratories, PK-6100) reagent for 30 min at room temperature, washed in PBS, and developed with 3,3′-diaminobenzidine (DAB) until a brown reaction product was observed. Following DAB, sections were washed in PBS, mounted on glass slides, and dehydrated in increasing alcohol concentrations (70%, 90%, and 100%). Sections were cleared in CitriSolv (Fisher Scientific, 22-143-975) and cover slipped with DPX Mountant (Fisher Scientific, 50-980-370).

2.10 Statistical analysis

We used the general analytical approach described by Saber et al. (2019) in which hierarchical mixed effects and generalized additive models were fit in a Bayesian inferential framework (West et al., 2015; Wu, 2010). We employed this approach for two primary reasons: (a) most of the outcome variables of interest violated primary assumptions of analytical methods that are commonly used in neuroscience, such as t tests and analysis of variance (ANOVA), and using those methods under such circumstances can substantially increase Type I error rates (false positives) and the probability of obtaining erroneous results (Aarts et al., 2014, 2015); and (b) similar to most other animal-based neuroscience studies (Button et al., 2013), our study had relatively small within-group sample sizes, where fitting models to small sample data in a Bayesian framework permits quantification of the uncertainty in effects and can result in more accurate and reliable parameter estimates, if informative priors are used (McNeish, 2016; van de Schoot et al., 2015; Zondervan-Zwijnenburg et al., 2017). We applied conservatively informative priors to model parameters and variance components, the specifications of which were based on results from previous preliminary and published studies by our group (Saber et al., 2019), as well as our knowledge of the study systems and recommendations from prior statistical research.

Sleep data from 16 WT Adult (2-month-old) female mice from a separate study (Saber et al., 2019), which were collected under the same conditions as the present study, were used as a control for aging only in comparisons of baseline sleep metrics. Percentage sleep and sleep bout lengths were time-series repeated measures data, and we were primarily interested in effects within each sleep period, not at each hour or among periods. The hourly data were therefore subset by period and each period was analyzed separately (i.e., separate models for light #1, dark, and light #2 periods) (Saber et al., 2019). We fit generalized additive models in which smoothing splines were modeled on hours (Perperoglou et al., 2019), and each model included group-level varying intercepts for individual mice that were implicitly nested within their respective cohorts (sensu random effects). This group-level specification accounted for potential dependency among hourly measurements for each mouse, as well as variation that may have been induced by cohort or time entered into the study (West et al., 2015; Wu, 2010). A beta distribution was specified for the percentage sleep outcome, because percentages are bounded between 0 and 1 (Ferrari & Cribari-Neto, 2004; Figueroa-Zuniga et al., 2013), and negative-binomial distributions were specified for sleep bout length, number of sleep bouts, and cumulative sleep outcomes, because those values were recorded as integer counts and exploratory analyses indicated overdispersion existed (Hilbe, 2014). We applied ~Normal(0, 1) priors to population-level parameters, given our a priori expectations of no differences between groups; a ~Gamma(0.1, 0.1) prior to the scaling parameter (ϕ); and, per the recommendations of Gelman (2006), ~Cauchy(0, 5) priors to the standard deviations of group-level effects and smoothing splines, thereby appropriately restricting the parameter space to positive values.

Cytokine levels were zero-truncated, positive continuous variables that we specified log-normal distributions for, and fit multivariate models in which each outcome was simultaneously modeled as independent. Blood flow cytometry data were measured as positive percentages, and we similarly fit multivariate models but specified beta distributions for each outcome. The aforementioned models included group-level effects that were identical to those specified in the sleep models. For the cognitive outcomes, we specified a t-distribution that was bounded between −1 and 1 for DI and included heterogeneous variance in the model specification (Kruschke, 2013), whereas we specified negative-binomial distributions for the zero-truncated integer counts of distance traveled and time spent in center. Group-level effects were excluded from the cognitive models because these data were not repeated measures. We applied ~Normal(0, 1) priors to all population-level parameters of the log-normal, beta, and negative-binomial models, ~Cauchy(0, 5) priors to the standard deviations of group-level effects as well as the variance scaling parameter (σ) of the log-normal models, and a ~Gamma(0.01, 0.01) prior to ϕ of the beta and negative-binomial models. In contrast, we followed the recommendations of Kruschke (2013) for models with the t-distribution and applied a ~Student-t(3, 4, 10) prior on the population intercept, a ~Student-t(3, 0, 10) prior on the intercept of σ, and a ~Gamma(2, 0.1) prior on the degrees of freedom parameter (ν).

For percentage sleep, sleep bout lengths, cumulative sleep, blood flow, and cytokine outcomes, we fit the following population-level effects (sensu fixed effects) in separate models: (a) Genetics, with data subset to only include day 5 (0 days post-TBI), to investigate differences between genetic groups at baseline; and (b) a Genetics × Day interaction, to investigate differences between genetic groups across days. Additionally, we fit models with just a Day effect to only the WT Aged mice sleep data to validate that expected temporal changes following TBI occurred (Rowe et al., 2014; Saber et al., 2019). For the number of sleep bouts, we fit models that included the aforementioned effects as well as the following: (a) Episode Duration Category, to investigate differences among categories, and (b) a Genetics × Day × Episode Duration Category interaction, to investigate differences between groups in each category across days. For cognitive outcomes, we fit only a Genetics population-level effect to investigate differences between groups. In total, we fit 24 models to the sleep data, one multivariate model with eight sub-models to the blood flow cytometry data, one multivariate model with three sub-models to the cytokine data, and three models to the cognitive performance data.

To investigate if sleep was linearly predictive of cognitive performance or inflammation (Rowe, Harrison, Morrison, et al., 2019), we fit models to the following outcomes: DI measured at day 10, IL-6 cytokines measured at day 7, and CD11b⁺Ly6C^high monocytes measured at day 7. Each model included a Cumulative Sleep × Genetics interaction as the population-level effects, where Cumulative Sleep was measured at day 7. For this predictive analysis only, we centered and scaled the Cumulative Sleep predictor to have a mean of zero and unit variance to mitigate collinearity (Ciaburro, 2018). We specified a Gaussian distribution bounded between −1 and 1 for DI, log-normal distribution for IL-6, and beta distribution for CD11b⁺Ly6C^high, with ~Normal(0, 1) priors on population-level effects, ~Cauchy(0, 5) priors on σ of the DI and IL-6 models, and a ~Gamma(0.1, 0.1) prior on ϕ of the CD11b⁺Ly6C^high model.

Models were fit using the Stan computational platform (v2.19.2) implemented via the brms package (v2.10.0) in the R statistical analysis program (v3.6.1) (Burkner, 2017, 2018; Carpenter et al., 2017; R Core Team, 2019)( RRID:SCR_001905). All models were fit using four Markov chains, each with a burn-in of 2,000 iterations of the No-U-Turn Sampler extension to Hamiltonian Monte-Carlo sampling, followed by 3,000 sampling iterations. This resulted in a total of 12,000 posterior samples for each model. Convergence was assessed via trace plots and by calculating the potential scale reduction factor () and effective sample sizes (n_eff); optimal values were strictly  = 1.0–1.01 and n_eff > 1,000 (Gelman & Rubin, 1992; Gelman & Shirlet, 2011). Model fit was assessed with posterior predictive check plots via the R package bayesplot (v1.7.0), in which 1,000 posterior predictive distribution samples were compared to the observed data (Gabry & Mahr, 2019; Gabry et al., 2019; Gelman et al., 2013).

We focused inferences on a combination of model parameter estimates (θ; posterior means), 95% credible intervals (CI), conditional marginal effects under the posterior distribution, and posterior probabilities (P) and Bayes factors (Brambor et al., 2006). Posterior probability is scaled 0 to 1, where 0 equates to no evidence and 1 equates to decisive evidence. Bayes factor, in the context of the application to the current data, measures the strength of evidence given P and the data under consideration, and is scaled 0 to ∞ (Kass & Raftery, 1995). For supported effects, we also calculated effect sizes (Cohen, 1988; Sawilowsky, 2009), using the estimated group-specific posterior means and their pooled variances from conditional marginal effects, as supplemental measures of magnitude. A summary of said criteria that were used for evaluating the evidentiary strength and magnitude of effects is provided in Table 2.

3.1 Both normal aging and aging in a genetic model of AD led to significant changes in sleep compared with young adult mice

We hypothesized that WT Aged mice and aged 3xTg-AD mice would have profound changes in sleep compared with young adult mice (WT Adult). This hypothesis was supported, and WT Aged and 3xTg-AD mice slept more cumulative minutes with more fragmented short bouts than WT Adult mice (Figure 2).

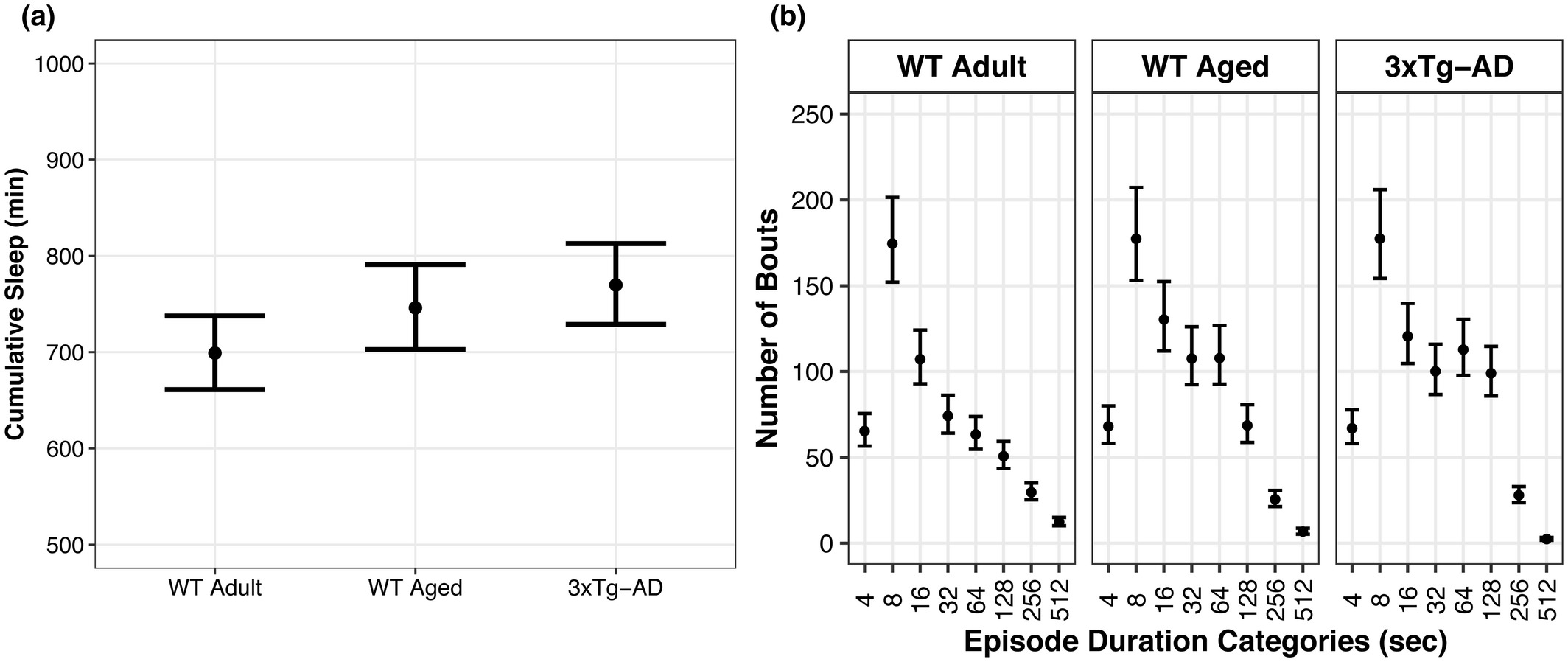

WT Aged and 3xTg-AD mice had 47 min (95% CI: −9, 103; p = 0.94, K = 17.13) and 71 min (95% CI: 15, 127; p > 0.99, K = 140.18) more cumulative sleep than 2-month-old WT Adult mice, whereas WT Aged mice had similar cumulative sleep as AD mice (p = 0.80, K = 3.69; Figure 2a; Supp. Tables A1, B1). Effect sizes for baseline cumulative sleep differences were nominal (d ≤ 0.01). The number of sleep bouts at baseline was similar among WT Adult, WT Aged, and 3xTg-AD mice in episode duration categories 4–7, 8–15, 16–31, and 256–511 s (p ≤ 0.88, K ≤ 7.5), but differed among groups for the following categories (Figure 2b; Supp. Tables A2, B2). Bout durations 32–63 s: Compared with WT Adult mice, WT Aged mice had 33 more bouts (95% CI: 13, 53; p = 0.98, K = 64.93) and AD mice had 26 more bouts (95% CI: 8, 44; p = 0.97, K = 35.36), whereas the number of bouts were similar between WT Aged and AD mice (p = 0.65, K = 1.82). Bout durations 64–127 s: Compared with WT Adult mice, WT Aged mice had 44 more bouts (95% CI: 26, 63; p > 0.99, K > 1,000) and AD mice had 49 more bouts (95% CI: 31, 68; p > 0.99, K > 1,000), whereas the number of bouts were similar between WT Aged and AD mice (p = 0.65, K = 1.89). Bout durations 128–255 s: WT Aged and AD mice had 18 (95% CI: 5, 31; p = 0.96, K = 22.62) and 48 (95% CI: 32, 65; p > 0.99, K > 1,000) more bouts than WT Adult mice, respectively, and WT Aged mice had 30 (95% CI: 12, 48; p = 0.99, K = 154.84) fewer bouts than AD mice. Bout durations ≥ 512 s: WT Aged and AD mice had 6 (95% CI: 3, 8; p > 0.99, K > 1,000) and 10 (95% CI: 7, 12; p > 0.99, K > 1,000) fewer bouts than WT Adult mice, respectively, but WT Aged mice had 4 (95% CI: 2, 6; p > 0.99, K > 1,000) more bouts than AD mice. Although effect sizes for most of the above bout duration category differences at baseline were nominal (d ≤ 0.09), all effect sizes for the ≥512 s category were small to medium (d = 0.32–0.77).

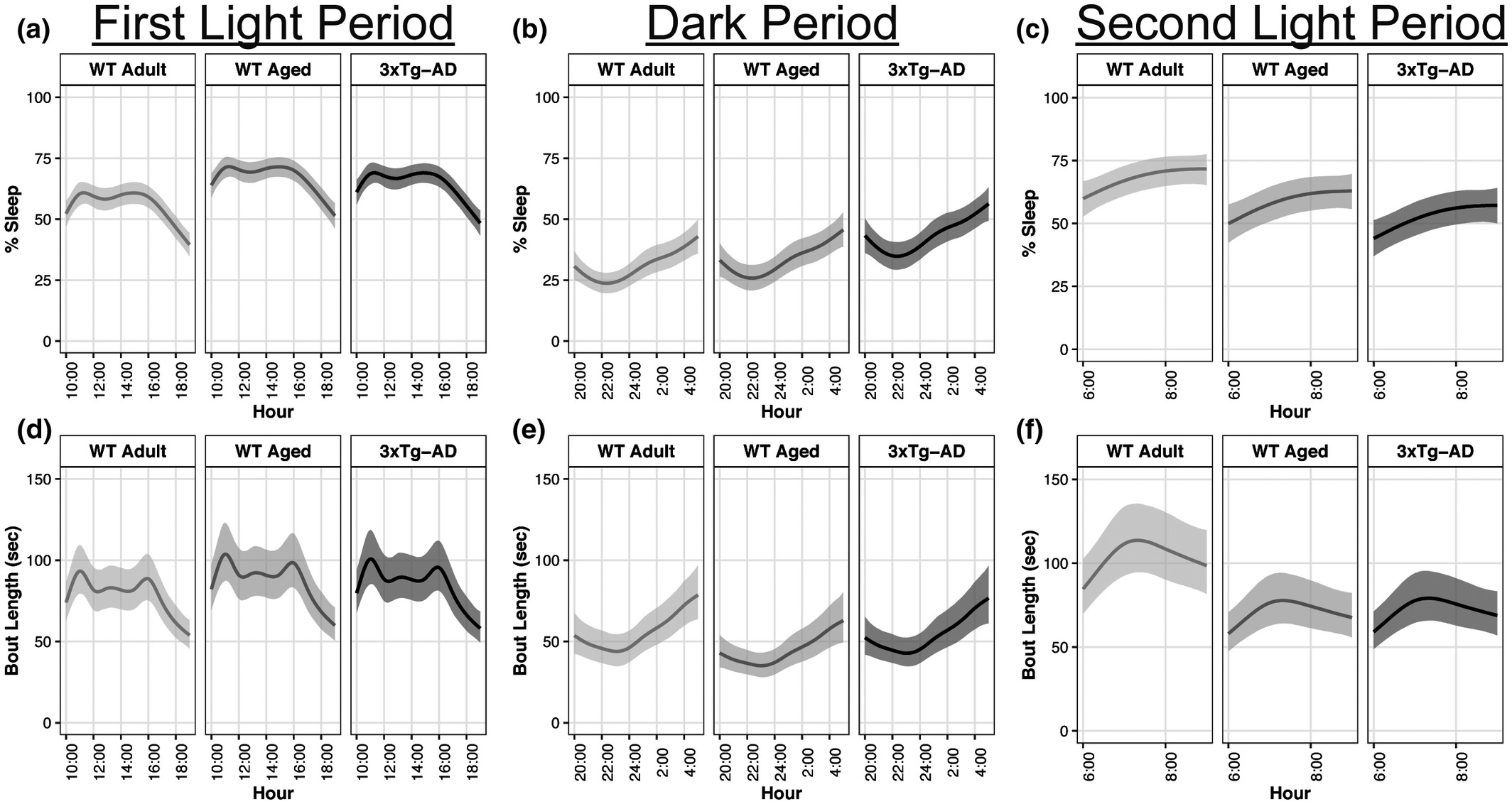

We hypothesized that WT Aged mice and 3xTg-AD mice would have a higher percent sleep with a shorter mean bout length of sleep compared with young WT Adult mice, which was partially supported. WT Aged and 3xTg-AD mice had a higher percent sleep in the first light period, 3xTg-AD mice had a higher percent sleep in the dark period, and both WT Aged and 3xTg-AD mice had a lower percent sleep and shorter mean bout length in the second light period compared with WT Adult mice (Figure 3).

During the first light period, WT Aged and 3xTg-AD mice slept 9% (95% CI: 7, 16; p > 0.99, K > 1,000) and 11% (95% CI: 4, 13; p > 0.99, K > 1,000) more than WT Adult mice, respectively, whereas WT Aged and 3xTg-AD mice exhibited similar sleep percentages (95% CI: −2, 7; p = 0.89, K = 8.26; Figure 3a; Supp. Tables A3, B3). During the dark period, both WT mice groups exhibited similar sleep percentages (95% CI: −3, 7; p = 0.82, K = 4.43), whereas AD mice slept 12% (95% CI: 7, 17; p > 0.99, K > 1,000) more than WT Adult mice and WT Aged mice slept 10% less (95% CI: −16, −4; p > 0.99, K > 1,000) than AD mice (Figure 3b; Supp. Tables A4, B4). During the second light period, WT Aged and AD mice slept 9% (95% CI: −3, −15; p = 0.99, K = 90.60) and 15% (95% CI: −8, −22; p > 0.99, K > 1,000) less than WT Aged mice, respectively, and WT Aged mice slept 6% more than 3xTg-AD mice (95% CI: 0, 12; p = 0.92, K = 11.24; Figure 3c; Supp. Tables A5, B5). Effect sizes for baseline percentage sleep differences indicated the magnitudes of said effects were very large (d = 2.24–15.36). No differences in bout lengths among the three groups were detected during the first light period (p = 0.62–0.86, K = 1.62–6.24; Figure 3d; Supp. Tables A6, B6). During the dark period, WT Aged mice had 11 s (95% CI: −22, −1; p = 0.96, K = 23.84) and 10 s (95% CI: −20, 1; p = 0.94, K = 16.88) shorter bout lengths than WT Adult and AD mice, respectively, whereas AD and WT Adult mice exhibited similar bout lengths (95% CI: −11, 8; p = 0.60, K = 1.41; Figure 3e; Supp. Tables A7, B7). During the second light period, WT Aged and AD mice exhibited similar bout lengths (95% CI: −12, 15; p = 0.56, K = 1.27) and had 33 s (95% CI: −52, −15; p > 0.99, K = 665.67) and 32 s (95% CI: −45, −18; p > 0.99, K = 630.58) shorter bout lengths than WT Adult mice, respectively (Figure 3f; Supp. Tables A8, B8). Effect sizes for these bout length differences were nominal (d ≤ 0.03).

3.2 Diffuse TBI in WT Aged mice led to more sleep with fragmented shorter bouts compared with pre-injury baseline sleep

We hypothesized that a diffuse TBI in WT Aged mice would result in increased sleep quantity, but decreased sleep quality compared with their pre-injury baseline sleep, which were supported. WT Aged mice slept more cumulative minutes on days 7 and 8 (post-injury days 1 and 2) compared with their baseline sleep (Figure 4a). This sleep was fragmented with more sleep bouts of shorter durations post-injury compared with baseline bouts (Figure 4b).

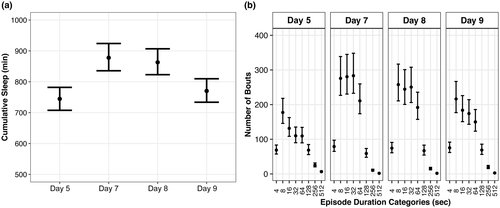

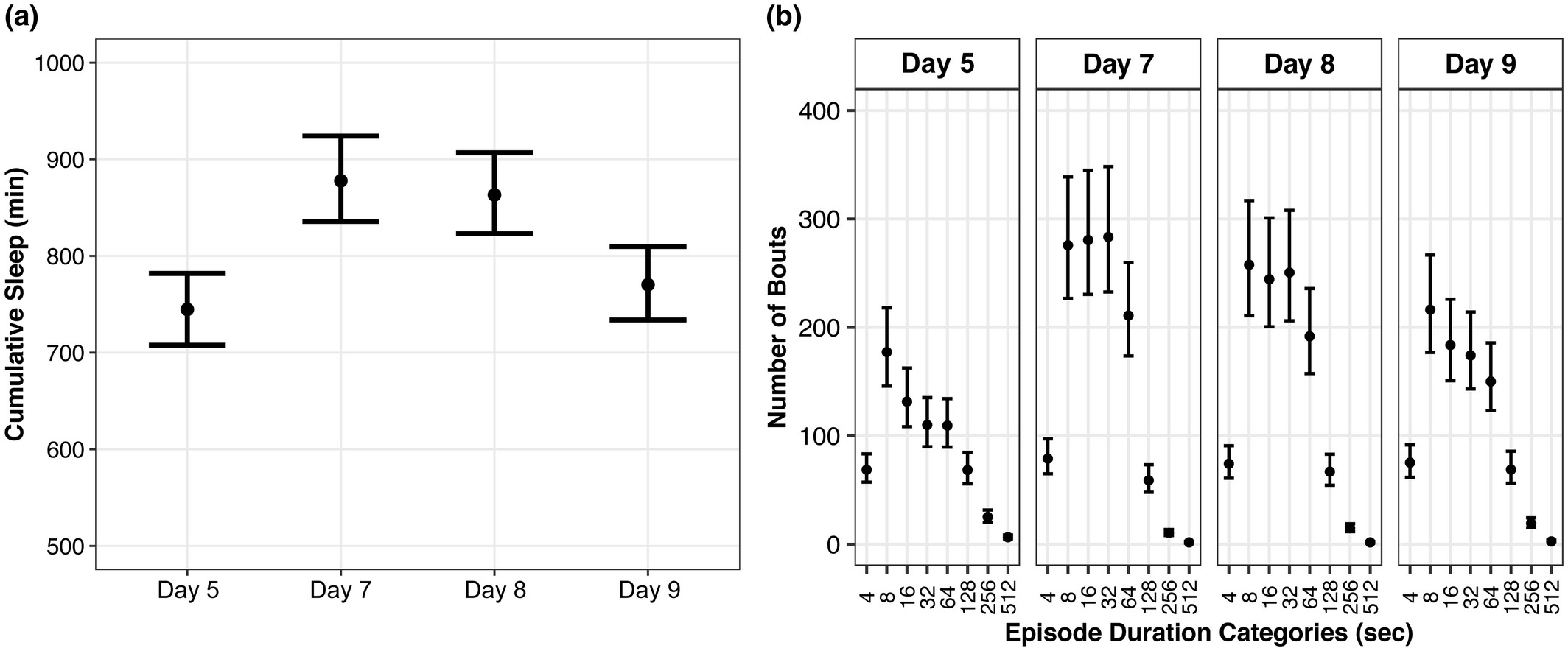

Compared with baseline (pre-injury), WT Aged TBI mice had 133 min (95% CI: 97, 169; p > 0.99, K > 1,000) and 118 min (95% CI: 82, 154; p > 0.99, K > 1,000) more cumulative sleep at days 7 and 8, respectively, whereas day 9 was similar to baseline (95% CI: −11, 62; p = 0.86, K = 6.40; Supp. Tables A9, B9). Cumulative sleep at day 9 was also 108 min (95% CI: 65, 150; p > 0.99, K > 1,000) and 93 min (95% CI: 51, 134; p > 0.99, K > 1,000) lower than days 7 and 8, respectively. However, effect sizes for cumulative sleep differences were very small (d ≤ 0.02).

Bout durations 4–7 s: The number of bouts were similar among all days (p = 0.46–0.85, K = 0.86–5.86), with nominal effect sizes (Supp. Tables A10, B10). Bout durations 8–15 s: Compared with baseline, there were 98 (95% CI: 33, 164; p = 0.95, K = 15.69) and 80 (95% CI: 17, 144; p = 0.94, K = 15.22) more bouts at days 7 and 8, respectively, whereas the number of bouts at day 9 were similar to baseline (95% CI: −17, 95; p = 0.71, K = 2.46). The number of bouts were similar between days 7 and 8 (95% CI: −59, 94; p = 0.51, K = 1.03), slightly higher at day 7 than day 9 (95% CI: −11, 130; p = 0.83, K = 4.75), and slightly higher at day 8 than day 9 (95% CI: −27, 110; p = 0.82, K = 4.58). All effect sizes were nominal (d ≤ 0.01). Bout durations 16–31 s: Compared with baseline, there were 149 (95% CI: 87, 211; p > 0.99, K > 1,000), 113 (95% CI: 57, 169; p > 0.99, K = 332.33), and 52 (95% CI: 7, 97; p = 0.90, K = 8.49) more bouts at days 7, 8, and 9, respectively. The number of bouts at days 7 and 8 were similar (95% CI: −39, 111; p = 0.64, K = 1.78), whereas there were 97 (95% CI: 30, 164; p = 0.97, K = 28.78) and 61 (95% CI: 1, 122; p = 0.93, K = 13.08) more bouts at days 7 and 8 than day 9, respectively. All effect sizes were nominal (d ≤ 0.02). Bout durations 32–63 s: Compared with baseline, there were 173 (95% CI: 113, 234; p > 0.99, K > 1,000), 141 (95% CI: 86, 195; p > 0.99, K > 1,000), and 64 (95% CI: 23, 106; p = 0.97, K = 38.47) more bouts at days 7, 8, and 9, respectively. The number of bouts at days 7 and 8 were similar (95% CI: −42, 108; p = 0.62, K = 1.61), whereas there were 109 (95% CI: 43, 176; p = 0.98, K = 58.11) and 76 (95% CI: 15, 137; p = 0.97, K = 29.85) more bouts at days 7 and 8 than day 9, respectively. All effect sizes were nominal (d ≤ 0.03).

Bout durations 64–127 s: Compared with baseline, there were 101 (95% CI: 53, 149; p > 0.99, K = 278.07), 82 (95% CI: 38, 126; p = 0.99, K = 186.50), and 41 (95% CI: 3, 78; p = 0.88, K = 7.17) more bouts at days 7, 8, and 9, respectively. The number of bouts at days 7 and 8 were similar (95% CI: −38, 76; p = 0.56, K = 1.27), whereas there were 61 (95% CI: 8, 113; p = 0.92, K = 11.88) and 42 (95% CI: −7, 90; p = 0.90, K = 8.55) more bouts at days 7 and 8 than day 9, respectively. All effect sizes were nominal (d ≤ 0.02). Bout durations 128–255 s: There were 10 fewer bouts (95% CI: −28, 9; p = 0.90, K = 3.56) at day 7 than baseline, whereas days 8 and 9 had similar numbers of bouts as baseline (p = 0.67–0.70, K = 2.01–2.30). The number of bouts did not substantially differ among days 7, 8, and 9 (p = 0.53–0.84, K = 1.12–5.23). All effect sizes were nominal (d ≤ 0.02). Bout durations 256–511 s: Compared with baseline, there were 15 (95% CI: −21, −9; p > 0.99, K > 1,000), 10 (95% CI: −17, −4; p > 0.99, K = 520.73), and 6 (95% CI: −13, 1; p = 0.96, K = 23.54) fewer bouts at days 7, 8, and 9, respectively. There were also 4 fewer bouts at day 7 than day 8 (95% CI: −9, 0; p = 0.96, K = 27.31), 9 fewer bouts at day 7 than day 9 (95% CI: −14, −4; p > 0.99, K = 520.74), and 4 fewer bouts at day 8 than day 9 (95% CI: −10, 1; p = 0.87, K = 6.76). Effect sizes for differences between baseline and day 7, baseline and day 8, day 7 and day 8, and day 7 and day 9 were small (d = 0.12–0.21), whereas all other effect sizes were nominal (d ≤ 0.07). Bout durations ≥ 512 s: Compared with baseline, there were 5 (95% CI: −7, −3; p > 0.99, K > 1,000), 5 (95% CI: −7, −3; p > 0.99, K > 1,000), and 4 (95% CI: −6, −2; p > 0.99, K > 1,000) fewer bouts at days 7, 8, and 9, respectively. The number of bouts at days 7 and 8 were similar (95% CI: −1, 1; p = 0.57, K = 1.32), but there was 1 fewer bout at day 7 than day 9 (95% CI: −2, 0; p = 0.93, K = 12.76) and 1 fewer bout at day 8 than day 9 (95% CI: −2, 0; p = 0.90, K = 8.75). Effect sizes for differences between baseline and day 7, baseline and day 8, and baseline and day 9 were medium (d = 0.51–0.71), whereas effect sizes between day 7 and day 9 and day 8 and day 9 were small (d = 0.32).

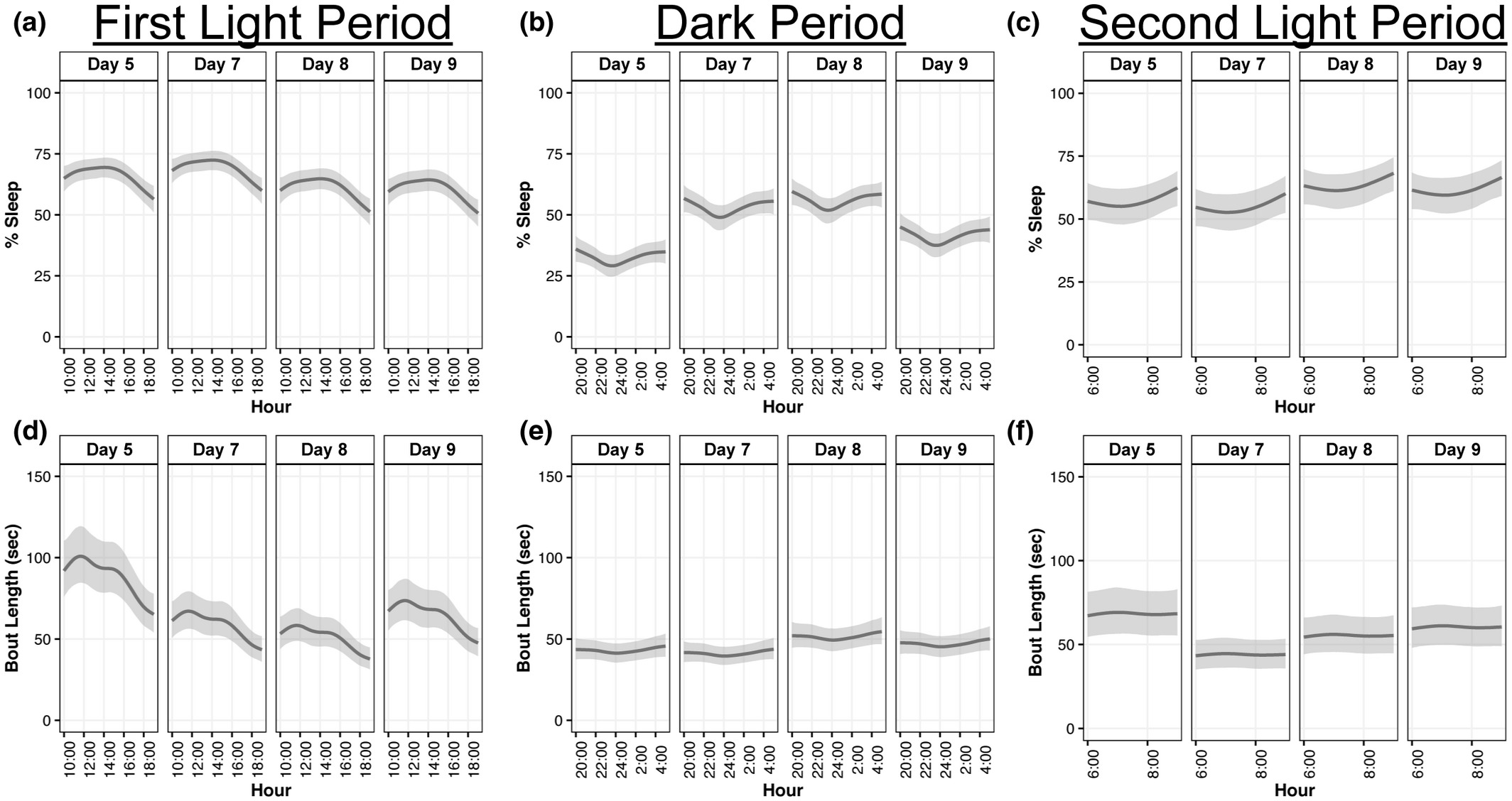

We hypothesized that a diffuse TBI in WT Aged mice would result in greater percentage sleep immediately following injury, with a shorter mean bout length, compared with pre-injury baseline sleep. This hypothesis was generally supported and TBI led to greater percentage sleep, specifically during the dark period, but shorter bouts during the light periods (Figure 5).

During the first light period (10:00 a.m. to 7:59 p.m.), WT Aged mice slept 3% more at day 7 (95% CI: −2.8, 9.1; p = 0.93, K = 14.04) but slept 5% less at day 8 (95% CI: −11.0, 1.3; p = 0.99, K = 98.17) and 5% less at day 9 (95% CI: −11.6, −0.9; p = 0.99, K = 170.43) compared with their baseline (Figure 5a; Supp. Tables A11, B11). There was no difference in percentage sleep between days 8 and 9 (95% CI: −5.9, 6.9; p = 0.59, K = 1.43), but mice slept 8% (95% CI: 1.9, 14.1; p > 0.99, K > 1,000) and 8% (95% CI: 2.3, 14.6; p > 0.99, K > 1,000) more at day 7 than days 8 and 9, respectively. Effect sizes for all percentage sleep differences during the first light period were very large (d = 4.25–10.78), except for the effect size between days 8 and 9, which was medium (d = 0.58).

During the first dark period, WT Aged mice slept 20% more at day 7 (95% CI: 14.1, 26.7; p > 0.99, K > 1,000), 23% more at day 8 (95% CI: 17.0, 29.6; p > 0.99, K > 1,000), and 9% more at day 9 (95% CI: 2.5, 15.0; p > 0.99, K > 1,000) compared with their baseline (Figure 5b; Supp. Tables A12, B12). There was not a substantial difference in percentage sleep between days 7 and 8 (95% CI: −3.7, 9.5; p = 0.88, K = 7.50), but mice slept 12% (95% CI: 5.1, 18.2; p > 0.99, K > 1,000) and 15% (95% CI: 8.0, 21.1; p > 0.99, K > 1,000) more at days 7 and 8 than day 9, respectively. Effect sizes for all percentage sleep differences during the first dark period were very large (d = 3.18–28.30).

During the second light period (6:00 a.m. to 9:59 a.m.), WT Aged mice slept 6% more at day 8 (95% CI: −3.3, 15.6; p = 0.96, K = 24.05) compared with their baseline, but slept similar percentages as their baseline at day 7 (95% CI: −7.3, 12.1; p = 0.75, K = 3.03) and day 9 (95% CI: −5.2, 13.9; p = 0.89, K = 8.13; Figure 5c; Supp. Tables A13, B13). There was no substantial difference in percentage sleep between days 8 and 9 (95% CI: −8.0, 11.2; p = 0.69, K = 2.26), but mice slept 9% (95% CI: −1.1, 18.2; p = 0.99, K = 106.14) and 7% (95% CI: −3.0, 16.5; p = 0.97, K = 28.63) more at day 7 than days 8 and 9, respectively. Effect sizes for all percentage sleep differences during the second light period were very large (d = 1.22–4.44), except for the effect size between days 8 and 9, which was large (d = 0.96).

Compared with baseline, WT Aged mice exhibited 30 s (95% CI: −47, −12; p > 0.99, K > 1,000), 37 s (95% CI: −54, −20; p > 0.99, K > 1,000), and 24 s (95% CI: −42, −6; p > 0.99, K > 1,000) shorter bout lengths during the first light period (Figure 5d; Supp. Tables A14, B14). At day 7, mice had 8 s (95% CI: −5, 20; p = 0.99, K = 183.62) longer bout lengths than day 8, but 6 s (95% CI: −9, 20; p = 0.95, K = 19.69) shorter bout lengths than day 9; bout lengths at day 8 were 13 s (95% CI: −27, 0; p > 0.99, K > 1,000) shorter than day 9. Effect sizes for all bout length differences during the first light period were very small (d ≤ 0.06).

During the dark period, bout lengths at day 7 were similar to baseline (95% CI: −6, 10; p = 0.79, K = 3.73), whereas bout lengths at days 8 and 9 were 8 s (95% CI: −1, 17; p > 0.99, K > 1,000) and 4 s (95% CI: −4, 13; p = 0.95, K = 18.39) longer than baseline, respectively (Figure 5e; Supp. Tables A15, B15). At day 7, bout lengths were 10 s (95% CI: −19, −1; p > 0.99, K > 1,000) and 6 s (95% CI: −14, 2; p = 0.99, K = 121.45) shorter than days 8 and 9, respectively. Bout lengths at day 8 were also 4 s (95% CI: −5, 14; p = 0.95, K = 17.29) longer than at day 9. Effect sizes for all bout length differences during the dark period were very small (d ≤ 0.06).

During the second light period, WT Aged mice had 24 s (95% CI: −39, −9; p > 0.99, K > 1,000), 13 s (95% CI: −29, 3; p > 0.99, K = 520.74), and 8 s (95% CI: −25, 9; p = 0.96, K = 21.26) shorter bout lengths than at baseline (Figure 5f; Supp. Tables A16, B16). Bout lengths at day 7 were also 11 s (95% CI: −25, 2; p > 0.99, K = 799.00) and 16 s (95% CI: −30, −2; p > 0.99, K > 1,000) shorter than at days 8 and 9, respectively, whereas bout lengths were 5 s (95% CI: −20, 10; p = 0.89, K = 8.06) shorter at day 8 compared with day 9. Effect sizes for all bout length differences during the second light period were very small (d ≤ 0.05).

3.3 Diffuse TBI in WT Aged mice led to more sleep with fragmented shorter bouts compared with aged 3xTg-AD mice

We hypothesized that WT Aged mice subjected to diffuse TBI would exhibit similar levels of sleep compared to aged 3xTg-AD mice. This hypothesis was not supported. Diffuse TBI led to substantially more cumulative sleep comprised of shorter fragmented bouts compared with 3xTg-AD mice (Figure 6).

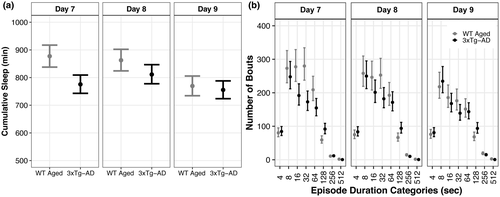

At days 7 and 8, WT Aged TBI mice had 102 min (95% CI: 50, 153; p > 0.99, K > 1,000) and 51 min (95% CI: 1, 102; p = 0.97, K = 33.78) more cumulative sleep, respectively, than 3xTg-AD mice (Figure 6a; Supp. Tables A17, B17). At day 9, cumulative sleep was similar between WT Aged TBI and 3xTg-AD mice (95% CI: −33, 61; p = 0.72, K = 2.64). However, effect sizes for cumulative sleep differences were very small (d ≤ 0.02).

Bout durations 4–7 s: WT Aged TBI and 3xTg-AD mice had similar numbers of bouts at day 7 (95% CI: −22, 14; p = 0.50, K = 1.00), day 8 (95% CI: −28, 10; p = 0.70, K = 2.36), and day 9 (95% CI: −23, 14; p = 0.53, K = 1.19; Figure 5b; Supp. Tables A18, B18). Bout durations 8–15 s: TBI and AD mice had similar numbers of bouts at day 7 (95% CI: −37, 87; p = 0.83, K = 4.98), day 8 (95% CI: −51, 70; p = 0.69, K = 2.26), and day 9 (95% CI: −37, 70; p = 0.77, K = 2.31). Bout durations 16–31 s: TBI mice had 84 (95% CI: 27, 142; p > 0.99, K > 1,000) and 45 (95% CI: −9, 100; p = 0.94, K = 15.19) more bouts than AD mice at days 7 and 8, respectively, whereas the number of bouts were similar at day 9 (95% CI: −25, 60; p = 0.82, K = 4.49). Bout durations 32–63 s: TBI mice had 107 (95% CI: 50, 164; p > 0.99, K > 1,000), 71 (95% CI: 18, 125; p = 0.99, K = 89.23), and 37 (95% CI: −1, 76; p = 0.96, K = 22.86) more bouts than AD mice at days 7, 8, and 9, respectively.

Bout durations 64–127 s: TBI mice had 53 more bouts than AD mice at day 7 (95% CI: 10, 97; p = 0.99, K = 399.00), but the number of bouts were similar at day 8 (95% CI: −23, 66; p = 0.84, K = 5.31) and day 9 (95% CI: −28, 44; p = 0.73, K = 2.74). Bout durations 128–255 s: TBI mice had 32 (95% CI: 13, 51; p > 0.99, K > 1,000), 27 (95% CI: 7, 48; p = 0.96, K = 24.64), and 25 (95% CI: 5, 45; p = 0.95, K = 17.52) fewer bouts than AD mice at days 7, 8, and 9, respectively. Bout durations 256–511 s: TBI and AD mice had similar number of bouts at day 7 (95% CI: −5, 3; p = 0.68, K = 2.13), whereas TBI mice had 4 (95% CI: 1, 8; p = 0.98, K = 63.52) and 4 (95% CI: −1, 9; p = 0.93, K = 14.00) more bouts than AD mice at days 8 and 9, respectively. Bout durations ≥ 512 s: TBI mice had 1 (95% CI: 0, 2; p > 0.99, K > 1,000), 1 (95% CI: 0, 2; p = 0.99, K = 192.55), and 2 (95% CI: 1, 3; p > 0.99, K > 1,000) more bouts than AD mice at days 7, 8, and 9 respectively.

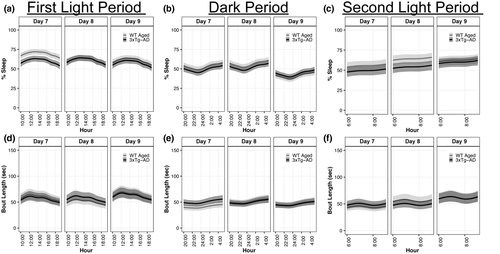

We hypothesized that WT aged mice subjected to diffuse TBI would exhibit similar percentages of sleep and mean bout lengths compared to aged 3xTg-AD mice. This hypothesis was not supported. Diffuse TBI led to a greater percent sleep and shorter mean bout lengths compared with 3xTg-AD mice (Figure 7).

During the first light period (10:00 a.m. to 7:59 p.m.), WT Aged TBI mice slept 9% (95% CI: 4.0, 14.4; p > 0.99, K > 1,000) and 3% (95% CI: −2.6, 8.5; p = 0.90, K = 7.86) more than 3xTg-AD mice at days 7 and 9, respectively, whereas percentage sleep was similar at day 8 (95% CI: −5.4, 5.6; p = 0.52, K = 1.08; Figure 7a; Supp. Tables A19, B19). During the dark period (8:00 p.m. to 5:59 a.m.), TBI mice slept 4% (95% CI: −1.2, 9.2; p = 0.98, K = 53.55) and 4% (95% CI: −1.5, 9.4; p = 0.97, K = 29.61) more than AD mice at days 7 and 8, respectively, whereas percentage sleep was similar at day 9 (95% CI: −7.9, 3.7; p = 0.88, K = 7.49; Figure 7b; Supp. Tables A20, B20). During the second light period (6:00 a.m. to 9:59 a.m.), TBI mice slept 6% (95% CI: −2.0, 14.5; p = 0.98, K = 48.79) and 10% (95% CI: 2.1, 18.1; p > 0.99, K = 225.42) more than AD mice at days 7 and 8, respectively, whereas percentage sleep was similar at day 9 (95% CI: −5.7, 10.5; p = 0.74, K = 2.82; Figure 7c; Supp. Tables A21, B21). Effect sizes for all percentage sleep differences were very large (d ≥ 1.87), except for the first light period at day 8, which was small (d = 0.20).

During the first light period, TBI and AD mice had similar bout lengths at day 7 (95% CI: −9.3, 15.1; p = 0.70, K = 2.01), day 8 (95% CI: −17.9, 5.9; p = 0.88, K = 7.44), and day 9 (95% CI: −11.3, 15.5; p = 0.63, K = 1.68; Figure 7d; Supp. Tables A22, B22). During the dark period, TBI mice had 9 s (95% CI: −17.4, −1.2; p = 0.99, K = 372.62) shorter bout lengths than AD mice at day 7, whereas bout lengths were similar at day 8 (95% CI: −7.3, 10.5; p = 0.65, K = 1.83) and day 9 (95% CI: −7.4, 9.0; p = 0.58, K = 1.40; Figure 7e; Supp. Tables A23, B23). During the second light period, TBI mice had 7 s (95% CI: −4.7, 18.7; p = 0.90, K = 8.51) longer bout lengths than AD mice at day 8, whereas bout lengths were similar at day 7 (95% CI: −15.0, 6.8; p = 0.85, K = 5.74) and day 9 (95% CI: −13.5, 13.9; p = 0.51, K = 1.04; Figure 7f; Supp. Tables A24, B24). Most effect sizes for bout lengths were very small (d ≤ 0.03), except for the dark period at day 7, which was small (d = 0.10).

3.4 Diffuse TBI in WT Aged mice resulted in more CD11b⁺Ly6G⁺ neutrophils and CD11b⁺Ly6C^int phagocytes but fewer CD11b⁺Ly6C^high monocytes compared with 3xTg-AD mice

We hypothesized that WT Aged mice subjected to diffuse TBI would have similar levels of inflammation, indicated by peripheral immune cells, as 3xTg-AD mice. This hypothesis was not supported. However, differences in immune cell populations between TBI and AD mice were incongruous, given the directionalities of those differences were dissimilar and varied by marker. WT Aged TBI mice had more neutrophils and intermediate phagocytes but fewer classical monocytes compared with 3xTg-AD mice (Figure 8).

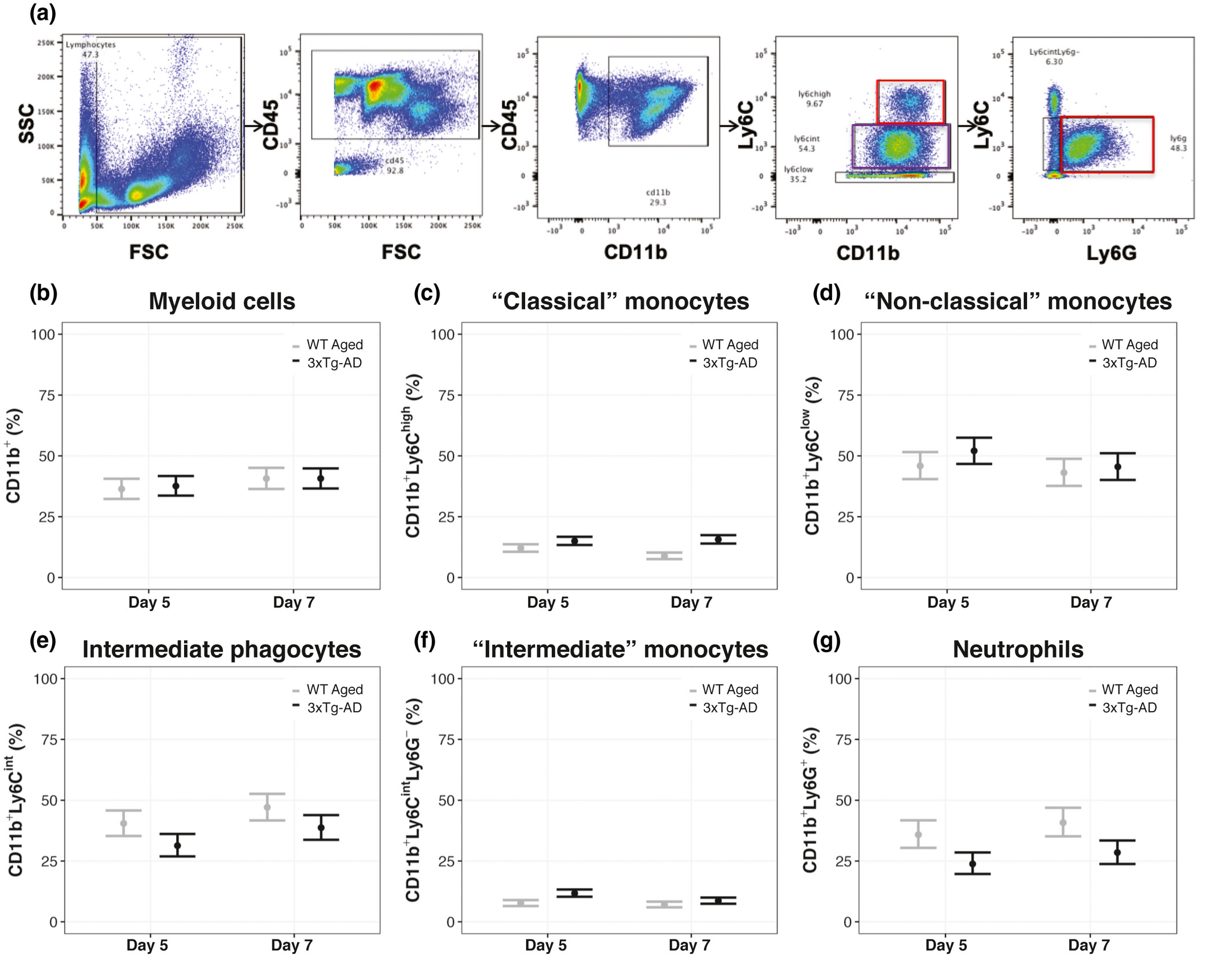

Leukocyte populations were gated using forward scatter (FSC) and side scatter (SSC) for cell size and granularity (Figure 8a). Myeloid (CD11b⁺) populations were similar between WT Aged and 3xTg-AD mice at both day 5 (95% CI: −7.79, 3.78; p = 0.67, K = 2.07) and day 7 (95% CI: −5.9, 5.9; p = 0.51, K = 1.05; Figure 8b; Supp. Tables A25, B25). However, WT Aged TBI and 3xTg-AD mice had 5% (95% CI: −1.00, 10.92; p = 0.99, K = 67.97) and 3% (95% CI: −2.78, 8.79; p = 0.95, K = 17.55) more myeloid populations, respectively, at day 7 compared with the respective day 5. Effect sizes for differences in myeloid populations were very large (d ≥ 1.53), except for between TBI and AD mice at day 7 (d = 0.00). WT Aged mice had 3% (95% CI: −5.26, 0.74; p = 0.99, K = 124.00) and 7% (95% CI: −9.12, −4.88; p > 0.99, K > 1,000) fewer “classical” monocyte (CD11b⁺ Ly6C^high) populations than 3xTg-AD mice at both day 5 and day 7, respectively (Figure 8c; Supp. Tables A26, B26). Additionally, WT Aged TBI mice had 3% more classical monocyte populations at day 5 compared with day 7 (95% CI: 1.00, 5.01; p > 0.99, K > 1,000), whereas AD mice had similar classical monocytes at days 5 and 7 (95% CI: −3.36, 1.35; p = 0.74, K = 2.83). Effect sizes for differences in classical monocyte populations were very large (d ≥ 3.80). WT Aged mice had 6% fewer “non-classical” monocytes (CD11b⁺Ly6C^low) than 3xTg-AD mice at day 5 (95% CI: −13.59, 1.60; p = 0.94, K = 16.70), but populations were similar between them at day 7 (95% CI: −9.54, 5.55; p = 0.73, K = 2.75; Figure 8d; Supp. Tables A27, B27). WT Aged and AD mice had 3% (95% CI: −4.69, 10.70; p = 0.90, K = 8.19) and 7% (95% CI: −0.44, 14.37; p > 0.99, K = 460.54) more non-classical monocytes, respectively, at day 5 compared with their day 7. Effect sizes for differences in non-classical monocyte populations were very large (d ≥ 1.87).

WT Aged mice had 10% (95% CI: 3.21, 16.79; p > 0.99, K = 217.18) and 8% (95% CI: 1.00, 15.26; p = 0.99, K = 75.43) more Ly6C intermediate phagocyte (CD11b⁺Ly6C^int) populations than 3xTg-AD mice at days 5 and 7, respectively (Figure 8e; Supp. Tables A28, B28). WT Aged and AD mice had 6% (95% CI: −13.35, 1.34; p > 0.99, K = 460.54) and 8% (95% CI: −14.70, −1.30; p > 0.99, K = 799.00) fewer intermediate phagocytes, respectively, at day 5 compared with their day 7. Effect sizes for differences in intermediate phagocyte populations were very large (d ≥ 6.10).

At day 5 and day 7, WT Aged mice had 4% (95% CI: −5.88, −2.12; p > 0.99, K > 1,000) and 2% (95% CI: −3.29, 0.10; p = 0.96, K = 25.09) fewer “intermediate” monocyte (CD11b⁺Ly6C^intLy6G^–) populations, respectively, than 3xTg-AD mice (Figure 8f, Supp. Tables A29, B29). WT Aged mice had similar “intermediate” monocytes at days 5 and 7 (95% CI: −1.07, 2.26; p = 0.77, K = 3.43), whereas AD mice had 8% more “intermediate” monocytes at day 5 compared with day 7 (95% CI: 5.63, 9.43; p > 0.99, K > 1,000). Effect sizes for differences in “intermediate” monocyte populations were very large (d ≥ 1.20).

WT Aged mice had 12% (95% CI: 5.14, 18.86; p > 0.99, K > 1,000) and 13% (95% CI: 5.57, 20.43; p > 0.99, K = 922.08) more neutrophils (CD11b⁺Ly6G⁺) than 3xTg-AD mice at days 5 and 7, respectively (Figure 8g; Supp. Tables A30, B30). Additionally, WT Aged and AD mice had 5% (95% CI: −12.79, 2.78; p = 0.98, K = 51.17) and 4% (95% CI: −10.48, 2.44; p = 0.99, K = 86.59) fewer neutrophils, respectively, at day 5 compared with their day 7. Effect sizes for differences between groups within days were very large (d = 1.26–1.37), whereas effect sizes for differences between days within groups were small (d = 0.45–0.49).

3.5 Diffuse TBI in WT Aged mice resulted in higher IL-6 compared with pre-injury baseline levels and lower IL-1β compared with 3xTg-AD mice

We hypothesized that diffuse TBI would result in greater peripheral cytokine concentrations in WT Aged mice compared with their pre-injury baseline levels, and that post-TBI levels would be comparable to aged 3xTg-AD mice. This hypothesis was not supported. TBI resulted in greater IL-6, no change in IL-1β, and lower TNF-α compared with pre-injury baseline levels (Figure 9). TBI also resulted in higher IL-6, lower IL-1β, and similar TNF-α levels compared with aged 3xTg-AD mice.

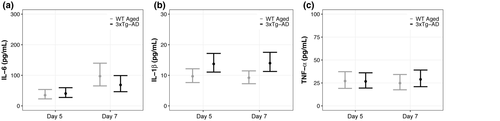

WT Aged and 3xTg-AD mice had similar IL-6 concentrations at day 5 (95% CI: −26.43, 15.49; p = 0.71, K = 2.40), whereas WT Aged TBI mice had 28.60 pg/ml greater concentrations than AD mice at day 7 (95% CI: −16.04, 73.24; p = 0.90, K = 9.51; Figure 9a; Supp. Tables A31, B31). WT Aged and AD mice had 62.23 pg/ml (95% CI: 23.24, 101.22; p > 0.99, K > 1,000) and 28.16 pg/ml (95% CI: −2.03, 58.35; p > 0.99, K = 205.90) greater IL-6 concentrations, respectively, at day 7 compared with day 5. Effect sizes for all differences in IL-6 concentrations were nominal (d ≤ 0.02). WT Aged mice had 4.05 pg/ml (95% CI: −7.66, −0.44; p = 0.99, K = 67.57) and 4.76 pg/ml (95% CI: −8.34, −1.18; p > 0.99, K = 202.39) lower concentrations of IL-1β than 3xTg-AD mice at days 5 and 7, respectively (Figure 9b; Supp. Tables A32, B32). However, IL-1 β concentrations were similar between days 5 and 7 for WT Aged mice (95% CI: −2.49, 3.45; p = 0.80, K = 3.99) and AD mice (95% CI: −4.35, 3.89; p = 0.61, K = 1.59). Effect sizes for differences in IL-1 β concentrations were small (d ≤ 0.19).

WT Aged and 3xTg-AD mice had similar TNF-α concentrations at day 5 (95% CI: −11.58, 12.28; p = 0.52, K = 1.07) and day 7 (95% CI: −15.92, 7.71; p = 0.75, K = 2.95; Figure 9c; Supp. Tables A33, B33). WT Aged TBI mice had 2.24 pg/ml lower TNF-α at day 7 compared with their day 5 (95% CI: −14.12, 9.64; p = 0.92, K = 12.20), whereas AD mice had 2.21 pg/ml higher TNF-α at day 7 compared with their day 5 (95% CI: −9.65, 14.07; p = 0.92, K = 11.13). Effect sizes for differences in TNF-α concentrations were nominal (d ≤ 0.02).

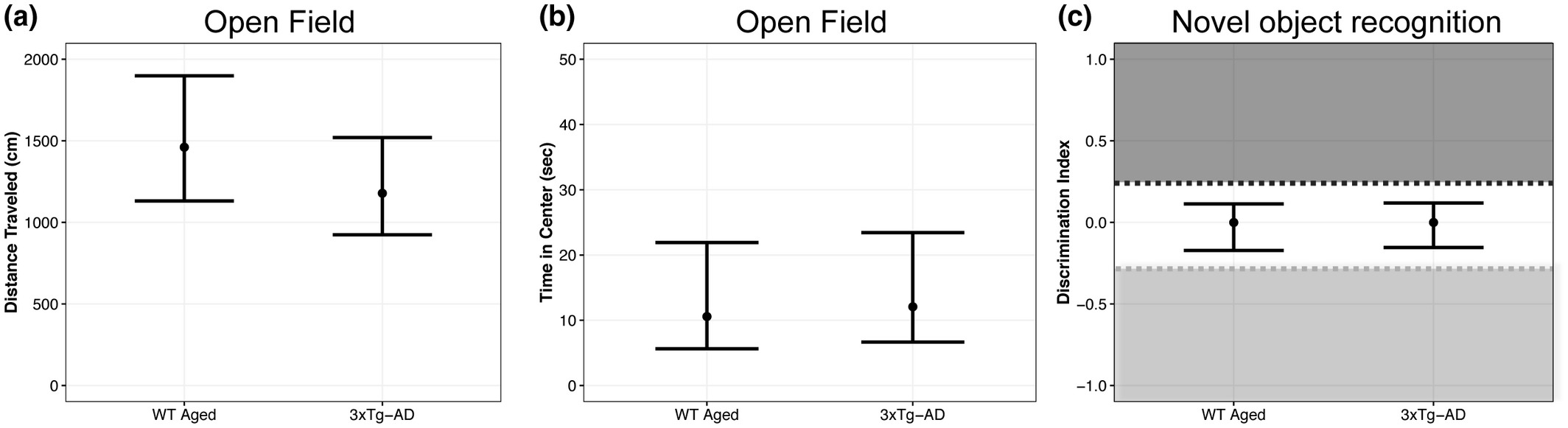

3.6 Cognitive deficits were indistinguishable between WT Aged TBI and 3xTg-AD mice

We hypothesized that diffuse TBI would result in cognitive deficits similar to a genetic model of AD. This hypothesis was supported, considering performance on the open field and NOR tasks were generally similar between aged mice subjected to TBI and 3xTg-AD mice. In the open field assessment for anxiety-like behavior, WT Aged TBI mice traveled 283 cm further than 3xTg-AD mice (95% CI: −182, 748; p = 0.90, K = 7.68; Figure 10a; Supp. Tables A34, B34) but spent a similar amount of time in the center of the open field (95% CI: −11, 9; p = 0.62, K = 1.61; Figure 10b; Supp. Tables A35, B35). In the novel object recognition cognitive assessment, WT Aged TBI mice and AD mice had similar DI values (95% CI: −0.45, 0.42; p = 0.53, K = 1.14; Figure 10c; Supp. Tables A36, B36).

3.7 Cumulative sleep did not predict changes in blood monocytes, plasma IL-6, or NOR DI

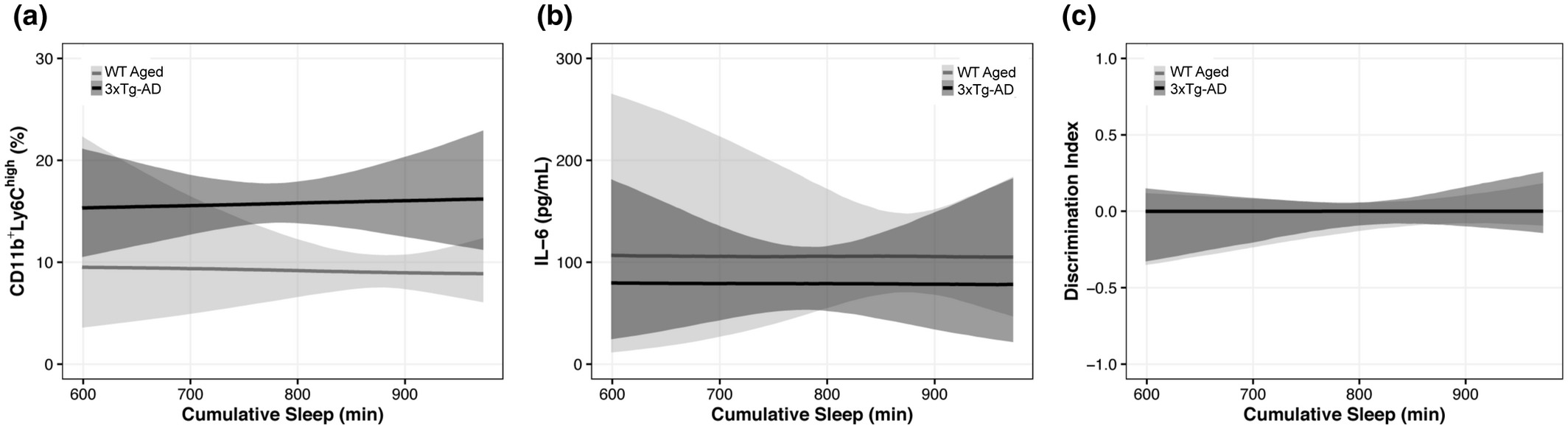

We hypothesized that levels of cumulative sleep could predict changes in inflammation (e.g., peripheral monocyte populations, IL-6 cytokine levels) and cognitive performance on the NOR task. This hypothesis was not supported. There was no support for cumulative sleep being predictive of blood CD11b⁺Ly6C^high monocyte populations at Day 7 (θ_{CumSleep:Genetics} = 0.03 [95% CI: −0.30, 0.36], p = 0.58, K = 1.38; Figure 11a), plasma IL-6 at Day 7 (θ_{CumSleep:Genetics} = 0.00 [95% CI: −0.91, 0.90], p = 0.50, K = 1.00; Figure 11b), or DI measure at Day 10 (θ_{CumSleep:Genetics} = 0.02 [95% CI: −1.88, 1.91], p = 0.50, K = 1.01; Figure 11c).

3.8 Diffuse TBI in WT Aged mice led to microglial activation in the absence of amyloid pathology compared with 3xTg-AD mice that had activated microglia and amyloid plaque pathology

We hypothesized that diffuse TBI would lead to activated microglia and that aged 3xTg-AD mice would have both activated microglia and significant amyloid pathology. This hypothesis was supported, considering WT Aged mice had activated microglia following a TBI, but no amyloid pathology, whereas 3xTg-AD mice had robust amyloid staining and activated microglia (Figure 12). Activated microglia were evident surrounding amyloid plaques in 3xTg-AD mice.
