Comparative anatomy and development of pectoral and pelvic girdles in hylid anurans

1 INTRODUCTION

The exploitation of the terrestrial environment is associated with the appearance of limbs that are connected to the axial skeleton by means of the girdles. However, each of these structures seems to have arisen at different times in the course of evolution. Thus, fossil evidence suggests a time gap of approximately 20 Mya in the acquisition of girdles, with the pectoral girdle predating the pelvic one (Sears, Capellini, & Diogo, 2015; Zhu, Yu, Choo, Wang, & Jia, 2012). The basal, finned tetrapods (i.e., Eusthenopteron) have robust hindlimbs and a pelvic girdle that is smaller than the pectoral girdle (Sears et al., 2015; Shubin, Daeschler, & Jenkins, 2014). Likewise, comparison of the fore- and hindlimb skeletons of Ichthyostega stensioei the iconic earliest tetrapod, shows that the forelimbs are configured in a tetrapod-like posture, whereas the hindlimbs are paddle-like and reminiscent of a fish-like posture (Coates & Ruta, 2007). Synchronous changes at the forelimb/girdles and hindlimb/girdles are rare; thus, the condition of the pectoral girdle is not correlated with that of the pelvis (Coates & Ruta, 2007). Similarly, functional differences between pectoral and pelvic structures seem to be rooted deep in the tetrapod phylogeny, with a shift in locomotory dominance from the forelimb to the hindlimb, as seen in Acanthostega and Ichthyostega (Boisvert, 2005).

Because both girdles are equally important to move the limbs efficiently, there have been a considerable number of studies of the pectoral girdle (Baleeva, 2001, 2009; Borkhvardt & Baleeva, 2002; McGonell, 2001; Robovská-Havelková, 2010; Shearman, 2005, 2008) and the pelvic girdle (Manzano, Abdala, Ponssa, & Soliz, 2013; Manzano & Barg, 2005; Pomikal, Blumer, & Streicher, 2011; Ročková & Roček, 2005; Simons, 2008). However, the lack of studies that compare the anatomy and development of both girdles is striking (see Carroll & Holmes, 2007; Sears et al., 2015). Moreover, the many studies of tetrapod girdles limited to the morphology and development of bony elements, emphasize the need to examine the soft elements, such as muscles and tendons. The limitations are understandable though. Fossils rarely provide any information about soft structures; therefore, comparisons among them and between them and recent taxa must be based on bony structures. Additionally, studies on soft tissues should include histological evidence, which is tedious, time-consuming, and expensive to acquire.

As an iconic example of tetrapods that transition between terrestrial and aquatic environments, anurans are an appropriate group in which to compare the characteristics of the pectoral and pelvic girdles. Developmentally, this transition requires a dramatic reorganization of almost all larval morphological structures to adjust from swimming to jumping, walking, hopping, and so on. Each mode of locomotion necessitates a distinct repertoire of different movements by the pectoral and pelvic appendicular apparatuses.

We present comparative data recorded from cleared-and-stained whole mounts and serial histological sections of 10 species of hylid frogs. We studied adult skeletal morphology and the development of bones, muscles, and connective tissue of the pectoral and pelvic girdles, as well as the association of the girdles with the proximal parts of the fore- and hindlimbs. Based on a matrix primarily composed of developmental data, we optimized the characters on the most recent published phylogeny for hylids (Duellman, Marion, & Hedges, 2016) to identify evolutionary trends of girdle structure in the family. Comparative studies of girdles are particularly relevant to elucidate serial homologies in their structure (Diogo & Molnar, 2014; Diogo & Tanaka, 2014; Diogo & Ziermann, 2014, 2015; Diogo, Linde-Medina, Abdala, & Ashley-Ross, 2013; Sears et al., 2015), especially given that the ontogeny of the proximal limb segments is closely associated with the development of the girdles (Dos Santos, Fratani, Ponssa, & Abdala, 2017; Manzano et al., 2013; Pomikal & Streicher, 2010; Pomikal et al., 2011). Additionally, our understanding of the development of anuran girdles is limited in contrast to our understanding of limb development. Our work could contribute to fill in the gap in this interesting morphological and evolutionary issue.

2 MATERIALS AND METHODS

2.1 Cartilage and bone staining

We examined 224 specimens of 10 species of hylid anurans (Table 1). The vertebral skeleton and, pectoral and pelvic girdles were examined in larval series. The specimens belong to Stages 32–46 of Gosner (1960). We analyzed Boana riojana Koslowsky, 1895, Lysapsus limellum Cope 1862, Pithecopus azureus Cope, 1862, Phyllomedusa boliviana Boulenger, 1902, Phyllomedusa sauvagii Boulenger, 1882, Pseudis platensis Gallardo 1961, Scinax acuminatus Cope 1862, Trachycephalus typhonius Linnaeus 1758, Scinax fuscovarius Lutz, 1925, and Scinax sp. Two adult L. limellum also were studied. All specimens were double-stained with Alcian Blue and Alizarin Red, and then cleared (Wassersug, 1976). Specimens were examined and illustrated with the aid of a Zeiss Discovery V8 stereoscope with a Nikon Coolpix P6000, 5-megapixel digital camera. Terminology of the anatomical structures and character definition follows those of Trueb (1973), Emerson (1979), Duellman and Trueb (1986), Ročková and Roček (2005), Abdala and Diogo (2010), Ponssa, Goldberg, and Abdala (2010), Přikryl, Aerts, Havelková, Herrel, and Rocek (2009), and Diogo and Molnar (2014) (Tables 2 and 3). To describe the ontogeny of several muscles and to identify their origin and insertion areas accurately, specific regions in the girdles were defined (Figure 1). The background of the figures was cleaned and the figures edited with Adobe Photoshop CS6 version 13.0x32.

Table 1. Material examined for osteological features

Cleared and stained species	Stages	N	Specimen number
Boana riojana	Adult	4	FML 28137, MCN807, MCN799
	26–30	4	FML 28175
	31–33	4	FML 28173
	34–37	8	FML 28174
	38–41	8	FML 28174
	42–44	4	FML 28174
	45 and 46	2	FML 28174
Lysapsus limellum	Adult	2	MLP DB2054, MLP DB2049
	26–30	4	FML28180
	29	1	FML28180
	31–33	2	FML28180
	34–37	6	FML28180
	38–41	3	FML28180
	42–44	4	FML28180
	45 and 46	5	FML28180
Pithecopus azureus	Adult	3	FML 28151, FML 28150, FML04286
	31	1	FML 28126
	36–37	3	FML 28127, FML 28128, FML 28126
	38–40	3	FML 28128
	42–44	6	FML 28126, FML 28128
	45 and 46	3	FML 28128
Phyllomedusa boliviana	Adult	4	FML02706, FML01305-7, FML1345-22, MCN326
	36	1	MCN992
	38–41	2	MCN992, MCN991
	42–44	4	MCN991, MCN991, LGE 11528, LGE 11528
Phyllomedusa sauvagii	Adult	3	MCN258, FML 28148, FML3823
	33	2	FML 28131
	34–37	7	FML 28131
	38–41	6	MCN 057
	42–44	9	FML 28665, FML 28130
	45 and 46	6	FML 28129
Pseudis platensis	Adult	4	FML 28152, FML 28153, FML 28154
	<26	3	MCN 613
	28	2	MCN 597
	26–30	1	FML 20179
	31–34	1	MCN613
	35–37	1	FML 28179
	37/38	1	MCN 613
	38–41	1	FML 20178
	43	1	FML 28179
Scinax acuminatus	Adult	2	FML00248-41, LGE 10534
	27–30	6	FML 28182
	31–32	2	FML 28182
	34–37	7	FML 28182
	38–41	3	FML 28182
	42 and 43	2	FML 28182, FML 28183
	46	2	FML 28182
Scinax fuscovarius	Adult	4	FML 28133, FML 28134, FML 28135
	26–30	7	FML 28176
	34–37	6	FML 28176
	38–41	6	FML 28176
	42–44	6	FML 28176, FML 28177
	45 and 46	2	FML 28177
Scinax sp.	29–30	3	FML 29939
	31–33	3	FML 29939, FML 29940
	34–37	7	FML 29941
	38–40	3	FML 29941
	42–44	6	FML 29941
	45	1	FML 29940
Trachycephalus typhonius	Adult	3	FML 28143, FML 28145, FML 2814
	36	1	FML 29435
	38–41	5	FML 29435
	42	1	FML 29436
	46	3	FML 29436, FML 29440

• Institutional abbreviations: DB = Diego Baldo; FML = Fundación Miguel Lillo collection; LGE = Laboratorio de Genética Evolutiva collection, Posadas, Misiones, Argentina; MCN = Museo de Ciencias Naturales de la Universidad Nacional de Salta collection, Salta, Argentina; MLP = Museo de la Plata collection, La Plata, Buenos Aires, Argentina

Table 2. Name equivalences, origin and insertion of the muscles of the pectoral girdle, and correspondent primaxial (light gray files) and abaxial (dark gray files) domains

Muscles (Duellman & Trueb, 1986; Manzano, 1997)	Muscles (Abdala & Diogo, 2010; Diogo & Ziermann, 2014)	Origin (Duellman & Trueb, 1986; Manzano, 1997)	Origin (Abdala & Diogo, 2010; Diogo & Ziermann, 2014)	Insertion
Serratus superior	Serratus anterior	Vertebra III	Vertebra III	Suprascapula
Serratus medius	Serratus anterior	Vertebra III	Vertebra III	Suprascapula
Serratus inferior	Serratus anterior	Vertebra IV	Vertebra III	Suprascapula
Levator scapulae inferior	Levator claviculae	Operculum	Opercular region	Suprascapula
Levator scapulae superior	Levator scapulae superior	Vertebra I	Opercular region	Suprascapula
Opercularis	Opercularis		Opercular region	Suprascapula
Cucullaris	Cucullaris	Otic process squamosal	Otic process squamosal	Scapula
Rhomboideus posterior	Rhomboideus		Vertebrae III and IV	Suprascapula
Rhomboideus anterior	Rhomboideus occipitalis	Otoccipital, frontoparietal	Otoccipital	Suprascapula
Omohyoideus		Vertebra III–IV	Hyoid body	Scapula
Dorsalis scapulae	Deltoideus scapularis	Scapula-Suprascapula	Suprascapula	Humerus
Dorsalis scapulae inferior (d.s.i.)	Deltoideus scapularis	Suprascapula	Suprascapula	Deltoid crest humeral
Deltoideus	Procoracohumeralis. (pars episternalis, pars clavicularis, pars scapularis)	Procoracoid, epicoracoid	Omosternum, claviclae, scapula and precoracoid	Humerus
Interscapularis	-	Scapula	Scapula	Suprascapula
Pectoralisa	Pectoralis. (pars epicoracoidea, pars sternalis, pars abdominalis)	Coracoid, sternum, m. rectus abdominis	Epicoracoid cartilage, sternum, rectus abdominis	Humerus
Subscapularisa	Subcoracoscapularis	-	Medial portion of the pectoral girdle	Humerus
Coracoradialis	Supracoracoideus	Procoracoid, epicoracoid, clavicle	Ventromedial surface of the pectoral girdle	Humerus
Coracoradialis	Coracoradialis	Procoracoid, epicoracoid, clavicle	Ventromedial surface of the pectoral girdle	Humerus
Triceps brachiia	Triceps brachii. (triceps scapularis medialis, triceps humeralis lateralis and triceps humeralismedialis)	-	Scapula, humerus, medial and medial humerus	Radio-ulna
Coracobrachialisa	Coracobrachialis	Coracoid, glenoid cavity	Coracoid	Humerus

• ^a Muscles not identified in this work.

Table 3. Origin and insertion of the muscles of the pelvic girdle, and correspondent primaxial (light gray files) and abaxial domains (dark gray files)

Muscles (sensu Přikryl et al., 2009)	Muscles (sensu Diogo & Molnar, 2014)	Origin	Insertion
Iliolumbaris		Presacral vertebrae	Ilium
Coccygeoiliacus		Urostyle	Ilium
Iliacus externus	Puboischiofemoralis internus B	Ilium	Femur
Iliacus internus	Puboischiofemoralis internus A	Ilium	Femur
Gluteus maximus	Extensor iliotibialis B	Ilium	Cruralis (knee)
Cruralis	Cruralis	Ilium	Aponeurosis (knee)
Iliofemoralis	Iliofemoralis	Ilium	Femur
Abductor longus	Puboischiofemoralis externus B	Ilium and pubis	Femur
Pectineus	Puboischiofemoralis externus A	Ischium	Femur
Adductor magnus	Adductor femoris	Ischium	Femur
Obturador externus	Ischiotrochantericus B	Ischium	Femur
Obturador internus	Ischiotrochantericus D	Ischium	Femur
Quadratus femoris	Ischiotrochantericus C	Ischium	Femur
Gemellus	Ischiotrochantericus A	Ischium	Femur
Semimembranosus	Ischioflexorius	Ilium and Ischium	Aponeurosis (knee)
Semitendinosus	Pubotibialis B	Ischium	Aponeurosis (knee)
Gracilis major	Gracilis major	Ischium	Aponeurosis (knee)
Gracilis minor	Gracilis minor	Ischium	Aponeurosis (knee)
Iliofibularis	Tenuissimus	Ilium	Fibula
Sartorius	Pubotibialis A	Ischium	Tibia
Tensor fasciae lataea	Extensor iliotibialis A	Ilium	Fasciae latae

• The tensor fasciae latae muscle inserts in the m. cruralis, which connects the ilium and knee aponeurosis.
• ^a Muscle not identified in this work.

3 RESULTS

The developmental patterns of the pectoral and pelvic girdles of Lysapsus limellum in comparison with other anuran species are described. We selected L. limellum to perform our descriptions because it exhibits the most complete series.

3.1 Skeletal description of Lysapsus limellum based on cleared and stained specimens

3.1.1 Pectoral girdle

Stage 32: Each half of pectoral girdle represented by a single cartilaginous element.

Stage 34: Initial chondrification of procoracoid, scapula, and coracoid.

Stage 35: Suprascapula present.

Stage 39: Initial ossification of scapula, coracoid, clavicle, and cleithrum. Anterolateral edge of suprascapula begins to differentiate; anterodistal projection present.

Stage 42: Both halves of pectoral girdle in contact.

Stage 43: Chondrification of sternum from two centers, and chondrification of omosternum begins (Figure 2a).

Stage 46: Sternum bifurcate.

Adult: Ossification of clavicle, cleithrum, coracoid, and scapula complete; suprascapula, procoracoid, epicoracoid, and omosternum cartilaginous (Figure 2b,g,h).

Interspecific variations

Differentiation of the suprascapula begins in Stage 34 in Scinax acuminatus, whereas in S. fuscovarius it begins in Stage 36. Chondrification of the coracoid begins in Stage 35 in S. fuscovarius and Phyllomedusa sauvagii, whereas in S. acuminatus, this occurs in Stage 37.

The scapula ossifies in Stages 35 and 36 in Trachycephalus typhonius, Pithecopus azureus, and P. sauvagii. The coracoid ossifies in Stage 37 in T. typhonius, but in Stage 40 in P. sauvagii. The clavicle and cleithrum ossify simultaneously in Stage 37 in P. sauvagii, and in Stage 38 in P. azureus. The clavicle, cleithrum, coracoid, and scapula ossify in Stage 36 in Boana riojana and Phyllomedusa boliviana, but in Stage 37 in Scinax fuscovarius, S. acuminatus. In T. typhonius, the clavicle, cleithrum, and coracoid ossify in Stage 37.

The anterolateral edge of the suprascapula begins to differentiate in Stage 38 in Pithecopus azureus, Phyllomedusa boliviana, and Pseudis platensis. In Trachycephalus typhonius, this projection is visible in Stage 42; from Stages 42 to 44, the morphology of the anterodistal region of the suprascapula acquires its typical adult shape. In Scinax acuminatus, the anterolateral edge of the suprascapula the adult configuration in Stage 36, but the anterodistal projection is not visible until Stage 40.

In Scinax acuminatus, the development of the sternum and the contact between the halves of the pectoral girdle begins in Stage 42. The sternum originates in Stage 42 in S. fuscovarius (Figure 2c), Scinax sp., Boana riojana, Phyllomedusa sauvagii, P. boliviana, and Pithecopus azureus (Figure 2e). The sternum originates from a single center of chondrification in S. fuscovarius (Figure 2c) and Scinax sp., whereas it originates from two centers to form a bifurcate element in P. azureus (Figure 2e). The sternum originates in Stage 42 in S. fuscovarius, Scinax sp., B. riojana, Phyllomedusa sauvagii, P. boliviana (Figure 2c,e), and Pithecopus azureus. When metamorphosis is complete, the posterior end of the sternum is not bifurcate in P. azureus (Figure 2f) and Scinax sp., whereas it is in S. fuscovarius (Figure 2c) and postmetamorphically in B. riojana and Phyllomedusa sauvagii.

3.1.2 Pelvic girdle

Stage 33: Two chondrification centers corresponding to ilium and ischium present.

Stage 36: Initial ossification of ilium.

Stage 39: Contact between halves of pelvic girdle established in area of ischium, and initial differentiation of posterior region of the pelvic girdle.

Stage 41: Halves of pelvic girdle united.

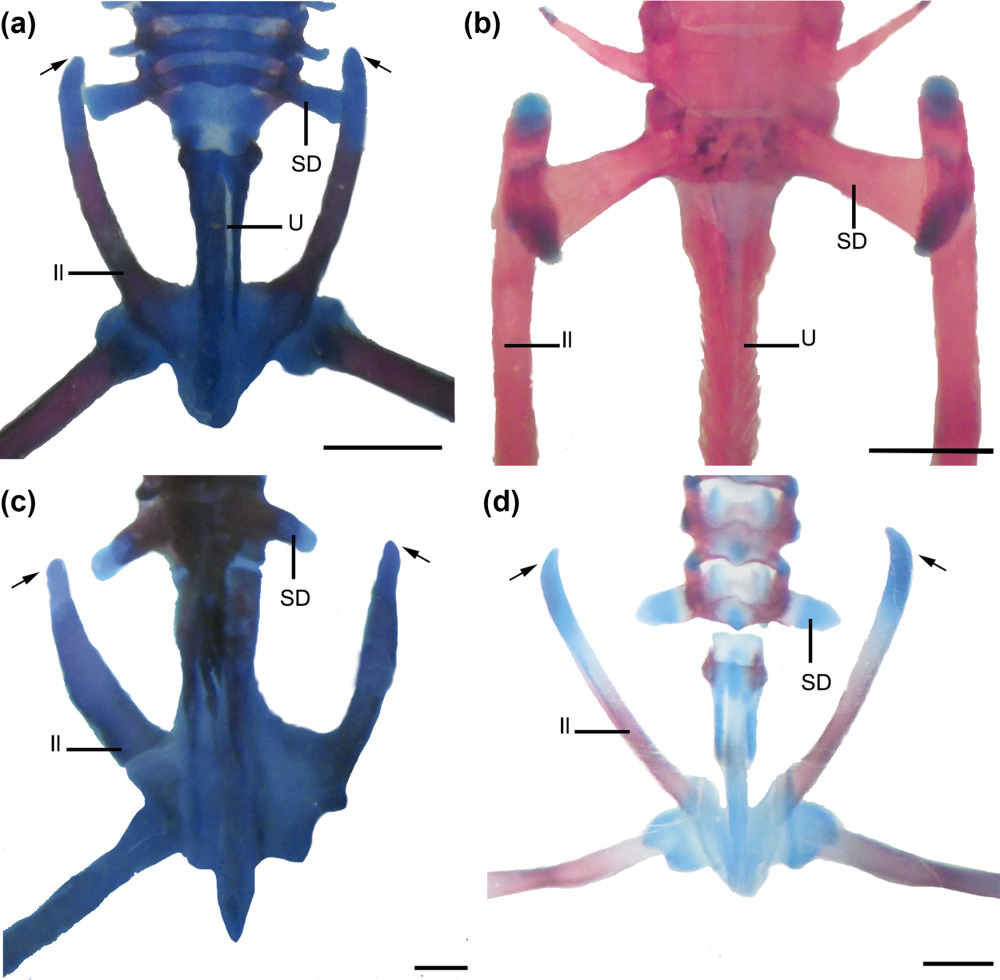

Stage 44: Anterior region of the ilium curved and rounded (Figure 3a).

Stage 45: Contact between ilium and sacrum established.

Stage 46: Initial ossification of ischium.

Adult: All pelvic bones ossified except anterior end of ilium (Figure 3b).

Interspecific variation

Contact between pelvic girdle halves in the area of the ischium level occurs in Stage 38 in Scinax fuscovarius, Scinax sp., Boana riojana, and Pithecopus azureus, but in Stage 40 or 41 in Phyllomedusa boliviana, S. acuminatus, Trachycephalus typhonius, and Phyllomedusa sauvagii. Initial differentiation of the posterior region of the pelvic girdle occurs in Stage 36–38 in B. riojana, P. boliviana, and Pseudis platensis.

The ischium begins to ossify in Stages 41 and 42 in Trachycephalus typhonius and Scinax acuminatus, respectively. In Boana riojana, ischial ossification occurs after metamorphosis. In Phyllomedusa boliviana, P. sauvagii, B. riojana, and T. typhonius, the anterior part of the ilium begins to curve in Stage 38–41 (Figure 3d). In P. boliviana and P. sauvagii, the anterior region of the ilium is acuminate, while in P. platensis, it is blunt (Figure 3c). In S. fuscovarius, P. boliviana, P. sauvagii, and Pithecopus azureus, contact between the ilium and sacrum occurs in Stage 42–44, whereas in S. acuminatus, this contact occurs at Stage 46 and in B. riojana, it occurs postmetamorphically.

3.2 Histology of the pectoral girdle of Lysapsus limellum

Stage 37 (Figure 4a)

Two mesenchymal condensations in the scapula-suprascapula region, may give rise to the serratus muscles. On the anterior surface of the dorsomedial portion of the suprascapulae, there are five pre-myogenic masses that may represent the levator claviculae, levator scapulae superior, rhomboideus, rhomboideus occipitalis muscles, and cucullaris. There are two mesenchymal condensations that represent the interscapularis and serratus anterior. The two pre-myogenic masses located on the dorsal and posterior surfaces of the suprascapula correspond to the presumptive branches of the deltoideus scapularis. The insertion of this muscle defines the boundary between the scapula and the suprascapula, which are represented by a single cartilaginous element composed of mature chondrocytes. A mesenchymal condensation occurs at the future insertion of the deltoideus scapularis superior muscle at the level of the interzone between the scapula and suprascapula. In the posteroventral region, there are five pre-myogenic muscular masses. One may correspond to the procoracohumeralis muscle, whereas the others could not be identified. The cartilaginous procoracoids are continuous with the scapula, the boundaries of which could not be defined.

Stage 40 (Figure 4b,c)

At the anteromedial end of the dorsal region of the scapula-suprascapula, two pre-myogenic masses that might correspond to the serratus anterior muscles are found (Figure 4b). On the anterior surface of the dorsomedial portion of the suprascapular, there are pre-myogenic masses with two visible sites of origin. These masses may represent the deltoideus scapularis and interscapularis muscles. The proximal cartilaginous area corresponding to the scapula is composed of hypertrophic chondrocytes. The ossification of the cleithrum is evident in the suprascapular region. In the cleithrum, the osteocytes are surrounded by a bony extracellular matrix with trabeculae with the spaces between the trabeculae containing blood vessels. Three pre-myogenic masses that probably correspond to the branches of the deltoideus scapularis muscle and to the procoracohumeralis muscle are located in the posteroventral region. The girdle halves are close to each other, and ligamentous connective tissue occurs between the procoracoids (Figure 4c).

Stage 44 (Figure 4d,e)

At the anteromedial end of the dorsal region of the suprascapula, there are three muscle masses that may correspond to the branches of the serratus anterior and rhomboideus muscles (Figure 4d). On the posterior surface of the suprascapula, two muscle masses representing the branches of the deltoideus scapularis are found. In the scapular region, adjacent to the glenoid cavity, the cartilage is formed by hypertrophic chondrocytes surrounded by a thin layer of periostic bony tissue and abundant blood vessels. The cleithrum is formed by thin layers of bone and osteocytes, and a large area with abundant blood vessels (Figure 4d). In the posteroventral region, there is one unidentified muscular mass. The cartilaginous procoracoids overlap slightly and are connected by a ligamentous connective tissue. The pars clavicularis of the procoracohumeralis is identified. The clavicle is ossified, with osteocytes surrounded by a bony extracellular matrix (Figure 4e).

Stage 46 (Figure 4f,g)

At the anteromedial end of the dorsal region of the suprascapula, there are four muscle masses that may correspond to the branches of the future serratus anterior, rhomboideus occipitalis, and rhomboideus muscles. On the anterior surface of the dorsomedial portion of the suprascapula, there are five muscle masses that may represent the levator scapulae inferior, levator scapulae superior, cucullaris, rhomboideus occipitalis, and rhomboideus muscles.

At the edge of the glenoid cavity, the scapula has pre-tendinous tissue. Two muscle masses representing the branches of the deltoideus scapularis are on the posterior surface of the suprascapula. Posteroventrally there are three muscle masses; one may correspond to the procoracohumeralis, but the others could not be identified. The procoracoids are synchondrotically fused at the anterior cartilaginous ends (Figure 4f). In the most posterior region, the procoracoids overlap slightly and are united by ligamentous connective tissue. The clavicle is composed of osteocytes in lacunae and extracellular matrix (Figure 4g).

3.2.1 Interspecific variation in the developmental pattern

Boana riojana

Stage 41 (Figure 5a)

Six pre-myogenic masses occur on the anterior surface of the dorsomedial portion of the suprascapula; one may correspond to the levator claviculae, and the others to the levator scapulae superior, cucullaris, rhomboideus occipitalis, rhomboideus, and omohioideus. The scapula has a zone of hypertrophic chondrocytes surrounded by a thin layer of periostic osseous tissue, with small trabeculae and blood vessels. In the posteroventral region, there are two unidentifiable pre-myogenic masses. At the edges of the procoracoids, a thin layer of bone corresponding to the clavicle, formed by osteocytes and a bony extracellular matrix is evident. Ligamentous connective tissue separates the procoracoids.

Stage 44 (Figure 5b)

Two pre-myogenic masses lie at the anteromedial end of the dorsal region of the suprascapula, which may be the branches of the future serratus anterior muscle. On the anterior surface of the dorsomedial portion of the suprascapula, five pre-myogenic masses, may correspond to the levator claviculae and levator scapulae superior, cucullaris, rhomboideus occipitalis, and rhomboideus muscles. One pre-myogenic mass corresponding to the deltoideus scapularis muscles occurs on the posterior surface of the suprascapula. Posteroventrally, there are four muscle masses. Two may correspond to the procoracohumeralis, one to the coracoradialis, and one is unidentifiable. The cartilaginous procoracoids do not overlap. In the clavicle, osteocytes are surrounded by gaps in a bony extracellular matrix.

Phyllomedusa sauvagii

Stage 36 (Figure 5c,d)

No mesenchymal condensations or pre-myogenic masses are present at the anteromedial end of the dorsal region of the scapula-suprascapula. On the anterior surface of the dorsomedial portion of the scapula-suprascapula, there is one mesenchymal condensation that may represent the interscapularis muscle. The scapular cartilage at the edge of the glenoid cavity is surrounded by a thin layer of periostic osseous tissue. In the region of the suprascapula, the cleithrum is formed by osteocytes in lacunae, and a bony extracellular matrix is evident. Two pre-myogenic masses representing the branches of the deltoideus scapularis are located on the posterior surface of the suprascapular.

Stage 38 (Figure 5e)

At the anteromedial end of the dorsal region of the scapula-suprascapula, two pre-myogenic masses, may represent the branches of the serratus anterior. On the anterior surface of the dorsomedial portion of the scapula-suprascapula, three pre-myogenic masses and three mesenchymatic condensations are present. These may give rise to the levator scapulae superior, cucullaris, rhomboideus occipitalis and rhomboideus, interescapularis, and serratus anterior, respectively. Posteroventrally, there are three pre-myogenic condensations; one may represent the procoracohumeralis, but the others could not be identified.

Boana riojana and Phyllomedusa sauvagii

Stage 46 (Figure 5f,g)

Two muscle masses, possibly corresponding to the branches of the serratus anterior, are located at the anteromedial end of the dorsal region of the suprascapula. Six muscle masses that could correspond to the levator claviculae, levator scapulae superior, cucullaris, rhomboideus occipitalis, rhomboideus, and omohioideus are on the anterior surface of the dorsomedial part of the suprascapula. Endochondral ossification of the scapula is progressing, and a zone of hypertrophic chondrocytes surrounded by periostic bone tissue is present. The cartilage is disintegrating, and there is a large recess with blood vessels and bone marrow. At the posterodorsal edge of the suprascapula, the cleithrum is formed by osteocytes, a bony extracellular matrix and trabecular bone.

Posteroventrally, there are three muscle masses that may correspond to the procoracohumeralis, coracoradialis, and procoracohumeralis (pars clavicularis) (Figure 5f). The clavicle is composed of osteocytes surrounded by a bony extracellular matrix. The trabeculae are forming, with peripheral osteoblasts and blood vessels (Figure 5g).

3.3 Histology of the pelvic girdle of Lysapsus limellum

Stage 37 (Figure 6a,b)

The cartilaginous plate representing the ilium-ischium-pubis is formed by mature chondrocytes (Figure 6a). The medial border of the pubis lies at the mid-width of the acetabulum. In the acetabular region, posteroventral to the ilium, there are three pre-myogenic masses that may correspond to the future ischiotrochantericus D (obturator internus), puboischiofemoralis externus B (adductor longus), and gracilis major. Two pre-myogenic masses occur on the posterodorsal surface of the ilium. One may represent the puboischiofemoralis externus A (pectineus), and the other the puboischiofemoralis internus A (iliacus internus) extensor iliotibialis B (gluteus maximus) complex (Figure 6a). One pre-myogenic mass at the anterior end of the medial region of the ilium may give rise to the coccygeoiliacus (Figure 6b). Laterally, two pre-myogenic masses may correspond to the iliolumbaris and puboischiofemoralis internus A (Figure 6b).

Stage 40 (Figure 6c)

The girdle halves are separated by dense connective tissue. The mature muscle tissue is well defined, has abundant nuclei, and is formed by elongated fibers arranged in bundles. There is a pre-tendon at the anterior distal end. The articular cavity is slightly concave and poorly defined.

Stage 44 (Figure 6d)

The girdle halves are synchondrotically fused at the level of the ischium and ilium, and there is an abundant dense connective tissue at the level of the pubis. The articular cavity is more concave and the muscle masses larger and more compact than in Stage 40. In the acetabular region, specifically at the posteroventral region of the ischium, there are three muscle masses, that probably represent the ischiotrochantericus D, puboischiofemoralis externus B, and gracilis major.

Stage 46 (Figure 6e)

The ilium is composed of calcified cartilage. Hypertrophic chondrocyte and chondroblast zones are distinguishable. The muscular masses are more compact, with thicker and more numerous fibers than in Stage 44. The acetabular joint is clearly delimited.

3.3.1 Interspecific variations in the developmental pattern

Boana riojana

Stage 37 (Figure 7a)

The girdle halves are narrowly separated in the posterior part of the ischium. The medial border of the pubis at the mid-width of the acetabulum is concave. Immature muscle tissue is distinguishable. In the acetabular region, specifically on the posterodorsal surface of the ilium, there are two pre-myogenic masses; these may give rise to the puboischiofemoralis externus A and the puboischiofemoralis internus A.

Stage 41 (Figure 7b)

The girdle halves are in full contact at the level of the pubis. The acetabulum is elongated and forms the acetabular cavity. The muscle tissue has abundant nuclei packages, surrounded by dense connective tissue, and consists of bundles of elongate fibers. A pre-tendon is present at the anterodistal end of the ilium. The articular cavity of the acetabulum is slightly concave, rather undefined, and contains abundant nuclei.

Stage 44 (Figure 7c)

There is a pre-tendon on the posterior part of the ischium and another one in the anterior region of the acetabulum. Mature muscle tissue with abundant compact nuclei is arranged in bundles of fibers. Each muscle mass is surrounded by dense connective tissue. The groove of the ischium is broader and deeper than in Stage 40. The acetabular cavity is not clearly defined.

Stage 46 (Figure 7d)

Calcified cartilage, hypertrophic chondrocytes, and zones of chondroblasts are present in the ilium. The muscle masses have become more compact, with thicker and more numerous fibers than in Stage 44. The acetabular joint is clearly delimited.

Phyllomedusa sauvagii

Stage 36 (Figure 7e)

The girdle halves are widely separated. The medial border of the pubis is slightly convex at the mid-width of the acetabular cavity. On the posterodorsal surface of the ilium, there are two pre-myogenic masses; these may give rise to the ischiotrochantericus D and the puboischiofemoralis externus A puboischiofemoralis internus A complex.

Stage 44 (Figure 7f,g)

The girdle halves are synchondrotically fused at the level of the ischium and connected by dense connective tissue at the level of the pubis. A pre-tendon is present in the anterior region of the acetabulum. The mature muscle tissue is well defined, has abundant nuclei and arranged in bundles of elongate fibers. The acetabular cavity is poorly defined (Figure 7f). There are two muscle masses on the posterodorsal surface of the ilium; these may correspond to the puboischiofemoralis externus A, and the puboischiofemoralis internus A-extensor iliotibialis muscular complex (Figure 7f). There is one muscle mass at the anterior end of the medial part of the ilium; this may correspond to the coccygeoiliacus. Laterally, the two muscle masses may give rise to the iliolumbaris and puboischiofemoralis internus A (Figure 7g).

3.4 Comparison of the pectoral and pelvic girdles

The general anatomy, and osteological and histological developmental patterns of the girdles are compared. The anuran pectoral girdle is complex and composed of the suprascapula, scapula, cleithrum, procoracoid, coracoid, clavicle, epicoracoid, sternum, and omosternum (Figure 1; Table 2). The eight muscles that connect the axial skeleton to the pectoral girdle and are responsible for its movement are: serratus anterior, rhomboideus, rhomboideus occipitalis, levator scapulae superior, cucullaris, opercularis, and levator claviculae. Nine muscles connect the pectoral girdle to the forelimb: pectoralis, supracoracoideus, procoracohumeralis, deltoideus scapularis, subcoracoscapularis, triceps brachii, coracobrachialis, and coracoradialis (Table 2).

The anuran pelvic girdle is V-shaped. Posteriorly, the bones and cartilage fuse to form a disc-like structure. Each of the identical halves of the pelvic girdle is termed an “innominate” bone, which is formed by the ilium, ischium, and pubis (Figure 1; Table 3). The seven primary muscles that connect the axial skeleton to the pelvic girdle and are responsible for its movement are: iliofemoralis, tenuissimus, extensor iliotibialis A (tensor fasciae latae), extensor iliotibialis B, cruralis, puboischiofemoralis internus A, and puboischiofemoralis internus B (iliacus externus). Nine muscles connect the pelvic girdle with the hindlimb: adductor femoris, pubotibialis A (sartorius) and B (semitendinosus), gracilis major, gracilis minor, ischioflexorius (semimembranosus), caudofemoralis (pyriformis), and ischiotrochantericus A and B.

The pectoral girdle has nine skeletal elements, the pelvic girdle has only three (Table 4). Moreover, all pelvic girdle bones are endochondral. Four elements form the glenoid cavity of the pectoral girdle and only three form the acetabulum of the pelvic girdle. The pectoral girdle is mobile, the pelvic girdle is not.

Table 4. Differences in osteological characters (number of bones) between the pectoral and pelvic girdles of anuran adults

Adults	Pectoral girdle	Pelvic girdle
Number of endochondral bones	2: Coracoid, scapula	2: Ilium, ischium
Number of dermal bones	2: Clavicle, cleithrum	–
Number of cartilages	4–5: Suprascapula, procoracoid, epicoracoid, sternum, omosternum	0–1: Pubis
Number of joints	2 Scapula-Suprascapula Glenoid: Scapula-coracoid, scapula-clavicle/procoracoid	1 Acetabular: Ilium-ischium, ilium-pubis, ischium-pubis

Almost all the interspecific osteological differences involve the timing of the main developmental events (Figure 8). Differentiation of the cartilaginous tissue and the acquisition of the adult morphology of the axial-girdle joints are synchronous. Ossification and formation of the axial-girdle joints in the pectoral girdle precede those of the pelvic girdle. Initial development of the ventromedial region and establishment of contact between girdle halves is not synchronous. Complete differentiation of the ventromedial region requires more time in the pelvic girdle than in the pectoral girdle (Figure 8).

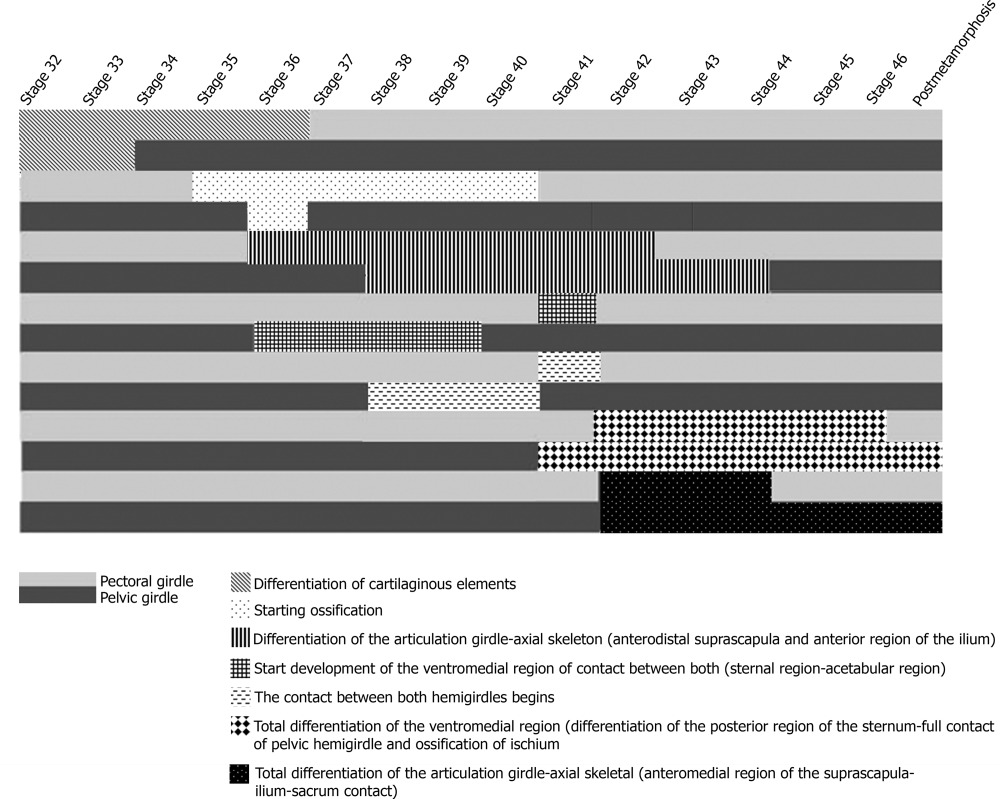

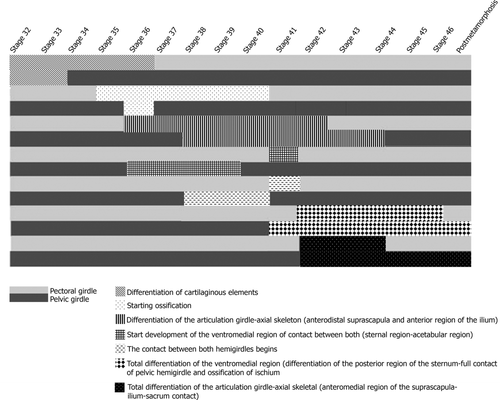

Regarding the tissue development of girdles, a general pattern of advanced development of the tissues of the pelvic girdles emerges as both girdles are compared (Table 5). In the initial developmental stages (36–37), the pelvic girdle has pre-muscular tissue in all its regions, whereas mesenchymal condensations remain in some areas of the pectoral girdle. In Stages 38–41, a pre-tendon develops in the pelvic girdle, whereas it first appears in Stage 46 in the pectoral girdle. At Stage 44, the pelvic girdle has mature muscles, whereas the pectoral girdle has pre-myogenic masses. There are fewer muscles in the pelvic girdle, and a total absence of muscle insertions on the anterior and posterior surfaces of the ilium (ASI and PSI, respectively) than in functionally equivalent areas of the pectoral girdle. These areas correspond to the anterior and posterior surfaces of the scapula-suprascapula (ASss and PSss, respectively), with as many as nine muscles. The primaxial domain has only two elements in the pelvic girdle, whereas there are four in the primaxial domain of the pectoral girdle. Also, the abaxial of the pelvic girdle has 18 muscles whereas the pectoral girdle has nine (Tables 2 and 3).

Table 5. Tissue development in anurans

Stage		Region					Relationship betweenhemi-girdles
		Anterior			Posterior
		AEss- AEi	AssS-ASi	PsS-PSi	Pcp-Pap	Ppa-Paa
36–37	Pectoral girdle	0–2 MC	1–2 MC, 0–5 PM	1–2 PM	5 PM	WD	Widely separated
	Pelvic girdle	PM 1 medial, 2 lateral	–	–	3 PM	2 PM (dorsal)	Very close at the level of the posterior end of the ischium
38–40–41	Pectoral girdle	1 MC, 1–2 PM	3 MC, 3–6 PM	1 PM	2–4 PM	WD	Close to each other. Ligamentous connective tissue between procoracoids
	Pelvic girdle	WD	–	–	3 PM Pt	2–4 PM	Synchondrotically in full contact, or close at the level of the ischium and through connective tissue to the level of the ilium and pubis
44	Pectoral girdle	2 PM, 2–3 MM	5 PM, 5 MM	1 PM, 1–2 MM	1–4 MM	WD	Nonoverlapped or slightly overlapped at the level of the procoracoids, and free or connected by ligamentous connective tissue
	Pelvic girdle	1 MM (medial), 2 MM (lateral)	–	–	3 MM, 1 Pt	2 MM, 1 Pt	In full contact at the level of the pubis. Synchondrotically fused at the level of the ischium, and by dense connective tissue at the level of the pubis.
46	Pectoral girdle	2–4 MM	5–6 MM, 1 Pt	1 MM	3– 5 MM	WD	Synchondrotically fused together at the anterior cartilaginous procoracoids extreme, or free and without overlapping between each other. In the most posterior region, the procoracoids are slightly overlapped and connected through ligamentous connective tissue
	Pelvic girdle	WD	-	-	2 MM, 1 Pt	2 MM	Completely fused by cartilage or only in its fore and aft ends, and through connective tissue to the pubis

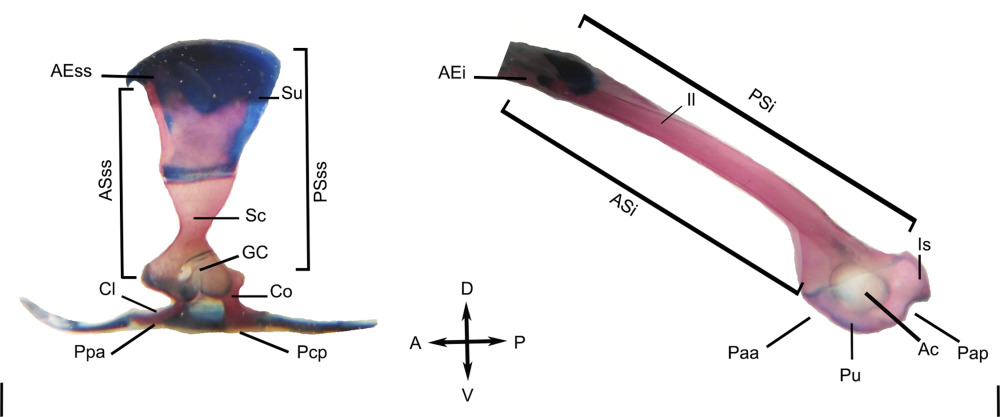

• Abbreviations: AEss = anterior region in both girdles, scapula-suprascapula end region, topologically equivalent to the anterior end of the ilium (AEi); AssS = anterior scapula-suprascapula surface equivalent to the anterior surface of ilium (ASi); MC = mesenchymatic condensations; MM = muscular mass; PM = premyogenic mass; Pcp = posterior in both girdles, posterior cocoracoid region topologically equivalent to the posterior acetabular (Pap); Ppa = posterior in both girdles, anterior procoracoidal equivalent to the anterior acetabular region (Paa); PsS = posterior scapula-suprascapula surface, equivalent to the posterior surface of ilium (PSi); Pt = pre-tendon; WD = without data

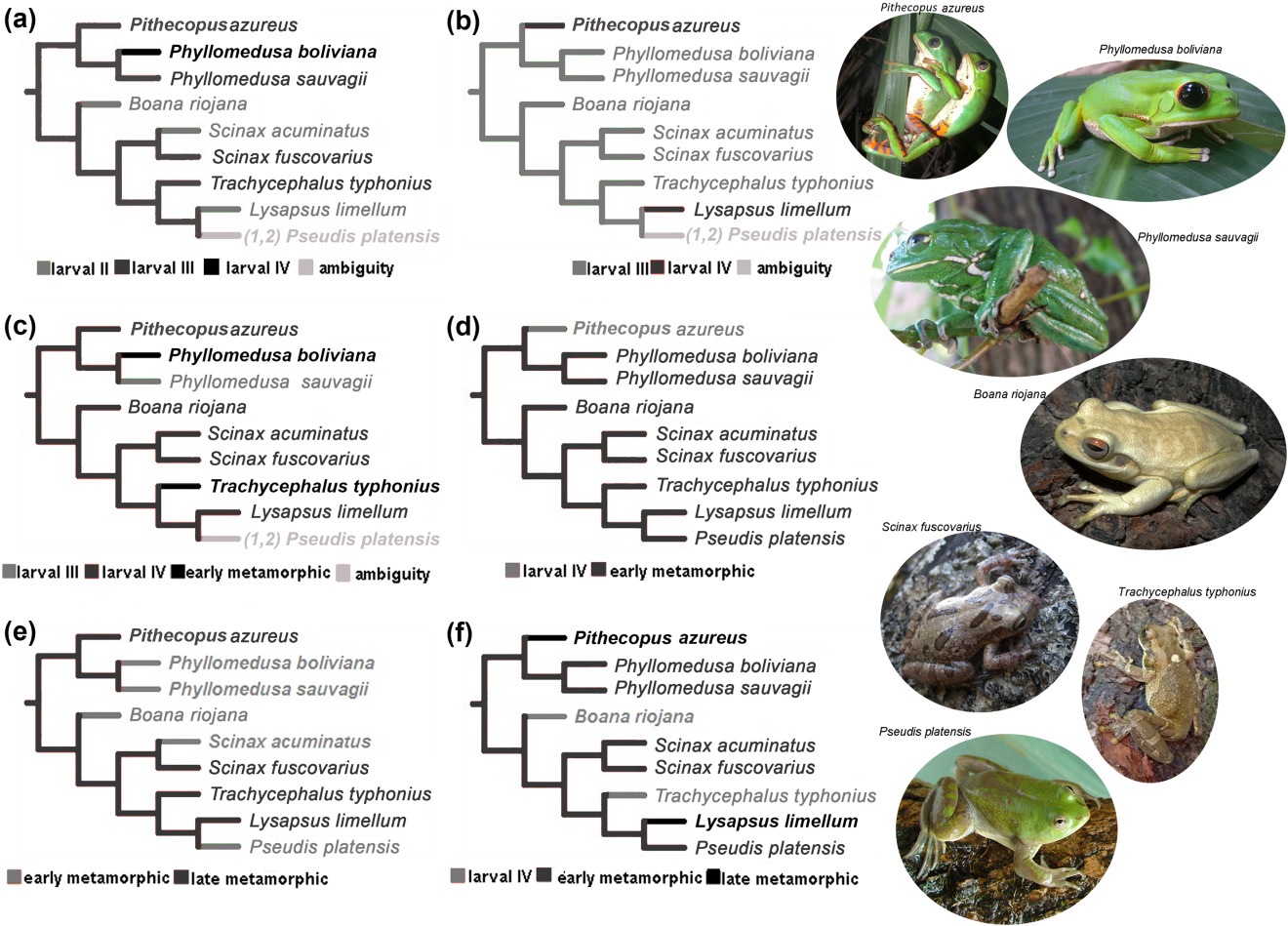

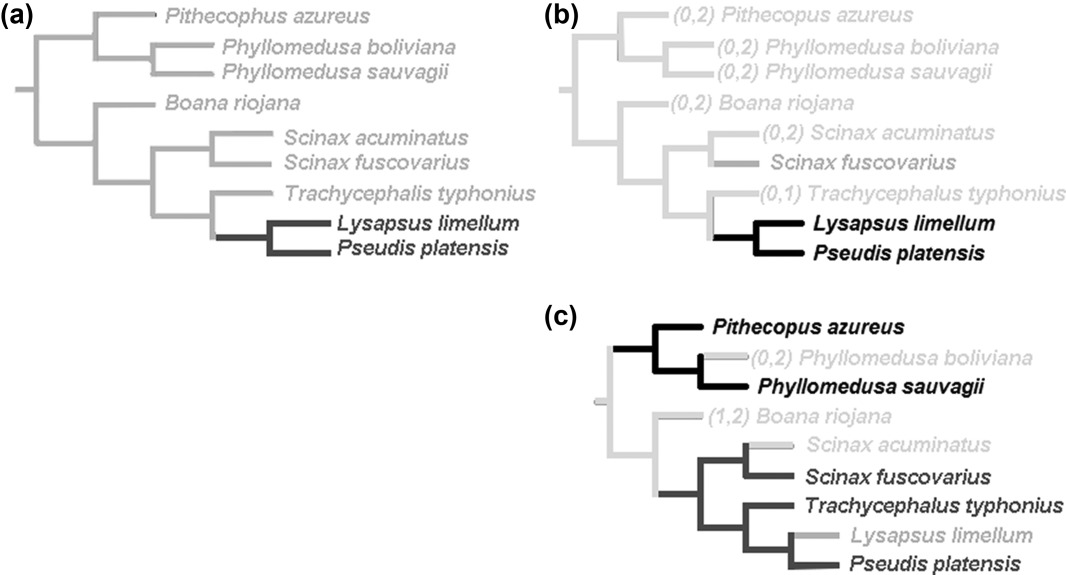

3.5 Ancestral state reconstruction

The optimization patterns of Characters 1 and 2, which compare the differentiation patterns of cartilaginous elements in both girdles, differ (Figures 9 and 10). In the pectoral girdle (Character 1), the differentiation occurs at larval Stage III. In the pelvic girdle (Character 2; Figure 9a), the ancestral state is larval Stage III, with independent acquisitions of State 0—larval Stage II—in Boana riojana, Scinax acuminatus, and Lysapsus limellum. Phyllomedusa boliviana is the only taxon unambiguously having larval Stage IV.

Five of the characters showing ontogenetic changes indicate that the ancestral state corresponds to larval Stage III (Characters 1, 2, 3, 4, 5; Figure 9b). Three correspond to larval Stage IV (Characters 6, 7, 9; Figure 9c,d), one to the late metamorphic stage (Character 9; Figure 9e), two to the early metamorphic stage (Characters 10 and 11; Figure 9f) and one is optimized as ambiguity in the basal node (Character 12).

A combination of five characters typify pseudid taxa (Characters 3, 4, 9, and 17; Figure 10a). Three characters indicate that several ontogenetic events occur later in this clade than in the other species (3, 4, 5). The presence of five cartilaginous elements in the pectoral girdle and one in the pelvic girdle (Character 16) is a synapomorphy of the clade (Figure 10b).

The alternate states of Character 17 are synapomorphies of phyllomedusines (State 2), and the clade Scinax + Pseudinae + Trachycephalus (State 1) (Figure 10c).

Of the nine histological characters, eight are highly conservative.

4 DISCUSSION

Examination the anatomy and development of the pectoral and pelvic girdles reveals clear differences between them. Variation occurs, as follows: number of adult skeletal elements; shape of the adult bones; number and topology of the muscles of the primaxial and abaxial domains; differentiation of timing of development of skeletal elements; number of mesenchymal condensations of the anatomical elements; degree of separation of halves of girdle; and nature of connection of girdle halves.

An important similarity in the development of pectoral and pelvic girdles is the strong relationship with the development of the proximal stylopodia of limbs. The development of the glenoid fossa and the acetabulum is intimately linked to the development of the epiphyses of the humerus and femur. This observation contradicts the hypothesis of Valasek et al. (2011; see also Diogo & Ziermann, 2014), who proposed an “in-out” mechanism in which the development of the forelimb precedes that of the pectoral girdle, which suspends the proximal limb from the axial skeleton. Our data show that these elements develop together, as any ball and socket synovial joint; they arise from a single anlage which undergoes differentiation of an interzone followed by a cavitation process (Manzano et al., 2013; Nowlan & Sharpe, 2014; Ponssa & Abdala, 2016). These observations suggest that the similarities of the girdles may reflect the fact that they share the same type of joint. We postulate that there is a spatio-temporal developmental linkage between each girdle and it respective limb, particularly the stylopodium, owing to their formation of the same joint. This was previously stressed by Malashichev, Borkhvardt, Christ, and Scaal (2005), Pomikal and Streicher (2010), and Pomikal et al. (2011) in relation to the development of the pelvic girdle. These authors reported a developmental association between the limb and pelvic element in the avian pelvic girdle (at least between the limb field ectoderm and the pelvis formation, Malashichev et al., 2005), in Mus musculus (Pomikal & Streicher 2010, pg. 123), and in Rana temporaria (Pomikal et al., 2011, pg. 288). The same developmental association characterizes the glenoid fossa and the humerus. Based on these findings we infer that girdles and proximal limb stylopodia constitute unique developmental modules that may have evolved together. Thus, the study of the transition from fins to limbs is incomplete without consideration of girdles. Through network analyses with anatomical elements of the pelvic girdle and hindlimbs in frogs, we found that the acetabulum and the hindlimb stylopodium belong to the same module (Dos Santos et al., 2017).

Most of the key events in the pelvic girdle–hindlimb development occur before most of those of the pectoral girdle forelimb complex (Figure 8). Two events occur early in the pectoral region namely, initial ossification processes and the differentiation of the abaxial domain region. Given that development of the pectoral girdle and the forelimbs in anurans occurs mostly within the branchial cavity, the structures are less affected by external stimuli than are the pelvic girdle and hindlimb. This possibly accounts for the delay in maturation of the pectoral girdle that we observed.

The optimization analysis shows that larval Stage III is the ancestral state for key developmental events in both girdles. Differences in the timing of appearance of some structures such as mesenchymal condensations or premyogenic masses, generate interesting heterochronic patterns, particularly in pseudids. These patterns are in accord with the many literature reports of frequent heterochronic changes in pseudids (de Sá & Lavilla, 1997; Fabrezi & Goldberg, 2009; Fabrezi, Quinzio, & Goldberg, 2009, 2010). A general delay in the developmental processes which also characterize other aquatic species such as Telmatobius (Barrionuevo, 2013) and Xenopus laevis (Porro & Richards, 2017), is thought to be related to spending more time in the water (Laurin, Girondot, & Loth, 2004).

Our data indicate that despite heterochronic events being common in anurans, certain developmental events occur at interspecifically similar stages, thereby preventing any heterochronic shifts. The union of the halves of the pectoral girdles occurs at only one stage (Stage 41/42; Figure 8), whereas it can occur in several stages (e.g., Stages 35–41; Figure 8) in the pelvic girdle. The halves of the pectoral girdle unite at the same time the forelimbs emerge from the branchial chamber, when the axial-girdle linkage is totally differentiated. These events also are coincident with the complete maturation of muscles, bones, and tendons (Manzano et al., 2013), supporting the existence of a phenocritical period for anurans (Ponssa & Abdala, 2016). This period coincides with the assemblage of the locomotor elements such that the early metamorphic froglet can function in a terrestrial environment (Manzano et al., 2013). Our data show that the early metamorphic stage is the ancestral state, which reflects a correlate between the ontogeny and evolutionary history of the limbs and girdles.

Interspecific diversity in the developmental timing of the pectoral girdle is greater than that of the pelvic girdle, thereby implying more interspecific heterochrony. The many heterochronic events suggest that there are more possibilities to generate new morphologies in the pectoral girdle compared to the pelvic girdle.

The presence of dermal bones in the pectoral girdle supports the notion of its close relationship with the skull (Carroll & Holmes, 2007; McGonell, 2001); thus, the posterior region of the skull and the dermal region of the pectoral girdle may represent parts of a joint. If so, both would originate from the same mesenchymal blastema, such as the proximal limb stylopodium and its corresponding girdle region do. Six muscles connect the pectoral girdle and the axial skeleton, from which two connect the skull with the vertebral column. One of them is the cucullaris, the iconic muscle related to the origin of the vertebrate neck (Abdala & Diogo, 2010; Ericsson et al., 2013). In anurans, only one muscle, the levator scapulae superior, is attached to the single cervical vertebra (the atlas). Thus, this muscle is more closely associated with the neck than is the cucullaris, which is probably a head muscle (Nagashima et al., 2016). The levator scapulae receives motor supply from the cervical plexus (Frank, Wenk, Stern, Gottlieb, & Moscatello, 1995).

The shapes of the pectoral girdle elements are more variable than those of the pelvic girdle. For example, the suprascapula has at least five different shapes, whereas the analog of the pelvic girdle, the anterior extreme of the ilium, has three configurations. The region of contact of the pectoral girdle halves is highly variable. The shape and development of the sternal zone varies, along with the zone of contact between the halves. For example, the anterior ends of the procoracoids can be synchondrotically fused, but the posterior end are separated by a ligamentous tissue (Kaplán, 2000), a tendinous-like highly organized tissue (this study). In contrast, in the pelvic girdle, a highly compact and disorganized tissue fills the space between the girdle halves; this tissue remains vestigial until metamorphosis. Researchers have mentioned that the mesenchymal cells condense in places where organs bend or form spaces between contact structures (Baleeva, 2001; Kovalenko, 1992) and that the growth of the scapular-suprascapular cartilage occurs primarily through the recruitment of adjacent mesenchymal cells. Thus, the uneven distribution of these cells around the girdle would determine their growth (Borkhvardt, 1991; Borkhvardt & Baleeva, 2002). We found that during development, the halves of the pectoral girdle are separated from each other and connected by ligamentous connective tissue, whereas the halves of the pelvic girdle are close together and are almost completely connected synchondrotically. Given the wide space between the halves of the pectoral girdle, it is possible that more mesenchymal condensation might be generated. This might explain the greater number of elements in the pectoral girdle, including its only mobile joint. Shearman (2008) mentioned the importance of the differences in the organization of connective tissue and chondrocytes within the shaped joints of the pectoral girdle in the adult morphology. Baleeva (2001) found that the myomeres in some anurans are dorsally wider in the anterior part of the body, and abruptly narrow sharply toward the posterior end of the notochord. Borkhvardt and Baleeva (2002) reported that in Salamandrella keyserlingii, the body grows more intensely upward than downward during larval development in the region that we identified as the primaxial domain of the pectoral girdle. Taken together, these observations seem to suggest that morphogenetic activity in the anterior dorsal body region is considerably greater than in the posterior part. This may be related to historical evolutionary processes that first produced the pectoral girdle of tetrapods (Sears et al., 2015; Zhu et al., 2012).

There are five evident muscular connections in each of primaxial and abaxial domains of the pectoral girdle whereas the pelvic girdle has only two muscular connections in the primaxial domain and 18 in the abaxial domain. Clearly, there are remarkable differences in the muscular frameworks of the girdles, with the more variable zones located away from the sagittal body plane.

Our data complement the hypothesis formulated by Diogo et al. (2013) and elaborated by Diogo and Molnar (2014), Diogo and Tanaka (2014), Diogo and Ziermann (2014, 2015), Sears et al. (2015), and Diogo, Ziermann, Molnar, Siomava, and Abdala (2018). These authors compared the gross anatomy of the fore- and hindlimbs of representative taxa of all major groups of extant fish and tetrapods. They also reviewed developmental, morphological, and genetic data involving the pectoral and pelvic girdles of tetrapods. We add a comparative analysis of pectoral and pelvic skeletal structures, muscles, and other soft tissues (e.g., connective tissues, tendons, and ligaments), as well as developmental data. There are remarkable differences between the pectoral and pelvic girdles in anurans, and it is thought that anatomically, these girdles differed markedly from each other in the earliest fishes (Diogo et al., 2018). This parallelism may reflect similar biomechanical requirements of terrestrial locomotion—that is, the acquisition of ball- and -socket joints linking the stylopodial segments to their respective girdles to configure weight-bearing appendages. As such, this similarity is homoplastic and it should not be attributed to serial homology.

AUTHOR CONTRIBUTIONS

Conceptualization: Virginia Abdala

Data curation: Mónica C. Soliz

Methodology: Virginia Abdala, María Laura Ponssa, Mónica C. Soliz

Investigation: Mónica C. Soliz, María Laura Ponssa, Virginia Abdala

Resources: Virginia Abdala, María Laura Ponssa

Writing-review-editing: Mónica C. Soliz, María Laura Ponssa, Virginia Abdala

Supervision: Virginia Abdala.
