1 INTRODUCTION

In recent years, endoscopic retrograde cholangiopancreatography (ERCP) has become an indispensable minimally invasive intervention for the diagnosis and treatment of biliary and pancreatic diseases.¹ However, it is complex and takes a long time for diagnosis and treatment, which leads to huge challenges in terms of surgeries.² At present, ERCP is mostly performed under intravenous anesthesia, which helps maintain spontaneous breathing in clinical practice. Patients are usually placed in the prone position or semiprone position. This integration may cause hemodynamic and physiological changes in lung ventilation and may increase the difficulty of respiratory tract management during the operation.^2-4 Therefore, we need to select an anesthetic that has the least influence on respiratory cycles. Remimazolam besylate is a new type of ultrashort-acting benzodiazepine.⁵ It acts on the central γ-aminobutyric acid type-A, a receptor that opens the receptor channel and increases the internal flow of chloride ions, thus causing hyperpolarization of the nerve cell membrane to inhibit neuronal activity and produce the sedative effect. It can be rapidly hydrolyzed into an inactive carboxylic acid metabolite by tissue esterase present in the body.^6-8 Remimazolam besylate has limited influence on respiratory inhibition, so it maintains stable hemodynamics optimally.⁵ It is mainly used for the sedation of painless gastrointestinal endoscopy. There are no reports of its effective doses for painless ERCP diagnosis and treatment in China and overseas. In this study, we aimed to carry out sequential trials to calculate the half-effective dose (ED₅₀) and the 95% effective dose (ED₉₅) of remimazolam besylate in the procedural sedation of ERCP, thus evaluating its safety during anesthesia and providing a reference for rational use in clinical practice.

2 MATERIALS AND METHODS

2.2 Treatment procedures

Drinking and eating were prohibited before anesthesia. After entering the ERCP operating room, the patients were placed on the left side in the prone position. The venous channel was established. Oxygen was inhaled through a nasal catheter (3 L/min). BP, heart rate (HR), respiratory rate (RR), and pulse oxygen saturation (SPO₂) were monitored and the basic data were recorded. The patients were intravenously injected with 0.1 μg/kg sufentanil (Yichang Humanwell Pharmaceutical Co., Ltd; SFDA approval number: H20054171; specification: 1 ml:50 μg) and then administered the preset dose of remimazolam besylate (Yichang Humanwell Pharmaceutical Co., Ltd; SFDA approval number: H20200006; specification: 25 mg) according to the sequential test method by an intravenous injection 2 min later. The administration time was (60 ± 10) s. When the modified alertness/sedation (MOAA/S) score was less than or equal to 2, the ERCP diagnosis and treatment could be conducted (Table 1). During the diagnosis and treatment of ERCP, a 1 mg/kg/h pump of remimazolam besylate was used for maintenance. If the diagnosis and treatment were disrupted by movements, coughing, and other factors, 0.05 mg/kg of remimazolam besylate was injected intravenously. If remimazolam besylate was supplemented more than five times within 15 min, the sedation failed, and propofol 0.5 mg/kg was used to compensate the sedation. During the diagnosis and treatment, if the systolic BP (SBP) was less than 30% of the basic value, ephedrine was used for symptomatic treatment. Atropine 0.5 mg was administered intravenously if HR ≤ 50 times/min; when SPO₂ ≤ 93%, the patients were required to hold the lower jaw and increase the inflow of oxygen. When SPO₂ ≤ 80%, the endoscopic operation was stopped and oxygen was further supplied through the mask. Remimazolam besylate was stopped immediately after the operation and patients were transferred to the postanesthesia care unit (PACU), where they could be returned to the ward with their family members when the Aldrete score was ≥9 (Table 2).

Table 1. Modified alertness/sedation (MOAA/S) scoring criteria

Grade	Standard
5 points	Fully awake and respond normally to normal first name calls
4 points	Slow to respond to normal name calls
3 points	Responding to repeated loud name calls
2 points	Reacting to slight pushing or shaking of the body
1 point	Respond to painful stimuli (squeezing of the trapezius muscle)
0 points	No response to painful stimuli (squeezing of the trapezius muscle)

Table 2. Aldrete scoring criteria

Evaluation project	Scoring (score)
Activity
Move limbs as instructed	2
Move both limbs as instructed	1
Unable to move limbs as instructed	0
Breathe
Can take deep breaths and cough freely	2
Dyspnea; respiratory distress; breathing difficulties	1
Apnea	0
Circulate
Blood pressure fluctuation amplitude < 20% of the preanesthesia level	2
Fluctuation range of blood pressure was 20%–49% of that before anesthesia	1
Blood pressure fluctuated by 50% of the preanesthesia level	0
Consciousness
Fully awake	2
Can wake up	1
No response	0
SPO2
Breathing air > 92%	2
Need oxygen > 90%	1
<90% under oxygen inhalation	0

• Abbreviation: SPO₂, oxygen saturation.

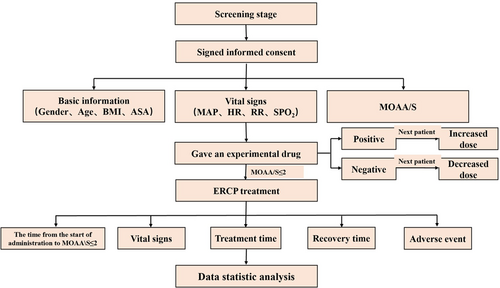

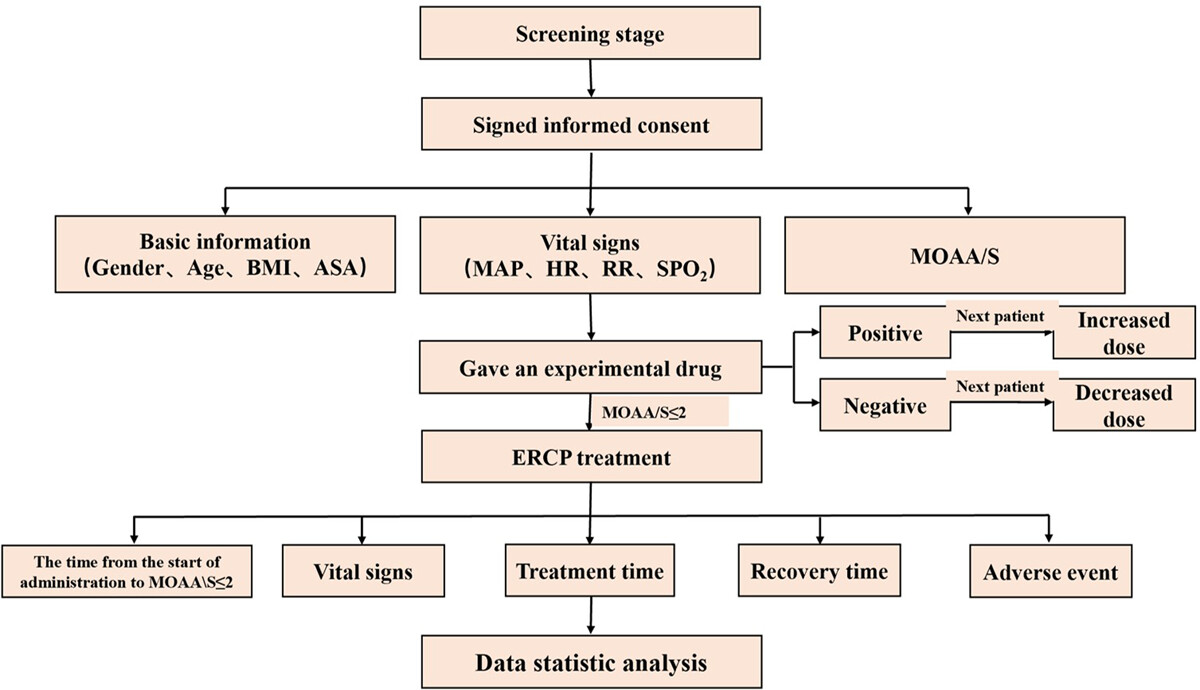

According to the sequential test method, based on the pretest and previous studies,⁹ the dose of the first patient was 0.15 mg/kg. The drug dose for the next patient was determined by the reaction of the previous patient. If cough and body movement occurred during the placement of the duodenoscope, they were determined to be positive reactions, and the dose for the next patient was increased. On the contrary, if no cough and body movement occurred during the placement of the duodenoscope, they were considered to be negative reactions, and the dose for the next patient was decreased. The dose gradient was 0.02 mg/kg. The test flowchart is presented in Figure 1.

3 RESULTS

3.1 ED₅₀ and ED₉₅ values of remimazolam besylate used in the procedural sedation of ERCP

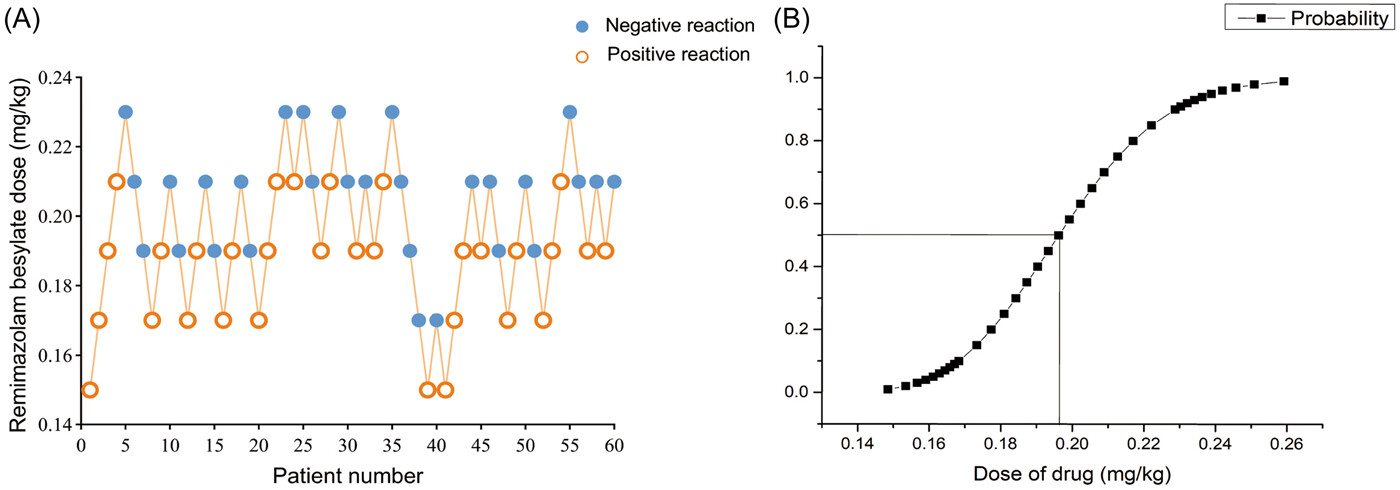

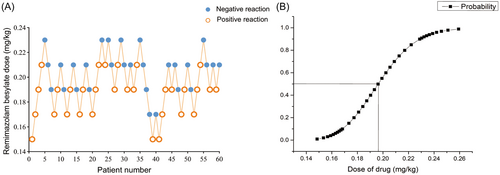

A total of 60 patients were included, 31 females and 29 males, aged between 18 and 65 years. All patients completed their study per protocol (Table 3). During the diagnosis and treatment of ERCP, if cough and body movement occurred during the placement of the duodenoscope, they were determined to be positive reactions, and the dose for the next patient was increased. If no cough and body movement occurred during the placement of the duodenoscope, they were determined to be negative reactions, and the dose for the next patient was decreased. There were 31 positive reactions in all patients and 29 negative reactions. The ED₅₀ value of remimazolam besylate was 0.196 mg/kg (95% CI, 0.187–0.206 mg/kg) and the ED₉₅ value was 0.239 mg/kg (95% CI, 0.221–0.297 mg/kg) for the procedural sedation of ERCP. The sequential experimental diagram and the dose–effect relationship fitting curve of remimazolam besylate used for ERCP procedural sedation are shown in Figure 2.

Table 3. Demographics of the study population (N = 60)

Sex (male/female)	Age (years)	Height (cm)	Weight (kg)	BMI (kg/m2)
29/31	48.75 ± 11	158.8 ± 6.8	60.08 ± 9.78	23.06 ± 3.41

• Note: The data are reported as mean ± SD (range).
• Abbreviation: BMI, body mass index.

3.3 Comparison of the mean arterial pressure (MAP), HR, RR, and SPO₂ at different time points

Compared with T₀, MAP decreased at T₁, T₂, T₄, T₅, and T₆ (p < 0.05), but the range of decrease was within 20% of the basic value; HR at T₁ and T₂ was higher than that at T₀ (p < 0.05), but it did not have clinical significance. HR at T₄, T₅, and T₆ was not significantly different from that at T₀ (p > 0.05). RR at T₂ was lower than that at T₀ (p < 0.05), but in the normal range; RR at T₁ and T₄ was not significantly different from that at T₀ (p > 0.05). SPO₂ was higher at T₄ than at T₀ (p < 0.05), but within the normal range; SPO₂ at T₁, T₂, T₅, and T₆ was not significantly different from that at T₀ (p > 0.05). Due to the limitations of the PACU vital signs monitoring equipment functionality, the respiratory frequency was not recorded at T₅ and T₆ (Table 5). BP in 2 of the 60 patients decreased by more than 30% of the baseline value and all returned to the normal range after the administration of ephedrine. No adverse reactions such as injection pain, respiratory depression, nausea, and vomiting were observed in any of the patients.

Table 5. Comparison of MAP, HR, RR, and SPO₂ at different time points (, N = 60)

Point of time	MAP (mmHg)	HR (time/min)	RR (times/min)	SPO2 (%)
T0	99.58 ± 13.35	92.10 ± 18.08*	17.63 ± 3.54	97.81 ± 1.38
T1	87.46 ± 11.74*	100.37 ± 15.92*	16.58 ± 4.56	98.20 ± 1.69
T2	86.03 ± 13.14*	100.57 ± 14.26	15.58 ± 4.23*	98.30 ± 1.43
T4	92.02 ± 14.70*	96.58 ± 16.09	18.07 ± 4.54	98.57 ± 1.73*
T5	90.86 ± 11.99*	94.12 ± 15.70	−	97.37 ± 2.05
T6	91.14 ± 12.19*	88.77 ± 14.50	−	97.23 ± 1.87

• Abbreviations: HR, heart rate; MAP, mean arterial pressure; PACU, postanesthesia care unit; RR, respiratory rate; SPO₂, pulse oxygen saturation; T₀, basic value after entering the ER; T₁, 2 min after administration of remimazolam besylate; T₂, duodenoscopy; T₄, at the end of diagnosis and treatment; T₅, when waking up; T₆, when leaving the PACU; compared with T₀.
• * p < 0.05.

4 DISCUSSION

ERCP is a common diagnosis and treatment method for biliary and pancreatic diseases.¹ However, the complexity, duration, and invasive treatment can lead to anxiety, discomfort, and pain in patients. Therefore, deep sedation and general anesthesia are increasingly being used in ERCP diagnosis and treatment, and the success rate of ERCP surgery has improved.^{10, 11} At the same time, because ERCP patients are usually in a prone position or a semiprone position, physiological changes in hemodynamics and lung ventilation may occur in this position, which considerably increases the difficulty in respiratory tract management during the operation. ERCP is highly irritating and may cause pain during specific procedures, such as balloon dilatation or stent placement, so sedatives alone do not have sufficient analgesic effects to suppress visceral pain.¹² Compared with sedatives alone, the combination of opioid analgesics can decrease the pain level, increase practitioner satisfaction, and provide hemodynamic stability.¹³ At present, propofol combined with opioids is commonly used for sedation and anesthesia in clinic, but intravenous propofol induces obvious pain, and exerts certain inhibitory effects on the respiratory and circulatory systems. Propofol infusion syndrome (PIS) increases the risk of cardiovascular complications in patients.^14-16 Remimazolam besylate is an ultra-short-acting benzodiazepine, which has the advantages of no injection pain, quick effect, quick recovery, low incidence of hypotension and respiratory depression, etc. It may be a better choice for sedation anesthesia in ERCP surgery, but there are few related clinical data. In this study, we found that the induction of anesthesia with 0.239 mg/kg remimazolam besylate combined with 0.1 μg/kg Sufentanil can almost meet the sedation and anesthesia needs of patients undergoing ERCD surgery. The sequential test is a commonly used test method to calculate ED₅₀ and ED₉₅ values. For this test, many samples do not need to be obtained, and the test itself is simple and effective. The test results can accurately reflect the potency of drugs. It is one of the classic methods for clinical research of drug dose–effect curves. The qualitative standard of sedation results in this study was the patient's body movements and cough responses during duodenoscopy, so the requirement of gastroscopy for sedation was lower than that of ERCP. In the positive group, three patients were treated with propofol for remedial sedation during ERCP, and all of the symptoms occurred during duodenoscopy. Among them, the first dose of remimazolam besylate in two patients was 0.17 mg/kg. ERCP was successfully performed in one patient after one additional dose of propofol and in the other patient after two additional doses of propofol. In the trial, only 2/10 cases were successfully treated with 0.17 mg/kg during duodenoscopy, with a success rate of 20%; this indicates that this initial dose may not meet the requirements for ERCP sedation. In another patient, the first dose of Remimazolam besylate was 0.21 mg/kg, and the diagnosis and treatment were successfully carried out after propofol was administered once for remedial sedation. In the study, although MAP was lower than the basic value at T₁, T₂, T₄, T₅, and T₆ time point, the decrease range was less than 20% of the basic value. The HR was higher than the basic value at 2 min after administration and at the time of duodenoscope insertion, but it had no clinical significance. RR and SPO₂ were in the normal range, so the anesthetic dosages used in ERCP treatment had a slight impact on patients' breathing and circulation. In two patients, the BP decreased by more than 30% of the basic value after the administration of ephedrine, and the BP increased to the normal range after the administration of ephedrine, which may be related to the long duration of fasting and the relatively insufficient capacity.

A Phase III clinical study showed¹⁷ that both remimazolam and propofol can lead to the expected sedative effect in upper gastrointestinal endoscopy. The incidences of pain, hypotension, and respiratory depression caused by remimazolam injection are lower than that caused by the use of propofol. A clinical study showed¹⁸ that lost of consciousness was observed (5 ± 1) min after start, and full alertness was regained (19 ± 7) min after stop of infusion, and the clearance rate of remimazolam was (1.15 ± 0.12) L/min. Therefore, in this study, remimazolam besylate was used in the diagnosis and treatment of ERCP to achieve the ideal sedative effect and reduce the incidence of adverse reactions such as hypotension and respiratory depression. In clinical practice, ERCP diagnosis and treatment involve the use of a duodenoscope, and the use of a traditional gastroscope provides a direct view, because a gastroscope is thinner than a duodenoscope, thus making ERCP diagnosis and treatment more difficult than that with the use of a gastroscope. Using remimazolam besylate for anesthesia induction not only meets the needs of sedation anesthesia in surgery but also considerably reduces the incidence of related adverse events, which is a selective scheme of anesthesia in ERCP surgery.

In conclusion, the ED₅₀ and ED₉₅ values of remimazolam besylate used in the procedural sedation of ERCP were 0.196 and 0.239 mg/kg, respectively, with definite sedative effects and little influence on respiration and circulation, so this study provides a reference for safe medication in clinical practice.

AUTHOR CONTRIBUTIONS

Dan-Dan Tan contributed to the experimental design, research, and writing of the article. Jin Gu, Li-Jin Zhao, and Guo-Hua Zhu contributed to the research. Juan Li was responsible for experimental guidance and quality control. De-Xing Liu, Xin-Xin Yang, and Jin Tian contributed to data analysis and the creation of figures. Wan-Qiu Yu contributed to participants' follow-up in PACU and wards. Qi Tian provided some help with the revision of the article. Zhao-Qiong Zhu was responsible for experimental guidance and problem-solving.

CONFLICT OF INTEREST

Jin Tian is a member of Ibrain's editorial board, but is not involved in the peer-review process of this article. The remaining authors declare no conflict of interest.

TRANSPARENCY STATEMENT

All the authors affirm that this manuscript is an honest, accurate, and transparent account of the study being reported; that no important aspects of the study have been omitted; and that any discrepancies from the study as planned (and, if relevant, registered) have been explained.

ETHICS STATEMENT

All the experiments on the included participants were approved by the Ethics Committee of Biomedical Research for Affiliated Hospital of Zunyi Medical University (no. KLL-2020-280). This trial had been registered at chictr.org.cn (no. ChiCTR2200059783) and was conducted following the Declaration of Helsinki.
