1 INTRODUCTION

In recent years, researchers have become increasingly aware of the limitations of some experimental animal models. It is, therefore, of great significance to select experimental animals with similar features of function, metabolism, structure, and disease, and at an appropriate cost. Generally, the higher the degree of evolution of laboratory animals, the more complex their metabolism, function, and structure are, and the closer the models and drug experiments are more similar to human beings.¹ At present, mice are still the most widely used model animal, but there are great differences between mice and humans, and there are great limitations in the study of some specific diseases. Nonhuman primates, such as monkeys and gorillas, are the ideal model animals that are closest to human beings.^{2, 3} However, these animals are not widely used in clinical practice because of their high cost and ethical issues. Due to the advantages of minimal differences from humans, manageable costs, and no major ethical issues,⁴ some researchers have suggested that miniature pigs are the most valuable experimental model animals, except for nonhuman primates.⁵ Laboratory miniature pigs are now widely used in biomedical research, as miniature pigs are similar to humans in terms of anatomy, physiology, biochemistry, and disease occurrence and development, scientific research investment is increasing, and the number of miniature pigs used for experimental research is also on the increase.^{6, 7} China has abundant resources of miniature pigs, and different strains of miniature pigs have unique biological characteristics. Moreover, it is extremely insufficient to investigate the Diannan small-ear pigs in comparison with Guizhou miniature pigs, Bama miniature pigs, Minnesota miniature pigs, and Bittman−Moor miniature pigs.^{8, 9} Therefore, it is important to supplement the biological characteristics of Diannan small-ear pigs, explore their experimental research value, and construct corresponding disease animal models for biomedical studies.^{10, 11}

In the present study, we conducted brain structure scans on 12 Diannan small-ear pigs of different ages and determined the basic data of the brain tissues using magnetic resonance imaging (MRI), providing the basic data on the brain development of Diannan small-ear pigs and the establishment of the brain-related diseases.

2 MATERIALS AND METHODS

3 RESULTS

3.1 Comparison of T2WI signal intensity in brain regions of Diannan small-ear pigs

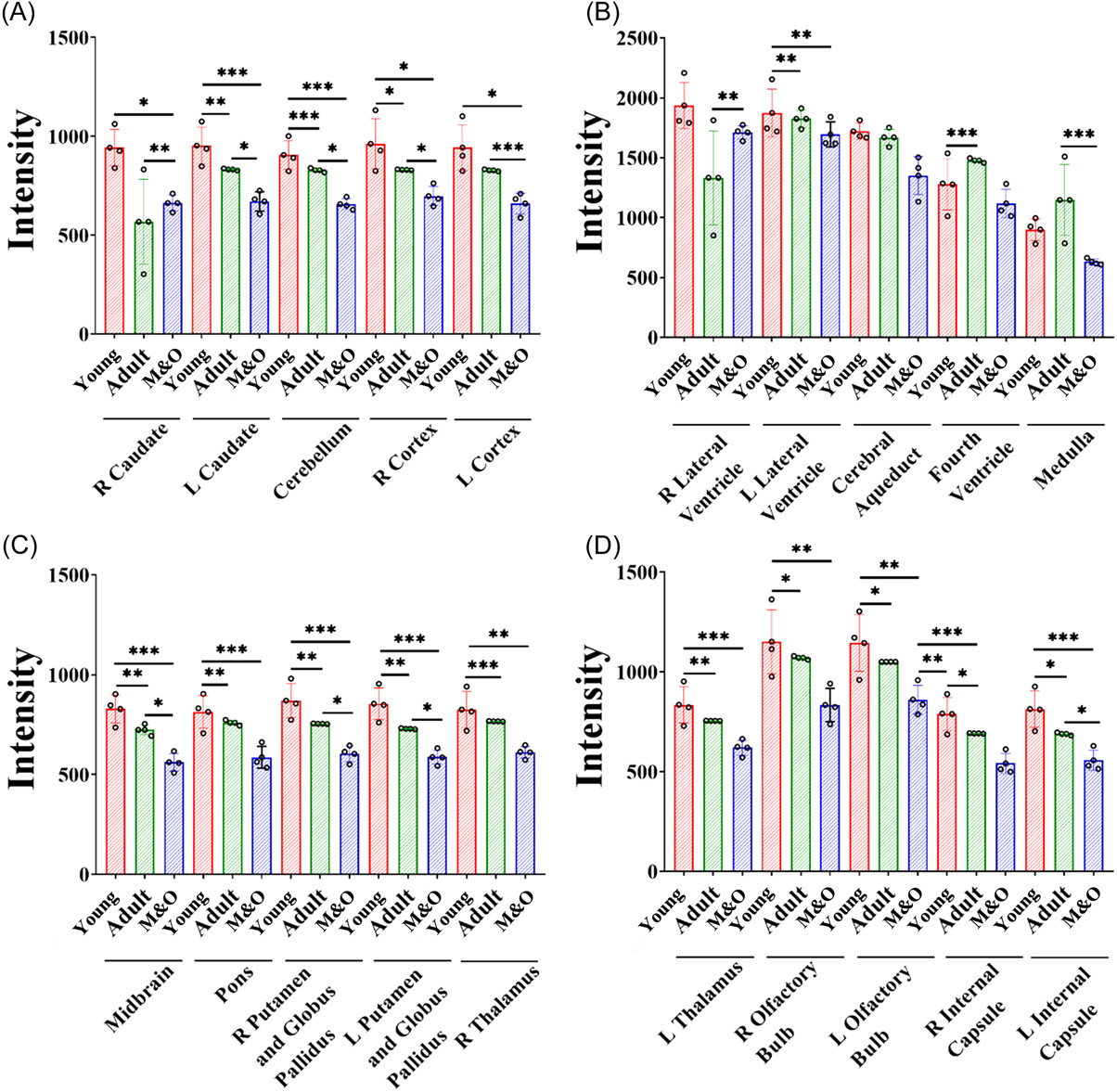

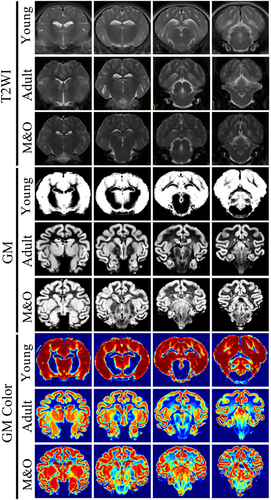

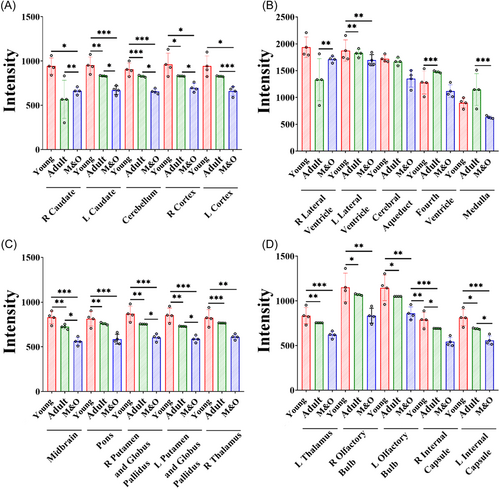

Compared with the young group, the signal intensity of the left and right caudate nucleus, cerebellum, left and right cortex, left lateral ventricle, midbrain, pons, right and left pallidus putamen, right and left thalamus, left and right olfactory bulb, left and right internal capsule in the adult group and M&O group were significantly decreased (p < 0.05, Figures 1-3). Compared with the adult group, the signal intensity of the right caudate nucleus and right lateral ventricle in the M&O group was significantly increased; however, the signal intensity of the left caudate nucleus, cerebellum, left and right cortical cortex, medulla oblongata, midbrain, left and right putamen pallidus, and left and right internal capsule were significantly decreased (p < 0.05, Figures 1-3). In addition, the signal intensity of the left and the right internal capsule was significantly reduced in the M&O group in comparison with the adult group.

3.2 Morphological study of Diannan small-ear pig based on voxel analysis

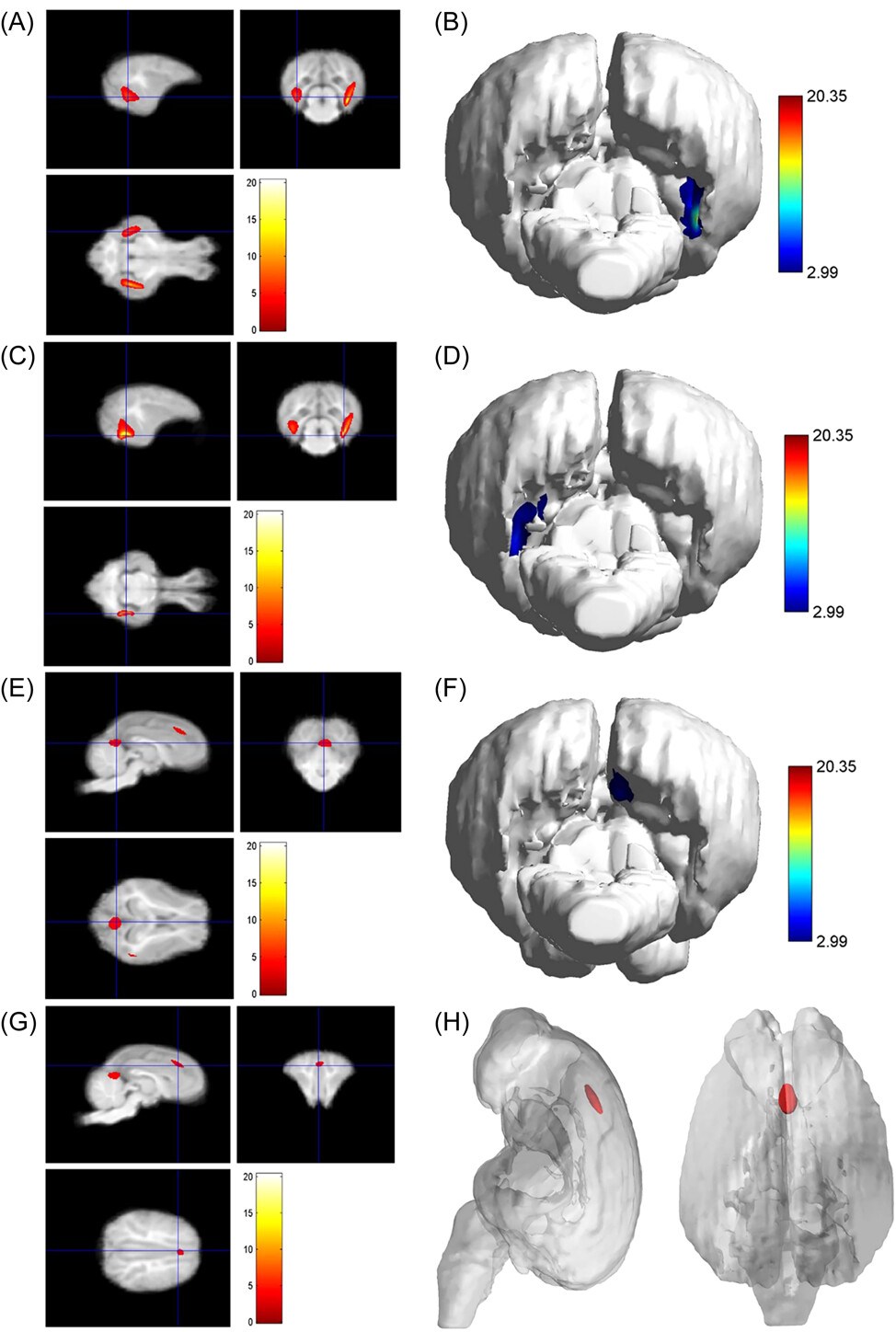

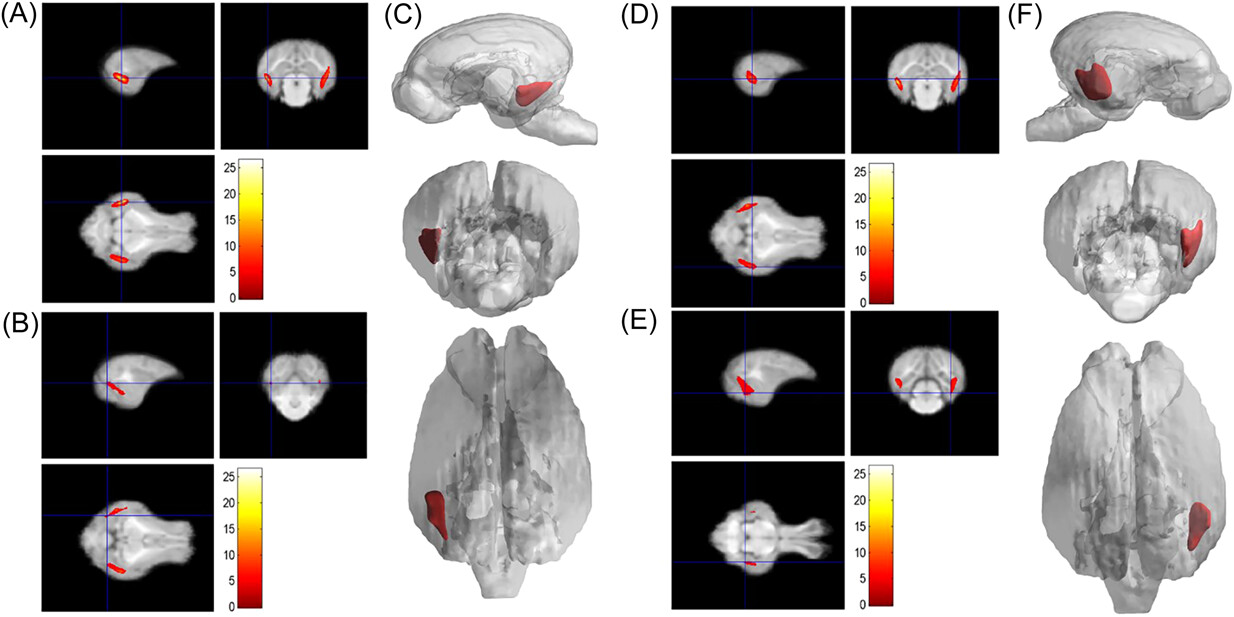

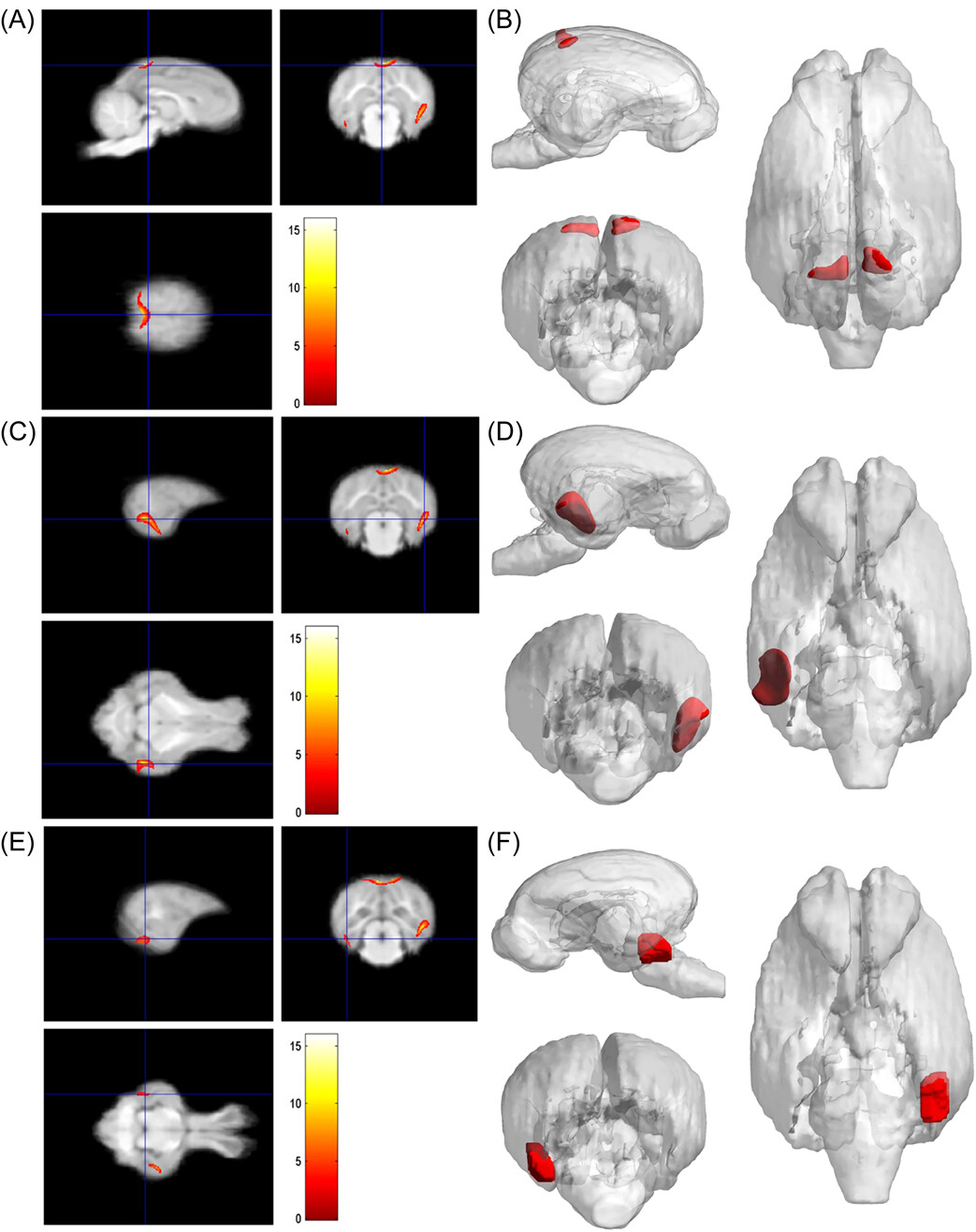

As shown in Table 2, compared with the young group, the pigs in the adult group, the main peak region of brain atrophy on the right side was the lingual gyrus (x = 16.5, y = −3, z = −0.5), with a total cluster size of 3953, the main peak region of brain atrophy on the left side was the lingual gyrus (x = −14, y = −7, z = −2.5), with a total cluster size of 3953. In addition, the right precuneus and superior frontal gyrus were also atrophied to a lesser extent (Figure 4). Compared with the young group, in the M&O group, atrophy was observed in the left temporal lobe and the main PEAK region was the inferior temporal gyrus (x = −17, y = −4.5, z = −0.5), the total cluster size was 1342, the main peak region in the right temporal lobe of the cerebellum was the inferior temporal gyrus (x = 18, y = −4, z = 1.5), the total cluster size was 2153 (Table 3 and Figure 5). Compared with the adult group, the main peak region of the left and right cerebral atrophy in the M&O group was the precuneus (x = −1, y = −6, z = 19.5), and the total cluster size was 701. The main peak region of the right temporal lobe was the inferior temporal gyrus (x = 16.5, y = −7, z = −2), and the total cluster size was 1244. The main peak region of the left temporal lobe was the inferior temporal gyrus (x = −15.5, y = −7, z = −8), and the total cluster size was 247 (Table 4 and Figure 6).

Table 2. Comparison of young group and adult group

Cluster size	Peak region	MNI coordinate (mm)			T	p value
		x	y	z
3953	Right occipital glossal gyrus	16.5	−3	−0.5	20.35	0.0012
2281	Left occipital glossal gyrus	−14	−7	−2.5	7.06	0.0097
814	Right precuneus	0.5	−13	5.5	4.39	0.0238
333	Right superior frontal gyrus	0.5	21	12.5	3.49	0.035

• Abbreviation: MNI, Montreal Neurological Institute.

Table 3. Comparison of young group and M&O group

Cluster size	Peak region	MNI coordinate (mm)			T	p value
		x	y	z
1342	Left temporal lobe inferior temporal gyrus	−17	−4.5	−0.5	26.53	0.0007
	Left temporal lobe inferior temporal gyrus	−14.5	−12.5	2	4.86	0.0197
2153	Right temporal lobe inferior temporal gyrus	18	−4	1.5	10.96	0.0041
	Right temporal lobe inferior temporal gyrus	14	−8	−5.5	5.15	0.0177

• Abbreviation: M&O, middle-and-old age pigs; MNI, Montreal Neurological Institute.

Table 4. Comparison of adult group and M&O group

Cluster size	Peak region	MNI coordinate (mm)			T	p value
		x	y	z
701	Precuneus	−1	−6	19.5	15.95	0.0020
	Precuneus	−9	−7.5	19.5	5.57	0.0153
1244	Right temporal lobe inferior temporal gyrus	16.5	−7	−2	11.07	0.0040
247	Left temporal lobe inferior temporal gyrus	−15.5	−7	−8	7.72	0.0081

• Abbreviation: M&O, middle-and-old age pigs; MNI, Montreal Neurological Institute.

4 DISCUSSION

The brain structure of experimental animals is one of their important biological characteristics and is an important index for the modeling and process observation of brain diseases such as cerebral palsy, hypoxic-ischemic injury, cerebral infarction, and Alzheimer's disease.^{12, 13} A number of studies have determined the age-dependent structural brain features in experimental animals using MRI.¹⁴ Also, some studies have used MRI to predict functional outcomes in clinically relevant TBI pig models.¹⁵

Our findings suggested that the brain atrophy and functional decline in Diannan small-ear pigs were related to age. Brain imaging T2WI signal intensity results showed that most of the T2WI signals in the adult group and the M&O group showed a progressive decrease, including the left cerebrum, right caudate nucleus, cerebellum, right cortex, the left lateral ventricle, midbrain, pons, left and right putamen, globus pallidus, right and left thalamus, left and right olfactory bulb, and left and the right internal capsule. It is possible that the overall T2WI signal is significantly reduced with age as the extracellular fluid in the brain progressive decreases. MRI results showed that progressive brain atrophy was observed in both the left and right sides of the adult and M&O groups compared with the young group, with the main atrophy areas being the lingual gyrus, precuneus, and superior frontal gyrus, indicating that the degree of brain atrophy in Diannan small-ear pigs was correlated with age. Combined with the results of brain imaging, T2WI signal intensity, and morphology, it showed that there were significant differences in brain signal and contraction degree in different age groups of Diannan small-ear pigs, suggesting that age was an important interfering factor in the brain development of the pigs. It also provided a good basis for the observation of comparative encephalopathy or progressive encephalopathy in different age groups. In addition, MRI is also recommended as a good choice for detecting brain development in Diannan small-ear pigs.¹⁶

Traditional animal models used in the experiment, such as fruit flies, zebrafish, and rodents, such as rats and mice, are often used to study the relevant single effects of a gene on biological pathways in human diseases, but often fail to represent the complexity of human physiology; gorillas, monkeys, and apes cannot be used in large numbers due to strict ethical issues.^{17, 18} In recent years, miniature pigs, a new type of laboratory animal with the advantages of high similarity to humans and few ethical issues, have been widely used in medical teaching, cardiovascular research, drug evaluation, and disease infection model.^{19, 20} These include the relatively high similarity between the pigs and human organs, the physiology and disease development, as well as the shareability of porcine and human genome, transcriptome, proteome, and other database tools. With the rapid development of genetic research and biotechnology in recent years, it has become feasible to construct transgenic pigs with specific genes that can be used in human models of infectious diseases, such as viruses, bacteria, parasitic transmission, and various tumor models.^{21, 22} Besides, there has been a gradual increase in studies related to brain lesions in experimental miniature pigs. In 2014, Matthew proposed that the major brain growth bursts in minipigs extend from prenatal to postnatal, similar to humans, and that their brain convolution patterns, gray and white matter distrivution are so similar to human infants. Thus, minipigs represent a gyrencephalic species similar to humans that could be used in highly controlled experiments to explore neurological diseases.²³ Gregory Simchick et al. conducted functional MRI and diffusion tensor imaging of 12 enclosed group miniature pigs by independent component analysis and sparse dictionary learning and found that the six resting-state parameters of the brain of the miniature pigs were similar to those of the human brain.²⁴ All of these studies demonstrate the potential of experimental miniature pigs for brain modeling and transformation.

5 CONCLUSION

In summary, this study revealed that there were differences in the brain structures of Diannan small-ear pigs at different ages, and the degree of brain atrophy increased with age, providing the basic data for the establishment of brain disease-related animal models using Diannan small-ear pigs.

AUTHOR CONTRIBUTIONS

Yi-Fan Liu and Chang-Le Fang designed the study and wrote the paper. Yu Pi, Teng-Fei Ke, Ji-Xiang Chu, Lin-Na Tang, and Lan-Chun Zhang performed the experiments and analyzed the data. Somjit Wanchana and Cheng-De Liao made substantial contributions to revising the manuscript.

CONFLICT OF INTEREST

The authors declare no conflict of interest.

ETHICS STATEMENT

The study and all procedures were approved by the Animal Ethics Committee of Kunming Medical University (approval no. kmmu2021570).
