1.2.1 Warm-Start and Cold-Start AL

AL methods can be broadly classified into warm-start and cold-start AL, depending on the initialization stage [23]. Specifically, warm-start AL typically involves two stages: an initial phase where the model is trained on a small, preselected, annotated subset of images, and a subsequent learning phase where various query strategies are employed to select additional images for annotation and model fine-tuning based on the trained model [24]. Cold-start AL also comprises two stages, but unlike warm-start AL, it begins without any annotated samples. Instead, it autonomously selects initial samples, sends them to oracles for annotation, and proceeds with model training [25].

Although warm-start AL is commonly studied and has been applied to a spectrum of clinical tasks such as breast mass localization [9], white matter tract segmentation [10], optical coherence tomography segmentation [26], and so on [6, 7, 27-33], it requires preselection of sample annotation belonging to diverse classes in the initial stage. This reliance is often impractical in real-world AL scenarios, where none of the samples in a new data set are labeled, making it impossible to prepare representative instances for each category [34], especially in medical scenarios with a class-skewed distribution [35]. Therefore, cold-start AL is more suited to real-world applications and becomes the focus of our study.

1.2.2 Cold-Start AL Strategies

The primary challenge in cold-start AL lies in the initialization phase: how to select annotation-worthy samples that cover diverse classes and significantly contribute to model convergence in the absence of label information. In other words, how can raw image pixels be utilized to identify samples that merit labeling? Upon completion of the initial sample selection and annotation, standard warm-start strategies can be employed because the model, following the initialization stage, has developed sufficient competency on the target data and task, thereby satisfying the prerequisites for warm-start AL.

For the initialization stage, random sampling is often the first method considered by researchers. Although this method works well on balanced data sets, it typically requires selecting a large number of instances to capture all potential classes in imbalanced scenarios [35], which is impractical for AL formulations and overlooks the informative sample features [36]. To address these limitations, diversity sampling, also known as representativeness sampling, has been proposed. This method selects samples that are representative of the underlying data distribution of diverse classes [31] based on the modeling of raw image pixels [37] in an unsupervised or self-supervised manner. For example, He et al. proposed a two-stage clustering approach to address the cold-start problem in AL initialization, which is adaptable to class imbalance [35]. In the first stage, the density peak clustering algorithm [38] was used to separate samples from majority and minority classes into distinct clusters. In the second stage, a cluster-adaptive method was employed to identify the most representative samples within each cluster. This approach effectively selects samples that improve both class coverage and model performance.

For the subsequent learning stage, previous initialization methods, such as random sampling [39] and diversity [40], can also be employed. These approaches do not rely on annotation information or models developed from the initialization phase, whereas other methods for subsequent learning typically do. Due to its simplicity [41] and outperformance [42], uncertainty sampling, also known as informativeness sampling, is the most widely used approach [31]. Specifically, this method selects data points where the current model exhibits the greatest uncertainty, often those near the decision boundary [41]. Common uncertainty metrics include margin of confidence, least confidence, and entropy [43, 44]. Uncertainty sampling can be further integrated with diversity or other strategies to form hybrid methods [23, 45-47]. For instance, Yang et al. proposed an annotation suggestion method that integrates uncertainty and diversity [48]. They first calculated the variance across a set of bootstrap-aggregated models [49], and then identified high-variance unlabeled samples [50]. Among these, the samples with the highest similarity sum to all other unlabeled samples were deemed representative and selected for annotation. Shen et al. introduced a three-step integrative strategy to gradually identify the most informative samples [51]. First, they selected a large subset with the highest uncertainty based on Monte Carlo (MC) dropout [52]. Next, they refined the subset by retaining samples that could represent the entire unlabeled set. Finally, they excluded samples already similar to annotated data. An alternative to multistep integration is the use of weighted combinations of different metrics in a single step [53]. For example, Mahapatra et al. computed sample informativeness as a weighted sum of entropy-based uncertainty and the mean squared distance between the feature vectors of candidate images and all other unlabeled samples [54].

1.2.3 Domain-Specific Pretraining for Cold-Start AL

In chest radiograph analysis, pretraining plays a crucial role in reducing the need for large training data sets while improving model performance. Traditionally, pretraining involves the collection and annotation of large-scale data sets similar to the target data set, followed by supervised learning to develop DL models with optimal initial parameters for downstream tasks. However, the rapid growth of unlabeled data has outpaced the capacity of experts to provide annotations. To address this, researchers have introduced self-supervised learning, which exploits the inherent structure and relationships within the data to derive effective initial parameters. Self-supervised learning has been deployed on large-scale medical data sets that span different levels of specificity, from organ- or task-specific models such as those for abdominal organs [55] or sight-threatening eye diseases [56], to domain-specific models like those for chest radiographs [57, 58], and even general models capable of handling multiple domains, including dermatology photographs, fundus imaging, digital pathology, chest radiographs, and mammography [59]. Both supervised and self-supervised models can generate low-dimensional yet information-rich representation vectors for external data sets from the same target domains that they were not trained on. These numeric representations provide one of the overarching advantages of pretrained models, serving as feature inputs for downstream specialized models. Therefore, we refer to these domain-specific pretrained models, whether derived from supervised or self-supervised learning, as foundation models, and use this term interchangeably with domain-specific pretrained models in the following sections. By reducing the dimensionality relative to the original images, foundation models allow for more compact model parameters and lower the computational cost of model training [60].

Foundation model-based representations hold significant potential for use in the initialization and subsequent learning stages of cold-start AL. In the initialization phase, clustering is a common diversity sampling method, but it often faces convergence challenges due to the high dimensionality of original image pixel features [61]. These challenges can be mitigated by employing low-dimensional representation vectors [62]. Additionally, these representations can replace raw image pixels in model design, enabling more efficient parameterization during both the initialization and subsequent training stages. For instance, researchers applied the BERT foundation model [63] to address cold-start sentence classification [64]. They encoded samples into novel vectors that captured diversity through hidden representations and uncertainty via model confidence scores. Based on these vectors, they used K-means++ clustering [65] to select initial samples for annotation.

However, pretraining is not a novel concept in the DL domain. Before the advent of domain-specific foundation models, various DL models pretrained on ImageNet [66], a general domain data set with human annotation, had already been applied to diverse external data sets [67, 68], demonstrating the ability to generate informative representations [69]. As such, ImageNet pretrained backbones should be considered valuable counterparts to foundation models, particularly because many foundation models, such as CXR foundation [57], leverage classic network architectures like ResNet [70], which also offer ImageNet pretrained versions. Therefore, a thorough evaluation of foundation models and their influence on cold-start AL is essential to understanding the capability of these models, inspiring both new application scenarios for foundation models and the development of novel AL methods in the era of self-supervised learning.

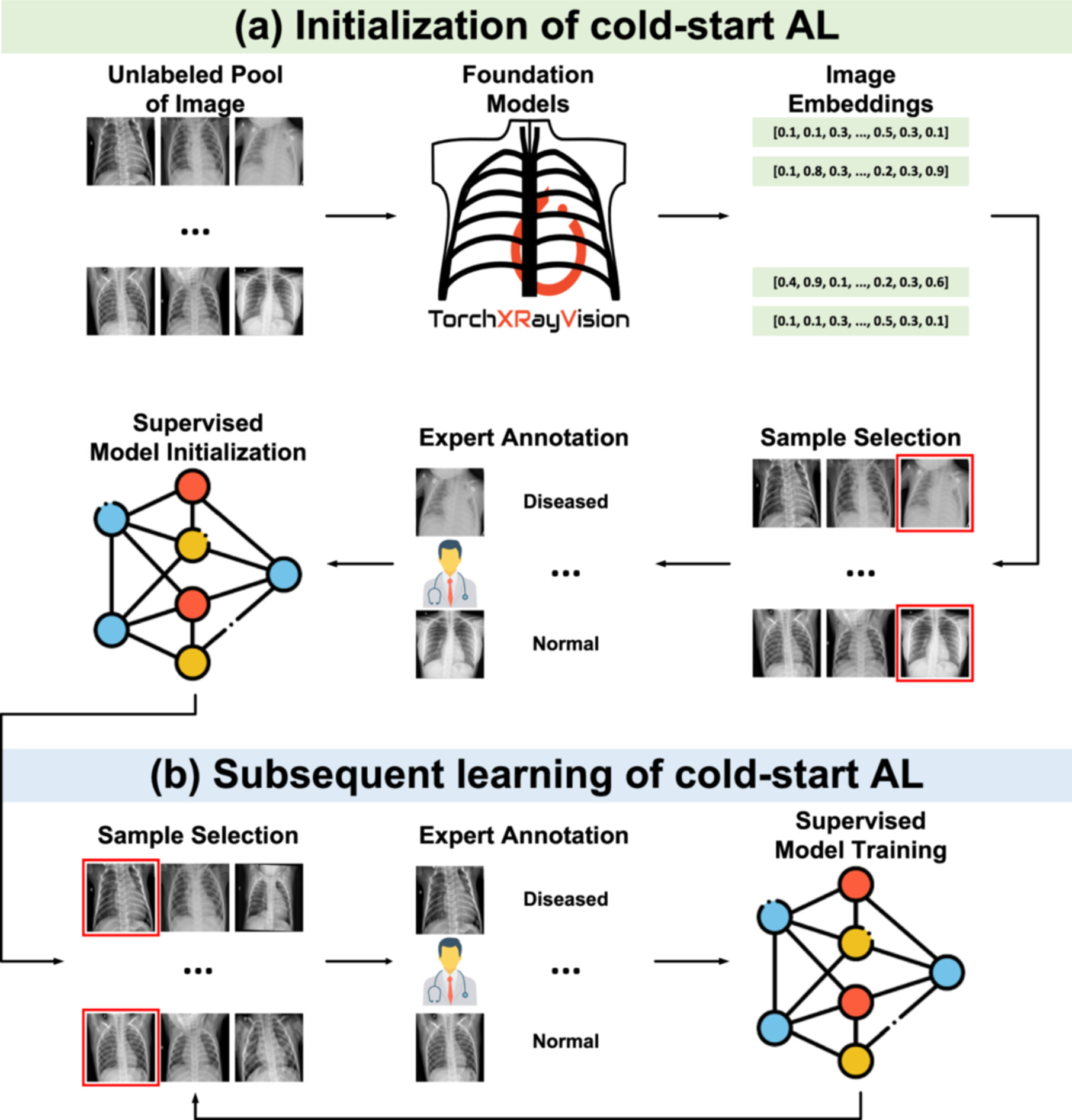

2.1.1 Initialization

We denote the initial unlabeled and labeled image data sets as $D_0^u$ and $D_0^l$, respectively. Before the initialization, $D_0^l=\varnothing$ is an empty set, and the unlabeled pool $D_0^u$ contains $N_0^u$ unlabeled two-dimensional images $I_i$ with the width of $W_0$ and the height of $H_0$. Then a query strategy $Q_0$ is leveraged to select $N_0^l$ images $I_j$ to be annotated by oracles based on original image pixels. After that, $D_0^u$ is updated into $D_0^u〈(I_j),j=1,2,\mathrm{\dots },N_0^l〉$ by removing the selected images $〈{(I}_j),j=1,2,\mathrm{\dots },N_0^l〉$ and professional medical experts such as radiologists give binary labels $Y_j$ to each of the selected images $I_j$, updating $D_0^l$ into $〈(I_j,Y_j),j=1,2,\mathrm{\dots },N_0^l〉$. Based on the $D_0^l$ consisting of samples and corresponding annotations, a classifier $M_c$ is trained to learn the projection from $I_j$ to $Y_j$. When the training of $M_c$ is completed, the initialization stage of cold-start AL is finished and proceeded into the next stage of subsequent learning.

2.1.2 Subsequent Learning

Different from the initialization stage without any annotation information, subsequent learning has a classifier $M_c$ with certain discriminability on the target task and therefore can use a classifier-based informative sampling strategy $Q_1$. Assuming a total annotation budget $B=N_0^l+k\times N_1^l$, in each query iteration $\tau =1,2,3,\mathrm{\dots },k$, the subsequent learning strategy $Q_1$ select $N_1^l$ samples $I_s$ from the unlabeled pool $D_{\tau -1}^u$ and send them to oracles for annotation, forming an annotated set $D_{\tau }^l=D_{\tau -1}^l\cup 〈(I_s,Y_s),s=1,2,\mathrm{\dots },N_1^l〉$. Meanwhile, the unlabeled pool $D_{\tau }^u=D_{\tau -1}^u\backslash 〈(I_s),s=1,2,\mathrm{\dots },N_1^l〉$is updated by removing the selected images $I_s$. Based on the updated annotated set $D_{\tau }^l$, the classifier $M_c$ can be further trained, and upon completion, the subsequent learning process can advance to the next iteration.

2.2.1 Diversity Sampling

The core of AL is to select informative samples, though the precise definition of informativeness remains an open question [9]. Some researchers suggest that an effective strategy, known as diversity sampling, is to select images that are representative of the overall data set while avoiding redundancy from visually similar images [51]. Among various diversity sampling strategies, clustering methods are considered classic approaches [72-75]. These methods have been validated as effective for partitioning chest radiograph data sets into distinct clusters based on image features [76]. The centroids of each cluster are deemed diverse, as they originate from different clusters, and representative, as they serve as the central points of these clusters [77, 78]. We select K-means [79] as the clustering method and follow previous studies that split the same amount of clusters as the annotation budget [27, 80-82]. Formally, the query strategy $Q_0$ divides $D_0^u=〈{(I}_i),i=1,2,\mathrm{\dots },N_0^u〉$ into $N_0^l$ subgroups through $E_i^u$-based K-means, selects the centroid sample $I_j$ from each cluster, and sends the selected samples to oracles for annotation to constitute $D_0^l=〈(I_j,Y_j),j=1,2,\mathrm{\dots },N_0^l〉$.

2.2.2 Uncertainty Sampling

In contrast to diversity sampling, which aims to select representative samples, an alternative approach, called uncertainty sampling, emphasizes the selection of the most uncertain samples for the current model, positing that these samples contribute most to model convergence. In the initialization stage, sample uncertainty for the target task is unavailable. Nath et al. [83] introduced a proxy task for image segmentation using morphological operations and employed MC dropout to estimate sample uncertainty [52]. However, their approach was restricted to computed tomography. In contrast, we developed a more generalizable auxiliary task based on foundation models to enable the computation of sample uncertainty across a broader range of applications.

Given that domain-specific pretrained representation $E_i$ encapsulates high-density information from the original image $I_i$ [84-86], enabling a range of downstream tasks [87-89], we hypothesize that $E_i^u$ can serve as an auxiliary prediction target. If a model exhibits uncertainty in predicting $E_i$, this suggests that the mapping between $I_i$ and the lower dimensional $E_i$ is challenging. Consequently, such samples are likely to be difficult for downstream tasks, including the target task. Formally, based on the image-representation pair $〈{(I}_i,E_i),i=1,2,\mathrm{\dots },N_0^u〉$, we adopt the same architecture of $M_c$ and modify its final layer to match the dimension of $E_i$, generating the auxiliary model $M_u$ for uncertainty estimation. When the training of $M_u$ is completed, we follow the previous studies [51, 90-93] and use MC dropout to approximate sample uncertainty [52]. Specifically, the trained model $M_u$ takes $I_i$ as the input and feedforward it $T$ times. In iteration $\phi$, a random dropout pattern is activated with a probability of $P$, and the model output $M_{u,\phi }\left(I_i\right)$ is recorded. Based on the aggregation set $〈\left(M_{u,\phi }\right(I_i\left)\right),\phi =1,2,\mathrm{\dots },T〉$, the inference variance is calculated via $(1/T){\sum }_{\phi =1}^T{(M_{u,\phi }\left(I_i\right)-(1/T){\sum }_{\phi =1}^T{M}_{u,\phi }\left(I_i\right))}^2$. A large variance demonstrates that the process of $I_i$ by $M_u$ is either highly sensitive to neuron connectivity altering or akin to random guessing, reflecting significant uncertainty [51, 93]. The $I_i$ with the highest uncertainty, that is, inference variance, are selected and sent to oracles for annotation to constitute $D_0^l=〈(I_j,Y_j),j=1,2,\mathrm{\dots },N_0^l〉$.

2.2.3 Hybrid Sampling of Diversity and Uncertainty

Diversity sampling selects representative samples while within a limited budget of AL, it might choose uninformative samples that are easy to distinguish and contribute marginally to model capability [94]. Uncertainty sampling suffers from selecting redundant samples to be labeled due to similar high uncertainty values [95] and a potential improvement could be a hybrid method to identify highly diverse and uncertain samples to convey more information with the same amount of annotated data [96, 97].

We employ a classic two-step hybrid method [81, 98, 99] to first partition $D_0^u=〈{(I}_i),i=1,2,\mathrm{\dots },N_0^u〉$ into $N_0^l$ subgroups through $E_i^u$-based K-means and then from each cluster, selects the most uncertain $I_i$ with the highest inference variance calculated by MC dropout as detailed in the previous subsection. This two-step approach ensures the selection of diverse and uncertain samples to construct $D_0^l$ comprising $N_0^l$ samples along with their annotations.

2.2.4 Random Sampling

In addition to the three initialization strategies based on domain-specific foundation models, random sampling remains the most widely used and traditional method, as shown in previous studies [6, 7, 10, 27-33, 74]. Although commonly employed, random sampling is not without limitations. For instance, prior research has demonstrated that it does not ensure the informativeness of the initial samples selected for annotation, which may negatively impact downstream AL performance [10]. Moreover, random sampling is prone to issues related to data imbalance, especially during initialization, where selecting minority samples can require a substantial budget [35, 100].

3.1.1 Data Sets

To ensure the robustness of our experimental results [106], we employed two data sets featuring diverse population cohorts, sample sizes, and disease categories: the Guangzhou data set [107, 108] and the Pakistan data set [109, 110]. The Guangzhou data set, collected by the Guangzhou Women and Children's Medical Center, comprised 5856 chest radiographs from retrospective cohorts of pediatric patients aged 1–5 years, with 4273 images diagnosed with pneumonia. In contrast, the Pakistan data set was considerably smaller and contained a total of 450 chest radiographs from a local hospital in Pakistan, among which 390 images were diagnosed with COVID-19. Both data sets were collected after the release of foundation models and were specifically chosen to simulate real-world scenarios, enabling an assessment of the benefits these models bring to AL. We resized all radiographs from the two data sets into the resolution of 224 $\times$ 224 to comply with DL classifiers [111], foundation models [59], and ImageNet counterparts [70].

The data sets were split using an 80/20 ratio for the Guangzhou data set, resulting in 4686 images for training (3419 diseased) and 1170 images for testing (854 diseased). For the Pakistan data set, a 50/50 split was applied, yielding 225 images for both training and testing sets, with 195 diseased images in each set. A larger proportion of samples was allocated to the testing set in the Pakistan data set due to its small sample size, ensuring greater stability in testing. We did not create separate validation sets with diagnostic labels, unlike prior cold-start AL studies [48, 112] to replicate real-world cold-start scenarios where no annotated samples were available at the outset [113]. Additionally, all labels were hidden during the initial sample selection and remained inaccessible until chosen by the query strategy in subsequent learning stages, simulating the cold-start AL process [51].

3.1.2 Foundation Models and ImageNet Counterparts

TorchXRayVision (TXRV) [114] is an open-source library developed for chest radiograph analysis, offering a range of representation learning models trained on 950,778 chest radiographs from 13 data sets collected across diverse regions, including the United States, China, Spain, and Vietnam. These models served as feature extractors (representation providers). For input images with a resolution of 224 $\times$ 224, TXRV utilizes DenseNet-121 [115] as its backbone. Notably, TXRV was trained using fully supervised methods rather than self-supervised approaches. In this study, we used TXRV to compare a domain-specific supervised model with a general supervised model, specifically the ImageNet pretrained DenseNet-121 [116].

Robust and Efficient MEDical Imaging with Self-supervision (REMEDIS) strategy [59] combines supervised pretraining on natural images with contrastive self-supervised pretraining on chest radiographs. Specifically, it employs the ResNet-152 architecture [70] with pretrained weights from BiT-L [117], which were trained on a large-scale database of natural images (JFT-300M) [118]. REMEDIS was then trained using the self-supervised technique of SimCLR [119] on unlabeled medical data sets across five domains: chest radiographs, fundus imaging, digital pathology, mammography, and clinical dermatology. After that, REMEDIS learned generalizable representations that can be paired with a classifier head to map them to domain-specific labels for downstream tasks. REMEDIS has proven particularly effective for chest radiograph classification [120], and therefore we adopted it as a domain-specific self-supervised model for comparison with ImageNet pretrained ResNet-152. For both TXRV and REMEDIS, we utilized the embeddings from the final layer preceding the classification head as model representations for diverse AL strategies and simplified classifiers.

3.1.3 AL Strategies

For cold-start initialization, we performed five experiments using budgets ranging from 10 to 50, with an incremental step of 10 samples. Diversity sampling employed classic K-means clustering, generating a number of clusters equal to the budget, and selecting the sample closest to each cluster centroid. In uncertainty sampling, estimators were trained using inputs of original images and outputs of representations from foundation models or ImageNet counterparts. Estimators then processed each sample 100 times with a dropout activation probability of 0.5 to stably compute the variance of model predictions [121], selecting the samples with the top variance per the allocated budget. The hybrid method integrated diversity and uncertainty strategies by generating a number of clusters equal to the budget and then selecting the sample with the highest variance from each cluster to form the initialization set. Random sampling was simulated 100 times for each initialization budget. For each simulation, the high-budget group included all samples from the low-budget group to ensure comparability in downstream analyses.

For subsequent learning, we allocated an initial budget of 10 and a subsequent learning budget of 40 to enable a direct comparison between one-shot initialization and the full AL strategy with both initialization and subsequent learning. The subsequent learning stage consisted of 4 iterations, each with a budget of 10. Due to the convergence of the three uncertainty strategies, 10 samples with predictive probabilities closest to 0.5 were selected based on the current classifier in each iteration. Random sampling, similar to the initialization, was benchmarked 100 times for comparison. In each iteration of the subsequent learning process, 10 samples were randomly selected from the unlabeled set.

For both initialization and subsequent learning stages, we established the same upper bound of model performance by training classifiers using all available training samples and their expert annotations. This budget was referred to as the “all samples.”

3.1.4 Implementation Details

Two main categories of DL models were developed in this study: one for binary classification tasks and another for uncertainty estimation during the initialization phase. We implemented binary classifiers based on VGG-11 [111] to distinguish either pneumonia or COVID-19 in the Guangzhou data set and the Pakistan data set, respectively. VGG-11 architecture was selected for its extensive use in AL studies [7] and its reliable convergence on small-sample data sets [122-124]. In addition to the full VGG-11 architecture, which used original images as inputs, we also developed simplified models based on previous studies [57, 125]. Specifically, we implemented three-layer multilayer perceptron (MLP-3) models with intermediate layers of 512 and 256 neurons, using representations generated by foundation models as inputs [60]. The second category of DL models focused on uncertainty estimation, using the same VGG-11 architecture but with output layers modified to match the dimensionality of the target representations from foundation models.

For the training of binary classifiers, we utilized a Stochastic Gradient Descent (SGD) optimizer [126] with a learning rate of 1e−3 and a momentum of 0.9. The batch size was fixed at 10, matching the initialization budget. To mitigate the imbalance between major and minor samples [127, 128], a weighted cross-entropy loss function was applied. Training was conducted for 200 epochs, with a linear scheduler that reduced the learning rate by a factor of 0.5 if no improvement was observed over 10 consecutive epochs. An early stopping criterion was employed if no progress was made over 20 consecutive epochs. For the training of uncertainty estimators, all configurations were kept constant, except for the learning rate, which was adjusted to 1e−4, and the loss function, which was changed to mean squared error to align with the predictive targets of image representations in the continuous space.

Upon the completion of sample annotation queries and binary classifiers' training, the classification performance was assessed on the hold-out test sets from both the Guangzhou and Pakistan data sets. Following the previous literature [129, 130], the evaluation utilized the area under the receiver operating characteristic curve (AUROC) and the area under the precision-recall curve (AUPRC) due to their reliability in scenarios involving imbalanced data [131, 132]. Metrics such as accuracy, sensitivity, specificity, positive predictive value, and negative predictive value were excluded due to their vulnerability to instability in the presence of extreme data imbalances [133, 134]. Standard deviations for each metric were estimated using the nonparametric bootstrap method [135]. The study was conducted in PyTorch 1.12.1 and the code has been open access [136] for reproducibility. All experiments were implemented on a Dell Precision 7920 Tower Workstation with an Intel Xeon Silver 4210 CPU and an NVIDIA GeForce RTX 2080 Super GPU.

3.1.5 Statistical Tests

We conducted statistical tests to assess whether significant differences exist in cold-start AL performance across various configurations [35]. Our first inquiry sought to determine whether domain-specific foundation models outperform their ImageNet pretrained counterparts. We also investigated whether simplified classifiers based on feature representations could surpass more complex classifiers relying on original image pixels. Additionally, we aimed to establish whether effective initialization contributes to enhanced subsequent learning. Finally, we examined whether a one-shot initialization can achieve performance comparable to the complete cold-start AL process, which includes initialization and multiple iterations of subsequent learning; this approach offers greater ease of implementation and user-friendliness [137, 138]. For the analysis of the relationship between initialization and subsequent learning, we employed the Pearson correlation coefficient [139]. The same correlation test was performed to evaluate the influence of class balance in the initialization samples on model performance in both initialization and subsequent learning. In addressing the other three questions, we utilized the paired t-test [140] to compare the performance of the two competing approaches.

3.2.1 Cold-Start Initialization

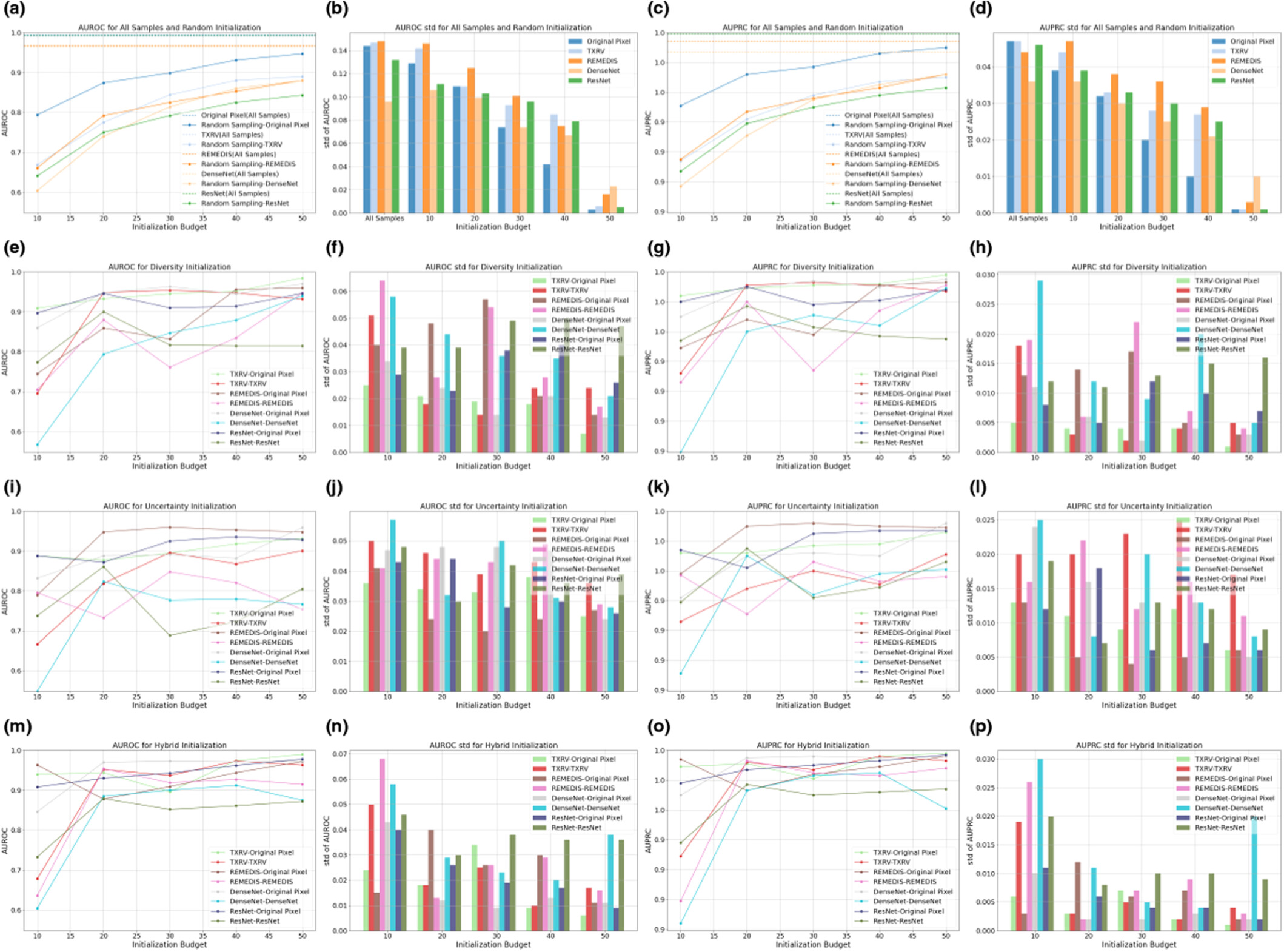

Figures 2 and 3 illustrate the AUROC and AUPRC performance of various strategies and model backbones during the cold-start AL initialization on the Guangzhou and Pakistan data sets, respectively. In the odd-numbered columns, curve plots depict the mean values of AUROC and AUPRC, whereas the even-numbered columns present bar plots displaying their standard deviations, calculated via nonparametric bootstrap. The first row in both figures displays two baseline query strategies: all samples and random sampling. The horizontal dashed lines in Figures 2a,c and 3a,c represent the upper bound of classification performance, achieved by training on the full set of samples and annotations. Random sampling was the most common practice in cold-start initialization, and we compared this method with initialization strategies based on foundation models and ImageNet pretrained counterparts.

The subplots in the second, third, and fourth rows present model performance based on samples selected by diversity, uncertainty, and hybrid sampling, respectively, each applied to the four representation generation models. Using the samples queried by these diverse strategies, we developed both a full VGG-11 model and a simplified MLP-3. The MLP-3, based on representations, consistently underperformed the VGG-11 model trained on original pixels, suggesting that low-dimensional representations derived from foundation models and ImageNet counterparts may lose critical information embedded in the original images. For the VGG-11 classifiers, representation-based sampling outperformed random sampling in 47 out of 60 scenarios for the Guangzhou data set and 46 out of 60 for the Pakistan data set, indicating that representation-based strategies reduced annotation requirements while providing superior initializations. Among the three representation-based strategies, diversity and hybrid sampling achieved the best performance in 16 out of 20 and 14 out of 20 scenarios for the Guangzhou and Pakistan data sets, respectively. This suggested that for data sets with small sample sizes, such as the Pakistan data set, the hybrid method that incorporated both diversity and uncertainty may be preferred. In contrast, for larger data sets, such as the Guangzhou data set, diversity sampling remained competitive. Additionally, across all strategies, as the initialization budget increased, the standard deviation of model performance decreased, demonstrating that a larger sample size not only improved model accuracy but also enhanced prediction robustness. For detailed numeric results, see Tables A1 and A2.

3.2.2 Cold-Start Subsequent Learning

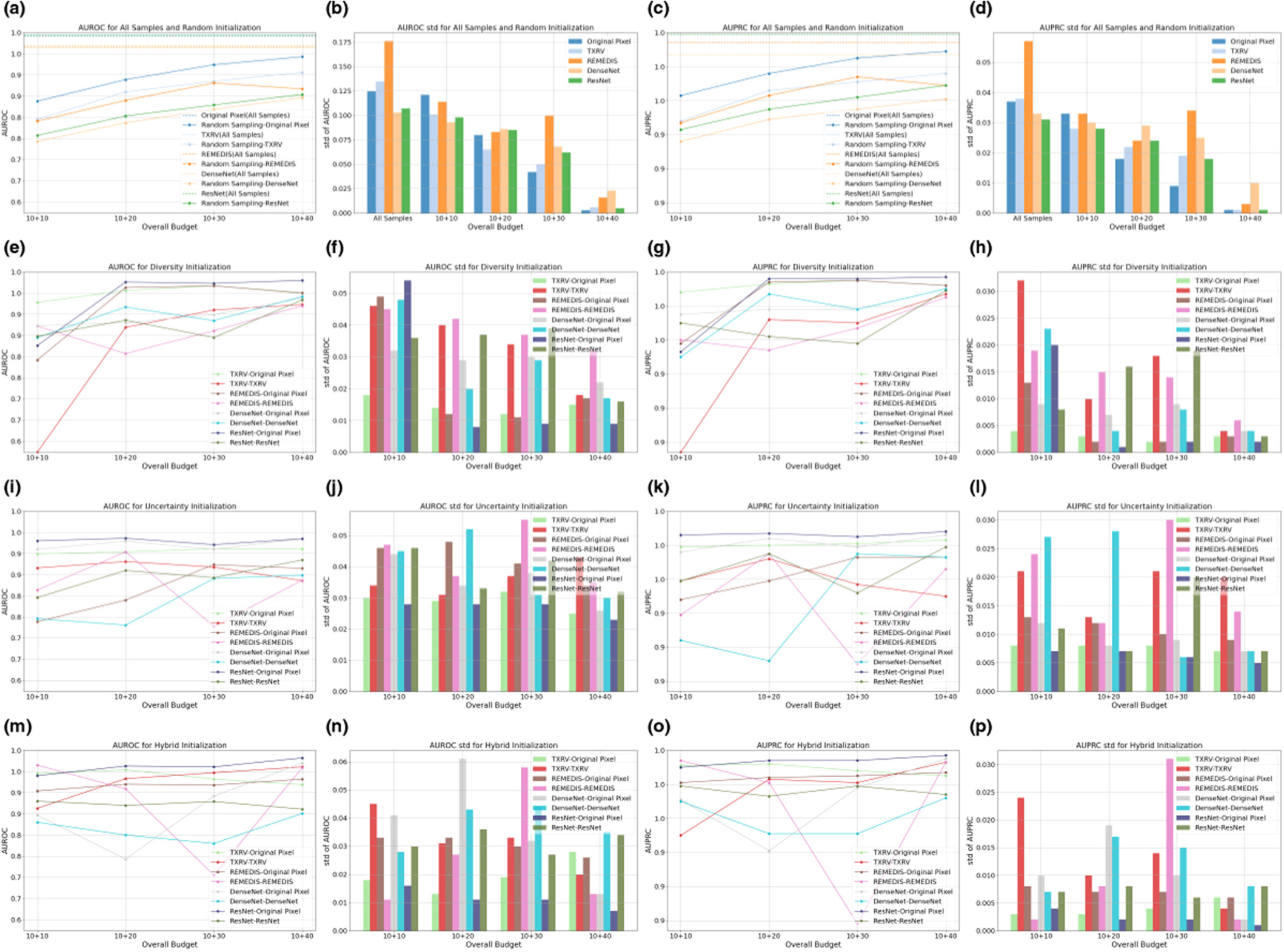

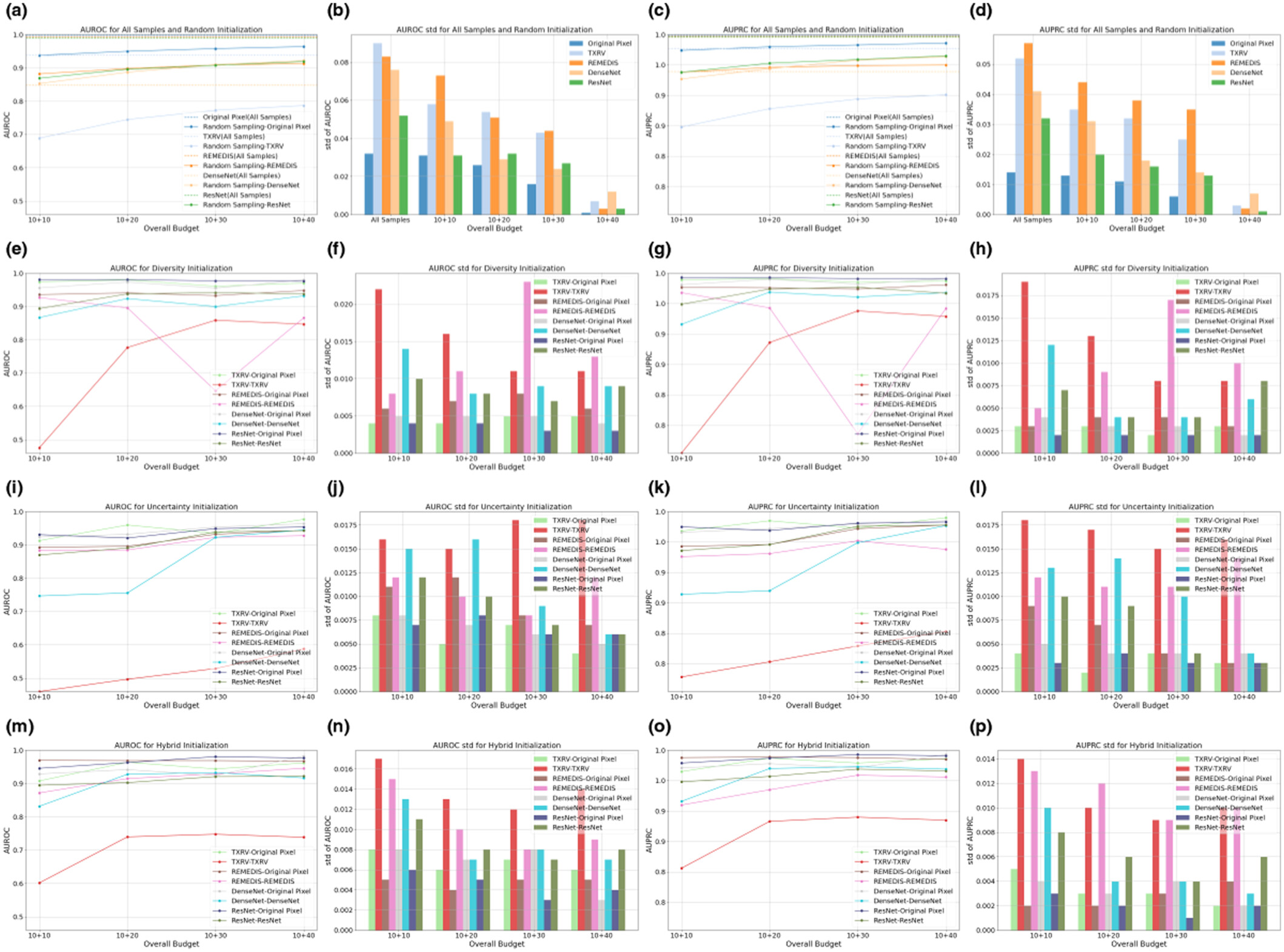

Based on the classifiers trained on 10 samples selected by different initialization strategies, subsequent learning was performed using uncertainty-based iterations [23], with 10 samples queried per iteration. Figures 4 and 5 illustrate the classification performance on the Guangzhou and Pakistan data sets, respectively. The arrangement of subplots in Figures 4 and 5 mirrors that of Figures 2 and 3, with the following distinctions: (1) the learning strategy was based solely on classifier uncertainty, and the legend in each subplot indicates the initialization strategy; (2) samples selected under high-budget conditions included all samples from low budgets as they were consecutive procedures, which was not guaranteed in the initialization stage; and (3) the X-axis representing the overall budget included both the initialization and subsequent learning phases: For example, a budget of 10 + 20 denoted an initialization budget of 10 samples, followed by an additional budget of 20 samples for the subsequent learning.

As annotation budgets increased, VGG-11 performance initially improved over multiple iterations before quickly converging, with additional samples yielding only marginal gains. This phenomenon was attributed to the relative simplicity of the two binary classification tasks compared to more complex clinical tasks, such as low-contrast lesion segmentation [141-143], as demonstrated by the strong classification performance before subsequent learning. Although some performance improvement to the upper bound in Figures 4a,c and 5a,c remained possible, achieving this would require approximately 100 times more annotations for the Guangzhou data set and 10 times more for the Pakistan data set. This underscored the effectiveness of AL in balancing annotation costs with model performance. Compared with VGG-11 models, the representation-based MLP-3 classifiers were inferior, aligning with previous initialization results. Additionally, MLP-3 classifiers exhibited the risk of overfitting in Figures 4e,g and 5i,k,m,o: their predictive performance declined when more samples were added to the labeled training set. For detailed numeric results, see Tables A3 and A4.

Models initialized with diversity and hybrid sampling consistently outperformed uncertainty sampling, achieving the highest performance in 8 and 7 out of 16 learning scenarios for the Guangzhou data set, and 8 and 5 out of 16 scenarios for the Pakistan data set. This consistent outperformance of diversity and hybrid sampling highlighted the benefit of effective initialization for both the initialization and subsequent learning stages. In the next subsection, we will extend these observational findings with rigorous statistical tests. Specifically, we would compare representations from foundation models and ImageNet counterparts, evaluate different classification backbones, explore the relationship between initialization and subsequent learning, and contrast one-shot initialization with the complete AL process.

3.2.3 Comparative Study on Classification Backbones

The primary question addressed in this study was whether foundation models designed for chest radiograph analysis outperformed their ImageNet counterparts pretrained on images from the natural domain. We conducted a paired t-test to compare their performance during both the initialization and subsequent learning stages using the Guangzhou and Pakistan data sets. The null hypothesis posited that the performance of foundation models and ImageNet counterparts would be statistically identical, whereas the alternative hypothesis suggested that the performance of foundation models is superior to that of ImageNet counterparts. As shown in Table 1, foundation models outperformed their ImageNet counterparts in only two out of eight experiments. Consequently, in the context of cold-start AL, foundation models failed to meet our expectations as generalist models.

Another objective of the foundation model was to generate representations that could be directly utilized as input features, thereby facilitating lightweight classification backbones, such as MLP, to achieve high-fidelity predictions with reduced computational costs [57, 59, 114]. To assess this, we compared the performance of VGG-11 with that of the lightweight MLP-3 [57, 125]. The null hypothesis posited that the performance of MLP-3 using generated representations was equivalent to that of VGG-11 using original pixel data, whereas the alternative hypothesis proposed that the performance of MLP-3 was inferior to that of VGG-11. Table 2 illustrates that MLP-3 statistically significantly underperformed VGG-11 in seven out of eight scenarios.

We identified that representation-based strategies outperformed default random sampling during the initialization stage. However, the extent to which these benefits extend to subsequent learning stages remained inadequately explored. To investigate this, we calculated the Pearson correlation coefficient of the AUROC and the AUPRC between model performance in the initialization stage and the subsequent learning stage. Our null hypothesis was that the correlation coefficient between the performance of cold-start initialization and subsequent learning did not significantly deviate from zero, whereas the alternative hypothesis asserted that this correlation was significantly greater than zero. As shown in Table 3, model performance during the initialization stage was positively correlated with performance in the subsequent learning stage, suggesting that researchers should pay more attention to effective initialization strategies instead of using random sampling as a default [144].

Another question we sought to address was whether one-shot initialization identified samples capable of training models with performance comparable to those selected through both initialization and iterative learning stages. Consistent with the first and second statistical tests, we conducted a paired t-test between the two approaches using an equivalent overall budget. The null hypothesis posited that the average performance of classifiers utilizing one-shot initialization was identical to that of classifiers employing a full AL cycle of both initialization and subsequent learning. Conversely, the alternative hypothesis asserted that the performance of classifiers using one-shot initialization was inferior to that of classifiers employing the integrated approach. As presented in Table 4, all p-values exceeded 0.05, indicating that one-shot initialization was comparable to the complete AL cycle in the medical task of chest radiograph classification.

Finally, we investigated whether model performance was influenced by the class balance of the initialization samples, specifically testing the hypothesis that a balanced class distribution could enhance performance. The null hypothesis posited no significant correlation deviating from zero between the minority class proportion in the initialization samples and the classifier's performance during cold-start initialization or subsequent learning. In contrast, the alternative hypothesis suggested that this correlation was significantly greater than zero. As shown in Table 5, no statistically significant correlation was observed in both stages. Interestingly, a U-shaped trend in p-values was observed during both stages of the Guangzhou data set and the cold-start initialization of the Pakistan data set, indicating that the class balance was more strongly correlated with performance at intermediate budget levels compared to low or high budgets.
