Volume 44, Issue 18 pp. 6459-6470
RESEARCH ARTICLE
Open Access

Lifelong olfactory deprivation-dependent cortical reorganization restricted to orbitofrontal cortex

Moa G. Peter

Moa G. Peter

Department of Clinical Neuroscience, Karolinska Institutet, Stockholm, Sweden

Search for more papers by this author
Fahimeh Darki

Fahimeh Darki

Department of Clinical Neuroscience, Karolinska Institutet, Stockholm, Sweden

Search for more papers by this author
Evelina Thunell

Evelina Thunell

Department of Clinical Neuroscience, Karolinska Institutet, Stockholm, Sweden

Search for more papers by this author
Gustav Mårtensson

Gustav Mårtensson

Department of Neurobiology, Care Sciences and Society, Karolinska Institutet, Stockholm, Sweden

Search for more papers by this author
Elbrich M. Postma

Elbrich M. Postma

Smell and Taste Centre, Hospital Gelderse Vallei, Ede, the Netherlands

Division of Human Nutrition and Health, Wageningen University, Wageningen, the Netherlands

Search for more papers by this author
Sanne Boesveldt

Sanne Boesveldt

Division of Human Nutrition and Health, Wageningen University, Wageningen, the Netherlands

Search for more papers by this author
Eric Westman

Eric Westman

Department of Neurobiology, Care Sciences and Society, Karolinska Institutet, Stockholm, Sweden

Department of Neuroimaging, Centre for Neuroimaging Sciences, Institute of Psychiatry, Psychology and Neuroscience, King's College London, London, UK

Search for more papers by this author
Johan N. Lundström

Corresponding Author

Johan N. Lundström

Department of Clinical Neuroscience, Karolinska Institutet, Stockholm, Sweden

Monell Chemical Senses Center, Philadelphia, Pennsylvania, USA

Stockholm University Brain Imaging Center, Stockholm University, Stockholm, Sweden

Correspondence

Johan N. Lundström, Department of Clinical Neuroscience, Karolinska Institutet, Nobels väg 9, 17177 Stockholm, Sweden.

Email: [email protected]

Search for more papers by this author
First published: 02 November 2023
Citations: 1

Moa G. Peter and Fahimeh Darki shared contribution.

Abstract

Prolonged sensory deprivation has repeatedly been linked to cortical reorganization. We recently demonstrated that individuals with congenital anosmia (CA, complete olfactory deprivation since birth) have seemingly normal morphology in piriform (olfactory) cortex despite profound morphological deviations in the orbitofrontal cortex (OFC), a finding contradictory to both the known effects of blindness on visual cortex and to the sparse literature on brain morphology in anosmia. To establish whether these unexpected findings reflect the true brain morphology in CA, we first performed a direct replication of our previous study to determine if lack of results was due to a deviant control group, a confound in cross sectional studies. Individuals with CA (n = 30) were compared to age and sex matched controls (n = 30) using voxel- and surface-based morphometry. The replication results were near identical to the original study: bilateral clusters of group differences in the OFC, including CA atrophy around the olfactory sulci and volume increases in the medial orbital gyri. Importantly, no group differences in piriform cortex were detected. Subsequently, to assess any subtle patterns of group differences not detectable by our mass-univariate analysis, we explored the data from a multivariate perspective. Combining the newly collected data with data from the replicated study (CA = 49, control = 49), we performed support vector machine classification based on gray matter volume. In line with the mass-univariate analyses, the multivariate analysis could accurately differentiate between the groups in bilateral OFC, whereas the classification accuracy in piriform cortex was at chance level. Our results suggest that despite lifelong olfactory deprivation, piriform (olfactory) cortex is morphologically unaltered and the morphological deviations in CA are confined to the OFC.

1 INTRODUCTION

Sensory deprivation is commonly linked to morphological and functional reorganization in, but not limited to, core processing regions of the deprived sensory modality (Lee & Whitt, 2015; Noppeney, 2007; Voss, 2019). However, in sharp contrast to prior publications (Frasnelli et al., 2013; Karstensen et al., 2018) and to our own a priori expectations, we recently demonstrated a complete lack of morphological abnormalities in piriform (olfactory) cortex in a comparably large sample of adult individuals with congenital anosmia (CA, complete olfactory sensory deprivation since birth) (Peter et al., 2020). This striking absence of altered morphology in piriform cortex, despite lifelong sensory loss, was accompanied by clear bilateral abnormalities in the orbitofrontal cortex (OFC), a region vital for higher-order olfactory processing (Gottfried & Zald, 2005; Lundström et al., 2011) and a finding corresponding with a single case finding reported by Weiss et al. (2020). However, this lack of demonstrated effects in piriform cortex could be due to two spurious issues. First, differences (or as here, lack thereof) can be due to an unrepresentative control group, an often overlooked phenomena that previously has skewed findings (Alary et al., 2009). Second, in our past studies, we focused on univariate voxel-based analyses, thereby neglecting potential summative network effects. In the present study, we addressed these two confounds by first establishing whether these unexpected results accurately reflect the brain morphology in individuals with CA by replicating the analysis of our previous publication on a newly collected data set. Subsequently, we apply a more sensitive multivariate analysis approach on both the previously published and newly collected data, thereby enabling detection of potential morphological deviations not detectable by the previously used mass-univariate analysis methods.

The piriform cortex is unquestionably important for human olfactory processing: it is the main recipient of input from the olfactory bulbs (Gottfried, 2006; Lundström et al., 2011) and demonstrates the highest degree of odor activation in neuroimaging studies (Seubert et al., 2013). It is commonly referred to as primary olfactory cortex (along with the other regions receiving direct bulbar input) (Gottfried, 2006; Zhou et al., 2019; however, see Haberly, 2001) and has been linked to a multitude of functions, from representation of the chemical constitution of odors to odor category representation (Freiherr, 2017; Gottfried, 2010) with predictive and attentional modulation (Zelano et al., 2005, 2011). Olfactory sensory deprivation has been linked to altered morphology in piriform cortex as well as in other olfactory processing regions (for reviews, see Boesveldt et al., 2017; Manan et al., 2022; Reichert & Schöpf, 2018), analogous to the demonstrated morphological reorganization of early visual processing regions in blind individuals (Jiang et al., 2009, 2015; Noppeney et al., 2005; Park et al., 2009; Ptito et al., 2008). However, the literature on brain morphology in anosmia in general, and CA in particular, is sparse and there is little overlap of results between studies. Specifically, there are, to the best of our knowledge, only three studies statistically assessing whole brain gray matter morphology differences between a group of individuals with CA and healthy controls: Frasnelli et al. (2013), Karstensen et al. (2018), and from our lab, Peter et al. (2020). All three studies demonstrate morphological group differences in olfactory-related regions such as the OFC, but of particular interest is the fact that the first two studies indicate group differences in piriform cortex, whereas, contradictory to the stated hypothesis, we were unable to replicate these findings despite a larger sample (Peter et al., 2020). In fact, statistical demonstration of equality in gray matter volume within piriform cortex between groups could be demonstrated, a finding in sharp contrast to both the two previous studies in CA individuals as well as several studies assessing morphological effects in primary sensory areas due to life-long visual deprivation. Hence, the effect of lifelong absence of olfactory processing on this vital olfactory brain region is unclear.

Although scientists strive to continuously enhance the knowledge within their field of research, the scientific community struggle with what is often referred to as a reproducibility crisis, that is, that published scientific results cannot be replicated and are therefore unlikely to reflect the ground truth (Baker, 2016; Open Science Collaboration, 2015). This can, at least partly, be accounted to the fact that the incentives for publishing new positive results often are stronger than the incentives for assessing whether new results reflect a true phenomenon (Smaldino & McElreath, 2016). The importance of further investigating unexpected results is particularly high when studying rare populations, such as individuals with a congenital sensory deprivation, because these studies inherently deal with two major issues: limited sample sizes and between group comparisons. These issues generally lead to lower statistical power than wished for and increase the risk of, for example, non-representative samples, factors that can lead to study outcomes that by chance do not reflect a phenomenon in the larger population sampled from; the aim of the majority of studies (Button et al., 2013).

We here aim to establish whether the piriform cortex is indeed morphologically unaffected by lifelong complete olfactory sensory deprivation and whether the morphological deviations are restricted to the OFC. To this end, we analyze the brain morphology of individuals with CA and normosmic controls, matched for age and sex, based on structural MRI. First, we investigate whether the unexpected results presented in Peter et al. (2020) are valid by doing a direct replication of the main analyses, that is, assessing group differences with voxel- and surface-based morphometry. Second, to more thoroughly assess whether subtle patterns of group differences in gray matter volume exists, that is, differences not detectable by the mass-univariate analyses applied in previous publications, we perform multivariate analysis using support vector machine (SVM) classification.

2 MATERIALS AND METHODS

To thoroughly assess whether the deviations in cerebral gray matter morphology in individuals with CA indeed is restricted to the OFC, the current study consists of two parts. First, a direct replication of our recent publication that demonstrated a surprising lack of morphological abnormalities in piriform cortex in individuals with CA compared to matched controls (Peter et al., 2020) was done using newly collected data (nCA = 30, nControl = 30). Second, we combined the newly acquired dataset with a subset of the data (one participant removed) from our previous publication (Peter et al., 2020); combined sample nCA = 49, nControl = 49, see details below) to examine whether subtle group differences in gray matter volume patterns exist using multivariate analysis in the form of SVM classification.

2.1 Participants

A total of 98 participants were included in this study: 49 individuals with isolated CA, that is, congenital anosmia unrelated to specific genetic disorders, such as Kallmann syndrome, and 49 controls, matched in terms of sex and age (Table 1). Inclusion criteria for the CA group was a self-reported lifelong lack of olfactory perception without any known underlying condition causing the anosmia and a score in the anosmia range on the objective olfactory test (described below). For the control group, inclusion required a self-proclaimed and objectively verified functional sense of smell. Of the 49 CA individuals, 37 lacked bilateral olfactory bulbs, and the presence of bulbs in the remaining 12 was either non-determinable or identifiable but visibly hypoplastic (assessed from the structural images by J.N.L.).

TABLE 1. Descriptive statistics per experimental group.
Combined data set Data set for replication
CA (n = 49) Control (n = 49) CA (n = 30) Control (n = 30)
Age (years) 36.3 ± 11.7 36.1 ± 11.5 35.8 ± 9.7 35.4 ± 10
Sex 29w/20m 29w/20m 17w/13m 17w/13m
TDI 10.3 ± 2.4 35.5 ± 3.5 9.5 ± 2.4 35.9 ± 3.3
Threshold 1.1 ± 0.4 9 ± 2.5 1.2 ± 0.5 9.4 ± 2.3
Discrimination 4.6 ± 1.5 13 ± 2 4.3 ± 1.5 12.8 ± 2
Identification 4.5 ± 1.7 13.5 ± 1.3 4 ± 1.7 13.7 ± 1.1
  • Note: Values presented as mean ± standard deviation.
  • Abbreviations: CA, congenital anosmia; m, men; TDI, combined score from the Sniffin’ Sticks olfactory sub-tests; w, women.

The included data set consists of two parts: newly collected data and a subset of the data previously analyzed in Peter et al. (2020). The newly collected data set (30 individuals with CA, 30 matched controls) was acquired in Stockholm, Sweden, and used for the replication of Peter et al. (2020). Note that 13 of the individuals with CA in the newly collected data set had previously participated in Peter et al. (2020), but all controls were newly recruited. To optimize the conditions for the multivariate analysis by increasing the sample size, the newly collected data set was combined with data from CA individuals from Peter et al. (2020) who did not participate in the new data collection, along with their matched controls (19 individuals with CA and 19 controls), resulting in the final set of 98 participants. This latter data was acquired at two sites: Wageningen, the Netherlands (11 individuals with CA, 11 matched controls) and Stockholm, Sweden (8 individuals with CA, 8 matched controls). All participants provided written informed consent and all aspects of the study was approved by both Swedish and Dutch ethical authorities.

2.2 Procedure

2.2.1 MR image acquisition

Siemens Magnetom 3T MR scanners (Siemens Healthcare, Erlangen, Germany) were used to acquire the imaging data: two Prisma scanners using 20-channel head coils (in Sweden) and a Verio scanner with a 32-channel head coil (in the Netherlands). T1-weighted images with whole-brain coverage were acquired using either a 3D GR/IR T1-weighted sequence (208 slices, TR = 2300 ms, TE = 2.89 ms, FA = 9°, voxel size = 1 mm3, and FoV = 256 mm; 30 individuals with CA, 30 controls) or an MP-RAGE sequence (176 slices, TR = 1900 ms, TE = 2.52 ms, FA = 9°, voxel size = 1 mm3, and FoV = 256 mm; 19 individuals with CA, 19 controls). Additional functional imaging data reported elsewhere were collected in the same testing sessions.

2.2.2 Olfactory screening

To ensure functional anosmia and a normal sense of smell in respective groups, olfactory function of all participants was assessed with the full Sniffin’ Sticks olfactory test (Burghart, Wedel, Germany). The Sniffin’ Sticks test is a standardized test consisting of three subtests with individual scores: odor detection threshold (T), odor quality discrimination (D), and 4-alternative cued odor quality identification (I), together yielding the combined TDI-score used to classify individuals as normosmic, hyposmic, or anosmic based on normative data from over 9000 individuals (Oleszkiewicz et al., 2019). All individuals in the CA group were classified as functionally anosmic based on their TDI score and all individuals in the control group were classified as normosmic within their age group (a score above the 10th percentile in their group). Group mean scores on the Sniffin’ Stick olfactory performance test can be found in Table 1.

2.3 Replication

To assess whether the results presented in Peter et al. (2020) can be replicated, a direct replication of the main analyses was done using newly collected data: 30 individuals with CA and 30 matched controls (Table 1). Potential group differences in gray matter volume, cortical thickness, area, and curvature were estimated using mass-univariate analysis. To this end, the image processing and statistical analyses followed the analysis steps previously reported (Peter et al., 2020) using identical analysis scripts with the exception of the use of scanning site as a covariate in the analyses, because all participants were scanned at the same site in this newly acquired data set.

2.3.1 Voxel-based morphometry

First, we assessed image quality in both samples to detect potential outliers and differences between samples using the CAT12 image processing toolbox. There was no clear difference between samples and although all scans passed the suggested Z-value >2 cut-off, two scans were marked as deviant (Figure S1). Detailed visual inspection did not detect any problems and all scans were therefore included in all analyses. Voxel-based morphometry (Ashburner & Friston, 2000) analysis was done using SPM12 in MATLAB 2019b (The MathWorks, Inc., Natick, Massachusetts, USA). Segmentation of T1-weighted images into gray matter, white matter, and cerebrospinal fluid was done in native space using the unified segmentation approach (Ashburner & Friston, 2005). The three tissues were subsequently used to compute total intracranial volume for each participant and the gray and white matter were further used as input to a diffeomorphic image registration algorithm to improve inter-subject alignment (Ashburner, 2007). DARTEL aligns gray and white matter from all participants in an iterative process, creating an increasingly accurate average template for inter-subject alignment. The template and individual flow fields from DARTEL were used to spatially normalize gray matter images to MNI space with 12 parameter affine transformations. The normalized gray matter images were modulated with the Jacobian determinant of the deformation fields and smoothed with a 6 mm full-width at half maximum isotropic Gaussian kernel, with kernel size chosen to optimize the discovery of potential group differences in piriform cortex, a small region at the junction between frontal and temporal cortex.

To compensate for individual differences in intracranial volume when comparing gray matter volume between groups, the pre-processed, normalized gray matter images were proportionally scaled with total intracranial volume. Furthermore, the images were masked with a threshold of 0.15 to avoid inclusion of non-gray matter voxels. Voxel-wise group differences in gray matter volume were assessed using independent sample t-tests with age and sex as nuisance covariates. The tests were corrected for multiple comparisons with a family-wise error (FWE) corrected significance level of p < .05.

Following the analysis in Peter et al. (2020), in the absence of volumetric differences in piriform cortex from the voxel-wise approach, potential statistical evidence in support of a lack of group differences was investigated. To this end, individual mean gray matter volume from left and right piriform cortex were extracted using the MarsBaR toolbox (version 0.44, http://marsbar.sourceforge.net) based on a piriform cortex ROI (see Figure S2) from Zhou et al. (2019) and group differences were assessed based on Welch's t-test. If the t-tests yielded non-significant results at an uncorrected significance level of p < .05, the two 1-sided tests procedure for equivalence testing between groups was done using the TOSTER R package (Lakens, 2017) implemented in R (version 4.1.1, www.r-project.org). The equivalence bounds were defined based on the effect size that we can detect with 80% power (corresponding to d ≥ 0.65 based on 30 individuals in each group).

Because a subset of the CA individuals in this newly collected data set had previously participated in Peter et al. (2020), we wanted to ensure that potential replicated results were not driven exclusively by these individuals. Therefore, we conducted subgroup analyses of the CA individuals also included in Peter et al. (2020) (13 CA, 13 matched controls) and the CA individuals not in Peter et al. (2020) (17 CA, 17 matched controls) separately. Due to small sample sizes, a statistical threshold of p < .001 (uncorrected) was chosen to assess subgroup results.

2.3.2 Surface based measures

The T1-weighted images were processed using FreeSurfer ver. 6.0 (Dale et al., 1999; http://surfer.nmr.mgh.harvard.edu/) to calculate cortical thickness, surface area, and underlying white matter curvature. FreeSurfer data was pre-processed through the HiveDB database system (Muehlboeck et al., 2014) and the image processing pipeline is described in detail in Fischl and Dale (2000). Processing steps include removal of non-brain tissue, Talairach transformation, segmentation of subcortical white matter and gray matter, intensity normalization, tessellation of the boundary between gray and white matter, automated topology correction, and surface deformation to find the boundary between gray and white matter as well as the boundary between gray matter and cerebrospinal fluid. Cortical thickness, surface area, and curvature were calculated at each vertex point on the tessellated surface in native space, after which individual surfaces were aligned to an average template and smoothed (5 mm full-width at half maximum surface based Gaussian kernel chosen to optimize analysis in piriform cortex) to enable statistical comparisons between the subject groups.

To assess group differences in cortical thickness, surface area, and curvature, vertex-wise values were compared between groups using a general linear model with age and sex as nuisance covariates. Correction for multiple comparisons was done based on a false discovery rate (FDR) of p < .05 and group differences surviving this threshold were defined as significant.

2.4 Support vector machine classification

After replication of the mass-univariate analyses of Peter et al. (2020), we examined whether potential fine-grained, wide-spread morphological differences between individuals with CA and normosmic controls exist, differences less likely to be detected by mass-univariate methods. To this end, we performed multivariate pattern analysis on a larger, combined data set consisting of the newly acquired data used for replication purposes and data from Peter et al. (2020). The CoSMoMVPA toolbox (https://www.cosmomvpa.org/) (Oosterhof et al., 2016) was used within MATLAB 2021b to investigate whether gray matter volume metrics derived from DARTEL (as described under the voxel-based morphometry section) can be used as features to differentiate between individuals with CA and controls. To accomplish this, a searchlight approach was used to divide the smoothed gray matter images into spherical clusters with a radius of 6 mm. Subsequently, a linear SVM was trained for each spherical cluster to classify whether each individual belongs to either the CA or control group. To select the training and testing groups, a cross-validation with 10-folds approach was performed to train the classifier on about 80% of the participants (n = 78) and test on the rest (n = 20, randomly selected but balanced with respect to group). The group classification accuracy for each spherical cluster was projected on the center voxel of the sphere and the process was repeated for each sphere, resulting in a whole-brain classification accuracy map that illustrates how accurately subjects were classified into the CA and control groups. Voxels with classification accuracy >75% were considered as significant. We then permuted the data 5000 times to test the statistical significance of the results. If the observed accuracy was more than 95% of the accuracies from permuted data, it was considered as significant (p < .05). Thereafter, to specifically assess whether the gray matter volume patterns within piriform cortex differ between groups, that is, could be used to discriminate between individuals with CA and controls, a directed analysis was performed using a ROI-based SVM classification. The gray matter volume values within bilateral piriform cortex were chosen as features and, in line with the searchlight analysis, cross-validation with 10-folds was performed with 80% for training and 20% for testing. Classification was repeated 5000 times on permuted data to assess the statistical significance of the results.

3 RESULTS

3.1 Replication of divergent morphological abnormalities within the orbitofrontal cortex in congenital anosmia

To explore CA-related alterations in gray matter volume, voxel-wise tests of group differences were performed. Four clusters demonstrated significant group differences, all located in the OFC: bilateral clusters of gray matter atrophy in the CA group along the olfactory sulci and bilateral clusters of gray matter volume increase in the CA group, centered around the medial orbital gyri (Figure 1b, Table 2). For visual comparison of the replication results, we also include the results of gray matter volumetric differences from Peter et al. (2020) (Figure 1a) where corresponding clusters were found.

Details are in the caption following the image

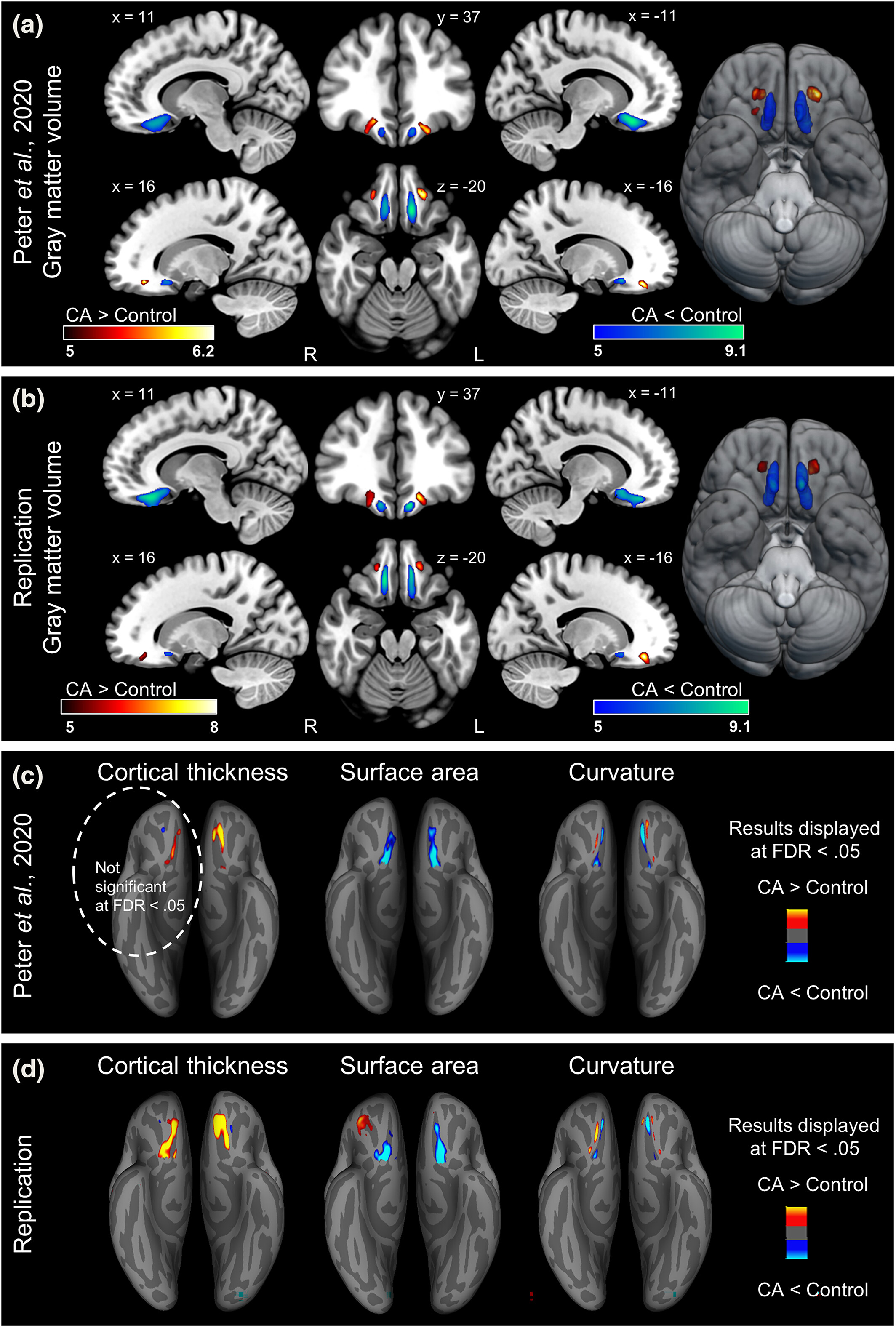

Morphological effects of congenital anosmia. (a) Gray matter volumetric group differences recreated from the results previously reported in Peter et al. (2020). (b) Gray matter volumetric group differences based on the current sample. Individuals with CA demonstrated gray matter atrophy in the bilateral olfactory sulci and gray matter volume increases in the bilateral medial orbital gyri. Results displayed at an FWE-corrected significance level of p < .05. (c) Group differences in surface-based measures previously presented in Peter et al. (2020). Note that group differences in cortical thickness in the right hemisphere are displayed at an uncorrected threshold of p < .001. (d) Group differences in surface-based measures based on the current sample. Results are displayed on an inferior view of an inflated brain at an FDR-corrected significance level of p < .05. Warm colors indicate larger values in the CA group compared to the Control group. Note specifically that for the curvature measure, all displayed results indicate decreases in absolute curvature in the CA group compared to the Control group because FreeSurfer's convention of curvature is negative for gyri and positive for sulci. CA, congenital anosmia; L, left; R, right.
TABLE 2. Replication results from VBM-analysis.
Region Hemisphere x y z Cluster size t p
CA > Control
Medial orbital gyrus L −16 40 −17 419 8.6 <.001
Medial orbital gyrus R 18 39 −19 174 6.3 .004
CA < control
Olfactory sulcus L −9 30 −24 2686 11.1 <.001
Olfactory sulcus R 11 29 −22 2898 11.0 <.001
  • Note: Regions are identified based on ‘Atlas of the Human Brain’ (Mai et al., 2015).
  • Abbreviation: CA, congenital anosmia.
  • a Coordinates derived from MNI152.
  • b Cluster size (mm3).
  • c t-Value for peak voxel in cluster.
  • d p-Value for peak voxel, FWE-corrected.

In line with our previous publication, no significant group differences in gray matter volume within piriform (primary olfactory) cortex were demonstrated at an FWE-corrected significance level of p < .05. To exclude the notion that the absence of differences in the piriform cortex is due to the conservative nature of the use of FWE-correction, we also assessed results using no correction for multiple comparisons and a threshold level of p < .001. Neither at this liberal threshold level did we observe any differences in piriform cortex (Figure S3). Furthermore, no significant group differences in either right, t(57.7) = 0.39, p = .7, or left, t(58) = 1.05, p = .3, piriform cortex were demonstrated based on extraction of mean gray matter volume within our piriform ROI. We therefore performed equivalence testing using the two 1-sided tests procedure to determine whether there is statistical evidence of an absence of group differences. There was statistically equivalent gray matter volume in both groups in the right piriform cortex (highest p-value: t(57.7) = 2.13, p = .019), that is, supporting the conclusion that there is no difference in gray matter volume between the two groups in right piriform cortex. However, equivalence testing of the left piriform cortex did not lead to significant results based on the upper equivalence bound, t(58) = 1.47, p = .074. Consequently, the gray matter volume in the left piriform cortex could neither be deemed statistically different nor statistically equivalent between groups.

3.2 Major results consistent in both CA subgroups

The voxel-based morphometry replication results are near identical to the morphological group differences previously published in Peter et al. (2020). To ensure that these similarities were not solely driven by the subgroup of CA individuals who participated in both data collections, two subgroup analyses were conducted: one with the CA individuals who had participated in the previous study and one with the CA individuals who had not. The major findings, that is, the clusters of gray matter volume atrophy in the olfactory sulci and gray matter volume increases in the medial orbital gyri in individuals with CA compared to normosmic controls, were demonstrated in both CA subgroups (Figure S4). It is furthermore noteworthy that no gray matter volume abnormalities in either left or right piriform cortex could be demonstrated in either CA subgroup based on Welch's t-tests (all p > .377). Hence, we followed up with equivalence tests, resulting in statistical equivalence between the CA participants that were included in Peter et al. (2020) and matched controls in both left and right piriform cortex (largest p = .027). For the CA participants who did not participate in our previous study, statistical equivalence could be demonstrated in the right (largest p = .015) but not left (largest p = .055) piriform cortex. Full statistical results reported in Table S1.

3.3 Thicker orbitofrontal cortex in the CA group

The volumetric analysis was followed up by surface-based analyses to assess potential group differences in cortical thickness, surface area, and curvature. Similar to the study here replicated (Peter et al., 2020), the demonstrated surface-based group differences were almost exclusively located in the OFC, as were the volumetric results. The cortical thickness analysis revealed a thickening of the bilateral medial orbital gyri and olfactory sulci in the CA group (Figure 1d, Table 3). The CA group further demonstrated decreased surface area in the bilateral olfactory sulci and increased surface area in the right, but not left, posterior orbital gyrus (Figure 1d, Table 3) accompanied by decreased curvature around the same orbitofrontal areas: the bilateral olfactory sulci and medial orbital gyri (Figure 1d, Table 3), all at an FDR threshold of <.05. Additional minor clusters with few vertices surviving our predefined threshold were identified and listed in Table 3, but not further addressed.

TABLE 3. Replication results from surface-based measures.
Region Hemisphere x y z Cluster size p
Cortical thickness
CA > Control
Olfactory sulcus, medial orbital gyrus L −8 38 −22 338 10−15
Medial temporal gyrus L −47 12 −26 12 5 × 10−5
Precentral gyrus L −36 −29 52 15 7.9 × 10−5
Precentral gyrus, central sulcus L −35 −22 49 4 1.6 × 10−4
Olfactory sulcus, medial orbital gyrus R 16 20 −20 397 1.3 × 10−9
Olfactory sulcus, anterior olfactory nucleus R 10 12 −16 27 2.5 × 10−6
Medial temporal gyrus R 51 11 −20 11 1.3 × 10−5
Inferior frontal sulcus R 51 26 16 7 1.3 × 10−4
Medial temporal gyrus R 61 −7 −23 5 1.6 × 10−4
Fusiform gyrus R 33 −5 −38 1 2.5 × 10−4
CA < Control
Medial orbital gyrus, posterior orbital sulcus L −19 31 −17 18 2.5 × 10−5
Medial orbital gyrus R 23 35 −15 9 1.3 × 10−4
Area
CA > Control
Gyrus rectus L −6 47 −22 2 1.3 × 10−4
Posterior orbital gyrus, transverse orbital sulcus R 37 37 −8 280 2.5 × 10−6
Posterior orbital gyrus R 32 28 −18 4 3.2 × 10−4
CA < Control
Olfactory sulcus L −13 11 −15 251 2.5 × 10−10
Olfactory sulcus R 14 16 −13 256 1.6 × 10−10
Olfactory sulcus R 13 33 −18 19 2 × 10−4
Gyrus rectus R 7 13 −14 4 1.6 × 10−4
Curvature
CA < Control
Olfactory sulcus L −10 40 −20 59 7.9 × 10−12
Medial orbital gyrus L −14 39 −22 13 2.5 × 10−6
Posterior orbital gyrus L −17 15 −22 11 3.2 × 10−6
Gyrus rectus L −4 41 −24 9 7.9 × 10−8
Olfactory sulcus L −16 12 −15 7 4 × 10−5
Posterior angular gyrus L −35 −75 42 6 1.6 × 10−5
Medial orbital gyrus L −15 29 −22 6 2 × 10−5
Medial orbital gyrus R 14 27 −25 40 10−8
Olfactory sulcus R 13 39 −20 32 4 × 10−8
Posterior orbital sulcus R 18 12 −15 29 6.3 × 10−7
Posterior orbital gyrus R 19 14 −22 14 7.9 × 10−7
Olfactory sulcus R 15 29 −19 9 7.9 × 10−6
  • Note: Regions are identified based on ‘Atlas of the Human Brain’ (Mai et al., 2015).
  • Abbreviation: CA, congenital anosmia.
  • a Coordinates derived from MNI305.
  • b Cluster size has unit mm2.
  • c p-Value for peak vertex in cluster, uncorrected but surviving FDR < .05.
  • d CA < control indicates that individuals with anosmia has a lower absolute curvature, that is, a higher radius of curvature. FreeSurfer's convention of curvature is negative for gyri and positive for sulci, which means some of these contrasts are positive and some negative (see Figure 2).

3.4 SVM correctly classified CA and controls in the olfactory sulci but not piriform cortex

Both voxel-wise and vertex-wise (i.e., surface-based) analyses revealed consistent morphological differences between CA and control individuals in the OFC. We subsequently aimed to determine whether a multivariate method in form of SVM classification could differentiate between these two groups based on gray matter volumes, specifically in the piriform cortex. The multivariate analysis, thresholded at an accuracy level of 75%, revealed one cluster, centered around the bilateral olfactory sulci, that distinguished between CA individuals and normosmic controls based on their gray matter volume (cluster size: 28,641 mm3; peak coordinates: x, −14; y, 35; z, 27; peak accuracy: 95.3%, Figure 2). To determine the statistical significance of this cluster, we performed a permutation test with 5000 resamplings and estimated the p-value of .009. Although the vast majority of piriform cortex was not included in the cluster that allowed the groups to be differentiated, there was a minor overlap between the posterior end of the significant cluster and left anterior piriform cortex (Figure S5). To check whether the extension to the piriform cortex is due to the 6 mm spherical searchlight approach, that is smoothed values are artificially extended into the piriform cortex, and if the gray matter metrics of the piriform cortex could participate in distinguishing between two groups, we performed a searchlight analysis within a mask of the piriform cortex with a slightly smaller sphere radius (5 mm). The accuracy of this classification did not reach the set significant level of 75% (piriform cortex voxels' accuracies <69%) anywhere in piriform cortex, suggesting that the extension to the piriform cortex is due to the artificial enlargement of the results found in the OFC.

Details are in the caption following the image

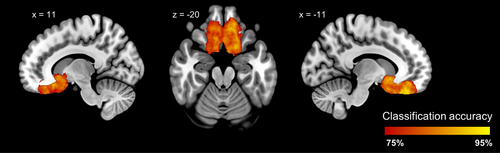

Group classification accuracy based on gray matter volume. Significant cluster located around the bilateral olfactory sulci with classification accuracy >75% (p = .009).

4 DISCUSSION

It has been clearly established that lifelong visual sensory deprivation alters the morphology of visual cortical areas. Whether a lifelong absence of olfactory experiences alters the morphology of the human olfactory cortex has been under debate with studies yielding diverging results. We here demonstrate that individuals with isolated CA have seemingly normal morphology in piriform (olfactory) cortex, thus confirming the surprising results presented in Peter et al. (2020). Further, we demonstrate bilateral clusters of morphological alterations in the OFC in individuals with CA compared to matched healthy controls, result that line up well with the existing literature (Frasnelli et al., 2013; Karstensen et al., 2018; Peter et al., 2020). These results are obtained both in a direct replication of the mass-univariate analysis from Peter et al. (2020) and with multivariate analysis methods.

The seemingly normal morphology in piriform cortex in individuals with CA demonstrated in Peter et al. (2020) contradicted the results from two previous studies on CA morphology (Frasnelli et al., 2013; Karstensen et al., 2018) as well as studies on individuals with acquired anosmia (Bitter et al., 2010; Iravani et al., 2021; Peng et al., 2013; Yao et al., 2014). In the current study, we set out to establish whether the results obtained in Peter et al. (2020) accurately reflect the brain morphology in CA. In a direct replication of Peter et al. (2020) we can here demonstrate near identical results to those previously presented, namely an absence of group differences in piriform cortex as well as bilateral clusters of morphological group differences in the OFC: decreases around the olfactory sulci and increases around the medial orbital gyri for the CA group. We further demonstrate that the replication results are not driven by an overlap of participants in the two studies. First, a new group of matched controls was included in the current study. This ensures that the demonstrated group differences are not driven by a randomly selected unrepresentative control group. This phenomenon is often overlooked, but was clearly demonstrated in a study where the tactile performance of blind individuals was enhanced only in comparison to one of the two included sighted control groups (Alary et al., 2009). Second, we show in a subgroup analysis that all major results were reproduced in both the sample of CA individuals who participated in both the recent data collection and in Peter et al. (2020) (n = 13) as well as those unique to the current study (n = 17). Note that when assessing the subgroups, a more liberal statistical threshold was used due to the smaller sample sizes, resulting in additional small clusters of group differences that lack overlap between the two subgroups; these results could have been interpreted as interesting findings in a context where information from larger samples was missing. This puts greater emphasis on the importance of increasing statistical power and replicating studies to establish trustworthiness of findings in research fields where small sample sizes is common.

In addition to replicating the major results from the original study (Peter et al., 2020), we can here demonstrate bilateral clusters of increased cortical thickness around the olfactory sulci, whereas the cluster in the right hemisphere failed to reach significance when correcting for multiple comparisons in Peter et al. (2020). The bilateral result presented here is likely related to lower variability as a result of all data being collected at one site, using one scanner and head coil, whereas two scanning sites were used to increase the sample size in Peter et al. (2020). Still, the lower variability did not lead to detection of any group differences in piriform cortex, neither in a whole-brain analysis correcting for multiple comparisons, nor in a directed ROI-analysis. In fact, equivalence of piriform gray matter volume between groups was demonstrated unilaterally, whereas the gray matter volume was not statistically different but not statistically equal unilaterally (Lakens et al., 2018). Hence, by replicating the analyses in Peter et al. (2020), we can here in a new data set confirm the morphological deviations in the OFC and, importantly, the lack thereof in piriform cortex in individuals with CA.

Mass-univariate analyses, as those discussed above, are the most frequently used analyses in the study of brain morphology in sensory deprivation and have contributed with much knowledge. Mass-univariate analyses are, however, by nature limited to detect large, localized effects. In contrast, multivariate analysis methods enable the detection of more complex and subtle patterns (Davatzikos, 2019) and therefore have the potential to reveal gray matter volume abnormalities in individuals with CA neither detected in Peter et al. (2020) nor in the current replication. Hence, to complement the mass-univariate analyses applied in previous studies of CA (Frasnelli et al., 2013; Karstensen et al., 2018; Peter et al., 2020), the recently collected data was combined with data from Peter et al. (2020) and analyzed with SVM classification. Using a searchlight approach, which enables localized classification accuracy results, one large cluster with high (>75%) classification accuracy located in the bilateral OFC was identified, that is, covering the regions also identified with the mass-univariate analyses. This overlap of results between methods is expected—although the SVM has the potential to detect more widespread, subtle patterns of group differences, it will also utilize the larger, more localized effects that the mass-univariate methods can detect. The significant cluster from the SVM classification connected the previously identified regions and extended beyond them, with the posterior part reaching towards the anterior piriform cortex and into the caudate nucleus. An enlargement of clusters is a feature of the searchlight analysis approach that needs to be taken into account when interpreting the results. It stems from the fact that the classification accuracy projected on one voxel is based on all information within a sphere surrounding the voxel, meaning that the same voxel contributing to high classification accuracy will be included in all spheres at a distance less than or equal to the sphere radius (here 6 mm) from that voxel. Hence, because the few voxels in piriform cortex showing high classification accuracy are located at the posterior end of the large orbitofrontal cluster, it is likely that they are merely a projection of the group differences in the OFC. This interpretation is supported by the fact that an SVM classifier was unable to distinguish between the two groups when only the voxels within piriform cortex were used as features for classification in a targeted analysis. Moreover, our control analysis using a smaller smoothing factor suggest that the piriform result is due to the smoothing.

Although a multivariate analysis approach arguably is better suited than mass-univariate analyses when assessing brain morphology in olfactory sensory deprivation based on the heterogeneity of the olfactory system (Iravani et al., 2021), the classification results in the current study line up well with the mass-univariate results and, importantly, does not identify additional brain regions of group differences. Hence, also the multivariate analyses provide strong support for large clusters of gray matter volumetric group differences and that these group differences are restricted to the OFC.

Individuals with CA demonstrate a lack of indications of morphological abnormalities in piriform cortex, a cortical region of outmost importance for olfactory processing (Gottfried, 2006; Lundström et al., 2011; Seubert et al., 2013), independent of whether uni- or multi-variate analysis methods are applied. The question that remains to be answered is why the morphology of this region is seemingly unaffected by a lifelong absence of the expected input whereas visual cortex demonstrates clear morphological reorganization when deprived of visual input (Jiang et al., 2015; Lee & Whitt, 2015; Noppeney, 2007; Voss, 2019). Atrophy in piriform cortex within individuals with acquired anosmia has been demonstrated (Bitter et al., 2010; Iravani et al., 2021; Peng et al., 2013; Yao et al., 2014, 2018), thereby indicating that the structure of the region is plastic and can be affected by altered input. A potential explanation to our lack of effects might be that the morphology in piriform cortex is preserved in individuals with CA precisely because the olfactory sensory deprivation is congenital and not later acquired, thereby not experiencing a sudden change in sensory input and a subsequent push to restore homeostasis via plastic reorganization (Pascual-Leone et al., 2005). That a clear shift in sensory input might trigger plasticity is supported by findings in animal models where the cortical thickness of piriform cortex is seemingly unaffected by a deprivation of olfactory input right after birth. In contrast, olfactory bulb ablation later in life leads to noticeable decrease in piriform cortex thickness (Friedman & Price, 1986; Westrum & Bakay, 1986). A competing hypothesis is that the absence of (macroscopic) morphological deviations in piriform cortex demonstrated here could be related to a functional overtake where the piriform cortex processes non-olfactory information. Indeed, piriform activity has been shown to be elicited by non-olfactory input (Gottfried et al., 2004; Porada et al., 2019) in individuals with a normal sense of smell, suggesting that cross-modal processing might be present also in individuals with CA. These studies do, however, explicitly or implicitly associate the presented non-olfactory stimuli with olfactory stimuli and it is therefore unknown whether demonstrated cross-modal activity is dependent on olfactory association or not, an association that by nature is non-existing in individuals with CA.

In clear contrast to piriform cortex, considerable morphological deviations are demonstrated in olfactory related areas of the OFC in individuals with CA. Of particular interest is the fact that these morphological deviations seem to be specific to CA: when compared to acquired olfactory deprivation of different etiologies, the demonstrated results bore a striking resemblance to the results our current and previous study, where individuals with CA are compared to normosmic controls (Postma et al., 2021). Following the speculations of Peter et al. (2020), the volumetric decreases around the olfactory sulci are likely related to the absence or hypoplasia of the olfactory bulbs distinguishing individuals with CA given that the olfactory bulbs are located right below the olfactory sulci. Thus, it can be assumed that these group differences are based on a congenital morphological abnormality in individuals with CA rather than a plastic rearrangement of cortex as an effect of absent olfactory input (Peter et al., 2020). In contrast, the morphological increases demonstrated in the OFC overlap quite well with the orbitofrontal subregion demonstrating the highest likelihood for olfactory-induced activity based on neuroimaging studies (Seubert et al., 2013). This implies that these morphological abnormalities are a likely consequence of the absence of olfactory processing in that region, either based on decreased synaptic pruning due to absent olfactory input (Frasnelli et al., 2013), related to compensatory processing from our other senses (Merabet & Pascual-Leone, 2010), or both. Indeed, we recently showed that individuals with CA demonstrated enhanced audio–visual integration performance compared to healthy controls (Peter et al., 2019). Note, however, that no group differences in audio–visual processing in the OFC were found in a subsequent imaging study comparing individuals with CA and matched controls (Peter et al., 2021).

A strength of the current study is the large sample size, in the context of studying congenital sensory deprivation and other rare populations. The size of our data set do, however, still limit the statistical power, that is, decreasing the probability of finding small effects if present in the sample as well as increasing the probability that detected effects in fact are spurious (Button et al., 2013). Moreover, although we are matching our sample for the factors age and sex, there are an endless number of other factors that might interfere with our results and interpretation. That said, in addition that we here provide a direct replication of past results, the fact that the morphological groups differences detected in OFC and the absence of differences in piriform cortex are supported independent of applied analysis method supports both the findings and null findings. It should, however, be noted that the highly interesting null-finding in piriform cortex does not necessarily imply that the region is completely structurally normal in individuals with a lifelong absence of olfactory processing. We can here only provide evidence for a lack of gross abnormalities given the type of data and analysis methods used; we are thus also limited by the spatial resolution of the structural images (1 mm3) and cannot dismiss the possibility that group differences in the neuronal constitution and cortical layering exists.

5 CONCLUSION

We can here conclusively demonstrate that lifelong olfactory deprivation creates large morphological deviations in gray matter within areas of the OFC where CA individuals experience both areas of increase and areas of decrease. Critically, we can replicate and more firmly demonstrate that lifelong olfactory sensory deprivation does not alter the gross anatomical organization of the piriform cortex, a region argued to constitute primary olfactory cortex. Why the primary olfactory cortex, in sharp contrast to other sensory cortices, is not affected by long-term sensory deprivation and what functional and behavioral effects this results in remains to be determined. Taken together, our results suggest that the olfactory system is not affected by sensory deprivation in the same manner as our other sensory systems: lifelong olfactory sensory deprivation mainly affects higher-order olfactory processing regions.

ACKNOWLEDGMENTS

This work was supported by the Knut and Alice Wallenberg Foundation (KAW 2018.0152) and the Swedish Research Council (2017-02325; 2021-02700), all awarded to Johan N. Lundström. The use of the MR facility at Stockholm University (SUBIC) was made possible by a grant to SUBIC (SU FV-5.1.2-1035-15). The use of the 3 T MRI facility at Hospital Gelderse Vallei in Ede (NL) has been made possible by Wageningen University & Research Shared Research Facilities.

    CONFLICT OF INTEREST STATEMENT

    The authors report no conflict of interest.

    DATA AVAILABILITY STATEMENT

    The data that support the findings of this study are available on request from the corresponding author. The data are not publicly available due to privacy or ethical restrictions.
