Effect of Artemisia sphaerocephala Krasch polysaccharide on the gelatinization and retrogradation of wheat starch

2.1 Materials

Wheat starch with 21.3% amylose and 8.3% moisture was obtained from Shanghai Yuanye Biotechnology Co., Ltd. (Shanghai, China). Artemisia sphaerocephala Krasch seeds were obtained from a local market (Yulin, China). ASKP extraction was on the basis of the method of Guo et al. (2011). Briefly, ASK seeds were soaked and stirred constantly in water (1:400 w/v, 70°C) for 24 hr, and the supernatant was concentrated by rotary evaporation, then anhydrous ethanol was added to precipitate the polysaccharide, and finally, the precipitation is freeze-dried to obtain ASKP.

2.2 Preparation of the mixed dispersions

ASKP-WS mixtures were prepared according to the method described by Yang, Feng, Sun, Xu, and Zhou (2017) with some modifications. In the prepared mixtures, WS accounted for 10% and ASKP accounted for 0, 0.1, 0.2, 0.3, 0.4, and 0.5% (w/w), respectively. The suspensions were stirred evenly, followed by treatment in water bath (100°C) for one hour. Then, the cooled pastes were stored at 4°C for further studying.

2.3 Leached amylose content and swelling power

The content of leached amylose and swelling power of samples during heating were determined according to the method of Li et al. (2017). Firstly, the ASKP-WS mixtures (2%) were heated in a water bath (95°C, 30 min). Then, the supernatant was stained by I₂–KI aqueous solution (2% KI and 0.2% I₂) and the absorbance of samples was measured at 620 nm. The precipitate was weighed and then dried to a constant weight at 105°C. Each sample was measured for three times.

2.4 Rapid viscosity analysis (RVA)

The pasting properties of suspensions were tested following the method of Li et al. (2017). The mixtures (2.5 g) were directly weighed in proportion into a RVA sample can and then added distilled water to 28 g. The parameters including pasting temperature (PT), peak viscosity (PV), trough viscosity (TV), final viscosity (FV), breakdown (BD = PV - TV), and setback (SB = FV - TV) were recorded. Each measurement was performed for three times.

2.5 Differential scanning calorimetry (DSC)

The influence of ASKP on the pasting and aging of WS were assessed using Thermo-analyzer Systems (Q1000DSC + LNCS+FACS Q600SDT; TA Instruments Inc., USA) according to the method of Qiu et al. (2017). 3.0 ± 0.1 mg starch-polysaccharide mixtures were directly weighed into test pans and then added 9 μL distilled water. The temperature was rose from 20 to 100°C at a rate of 10°C/min for gelatinization studies. The cooled samples were preserved at 4°C and then reheated under the same conditions for retrogradation analysis. The transition temperatures including the onset, peak and conclusion temperature (To, Tp, and Tc), the enthalpy of gelatinization (ΔHg), and retrogradation (ΔHr) were obtained using TA universal analysis software. Moreover, ΔHr/ΔHg x 100 was used to reflect the degree of retrogradation (%) (Raguzzoni et al., 2016).

2.6 Texture profile analysis (TPA)

TPA was measured based on the method reported in previous study (Li et al., 2017). The prepared pastes were sealed at 4°C for 1, 3, 7, and 14 days to allow gel formation, and returned to room temperature before the analysis. The test speed and control force were 1 mm/s and 10 g, respectively. The gels were compressed twice with 25% deformation level. The hardness and cohesiveness of the samples were recorded. Each measurement was repeated for five times.

2.7 X-ray diffraction (XRD)

The ASKP-WS gels stored at 4°C for 1 day and 14 days were orderly lyophilized, milled, and sieved (100-mesh). XRD measurement was carried out following the method of Wang et al. (2016). Diffractograms were obtained by scanning from 4–40° (2θ) at a rate of 2°/min. Relative crystallinity was calculated using Jade 5.0 software (Materials Data Inc., Livermore). Each sample was performed for three times.

2.8 Fourier-transform infrared spectroscopy (FT-IR)

FT-IR analysis of the samples was performed on a Fourier-transform infrared spectrometer (Tensor27; Bruker Co., Ltd, Germany) over the range of 4000–400 per cm. Samples blended with KBr (1:100) were pressed into pellets prior to FT-IR analysis. The amplitudes of absorbance for each sample at 1,022 per cm and 1,047 per cm were recorded.

2.9 Low-field nuclear magnetic resonance (LF-NMR)

The ASKP-WS gels stored at 4°C for 14 days were used to perform the LF-NMR test. The measurement was carried out using NMI20-030H-I (Niumag Corporation, China) according to the method of Sheng et al. (2018) with a few modifications. Parameters were set as follows, the spectral width (SW) was set to 100 KHz, the number of scans (NS) was 4, and the rapid spin-echo pulse sequence echo time (TE) was set to 0.4 ms, P1 was 19 μs and P2 was 38 μs.

2.10 Statistical analysis

Data were showed as the mean ± SD. The mean values were analyzed with Duncan's test (p < .05) using SPSS 22.

3.1 Leached amylose content and swelling power

Table 1 depicted the amount of leaching amylose of ASKP-WS mixtures with different ASKP concentrations. The addition of ASKP could slightly increase the leached amylose content of wheat starch pastes, suggesting that ASKP could promote the leaching of amylose from wheat starch. It is possible that ASKP can interact with starch granules and facilitate the diffusion of amylose from starch granules. The result is different from some previous reports (Li et al., 2017; Sheng et al., 2018), while this phenomenon was manifested by the results of RVA experiment (Table 2).

As shown in Table 1, the swelling power of ASKP-WS blends increased with the increase of ASKP concentration. A plausible explanation may be that ASKP could absorb water and enhance water-holding ability of the ASKP-WS systems (Sheng et al., 2018).

3.2 Rapid viscosity analysis (RVA)

The pasting properties of WS pastes containing different amounts of ASKP were summarized in Table 2. It was well known that PV value is a parameter related to the swelling of starch granules. ASKP addition did not evidently change the PT value of WS, but it significantly increased the peak, trough, and final viscosity (910–1319 cP, 725–1104 cP, and 1028–1492 cP, respectively) with the ASKP concentration increasing. Thus, the addition of ASKP allows WS to act as an efficient thickener in foods, such as jelly, ice cream, and noodles. The result of the present research is consistent with some earlier studies (Li et al., 2017). A synergistic effect between the polysaccharide and leached amylose or swollen starch was at least responsible for the increase of viscosity (Li et al., 2017).

The breakdown (BD) value was introduced here in order to reflect the stability of the starch granules in the course of heating, and the higher the BD value, the less the granule integrity (Luo et al., 2017). Table 2 illustrated that ASKP addition caused a higher BD value. It declared that ASKP addition could reduce the stability of starch paste, and the reduction effect was strengthened with a higher ASKP concentration. The setback (SB) value is closely connected with the degree of recombination of amylose in the process of cooling and mainly reflects the degree of short-term retrogradation (Li et al., 2017). The addition of ASKP increased the SB value from 303 to 392 cP, and a higher ASKP concentration results in a higher SB value. Previous studies have also reported that xanthan, guar gum, and β-glucan could enhance the SB value of starch (Banchathanakij & Suphantharika, 2009; Huang, 2008; Viturawong, Achayuthakan, & Suphantharika, 2008). Our result suggested that ASKP was able to promote the short-term retrogradation of WS, which may be related to the interactions between ASKP molecules and swollen granules or granule fragments. Another cautious speculation was that the interactions of amylose molecules were expedited due to the thickening effect of ASKP (BeMiller, 2011).

3.3 Differential scanning calorimetry (DSC)

Table 3 listed the gelatinization and retrogradation parameters of ASKP-WS systems measured by DSC. The pasting temperatures (To, Tp, and Tc) were not observably changed by ASKP addition. In the majority of situations, the addition of hydrocolloids made little or no difference to gelatinization temperatures (BeMiller, 2011; Qiu et al., 2017). ASKP progressively increased the gelatinization enthalpy (ΔHg) of the starch from 11.54 J/g to 12.99 J/g. Previous studies have reported that the addition of tea polysaccharide could increase the ΔHg value of wheat starch (Zhang et al., 2015; Zhou et al., 2008). The increase in ΔHg value might be connected to the good hydrophilicity of ASKP, which can affect the water redistribution in the system. Therefore, when ASKP was added to the starch gels, more energy is needed for gelatinization (Yang et al., 2017).

Enthalpy of retrogradation (ΔHr) mainly represents the degree of recrystallization for amylopectin (Luo et al., 2017). Therefore, as reported by previous studies, the ΔHr values of samples tended to increase with storage period (Chen et al., 2015; Li et al., 2017). The percentage of retrogradation (R_i) reflects the ratio of ΔHr to ΔHg, and the lower the R value, the stronger the suppression on retrogradation of starch (Luo et al., 2017). After 1 day at 4°C, the R₁ value of WS increased from 43.91% to 45.54% as the content of ASKP was increased from 0% to 0.5%. It was consistent with RVA results. After 14 days, the R₁₄ value decreased from 58.95% to 56.76%. The ΔR (= R₁₄ - R₁) reflected the degree of retrogradation during the 13-day storage, and decreased from 15.00% to 11.70% with the changes in polysaccharide concentration. These results indicated that ASKP could accelerate the short-term retrogradation and impede the long-term process of WS, which were in accordance with previous literature regarding to retrogradation of starch-hydrocolloid blends (Pongsawatmanit et al., 2013). It was hypothesized that ASKP could prevent the reassociation of amylopectin molecules through interactions with amylopectin (Yoshimura, Takaya, & Nishinari, 1996).

3.4 Texture profile analysis (TPA)

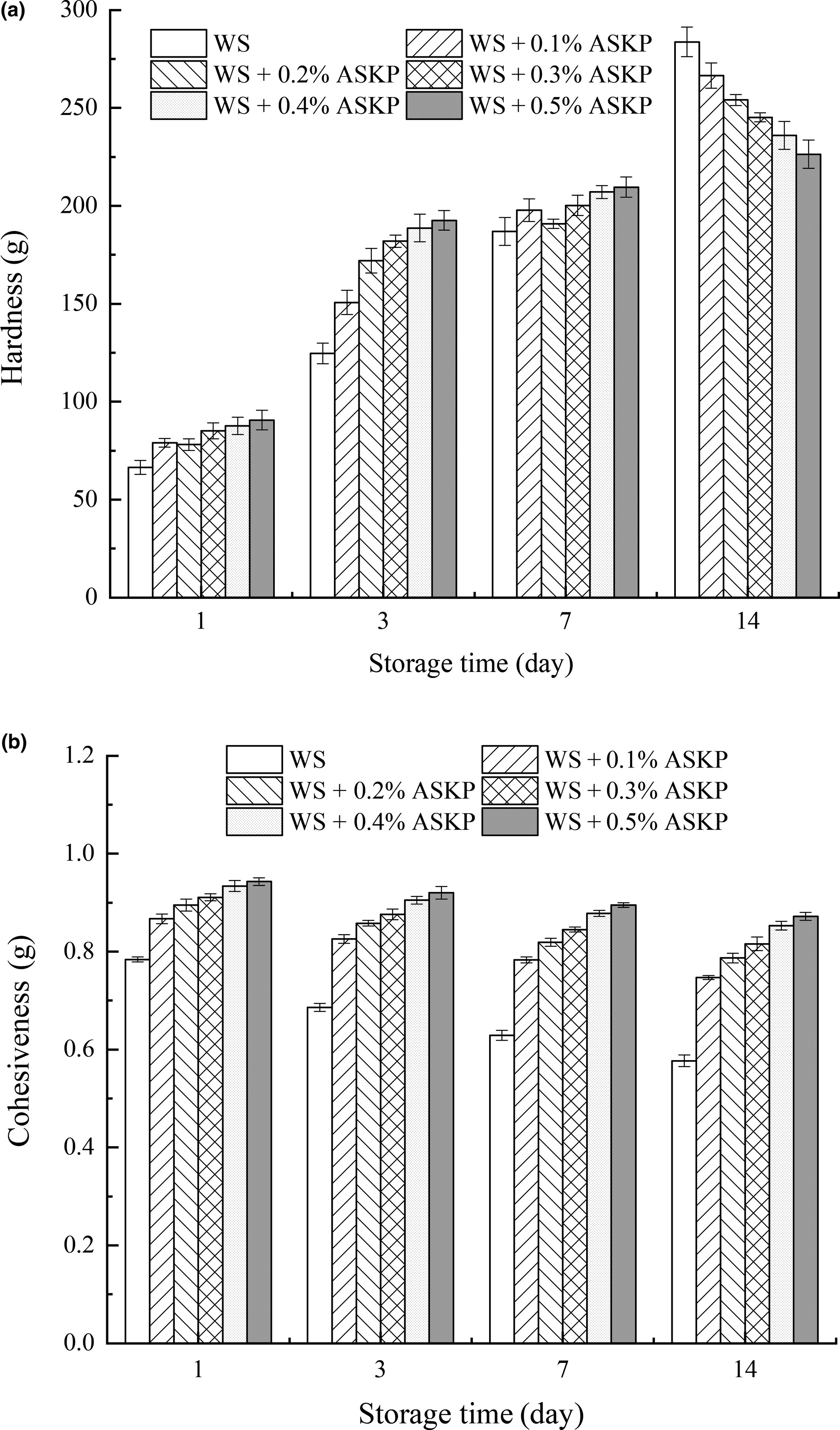

The hardness of ASKP-WS gels determined by TPA was illustrated in Figure 1a. Hardness of starch gel can be applied to estimate the degree of retrogradation because it is strongly relevant to retrogradation (Tian et al., 2009). When the ASKP-WS gels were stored at 4°C, the hardness of all tested samples increased with the storage time. The hardness of gels containing ASKP was larger than without ASKP at 1 and 3 days, which indicates that ASKP has the potential to enhance the hardness of WS gel during short-term storage. This was in agreement with the SB values in RVA results (Table 2). The hardness of tested samples with and without ASKP was inclined to be equal in the seventh day. Then, the gels containing ASKP became softer than the starch-only samples at 14 days, and the hardness of tested samples decreased with the increasing of ASKP concentration. The results were in keeping with the R₁₄ values in DSC results (Table 3). Hence, ASKP could be applied in soup, noodles, jelly, and other starchy food according to different firmness demands and different storage time. The aforementioned phenomenon suggested that ASKP could strengthen the short-term retrogradation of WS, while retard the long-term retrogradation. These are in good agreement with reported research that xanthan or gum arabic could increase markedly initial gel hardness, but decrease hardness during longer storage (Alloncle & Doublier, 1991). The change in the gel firmness may be ascribed to the competition of available water between the molecules of starch and ASKP and interactions between ASKP and WS granules.

Cohesiveness is a parameter related to intramolecular interactions. During the same storage time, the cohesiveness of the tested gel was increased with the addition of ASKP (Figure 1b), indicating that stronger intramolecular interactions formed in the gels containing ASKP. However, with time going on, the cohesiveness of all gels decreased slightly. Zhang et al. (2015) also pointed out that tea polysaccharide has ability to aggrandize the cohesiveness of the wheat starch gel.

3.5 X-ray diffraction patterns (XRD)

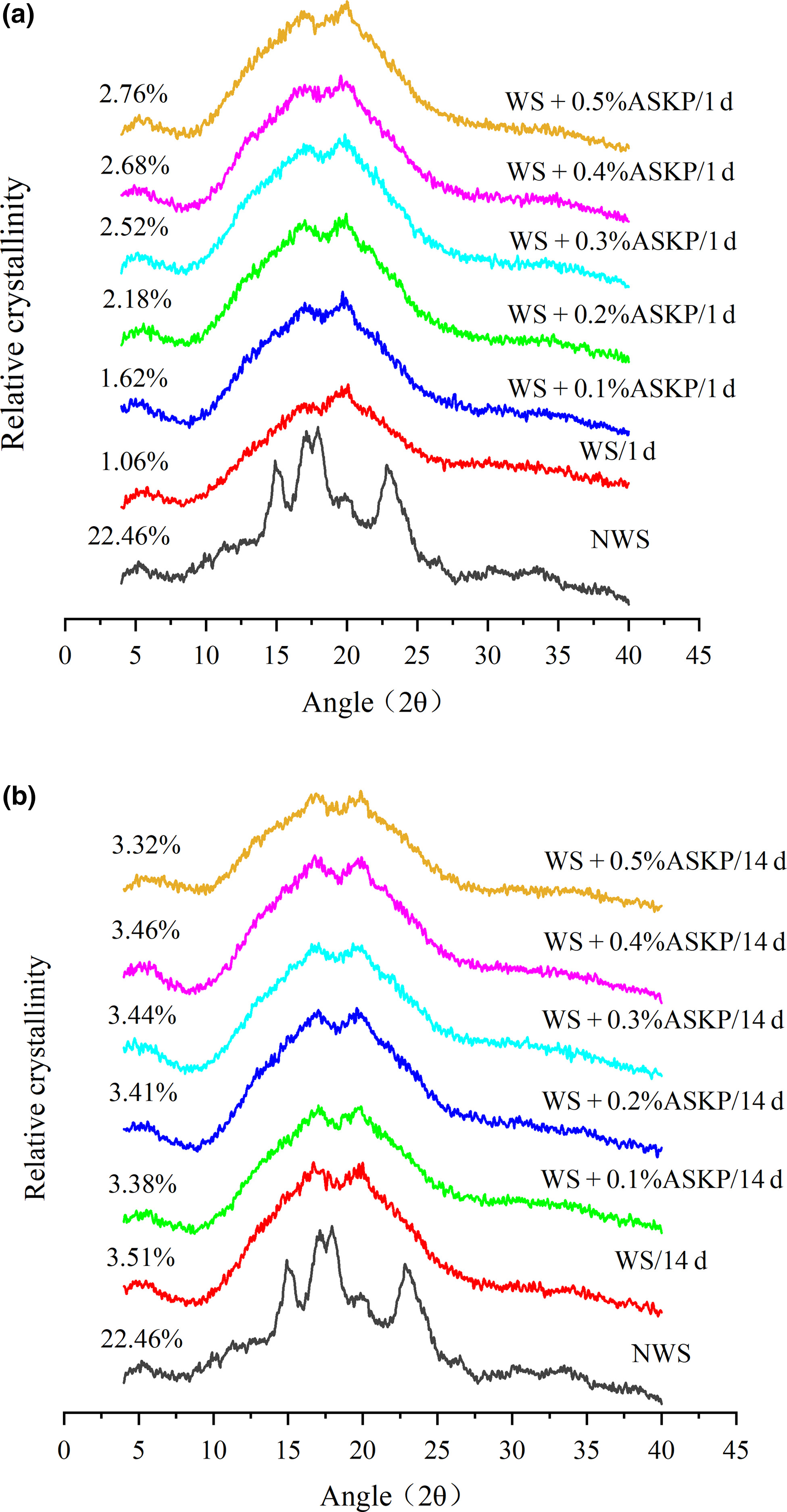

XRD experiment was adopted in order to further explore the influence of ASKP on the aging of WS (Nagano, Tamaki, & Funami, 2008). XRD patterns of WS and ASKP-WS mixtures were depicted in Figure 2.

As previous literature reported, there are four crystal types for XRD patterns of plant starch. 2θ at around 15, 17, 18, 20, and 23 are A-type crystal, 5.5, 17, 22, and 24 are B-type crystal, and 7.8, 13.5, and 20.7 are V-type crystal. The mixture of A-type and B-type is defined as C-type (Luo et al., 2017). Native wheat starch belonged to typical A-type XRD pattern due to obvious diffraction peaks at 15.2, 17.0, 18.2, and 23.1 (Figure 2), which is consistent with previous studies (Li et al., 2017; Luo et al., 2017). After gelatinization and retrogradation, the characteristic peaks of all samples were located at about 5.5, 16.8, 19.9 (Figure 2), demonstrating that the WS formed a C-type crystal.

As shown in Figure 2, since the presence of ASKP made no significant difference on diffraction peak location, ASKP could not change starch crystal type. With the increasing in ASKP concentration, the characteristic peak intensity of C-type diffraction pattern was strengthened, so ASKP addition was able to expedite the recrystallization of starch (especially amylose) (Figure 2a). However, when the starch gel was stored for 14 days, peak intensity of C-type structure tended to be weaker with the increased amounts of ASKP (Figure 2b), implying the inhibiting effect of ASKP on the reaggregation of starch molecule (particularly amylopectin).

When the concentration of ASKP increased from 0% to 0.5%, the RC (relative crystallinity) value of ASKP-WS stored for 1 day increased from 1.06% to 2.76%, while in contrast, the RC value of the samples stored for 14 days decreased from 3.51% to 3.32% (Figure 2). ΔRC represented the increase of relative crystallinity. A lower ΔRC value of WS was observed during storage from 1 day to 14 days. Overall, these phenomena confirmed that ASKP addition could promote short-term retrogradation but hinder long-term retrogradation of WS, which was in line with DSC result (Table 3).

3.6 Fourier-transform infrared spectroscopy (FT-IR)

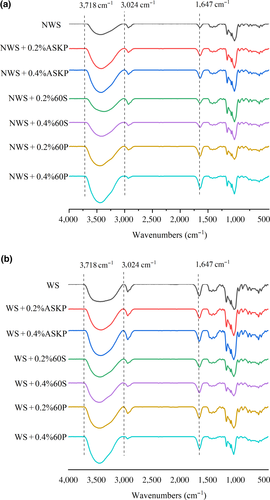

In order to detect changes in the short-range order of WS with the addition of ASKP, infrared spectroscopy was conducted both before and after gelation. Figure 3a displayed the FT-IR spectra in the range of 400–4,000 per cm of ASKP-WS mixtures before gelation, and Figure 3b depicted the samples suffered gel treatment.

The FT-IR spectra of all tested samples were similar, which implied that ASKP addition made no significant difference in chemical groups of WS. However, the absorption intensity of ASKP-WS around 1,640–1,650 per cm and 3,100–3,700 per cm was stronger than that of native starch, suggesting that more hydrogen bond formed in ASKP-WS mixtures. The absorption peak at 1,022 per cm was connected with vibrational modes within the amorphous phase of starch. At the same time, ordered structures of starch were described by the mode at 1,047 per cm. The ratio of intensity at 1047/1022 per cm (DO) was adopted to describe the degree of order in starches (López-Rubio, Flanagan, Shrestha, Gidley, & Gilbert, 2008; Zeng et al., 2015).

With the concentration of ASKP increasing from 0% to 0.5%, the DO values of ASKP-WS stored for 1 day increased from 1.179 to 1.321, while the values of same samples stored for 14 days decreased from 1.427 to 1.394 (Table 1). This trend was consistent with relative crystallinity (Figure 2), manifesting that ASKP addition could promote short-term retrogradation but hinder long-term retrogradation of WS.

3.7 Low-field nuclear magnetic resonance (LF-NMR)

LF-NMR was used to detect water changes and evaluate the water-holding capacity in food materials (Sheng et al., 2018). The spin–spin relaxation time (T2) was used to describe the changes in water mobility. In starch paste system, a lower T2 value means lower water mobility, indicating the tighter association between water molecules and starch molecules (Li et al., 2015). Table 1 displays the T2 values of ASKP-WS systems with different concentrations of ASKP during long-term storage. Apparently, T2 values (358.47–274.15 ms) decreased with the ASKP concentration increased, indicating that ASKP could constrain the free motion of water molecules. ASKP is a kind of hydrophilic polysaccharide and has good water-holding ability. Therefore, the changes of T2 might be related to the hydrogen bonds formed by ASKP and WS molecules, which weakened the interaction between starch and water and consequently restrained the long-term retrogradation of WS. This was in keeping with the FT-IR results. Similar reports have been disclosed by Charoenrein, Tatirat, Rengsutthi, and Thongngam (2011) and Sheng et al. (2018) that konjac glucomannan and pullulan were able to promote the water-holding capacity of starch paste. In short, ASKP addition could motivate water retention ability of WS paste and block long-term retrogradation of WS.
