Why is glycocholic acid sodium salt better than deoxycholic acid sodium salt for the preparation of mixed micelle injections?

1 INTRODUCTION

Classical mixed micelle (MM) systems, composed of natural phospholipids and bile salts, offer a nontoxic, highly biocompatible, and parenterally well-tolerated drug carrier for lipophilic and poorly soluble drugs. Researchers have attempted various approaches (Amedee-Manesme, Grüter, & Hanck, 1991; Hammad & Müller, 1998; Mrestani, Behbood, Härtl, & Neubert, 2010; Muranishi, Muranushi, & Sezaki, 1979), but only one product (Konakion^® MM) has been approved for the pharmaceutical market; while a few published results have described the influence of lecithin/bile salt ratios and the effect of total concentration on the size and shape of MMs (Krishnadas, Rubinstein, & Önyüksel, 2003; Lichtenberg, Robson, & Dennis, 1983; Shankland, 1970), many other factors are not fully understood. Therefore, more basic studies are required for elucidating the formation and stability of MM preparations.

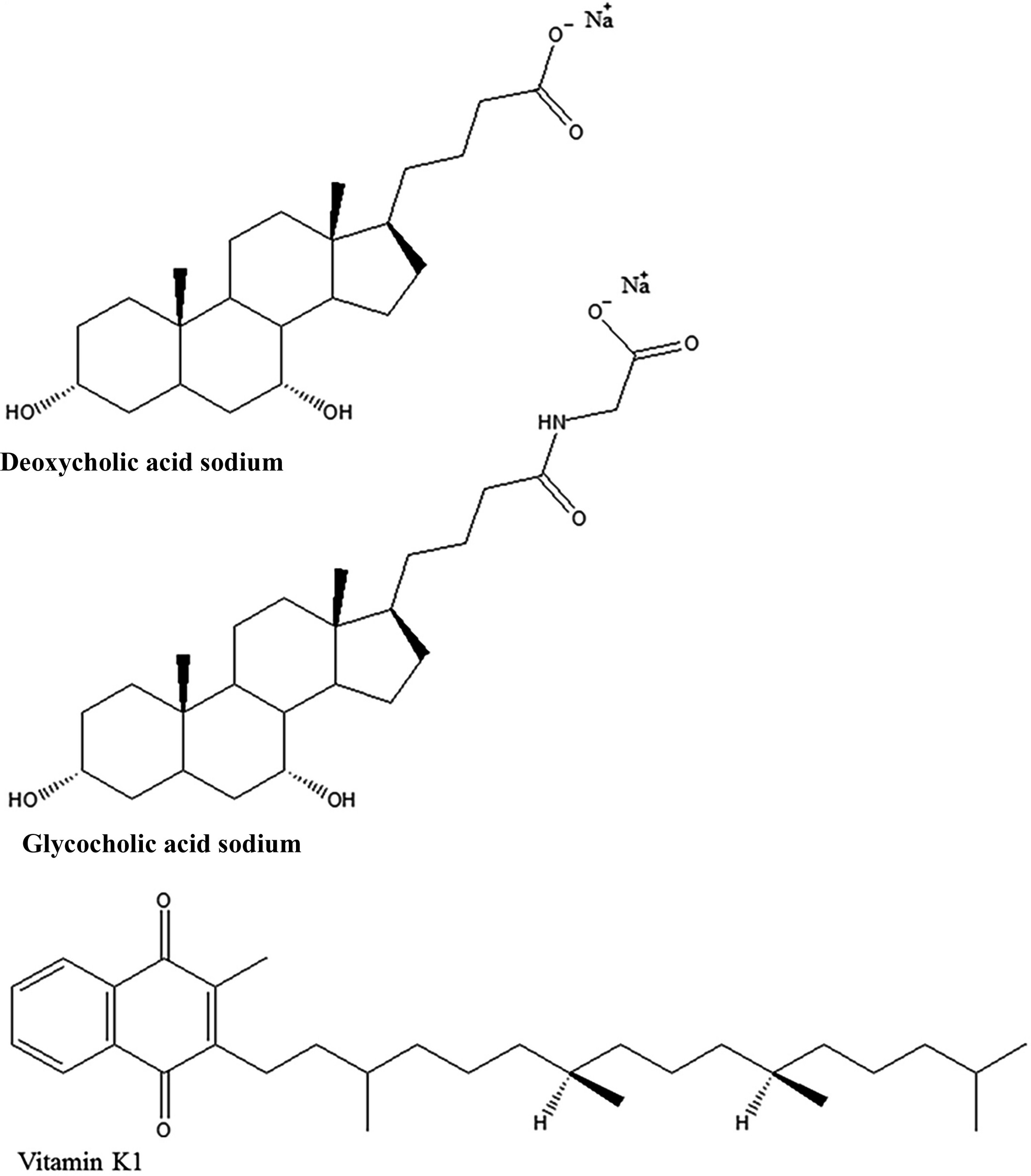

Glycocholic acid sodium (GAS) salt and deoxycholic acid sodium (DAS) salt are the most common cholic acid salts in the pharmaceutical industry, especially for the preparation of MMs. Both are water-soluble anionic surfactants that have the same steroidal backbones (Figure 1). Their physiochemical properties are so similar that their differences are often ignored. However, these slight differences affect the quality of MM injections very strongly in some times. So it is important to know the details to investigate how they differ, we constructed MM systems from lecithin and bile (GAS or DAS) salts. Vitamin K₁ (Figure 1), a lipid-soluble drug, was selected as the model drug for encapsulation in the MMs, after which the influence of bile salts on the quality and stability of MM formulations was analyzed.

All MM solutions or dispersions consisted of 1% vitamin K₁ (Shandong Guangtongbao Pharmaceuticals Co. Ltd.), 4.0 ~ 7.0% phospholipids, and 2.0 ~ 7.0% bile salts in double-distilled water that was prepared by a film-forming or evaporation method. The egg phospholipid Lipoid E80 (Lipoid GmbH), as well as GAS or DAS (Sigma-Aldrich), and vitamin K₁ were dissolved in ethanol (10 ml). After the solvent was evaporated by a rotary evaporator, pure water was added to obtain a solution of MMs loaded with vitamin K₁.

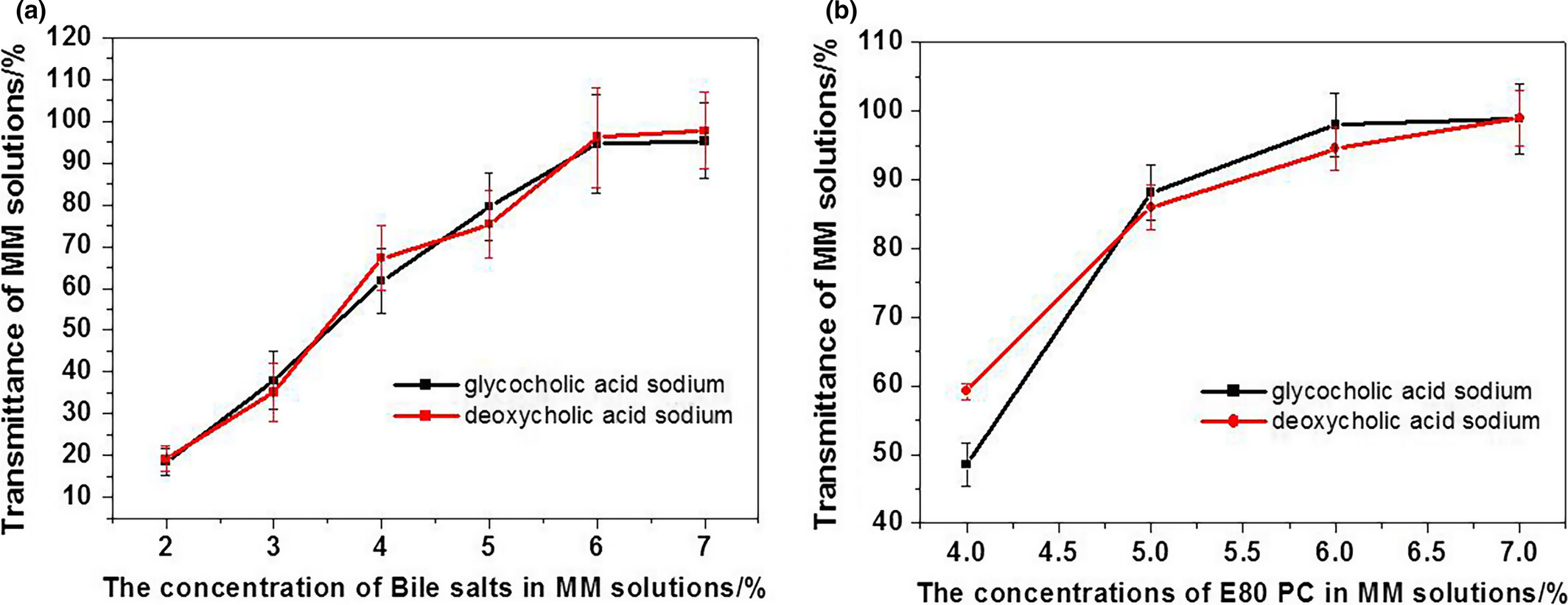

For an MM formulation to serve as a good parenteral drug carrier system, it must form an isotropically clear solution. An ultraviolet-visible spectrophotometer (U-3010, Hitachi) was used to analyze the transmittance of MM systems at 650 nm in order to elucidate the influence of bile salt or phospholipid (PC) concentrations on the formation of clear solutions in the presence of 1% (m/v) vitamin K₁. Clear solutions were obtained with high concentrations (>5%) of PC or bile salts (Figure 2): The more bile salts and phospholipids, the more hydrophobic core was available to encapsulate vitamin K₁. Both GAS and DAS salts exhibited similar abilities to form isotropically clear solutions with the same amounts of PC and vitamin K₁. Thus, the formation of isotropically clear solutions was dependent on concentration rather than type of bile salt.

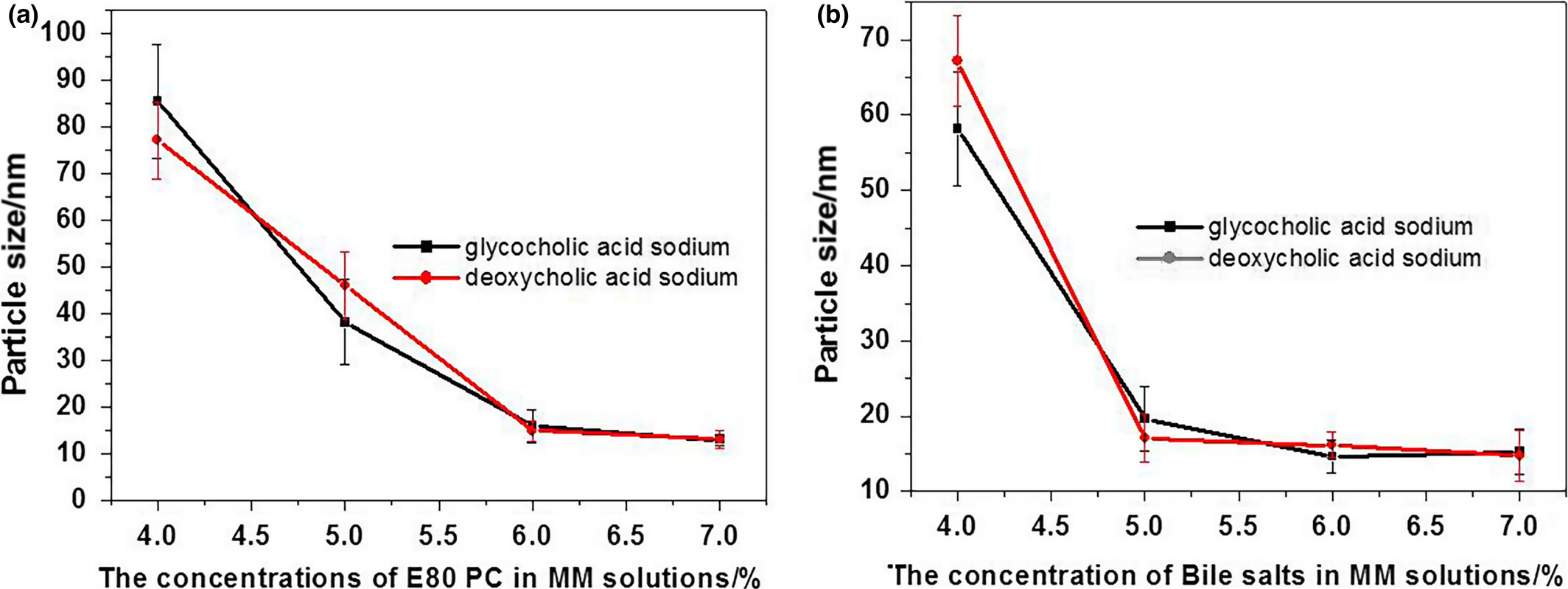

The particle sizes in MM systems were measured with a Nano ZS90 Zetasizer (Malvern Instruments). The mean sizes of MM particles rapidly decreased as the concentrations of PC or bile salts increased until a final plateau region was reached (Figure 3). In the plateau region, MM solutions with particles smaller than 15 nm were clear, which corresponds to results from the light transmittance tests. Therefore, the optimal formulation for MM systems consisted of 1% vitamin K₁, 6% PC, and 6% bile salts.

Mixed micelle solutions containing GAS and DAS salts were prepared according to the optimal formulation described above. For pH determination, all samples were measured directly with a pH meter (Mettler Toledo). The initial pH levels of the DAS and GAS MM solutions were 8.83 and 7.57, respectively.

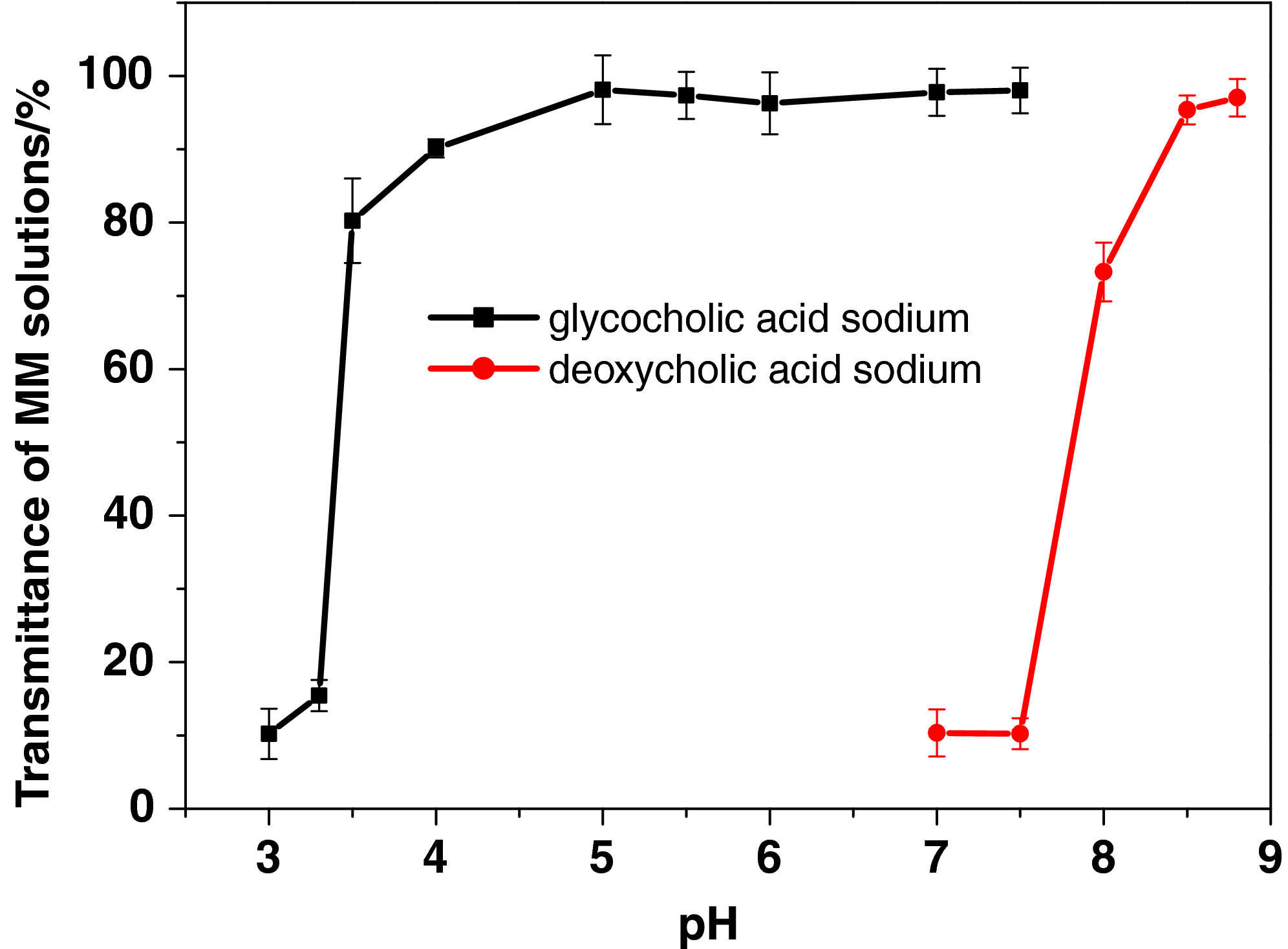

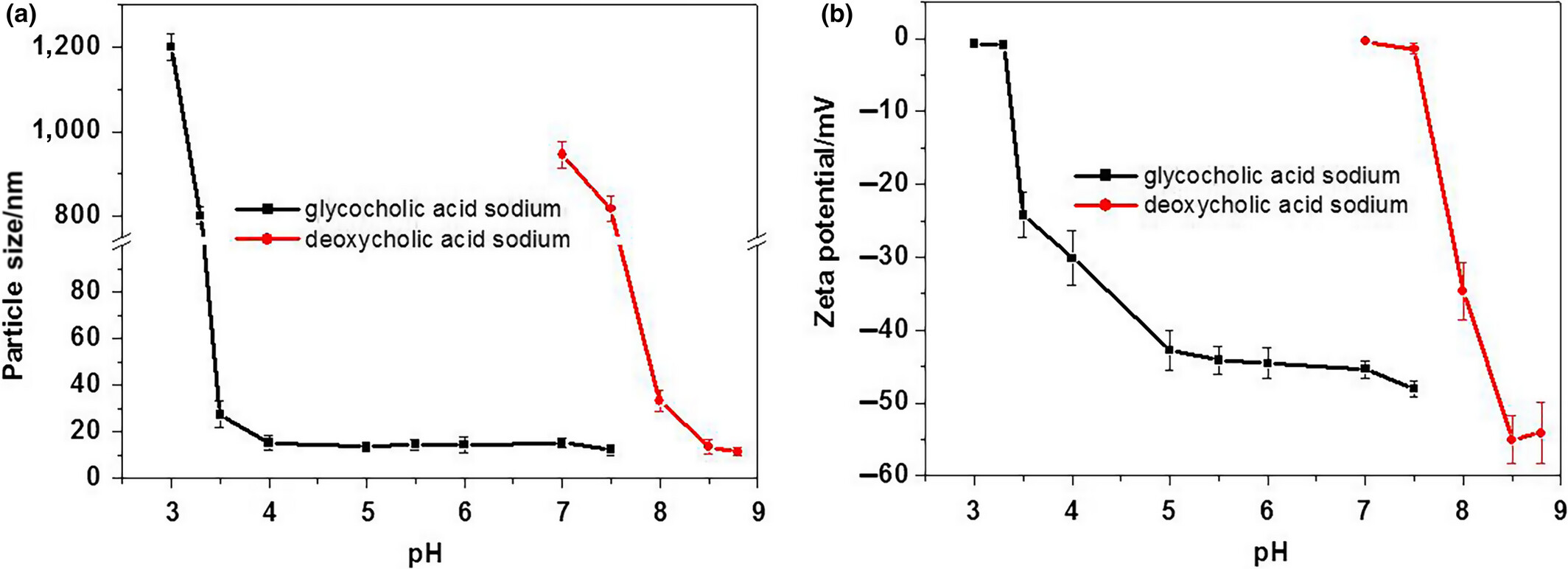

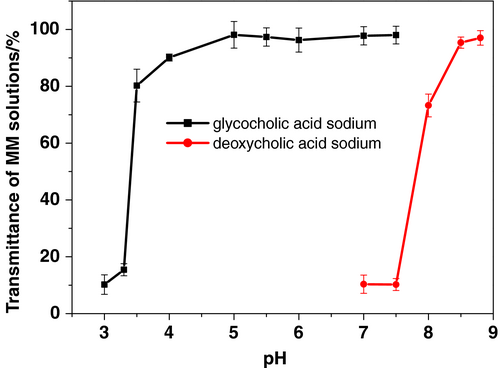

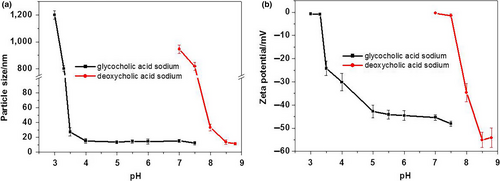

The GAS MM solutions were physically stable at a large range of pH levels (7.5–3.5; Figure 4). In contrast, transmittance of the DAS MM solutions quickly declined when the pH was adjusted below 8.5. The difference in pH-related physical stability between the MM systems was related to the difference in pKa between the bile salts. The pKa of DAS (6.86) was much higher than that of GAS (3.77). Therefore, lowering the pH of the solutions affected the zeta potential of the DAS MM system more intensively than it did the GAS MM system (Figure 5). A high zeta potential indicates more electrostatic repulsion between the nanoparticles. When the zeta potential neared zero, particles of MMs precipitated and caused cloudiness.

From these experiments, the optimal pH levels for maintaining high physical stability in DAS and GAS MM systems were 8.5 and 5.5, respectively. However, more insensitive hydrolytic and oxidative degradation of active pharmaceutical ingredients was taken place in alkaline medium. Therefore, MM formulations with low pH values have higher chemical stability than those with high pH values.

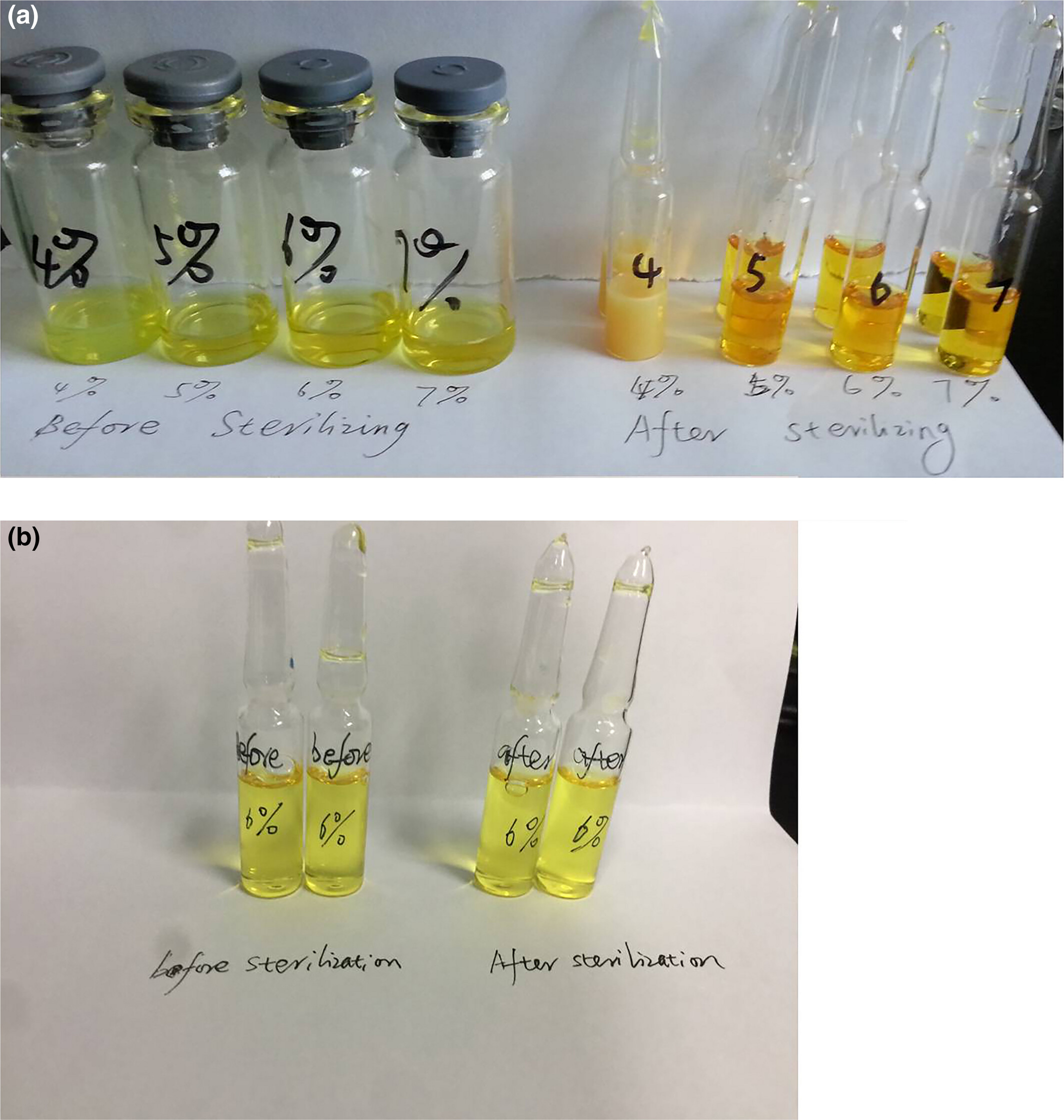

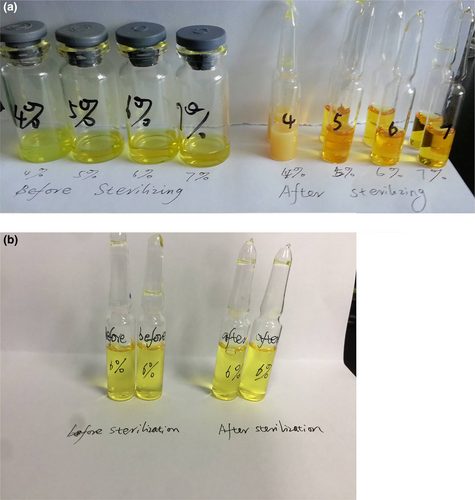

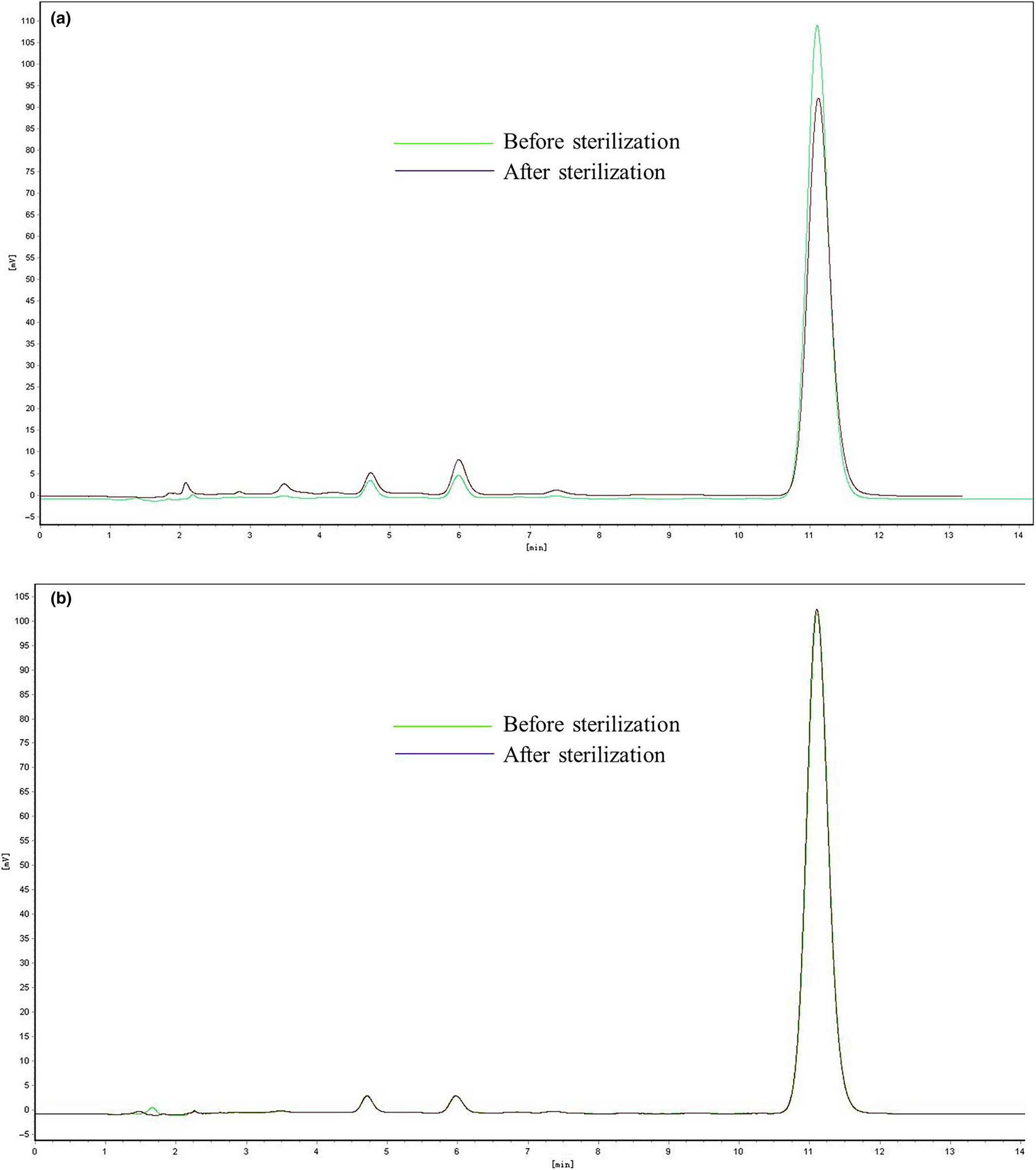

We prepared DAS and GAS MM formulations using the methods described above, followed by adjustment of pH levels to 8.5 and 5.5, respectively. Then, they were sterilized for 15 min at 121°C. All samples were analyzed using a high-performance liquid chromatography (HPLC) system (l-7110/L-7420, Hitachi) with a C18 column (Zorbax Rx-C18, 4.6 × 250 mm, 5 μm) purchased from Agilent Instrument, Inc. The column was eluted at a flow rate of 1.0 ml/min with a 90:10 (v:v) mixture of ethanol and distilled water. The injection volume was 20 μl for samples both before and after sterilization. The detection wavelength was 215 nm, and the column was maintained at ambient temperature. For the DAS MM solutions, obvious degradation was observed following sterilization. The vitamin K₁ content declined by 10% and the amount of impurities obviously increased. In contrast, both content and related substances in the GAS MM solutions remained unchanged after sterilization (Figure 6). Sterilization tended to improve the color change of MM solutions containing DAS rather than GAS (Figure 7), and PCs in the concentration range of 4 ~ 6% did not affect stability to sterilization. We believe that the GAS MM system did not deteriorate significantly during the sterilization process because it had a much lower pH (5.5) than that of the DAS MM system.

To summarize, low pH levels improve the stability of many active pharmaceutical ingredients, especially those that are prone to hydrolytic and oxidative degradation. Although GAS MM systems were able to maintain physical stability at low pH levels (5.5), DAS MM systems underwent considerable degradation when sterilized at their optimal pH (greater than 8.5). Thus, we conclude that DAS MM systems have limited use as parenteral drug carriers and that GAS is more suitable than DAS for the preparation of mixed micelle injections.
