1 Introduction

DNA barcoding offers an alternative to morphological identification methods (Kress 2017). Instead of relying on morphologically diagnostic traits, plant tissue from any developmental stage can be used to infer a taxonomic identity. Plant metabarcoding builds on this concept and expands the methodology to samples that derive from multiple species. This approach facilitates dietary analysis and ecological interactions using matrices such as stomach contents or fecal matter (Hollingsworth et al. 2011; Bruni et al. 2015; Kartzinel et al. 2015). Other important applications are reconstructing plant species assemblages from ancient sediment, identifying food adulteration, validating herbal medicine, and tracking airborne pollen loads (Bruno et al. 2019; Urumarudappa et al. 2020; Huang et al. 2021; Krinitsina et al. 2023).

It is crucial to have the ability to compare the results from any barcoding study with a comprehensive, curated, and current DNA barcode reference database. Ideally, the reference database should include multiple sequences of every plant species obtained from well-identified, vouchered plant specimens (Kolter and Gemeinholzer 2021a). At present, reference databases are far from this ideal as more than 80% of flowering plant species either lack coverage entirely or have few records. Among the molecular markers used for plant barcoding, the internal transcribed spacer (ITS) region within the nuclear ribosomal DNA array (nrDNA) has factually become a core plant barcode (China Plant BOL Group et al. 2011). GenBank (Sayers et al. 2019) provides the most comprehensive, easily accessed source of plant ITS sequences. However, these records lack consistent annotation and are not screened for pseudogenes, and misidentifications are prevalent. RefSeq, a curated database also hosted by the National Center for Biotechnology Information (NCBI), partially addresses these deficits, but it only encompasses fungal ITS (O'Leary et al. 2016). Until now, only Canada (Kuzmina et al. 2017) and the UK (Jones et al. 2021) have published near-complete ITS reference libraries for use in a national context. In summary, a comprehensive, reliable DNA barcoding reference database for plants currently requires downloading and filtering GenBank data.

Multiple pipelines to create DNA barcode reference databases already exist, each with unique attributes. Four general workflows that can be applied to plants and other markers are (1) BCdatabaser, which focuses on user-friendly execution and automatic uploads to Zenodo (Keller et al. 2020); (2) rCRUX, which uses an iterative BLAST approach to identify unannotated marker sequences (Curd et al. 2024); (3) CRABS, which combines in silico PCR with an alignment to identify marker sequences for inclusion in the reference database (Jeunen et al. 2023); and (4) MetaCurator, which uses hidden Markov models to extract the desired marker region from a set of sequences (Richardson et al. 2020).

However, in general, plant-specific curatorial steps are necessary to deal with ITS pseudogenes and a lack of ITS primer specificity for plants, which can result in off-target amplification (Kolter and Gemeinholzer 2021b; Zhang et al. 2022). Although exposure to these complexities can be reduced by wet lab protocols, such as the use of plant-specific primers or adjustments in PCR conditions to avoid pseudogene amplification (Buckler et al. 1997; Cheng et al. 2016), these methods are rarely employed. Plant-specific curatorial steps are implemented in the following three protocols: (1) The static ITS Database V uses secondary structure validation to verify ITS2 sequences (Ankenbrand et al. 2015); (2) PLANits uses the software ITSx to annotate ITS marker sequences (Bengtsson-Palme et al. 2013; Banchi et al. 2020); (3) A database curation script by Quaresma et al. (2023) uses a dynamically executed workflow implementing plant-specific filter steps.

The present script was developed in response to the fact that current solutions lack functionalities essential to post-analytical validation and fail to retain sequence metadata. The novel combination of features introduced here are (1) automated taxonomic curation, (2) GenBank metadata retention, (3) occurrence information, and (4) the automatic addition of fungal sequences as a sink for contaminated query sequences. We further investigated the impact of database clustering and the exclusion of database matches based on distance thresholds on the success in securing a species-level identification.

2 Methods

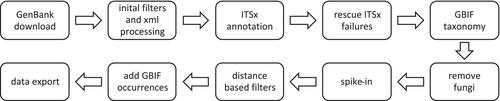

The R script developed in this study is available on GitHub together with detailed usage notes (https://github.com/Andreas-Bio/ACVPMBD). R package snapshot information, created by the R package renv, is available to increase reproducibility (Ushey and Wickham 2023). All steps can be run without user intervention (Figure 1). Whenever the script is executed, a pre-set query, which can be modified by the user, determines which GenBank records will be downloaded by the R package rentrez (Winter 2017). Downloaded sequences without a species-level assignment are discarded, while other metadata is retained in tabular format and the sequence is formatted using the R package Biostrings (Pagès and Aboyoun 2017). Initial filters remove sequences whose species names contain non-alphabetical characters (e.g., numbers or symbols), which commonly indicate formatting errors or placeholders. Sequences with more than 2.5% ambiguous nucleotides (1% for 5.8S) or those shorter than a customizable minimum length (default: 100 bp for ITS1 and ITS2) are also discarded.

If present, the 26S, ITS1, 5.8S, ITS2, and 18S regions are annotated, as detected by ITSx (Bengtsson-Palme et al. 2013). Chimeric sequences detected by ITSx are excluded, and sequences that fail to be annotated for either ITS1 or ITS2 are removed. In addition, sequences shorter than 100 bp (default) in ITS1 or ITS2 are excluded, and sequences with 5.8S region lengths outside the range of 150 to 170 bp (default) are filtered out, based on known Tracheophyta-specific thresholds. ITSx needs a small segment of the gene regions adjacent to ITS1/2 to function properly. However, some data uploaded to GenBank only include the core ITS1/2 regions as the flanking areas have been trimmed. To address this, a recovery effort is made by comparing successfully annotated ITS1/2 regions with other sequences. Unannotated sequences with a global (including terminal gaps) similarity of > 85% to the annotated sequences are retained, while the others are discarded. Sequence information and metadata are combined into a tab-delimited database file. Each dataset record is uniquely identified by its GenBank accession number, and it can have up to six associated sequences (ITS1, ITS2, full ITS, 26S, 18S, and 5.8S).

The taxonomy assigned to the sequence records extracted from NCBI is compared to the GBIF backbone taxonomy (GBIF Secretariat, 2023). In detail, a query, encompassing taxonomic levels from species (with author's epithet) to kingdom as per NCBI, is matched against the GBIF taxonomy backbone using the R package rgbif (Chamberlain and Boettiger 2017). In cases of discordances, the GBIF taxonomy has priority and the taxonomic assignment by NCBI is replaced but still retained as metadata.

The number of sequences per species is limited by a user-defined upper threshold applied during dereplication. The default of 10 is based on the results of an earlier study (Kolter and Gemeinholzer 2021a). If more than 10 sequences are available, priority is first given to full-length ITS sequences as identified by ITSx. Among these, sequences with distinct GenBank accession prefixes (first three characters) are favored to maximize genetic diversity, as different sequencing projects are typically assigned unique prefix codes.

Sequences are then examined to remove those reflecting contamination. To aid the recognition of contaminants, a library of outgroup sequences was established. This was accomplished by extracting one sequence from each fungal genus in the UNITE database (version 9.0) and adding a manually curated subset of sequences for Bryophyta and Algae from GenBank (Abarenkov et al. 2023). Based on a dynamic distance threshold, designed based on data from a previous study (Kolter and Gemeinholzer 2021a), sequences matching any outgroup sequence were removed from the ITS databases. To further improve post-analytical identification fidelity, especially in metabarcoding studies where fungal amplification is common, these fungal outgroup sequences were reintroduced as spike-ins after the filtering step. These spike-in sequences serve as taxonomic sinks, capturing off-target matches and preventing misclassification of fungal reads as plant sequences. This approach enhances the robustness of the reference database by accounting for known sources of cross-amplification and non-target taxa.

Multiple distance-based filtering steps were incorporated to recognize probable labeling or identification errors. First, using a leave-one-out cross-validation (LOOCV), the family of the top hit for each sequence was compared with that assigned to the query. When a mismatch was detected, both sequences (query, match) were again queried against the remaining records in the database. If the mismatch persists, the query sequence is removed. This step also leads to the removal of families represented by a single sequence. All following distance-based filtering steps were also applied to the 5.8S region with tightened thresholds due to its conserved nature. A second LOOCV filtering step removes query sequences from the database if the species with the top hit does not match the query species and the median distance of the hits to the query species is greater than a set threshold (default: 10%, 5.8S: 5%). In the third filtering step, any sequence not matching any other sequence within a defined threshold (default: 30%, 5.8S: 10%) is removed from the database. Finally, every region (separately: ITS1/2, full ITS, 5.8S) with more than a set threshold of ambiguous nucleotides (default: 2.5%, 5.8S: 1%) is removed from the database.

Distributional information for each species is added to the database based on GBIF occurrence data. The countries, along with their respective occurrence count, if above three, are reported in alphabetical order and grouped by the United Nations region definition.

The script outputs the whole database in a tab-delimited format, as a reduced database without sequence information, and for any specified ITS region as a fasta file. An ITS sequence length plot, summarized by family, and an interactive taxonomic summary plot are automatically generated (Ondov et al. 2011). In addition to a repository on Zenodo (10.5281/zenodo.10257823), which includes all temporary files, the database has also been uploaded to BOLD (project code: PREF), which makes the data available through the publicly accessible identification engine. The script output presented in this publication was generated on 20 Nov 2023 using default parameters.

3 Cluster threshold impact on identification success

Clusters were generated from three sequence datasets (ITS1, ITS2, and full ITS) derived from the script output of the 20 November 2023 run (see above), using seven predefined similarity thresholds: 1.0, 0.995, 0.99, 0.98, 0.97, 0.96, and 0.95. Viewed from the perspective of sequence matching, a clustering threshold of 1 generates an identical result to an unclustered database if multiple top matches are evaluated. The clusters were given new labels based on the lowest taxonomic lineage shared among members of each cluster.

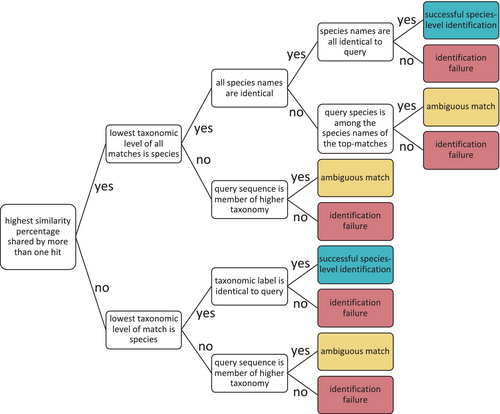

For each ITS region, sequences from species represented by at least two accessions (45,302 ITS1; 47,677 ITS2; 45,302 full ITS) were matched against clustered reference databases generated from the same datasets. Each comparison was performed across seven similarity thresholds using VSEARCH (Rognes et al. 2016). To prevent self-matching, the query sequence was removed from the matching cluster before evaluation, and the cluster's taxonomic label was updated based on the remaining sequences. Top hits were defined as the set of one or more reference sequences sharing the highest percent identity to the query, calculated using global alignment with terminal gaps excluded. These matches were evaluated for taxonomic consistency with the query. A match was considered a successful species-level identification if all top-hit sequences were assigned to a single species and their species name was identical to that of the query (e.g., all matches and the query identified as Quercus robur). If the top-hit set included sequences from multiple species but the query species was among them (e.g., matches from Quercus robur, Q. petraea, and the query was Q. robur), or if the matches were assigned only to a higher-level taxon (e.g., genus Quercus) that included the query species, the identification was classified as ambiguous. A match was considered unsuccessful if the query species was absent from the top-hit set (e.g., matches from Q. petraea and Q. cerris but query was Q. robur) or if the query did not fall within the assigned higher-level taxonomic label of the top matches (e.g., matches labeled as family Fagaceae, while the query belonged to a different family) (Figure 2). A total of 4,116,117 evaluations, across all combinations, were combined in an alluvial plot by the R packages ggplot2 and ggalluvial (Brunson 2020; Wickham 2016).

4 Threshold based rejection of database matches

We re-analyzed matches between ITS sequences and clusters generated with a similarity threshold of 1 (ESV) generated earlier (Figure 3). In contrast to the evaluation discussed earlier, two query sets were used: one with species having at least two sequences and another including all species, including those represented by one sequence. As self-hits were removed for both query sets, this increased the incidence of incorrect or ambiguous match assignments if the query species was eliminated from the reference database by this step, simulating an incomplete database (Figure 4). Top-hits with a distance (nucleotide similarity percentage without terminal gaps) below seven similarity thresholds (1, 0.995, 0.99, 0.98, 0.97, 0.96, and 0.95) were categorized as rejected. These steps were repeated for each ITS region, for each threshold and for both query sets. All other evaluation and visualization steps were identical (see above).

5 Results

The ITS reference database for plants generated by the present script (10.5281/zenodo.10257823) encompasses 271,418 records, each indexed by its GenBank accession number (Table 1). Every record includes 40 columns of metadata and DNA sequences (Supplementary Table 1). Over 80% of ITS2 and 90% of ITS1 sequences were derived from the full ITS (226,407) sequence annotations (Table 1). In addition, the database includes sequences for three additional nrDNA regions (110,039 partial 18S, 234,477 full 5.8S, 86,003 partial 26S), which can be used for primer design or custom data validation. Approximately 70% of all records have voucher information (defined by the sequence owner), extracted from GenBank, linking the sequence to a physical sample (10.5281/zenodo.10257823). Overall, 86% of species possessed at least one data record with voucher information. The database lists 19,945 unique author names and 10,907 unique publications. Almost all records (98%) have at least one GBIF occurrence (summarized as country and count). Comparison of the species names associated with the accessions downloaded from GenBank indicated that approx. 12% (12,861/107,710) are regarded as synonyms by GBIF. NCBI taxonomy queries to the GBIF backbone taxonomy yielded a high match rate, with an average confidence score of > 99.5% for returned matches.

6 Cluster threshold impact on identification success

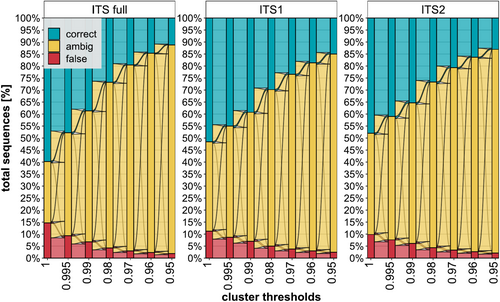

Figure 3 shows how success in species identification using the three ITS databases is impacted by clustering thresholds. Considering only those species with at least two ITS sequences (191,927 ITS1; 219,396 ITS2; 176,714 full ITS) comparisons against clustered reference databases generated from the same sequence sets revealed a progressive decline in species-level identification success as clustering thresholds were lowered (Figure 3). For example, clustering at 97% identity led to a species assignment for < 25% of the queries, roughly half the success for an unclustered (or clustered at 100% identity) database (Figure 3). Considering all three ITS sequence sets, the percentage of identified sequences dropped at least twice as fast as the error rate for species identification for each clustering step (Figure 3). The full ITS region is more sensitive to clustering, as a clustering approach by similarity percentages affects more nucleotides due to its length, disproportionally diminishing the identification gain over ITS1/2 even at the smallest clustering step (Figure 3).

7 Similarity threshold impact on species-level identification success

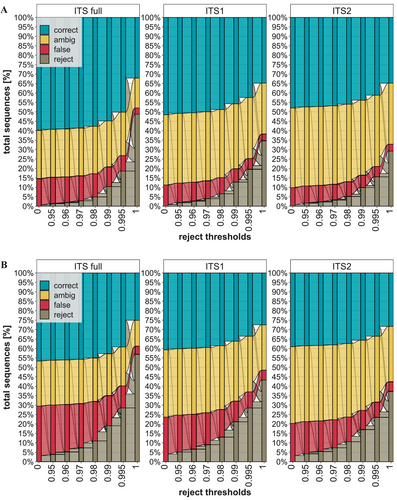

Figure 4 shows the impact of rejecting reference database matches for varying similarity thresholds using a database with a cluster threshold of 1, representing all exact sequence variants (ESV). The first analysis, which is based on species with at least two ITS sequences, shows that only accepting reference database matches with a similarity higher than 0.99 leads to a higher loss of successful identifications than of erroneous identifications (Figure 4A). The use of lower acceptance thresholds (0.98, 0.97, 0.96, and 0.95) has only a minor impact, changing error and identification rates by < 1% (Figure 4A). Depending on the ITS region, a rejection threshold of 0.98 removes about 5% of all evaluated matches, with the split between removed erroneous and successful identifications being near equal (Figure 4A).

The second analysis employed an expanded dataset, as it included species with only one sequence (~54% of total species). Because the removal of self-hits prevents the latter species from receiving a correct match, the error rate is twice as high as in the previous analysis (Figure 4). At all rejection thresholds, except 1, more erroneous identifications are removed than successful identifications (Figure 4B). For full ITS, a threshold of 0.995 rejected 28.5% of all matches. Approximately 18% of the excluded matches were erroneous identifications, 7.5% were correct species assignments, and 3% were ambiguous assignments. Overall, this decreases the error rate from ~29.5% to ~11.5%, comparable to the 12.5% of the previous analysis where species represented by one sequence were excluded at a reject threshold of 0.98 with 5% total rejections (Figure 4).

8 Discussion

9 Conclusions

By coupling sequence information with occurrence data and GenBank metadata, the present script allows researchers to validate their identifications using multiple metrics. The unattended script execution provides a dynamic workflow, ensuring up-to-date reference databases. Our analysis showed that clustering of records leads to a substantial reduction in the success of species assignment but distance-based identification thresholds improved identification accuracy in scenarios involving incomplete reference databases. Future improvements, such as more sophisticated filtering techniques, depend on closing gaps in reference databases and increasing the average number of sequences per species. Retaining the flanking sequence information (18S & 28S) from GenBank makes this workflow suitable for future long-read barcoding reference database creation (e.g., Nanopore).

Author Contributions

Andreas Kolter: conceptualization, methodology, software, validation, formal analysis, investigation, data curation, writing – original draft, writing – review and editing, visualization; Paul Hebert: resources, writing – review and editing, supervision, project administration, funding acquisition.

Conflicts of Interest

The authors declare no conflicts of interest.
