3.1 Patients' and Treatment Characteristics

A total of 139 patients were included in the study of which 58% were females. The median age of the cohort was 56 years (interquartile range: 42–67). Around 30% of the study population were elderly (65 years and above), and 12% were under 35 years. The median BMI was 24 kg/m², with 20% of the group falling in the obese or morbidly obese range. The most diagnosed cancers were breast, lung and gastric cancer, in 33 (24%), 31 (22%) and 17 (12%) patients, respectively. Most patients (70%) had advanced Stage IV disease. Half of the patients had a low performance score (PS) of 0–1 at the initiation of ICI, whereas the other half had a PS of 2–3. One patient in the cohort has a PS of 4 upon treatment with ICI. Only 13 (17%) patients were prior or current smokers, whereas the remaining 113 patients did not have any smoking history.

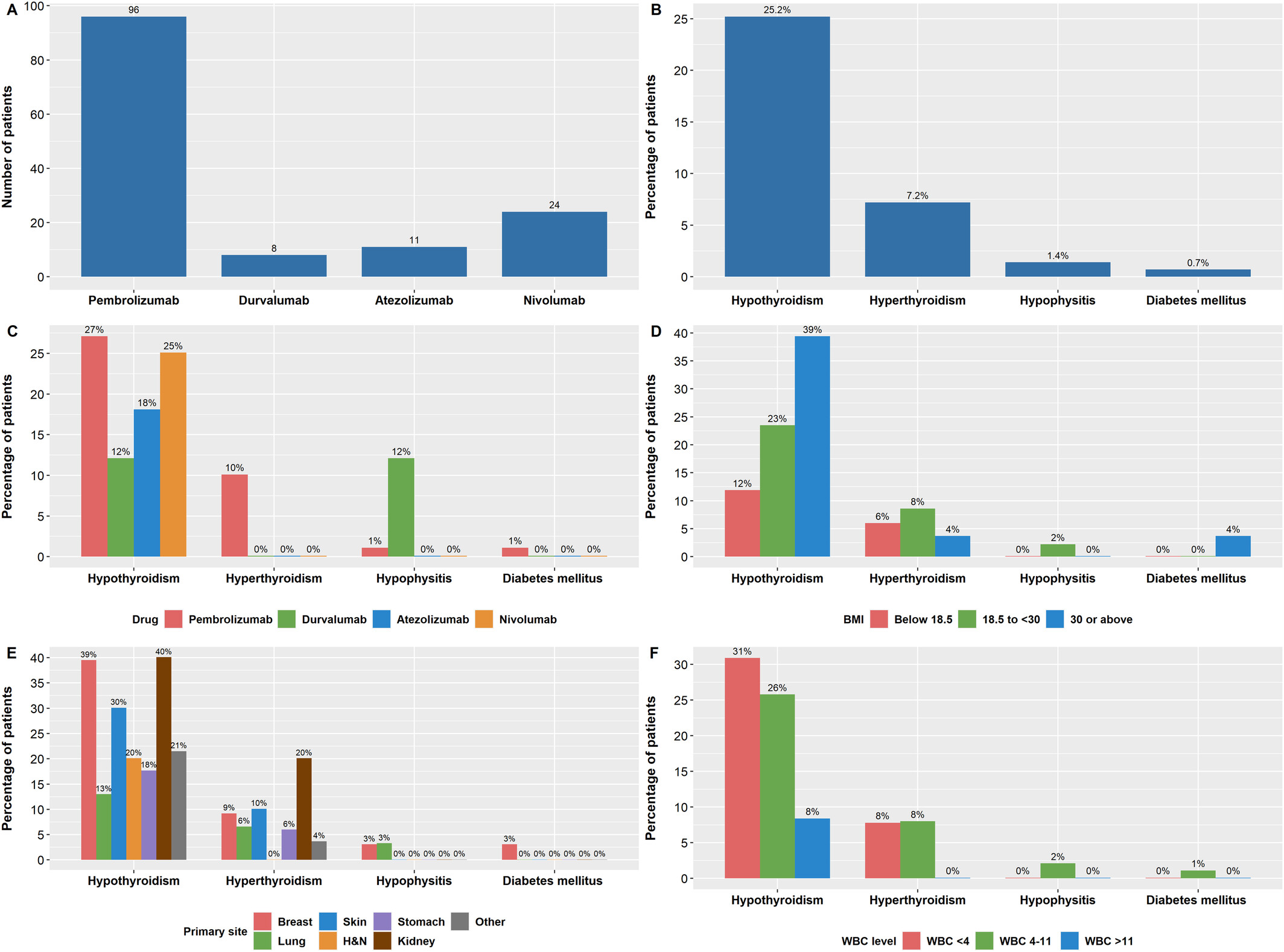

With regard to cancer treatment, most (69%) of the patients had received prior chemotherapy, around 50% had a prior surgery to the primary tumour or the metastases, and 36% received prior radiation. Ninety-six patients (69%) in the cohort were treated with pembrolizumab, 24 (17%) patients received nivolumab, and 11 (8%) and 8 (6%) patients received atezolizumab and durvalumab, respectively (Figure 1A). Most patients received usual two- or three-weekly doses rather than extended schedule four- or six-weekly regimens. In the pembrolizumab cohort, only 10/96 received six-weekly pembrolizumab. In the nivolumab cohort, 6/24 received the longer four-weekly regimen. A similar practice was also followed with atezolizumab and durvalumab cohorts, where only one patient in each group received four-weekly rather than two- or three-weekly administrations. Patients were treated for a median of six cycles (range 1–33), translating into a treatment duration of <1 month to 40 months. All patient demographics and baseline characteristics and laboratory results are shown in Table 1.

3.2 Incidence of Endocrine-Related Adverse Events

The incidence of endocrine-related adverse events in our study was around 28% (39/139) (Figure 1B). The mean time for the development of endocrine adverse events after treatment initiation was 4.1 ± 2.8 months (range 1–12 months). Of the patients who developed toxicity, 35 (90%) had hypothyroidism. Ten patients (7%) developed hyperthyroidism, two patients were diagnosed with secondary adrenal insufficiency/ hypophysitis, and one patient developed Type 1 DM. Isolated hypothyroidism was the only sign in most patients who developed toxicity (30 patients, 80%). Seven patients presented initially with hyperthyroidism, which then developed into hypothyroidism after 1–10 months of management. One patient who developed checkpoint inhibitor–associated autoimmune diabetes (CIADM), also developed hypothyroidism, which almost occurred concurrently, around 2 months after the initiation of the ICI pembrolizumab. Two patients developed secondary adrenal insufficiency due to hypophysitis (Figure 1C). The type and grade of endocrine adverse events are shown in Table 2.

3.3 Predictors of Endocrine-Related Adverse Events

In the univariable logistic regression, age and sex were not associated with endocrine irAEs in our study. On the other hand, both weight and BMI significantly impacted the development of endocrine irAEs, although the magnitude of effect was small. The mean weight in patients who developed toxicity was 70 kg compared with 61 kg in patients who did not (OR = 1.023, 95% CI = 1.003–1.044, p value = 0.027). Similarly, the mean BMI in those with toxicity was 28 kg/m² compared to 24 kg/m² in patients without endocrine irAEs (OR = 1.069, 95% CI = 1.016–1.124, p value = 0.006). Patients diagnosed with genitourinary cancers had a significantly higher risk of developing endocrine irAEs (OR = 4.043, 95% CI = 1.301–12.562, p value = 0.016). The presence of any comorbidity versus no comorbidity was a significant negative predictor of toxicity (OR = 0.434, 95% CI = 0.203–0.927, p value = 0.031). Conversely, a higher disease stage (namely Stage IV) did not predict toxicity in our cohort. Likewise, prior history of treatment including surgery, radiation or chemotherapy was not associated with toxicity, nor was the current ICI type. Moreover, PS and smoking history were not found to be significantly related to the development of ICI toxicity. Of the laboratory tests, only WBC and AST had a significant association with endocrine irAEs. A lower WBC was associated with a higher risk of developing ICI-related endocrinopathy (OR = 0.832, 95% CI = 0.711–0.973, p value = 0.021). A similar pattern of association was also seen with AST (OR = 0.876, 95% CI = 0.793–0.968, p value = 0.009). With regard to the treatment regimen, a higher number of received doses predicted a higher toxicity level (OR = 1.063, 95% CI = 1.000–1.131, p value = 0.042). The predictive value of several baseline and laboratory characteristics is shown in Table 3. Figure 1D–F show the percentage of patients experiencing toxicity by BMI, tumour site and WBC level.

We constructed a multivariable logistic regression model including the significant predictors in the univariable analyses including BMI, WBC, AST, GU programme, comorbidity and number of doses. We did not include weight in the multivariable model because it was strongly correlated with the BMI. Including both weight and BMI in the same model would introduce collinearity and violate the logistic regression assumptions. All variables in the multivariable model remained significant except WBC and number of doses. We interpret the results of the multivariable model with caution due to the low number of outcomes (endocrine adverse events) relative to the number of predictors.

3.4 Management of Endocrine-Related Adverse Events

ICI was withheld due to endocrine toxicity only in 4 out of 39 cases (10%). Two patients with severe hypothyroidism (Grade 3), one patient with hypophysitis and one patient with CIADM withheld treatment due to irAEs. All patients with hypothyroidism started on levothyroxine with the mean dose being 100 μg (range 25–150 μg). The patients with symptomatic hyperthyroidism were started on the beta blocker propranolol, and the rest were monitored until recovery or development of hypothyroidism. Two patients with hypophysitis were started on hydrocortisone. One patient required stress dose hydrocortisone then tapered to maintenance dose 20 mg AM and 10 mg PM. The second patient was initiated on maintenance hydrocortisone. The patient who developed CIADM started on insulin mixtard 30 which was adjusted to achieve blood sugar control.

4.1 Thyroid Dysfunction

Among endocrinopathies, thyroid dysfunction mainly primary hypothyroidism is the most common irAE. In our study, 25.2% of patients developed primary hypothyroidism of which 23% (seven patients) initially had hyperthyroidism. Hypothyroidism occurred in most cases in the first 3 months of treatment, but some patients developed hypothyroidism up to 10 months posttreatment. Early studies showed that the rate of hypothyroidism post-PD1 inhibition was around 5% but this increased to up to 20% in later studies [9]. The incidence of hypothyroidism in our study was slightly higher than previous studies done outside the Arab World where most of our patients who developed hypothyroidism were on pembrolizumab. On the other hand, in two tertiary centres in the UAE the prevalence of hypothyroidism was 27%, which is similar to the incidence in our centre [10]. This might point out that patients in GCC (Gulf Cooperation Council) are at a higher risk of developing hypothyroidism. Hypothyroidism was permanent and required lifelong levothyroxine replacement.

On the other hand, hyperthyroidism was the second most common irAE in 7% of patients and was detected in the first month of treatment in most cases. All patients had painless transient thyrotoxicosis of which 70% became permanently hypothyroid. Most patients were asymptomatic during hyperthyroidism and discovered due to screening thyroid function tests while on ICIs. Our patients' thyroid glands were not enlarged and there was no exophthalmos to suspect Grave's disease [11]. Only a few patients required betablocker for symptomatic tachycardia. Similar to our findings, the study by Sakakida et al. [12] showed that more than 50% of the patients became hypothyroid post-transient thyrotoxicosis but the detection of hyperthyroidism was seen in later stage as majority of patients were asymptomatic.

Several studies have found an association between thyroid autoantibodies (thyroyperoxidase or thyroglobulin) and risk of ICI-induced thyroid dysfunction, and in one study approximately all patients with thyroid autoantibodies developed hypothyroidism [11, 13]. In our centre, thyroperoxidase antibody tests are done at referral laboratories and hence were not performed. However, the exact mechanism underlying immunotherapy-induced thyroid dysfunction is still unclear, and expression PD-L1 and PD-L2 in the thyroid tissue may play a role [14].

As thyroid dysfunction is the most common irAE screening with TSH and free T4 remains key for early detection and treatment of patients. Screening should be performed at baseline then every 4–6 weeks during treatment for early detection and treatment [1, 4]. Screening every 3–6 months posttreatment with TSH and free T4 should be considered as patients may develop thyroid dysfunction posttreatment discontinuation.

Thyroid dysfunction as an irAEs may have positive effect on cancer. In one study, thyroiditis post-ICI improved overall survival in patients especially those with lung cancer. The greater effect in lung cancer may be attributed to shared developmental origin of thyroid and lung epithelia [15]. On the other hand, a systematic review and meta-analysis found low-strength correlations between specific irAE rates and overall survival in several cancer types [16]. In a recent systematic review and meta-analysis evidence suggested that the development of thyroid-related adverse events is associated with antitumour effects of ICIs and may be a useful surrogate marker for clinical response [17]. In addition, it is associated with improved survival in some cancers possibly due to the presence of shared antigens between certain cancers and the thyroid [17]. This implies that further investigation for longer periods may be needed to arrive at a stronger conclusion.

4.2 Hypophysitis

Hypophysitis is a rare irAE in patients on PD-1/PDL-1 inhibitors occurring in around 1% of patients and at median of 4.5 cycles [4, 18]. Unlike patients on CTLA-4 inhibitors, patients on PD-1/PDL-1 inhibitors may not report headache and their MRI may be normal. In addition, some patients on PD-1/PDL-1 may have isolated secondary adrenal insufficiency and be asymptomatic [11]. In our study, two patients developed hypophysitis (1.4%). The first patient developed fatigue without any headache or vision changes after the second cycle of pembrolizumab 400 mg every 6 weeks. He had an MRI brain without signs of metastasis or pituitary enlargement. He was started on hydrocortisone replacement therapy. The second patient developed secondary adrenal insufficiency along with hypogonadism 6 months post-ICI. The patient presented with sepsis and inability to withdraw from inotropes leading to assessment of pituitary adrenal axis. The patient's ICI was withheld initially and started on stress doses of steroid which was tapered later to replacement dose. To note that patient developed subclinical primary hypothyroidism at 7 months of treatment and 1 month after adrenal insufficiency. The patient's MRI pituitary was normal. Our study is similar to previous studies where hypophysitis in patients on PD-1/PDL-1 inhibitors occur rarely. One of our patients had mild symptoms as described in previous studies, whereas the other patient had septic shock and required ICU admission due to secondary adrenal insufficiency. Therefore, it is always important to screen regularly for adrenal insufficiency by cortisol morning test as patients may have an indolent presentation and may not present any symptoms of headache, change in vision, weight loss, nausea, vomiting, hypotension, hypoglycaemia and weight loss. In patients with confirmed secondary adrenal insufficiency, screen for other hormonal disturbances mainly TSH, free T4 and electrolytes is recommended. Also, to consider evaluating LH and testosterone in males with changes in libido and FSH, and oestrogen in premenopausal females with menstrual changes. Additional considerations include MRI brain/sella with new hormonal deficiencies and particularly those with multiple endocrine abnormalities, new severe headaches or complaints of vision changes [1].

4.3 Primary Adrenal Insufficiency

Primary adrenal insufficiency rarely occurs in patients on ICIs and usually develops after several months of treatment [4, 14]. The range for developing adrenal insufficiency varies widely from weeks to more than 12 months [4] The symptoms may be nonspecific and include abdominal pain, nausea, weight loss, fatigue, anorexia, hypotension and hypoglycaemia [14]. Its prevalence may be underestimated due to concomitant treatment with glucocorticoids or the coexistence of secondary adrenal insufficiency [11]. Adrenal crisis has been reported in some cases with hyponatremia being the main sign [19]. In our study, none of the patients developed primary adrenal insufficiency. This may be due to concomitant treatment with glucocorticoids, failure to screen all patients with cortisol morning test regularly, the low incidence of primary adrenal insufficiency with ICI therapy or irAE occurring after finishing treatment. Therefore, it is important to screen patients with AM cortisol and if suspecting primary adrenal insufficiency to continue workup with ACTH, electrolytes, renin and aldosterone every 1–2 cycles followed by screening cortisol every 3–6 months once treatment is stopped to detect adrenal insufficiency and prevent adrenal crisis.

4.4 Checkpoint Inhibitor–Associated Autoimmune Diabetes (CIADM)

CIADM is a rare and distinct form of autoimmune diabetes occurring in 0.1%–1.4% of patients [11, 20]. CIADM is characterised by abrupt permanent beta cell failure which occurs at around 12 weeks post-ICI initiation and up to 63 weeks from treatment. The patients usually develop acute onset hyperglycaemia and have low C-peptide at onset of symptoms [11, 20]. As compared to patients with Type 1DM, patients with CIADM have less autoantibodies (40% vs. 90%), greater risk to develop diabetic ketoacidosis (DKA) at diagnosis (69.7% vs. 39%), no honeymoon effect and increase in pancreatic enzymes [20]. One patient out of 139 developed CIADM in our study (0.7%). The patient was not diabetic prior to treatment initiation with an HBA1c of 5.4%. After 3 months of treatment her blood sugar increased significantly reaching 30 mmol/L and the patient was started on insulin. Our patient had another irAE prior to CIADM which is hypothyroidism a month prior to diabetes development. Anti-GAD and C-peptide done 3 months post diagnosis of diabetes showed positive anti-GAD of 45 IU/mL (<10), low C-peptide 0.61 ng/mL (0.81–3.85). Pancreatic enzymes were not performed at the time of diagnosis. The patient's HBA1c was still in the prediabetic range at 6 mmol/L when she was diagnosed with CIADM. The proposed diagnostic criteria for CIADM are hyperglycaemia (blood sugar >11 mmol/L or Hba1c > or 6.5%) and insulin resistance (low C-peptide or DKA) at diagnosis and testing can be repeated at 1 month in those with clinical concern for CIADM but not meeting criteria at presentation [20]. Therefore, it is critical to monitor the symptoms of new or worsening diabetes (polyuria and polydipsia) in patients on ICI. A baseline glucose with each cycle then in follow-up visits for at least 6 months. If CIADM is suspected then additional laboratories should be sent including serum/urine ketones, electrolytes (for anion gap), C-peptide and Type 1DM antibodies (anti-GAD or anti-islet cell antibodies) as patients have high risk to develop DKA and need treatment with insulin rather than oral antidiabetic medications [1].

4.5 Predictors of Endocrine-Related Adverse Event

Deciphering the mechanisms driving the immune-related adverse will help in early diagnosis, treatment and even prevention of such side effects. In our study, a higher BMI increased the risk of developing endocrine-related adverse events. Similarly in one study and in a meta-analysis, overweight and obesity appeared to be correlated with an increased incidence of any-grade irAEs [21, 22]. The findings may suggest that patients with obesity be monitored for AEs more closely than lean patients.

Different cancer types treated with ICI have different risks to develop irAEs. In our study, patients with genitourinary cancer had more endocrine-related irAEs compared with other tumours. However, the risk of chance finding cannot be ruled out due to the small sample size of patients with genitourinary cancers in our study. Additionally, this diagnosis, occurring mostly in advanced age, might have correlations with other variables such as comorbidities. Other systematic reviews have also shown that different tumour histologies have a different irAE profile when treated with PD-1 inhibitors [23]. This could be attributed to the tumour microenvironment, immune infiltrate and adaptive immune response [23]. Further and larger studies are needed to assess the risk of developing endocrinopathies in different cancers due to PD-1 inhibitors.

In our study, unexpectedly lower WBC at baseline was associated with a higher risk of developing ICI-related endocrinopathy. Several studies have explored the effect of blood cell count and its changes during treatment on irAEs. A study showed that increased WBC and decreased lymphocyte count during treatment increased risk of irAEs as lymphopaenia may suggest impaired cell immunity [24]. Another study showed that increased baseline eosinophil count might suggest increased risk for irAEs [24]. More studies are needed to explore the changes in blood count and their impact on irAEs, and especially endocrinopathies.

4.6 Study Limitations

Our study possesses several limitations that necessitate acknowledgment. These include the retrospective design of the study leading to incomplete data collection and incomplete follow-up. In addition, the absence of a standardised testing protocol for assessing endocrine adverse effects where not all patients are initially screened and regularly followed up for endocrine adverse effects. Hence irAEs may not be detected or detected at a later stage. The possibility of checking thyroid autoantibodies and assessing its relation to developing in irAEs is needed in our centre. Furthermore, our study is from a single centre with a relatively small sample size. Hence, the generalisability of our results may be hindered.
