Distribution and diversity of intrinsically photosensitive retinal ganglion cells in tree shrew

2.1 Animals and preparation of retinae

Retinas from nine adult tree shrews of both sexes were used. Some animals were euthanized following terminal experiments in which a cranial window was introduced to image primary visual cortex (Lee, Huang, & Fitzpatrick, 2016). Eyes from these animals were enucleated after perfusing the animal with either 2% or 4% PFA followed by a rinse of phosphate buffered saline (PBS, pH 7.4). Eyes were stored at 4°C in PBS + 0.02% NaAzide until dissection. Other animals were acutely used and eyes were enucleated immediately following an overdose with Nembutal and decapitation (200 mg/kg). Hemisected eyes were then fixed for 30–60 min in either 2% or 4% PFA. Following fixation, retinas were rinsed and stored in PBS + 0.02% NaAzide. Fixed and unfixed eyes were hemisected by making an incision between the equator and ora serrata. The front half of the eye was removed with the lens. Vitreous was then peeled away from the retina. For whole mount retina, the sclera, choroid and pigment epithelium were removed and segments of retina were cut for immunolabeling. For retinal slices, eyecups were cryoprotected overnight immediately following removal of the cornea and iris at 4°C in PBS with 30% sucrose. Eyecups were then frozen in TFM, sectioned at 20 μm thickness, and thaw-mounted onto Superfrost Plus Gold slides. Mounted slices were stored at −80°C until immunolabeling. Data displayed in Figures 1-8 was collected from 9, 2, 2, 4, 2, 2, 1, 2 animals, respectively.

Retinas from two adult Nile rats (Arvicanthis niloticus), of both sexes were used. The eyes were generously provided by Dr. K.C. Hayes at Brandeis University. Animals were euthanized, fixed and immunolabeled following the same protocol used for tree shrews.

2.2 Immunohistochemistry

Wholemount retinas were blocked for 1–3 hr in a PBS with 3% normal donkey serum, 0.3% Triton X-100, and 0.02% NaAzide. Pieces were then incubated in primary antibody solution at 4°C for 5–9 days. Following incubation in the primary antibody, retinas were washed with PBS 2–3 times over the course of 2 hr at room temperature. Retinas were then incubated in a secondary antibody overnight at 4°C. Following incubation in the secondary antibody, retinas were again washed with PBS 2–3 times over the course of 2 hr at room temperature. All incubations and washes were done on a mechanical rocker. Following antibody labeling, retinas were mounted onto filter paper (0.4UM type HABP, Millipore) to flatten the tissue. Retina and filter paper were then mounted together onto a glass slide with Aqua PolyMount or DiamondMount (Thermo Fisher Scientific). Glass coverslips were placed on either side of the filter paper and a third glass coverslip was placed over the filter paper and retina, resting on the adjacent coverslips to prevent over-flattening the retina. The coverslips were sealed with transparent nail polish.

Retinal slices were blocked for 30 min in a PBS with 3% normal donkey serum, 0.3% Triton X-100, and 0.02% NaAzide blocking buffer. Following block, slices were incubated in primary antibody solution at 4°C overnight. Following incubation in primary antibody, retinal slices were washed with PBS twice over 10 min at room temperature. Slices were then incubated in secondary antibody for 2 hr at room temperature. Following the secondary incubation, slices were washed again with PBS twice over 10 min at room temperature. Mounted slices were then immediately coverslipped in Aqua PolyMount. All incubations and washes were done in a humid chamber filled with deionized water.

The primary and secondary antibodies used in this study and their dilutions are listed in Tables 1 and 2, respectively. All primary and secondary antibodies were diluted in a PBS + 3% normal donkey serum + 0.3% Triton X-100 + 0.02% NaAzide blocking buffer. All secondary antibodies were obtained from donkey and were produced by Jackson ImmunoResearch Laboratories and diluted 1:1,000. Hoechst (Thermo Fisher Scientific: H21491) was used as a nuclear stain to label all cell bodies (dilution: 1:1,000). It was applied concurrently with secondary antibodies.

2.3 Imaging

Retinas were imaged on a Nikon TE 2000 Confocal Microscope C90i controlled by NIS-AR software (Nikon Instruments, RRID: SCR_014329). Images were processed using ImageJ (RRID: SCR_003070) or NIS-AR software.

2.4 Cell counting and ipRGC density analysis

Cell counting (Figure 8) was performed using ImageJ (FIJI). Cells were manually counted using the cell counter tool (Analyze Plugin). The retina was cut into four separate pieces and cells were counted separately in each quadrant. Each identified ipRGC was assigned to a group: the first group of cells had somata in the ganglion cell layer (GCL) with sparse bistratified dendrites; the second group had somata in the inner nuclear layer (INL) and were immunoreactive for TH in addition to melanopsin; the third group had somata in the INL, but were negative for TH immunoreactivity; the fourth group had somata in the GCL that were weakly immunoreactive for melanopsin and monostratified dendrites that branched frequently. Cell location was marked by manually clicking the center of each cell body. The position and labeled type of each cell was exported to MATLAB (RRID: SCR_001622) for generating color maps of ipRGC density for each retinal quadrant. The quadrants were aligned and spaced using photographs of the dissected and immunolabeled retina to identify the position and orientation of each quadrant relative to the optic nerve head.

2.5 Cell reconstructions and stratification color map

Dendritic fields were reconstructed from z-stacks of confocal images (20× objective: 1–1.5 µm steps size). The Simple Neurite Tracer plugin for ImageJ was used to trace processes from the cell body (Longair, Baker, & Armstrong, 2011). After generating a skeleton of the dendritic arbor, the ‘fill tool’ in the plugin was used to reconstruct a 3D model of the cell. The threshold on the fill tool was adjusted manually to prevent over or under filling of the dendritic arbor. An image stack was created from the filled cell to generate an isolated 3D model of the cell and the Temporal Color Code tool under hyperstacks was used to map the Z (depth) axis to the ‘ice’ color map (Figure 3). Z-stacks were cropped to constrain the color map between the GCL and the INL.

To analyze the spatial arrangement and overlap across dendritic fields (Figure 7), en face images of individual cells were generated by hand drawing the images in software (Intaglio, Purgatory Design). Convex polygons (hulls) were then manually drawn around each cell. The coordinates of these polygons were exported to MATLAB. Polygons were mirrored about their center of mass using custom software written in MATLAB. Changes in spatial coverage after polygon rotation were measured by quantifying the area that was uncovered by any polygon in the original image and in the rotated polygon image.

2.6 Analysis of soma locations

The spatial organization of somata was analyzed by generating density recovery profiles (DRP; Rodieck, 1991) (Figure 7). From the DRP analysis, an effective exclusion radius can be obtained as described in Rodieck (1991).

3.1 Diverse cell types are melanopsin immunoreactive in tree shrew retina

To determine the density, diversity, and arrangement of ipRGCs in tree shrew, retinas were immunolabeled with antibodies against melanopsin (Hattar et al., 2002; Vuong, Hardi, Barnes, & Brecha, 2015; Karnas et al., 2013). The somas of melanopsin immunoreactive (MEL+) cells were observed in the GCL and the INL (Figure 1). The number of MEL+ cells in the INL was greater than in the GCL; 65% of MEL+ somata were in the INL (1981 of 2899 and 2136 of 3272 in two retinas). MEL+ cells in the GCL had two to three primary dendrites, while those in the INL typically exhibited four primary dendrites (Figure 2a). Cells in the two layers also differed substantially in dendritic field area (Figure 2b): cells in the GCL and INL had mean dendritic field areas of 0.05 ± 0.004 cm² and 0.019 ± 0.0014 cm², respectively. The dendrites of MEL+ somata in the GCL and INL ramified in specific sublayers of the inner plexiform layer (IPL). As described previously (Vaney, Peichi, & Boycott, 1981; Müller & Peichl, 1991b; Manookin, Beaudoin, Ernst, Flagel, & Demb, 2008; Hannibal, Christiansen, Heegaard, Fahrenkrug, & Kiilgaard, 2017), immunoreactivity for ChAT divided the IPL into 5 sublayers, labeled S1 to S5 from the INL to GCL. S2 and S4 were defined by the two bands of ChAT-positive immunoreactivity (Figure 2c). MEL+ processes in the IPL were largely restricted to S1 and S5. These results reveal an organization of MEL+ cells and their processes that is broadly consistent with other mammals (Schmidt, Chen, & Hattar, 2011; Jusuf et al., 2007; Liao et al., 2016).

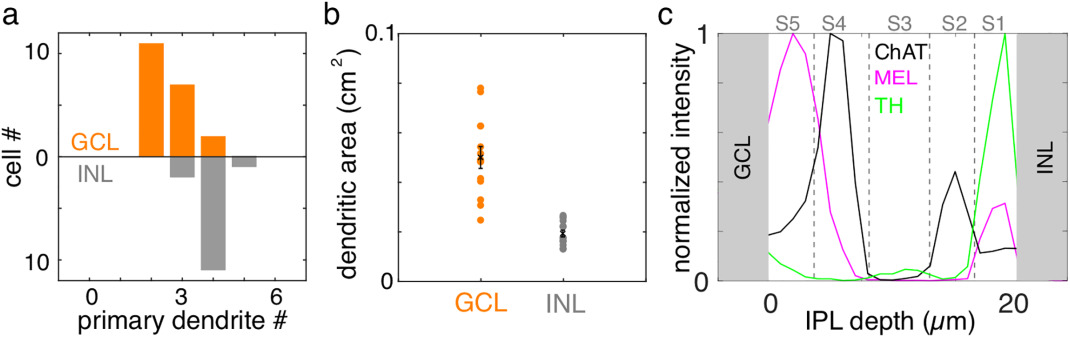

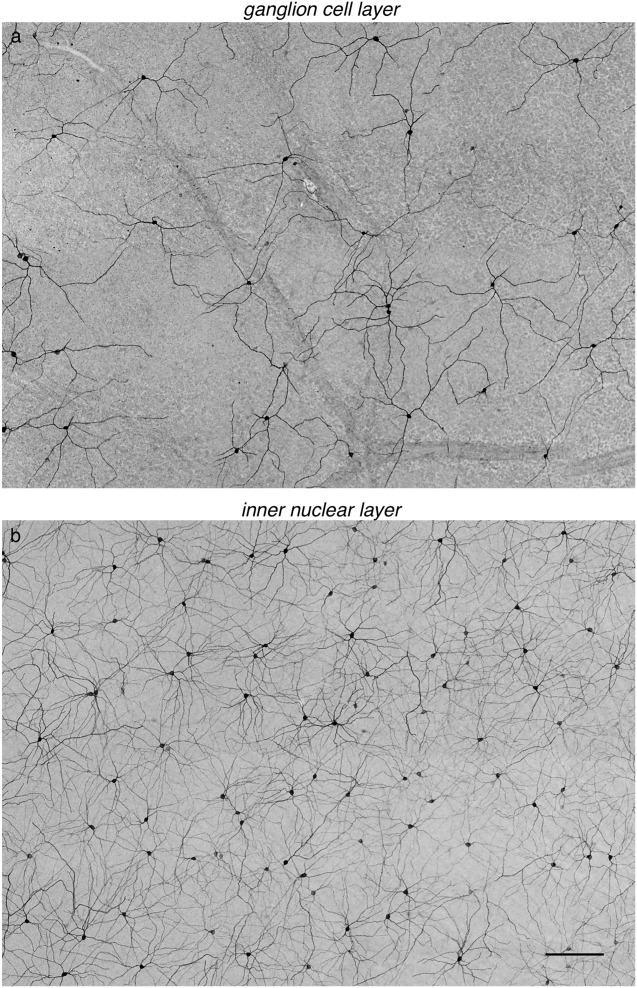

The observation of melanopsin-expressing cell somata in the GCL and INL with differences in their dendritic field areas and number of primary dendrites (Figure 2a, b) suggests that multiple distinct cell types are intrinsically photosensitive. To further examine their morphological diversity, the dendritic fields of individual MEL+ cells were reconstructed from image stacks collected on a confocal microscope (Figure 3). This analysis revealed several distinct morphologies. In the GCL, most MEL+ cells were bistratified. Their dendrites ramified in S1 and S5 of the IPL (Figure 3a–c: S1 and S5 processes are red/purple and cyan/blue, respectively). Individual dendrites could course exclusively in S5, or they could run for some distance in S5 before branching or projecting to S1. The number of processes that remained in S5 versus projected to S1 varied across cells. These cells broadly resembled M1/M3 cells described previously in rodent and primate retinas (Hattar et al., 2002; Jusuf et al., 2007; Schmidt & Kofuji, 2009; Liao et al., 2016). However, because M1 in other species are monostratified in S1 (Schmidt et al., 2011) and M3 cells are bistratified but sparse (Berson, Castrucci, & Provencio, 2010; Nasir-Ahmad et al., 2017), we refer to these cells as bistratified ipRGCs (see Discussion).

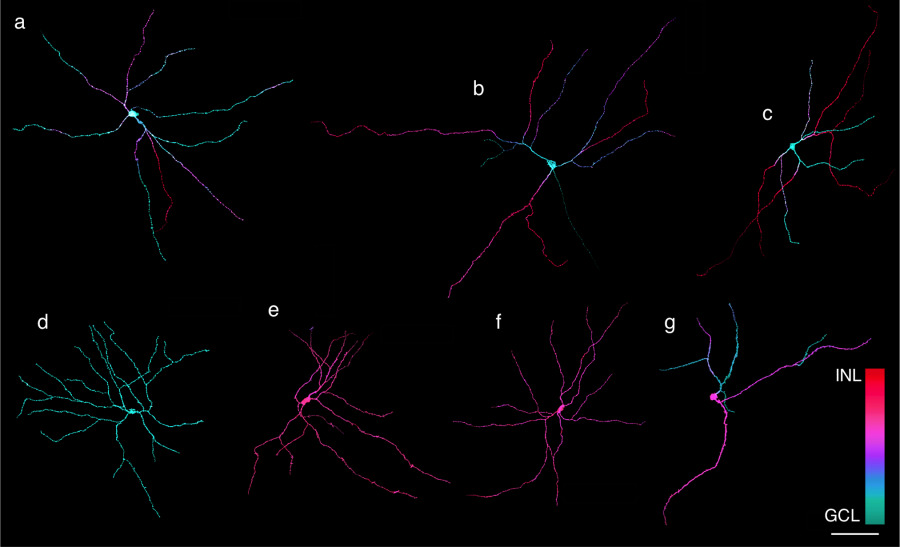

A minority of MEL+ cells in the GCL exhibited a distinct morphology (Figure 3d, 3%, 27 of 918 cells, and 7%, 81 of 1163, in two retinas). These cells were monostratified in S5 and exhibited relatively densely branching dendrites. Furthermore, these cells were weakly melanopsin immunoreactive relative to the bistratified cells (not shown). These cells resembled M2 cells described previously in rodent and primate retinae (Baver, Pickard, Sollars, & Pickard, 2008; Schmidt & Kofuji, 2009; Berson et al., 2010). We henceforth refer to these as monostratified inner ipRGCs because of the structure and stratification of their dendrites.

In the INL, the majority of MEL+ cells exhibited monostratified dendritic fields that stratified in S1 (Figure 3e, f, 87%: 1868 of 2136 and 1725 of 1981 in two retinas). They typically exhibited four primary dendrites. These cells did not have a clear morphological homologue in other previously studied mammals. Below, we show these cells were also immunolabeled for TH.

The remainder of MEL+ cells with somata in the INL (13%, 268 of 2136 and 256 of 1981 in two retinas) exhibited bistratified dendritic fields that were similar to the bistratified ipRGCs in the GCL (Figure 3g); their dendritic fields were relatively sparse, and they typically exhibited two or three primary dendrites. For reasons described below, these cells are likely displaced bistratified ipRGCs.

To summarize, three dimensional reconstructions of MEL+ cells revealed at least three morphologically distinct classes that were distinguished based on their soma location, dendritic field structure, and stratification.

3.2 Cells co-immunolabeled for tyrosine hydroxylase and melanopsin

We next sought molecular markers that would bolster discriminating and classifying the different MEL+ cells. In rodents and primates, some ipRGCs exhibit a tight interaction with dopaminergic amacrine cells (DACs) (Vugler et al., 2007; Liao et al., 2016). In particular, these ipRGCs both receive and provide input to DACs (Zhang et al., 2008; Van Hook, Wong, & Berson, 2012; Prigge et al., 2016; Vuong et al., 2015; Liao et al., 2016). Thus, these interactions are a feature that may distinguish ipRGC subtypes.

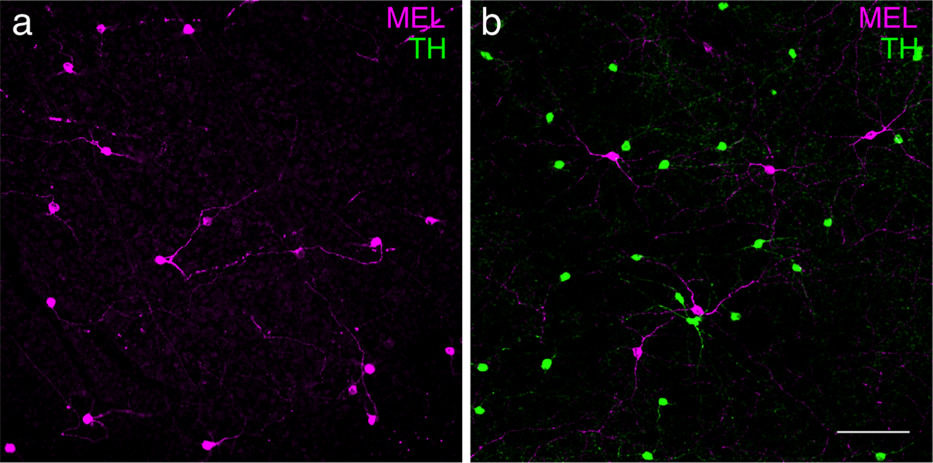

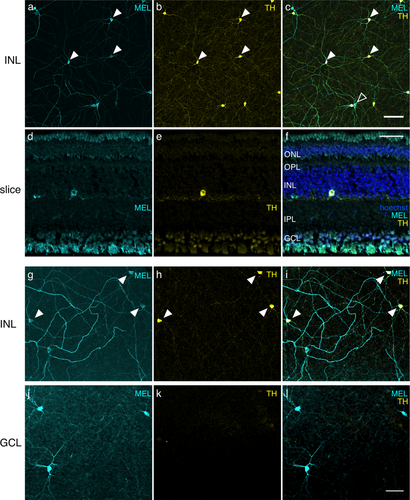

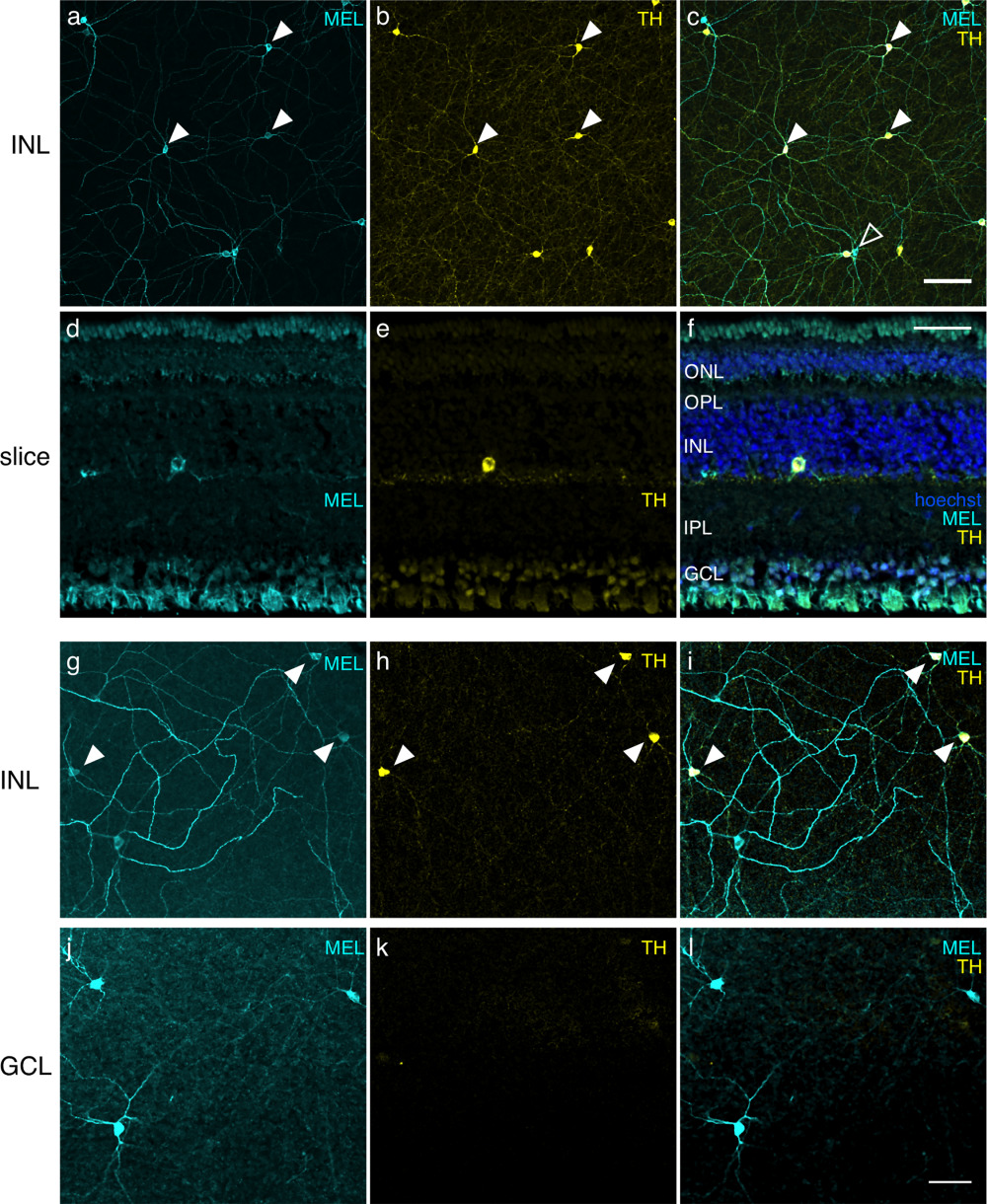

Retinas were co-immunolabeled with antibodies against melanopsin and TH (Samaco et al., 2009); TH is a key enzyme in the synthesis of dopamine and is indicative of dopaminergic cells in the retina (Iuvone, Galli, Garrison-Gund, & Neff, 1978; Brecha, Oyster, & Takahashi, 1984; Nguyen-Legros, Botteri, Phuc, Vigny, & Gay, 1984; Müller & Peichl, 1991b). The somata of TH immunolabeled (TH+) cells in tree shrew retinas were limited to the inner boundary in the INL (Figure 4a). They exhibited a network of dendritic processes restricted to S1 of the IPL (Figure 2c). Surprisingly, all TH+ cells were also MEL+ (Figure 4b, c, filled arrowheads). Some MEL+ cells with somata in the INL were TH negative (Figure 4c, open arrowhead). These TH-negative cells were 13% of all MEL+ cells in the INL, the same fraction of cells that were bistratified with somata in the INL (Figure 3g). Inspection of cells in the INL that did not label for TH revealed they were bistratified. Thus, immunoreactivity for TH confirmed the morphological observation of at least two distinct classes of MEL+ cells with somata in the INL.

In other mammals, antibodies to TH and MEL label distinct classes of neurons in the retina: amacrine cells and RGCs, respectively (Vugler et al., 2007; Dumitrescu, Pucci, Wong, & Berson, 2009; Prigge et al., 2016; Liao et al., 2016; Hannibal et al., 2017). Thus, the observation of a population of retinal cells that are MEL+ and TH+ is unusual and surprising. It suggests a set of cells that is both intrinsically photosensitive and dopaminergic. An alternative possibility is that there is cross reactivity between antibodies. TH antibodies could be binding melanopsin. This is unlikely because we observed cells in the INL and GCL that were MEL+ and TH− (Figure 4c,d). We also tested a second TH antibody (Millipore: MAB318), and observed the same pattern of labeling, with negligible background labeling in the GCL (Figure 4g–l). Another possibility is that the MEL antibodies are binding TH. To test this, we repeated these experiments in another species, the Nile rat (Langel, Smale, Esquiva, & Hannibal, 2015). Like tree shrews, Nile rats are diurnal, and they have cone-enriched retinas (∼35% of photoreceptors are cones (Gaillard et al., 2008; Gaillard, Kuny, & Sauvé, 2009)). In Nile rats, TH+ and MEL+ cells formed two distinct and non-overlapping cell populations, similar to other mammals (Figure 5). This result argues against the melanopsin antibody used here binding TH. It also suggests that the apparent co-expression of TH and MEL in a single cell population may be unique to tree shrews; it is not a general feature of animals with cone-enriched retinas, though tree shrews have a much higher proportion of cones than Nile rats. We also performed these experiments in C57bl/6J mice. We observed two non-overlapping populations of TH+ or MEL+ cells (data not shown), consistent with previous studies (Dumitrescu et al., 2009). Thus, we view it unlikely that these results are caused by a lack of specificity in the antibodies.

3.3 Are tyrosine hydroxylase positive cells RGCs or amacrine cells?

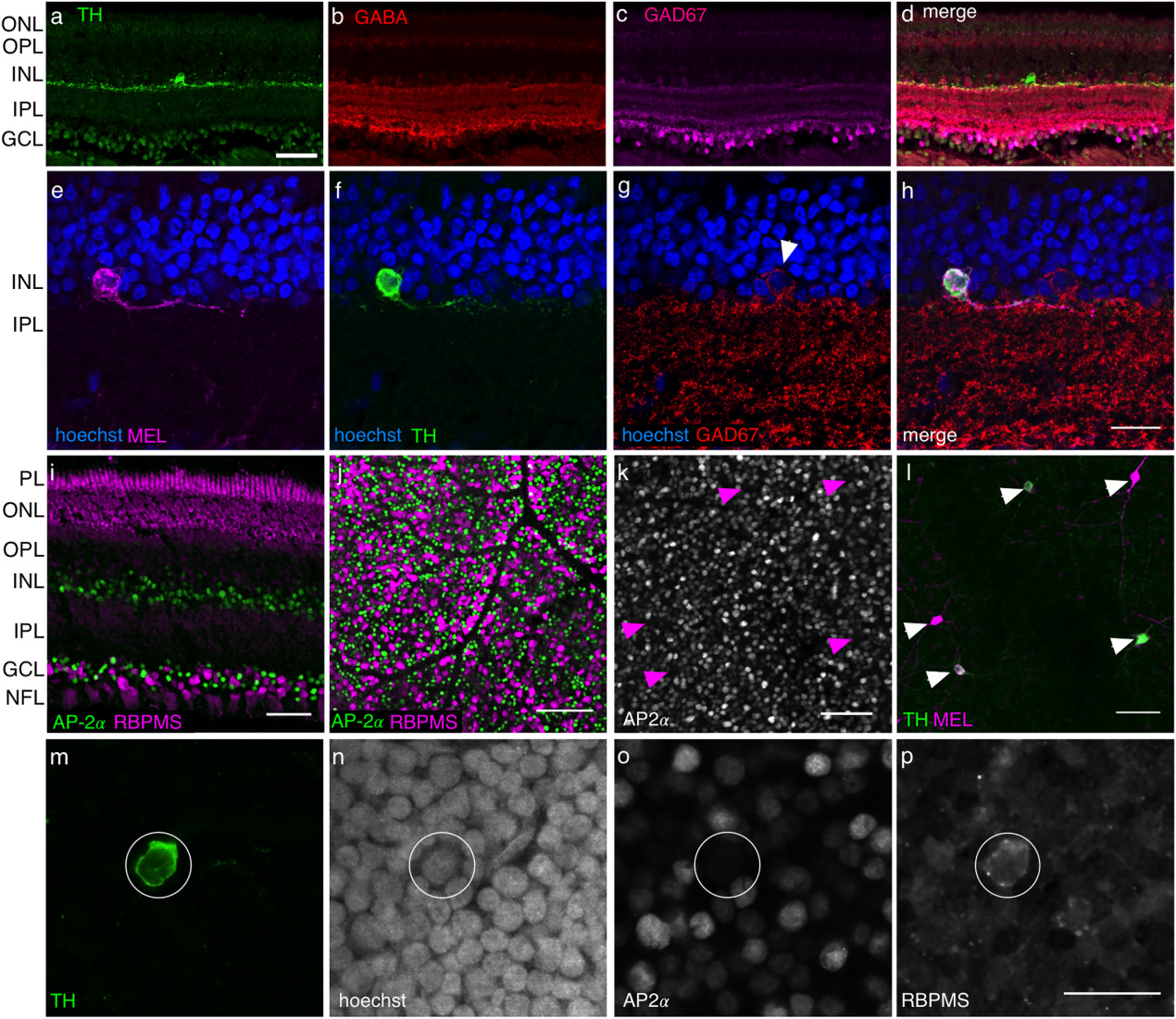

The observation of putative coexpression of TH and MEL in a cell class raises the question of whether these cells are amacrine cells or RGCs. To distinguish these possibilities, we performed a series of immunolabeling experiments. In the first set of experiments, we tested for co-labeling of TH with several amacrine cell markers. DACs in rodents are also GABAergic, and antibodies to GABA or proteins involved in its production (e.g., GAD67) immunolabel these cells (Kosaka et al., 1987; Wässle & Chun, 1988; Wulle & Wagner, 1990; Contini & Raviola, 2003). Furthermore, these antibodies do not label RGCs. Thus, we tested for co-labeling of antibodies to GABA and GAD67 with TH. Neither of these amacrine cell markers exhibited co-labeling with TH (Figure 6a–h), despite labeling at least some amacrine cells (Figure 6g, h).

We next tested whether antibodies to activation protein AP-2α, which labels all amacrine cells in mice (Bisgrove & Godbout, 1999; Bassett et al., 2007), co-labeled TH positive cells in tree shrew. We first tested whether AP-2α robustly labels amacrine cells in tree shrew by comparing the pattern of labeling between AP-2α and RBPMS, a specific and ubiquitous marker of RGCs (Rodriguez et al., 2014). We found these two markers labeled non-overlapping populations of cells in the GCL (Figure 6i, j). These experiments support the conclusion that AP-2α labels amacrine cells specifically and ubiquitously in tree shrew, as it does in mouse. However, AP-2α and TH immunoreactivity were never localized to the same cells in the INL (Figure 6k, p). These experiments suggest that TH+ cells in tree shrew are not amacrine cells.

After testing amacrine specific markers, we turned to specific markers for RGCs to test whether they co-labeled TH+ and MEL+ cells. We again used RBPMS as a specific and ubiquitous marker for RGCs (Rodriguez et al., 2014). MEL+ cells in the GCL were RBPMS+ (data not shown). TH+ positive cells in the INL also immunolabeled for RBPMS (Figure 6p). In summary, the pattern of labeling produced by antibodies that distinguish amacrine cells from RGCs support the possibility that TH+/MEL+ cells are RGCs.

Immunolabeling with RBPMS also allowed us to approximate the fraction of RGCs that were intrinsically photosensitive. In a patch of peripheral tree shrew 0.2 mm², 1225 RBPMS positive and AP-2α negative somata were identified along with 9 MEL+ somata, all in the GCL. This indicates that at least ∼0.7% of all RGCs are ipRGCs, or at least ∼2.1% if TH+/MEL+ cells are considered RGCs and included in this count. These numbers are lower bounds as we may not be identifying all M2-like cells (see Discussion).

3.4 Melanopsin positive cells form at least two independent mosaics

The immunolabeling and morphological analyses described above suggest three ipRGC types in tree shrew: bistratified ipRGCs (∼23% of which are displaced), M2-like ipRGCs, and TH+/MEL+ cells. To further explore this hypothesis, we examined how these cells were distributed and organized across space. M2-like cells were too few to support this analysis (see Discussion), so only TH+/MEL+ and bistratified cell populations were examined.

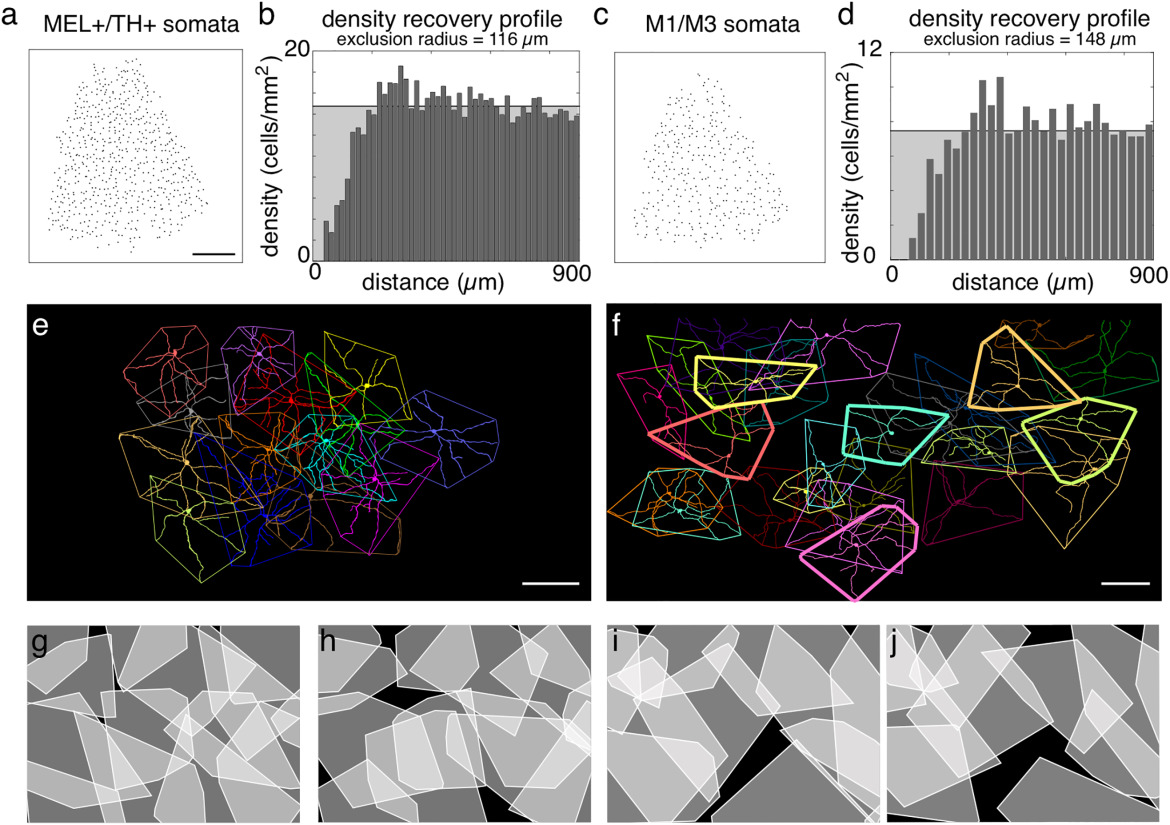

A hallmark of retinal cell types is regularly spaced somata with dendritic fields that approximately tile space (Wassle & Riemann, 1978; Wassle, Peichl, & Boycott, 1981b; Wassle et al. 1981b; Dacey, 1993; Gauthier et al., 2009; Field & Chichilnisky, 2007). To test for regular spacing among somata, we generated density recovery profiles (DRPs; Figure 7a–d), which are radial spatial autocorrelation functions (Rodieck, 1991). Regularly spaced cells exhibit a spatial refractory period between neighbors. The DRPs for both TH+/MEL+ and bistratified cells indicated a dearth of neighbors at short distances (Figure 7b, d). An effective exclusion radius was calculated from each DRP (Rodieck, 1991). TH+/MEL+ and bistratified cells had exclusion radii of 116 and 148 µm, respectively. These DRPs and exclusion radii were calculated from somata locations in the nasal-ventral quadrant of the retina, where cell density was relatively low and density gradients were relatively flat (see below). Thus, these exclusion radii will be smaller in areas of retina with higher densities of MEL+ cells. Nevertheless, this analysis indicates homotypic repulsion between neighboring cells, thus supporting the conclusion that these populations form irreducible cell types.

The second hallmark of retinal cell types is a tendency toward spatial coordination among dendritic fields to tile space (Wassle et al., 1981b; Wassle, 2004; Reese & Keeley, 2015). To test for this coordination, convex hulls were generated from the dendritic fields of TH+/MEL+ and bistratified cells (Figure 7e, f). The dendrites of TH+/MEL+ cells approximately tiled space, particularly avoiding gaps (Figure 7e). To test whether the shapes of the dendritic fields were coordinated, each convex hull was rotated 180°, which revealed 6.62-fold increase in the area that went unsampled between neighboring cells (compare black area between Figure 7g and h). These analyses support the conclusion that the population of TH+/MEL+ cells exhibits coordination among dendritic fields to approximately tile space.

We performed the same analysis of dendritic field coordination for bistratified cells (Figure 7f). Interestingly, dendritic field sampling among cells with somata in the GCL were largely filled by cells with somata in the INL (Figure 7f, thinly vs. thickly outlined polygons). Rotating the convex hulls that outlined the dendritic fields by 180° also resulted in a 2.18-fold increase in gaps between neighboring bistratified ipRGC dendritic fields (Figure 7i, j). These analyses support the conclusion that the population of bistratified ipRGCs exhibits coordination among dendritic fields to approximately tile space.

To summarize, these analyses indicate that the bistratified and TH+/MEL+ cells each exhibit regularly spaced somata and coordinated dendritic field coverage, two defining features of irreducible retinal cell types.

3.5 Melanopsin positive cells exhibit a peak in density near in the ventral-temporal retina

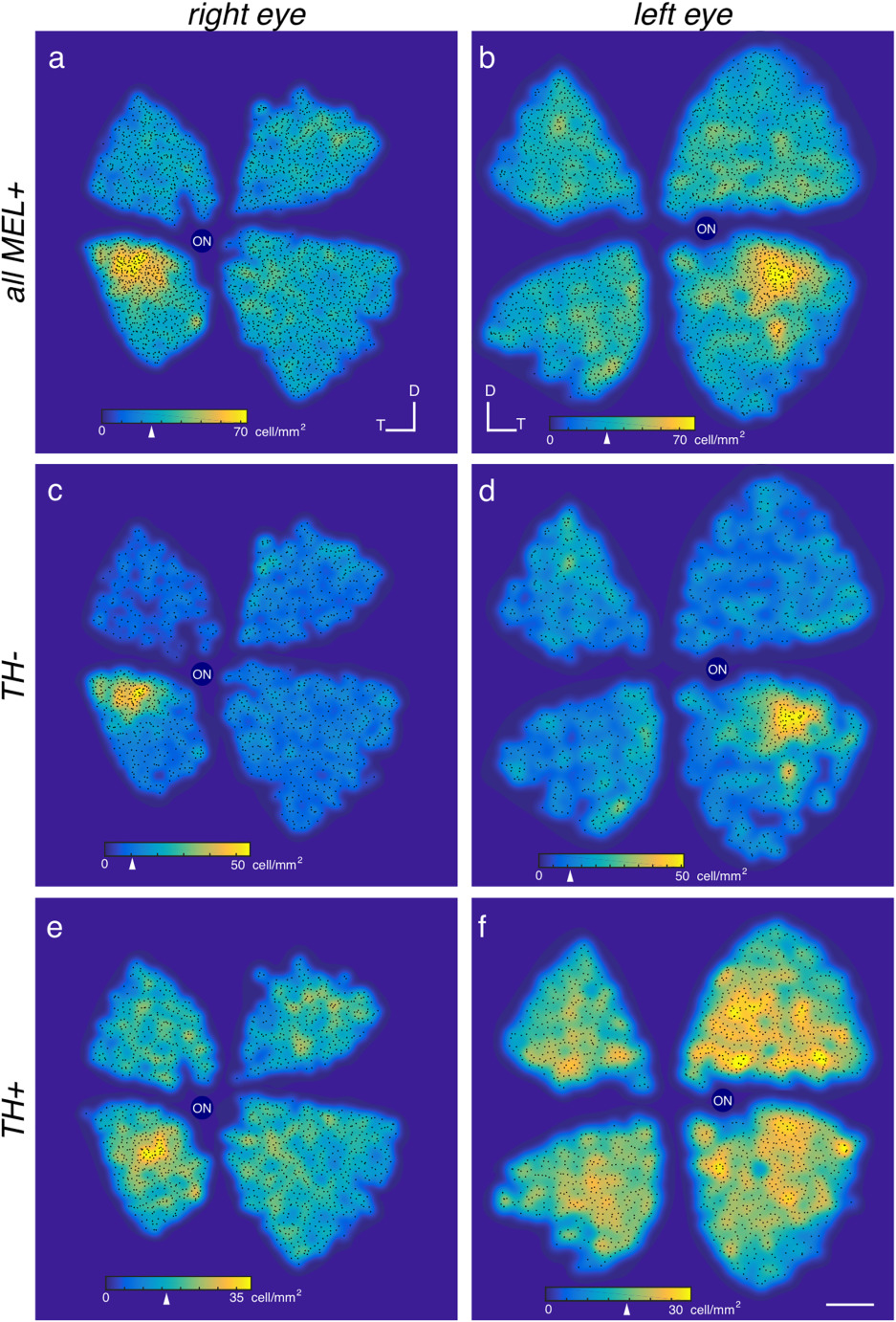

Distinct RGC types, including ipRGCs, can exhibit distinct spatial gradients across the retina (Peichl, 1989; Bleckert, Schwartz, Turner, Rieke, & Wong, 2014; Hughes, Watson, Foster, Peirson, & Hankins, 2013; Valiente-Soriano et al., 2014). Thus, we analyzed the spatial distribution of melanopsin immunolabeled cells across the tree shrew retina. Two retinas were analyzed: one right and one left retina from different animals. The two retinas (right and left) contained 2899 and 3272 MEL+ cells, respectively (Figure 8a, b). The 11% difference in cell counts is likely due to some peripheral retina being lost in the eye with fewer cells. MEL+ cells were not uniformly distributed. A clear peak in density was in the temporal retina, just below the horizontal meridian in both eyes (Figure 8a, b, yellow). We next tested whether this spatial arrangement was common among the different cell types. TH+/MEL+ cells exhibited a distinct distribution from bistratified cells. The density of bistratified cells was sharply peaked at 50–55 cells/mm², with a median density of ∼10 cells/mm² (Figure 8c, d, colormap and arrowhead). In contrast, TH+/MEL+ cells were more uniformly distributed across the retina with a peak and median densities of 35–40 and 15–20 cell/mm², respectively (Figure 8e, f, colormap and arrowhead). Thus, different populations of MEL+ cells in the tree shrew exhibit distinct spatial distributions, suggesting that they may play different roles in image-forming and non-image-forming functions.

4.1 Comparison of melanopsin expression patterns across species

In mice and rats, five different ipRGC types have been identified through a confluence of morphological, genetic, and functional studies (Hattar et al., 2002; Ecker et al., 2010; Schmidt et al., 2011; Hu, Hill, & Wong, 2013; Zhao et al., 2014; Reifler et al., 2015). They are frequently referred to as M1–M5. These cell types differ in their morphology, level of melanopsin expression, degree of intrinsic photosensitivity, projection patterns to the brain, and the behaviors they subserve (Sand et al., 2012). M1 cells exhibit large and sparse dendritic fields that ramify in S1 of the IPL; they are robustly immunolabeled for melanopsin (Hattar et al., 2002; Dacey et al., 2005; Jusuf et al., 2007). M2 cells exhibit smaller and more densely branching dendritic fields that stratify in S5 (Baver et al., 2008). M3 cells are sparsely distributed across the retina and have bistratified dendrites in S1 and S5 (Berson et al., 2010; Schmidt & Kofuji, 2011). M4 and M5 cells have lower levels of melanopsin expression—too low to be detected with direct immunolabeling approaches (Ecker et al., 2010; Sand et al., 2012). Instead, these cells were identified by using a mouse line that expresses Cre under the OPN4 promoter (Ecker et al., 2010): M4 cells are likely alpha-RGC, which project to the superior colliculus and dorsal lateral geniculate nucleus (Estevez et al., 2012; Schmidt et al., 2014). M5 cells are significantly smaller with ‘bushy’ dendritic fields (Ecker et al., 2010). This diversity illustrates that melanopsin-mediated signaling contributes to many of the parallel pathways that emanate from the rodent retina.

It is important to note that the diversity of ipRGCs in rodent remains to be fully resolved. Recent work suggests M1 cells may in fact be at least two cell types in mice. First, the organization of their dendrites exhibits a relatively high coverage factor and does not exhibit the orderly and regular spatial tiling typically observed among most other RGC types (Berson et al., 2010). Second, M1 cells can be subdivided based on their expression of Brn3b, which corresponds to differential roles for Brn3b negative cells in the pupillary light response and Brn3b positive cells in circadian entrainment (Chen, Badea, & Hattar, 2011; Jain, Ravindran, & Dhingra, 2012). Finally, the status of M3 cells as a genuinely distinct type is questionable; they are few in number across the mouse retina and they may merely represent variability in the morphology of M1 cells. Electrophysiology experiments in the rat retina also indicated M3 cells are less frequently encountered than the other four types (Reifler et al., 2015), further suggesting they may represent morphological variability among M1 cells.

An examination of nonhuman primate and human retinae produces a somewhat different picture. In primates, ipRGCs appear to be comprised of just two types, M1 and M2 cells (Dacey et al., 2005; Jusuf et al., 2007; Liao et al., 2016; Nasir-Ahmad et al., 2017; Hannibal et al., 2017). M1 and M2 cells have dendrites limited to S1 and S5, respectively, and each appears to tile the retina. M1 cells are immunolabeled more strongly for melanopsin than M2 cells, suggesting a higher expression level of the protein (Liao et al., 2016; Nasir-Ahmad et al., 2017). M3 cells have also been observed in primate (Nasir-Ahmad et al., 2017), though as with rodents, these cells are rare and may arise just from morphological variability in another ipRGC type. Unlike mice, the diversity and organization of ipRGCs in primate is currently limited to immunolabeling, which may result in a failure to identify RGCs with weaker expression levels of melanopsin, such as M4 and M5 cells in rodent. Nevertheless, studies in new world monkeys (marmosets), old world monkeys (macaques), and humans provide a relatively consistent view of ipRGC diversity and organization. Functionally, ipRGCs in primates may serve somewhat different roles as well. For example, primate ipRGCs can exhibit cone-opponent responses (Dacey et al., 2005), a response property that has not been observed in the ipRGCs of rodents.

In tree shrew, we find an organization of melanopsin immunoreactive cells that has some similarities and differences with rodents and primates. Similar to these species, tree shrews exhibit at least two types of ipRGCs with dendrites stratifying in S1 and/or S5 of the IPL. The least numerous cells we observed, those that were monostratified in S5 (Figure 3d), resemble M2 cells from primates and rodents. These cells did not show evidence of regular spacing or formation of a mosaic because we observed very few in any retina. Two issues may contribute to potentially undersampling M2 cells. First, M2 cells in other species exhibit weaker labeling and lower protein expression than M1 cells, making them somewhat more difficult to detect using immunohistochemical methods (Hattar et al., 2006; Schmidt & Kofuji, 2009). Second, the melanopsin antibody we used (PA1–781) is directed against the C-terminus of the protein and has been reported in rodents to label M1 cell preferentially (Baver et al., 2008). We tried an antibody directed against the N-terminus, which has been reported to label M2 cells (PA1–780), but we observed no labeling in tree shrew retina across a range of concentrations. Thus, future experiments are needed to resolve whether M2 cells in tree shrew tile the retinal like most RGC types (Field & Chichilnisky, 2007; Sanes & Masland, 2015), or sparsely sample the visual scene.

We also observed a set of bistratified ipRGCs, with dendrites ramifying in S1 and S5 of the IPL; ∼23% of these cells exhibited somata in the INL, but their dendrites filled gaps in the dendritic coverage of cells with somata in the GCL, suggesting this is a single cell type. This is consistent with observations of displaced M1 cells in the primate retina filling gaps in dendritic coverage of M1 cells with somata in the GCL (Jusuf et al., 2007). Thus, this population is most similar to M1/M3 cells in rodents and primates: They are unlike M1 because they are typically bistratified, but they are unlike M3 cells because their dendrites tile space and their somata are regularly spaced.

The most numerous cell type that immunolabeled for melanopsin exhibits cell bodies in the INL, dendrites in S1, and co-immunolabeled for TH. This pattern of immunolabeling is surprising because it suggests that either tree shrew have an intrinsically photosensitive amacrine cell or a dopaminergic ipRGC. Given studies in other mammals, the location of their somata and their immunoreactivity to TH suggests they are amacrine cells. Indeed, a previous study in tree shrews examined TH+ cells and presumed they were amacrine cells (Müller & Peichl, 1991b). The cells they described are similar to the TH+ cell described here in every respect, so they are likely the same cells. However, in other mammals, DACs are immunopositive for GABA and enzymes involved in its synthesis, such as GAD67 (Kosaka et al., 1987; Wässle & Chun, 1988; Wulle & Wagner, 1990; Contini & Raviola, 2003). We did not find evidence for immunoreactivity for GABA, GAD67, or the pan-amacrine cell marker AP-2α (Figure 6). The immunolabeling for melanopsin suggests these cells could be RGCs. We found these cells to co-label with RBPMS, an immunohistochemical marker for RGCs (Rodriguez et al., 2014). RGCs have been identified as residing in the INL in other vertebrates, such as fish (Cook & Becker, 1991; Cook, Kondrashev, & Podugolnikova, 1996). Typically, soma size is a feature that can assist in discriminating RGCs from amacrine cells: RGCs typically have larger somata. However, in many species DACs exhibit large somata that are ∼15 µm in diameter, similar to the somata size we observed for these cells (Nguyen-Legros et al., 1984; Mariani, Kolb, & Nelson, 1984). Thus, our evidence is suggestive that TH+ cells may be RGCs, but is far from conclusive. A recent study provided evidence for an intrinsically photosensitive interneuron in the extreme periphery of the mouse retina (Valiente-Soriano et al., 2014). Thus, a stronger test will be to identify axons that emerge from these cells and enter the optic nerve (Pang, Gao, & Wu, 2010; Valiente-Soriano et al., 2014). Axonal labeling by melanopsin antibodies in this study was generally weak and insufficient to clearly trace axons. Thus, future work to retrogradely label melanopsin immunoreactive cells will be required to fully resolve the identity of TH+/MEL+ cells.

We found that bistratified ipRGCs and TH+/MEL+ cells exhibited distinct spatial distributions across the retina. In primates, M1 and M2 cell densities peak in the region surrounding the fovea—they are excluded from the fovea itself (Jusuf et al., 2007; Nasir-Ahmad et al., 2017). Tests for eccentricity-dependent density gradients among ipRGCs in mice have produced mixed results: a preponderance of evidence suggests a higher density in the superior than inferior retina (Hughes et al., 2013; Valiente-Soriano et al., 2014), and a higher density in temporal than nasal retina (Valiente-Soriano et al., 2014). The gradients were significantly different between M1 and M2 cells compared to M4 and M5, which ran in the opposite direction (Hughes et al., 2013). The distinct gradients of melanopsin immunolabeled cells that we observe in tree shrew supports the notion that they subserve distinct functions. In particular, bistratified ipRGCs may be participating in imaging forming or color vision because their density peaks at a location in each eye that corresponds to a binocular zone in front and slightly above the animal (Dacey et al., 2005; Johnson, Van Hooser, & Fitzpatrick, 2010). TH+/MEL+ cells were more uniformly distributed. A relatively uniform distribution may be beneficial for uniformly distributing dopamine, a paracrine neuromodulator, across the retina (Witkovsky, 2004).

4.2 Circadian and dopaminergic modulation

Animals must entrain their physiology to the behavioral demands imposed by night and day. Dopamine release and ipRGC signaling are two central components of this entrainment. For example, in the retina, dopamine release is high during day even in the absence of light (Pozdeyev & Lavrikova, 2000; Witkovsky, 2004). At night, melatonin release by photoreceptors is high and suppresses dopamine release (McMahon, Iuvone, & Tosini, 2014). This counterphase signaling likely tunes retinal signal processing for cone and rod-mediated vision. Thus, retinal signal processing is linked to the circadian rhythm. In rodents and primates, this link is at least partly formed by M1 ipRGCs, which provide intraretinal signaling to DACs. Specifically, they signal the ambient light level to DACs via axon collaterals that traverse the IPL (Zhang et al., 2008; Prigge et al., 2016; Joo, Peterson, Dacey, Hattar, & Chen, 2013). Furthermore, DACs provide dopaminergic and potentially GABAergic signals back onto ipRGCs (Van Hook et al., 2012; Contini & Raviola, 2003; Perez-Leon, Warren, Allen, Robinson, & Brown, 2006; Pack, Hill, & Wong, 2015). These likely reduce the gain of ipRGCs: The dopaminergic signals appear to act on ipRGCs through D1-like receptors to reduce their photocurrent and decrease their input resistance, thereby reducing intrinsic photosensitivity (Van Hook et al., 2012). Thus, ipRGCs drive DAC activity when stimulated by light, and DACs can modulate ipRGC gain in response to light, or in prediction of light—in the case of circadian-driven release of dopamine.

Our results indicate that the organization of dopaminergic and melanopsin-mediated signaling in the tree shrew is distinct from other species. In particular, we find evidence that a single class of neurons is both dopaminergic and intrinsically photosensitive. Why would these systems converge in a single cell type in tree shrews? One possible explanation stems from the fact that tree shrews have very few rod photoreceptors compared to primates and rodents. Thus, this lack of rods opens the possibility that melanopsin-based photoreceptors may be the most sensitive photoreceptors in tree shrew. Indeed, the isomerization of a single melanopsin molecule can produce a substantial and sustained response in an ipRGC (Do et al., 2009). If dopamine release primes the retina for daylight conditions, it may be preferable to initiate dopamine release at luminances below the activation of cones. In this context, merging the dopaminergic system and melanopsin signaling into a single cell population has at least two advantages. First, at threshold, melanopsin-mediated signaling does not need to traverse a noisy synapse, making dopamine release less prone to synaptic noise from ipRGCs. Second, by expressing melanopsin, dopamine release could be driven by melanopsin-mediated depolarizations that are below spike threshold, making dopamine release more sensitive than if it required a presynaptic neuron to reach spike threshold. Thus, regardless of the identity of these cells (RGCs or amacrine cells), the convergence of melanopsin and dopamine signaling pathways in tree shrew may be a specialization to compensate for so few rod photoreceptors.

4.3 Tree shrews as a model for visual processing

Tree shrews have been used as a model system for central visual processing, particularly for understanding primary visual cortex. They exhibit specializations to early visual processing that are reminiscent of primates, such as a 6-layered lateral geniculate nucleus (Conway & Schiller, 1983; Conley et al., 1984; Holdefer & Norton, 1995), prominent color opponent neurons (Johnson et al., 2010), and a functional architecture in primary visual cortex (e.g., orientation columns) that is highly organized (Fitzpatrick, 1996; Van Hooser et al., 2013; Lee et al., 2016). However, relatively little is known about RGC diversity in the tree shrew, beyond ON and OFF and sustained versus transient cells (van Dongen, ter Laak, Thijssen, & Vendrik, 1976). Recent work in the primate and rodent retinas suggest there are 30–40 distinct RGC types (Dacey, Peterson, Robinson, & Gamlin, 2003; Yamada, Bordt, & Marshak, 2005; Völgyi, Chheda, & Bloomfield, 2009; Sümbül et al., 2014; Baden et al., 2016; Sanes & Masland, 2015). This presents a challenge to fully understanding the processing that occurs from retina to cortex in these animals. It is clear their retinas are cone dominated (Müller & Peichl, 1989; Petry et al., 1993), and that they contain two types of horizontal cells (Müller & Peichl, 1993), starburst amacrine cells (Sandmann, Engelmann, & Peichl, 1997), rod bipolar cells (Müller & Peichl, 1991a), and at least a few functionally and morphologically distinct RGC types (van Dongen et al., 1976). We have added to the diversity of cell types in tree shrew with the addition of bistratified and M2-like ipRGCs. We have also added a third putative RGC type that is intrinsically photosensitive and potentially dopaminergic, though it remains possible this is an amacrine cell that is intrinsically photosensitive.

A complete accounting of RGC diversity in tree shrew has several potential benefits. One benefit is to understand evolutionary changes in retinal and visual system organization between rodents and primates. For example, direction selective cells comprise ∼20% of all RGCs in rodents, and probably only 1–3% in primates (Baden et al., 2016; Dacey, 2004). One potential reason for this difference is that primates devote a huge fraction (∼55%) of their RGCs to ON and OFF midget cells to support high acuity vision (Dacey, 2004; Field & Chichilnisky, 2007). Determining whether tree shrews, which have 3–5-fold higher acuity than mice (Petry, Fox, & Casagrande, 1984; Prusky, West, & Douglas, 2000), exhibit a decrease in the proportion of direction selective RGCs and an increase in X-like or Y-like cells, may be a clue to when and where this trade-off initiated. It also remains unclear what determines and establishes the existence of orientation columns in primary visual cortex across species: mice do not have columns while primates do (Hubel & Wiesel, 1962; Ohki, Chung, Ch'ng, Kara, & Reid, 2005; Bonin, Histed, Yurgenson, & Reid, 2011; Ringach et al., 2016; Scholl, Pattadkal, Rowe, & Priebe, 2017; Scholl et al. 2017). The organization of the tree shrew retina, in comparison to that of mice and primates, may provide clues to the utility of orientation maps across species (Paik & Ringach, 2011; Hore, Troy, & Eglen, 2012). Furthermore, the genome of tree shrews has been sequenced recently (Fan et al., 2013), raising the possibility that a genomic comparison with mice and macaques may help to elucidate factors that control the relative production of distinct retinal cell types, and how these cells wire to various brain areas across different mammals.

Finally, tree shrews have been a highly productive model for studying myopia (Sherman, Norton, & Casagrande, 1977; Norton, 1990; Gawne, Siegwart, Ward, & Norton, 2017). Axial length of their eye changes in response to a variety of stimuli including stimulus blur and visual deprivation. A confluence of epidemiological and animal model studies implicates ambient light levels as a major contributor to the rise in myopia (Stone, Pardue, Iuvone, & Khurana, 2013; Norton & Siegwart, 2013). Specifically, indoor (photopic) lighting is typically 100–10,000-fold dimmer than outdoor (photopic) light, and children that spend more time outside have lower rates of myopia. Furthermore, increasing ambient lighting slows the effects of myopiagenic stimuli in animal models from chickens to tree shrews to nonhuman primates. It is also clear that dopamine signaling within the retina alters the progression rate of axial length changes and sensitivity to myopiagenic conditions. A key signaling pathway that can link high-lux environments to sustained dopamine release is the ipRGC system (Zhang et al., 2008; Prigge et al., 2016). Thus, understanding how dopaminergic and melanopsin signaling pathways interact in tree shrews may shed new insights into emmetropia and myopia.
