An alternative technique for downsizing a modified Blalock-Taussig shunt

1 TECHNIQUE

Modified Blalock-Taussig (B-T) shunt has critical impact on the potential outcome of future surgeries on the same patient.1 A 10-month-old boy, 8.4 kg, with d-transposition of the great arteries (TGA), VSD, and subpulmonary obstruction, underwent a modified B-T shunt with a 5-mm conduit. Postoperatively, the patient developed pulmonary overcirculation due to oversized B-T shunt (Figure 1A). Critical status of our patient entailed minimal surgical manipulation, so a smaller conduit was tightly wrapped around the previous B-T shunt off pump.

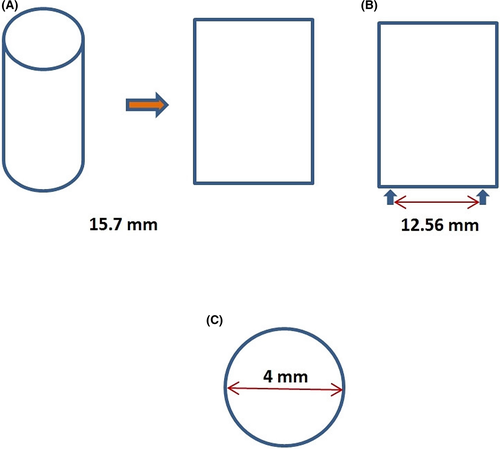

A 5-mm Gore-Tex was used again. The graft was longitudinally incised creating an oblong shape; the width corresponded to the perimeter of the graft (15.7 mm; Figure 2A).

Perimeter had to be the same as of the 4 mm graft, so we have marked the width of this oblong to the desirable perimeter (12.56 mm; Figure 2B).

Dissection of the existed shunt from edge to edge was performed (Figure 3A) and then girdling with the new one by suturing it in the marked diameter. Interrupted “U-shaped” 6-0 prolene sutures (Figure 3B) were placed creating eversion of the existed graft to prevent thrombosis (Figure 2C).

The patient had an uneventful recovery, and the shunt was functional 6 months later (Figure 1B).
