FOXC1 is associated with estrogen receptor alpha and affects sensitivity of tamoxifen treatment in breast cancer

Cell culture

Human breast cancer cell lines (MCF-7, T47D, BT549, and HCC1806) were purchased from the American Type Culture Collection (ATCC) and the cells were grown in Dulbecco's Modified Eagle's Medium (DMEM) supplemented with 10% fetal calf serum, 100U/mL penicillin, and 100 μg/mL streptomycin at 37°C humidified incubator containing 5% CO2. Human primary breast cancer cell lines were obtained from Peking Union Medical College Hospital.

Tumor specimens

Approval for the use of human tissues was approved by the Institutional Review Board (IRB) at the Peking Union Medical College Hospital, Beijing, China. Analysis was conducted on paraffin-embedded archival tissue (PEAT) specimens of breast cancer diagnosed at the Peking Union Medical College Hospital.

Stable transfection

MCF-7 and T47D cells were plated in 60-mm dishes at 80% confluence before 24 h of transfection. FOXC1–myc–flag plasmid was transfected into the MCF-7 and T47D cells using Lipofectamine^™ 3000 Transfection reagent (Invitrogen, Grand Island, NY) for 24 h. The cells were then screened under 0.8 mg/mL G418 (Invitrogen) for 3 weeks. MCF-7 and T47D cells with overexpressing FOXC1 were subcloned as MCF-7-FOXC1 and T47D-FOXC1, respectively 16.

BT549 and HCC1806 cells were plated in 60 mm dishes at 80% confluence before 24 h of transfection. FOXC1 shRNAs (Sigma-Aldrich, St. Louis, MO) were stably transfected into BT549 and HCC1806 cells which have high FOXC1 expression and were selected in 5 μg/mL puromycin. BT549 and HCC1806 cells which have low FOXC1 expression were subcloned as BT549 FOXC1 shRNA and HCC1806 FOXC1 shRNA, respectively.

Expression of FOXC1 was verified by Western blot analysis with anti-FOXC1 antibody (Cata No. sc21394, Santa Cruz Biotechnology, Santa Cruz, CA), antimyc antibody (Cata No. 06-340; EMD Millipore, San Diego, CA), and antiflag antibody (Cata No. TA50011-100, Origene, Rockville, MD).

Transient transfection assay

Cells were plated in 60 mm dishes at 80% confluence before 24 h of transfection. The FOXC1–myc–flag plasmid and promoter luciferase (ERE-Luc) were transfected into MCF-7 cells using Lipofectamine^™ 3000 Transfection reagent (Invitrogen) 17. FOXC1–myc–flag plasmid (500 ng), Renilla (50 ng), and luciferase reporter construct (100 ng) were transfected into the cells in 6-well plate. Renilla expression vector was cotransfected as an internal control. After transfected for 24–36 h, cells were washed twice with PBS buffer and harvested in 200 μL of 1× reporter lysis buffer (Promega, Madison, WI). Cell lysis was centrifuged at 12,000 g for 10 min at 4°C and supernatant was collected. Cell extract (20 μL) was mixed with 100 μL Luciferase Assay Reagent (Promega, Madison, WI) at room temperature and immediately placed in GloMax^® —Multi diction system (Promega).

Immunoblot analysis

Whole cell extracts were prepared from MCF-7 vector and MCF-7-FOXC1, T47D vector and T47D-FOXC1, BT549 vector and BT549 FOXC1 shRNA, and HCC1806 vector and HCC1806 FOXC1 shRNA cells. Western blot assays were done as previously described 18. Immunoblotting was done with polyclonal antibodies against FOXC1, IRS1 (insulin receptor substrate 1) (1:200; Cata No. sc7200, Santa Cruz Biotechnology), monoclonal antibodies against ERα (1:500, Cata No. 8644, Cell Signaling, Danvers, MA), PR (progesterone receptor) (1:500; Clone PgR 363, Dako, Carpinteria, CA), and XBP1 (Cata No, SAB2102720; Sigma-Aldrich). Anti-β actin (Cata No.A5316; Sigma-Aldrich) was used at a 1:10000 dilution. Incubation with primary antibodies overnight was followed by incubation with secondary antibody (1:4000; Anti-mouse IgG NA931V, Anti-rabbit IgG NA934V GE Biosciences and 1:4000, Anti-goat IgG, Cata No. sc2020, Biotechnology). Detection was carried out using the Pierce SuperSignal West Pico chemiluminescent substrate (Thermo fisher, Rockford, lL) followed by scanning using a Fluorchem 5500 chemiluminescence imager (Alpha Innotech Corp, San Leandro, CA).

Real-time reverse transcription PCR

Total RNA was isolated from MCF-7 vector and MCF-7-FOXC1, T47D vector and T47D–FOXC1 cells, BT549 vector and BT549 FOXC1 shRNA, and HCC1806 vector and HCC1806 FOXC1 shRNA using RNeasy mini kit (Qiagen, Hilden, Germany), with on-column DNase treatment to remove contaminating genomic DNA. Real-time reverse transcription PCR (RT-PCR) was done as in reference 19. The primers (Integrated DNA Technologies, Inc., Coralville, IA) for RT-PCR were listed in Table S1.

Immunocytofluorescence assay

MCF-7 cells were transiently transfected with FOXC1-GFP plasmid. After transfected for 24 h, the cells were digested with trypsin and mixed with untransfected MCF-7 cells. The mixed cells were cultured in chamber slides (Nunc Lab-Tek, St. Louis, MO). Cells were fixed with 4% formaldehyde and then permeabilized with PBS containing 0.1% Triton X-100. Slides were blocked by 5% BSA for 30 min and incubated with a primary antibody (Cata No. 8644, anti–ERα antibody, 1:100, Cell Signaling, Danvers, MA) at room temperature for 1 h. Then, cells were incubated with an Alexa 546–conjugated secondary antibody (Cata No. A-11030, 1:500, Invitrogen, Grand Island, NY) for 30 min. Slides were washed by PBS three times, 5 min each time, mounted with DAPI (Vector Laboratories, Burlingame, CA), and observed under Nikon microscope (Nikon, Melville, NY) 20.

Cell proliferation assay

The Promega CellTiter 96^® AQu_eous One Solution Cell Proliferation Assay was used according to the manufacturer's instructions (Promega, Madison, WI). Cells were seeded into 96-well plates (1000 cells per well) in triplicate. Absorbance at 490 nm was measured after the addition of 20 μL of MTS reagent per well for 2 h, every 24 h over a 96 h period 21, 22.

Immunohistochemistry

Five-micrometer paraffin-embedded tissue sections were deparaffinized and rehydrated, antigens were retrieved, and IHC was performed using an optimized protocol 23, 24. Slides were deparaffinized, rehydrated, and washed in 1X PBS. Antigen retrieval was performed with 1X citrate buffer (Sigma-Aldrich) at 100°C for 10 min and then incubated in H₂O₂ (Sigma-Aldrich) at room temperature to block endogenous peroxidase. Separate slides were incubated in primary rabbit Anti-FOXC1 antibody (aa250-300) IHC-plus^™ LS-B1800 (1:250 dilution; Seattle, WA) overnight in a 4°C humid chamber followed by 1 h incubation with secondary biotinylated link Ab. The reaction for FOXC1 was developed using a labeled streptavidin biotin (LSAB) method (LSAB+ Kit; Dako, Carpinteria, CA) and visualized using VIP Substrate Kit (Vector Laboratories, Burlingame, CA). Specificity of the immunostaining was determined by the inclusion of isotype-specific IgG (Santa Cruz Biotechnology, Santa Cruz, CA) as negative controls. The sections were counterstained with hematoxylin (Sigma-Aldrich). A photograph of each IHC-stained section was taken for analysis using a Nikon Eclipse Ti microscope and NIS elements software (Nikon, Melville, NY). Staining density was determined by Image J software (http://rsbweb.nih.gov/ij/). After adjustment for background on each selected field, the density of the individual breast cancer specimen was quantified and given a numerical value from 0 to 255. Breast cancer specimens were tested in duplicate, and the average of the two staining intensity values was used for statistical analysis.

Nude mice for xenograft assays

Twelve nude mice (BALB/c background) (experimental animal center, Chinese Academy of Sciences, Shanghai, China) were randomly divided into two groups and housed in air conditioned, light-controlled, animal facilities. Animal care and all experiments were in accordance with the institutional guidelines and were approved by the Animal Care and Use Committee in accordance with regulations of Institutional Animal Care and Use Committee. To test the tumorigenic properties of cells, MCF-7 vector and MCF-7 FOXC1 (1 × 10⁶) cells were orthotopically injected into the number four mammary fat pads of female nude-BALB/c mice (6 mice for each cell line) 25.

Mice were weighed and subcutaneous tumors were measured after a week; tumor volume was obtained by the ellipsoid volume calculation formula: 0.5× (length × width²).

Statistical analysis

The results are given as mean ± SD of samples measured in triplicate. Each experiment was repeated three times, unless otherwise indicated. Student's t-test was used to calculate differences between the various study groups. The difference was considered statistically significant at P < 0.05.

FOXC1 is negatively correlated with luminal expression signatures: ESR1, FOXA1, GATA3, XBP1, and MYB

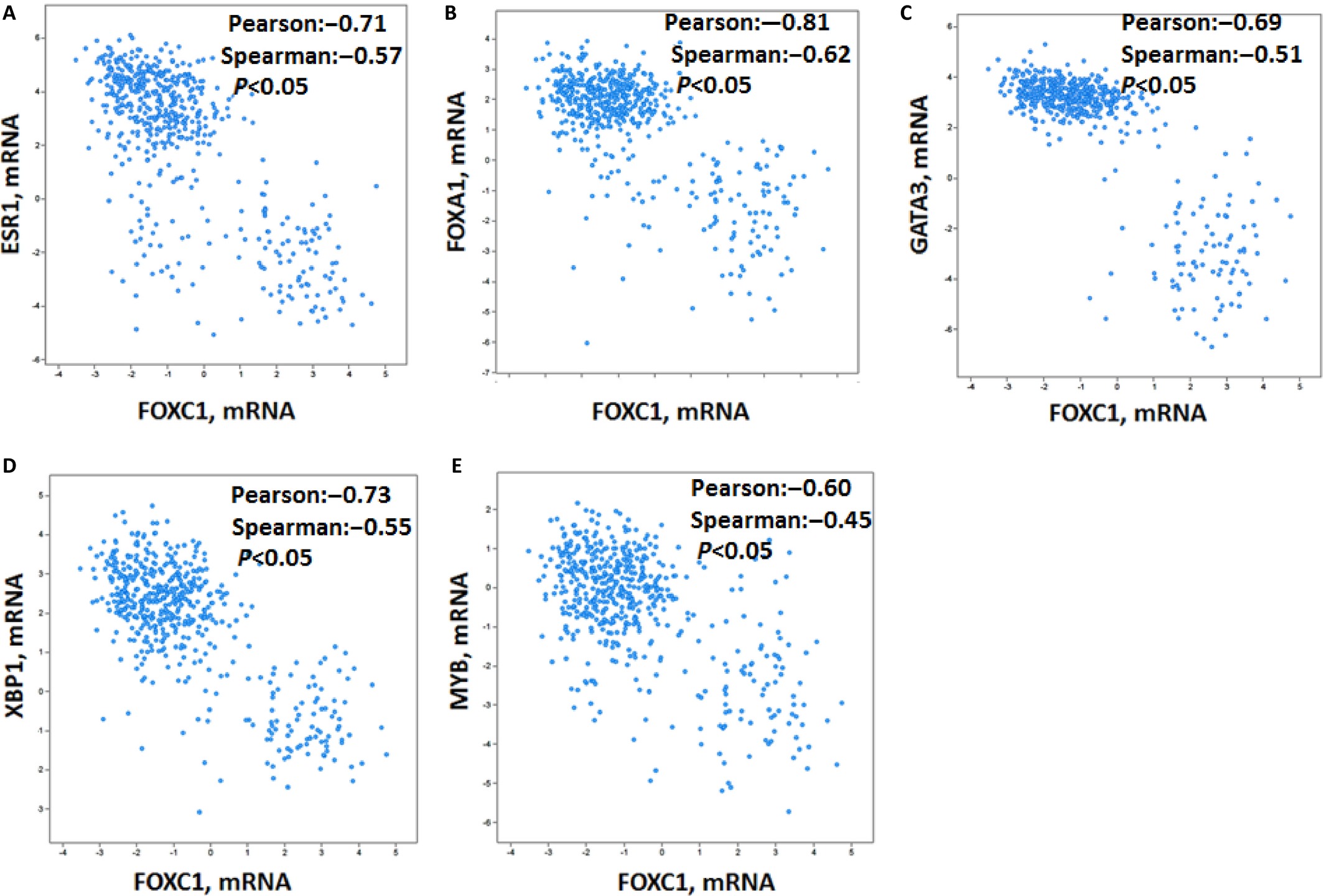

Our previous study showed that FOXC1 was highly expressed in triple-negative breast cancer. However, the mechanism remains unclear. To explore the mechanism, silicon assay was performed using TCGA database (http://www.cbioportal.org/public-portal/cross_cancer.do). Results showed that expression of FOXC1 mRNA was negatively correlated with luminal expression signatures: ESR1, FOXA1, GATA3, XBP1, and MYB expression (Fig. 1A–E). We also found that FOXC1 was amplified in invasive breast cancer (8%) (Fig. S1).

FOXC1is highly expressed in ERα-negative breast cancer

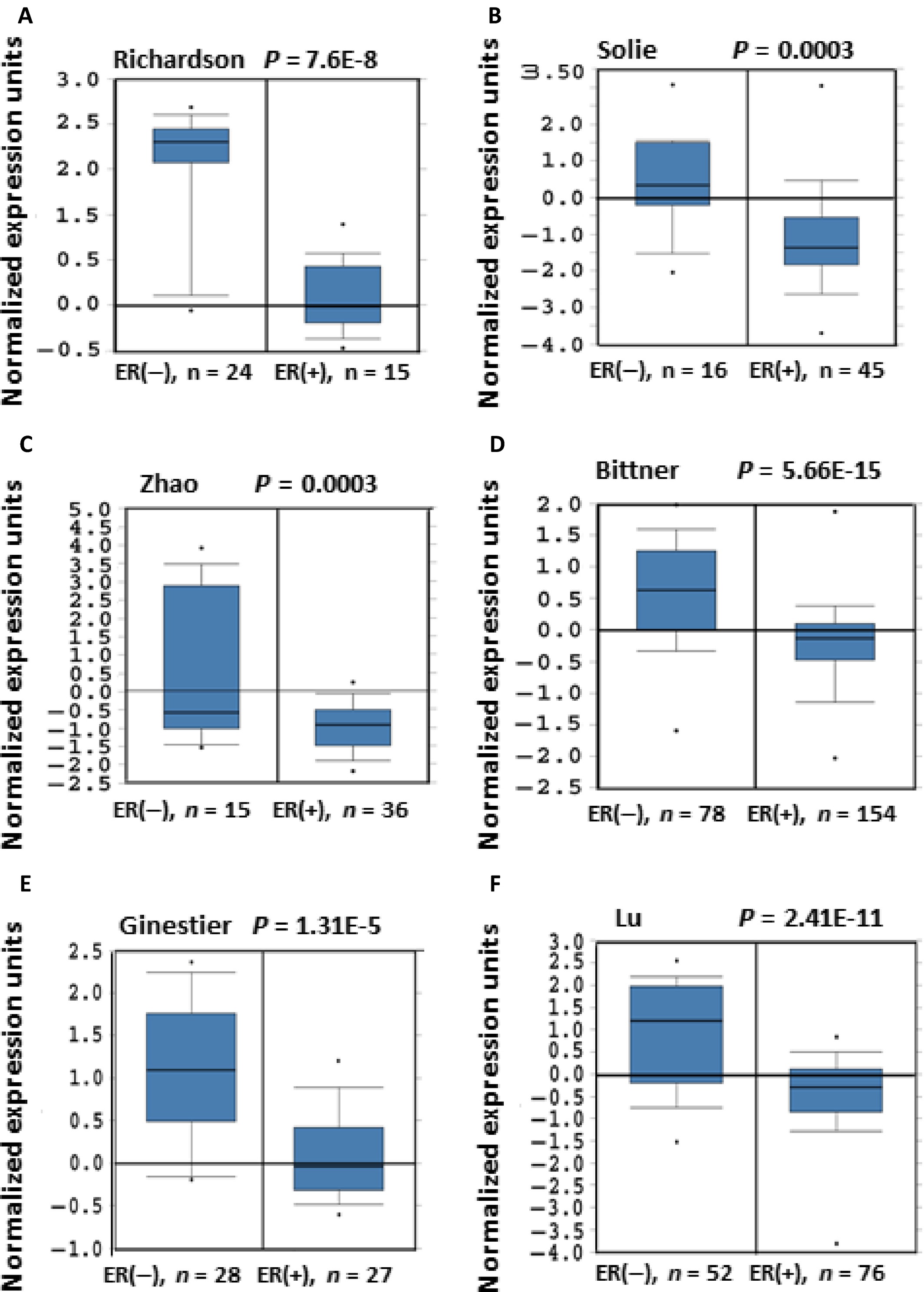

Basal-like breast cancers are characterized by high expression of basal cytokeratins, low or absent expression of estrogen receptor, progesterone receptor, and HER2. Our previous study showed that there was high FOXC1 expression in basal-like breast cancers (no or very low ERαα expression). To confirm the relation between FOXC1 expression levels and ERα status of breast cancer, we compared the expression levels of FOXC1 in the ERα-negative and -positive breast cancer using the Oncomine and TCGA (The Cancer Genome Atlas) database, which provides publicly available datasets on cancer gene expression. Eleven of the 11 datasets from Oncomine, which contain gene chip profiles classified as normal or breast carcinoma tissues, showed that FOXC1 mRNA levels were much higher in ERα-negative breast cancers than that in ERα-positive breast cancers (Fig. 2 and S2). TCGA data also confirmed the result (Fig. S3).

FOXC1 reduced expressions of ERα and its downstream targets

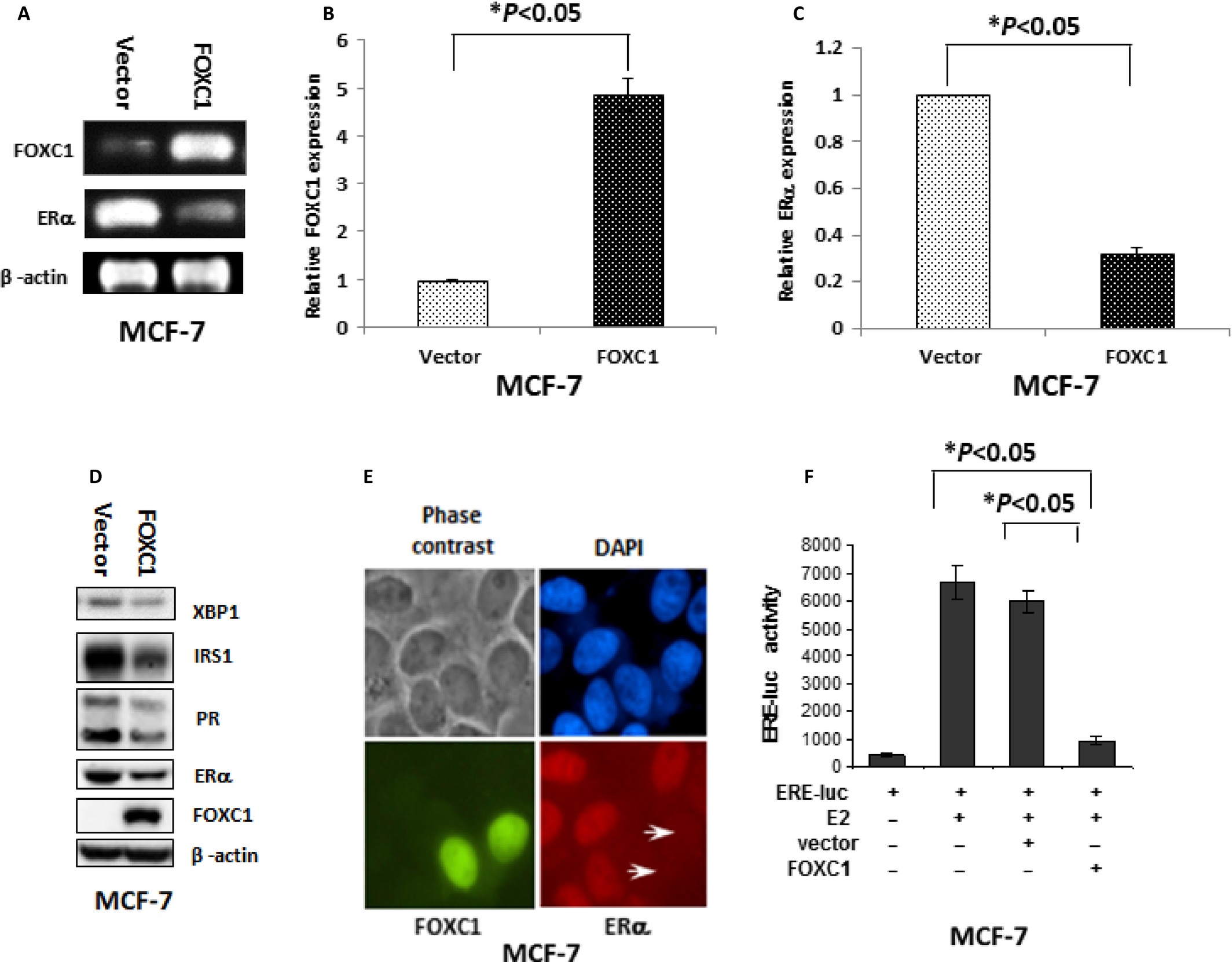

FOXC1 is the only gene to be consistently and exclusively overexpressed in BLBC and is associated with poor overall survival (P = 0.0001) (11). To test whether FOXC1 affects ERα gene expression, MCF-7 and T47D were transfected with FOXC1–myc–flag plasmid, and the stable clones were obtained. All these clones were pooled. We carried out real-time PCR and Western blot assay by using the MCF-7 vector and MCF-7-FOXC1, T47D vector and T47D-FOXC1. There is much lower ERα mRNA and protein expression in the MCF-7-FOXC1 and T47D-FOXC1 cells than that in the MCF-7 vector and T47D vector, respectively. (Fig. 3A–C and S4).

To investigate functional effects of the downregulation of ERα by FOXC1, expression of XBP1, PR, and IRS1 was evaluated as downstream targets of ERα using Western blot. Expression of XBP1, PR, and IRS1 was decreased in the MCF-7-FOXC1 and T47D-FOXC1 cells compared to MCF-7 vector and T47D vector, respectively (Fig. 3D and S5A).

In immunocytofluorescence assay, it was showed in Figure 3E that there is much lower ERα expression in transiently transfected MCF-7 cells with FOXC1–EGFP (Enhanced Green Fluorescent Protein) plasmid than MCF-7 vector cells. Luciferase reporter plasmids-containing EREs were transfected into MCF-7 cells with or without FOXC1–myc–flag. Estrogen treatment enhanced the transcription of these reporter plasmids. The estrogen-stimulated enhanced transcription was inhibited by FOXC1 expression (Fig. 3F).

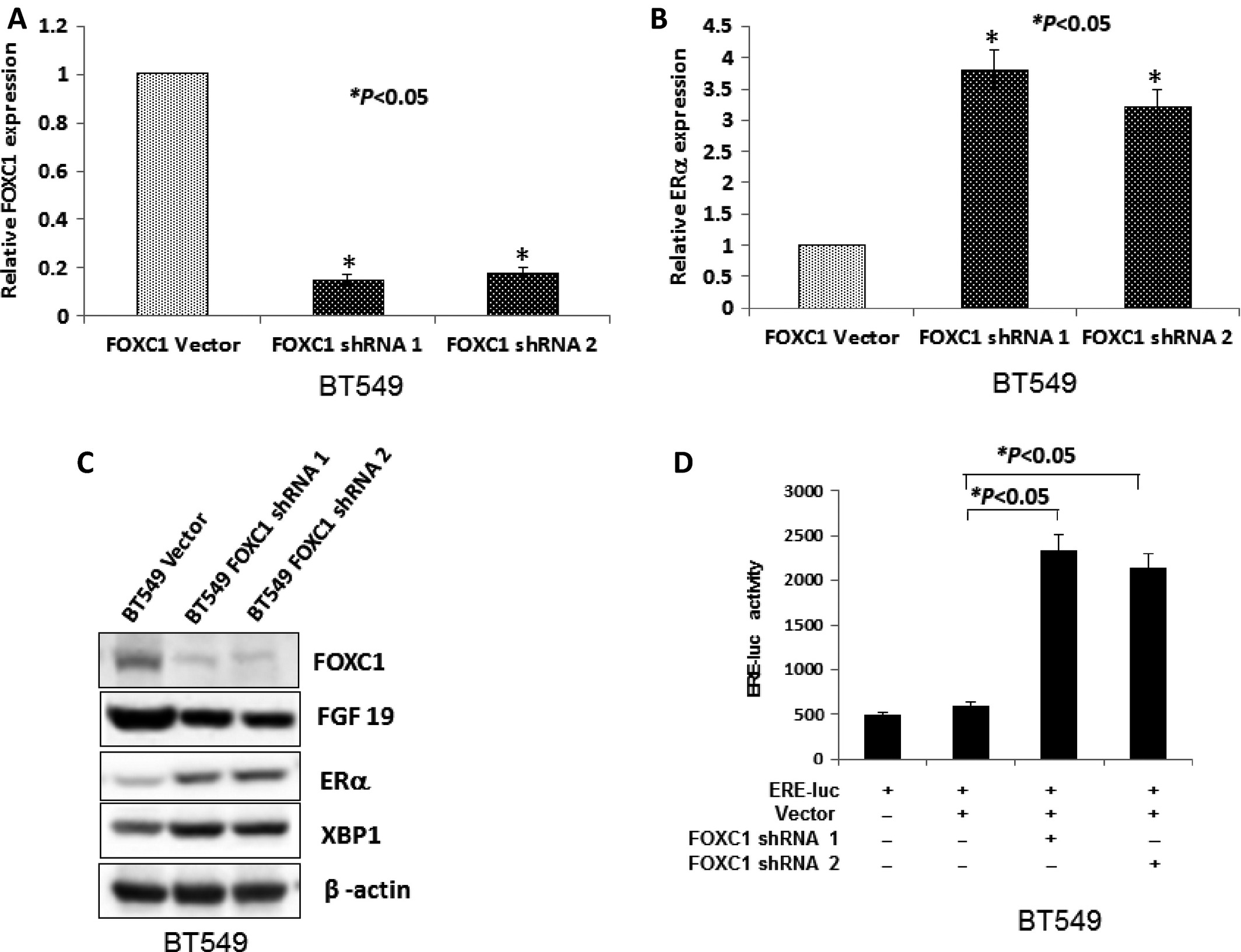

Meanwhile, BT549 and HCC1806 cell lines which have high FOXC1expression were transfected by FOXC1 shRNA and the stable clones were obtained. Expression of FGF19 (downstream target FOXC1), ERα and XBP1 (downstream target of ERα) was checked in these clones using Western blot. Results showed that mRNA expression of ERα was increased when mRNA expression of FOXC1 was reduced by FOXC1 shRNA (Figs. 4A, B and S6A, B). Expression of ERα and XBP1 was increased when expression of FOXC1 and FGF19 was reduced in BT549 FOXC1 shRNA and HCC1806 FOXC1 shRNA (Fig. 4C, S6C). FOXC1 shRNA activated ERE-luc activity in BT549 and HCC1806 cell lines (Figs. 4D and S6D).

Taken together, these results showed that FOXC1 regulated the expression of ERα

FOXC1 reduced cell response to estrogen and tamoxifen

ERα belongs to the steroid hormone receptor superfamily and functions as a ligand-activated transcription factor. ERα is a key player in estrogen-mediated proliferation, survival, and differentiation through regulating the transcription of estrogen-target genes as well as through activation of signal transduction pathways 26.

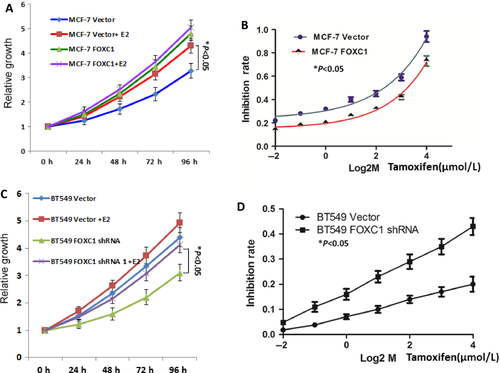

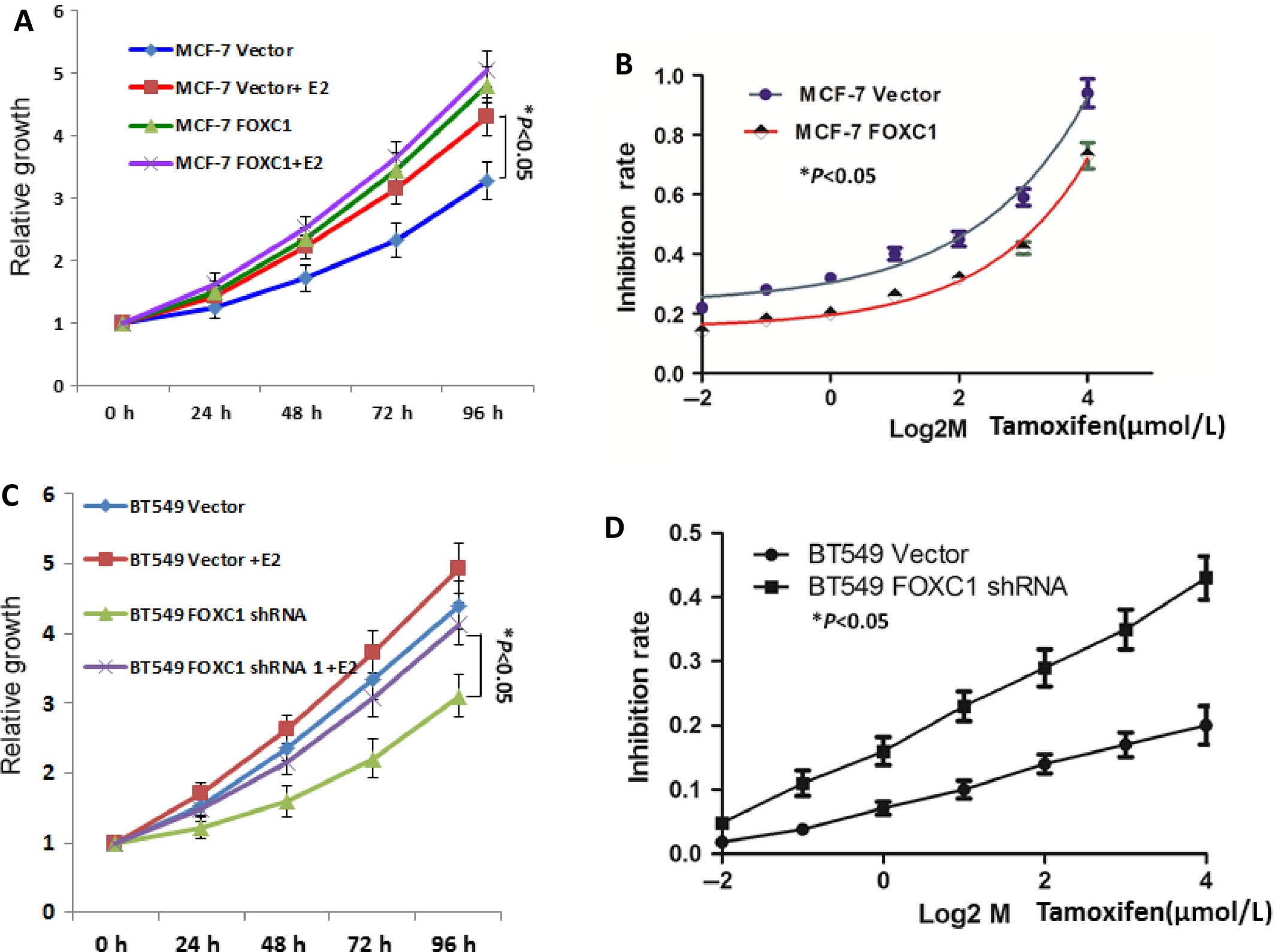

To investigate the relation between FOXC1 and ERα in the growth of breast cancer cells, MCF-7 vector and MCF-7-FOXC1, T47D vector and T47D-FOXC1, BT549 vector and BT549 FOXC1 shRNA, HCC1806 vector and HCC1806 FOXC1 shRNA cells were cultured in DMEM (without phenol red) with E2 or normal culture medium. FOXC1 expression reduced stimulatory growth effect by E2 in MCF-7-FOXC1 and T47D-FOXC1 compared to MCF-7 vector and T47D vector in DMEM (without phenol red) with E2, respectively, while the growth of BT549 FOXC1 shRNA and HCC1806 FOXC1 shRNA cells was higher than BT549 vector and HCC1806 vector in DMEM (without phenol red) with E2, respectively. (Figs. 5A, C and S7A, C).

To explore whether the FOXC1 renders resistance to the tamoxifen in cells, MCF-7 vector, MCF-7-FOXC1, T47D vector, and T47D-FOXC1 cells were cultured in DMEM (without phenol red) with tamoxifen. As shown in Figures 5B and S7B, MCF-7-FOXC1 and T47D-FOXC1 cells became more resistant to tamoxifen than control cells.

We also check sensitivity of tamoxifen treatment in BT549 FOXC1 shRNA and HCC1806 FOXC1 shRNA and found that BT549 FOXC1 shRNA and HCC1806 FOXC1 shRNA cells were more sensitive to tamoxifen than BT549 vector and HCC1806 vector cells, respectively (Figs. 5D and S7D).

FOXC1 was overexpressed in ERα-negative breast cancer cell lines

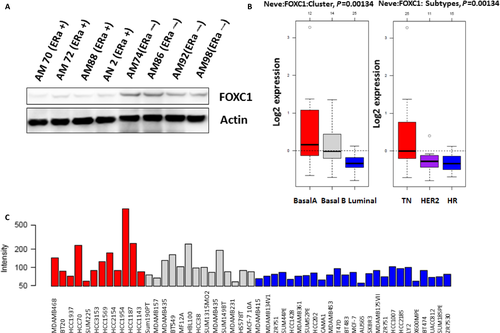

To check if FOXC1 expression is related with status of ERα in breast cancer cell lines, Western blot was performed using cell lysis from cell lines of primary breast cancers. FOXC1 expression was much higher in ER-negative cell lines than that in ER-positive cell lines (Fig. 6A). Silicon assay (http://co.bmc.lu.se/gobo/) showed that FOXC1 expression in triple-negative cells was significantly higher than that in HER 2-positive and luminal cell lines (Figs. 6B, C and S8). All results suggested that FOXC1 was overexpressed in ERα-negative breast cancer cell lines.

FOXC1 was overexpressed in tissues of ERα-negative breast cancer

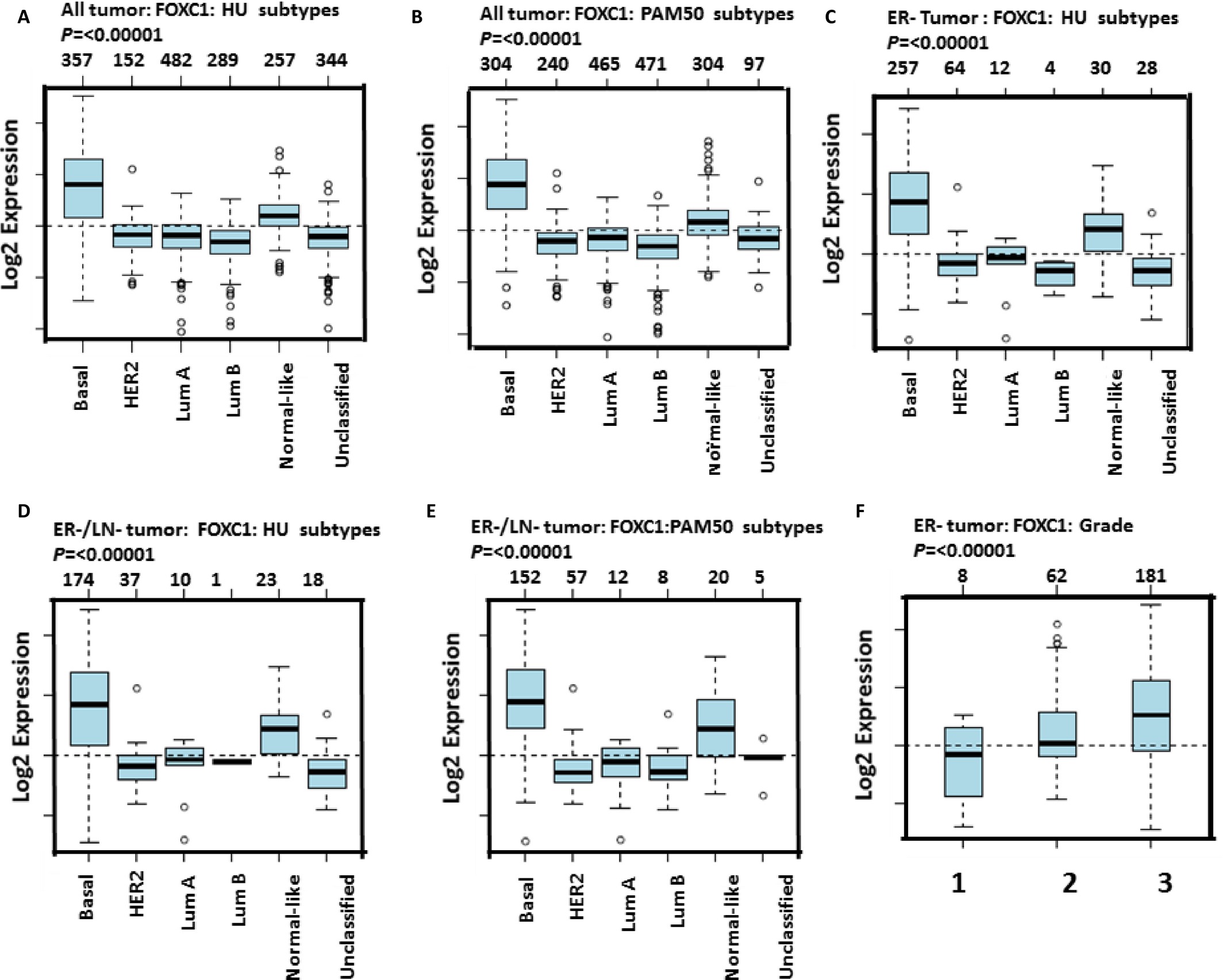

To check FOXC1 expression in breast cancer, we firstly analyzed the GOBO online database (http://co.bmc.lu.se/gobo/), which consists of 10 breast cancer cohorts and 1789 patients. It was shown in Figure 7A–E that expression of FOXC1 in basal-like breast cancer was higher than other type breast cancer. Data also showed that there was higher FOXC1 expression in ERα-negative tumor than that in ERα-positive tumor (Fig.  9). Expression of FOXC1 was increased with progress of breast cancer (Fig. 7F and S10). Secondly, Immunohistochemistry (IHC) was done to assess the expression of protein in tissues of human breast cancer. The representative pictures were shown in Figure 8 A and B. Results from IHC showed there was a significantly higher FOXC1 expression in triple-negative breast cancer compared to luminal breast cancer (Fig. 8C).

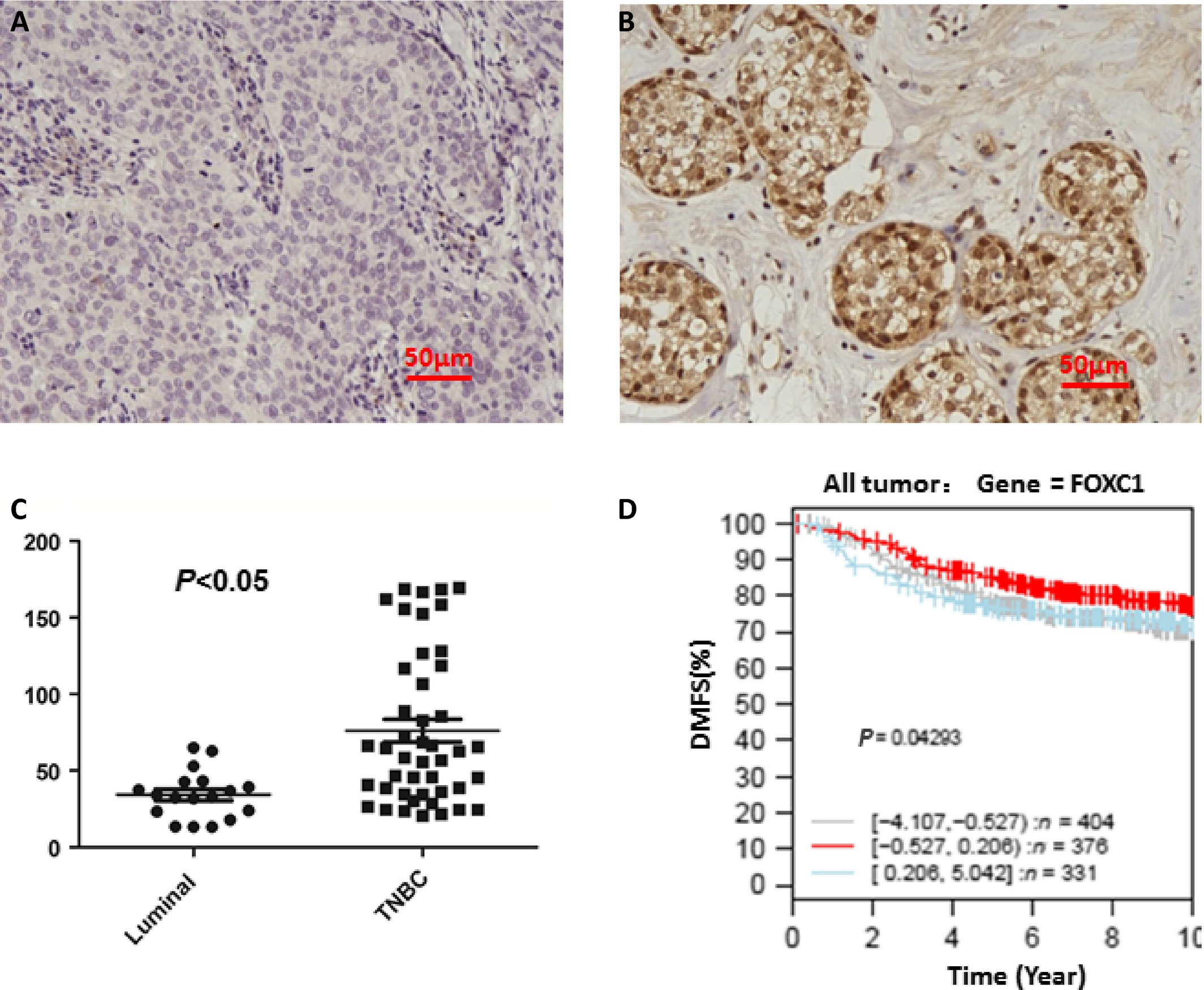

To assess the clinical significance of FOXC1 in breast cancer, Kaplan–Meier meta-analyses were performed using the GOBO online database (http://co.bmc.lu.se/gobo). Patients with high FOXC1 expression have the lowest survival rate (Fig. 8D). These findings support the notion that FOXC1 plays a major role in the progression of breast cancer metastasis.

FOXC1 enhanced growth of xenograft tumors in nude mice

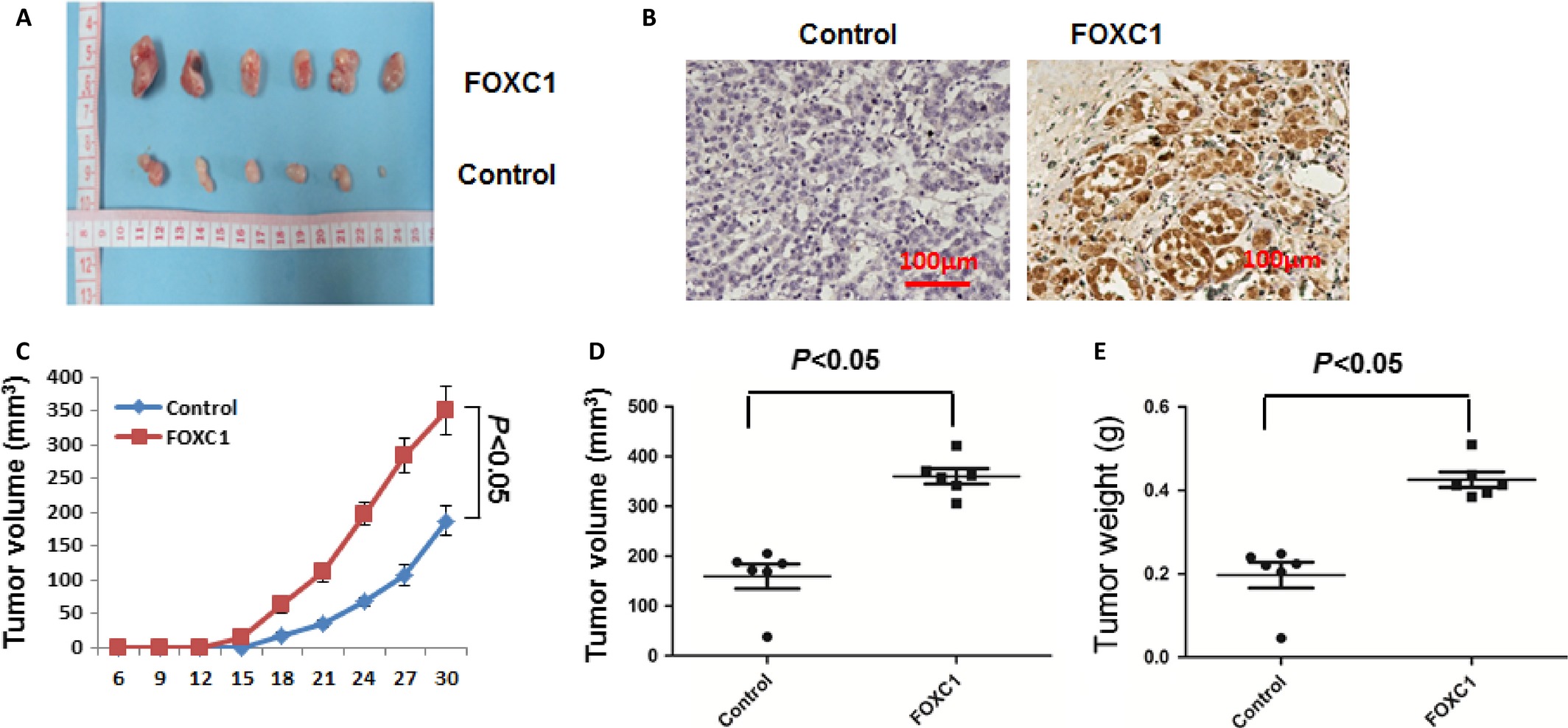

To assess whether FOXC1 increased the tumorigenic properties of breast cancer cell lines, MCF-7 vector and MCF-7-FOXC1 cells were orthotopically injected into the number four mammary fat pads of female nude-BALB/c mice (6 mice/cell line). Growth and size of tumor were significantly increased in MCF-7-FOXC1 compared to MCF-7 vector (Fig. 9A). Expression of FOXC1 increased the volume and weight of tumors (Fig. 9B–E). In summary, FOXC1 increased the tumorigenic properties of breast cancer cell lines.
