Antibody variable region engineering for improving cancer immunotherapy

2.1 scFv and nanobodies

The scFv is composed of a heavy-chain variable (VH) domain connected to a light-chain variable (VL) domain. The most common linker is (G4S)₃/(SG4)₃, which is sufficiently flexible to orientate the two domains [8]. In addition to Gly and Ser, other amino acids such as Thr and Ala are introduced to increase flexibility. Longer G4S linkers have been introduced to scFv, subsequently demonstrating stronger binding [9, 10]. With the development of computational tools, linkers are now designed with computational algorithms to optimize scFv flexibility, solubility and stability based on the VH and VL amino acid sequences [11]. The modular VH-(G4S)₃/(SG4)₃-VL construction provides more freedom for modification than a full immunoglobulin (IgG, IgA, IgE and IgM). Due to the simplicity of the design, this format can be easily engineered to introduce additional modules such as drug conjugates, imaging tracers, stabilizing agents, or another binding region. However, the simple format is also subject to drawbacks because of the lack of the Fc region. Unlike the full immunoglobulin, scFv are comparably unstable and tend to aggregate and misfold. Therefore, such antibody fragments require extensive modification and engineering to achieve satisfactory quality for in vivo studies.

Nanobodies, also termed VHH, are derived from camelids and express natural VH-only antibodies with CH2 and CH3 domains. Nanobodies are the smallest antibody fragments (12-15 kDa), only half the size of an scFv (25 kDa), and are composed of the VH variable domain onl y. Although nanobodies interact with antigens mainly via the complementarity-determining region 3 (CDR3), similar to full IgG, their CDR3 region can form a stretched convex paratope with concave epitopes [12, 13]. This feature allows nanobodies to access clefts or hidden and cryptic epitopes inaccessible to conventional mAbs [14]. On the other hand, the shorter region of interaction with the antigen increases the difficulty of isolating high-affinity nanobodies [15]. The development of several nanobody screening and isolation platforms illustrate the advantages of the selected nanobodies over conventional mAbs in terms of physical and chemical robustness. Nanobodies remain stable under extreme conditions, including high temperatures, high pressures, low pH and low protease concentrations, reducing manufacturing costs [16, 17]. Recent findings have suggested that the high stability allows intracellular nanobody expression, which may present new avenues for targeting intracellular cancer antigens [18]. In addition, the stretched CDR3 region, substitutions of conserved hydrophobic residues to hydrophilic amino acids in the VH framework region 2 (FR2), and additional disulphide bond render nanobodies conformationally stable and less prone to aggregation [16, 17, 19, 20].

2.2 scFv and nanobody format engineering

Nanobodies and scFv present a few advantages over the full immunoglobulin. The solid tumor is relatively inaccessible to whole antibodies because of several biological barriers [21]. In contrast, scFv and nanobodies have superior tissue penetration properties compared with mAbs: they demonstrate a higher perfusion rate across endothelial and epithelial barriers and diffuse faster through the tumor stroma because of their smaller size [22-25]. Nevertheless, the small size of scFv and nanobodies also has its drawbacks. For example, the molecular weight of nanobodies (15 kDa) is below the renal cut-off, rendering their circulating half-life extremely short (0.1–0.3 h) [26, 27]. This short half-life greatly limits the efficacy and potency of nanobody therapies, especially for chronic diseases. Consequently, many strategies have been developed for improving the half-life of scFv and nanobodies, including the conjugation of a human Fc domain to the C terminal, linking the variable region of an anti-albumin antibody to scFv or nanobodies, polyethylene glycol (PEG)ylation, coupling to human serum albumin (HSA), or more recently, polyglutamic acid and PASylation [28-30]. The coupling to HSA extends the half-life of nanobodies by 5–10-fold at the expense of a marginally higher molecular weight of 50 kDa [31, 32]. Although the conjugated anti-epidermal growth factor receptor (EGFR) nanobodies demonstrate comparable tumor penetration and uptake speed to cetuximab, the ability of conjugated nanobodies to inhibit tumor growth remains much weaker [33]. Some more complicated designs also take advantage of the small size and assemble nanobodies by binding with scFv or Fab to form multivalent antibody formats, which prolongs the half-life by engaging the neonatal Fc receptor (FcRn)-mediated IgG recycling pathway [34]. Although the short plasma half-life and lack of an Fc region may result in lower bioavailability and immune response than mAbs, these features render scFv/nanobodies more specific with fewer adverse effects. In addition, the short half-life renders them ideal for medical imaging with minimal background [35-37].

2.3 Multivalent antibody fragments

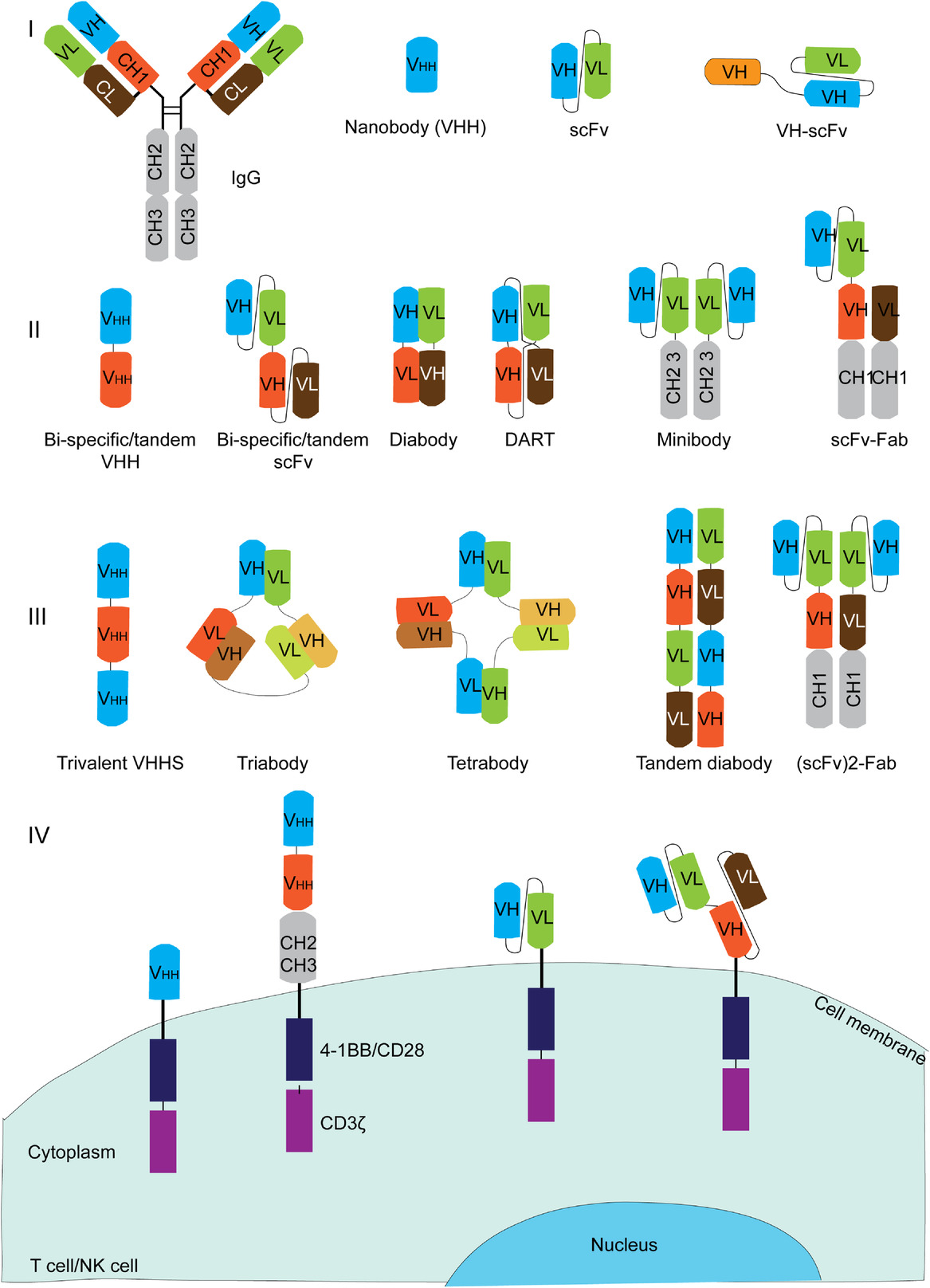

Monovalent antibody fragments such as scFv and single-domain antibodies can be further engineered into multivalent antibody fragments such as diabodies, triabodies, tetrabodies, minibodies, and more intricate formats (Figure 2). Diabodies are formed via either non-covalent or covalent bonding between two scFv with linkers containing less than 11 amino acids, while triabodies and tetrabodies are formed when the linker contains less than 3 amino acids. These formats demonstrate higher specificity and affinity than monovalent fragments [38]. Moreover, two scFv can be linked by the CH3 domain to form a minibody, which is still relatively small but more stable than other multivalent formats, rendering it ideal as an imaging agent and for drug conjugation [39]. For example, a radio-labeled minibody targeting CD8 exhibits good tolerance and sensitive detection of CD8-positive T cells in tissue; therefore, it is being evaluated for monitoring the CD8+ T-cell response after immunotherapy [40]. The α-particle-emitting astatine-211 (²¹¹At)-labeled anti-prostate stem cell antigen (PSCA) A11 minibody demonstrated potent tumor growth inhibition in vivo, but radiotoxicity was also present, possibly due to the free ²¹¹At accumulation in the thyroid, stomach, salivary gland and spleen [41].

The immunogenicity of nanobodies is meant to be lower than that of non-human full antibodies because of the lack of an Fc and the smaller size. Nevertheless, nanobodies induce anti-nanobody autoantibodies and cytokine release syndrome even after humanization [42, 43]. Nanobody humanization has been suggested to be redundant, where a non-humanized gallium-68 (⁶⁸Ga)-labeled anti-erbB-2 (HER2) nanobody is in a phase II clinical trial for positron emission tomography (PET) of breast cancer [26]. Non-humanized nanobodies have a relatively short half-life, which induces minimal immunogenicity. Another study found that the heat-induced aggregates of anti-EGFR were not immunogenic, while the insoluble aggregates were immunogenic [44]. Modifications for reducing nanobody immunogenicity remain an active field of research. Further structural and screening platforms will aid our understanding of the factors contributing to nanobody immunogenicity.

3.1 EGFR family

EGFR is considered one of the main antigens for therapeutic intervention of cancer as it is overexpressed in various epithelial cell tumors, including breast cancer, non-small cell lung cancer (NSCLC) and colorectal cancer (CRC), and is associated with poor prognosis [48]. Ligand binding to EGFR leads to activation of the downstream signaling pathways, including that for phosphoinositide 3-kinase (PI3K), v-akt murine thymoma viral oncogene homolog 1 or protein kinase B (Akt), mitogen-activated protein kinase (MAPK) and signal transducer and activator of transcription (STAT), which promote tumor cell growth, migration and survival [49]. The US FDA has approved four anti-EGFR mAbs (cetuximab, panitumumab, necitumumab and amivantamab) for treating CRC and NSCLC, paving the way for research on anti-EGFR scFv and nanobodies [50]. With similar downstream signaling pathways, HER2 is closely related to EGFR and is overexpressed mainly in breast and ovarian cancers. Its high expression level renders HER2 the ideal target for breast cancer treatment [51]. Indeed, anti-HER2 trastuzumab is arguably one of the most well-established mAb drugs, improving the survival of patients with metastatic breast cancer from 20.3 months to 25.1 months and reducing the risk of relapse by around 10% within 3 years [52].

Despite the success of full IgG anti-EGFR/HER2 drugs, improvements can still be made with antibody fragment engineering, such as by joining monospecific antibody fragments. The Fab arm-exchanged bispecific antibody amivantamab was approved recently by US FDA for treating NSCLC by targeting EGFR and tyrosine-protein kinase Met (cMET) simultaneously [53]. Anti-HER2 nanobodies and scFv have also been studied to improve the penetration of anti-HER2 therapies. Due to the lack of an Fc, antibody fragments cannot exert ADCC or ADCP. Approaches have been developed for conjugating drugs to antibody fragments for anti-tumor toxicity. CAM-H2 is an anti-HER2 131-iodine (¹³¹I)-conjugated nanobody that is currently tested in a phase I/II clinical trial for the treatment of advanced and progressive HER2-positive malignancy [54]. Given its small size, the nanobody was able to cross the blood-brain barrier to target metastatic HER2-positive tumors, which are inaccessible to conventional antibodies [36, 55]. HER3 expression was higher in 83% of gastrointestinal tumors and 20% of breast, ovarian and bladder cancers than in normal tissues [56, 57]. HER3 confers resistance to HER2 inhibition by maintaining the RAS-Akt signaling pathway through a negative feedback mechanism [56]. In addition, HER3 may form heterodimers to promote tumor proliferation, rendering it a critical target for cancer immunotherapy [57]. Lumretuzumab was developed to target HER3 and inhibit its phosphorylation and ligand binding. In a phase I clinical trial, monotherapy treatment with lumretuzumab and other anti-HER3 mAbs only had a control rate of 21% without ADCC effects [58, 59]. Single-domain antibodies have subsequently been studied for targeting alternative HER3 domains, thereby mediating the anti-proliferative effect via distinctive mechanisms [60]. Although antibody fragments against HER2 and HER3 cannot exert ADCC or ADCP, they can act as building blocks for multi-specific antibody complexes that target distinctive epitopes on HER3 and HER2 to combat tumor resistance against monotherapy.

3.2 Vascular endothelial growth factor (VEGF) and hepatocyte growth factor (HGF)

VEGF and VEGF receptor (VEGFR) are highly expressed during angiogenesis and vasculogenesis, promoting the development of new blood vessels in various cancer types, including colon, breast, and lung cancers [61]. Inhibiting VEGF and VEGFR were shown to extend the survival of patients with cancer when administered with chemotherapy [62]. The US FDA approved bevacizumab (Avastin) in 2004 for treating metastatic CRC by neutralizing VEGF [63]. Avastin blocks VEGF-VEGFR interaction, thereby promoting chemotherapeutic drug delivery to the tumor via blood vessels [64]. Currently, few nanobodies against VEGF or VEGFR2 have been developed for inhibiting tumor angiogenesis, and anti-VEGF nanobodies inhibited human umbilical vein endothelial cell proliferation and tube formation in vitro [65, 66]. However, there is currently no evidence of any anti-tumor effect of anti-VEGF/VEGFR nanobody in vivo, possibly due to the short half-life of the nanobodies in the blood. Some studies have attempted to fuse the IgG1 Fc to anti-VEGFR nanobody, but the in vivo effect remained unclear despite the Fc-mediated function in vitro [67, 68]. Future studies on the humanization and affinity maturation of anti-VEGF/VEGFR nanobodies may facilitate the development of functional monovalent nanobodies in vivo.

HGF is a plasminogen-like protein that interacts with the cMET receptor. The engagement results in the activation of tyrosine kinase, which promotes tumor outgrowth and metastasis [69]. Currently, five mAbs are in phase I-III clinical trials for CRC, renal cell carcinoma, glioma, gastric cancer and oesophageal cancer [70]. Unfortunately, onartuzumab (anti-cMET) and rilotumumab (anti-HGF) failed to demonstrate significant improvement even in patients with high cMET expression in phase III clinical trials [71, 72]. Although it has been argued that cMET may not be the best biomarker for enrolling patients, cMET and HGF may have kinase-independent pathways in tumorigenesis that render the kinase region targeted by anti-HGF/cMET mAbs and anti-HGF nanobodies obsolete [73]. To address this issue, nanobodies against the whole cMET ectodomain were developed and demonstrated higher uptake by tumor tissues compared to that by normal tissues and delayed tumor growth compared with saline control [19, 74].

The success of conventional antibodies for cancer therapy is a double-edged sword for research on antibody fragment formats. It is difficult to overlook the issues regarding the emerging antibody formats: lack of evidence for efficacy and potency, safety concerns and a short half-life. Nevertheless, antibody fragments demonstrated an unparalleled advantage over conventional antibodies as building blocks in multi-specific antibody constructs and chimeric antigen receptor T (CAR-T)/CAR-natural killer (NK) cell therapy, given their flexible modular feature.

4.1 Bispecific T-cell engager (BiTE) antibody

Conventional mAbs do not recruit T cells because of their lack of an FcR. On the other hand, bispecific antibodies can be designed to tether T cells by anti-CD3 single-chain antibodies. BiTEs recruit T cells to target tumor cells, leading to T cell activation via CD3 binding in the T cell receptor (TCR) complex [75-77]. T cells are activated regardless of major histocompatibility complex (MHC) peptide restriction, leading to the destruction of target cells in a TCR specificity-independent manner [75]. Currently, more than 15 BiTEs against solid tumors are under clinical study, which targets well-established antigens, including EGFR, HER2, prostate-specific membrane antigen (PSMA) and epithelial cell adhesion molecule (EpCAM) (Table 1). The development of mAbs targeting solid tumors is more complicated than that for hematological tumors because of the poor delivery rate [76, 78, 79]. BiTEs are formed by scFv or nanobodies; therefore, they potentially offer higher tumor penetration due to their smaller size than full size IgG. For example, a bispecific nanobody against CD3 and EGFR bound specifically with EGFR-overexpressing tumor cells, thereby mediating lysis via both T cell activation and EGFR signaling blockade [80]. In 2009, catumaxomab, an anti-CD3 and EpCAM-bispecific antibody targeting EpCAM-positive tumors for T cell-mediated lysis, became the first US FDA-approved BiTE for intraperitoneal treatment of patients with malignant ascites [48, 81]. Despite its stability and longer half-life compared to scFv, it caused severe adverse effects. The Fc of catumaxomab bound to the FcγR of tissue Kupffer cells that initiate local cytokine release, resulting in the death of the patient [82]. Thus, catumaxomab was voluntarily withdrawn from the US market in 2013 and the European Union (EU) market in 2017.

4.2 Modifications for improving BiTE efficacy

Due to the modular features of antibody fragments, there is much room for engineering to optimize BiTE specificity, potency, and affinity while reducing its toxicity. Following the withdrawal of catumaxomab, the engineering shifted to the variable regions of BiTEs. To prevent adverse/off-target effects, the next-generation BiTE currently undergoing clinical trials feature silenced Fc or Fc-free constructs composed of modular antibody fragments [67, 68]. The US FDA approved blinatumomab (CD3+CD19) in 2014 for treating acute lymphoblastic leukemia (ALL); it is a bispecific antibody that recognizes CD3 and CD19 with two scFv joined by a linker [4, 83-85]. In doses as low as 0.005 mg/m² daily, it eliminated CD19+ cells in patients with non-Hodgkin lymphoma (NHL) [86]. The phase II clinical trial confirmed the sustained depletion of peripheral tumor cells [86]. All patients exhibited ongoing regression for >6 months with manageable adverse effects such as lymphopenia, leukopenia, cytokine release and chills. The lack of autoimmune or cytokine storm syndrome in treated patients encouraged further follow-up research on BiTEs. Subsequent clinical trials on relapse and refractory ALL confirmed the effectiveness (43% remission rate) and safety (2% death) of blinatumomab. The current BiTE development also focuses on the characterization of novel anti-CD3 domains. A low-affinity anti-CD3 scFv was incorporated to reduce the peripheral cytokine concentration and tissue cytotoxicity [87, 88]. Several groups have utilized the high-throughput platform to test numerous anti-CD3 fragments to maximize T cell cytotoxicity and minimize adverse effects [89].

To increase specificity and avidity, the format can be engineered to contain at least 2 binding sites for the target antigen in combination with anti-CD3 (2+1, 3+1, 4+1). For example, tandem diabody CD3+CD19 AFM11 (2+2) and CD3+CD123 (2+2) are currently in development and are composed of tetravalent anti-CD3 and CD19/CD123 fragments. This tetravalent antibody can target T cells, B cells and myeloid cells simultaneously [90]. An attractive feature of the tetravalent antibody format is the ability to achieve the same efficacy independent of the T cell: target cell ratio. The multivalent format can potentially reduce the effective dosing in therapeutic applications, thereby improving the safety of multi-specific antibody therapy. Although the tetravalent format achieved >10-fold potency compared with the bivalent format in vivo [91], clinical trial data supporting the superiority of this format in terms of efficacy are lacking. Trivalent antibodies such as RG6026, which is bivalent for CD20 and monovalent for CD3 (2+1), achieved an overall 42% complete remission rate in a phase I clinical trial, but 8% of the patients experienced grade ≥3 cytokine release syndrome [92, 93]. scFv and nanobody combinations have also been formulated by flanking anti-CD3 scFv with anti-EGFR and anti-EpCAM nanobodies. The trispecific T-cell engager induced T cell-dependent killing of EGFR-EpCAM double-positive cells in vitro [94]. These formats are expected to deliver higher tumor antigen specificity, T cell lysis and fewer adverse effects than the bivalent format. Despite the success of BiTEs in lymphoma, there remains room for improvement in terms of higher specificity and potency in cancer immunotherapy.

4.3 Modifications for improving BiTE specificity

To improve the specificity of effector cell activation, specific effector cell markers for improving the precision of T cell activation are being evaluated. Anti-CD3 BiTEs activate CD3 cells of all lineages, including regulatory T cells (Tregs) [95]. Therefore, the unspecific engagement of T cells may reduce the efficacy and potency of BiTEs via Treg-mediated perforin-dependent cytotoxicity against CD8+ T cells [96-98]. γδ T cells are enriched in the tumor microenvironment and are associated with tumor regression. Accordingly, bispecific anti-γδ T nanobodies targeting HER2 and EGFR have been constructed for treating solid malignancies [99]. The latter molecule induced the lysis of patient-derived CRC cells and exhibited minimal activity against primary EGFR+ keratinocytes, thereby holding promise for an extended therapeutic window.

The critical limiting factor for anti-CD3 or anti-γδ T fragments is the binding to T cells in normal tissues, which limits BiTE efficacy and safety. Hence, approaches for targeting tumor-infiltrating T cells (TILs) have been achieved by masking anti-CD3/γδ T binding by linking inhibitors [e.g., mimotope or epitope mimetic peptide, laminin-mimetic peptide (LAP), IgG hinge region and affinity peptide] to the N terminal of the antibody variable region [100]. The most widely used approach, i.e., mimotopes, is linked to the antibody fragment N terminal via a protease-prone linker, which is only cleaved in a microenvironment with protease overexpression. The resultant probody strategy has been applied to several traditional targets such as EGFR, HER2 and CD3, leading to a 100- to 300,000-fold reduction in affinity [101, 102]. Other than mimotopes, masking peptides that bind to the conserved region of the variable region has been engineered to extend to the paratope region, thereby preventing antibody fragment from binding to the antigen. LAP was modified to mask the framework region of the anti-EGFR variable region, which was readily cleaved in the tumor microenvironment [103]. Compared with mimotopes, LAP had the advantage of antigen-independent masking of antibody fragments, but the masking only reduced the affinity by <3 folds [104]. These modifications were aimed at reducing off-tumor targeting that often causes cytokine release syndrome. For example, coiled-coil inhibition of anti-mouse CD3 was recently demonstrated to reduce off-target effects and cytokine release syndrome in Balb/c mice [105]. It maintained a high percentage of antibody masking in the non-tumor environment and a high release rate at the tumor site. The coiled-coil has also been applied to other antibodies, including anti-HER2, anti-CD20 and anti-CD19, exhibiting wide application in anti-cancer mAb engineering [106-108]. Despite the progress on protease-activating masking moieties, designing peptide sequences specific to tumor proteases remains challenging. An alternative approach is format chain exchange (ForCE) technology to the CH3 domain of bispecific antibodies, which allows the activation and arm exchange of two inactive probodies only when they are in close proximity in vitro [109]. Drug-conjugated probodies against CD71 have entered phase I clinical trials, demonstrating the capability of probodies for pinpointing previously undruggable antigens.

4.4 Bi/trispecific killer engagers (BiKE/TriKE)

In addition to BiTE, bispecific and trispecific NK cell engagers have been developed to engage the activating receptors on NK cells and tumor-associated antigens [110]. NK cells are safer than T cells as NK cell infusion does not induce graft-versus-host disease [111]. CD16 expressed on NK cells is the basis for inducing ADCC by docking the Fc of tumor-binding antibodies. Therefore, bispecific scFv binds both CD16 and cancer antigens, including CD19, CD20, CD33, CD30, B-cell maturation antigen (BCMA), and more. BiKE/TriKE promote NK cell degranulation, resulting in enhanced cancer cell lysis independent of antibody Fc [112]. AFM13 is a tetravalent bispecific tandem antibody against CD16A and CD30 with a median inhibitory concentration (IC50) of 35.8 nmol/L for CD30 antigen [113, 114]. It was well-tolerated in two phase I trials, with a high response rate (77%–88%) at the highest dose in patients with Hodgkin lymphoma [114]. AFM13 efficacy is now undergoing a phase II clinical trial as monotherapy for CD30-positive T cell lymphoma (NCT04101331). To optimize the specificity, anti-CD16A-based bispecific antibodies have also been developed to engage NK cells and macrophages to target cancer cells without unspecific binding to other Fc receptors [101]. BiKEs have also been engineered to incorporate additional modules, forming TriKE with enhanced specificity and/or NK cell activity and survival. Vallera et al. [115] cross-linked interleukin (IL)-15 between anti-CD16 and anti-CD33 scFv, constructing a TriKE that promoted NK cell survival and tumor-suppressing effects in vivo. TriKE that targets two NK cell-activating receptors (e.g., NKp46 and CD16) and tumor antigen have also been developed, as the full activation of NK cells requires the engagement of a combination of receptors [116]. Currently, the CD16/IL-15/CD33 TriKE is undergoing a phase II clinical trial for acute myelogenous leukemia (AML) (NCT03214666).

4.5 Other bispecific antibodies

Bispecific scFv against multiple signaling pathways in tumor cells have also been developed to reduce cancer resistance to single antibody drugs by targeting multiple cancer antigens on the same cell [117, 118]. For example, EGFR and HER2 mutations were found in 15%–30% of NSCLC samples and 1.6% of HER2-positive breast cancer cases, respectively [119]. EGFR, HER2 and HER3 share similar downstream pathways, and anti-EGFR treatment induces HER2 overexpression, which confers tumor resistance against anti-EGFR treatment [117, 118]. Although anti-HER2 and anti-EGFR mAbs achieved clinical benefit for HER2/EGFR-positive patients, only 10%-25% of HER2-positive patients responded to trastuzumab treatment [119]. To achieve a high response rate and low tumor resistance, multi-specific antibody therapies have been studied for treating patients who do not respond to monotherapy. Bispecific antibodies such as KN026 (trastuzumab combined with pertuzumab) against two HER2 epitopes have been constructed for targeting cancers with low HER2 expression levels [120]. KN026 contains an engineered CH3 region for heterodimerization of the trastuzumab Fab Fc on the knob and the pertuzumab Fab Fc on the hole. In a phase I study, it exhibited similar efficacy to trastuzumab combined with pertuzumab [121]. Dual targeting of EGFR + HER2, HER2 + HER3, or EGFR + cMET has been developed, and some of them have entered phase I clinical trials (Table 1) [121-123].

Another main hurdle in cancer therapy is the immunosuppressive tumor microenvironment. Attempts have been made to combat the immunosuppressive microenvironment and tumor angiogenesis by treating NSCLC with bispecific nanobodies against VEGF and angiopoietin-2 (Ang2) in combination with anti-programmed death-ligand 1 (PD-L1). In the most recent phase Ib clinical trial, two of 12 patients exhibited partial response while the adverse effects were manageable [124]. These bispecific antibody formats demonstrate potent cytotoxicity and reduced resistance. However, their antitumor effect against cancers with low target antigen expression remains quite poor. This may result from the narrow epitope coverage by each antibody domain and compromised binding affinity when combined with a bispecific antibody.

4.6 Minibody engineering

Unlike full IgG, antibody fragments do not necessarily contain CH1, CH2, or CH3 domains, as the constant region will increase the size and reduce the penetration of the antibody fragments. Therefore, single CH2 or CH3 domains are used instead of the full CH1, CH2, or CH3 to link monovalent antibody fragments (e.g., minibodies) to minimize the size while maintaining adequate stability. One effective strategy for enhancing the stability of the single CH2 or CH3 domain is introducing additional disulfide bonds, either inter- or intra-domain. The disulfide bonds are the most critical covalent bond in IgG for thermostability [49]. R292C/N297G/V302C mutations in CH2 introduced additional intra-domain disulfide bonds that facilitated the improved stability and slower rate of clearance in the circulation [125]. The CH3 domain has also been engineered to add intra-domain and inter-domain disulfide bonds by mutating P445, G446 and K44 at the C terminal by G, E and C, respectively [126, 127].

Glycosylation modifications have also been applied to the CH2 domain to alter Fc-fused antibody fragment binding to FcγR and complement. The introduction of an N297 mutation effectively rendered the antibody glycosylated, which is being used to treat autoimmune diseases because of the reduced binding to FcγR and complement. Glycoform engineering in CH2 was also important for the safety of Fc-fused antibody fragment therapy because common cell lines such as CHO will introduce immunogenic glycosylation in the CH2 domain. Lonza and Roche developed genetically modified CHO cells to produce non-immunogenic and homogenously glycosylated CH2 [128]. A glycoengineered anti-CD20 (obinutuzumab [GA101]), which demonstrates improved effector function through higher affinity against FcγRIII, has been approved for treating chronic lymphocytic leukemia (NCT01300247) [129].

Antibody fragments with an Fc domain have improved stability and serum half-life, but the Fc region creates safety issues because of the binding to Fc receptors and complement. Patients who received monoclonal anti-CD3 therapy (OKT3) or bispecific anti-CD3X EpCAM antibodies experienced systemic cytokine storm due to T cell activation through Fc receptor binding on immune cells [130]. The Fc receptor and complement binding was disabled using a common Fc domain engineering termed LALA (234 and 235 leucine to alanine mutation), which significantly improved the safety of anti-CD3 therapies [131]. Subsequently, more sophisticated Fc mutations such as glycosylated IgG1, IgG2m4 (H268Q/V309L/A330S/P331S, changes to IgG4), hIgG1-P329G LALA, IgG4 ProAlaAla (S228P/L234A/L235A) and IgG2 (V234A/G237A/P238S/H268A/V309L/A330S/P331S) have been introduced to completely inactivate Fc effector functions [132, 133].

4.7 Antibody fragment multimerization

scFv and nanobody multimerization has become popular in recent years and has improved their avidity [134, 135]. Trispecific and tetraspecific scFv or nanobodies have been formulated by combining antibody formats against the same antigen. Theoretically, the multivalent format can yield antibody formats that target multiple epitopes on the same antigen, thereby boosting potency. A multivalent nanobody (DR5Nb1 by Ablynx) against death receptor 5 (DR5) demonstrated greater tumor-killing potency than conventional mAb therapy in vitro [136]. DR5Nb1 demonstrated a serum half-life of 5-9 h, while the half-life of the full-length antibody was >1 week, which largely reduced the efficacy of DR5Nb1 in vivo. Following the successful correlation of valency and potency, the tetravalent anti-GD2 scFv was developed and was PEGylated to increase stability and half-life. PEGylated GD2-specific tetravalent scFv achieved better tumor retention and lower off-target binding compared with full-length anti-GD2 mAb (dinutuximab). Nevertheless, the tumor cell cytotoxicity and tumor growth inhibitory ability of the tetravalent scFv in vivo remained less optimal [34]. More complicated designs such as liposomal drugs coated with trispecific antibodies have also been tested with anti-HER2 + anti-FAP + anti-modified (m)PEG antibody, which demonstrated heightened cytotoxicity than bispecific antibody alone in vitro [137]. Compromised binding affinity and instability are commonly observed with the multivalent format [74]. Future studies on affinity and stability optimizsation combined with high-throughput screening and deep learning are critical for the multivalent antibody format to shine (Figure 3).

5.1 ScFv/nanobodies in CAR-T/NK cells

CAR-T cells have yielded exciting clinical results in certain cancer types such as B-cell leukemia and multiple myeloma (MM). The antigen-binding domain is conventionally designed to be an scFv or nanobody that recognizes cancer cell surface antigens or soluble ligands to induce T cell activation in an MHC-independent manner [139, 140]. TCR mimicking CAR has also been incorporated to bind intracellular tumor-associated antigens, leading to MHC-dependent T cell activation [141]. The US FDA has approved five CAR-T therapies: Abecma, Breyanzi, Kymriah, Tecartus and Yescarta, four of which target lymphoma/leukemia [142]. Kymriah, Breyanzi and Yescarta used murine-derived anti-CD19 FMC63 for CAR, raising the concern of a potential anti-CAR immune response in patients [143]. In addition to treatment for hematological disease, CAR-T therapy against solid tumors has also been developed. BioNTech Cell and Gene Therapies GmbH have developed a combination therapy that utilizes anti-claudin 6 CAR-T cells boosted by liposome-mRNA complexes to treat solid tumors, including ovarian, testicular, uterine, lung and gastric cancers [144]. The liposome-mRNA complexes encoding claudin 6 were introduced to dendritic cells to promote the survival and expansion of the infused CAR-T cells, which induced satisfactory tumor regression in vivo [145]. The safety and efficacy of the treatment against multiple solid tumors are now being evaluated in a phase I/II clinical trial (NCT04503278) [144].

CAR-NK therapies have also gained more attention in recent years as they present several advantages compared to CAR-T cells. NK cells are innate lymphoid cells that do not have antigen-specific receptors such as TCR; therefore, they can kill cancer cells or infected cells with an intrinsic CAR-independent mechanism [146]. The human leukocyte antigen-independent killing of NK cells also renders CAR-NK therapy safer as it does not induce graft-versus-host complications [147]. However, only 20 CAR-NK clinical trials are being conducted worldwide, whereas clinicaltrials.gov lists more than 500 CAR-T clinical trials, possibly due to the slow ex vivo expansion of primary NK cells by good manufacturing practice standards and suboptimal viral transduction success rates [148, 149]. To address the problem, the NK-92 cell line with anti-HER2 CAR is being evaluated in a clinical trial (NCT03383978) [150, 151]. Another study used primary NK cells from core blood for anti-CD19 CAR incorporation, resulting in a 73% response rate without adverse effects such as cytokine storm or graft-versus-host syndrome [152]. Active research into CAR engineering has progressed greatly in the last 5 years, with innovative scFv and nanobody formats incorporated into CAR-T therapies entering early-phase clinical trials.

The antigen-binding domain (scFv or nanobody) is arguably the most critical component of CAR, determining the antigen-binding affinity and specificity of CAR-T cells. Single amino acid mutation in the scFv against ganglioside GD2 completely abolished the therapeutic effect of anti-GD2 CAR-T cells in vivo [153]. The development of CAR-T cells targeting antigens with ideal affinity and specificity is complicated, as the affinity needs to be adequate for CAR-T cells to recognize the tumor antigen, which in turn induces T cell lysis of target cells; high affinity (receptor affinity [Kd] in the nanomolar range) could also result in binding to healthy tissues [154, 155]. Moreover, high-affinity CAR-T cells demonstrated low persistence of duration in vivo due to excessive activation-mediated T cell death [156]. This on-target, off-tumor toxicity was observed in clinical trials with anti-CD19 CAR-T cells in B cell lymphoma as bone marrow CD19 was also depleted, leading to hypogammaglobulinemia [157]. Although antibody infusion could ameliorate this phenomenon, the more severe off-tumor toxicities in other CAR-T agents limit their clinical use. For example, off-tumor toxicities were associated with anti-HER2 CAR-T cells bound to non-malignant lung tissue, which led to the death of one patient with multi-organ failure [158]. An anti-EGFRvIII CAR-T phase I pilot study also reported one patient death from pulmonary edema out of the 33 patients enrolled. At high doses, the patient developed pulmonary vasculature, possibly due to the off-tumor toxicity of the activated CAR-T cells [159]. These alarming consequences should spur more research into CAR engineering, especially scFv, for achieving minimum off-tumor toxicity.

5.2 ScFv/nanobody engineering for reducing CAR-T off-tumor toxicity

Similar to the engineering of bispecific antibody fragments, the success of parental mAbs does not predict CAR functionality. A trastuzumab variable region was adopted for anti-HER2 CAR-T cells, yet consequential off-tumor toxicities occurred due to the HER2 expression on normal tissues [158, 160, 161]. Some strategies, such as affinity tuning, exploit the difference in antigen expression level on tumor and non-tumor tissue to generate CAR that is more tumor-specific. TCR affinity against peptide MHC ranges from 0.8 to 100 μmol/L, which allows the lysis of target cells without collateral damage [161, 162]. On the contrary, scFv converted from affinity-matured mAb typically exhibits affinity in the nanomolar range. The high affinity of scFv CAR demonstrated rapid exhaustion and suboptimal persistence in circulation [163]. To optimize the safety and therapeutic window of CAR-T cells, low-affinity scFv at micromolar range Kd were selected to target antigens that are highly expressed on tumors while leaving the low-expression tissue unbound. The strategy generated low-affinity scFv anti-CD19 and anti-EGFR CAR-T cells, demonstrating longer persistence because of the antigen-induced expansion of CAR-T cells and superior anti-tumor effect with higher specificity in vivo [154, 164]. Affinity engineering by directed evolution isolated an anti-intercellular adhesion molecule 1 (ICAM1) CAR with affinity of 10 μmol/L. The medium affinity anti-ICAM1 CAR-T cells demonstrated potent cancer killing in vivo and more potent therapeutic effects compared with high-affinity (1 nmol/L) anti-ICAM1 CAR-T cells. Most importantly, the high-affinity CAR-T cells targeted non-cancer cells regardless of antigen expression density, while the low-affinity CAR-T cells spared them [165]. The scFv structure may also influence CAR function, as scFv with similar affinity against BCMA gave rise to CAR-T cells with strikingly different expansion rates and anti-tumor effects [166].

In addition to affinity, the format of the antibody fragment on the CAR also influences CAR-T therapy potency and efficacy. Alternatives to scFv were investigated for reducing scFv-based CAR immunogenicity, aggregation and misfolding [167]. As discussed earlier, nanobodies exhibit lower immunogenicity, smaller size and outstanding stability under harsh conditions, rendering them ideal for constructing CAR. With the first US FDA-approved nanobody monotherapy in 2019, considerably more effort has been invested in the feasibility of nanobody-based CAR-T therapy. Bispecific nanobody anti-CD19+CD20 CAR-T cells were constructed and killed B cell lines in vitro with high specificity and enhanced proliferation [168].

Despite the success of scFv-based CAR-T therapy for hematological tumors, treatment for solid tumors remains challenging. One of the main obstacles is antigen accessibility to the binding domain of CAR, which is even worse when scFv with sub-micromolar affinity is incorporated into the CAR. On the other hand, nanobody-based CAR-T cells, including anti-CD105, anti-EIIIB and anti-BCMA, could access hidden epitopes because of the long CDR3 region and demonstrated effective tumor cell line killing in vitro and tumor size reduction in vivo [169-171]. An attractive feature of nanobodies is the ability to target >1 epitope on the antigen. The anti-BCMA CAR-T therapy LCAR-B38M utilizes a nanobody that recognizes two epitopes on BCMA, boosting treatment specificity and inducing less toxicity. Although it is difficult to directly compare the results between clinical trials, LCAR-B38M demonstrated a higher overall response rate (88%) compared with the scFv-based anti-BCMA CAR-T therapy bb-2121. Moreover, the LCAR-B38M dose used in clinical trials (median total CAR-T cells = 32.6 × 10⁶ cells) was significantly lower than that of the scFv-based therapies (range = 150-450 × 10⁶ cells) [172, 173]. These promising early-stage clinical trials raise hopes for other nanobody-based CAR-T therapies in solid malignancies. Compared with antibody-based therapy, CAR-T therapy faces even more difficulty when the target antigen is expressed at low concentrations. The problem is even more profound when CAR-T cells are used for solid tumors due to the antigen inaccessibility and immunosuppressive microenvironment [170, 174, 175].

5.3 Multivalent scFv in CAR-T therapy for improving specificity

Monovalent CAR-T therapy has achieved success in treating hematological malignancy but nevertheless faces limitations such as a high relapse rate after 6 months, potentially due to the low persistence of CAR-T cells or downregulation of the antigen target on tumor cells via distinct mechanisms [158, 159]. Most importantly, solid tumor targeting by monovalent CAR-T cells demonstrates limited efficacy because of target inaccessibility and low expression levels [176]. Few constructs have been designed for targeting multiple antigens on tumor or non-malignant tissue to improve persistence and inhibit off-tumor activation of CAR-T cells. For example, the synNotch system created an AND logic that requires binding two tumor-associated antigens to fully activate T cells [177]. Other approaches incorporate scFv against multiple tumor antigens connected with an activation module and inhibitory scFv against non-tumor antigens. However, these approaches are limited by the relatively chunky design and slow activation loop. Instead of engineering two separate scFv with intracellular domains, some recent studies have tested bispecific scFv CAR and reported satisfactory prevention of antigen escape by dual targeting [178-180]. CAR avidity and functional avidity are vital for CAR-T cell cytotoxicity, especially in low-antigen density scenarios. Several studies have reported that elevated CAR avidity improved the CAR-T cell response [181, 182]. By design, bispecific antibodies exhibit higher avidity than monospecific antibodies as they can bind two antigens on the same target. CD19 and CD20 dual-targeting CAR-T cells demonstrate signs of benefiting patients with relapsed B cell lymphoma with manageable grade 1 cytokine release syndrome [183]. Theoretically, dual targeting can prevent tumor relapse caused by the downregulation of a single tumor antigen [184, 185]. In addition to anti-CD20, anti-CD22, anti-CD123 and BAFF-R (TNF receptor superfamily member 13C) have been combined with anti-CD19 as bispecific CAR [186]. In a pilot study of six patients with refractory lymphoblastic leukemia, bispecific anti-CD19+CD22 CAR-T cells exhibited a long persistence duration of 100 days and high expansion after 2 weeks of infusion, raising hopes for the following phase I clinical trial [187].

In addition to lymphoma, a single-center clinical study on MM tested bispecific antibody formats with anti-BCMA and anti-CD38 CAR-T cells and demonstrated a 1-year progression-free survival rate of 68% [188]. Although it is too early to draw conclusions based on phase I and pilot clinical studies, significantly milder cytokine release syndrome and other adverse effects have been observed in bispecific CAR-T/CAR-NK treatment compared with conventional mono-scFv CAR-T/CAR-NK therapy. Despite the high expectations for bispecific CAR-T/CAR-NK cells to enhance the therapeutic effects of CAR-T/CAR-NK therapies, the structure of multi-specific CAR requires extensive optimization, such as the linker length and sequence and the orientation of the variable regions [178, 179, 189]. Furthermore, tumor resistance to CAR-T/CAR-NK therapies via impaired interferon-gamma (IFN-γ) signaling or Fas expression has also been reported, which raises concerns about their efficacy on solid tumors [190].

Cancer/testis antigens (CTAs) are expressed in various cancers, rendering them ideal targets for immunotherapy [191]. Compared with conventional targets such as EGFR, HER2, VEGF and mucin 1 (MUC1), which are also expressed in normal tissues, CTAs hold great potential for minimizing off-tumor toxicity [192]. Although most CTAs are expressed intracellularly, recent bioinformatics studies indicated the cytomembrane expression of CTAs and the subsequent finding of melanoma-associated antigen 1 (MAGE-A1) expression on the cytomembrane of lung adenocarcinoma cell lines [193]. Anti-MAGE-A1 CAR-T cells demonstrated tumor growth inhibition in a xenograft model by binding to MAGE-A1-positive cells, which validated the hypothesis for targeting CTAs [194]. Other CTAs that have been suggested to have surface expression include PRAME nuclear receptor transcriptional regulator (PRAME), CTA 83 (CT83), sperm autoantigenic protein 17 (SP17), solute carrier organic anion transporter family member 6A1 (SLCO6A1) and placenta-enriched 1 (PLAC1), whose surface binding as CAR-T treatments have not been proven [195, 196]. The advances in deep learning and high-throughput screening may facilitate the development of next-generation bispecific CAR against novel cancer antigens.
