Most calbindin-immunoreactive neurons, but few calretinin-immunoreactive neurons, express the m1 acetylcholine receptor in the middle temporal visual area of the macaque monkey

2.1 Animals

Tissue was obtained from three adult male macaque monkeys (two Macaca mulatta and one Macaca nemestrina) that had been previously used in unrelated electrophysiology studies. For details of the standard protocols for the donor laboratories, see Oristaglio, Schneider, Balan, and Gottlieb (2006) and Nauhaus, Nielsen, Disney, and Callaway (2012). All procedures were approved by the Institutional Animal Care and Use Committee and performed in accordance with National Institutes of Health and institutional guidelines for the care and use of animals.

2.2 Histological preparation

Animals were euthanized by intravenous injection of sodium pentobarbital (60 mg/kg). Following the abolition of the pedal and corneal reflexes, animals were transcardially perfused with 0.01 M phosphate-buffered saline (PBS, pH 7.4) followed by 4 L of chilled 4% paraformaldehyde (PFA) in 0.1 M phosphate buffer (pH 7.4). The fixative was run for at least 40 min. The brain was then removed and blocked as necessary to provide donor laboratories with tissue for their needs. The remaining tissue was postfixed overnight at 4°C in 4% PFA. The following day, the brain was transferred to 30% sucrose in PBS and stored at 4º C until it sank.

Hemispheres to be sectioned from two brains were blocked in approximately the coronal plane at the level of the lunate sulcus (with the entire lunate sulcus contained in the block) and at the anterior tip of the intraparietal sulcus. For the third brain, hemispheres were blocked in approximately the coronal plane, but at the anterior tip of the intraparietal sulcus, such that the entirety of primary visual cortex was contained within the block. The tissue from these blocks was sectioned at a thickness of 50 μm on a freezing microtome. Two 1-in-6 series of sections were set aside to provide reference sections for determining laminar and areal boundaries (Nissl and Gallyas silver stains). Remaining sections were stored at 4°C in PBS with 0.05% sodium azide.

2.3 Antibody characterization

See Table 1 for a summary of antibodies used in this study. The polyclonal primary antibody used to detect m1AChRs was raised in rabbit against amino acids 227–353 of the human m1AChR (anti-m1; Alomone Labs, Jerusalem, Israel Cat# AMR-001, RRID:AB_2039993, lot# AN-05). An antibody directed against the same epitope (but from another vendor) passed both Western blot and preadsorption controls in macaque cortical tissue (Disney, Domakonda, & Aoki, 2006) and the specific lot number used in this study also passed preadsorption controls in macaque (Disney & Reynolds, 2014; Disney et al., 2014). The primary antibodies used to detect the calcium-binding proteins were obtained from Swant (Bellinzona, Switzerland). We used a monoclonal mouse anticalbindin-D28k antibody raised against CB purified from chicken gut (anti-CB; Cat# 300, RRID:AB_10000347, lot# 18F), and a polyclonal goat anticalretinin antibody raised against human recombinant CR (anti-CR; Cat# CG1, RRID:AB_10000342, lot# 1§.1). These antibodies have been characterized previously (Celio et al., 1990; Schwaller et al., 1999) and the specific lots used in this study passed preadsorption controls (Disney & Aoki, 2008).

F'ab fragment secondary antibodies were purchased from Jackson ImmunoResearch. The anti-m1 was detected using a donkey anti-rabbit IgG conjugated to Alexa Fluor 647 (Cat# 711-605-152, RRID:AB_2492288, lot# 101801), the anti-CB using a donkey anti-mouse IgG conjugated to Alexa Fluor 488 (Cat# 715-545-151, RRID:AB_2341099, lot# 127820), and the anti-CR using a donkey anti-goat IgG conjugated to DyLight 405 (Cat# 705-475-147, RRID:AB_2340427, lot# 102489). Reconstituted secondary antibodies were diluted 1:1 in glycerol for storage at −20°C; reported concentrations below account for this dilution. Specificity of secondary antibodies was tested by processing tissue according to the protocol below, but without any primary antibodies (no primary control). This procedure produced no fluorescent signal for any of the secondary antibodies.

2.4 Immunohistochemistry

Dual-immunofluorescence labeling was used to visualize m1AChR immunoreactivity with immunoreactivity for either CB or CR. Two coronal sections containing area MT from each animal were chosen pseudorandomly for each dual-labeling experiment. This resulted in 12 sections total (six sections for the CB experiment, six sections for the CR experiment). First, the tissue incubated in a 0.01 M PBS blocking solution containing 1% IgG-free bovine serum albumin (BSA; Jackson ImmunoResearch), 0.05% sodium azide, and 0.5% Triton X-100 (Triton) for 1 hr. Next, tissue sections coincubated at room temperature on a shaker for 72 hr in both primary antibodies at once (i.e., anti-CB and anti-m1, or anti-CR and anti-m1), each diluted at 1:1,000 in the blocking solution described above. Following the primary antibody incubation, sections were rinsed in PBS three times for 10 min each and then incubated for 4–6 hr in fluorophore-conjugated F'ab fragment secondary antibodies in the dark at room temperature on a shaker. Secondary antibodies were diluted 1:400 in PBS containing 1% BSA. Following this final incubation, sections were rinsed in PBS three times for 5 min each, mounted on subbed slides, and dried overnight. The following day, sections were dehydrated through a series of graded alcohols (50%–100%), followed by 2 × 100% xylene, and coverslipped (DPX mounting medium; Sigma-Aldrich, St. Louis, MO).

2.5 Confocal microscopy

A Zeiss LSM 710 META inverted confocal microscope driven by the Zeiss ZEN imaging software (Thornwood, NY) was used to image immunolabeled sections. The 405, 488, and 633 nm laser lines were used for fluorophore excitation with a laser power of 1.5%, 2%, and 10%, respectively. Laser lines were checked for “bleed-through” by independently turning off a given line and determining that no image was captured in the corresponding data channel. The pinhole was set to 61.2 μm and data for both channels collected concurrently. To determine the appropriate imaging depth within the tissue, “z-stacks” spanning the entire tissue thickness were collected just below the pial surface (i.e. in the upper portion of cortical layer II) and above the white matter (i.e. in the lower portion of cortical layer VI) in the same cortical column at 63× magnification (oil immersion). Using these z-stacks, a single imaging plane was determined at which to capture a “tilescan.” Each tilescan represents an approximately 270-μm-wide column of tissue that spans the cortex from pia to white matter and was collected at 63x (oil immersion) with 4× averaging. One tilescan was collected per tissue section and stored for offline analysis.

2.6 Defining architectonic boundaries

Area MT was identified using reference sections (adjacent to the immunolabeled sections) that had been stained to visualize myelin according to the Gallyas (silver) method (Gallyas, 1970). MT is located on the posterior bank of the superior temporal sulcus and is characterized by heavy myelination that has a matted appearance (Figure 1). Atlases and published data were used alongside the reference sections to identify borders at 5× magnification (Paxinos, Huang, & Toga, 2000; Saleem & Logothetis, 2012; Ungerleider & Desimone, 1986; Van Essen, Maunsell, & Bixby, 1981). For each immunolabeled section, an adjacent Nissl (cresyl violet) reference section was used to identify laminar boundaries. Nissl reference section images were collected using a Carl Zeiss Axio Imager M2 light microscope with a 20x objective. Coregistration of the light and fluorescence micrographs was achieved using fiduciary marks such as pial surface shape, structural morphology, blood vessels, and cutting artifacts. To correct for differences in tissue shrinkage arising from differences in the Nissl and immunofluorescent tissue processing protocols, the distance from the pial surface to the layer I/II border (defined by a sharp increase in cell density) was measured and compared between each Nissl and tilescan image using Adobe Photoshop CS6 (San Jose, CA). Distances from the pial surface to each layer boundary (layers II/III, IV, V, VI) were measured on the Nissl section and converted to the distance for the corresponding tilescan. Laminar boundaries were drawn onto the tilescans before quantification.

2.7 Cell counts

Our goal was to determine the proportion of CB- and CR-ir neurons that express the m1AChR. Because we are interested in investigating proportional data, and not in estimating absolute cell numbers, we used a nonstereological counting method. Immunolabeled cell bodies were counted manually by a single, trained human observer using Adobe Photoshop. Each data channel was isolated and labeled cell bodies were counted in grayscale. Only wholly visible cell bodies—with roughly 75% of the membrane in focus (determined qualitatively)—were counted. Cell bodies that touched the left boundary of the image or a laminar boundary line were not counted. In each isolated channel, immunolabeled cells that met these counting criteria were marked with shapes that reflect the size of the cell body in a separate Photoshop image layer. Dual-labeled cells were quantified by the overlap of their shape markers (Figure 2).

2.8 Photomicrograph production

Light micrographs (of Nissl/Gallyas reference sections) were captured using a Carl Zeiss AxioCam MRc camera driven by the Stereo Investigator software package (MBF Bioscience, Williston, VT). Settings for the contrast and brightness of light micrographs were set to match the image as it appeared through the ocular lenses. Settings for contrast and brightness of the confocal images (captured using the LSM 710 confocal microscope, described above) were independently chosen for each field of view before data were collected. The conversion of data channels from red/green to magenta/green and image cropping are the only alterations made to the original confocal images for publication, with the exception of panel c in Figures 4, 5, and 7. For these images, gamma correction and exposure adjustments were made in Adobe Photoshop. These alterations were for publication only; all data were collected from raw, uncorrected images. No alterations were made to the light micrograph for publication.

2.9 Statistical analysis

Custom MATLAB (www.mathworks.com, RRID:SCR_001622) scripts were used for statistical analysis. Comparisons between animals revealed no significant differences. As such, all analyses combine data across all animals. Proportional testing was carried out using a two-tailed difference test on z-scores, with the following formula:

where p1 represents the observation from the first population and p2 represents the observation from the second population, and n1 denotes the total number of observations in the first population and n2 denotes the total number of observations in the second population.

3.1 m1AChR expression by CB- and CR-ir neurons

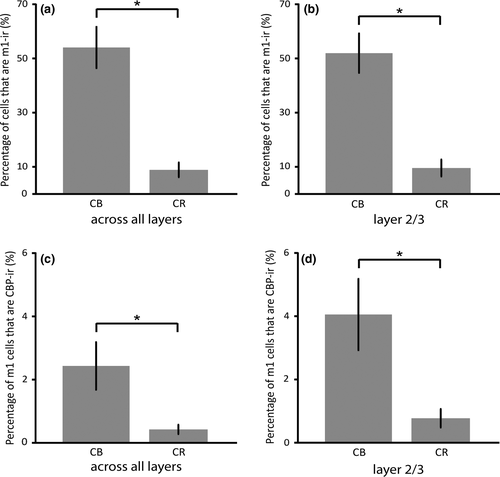

Dual immunofluorescence for m1AChRs and CB/CR was found in layers II–VI. In total, a significantly higher percentage (55%) of CB-ir neurons express m1AChRs than do CR-ir neurons (10%; p < 0.01, Figure 3a). As CB- and CR-ir populations are most dense within layers II and III, and are sparser in other layers (Figure 4), a statistical analysis of data from just these layers is similar to that for data collapsed across all layers. The difference in dual immunoreactivity between CB- and CR-ir populations in layers II and III considered alone is also statistically significant (p < 0.01, Figure 3b).

3.2 Calcium-binding protein expression by m1AChR-ir neurons

Across all layers, 2% of m1AChR-ir neurons express CB, and 0.5% express CR (Figure 3c). This is similar to the layer II/III data, which show 4% of m1AChR-ir express CB, while 0.8% of m1AChR-ir neurons express CR (Figure 3d). The difference in CB and CR expression by m1AChR-ir neurons is statistically significant across all layers and in layers II and III considered in isolation (p < 0.01).

3.3 Calcium-binding protein immunoreactivity

CB- and CR-ir neurons are found in all cortical layers and are most dense in layers II and III (Figure 4). This is consistent with previous reports in macaque V1 (Disney & Aoki, 2008; Meskenaite, 1997; Van Brederode et al., 1990) and MT (Dhar, Mehra, Sidharthan, & Sharma, 2001). CB immunoreactivity is exhibited by two populations of neurons interspersed within the same tissue sections and layers. One has darkly stained cell bodies while the other has lightly stained cell bodies (Figure 2). Only darkly stained neurons were quantified in this study, as these correspond to the inhibitory population (DeFelipe, 1997; Disney & Aoki, 2008; Hof et al., 1999; Van Brederode et al., 1990). Overall, few CB-ir processes were observed and morphological identification was usually not possible. However, we did observe a cell in layer V (Figure 5) that may correspond to an infragranular CB population described in V1 by Van Brederode et al. (1990). These cells are among the largest of the CB-ir neurons and resemble the type 5B:6-1 neurons described by Lund, Hawken, and Parker (1988).

Similar to the CB-ir neurons, the CR-ir population also contains both darkly stained and lightly stained neurons. However, in the case of CR-ir neurons, a third population is also present. This type of staining is concentrated in the nucleus of the cell and in some instances, a dimmer nucleolus can be identified (Figure 6). Only darkly stained cells were quantified in this study, as these correspond to the inhibitory population (DeFelipe, 1997; Hof et al., 1999). The nuclear staining is likely a state-dependent immunoreactivity and does not define a cell class (see Discussion). CR-ir neurons in layers II and III were often observed to be bipolar with vertically oriented processes extending from the cell body, including axonal varicosities with the classic “beads on a string” appearance (Figure 6). Of these neurons with vertically oriented processes (Figure 7), some may correspond to the 2/3A variety 2 columnar cells described in Lund and Wu (1997). The dendrites of these neurons form a narrow columnar field, with a thin axon ascending toward the pial surface.

3.4 m1AChR immunoreactivity

m1AChR-ir neurons are found in all layers. They are characterized by strong somatic labeling, which appears more intense along the perimeter of the cell body, with a more dimly stained cytoplasm (Figure 8). While few processes are visible, many that are visible are connected to a cell body. This is consistent with previous reports (Disney & Aoki, 2008; Disney & Reynolds, 2014; Disney et al., 2006).

3.5 Dual m1AChR/CB or m1AChR/CR immunoreactivity

Because m1AChR immunoreactivity is generally restricted to the cell body and proximal dendrites, this is also the cellular compartment in which dual immunoreactivity is most commonly observed.

4.1 m1AChR expression in V1 and MT

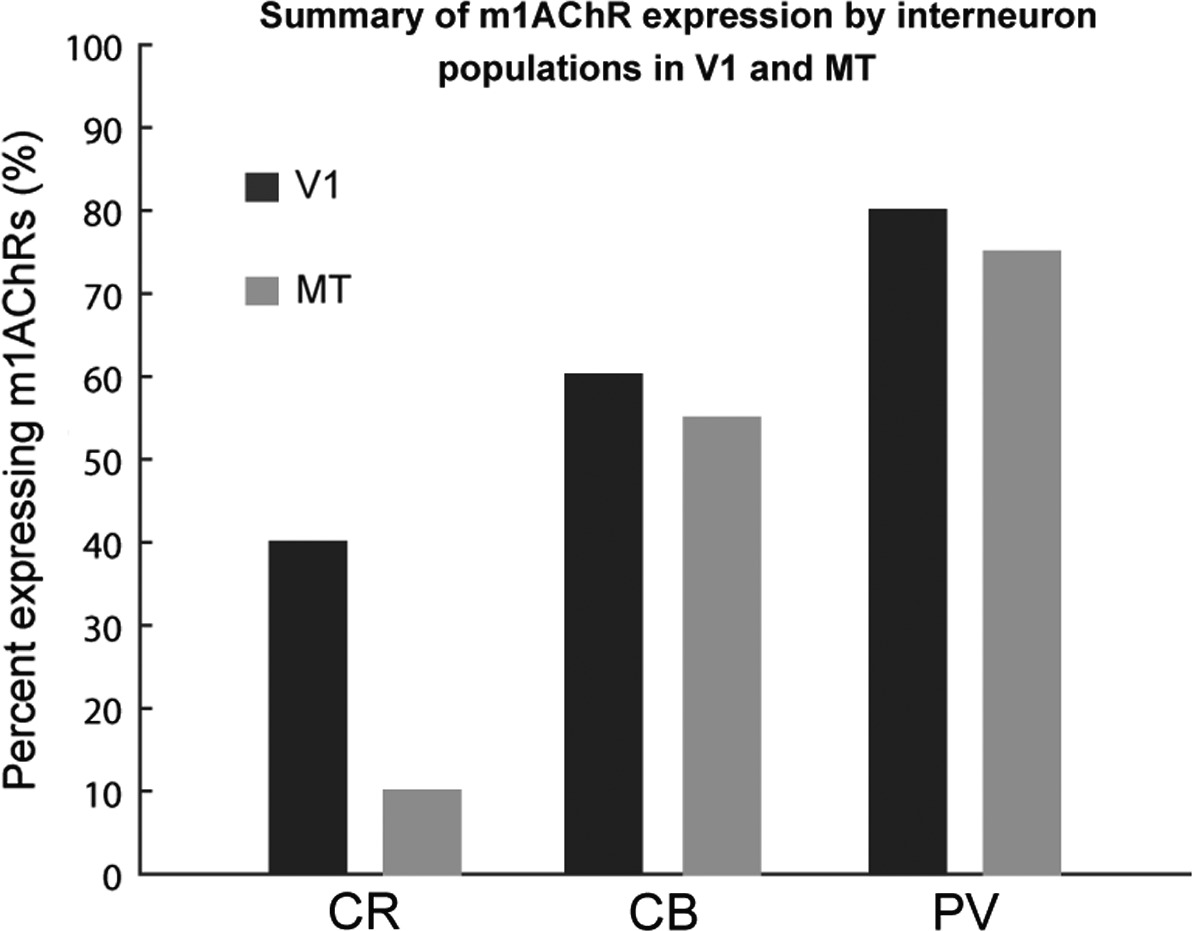

m1AChR expression by CR-, CB-, and PV-ir neurons in V1 and by PV-ir neurons in MT has been previously described (Disney & Aoki, 2008; Disney et al., 2014). These studies show that m1AChRs are expressed by approximately 40% of CR-ir neurons, 60% of CB-ir neurons, and 80% of PV-ir in V1 (Figure 9). In MT, expression levels are similar to V1 for PV- and CB-ir populations (75% and 55%, respectively), but the CR-ir population in MT differs from that in V1 (10% compared to 40%, respectively). Because the levels of m1AChR expression we observe in PV-ir and CB-ir neurons are comparable in V1 and MT, and because the overall immunoreactivity appears similar in both areas, it is unlikely that the observed difference in expression by the CR-ir population is due to a detection failure.

If the lower level of m1AChR expression by CR-ir neurons in MT is a characteristic of areas in the dorsal visual pathway (of which MT is a part), we would predict that the V1 layer that projects to MT (layer 4B) might also show similarly low expression levels by the CR-ir neuronal population. CR is not often expressed by neurons in layer 4B; Disney and Aoki (2008) found only seven CR-ir neurons in layer 4B across three animals. Of those seven, four expressed m1AChRs. While the number of reported cells is sparse, this does not appear support a hypothesis that low m1AChR expression by the CR-ir population is a feature of the dorsal stream. In this context, it will be interesting to investigate m1AChR expression by PV-, CB-, and CR-ir neurons in visual area V4, which represents an area within the ventral visual stream (the “what” pathway) at roughly the same hierarchical level as MT and in later stages of the “where” pathway such as the lateral intraparietal area. Perhaps low m1AChR expression by the CR-ir population represents a feature midlevel visual processing. These studies are currently underway in our laboratory.

It is also possible that CR-ir neurons in area MT express one of the other Gq-coupled muscarinic ACh receptors. The m3 and m5 muscarinic receptors are members of the same pharmacological class as the m1AChR (M1) and have the same G protein-coupling, but different affinities for ACh than does the m1AChR. Unfortunately, at this time, the possibility that another Gq-coupled receptor type has been substituted in CR-ir neurons in MT cannot be addressed using similar methods, as there are currently no antibodies directed against the m3 or m5 muscarinic ACh receptors that pass controls for use in macaques. Studies to instead address this question by in situ hybridization of mRNA transcripts for the m1, m3, and m5 receptors are underway in our laboratory.

4.2 Calcium-binding protein immunoreactive neurons as cholinergic targets

As demonstrated here and in previous studies (Disney & Aoki, 2008; Disney et al., 2014), neurons immunoreactive for the calcium-binding proteins PV, CB, and CR represent targets for cholinergic modulation in the visual cortex. It has been hypothesized that ACh release supports cortical processing during various attentive states (Herrero et al., 2008; Sarter et al., 2005), potentially implicating inhibitory interneurons in attentive processes. The biased competition model for attention (Desimone, 1998; Desimone & Duncan, 1995; Desimone, Wessinger, Thomas, & Schneider, 1990) proposes that neuronal representations of stimuli compete for further processing and that this competition can be biased by top-down and/or bottom-up processes. This bias represents one possible mechanism by which preferential processing can be conferred at a circuit level upon “attended” objects or locations. The ability to control columnar inhibition has clear relevance for a biased competition model in an area, like MT, in which properties such as position in visual space and direction of motion are mapped in a systematic fashion across the cortical sheet.

If ACh release does support attentive states, then the fact that ACh receptor expression differs between V1 and MT implies that this biased competition would be expected to play out differently in the two areas. CR-ir neurons in V1 can both provide a local disinhibition within the superficial layers and columnar inhibition of pyramidal cells in deeper layers (Meskenaite, 1997). However, we are hesitant to use what is known about CR-ir targeting in V1 as a proxy for CR-ir regulation in MT, as inhibitory interneuron populations differ even between visual areas V1 and V2 in macaques (DeFelipe, Gonzalez-Albo, Del Rio, & Elston, 1999). As such, specific data on the laminar profile of postsynaptic targets for inhibition mediated by CR-ir neurons in MT—which are not available in the current study—are needed. Once these data are available, it is likely that computational modeling of modulated cortical circuits will be needed to yield predictions regarding the form of the resulting modulatory differences between these two functionally distinct cortical areas/compartments.

4.3 Neuromodulatory compartments

Differences in local anatomical features (such as differences in receptor expression by cell type, shown here) provide a mechanism for a variation in cholinergic modulation across cortical areas. We have previously proposed the existence of unique neuromodulatory compartments across cortex (Coppola et al., 2016) that are determined by anatomical characteristics. Here, we report differences in modulatory compartments in cortex that align with functional compartmentalization in vision (i.e. V1 versus MT). The clear implication of these data is that, even if the cholinergic signal delivered to V1 and MT is the same, the circuit response to that modulation will differ. This is one of many possible scales on which the modulatory compartmentalization of cortex exists—some are finer grained (such as laminar differences in acetylcholinesterase expression) and others will be coarser (such as differences between frontal and occipital cortices in overall innervation density). Regardless of the scale, a nuanced understanding of the structural determinants of cholinergic function and how they differ both between and within species (Coppola & Disney, 2018) will be essential if we are to understand when and how neuromodulators contribute to the dynamical control of cortical state.
