1 Introduction

Magnetic composite materials have magnetic particles embedded in a continuous polymer matrix and combine properties that are not possible in a single phase, such as a hard magnetic moment in a malleable and lightweight polymer structure [1]. Recent advances in magnetic particle and polymer synthesis enable a wider range of applications: three-dimensional (3D) printing [2], self-healing materials [3], environmental and process engineering [4], and biology [5-9]. Magnetic nanocomposites, where at least one geometry dimension is in the nanometer range, are of particular interest due to the high level of dispersion leading to a homogeneous, or isotropic, composite material. While the dispersed particles exhibit application-specific properties, the polymer matrix also contributes to the material processability and performance [10]. Here, different types of polymer matrix composites (PMCs) are available, such as thermosets, thermoplastics, or rubbers, with thermosetting polymers being the most common. Thermosetting polymers readily form cross-links, or strong covalent bonds between polymer chains, which restrict movement and consequently increase the glass transition temperature to above room temperature and prevent the remolding of PMCs, which can burn or degrade upon reheating. Thermoplastics differ from thermosets by forming linear polymer chains that do not cross-link and readily flow under stress at high temperatures. This property allows for the remolding of the PMC and retains the given shape upon cooling to room temperature [11]. Most thermoplastic PCMs are iron oxides or iron- based materials due to their easy preparation and good stability. For iron oxide PCMs, the dispersion and polymer fabrication have been intensively researched for the purpose of improved stability and magnetorheological properties. Guo et al. reported improved Fe₃O₄—PMMA stability through core shells in advanced magnetorheological materials [12, 13]. This produced high magnetic susceptibility and low-density iron oxide PCMs demonstrating a low level of toxicity. Further improvements on biocompatible PCMs were reported for polymer shell-type hybrid particles, which prevent a direct contact between the magnetic nanoparticles and biomolecules, and can also be coated with bioactive targeting molecules [14] for applications in enzyme immobilization [15], magnetic resonance imaging [16], and drug delivery cell separation [17]. In an effort to improve dispersion, magnetic fiber composites were homogeneously dispersed with Fe₃O₄ magnetic nanoparticles in polyvinyl alcohol (PVA) with the help of polyacrylic acid (PAA) acting as a polymer surfactant [18]. Traditionally, these magnetic fibers are produced by coating magnetic nanoparticles onto the surface of the fibers; however, this results in a low magnetic susceptibility due to insufficient amounts of magnetic nanoparticles as well as particle loss after treatment [19]. Similar approaches were reported by incorporating the magnetic nanoparticles directly into a polymeric fiber matrix by mixing; however, the challenge of obtaining well-dispersed nanoparticles without aggregation still remains [20] due to the short-range van der Waals forces and long-range magnetic dipole–dipole interactions between the particles, causing aggregation and effective separation of the two phases [21]. In contrast, isotropic composites can be produced directly from colloidal suspensions through in situ polymerization. Fe₃O₄ magnetic nanoparticles were homogeneously dispersed with a PAA polymer surfactant into Fe₃O₄/PVA composite materials. However, due to the superparamagnetic properties of Fe₃O₄, these composites have limited applicability. In contrast, ferrimagnetic barium hexaferrites (BaFe₁₂O₁₉ or BHF) exhibit a high uniaxial magnetocrystalline anisotropy (K _i = 3.3 × 10⁴ J m⁻³) with the magnetic easy axis parallel to the crystallographic c-axis, producing a high coercivity [22] used for permanent magnets, magnetic-recording media, and microwave applications [23]. While ferrimagnetic BHF exhibits high levels of coercivity, the excellent chemical stability, along with the high Curie temperature (450°C) and saturation magnetization (72 Am² kg⁻¹) make BHF nanoparticles an excellent filler for polymer composites. Previous studies utilizing in situ polymerization with BHF reported a maximum filler content of 0.27 wt% in PMMA [24]. The filler content of BHF depends mainly on the stability of the colloidal suspension determined by the Brownian motion of the suspended nanoparticles and their geometrical and magnetic-anisotropy [25]. BHF nanoparticles exhibit a hexagonal shape, shown by Went et al., and their diameter depends on the synthesis method used. When in suspension or ferrofluid, BHF nanoparticles also exhibit interesting nematic transitions and domain formations in isotropic liquids [26] and novel magneto-optical properties for magnetic field visualization [27], or optical coherence tomography [28]. In addition, these ferrofluids potentially have a wide range of commercial applications covering industrial coolants, sealants, light switches, hyperthermia, defect sensors, and drug targeting [29]. For this reason, we utilize ferrimagnetic scandium-substituted barium hexaferrite—BaFe₁₂O₁₉ nanoparticles in order to produce a novel polymer matrix nanocomposite material with hard magnetic properties. In our work, we coat BHF magnetic nanoparticles with hexadecyltrimethylammonium bromide (CTAB) surfactant, which allows for a stable colloidal dispersion of BHF in ethylene glycol [30]. To take advantage of the high boiling point and functional groups of ethylene glycol solvent, we present a catalyst-free, direct in situ condensation polymerization reaction of the ethylene glycol ferrofluid to produce poly(ethylene) succinate (PES) with embedded barium hexaferrite magnetic nanoplatelets. The PES synthesis for the barium hexaferrite PMC is developed and optimised in this report, followed by the chemical and magnetic characterization of the product. Based on the reported synthesis method, novel direct in situ thermoplastic hard magnetic PMCs are developed with potential applications in three-dimensional (3D) magnetic structures or advanced bioengineering applications.

2 Methodology

3 Results and Discussion

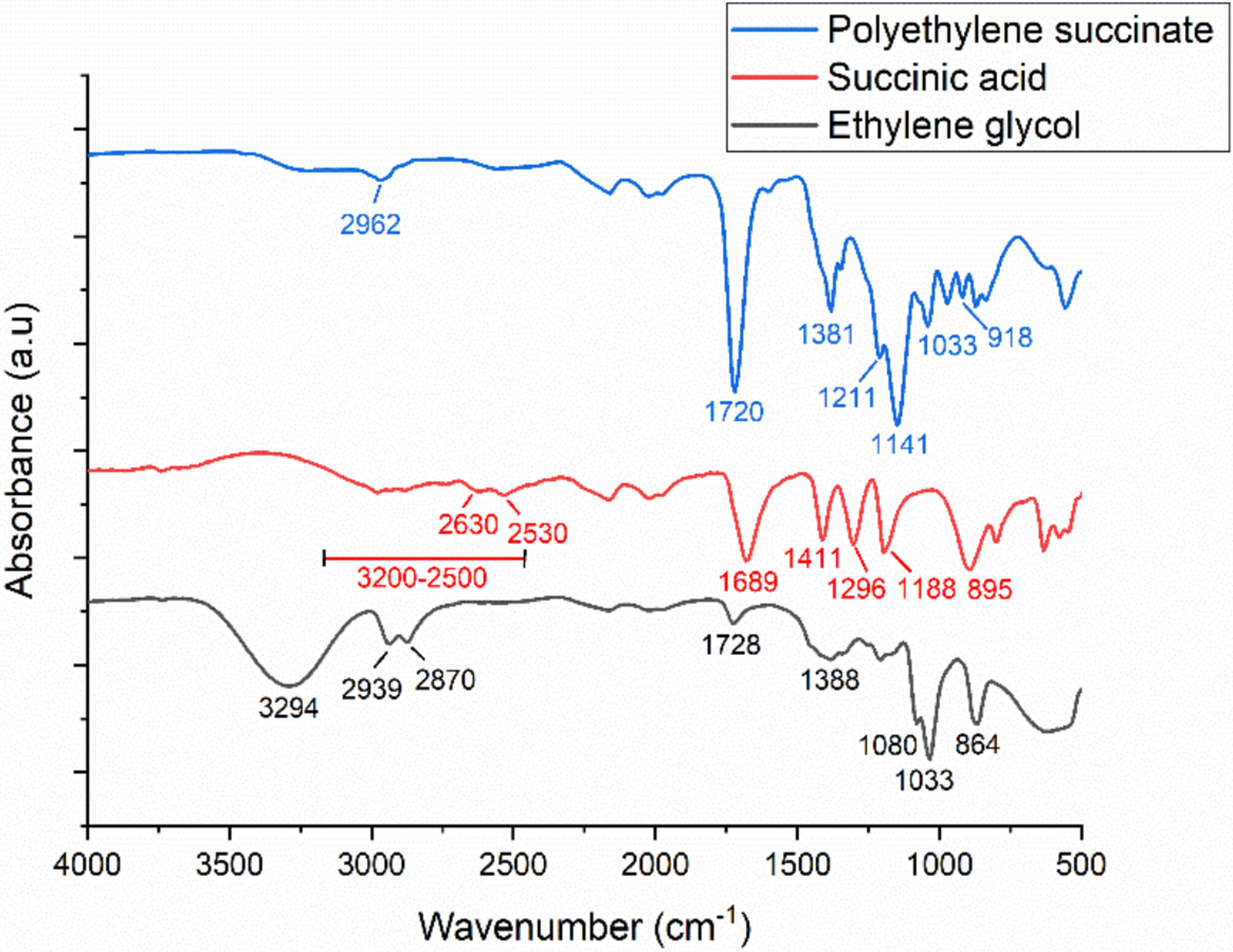

According to Figure 1, FTIR analysis confirms for pure PES a successful polymerization reaction between the succinic acid and the ethylene glycol monomers. The main characteristic peaks of succinic acid are 3200–2500 cm,⁻¹ which correspond to the broad stretching vibration of the OH group [35]; 2630 and 2530 cm⁻¹ are due to the CH stretching, while the peak at 1689 cm⁻¹ corresponds to the CO group stretching vibration, and the peak at 895 cm⁻¹ results from the out-of-place bending of the bonded OH group of the carboxylic acid [32]. The peaks at 1411 and 1296 cm⁻¹ were due to COH in-plane bending (δ_COH) and CO stretching vibration, respectively [36]. The FTIR results for ethylene glycol show the main characteristic peaks, which include 3294 cm⁻¹ due to the OH group stretching vibration and the peaks at 2939 and 2870 cm⁻¹ which are assigned to the asymmetric and symmetric stretching of CH bonds. The peak at 1388 cm⁻¹ results from the CH₂ bending, while nearby peaks correspond to COH bending. The peaks at 1080 and 1033 cm⁻¹ are due to the CO stretching, and the peak at 864 cm⁻¹ corresponds to the CH₂ rocking [37]. Most importantly, the peak at 1720 cm⁻¹ signifies the formation of the ester bond, which is absent in both monomers, specifically, the C = O group stretching vibration. This is coupled with the disappearance of the CO group stretching vibration of succinic acid and the OH group stretching vibration of ethylene glycol, which also confirms a successful condensation polymerization reaction. Additionally, for pure PES, peaks at 1141 and 1211 cm⁻¹ were attributed to the stretching vibration of the (COC) group in the ester bond of PES polymer. The peaks at 1033 and 918 cm⁻¹ are due to the (OCC) stretching vibrations and (COH) bending in the carboxylic acid groups of PES, respectively. Furthermore, the peaks at 2962 cm⁻¹ correspond to the asymmetric stretching vibration, while 1381 cm⁻¹ corresponds to the symmetric deformational vibrations of the CH₂groups present in the main carbon chain of PES polymer [38].

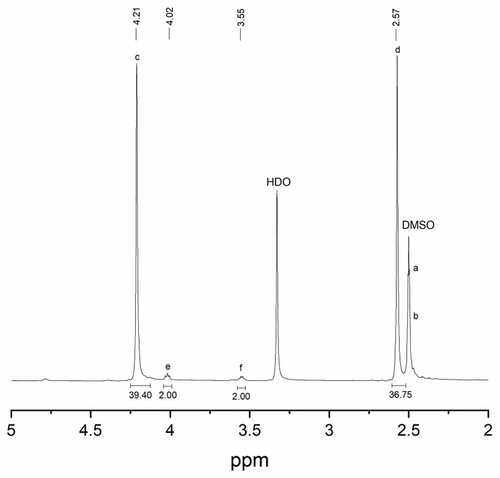

In order to determine an optimized synthesis temperature and time, pure PES products were characterized by ¹H NMR spectroscopy at room temperature in DMSO–d₆. Chemical shifts are reported in ppm (δ scale) relative to tetramethylsilane (TMS). Approximately 1%–5% w/v of pure PES polymer solutions were used for the ¹H NMR measurements. The degree of polymerization, or number of units, can be determined by comparing the relative proton signal intensity of a known moiety (typically an end group (s) with a known number of protons) to the proton signal intensity of the repeating unit in the polymer chain [34, 39]. The molecular weight of pure PES was probed as a function of increasing polycondensation time. The optimal polymerization reaction time was estimated by setting up the polymerization reaction at 170°C under magnetic stirring with samples extracted every 5 h for 60 h. The extracted samples were analyzed using NMR and GPC. Figure 2 shows the partial ¹H NMR spectrum for pure PES produced under these conditions for 10 h. The ¹H NMR spectra show signals assigned to the end group as well as the repeating units in the polymer chain. The singlet at 4.21 (δH^c) ppm was assigned to the methylene protons on the ethylene glycol monomers in the repeating unit. The singlet at 2.57 (δH^d) ppm was assigned to the methylene protons on the succinic acid monomers in the repeating unit [40]. The triplet signals observed at 4.02 (δH^e) and 3.55 (δH^f) ppm can be assigned to the CH₂ protons on the end group of succinate end group monomers [41]. Some overlapping signals between 2.46 and 2.53 ppm (δH^a and δH^b) may be assigned to the methylene protons in the repeating unit of the PES polymer; however, these are ignored as they majorly overlap with the solvent peaks. ¹H NMR of pure succinic acid and ethylene glycol monomers differ greatly from the ¹H NMR of pure PES, indicating the formation of polymer bonds and repeating units. The ¹H NMR spectra of pure succinic acid monomer in DMSO–d₆ show singlets at 12.2 and 2.4 ppm representing the carboxylic acid group and CH₂ protons, respectively. Additionally, the ¹H NMR for pure ethylene glycol shows two singlet peaks at 3.3 ppm corresponding to the CH₂ protons and 4.5 ppm assigned to the OH groups.

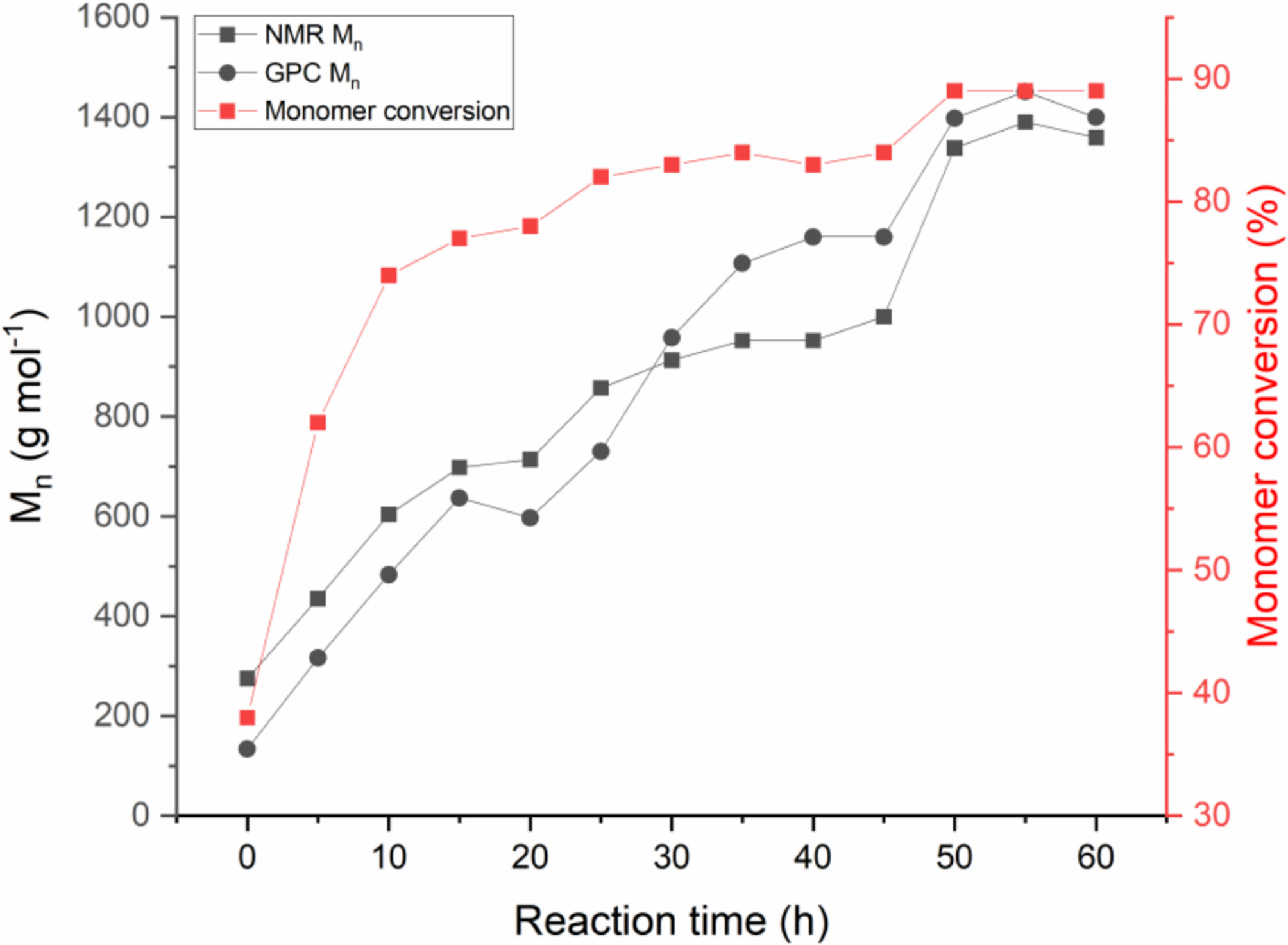

To further analyze the polymerization progression with reaction time, the monomer to polymer conversion was calculated at each hour. This was determined by comparing specific monomer proton integrals with the corresponding proton integrals in the repeating unit. According to Figure 3, up to 91% of ethylene glycol and succinic acid monomers are converted to polyethylene succinate as the synthesis time is increased. In addition, the NMR and GPC analyses demonstrate that the molecular weight gradually increases with synthesis time due to the step-growth mechanism. The data indicate that the polycondensation method produced relatively low molecular weight polyester chains from initially M _n  = 275 to M _n  = 1359 g mol⁻¹ after 60 h; low molecular weights are routinely observed for step-growth polycondensation polymerization unless very high conversions are attained because the condensation leads to the formation of dimers, then trimers, oligomers, and eventually long-chain polymers [42]. In our case, 1–8 repeat units are incorporated into the polymer chains. There is a general increase in molecular weight and monomer conversion as the polycondensation reaction time increases, with a significant increase in monomer conversion and molecular weight after 10 h. However, the monomer conversion after 60 h is only 15% higher than conversion after 10 h, leading to diminishing gains in conversion efficiency. The molecular weight of the polyesters was also measured using GPC with respect to polycondensation reaction time. Similar to NMR, the GPC data showed a gradual increase in molecular weight as the reaction time increases. The polymer M_n data obtained from GPC are comparable to the molecular weight data derived from NMR, with M _n ranging from 134 to 1399 g mol⁻¹ corresponding to 1–8 repeat units. After 50 h of reaction time, both GPC and NMR show negligible differences in the molecular weight despite further heating. However, the molecular weight data obtained from GPC has a strong dependence on the calibrant (typically polystyrene) which can be a hindrance as it is assumed that the measured polymer and the standard have the same hydrodynamic radii at equivalent molecular weight. Hence, the underlying principle of the technique is separation on the basis of polymer hydrodynamic volume instead of molecular weight [43, 44]. In comparison, ¹H NMR spectroscopy is our primary quantitative method for analysis without the need for calibration [45].

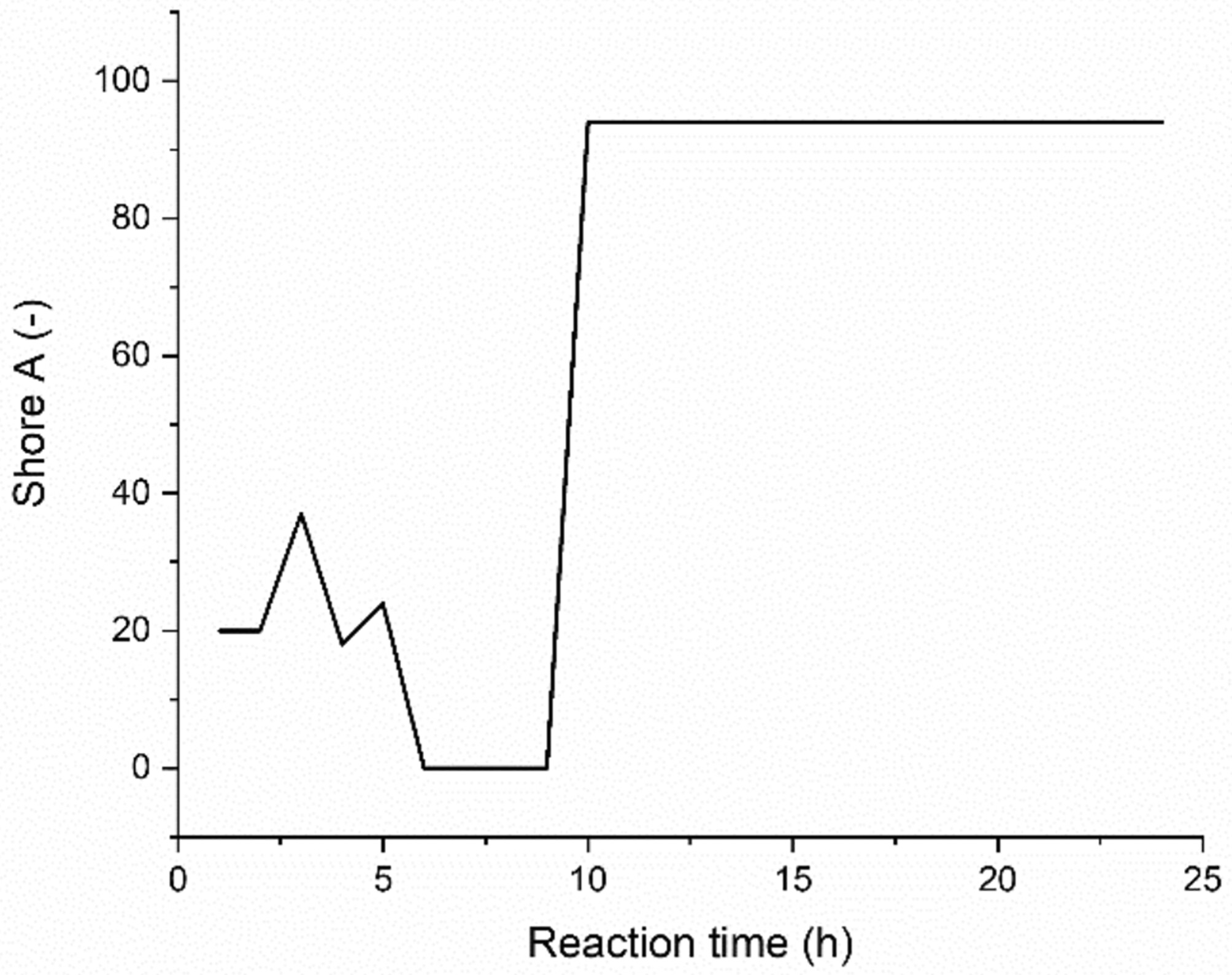

The pure PES synthesis produced a yellow/brown, waxy polymer from the transparent reactants, which indicates the polycondensation of the initial monomers and the formation of the polyester molecules. S1 confirms a gradual yellow/brown change from the transparent reactants over 60 h. The final pure PES product is a thermoplastic, which can be heated to become highly viscous and subsequently cooled to reshape. The mechanical properties of the pure PES polymer were measured using a shore A hardness probe on 25 mm thick PES samples that were cooled to room temperature. Ethylene glycol and succinic acid monomers were polymerized at 170°C, and samples were extracted from the batch every hour for 24 h. The surface hardness of each extracted sample is shown in Figure 4. We observed a significant peak in surface hardness of the pure PES polymers at Hour 10, which showed a value of 90 on the Shore A hardness scale. Below 10 h of heating, the co—polymers are not fully reacted, and the polymer is a soft, waxy material. After 10 h of reaction time, the surface hardness of the PES material stays constant despite prolonged polymerization time. We identified 10 h to be an optimal polymerization time for the synthesis of a polyethylene succinate matrix as it presents good monomer conversion and mechanically hard polyesters with sufficient molecular weights. In addition, extended heating periods at high temperatures have the potential to destabilize the BHF suspension. Having said this, the polymers produced below 150°C for a period of 10 h have a brittle structure and can easily fracture.

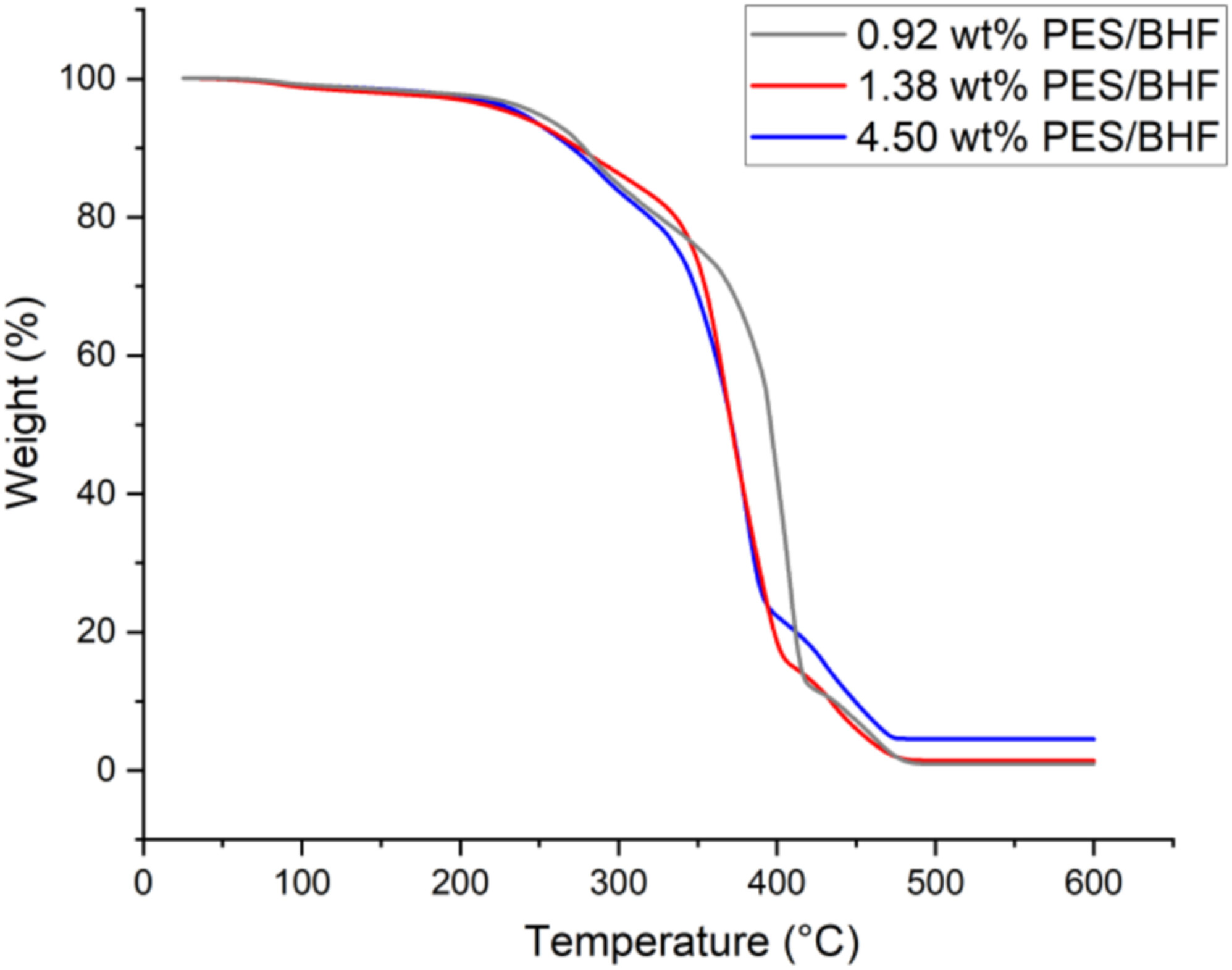

Based on the identified 10 h and 170°C synthesis conditions for the PES polymer matrix, the polycondensation reaction was repeated with a barium hexaferrite-based ferrofluid where the magnetic nanoparticles are stabilized using CTAB surfactant and suspended in ethylene glycol. This ethylene glycol ferrofluid reacted with succinic acid to produce a PES/BHF polymer composite exhibiting magnetic properties from the suspended nanoplatelets. Here, the ethylene glycol-suspended barium hexaferrite magnetic nanoparticles react with the succinic acid to produce a polyethylene succinate polymer matrix. The BHF nanoparticles are evenly dispersed within this polymer matrix once the polymer composite is allowed to cool. The thermal stability of the synthesized PES/BHF polymer composite was measured using TGA (Mettler Toledo). This was done by heating the PES/BHF samples from 25°C to 600°C at 10°C min⁻¹ in air with a gas flow of 100 mL/min. The TGA analysis in Figure 5 shows the thermal degradation of synthesized PES/BHF polymer composites for varying barium hexaferrite nanoparticle concentrations of 10, 30, and 60 mg/mL. The TGA curves for the three concentrations of the PES/BHF polymer composites start decomposing between 200°C and 330°C with approximately 20% weight loss. Subsequently, a second decomposing step was between 320°C and 420°C with a weight loss of around 75% for 60 mg/mL and approximately 85% for 30 and 10 mg/mL. A third decomposition step can be identified between 400°C and 480°C with a total weight loss of 95.50% for 60 mg/mL, 98.62% for 30 mg/mL, and 99.08% for 10 mg/mL. Therefore, a 60 mg/mL concentrated PES/BHF polymer composite contains approximately 4.50 wt% BHF nanoparticles, a 30 mg/mL PES/BHF composite contains 1.38 wt% BHF nanoparticles, and a 10 mg/mL PES/BHF composite contains 0.92 wt% BHF nanoparticles by weight. These results also confirm that a polymerization temperature higher than 200°C is unsuitable for this reaction as it may lead to the decomposition of the polyester chains, decreasing the molecular weight by the thermal degradation process. Thermal analysis of the polymer composites confirms the incorporation of BHF nanoparticles in the PES polymer matrix as constant mass is obtained after prolonged heating at a temperature of 600°C, indicating the presence of BHF nanoparticles after complete polymer degradation. Subsequently, magnetic properties of the PES/BHF products were measured using VSM (LakeShore 7400) for the isotopically dispersed nanoparticles. The VSM samples were prepared by casting 0.92 wt%, 1.38 wt%, and 4.5 wt% concentrations of PES/BHF polymers at 170°C into a brass cylinder mold and allowing them to cool down to room temperature. The magnetic properties of the solid polymer composites were measured at excitation fields between −1000 and 1000 kA m⁻¹. Figure 6 shows the magnetic hysteresis loops of the PES/BHF polymer composites concentrations. The hysteresis loops of all three concentrations are typical of a hard BHF ferrimagnetic material with a constant coercivity H _c  = 120 kA m⁻¹. Magnetic saturation—M _s and remanence—M _r values of the three PES/BHF polymer composites vary with particle load in the polymer matrix. The saturation and remanence values of the composites increase with increasing BHF particle concentrations, with 4.5 wt% showing magnetic saturation M _s  = 0.93 Am² kg⁻¹ and magnetic remanence M _r  = 0.45 Am² kg⁻¹. On the other hand, the 1.28 wt% concentrated PES/BHF polymer showed M _s  = 0.48 Am² kg⁻¹ and M _r  = 0.24 Am² kg⁻¹, while the 0.92 wt% PES/BHF polymer showed M _s  = 0.32 Am² kg⁻¹ and M _r  = 0.16 Am² kg⁻¹. The weight-specific remanence and magnetic saturation values are lower than pure BHF nanoparticle powders which have reported values of up to 10.4 mA m² g⁻¹ for remanence and 32.8 mA m² g⁻¹ for saturation. This is mainly reflective of the relatively low nanoparticle-to-polymer ratio in the PES/BHF composite as shown by the TGA results. However, the M _r /M _s ratios and H _c are the same for all three samples, indicating the absence of a magnetic interaction between the BHF nanoparticles in the PES/BHF composites [24].

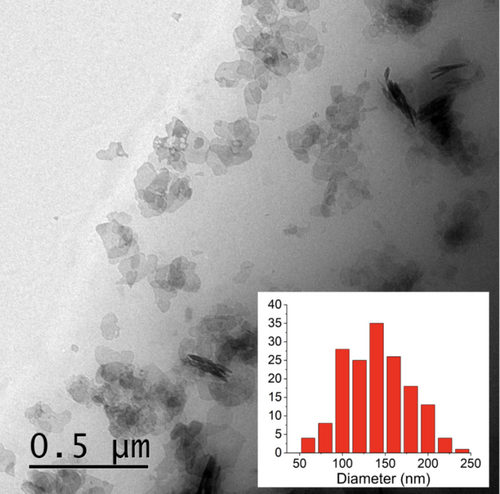

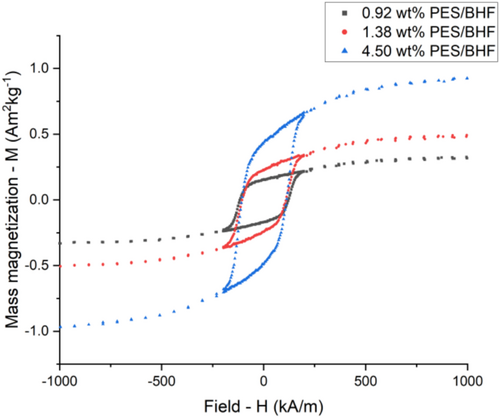

The synthesized PES/BHF composite was microscopically analyzed using TEM. The composite was heated to 170°C and cast into a cylinder mold upon cooling to room temperature. The cast polymer cylinders were sectioned by ultramicrotomy to 70–200 nm thickness wedged slices and cooled on water droplets, which enabled overcoming compression during sectioning as well as improved adhesion to a carbon copper TEM grid support. Figure 7 shows the TEM results for the 60 mg/mL polymerized ferrofluid. The TEM shows BHF nanoparticles embedded throughout the transparent PES polymer matrix, with most of the BHF nanoparticles lying flat as opposed to perpendicular to the TEM grid. However, the BHF nanoparticles are prone to aggregation due to the strong magnetic dipole–dipole interactions between the BHF nanoparticles [21]. On the other hand, the TEM scan also shows signs of aggregated BHF nanoparticles, which could have occurred during the sliced sample preparation, for which reason a size distribution was determined for the pure ethylene glycol ferrofluid batch in the Figure 7 inset. In order to determine particle concentration and identify if the BHF nanoparticles are dispersed homogeneously within the matrix, the density of sliced cylindrically cast PES/BHF samples was measured across the cylinder length. The density of pure PES polymer was measured as 1.26 g/cm³, and increased to a density of 1.38 g/cm³ with a standard deviation of 0.03 for PES/BHF [46]. The density of the pure polymer increases by 0.12 g/cm³ as the embedded BHF nanoparticles are introduced. Supporting Information further demonstrates a homogeneous dispersion of the sliced cylindrically cast samples based on a dense Energy-Dispersive X-ray (EDX) signal. Based on the characterized and optimized PES/BHF, future work will identify biodegradable properties which, coupled with the controlled magnetic properties, may prove beneficial in many fields such as drug delivery, tissue engineering, and functional shielding materials. On the other hand, further improvements with respect to composite filler content are expected up to 50 wt%.

4 Conclusion

We developed a new polyethylene succinate (PES) hard magnetic polymer matrix composite (PMC) with a high filler content of up to 4.5 wt% embedded with barium hexaferrite (BHF) magnetic nanoparticles, representing a significant increase compared to previous reports on barium hexaferrite-based polymer composites. This report thoroughly discusses a catalyst-free polycondensation reaction between ethylene glycol and succinic acid, along with the optimization of synthesis time and temperature. These optimizations ensure a complete and successful polycondensation reaction between the monomers, producing a PES polymer matrix with robust mechanical and thermal properties. Fourier Transform Infrared (FTIR) spectroscopy, Nuclear Magnetic Resonance (NMR) spectroscopy, Gel Permeation Chromatography (GPC), and surface hardness measurements were used to chemically and mechanically characterize the pure PES polymer matrix. This was followed by the polymerization of a CTAB-stabilized, ethylene glycol-based ferrofluid with dispersed barium hexaferrite magnetic nanoparticles. The ferrofluid was polymerized using the same catalyst-free polycondensation reaction, producing a magnetic polymer composite with homogeneously embedded isotropic barium hexaferrite nanoparticles throughout the PES matrix. We magnetically characterized this PMC using a Vibrating-Sample Magnetometer (VSM) to observe a hysteresis loop indicative of the hard magnetic properties of BHF nanoparticles, confirming the fully dispersed synthesis of a PMC with hard magnetic properties and potential biodegradability due to the PES matrix. The PMC's high filler content and thermal stability were confirmed via Thermogravimetric Analysis (TGA), while density measurements indicated the distribution of magnetic nanoparticles. Transmission Electron Microscopy (TEM) was used to observe the BHF magnetic nanoparticles embedded within the PES polymer matrix and to assess any aggregation that may have resulted from magnetic particle interactions. Although our density measurements indicate reasonably homogeneous dispersion of BHF nanoparticles in the PES matrix, advanced methods to determine stability with greater accuracy are needed. Future work will examine the dispersion stability of higher ferrofluid concentrations and the rheological properties at high temperatures of PES/BHF samples with higher filler content. Additionally, three-dimensional (3D) manufacturing of magnetic structures will be pursued.
