Introduction

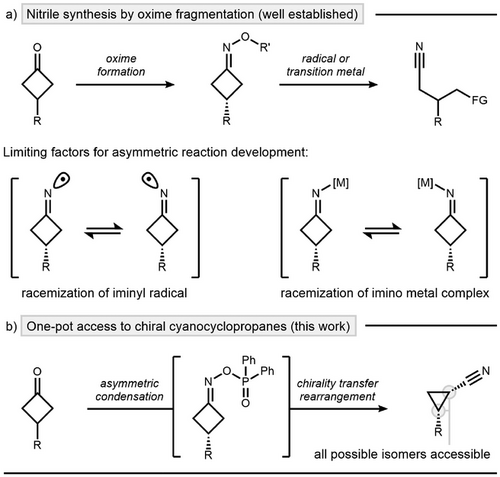

Oxime esters represent versatile intermediates in synthesis.^[1] Among their transformations, methods that convert oxime esters to nitriles have attracted considerable attention, owing to the important role nitrile functionality plays in natural products^[2] and pharmaceutical compounds.^[3] In particular, C─C bond cleavage of cyclobutanone-derived oxime esters has enabled new pathways to access valuable nitrile-containing building blocks (Scheme 1a, top).^[4] In contrast to classical Beckmann fragmentation strategies,^[5-10] current endeavors hinge on the susceptibility of oxime esters to undergo single electron transfer (SET) and oxidative addition (OA) processes.^[11-17] However, the key intermediates in such transformations—namely, the iminyl radical^{[18, 19]} or imino-metal complex^[20]—rapidly lose their inherent stereointegrity, significantly hindering the development of asymmetric protocols (Scheme 1a, bottom). As a consequence, catalytic methods that establish and transfer chirality from oxime C═N double bonds remain largely unexplored and only very recently first studies were disclosed. In 2017, Antilla and coworkers showed that chiral phosphoric acids (CPAs) can act as catalysts to access optically active oximes via condensation.^[21-23] Although effective, this method did not disclose any chirality-transfer reactions, possibly due to the relatively unreactive nature of the targeted oxime ethers. Recently, the groups of Tan^[24] and Shi^[25] succeeded in transferring oxime chirality by the development of a stereoretentive deprotection–activation protocol for chiral oxime ethers, enabling stereoselective Beckmann rearrangements. However, the necessity of this multistep sequence remains a limitation. Palladium catalysis has also shown potential for stereospecific transformations of oxime esters through ligand adjustments, yet its application to chiral precursors remains unknown.^{[26, 27]}

In this work, we address previous limitations by first enabling enantioselective synthesis of axially chiral cyclobutanone oxime esters and subsequently exploring their transformations via chirality transfer (Scheme 1b). Our approach leverages a site-selective deprotonation strategy leading to cyanocyclopropanes via ring-contraction, avoiding selectivity issues common to iminyl radical and transition metal chemistry. Mechanistic studies shine light on the synergy between the stereoselective condensation and stereospecific ring contraction, ultimately leading to stereodivergent access to chiral cis and trans configured cyclopropanes using commercially available diphenylphosphinyl hydroxylamine (DPPH) as a nitrogen source.^[28-33]

Results and Discussion

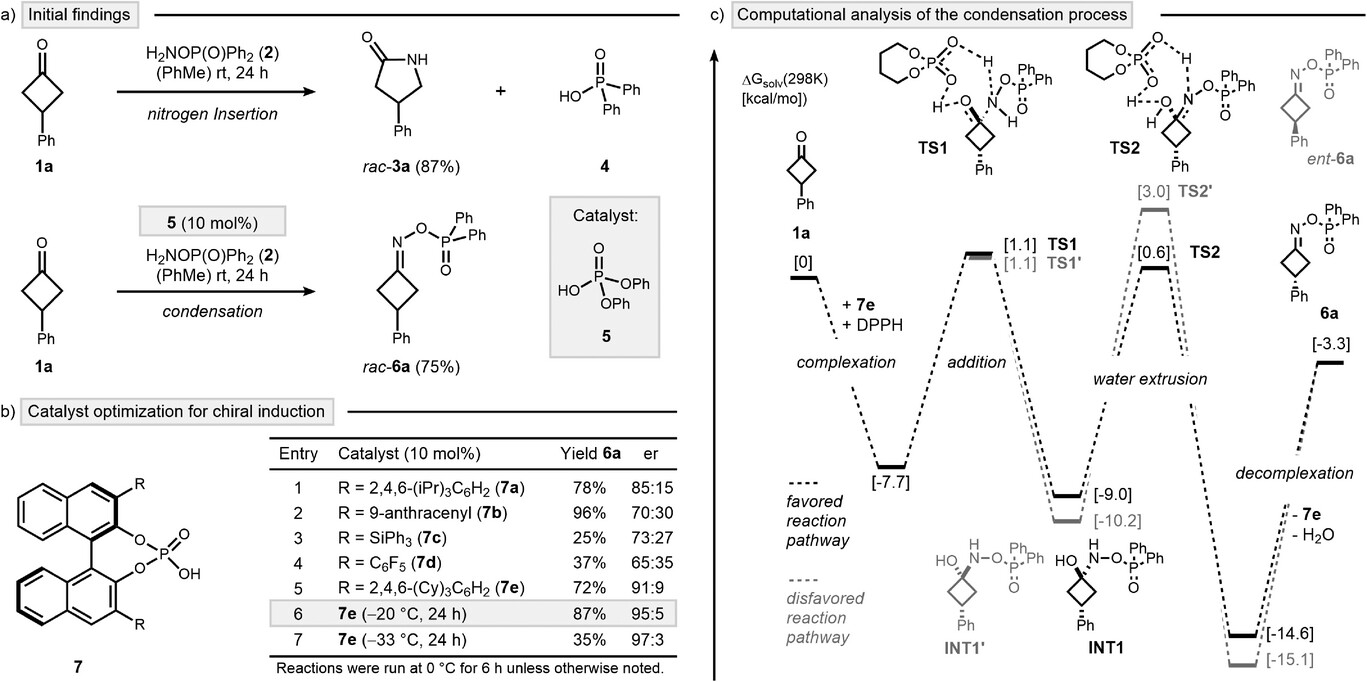

This study originated from a surprising observation during our recent optimization of the aza-Baeyer–Villiger nitrogen insertion at cyclobutanone 1a with DPPH (2) (Scheme 2a, top).^[34] Upon introducing a catalytic amount of diphenylphosphoric acid (5), the reaction's outcome shifted markedly, yielding the condensation product rac-6a instead of the expected nitrogen insertion product rac-3a (Scheme 2a, bottom). This finding was particularly intriguing as diphenylphosphinic acid (4), a stoichiometric byproduct of the insertion reaction, failed to catalyze the condensation effectively.^[35] We hypothesized that oxime esters, such as rac-6a, could serve as valuable intermediates for discovering novel nitrogen insertion reactions due to their relatively weak N─O bond and axial chirality. To explore this, we first looked for an asymmetric synthetic route to 6a with an aim to subsequently enable chirality transfer reactions. As an initial attempt, 10 mol% of CPA 7a was employed instead of phosphoric acid 5 to probe asymmetric induction at 0 °C (Scheme 2b, Entry 1). Gratifyingly, oxime ester 6a was isolated in good yield, with a notable enantiomeric ratio (er) of 85:15. Subsequent modification of the CPA scaffold (Entries 2–5) revealed CPA 7e as the optimal catalyst, achieving a superior enantioselectivity of 91:9 er. Further refinement demonstrated that performing the reaction at −20 °C enhanced the selectivity to 95:5 er (Entry 6). Lowering the reaction temperature further improved the enantiomeric ratio to 97:3; however, incomplete conversions were observed under these conditions (Entry 7). Further modifications involving the hydroxylamine reagent, reaction additives, and applied solvent did not result in additional improvements (see Supporting Information for a comprehensive optimization study).

To gain deeper insights into the critical interactions leading to high induction during the condensation process, we performed computational studies using density functional theory (DFT) (Scheme 2c).^[36] Our findings reveal that CPA 7e not only catalyzes the extrusion of water but also facilitates the addition of DPPH (2) to the ketone moiety of cyclobutanone 1a via transition state (TS) TS1. However, the addition process was found to be unspecific leading to the reversible formation of both hemiaminal intermediates Int1 and Int1’. The stereoselectivity-determining condensation preferentially proceeds from hemiaminal Int1 via TS2 to afford oxime ester 6a (shown in black). The competing pathway leading to the opposite enantiomer ent-6a was found to be 2.4 kcal mol⁻¹ higher in energy (shown in grey, see Supporting Information for a full discussion of all stereochemically distinct pathways). These results provide a compelling explanation for the formation of oxime ester 6a as the major enantiomer and highlight the dual catalytic role of the CPA in this transformation.

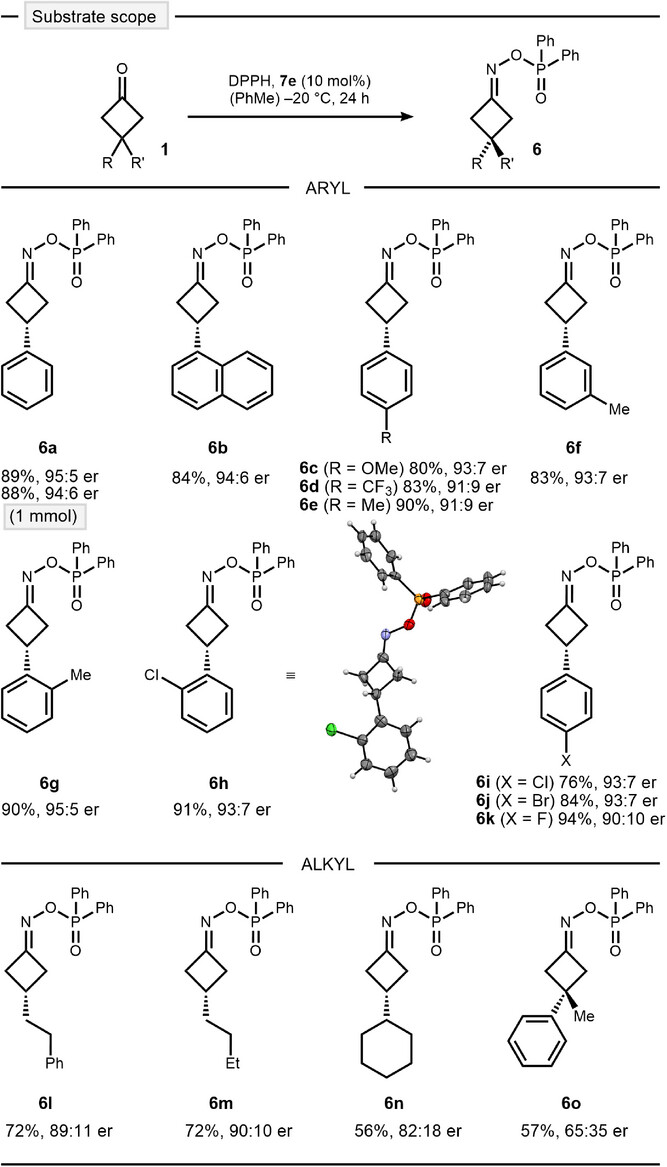

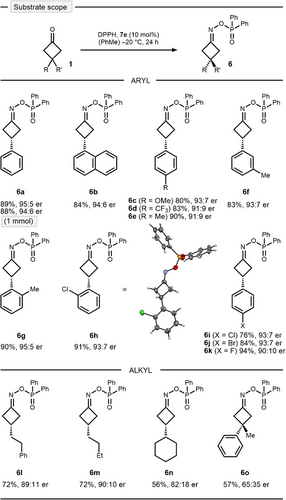

With the optimal conditions in hand, we briefly explored the scope of the condensation (Scheme 3). The reaction was easily scalable without any loss of reactivity or selectivity (6a). We were able to reisolate CPA 7e in 91% yield and reuse it with no detectable reduction of the catalytic activity.^[37] The condensation tolerated a variety of electronic (6b–d) and steric perturbations (6e–g) on the aromatic ring, including halogen substitution (6h–k). Absolute configuration was established by X-ray analysis of ortho-chloro oxime ester 6h. Interestingly, alkyl substituted cyclobutanones resulted in excellent yield and good induction under the optimized conditions (6l–n). However, less selective results were obtained for 3,3-disubstitution (6o).

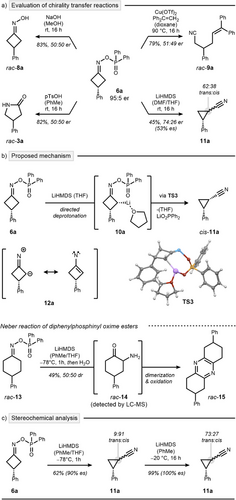

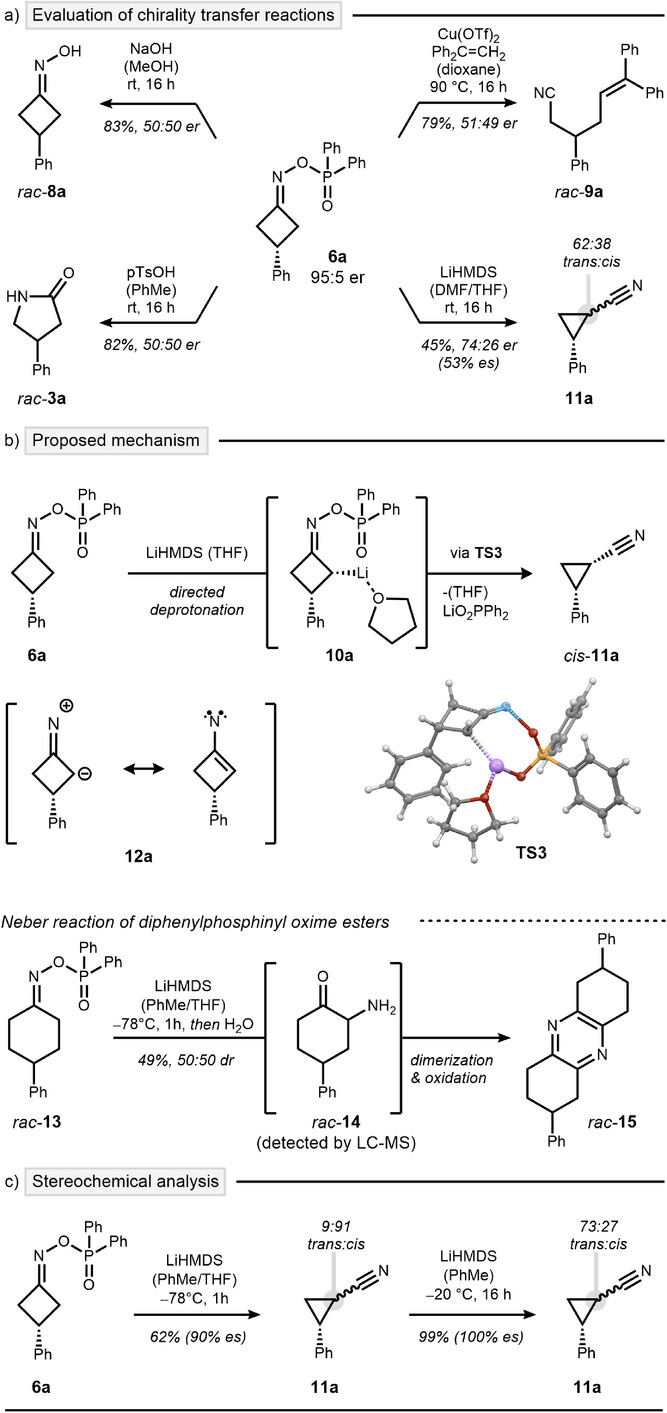

The development of chirality transfer reactions from chiral oxime ester 6a proved to be challenging. Established reaction sequences resulted in a complete loss of the stereochemical information inherent to the oxime ester. Specifically, treatment under alkaline^[34] and acidic^[38] conditions led to the formation of oxime rac-8a and lactam rac-3a, respectively, whereas nitrile rac-9a was generated via a radical cascade (Scheme 4a).^[39] To overcome racemization, we adopted a strategy based on site-selective, irreversible deprotonation using a non-nucleophilic base. We hypothesized that this process could be stereospecific, with the phosphonic ester selectively directing the deprotonation. The resulting anion 10a was then expected to undergo a Neber rearrangement.^{[40, 41]}

However, upon testing this sequence, a mixture of cyanocyclopropane diastereomers trans-11a and cis-11a was obtained (Scheme 4a, bottom right).^{[42, 43]} This outcome was not only unexpected but also particularly exciting due to the small, yet measurable, enantiospecificity (es) of 53%.

Mechanistically, the ring contraction is proposed to proceed through a Beckmann fragmentation coupled with concurrent C─C bond formation (Scheme 4b). DFT analysis revealed a transition structure for the synchronous ring contraction and elimination of Li(O₂PPh₂) (TS3) from the preferred configurational isomer 10a·THF, with a TS energy of 19.9 kcal mol⁻¹. A singlet nitrene intermediate 12a, which has been proposed in other Neber reactions,^{[40, 41]} is not a stable intermediate but rearranges to 11a (see Supporting Information for a discussion of all considered mechanistic pathways). Mechanistic divergence from the classical Neber reaction appears to be enabled by the strained character of the cyclobutane ring. To test this hypothesis, we examined the reaction with less strained cyclohexanone-derived oxime ester rac-13. This led to the formation of pyrazine rac-15 through a conventional Neber rearrangement to rac-14, followed by a condensation–oxidation sequence. (Scheme 4b, bottom).^[44]

As predicted by our DFT analysis, a concerted mechanism should allow for a fully stereospecific reaction protocol toward cis-11a. Further optimization of the reaction conditions revealed a striking effect of solvent and temperature on stereocontrol. When the reaction was performed in toluene/THF mixtures at low temperature, both stereospecificity and diastereoselectivity improved significantly (Scheme 4c, left). This underscores the pivotal role of ethereal solvents in LiHMDS disaggregation,^{[45, 46]} facilitating directed deprotonation at ‒78 °C. We also studied the interconversion of the isomers cis-11a and trans-11a under basic conditions at ‒20 °C, identifying a thermodynamic preference for the trans-isomer (Scheme 4c, right).^{[47, 48]}

Based on these results, we were wondering whether the reaction sequence can be performed in a stereodivergent one-pot fashion, enabling efficient syntheses of cyanocyclopropanes from simple prochiral cyclobutanones.

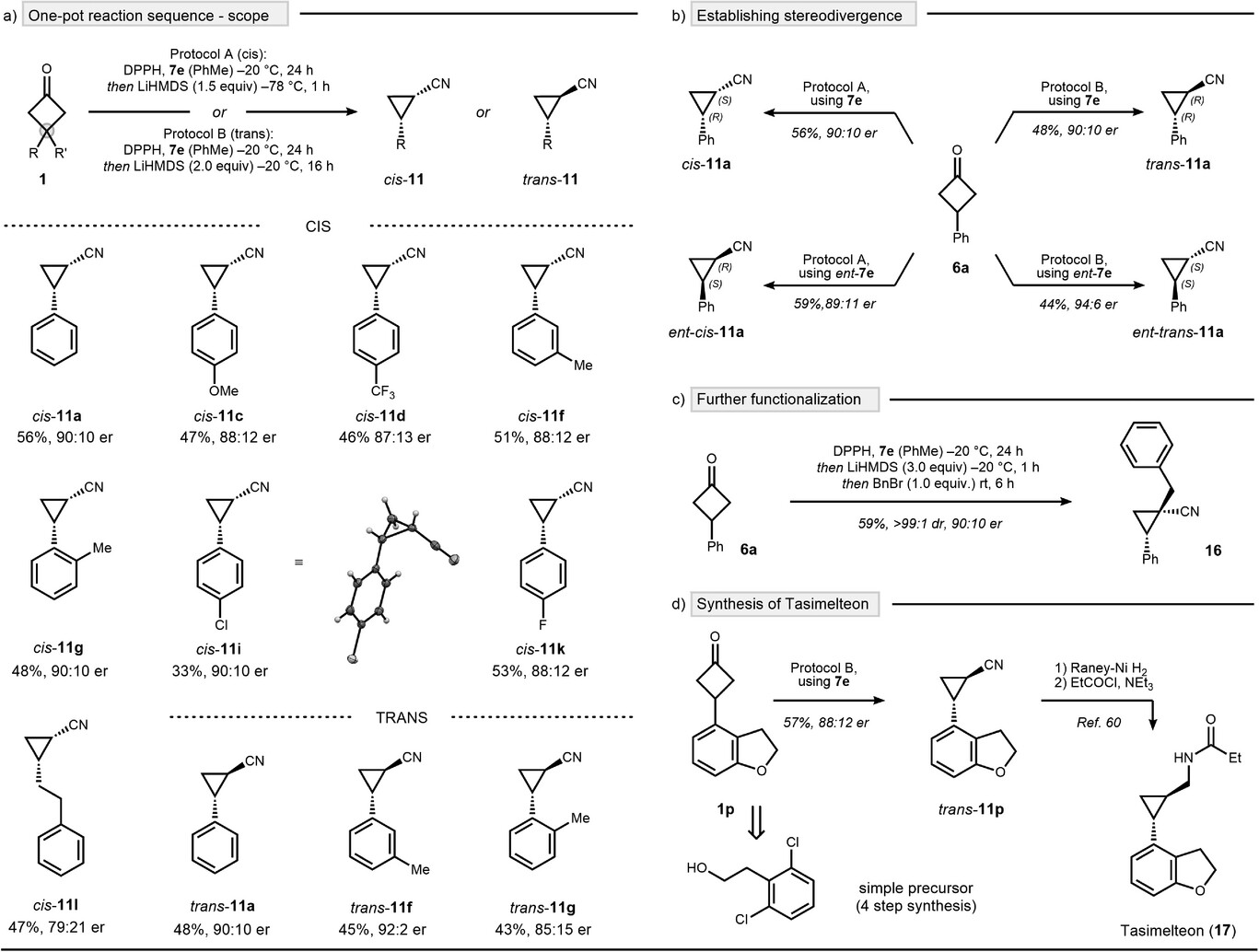

In this connection, two protocols A and B were developed, differing in base equivalents (equiv), temperature, and applied time for rearrangement, which allowed one-pot nitrogen insertions in a highly stereospecific manner. Recognizing the inherent synthetic challenges of achieving cis-selective access to optically-active cyanocyclopropanes,^[49-55] we commenced our scope explorations using protocol A (Scheme 5a, top). A range of substrates with diverse electronic and steric perturbations at the aromatic core was well-tolerated, affording cyanocyclopropanes 11a–l with high selectivity and in synthetically useful yields. Absolute configuration was established by X-ray analysis of para-chloro cyanocyclopropane cis-11i. The protocol was also easily adjustable to access trans-isomers by using protocol B, as demonstrated by the exemplarily entries trans-11a, trans-11f, and trans-11g (Scheme 5a, bottom). Furthermore, all four possible cyclopropane isomers can be accessed from phenylcyclobutanone 1a using a divergent reaction set-up. Specifically, when using CPA 7e as the catalyst, cis-11a and trans-11a were accessible in (R,S) and (R,R)-configuration, respectively. Analogously, CPA ent-7e enabled the synthesis of the (S,R) and (S,S)-isomers (Scheme 5b). We also explored further functionalization of the corresponding cyanocyclopropanes. In this context, we realized that in cases when functionalization occurs via deprotonation followed by electrophilic trapping, it can be seamlessly integrated into our reaction protocol. This is exemplified by benzylation, which proceeded with complete diastereoselectivity, yielding cyanocyclopropane 16 in 59% yield and 90:10 er (Scheme 5c).

To further highlight the synthetic utility of our methodology, we applied it to the formal synthesis of tasimelteon, an FDA-approved drug for treating non-24-hour sleep–wake disorder (Scheme 5d).^[56-58] Therefore, easily accessible cyclobutanone 1p was subjected to the trans-selective protocol B using CPA 7e as the catalyst. Gratifyingly, we were able to isolate cyclopropane trans-11p in 57% yield and with precise control over the two newly formed stereocenters. As previously described, cyanocyclopropane trans-11p can be converted to tasimelteon (17) by reduction and propanylation steps.^{[59, 60]}

Conclusion

This study presents a novel one-pot sequence that converts prochiral cyclobutanones to cyanocyclopropanes bearing two consecutive stereocenters. Enabled by a CPA organocatalyst, this transformation initially achieves selective condensation with DPPH. Upon the addition of LiHMDS a consecutive rearrangement is triggered, which occurs stereospecifically, enabling the transfer of chirality from the oxime ester intermediate to the cyanocyclopropane product. A detailed investigation of both key steps provided valuable mechanistic insights, underscoring the significant potential of oxime esters in asymmetric synthesis. These results not only advance axial-to-point chirality transfer reactions but also open up new possibilities for the synthesis of chiral nitriles as valuable building blocks.
