Introduction

Highly energetic photons with wavelengths in the UVB region (280–315 nm) are unavoidably required to initiate numerous useful photochemical reactions^{1, 2} and to detoxify many pollutants photochemically.^{3, 4} However, two main drawbacks render the broad usage of UVB-driven reactions somewhat cumbersome. Firstly, UVB light is practically not contained in the solar spectrum and the generation of UVB photons typically requires mercury lamps,⁵ excimer-based lamps,⁶ or the high-energy tail of xenon arc lamps⁴—all of them suffer from rather short lifespans well below 2000 h and electricity-to-UVB conversion efficiencies close to zero. Secondly, conventional glassware used in chemical laboratories has a low UVB transparency, which is why more expensive quartz glass is required for conventional UVB photochemistry.

In principle, the energy of two visible photons efficiently generated by long-lived LEDs can be pooled to achieve similar reactivities as obtained by direct UVB excitation. Among all known photon pooling or two-photon mechanisms,^7-11 upconversion via sensitized triplet-triplet annihilation (TTA-UC) provides the most attractive alternative to direct high-energy one-photon excitation, because TTA-UC can be employed to convert two low-energy photons at moderate photon fluxes into one highly energetic singlet-excited state.^12-23 The latter can either emit one photon of higher energy or directly activate a compound being inert under one-photon conditions at the given excitation wavelength. This strategy has already been exploited for a variety of selective photoreactions upon excitation with inexpensive diode-based continuous wave (cw) light sources,²⁴ including isomerizations,^25-27 dehalogenations,^28-30 cycloadditions,^{31, 32} C−C coupling^{24, 33, 34} and cyclization³⁰ reactions as well as polymerizations.^{30, 35-37} While all these UC-driven reactions are elegant, in particular when red/NIR photons with high penetration depth are used,^{30, 38-40} they can likely be initiated by LEDs in a direct manner. Efficient high-power LEDs are available with numerous visible and some UVA (315–400 nm) peak wavelengths, but efficient ready-to-use LEDs with UVB emission do not exist for technical reasons.⁴¹ Consequently, it is highly desirable to develop visible light-driven UC systems that are capable of producing UVB photons to potentially replace harmful and inefficient light sources.

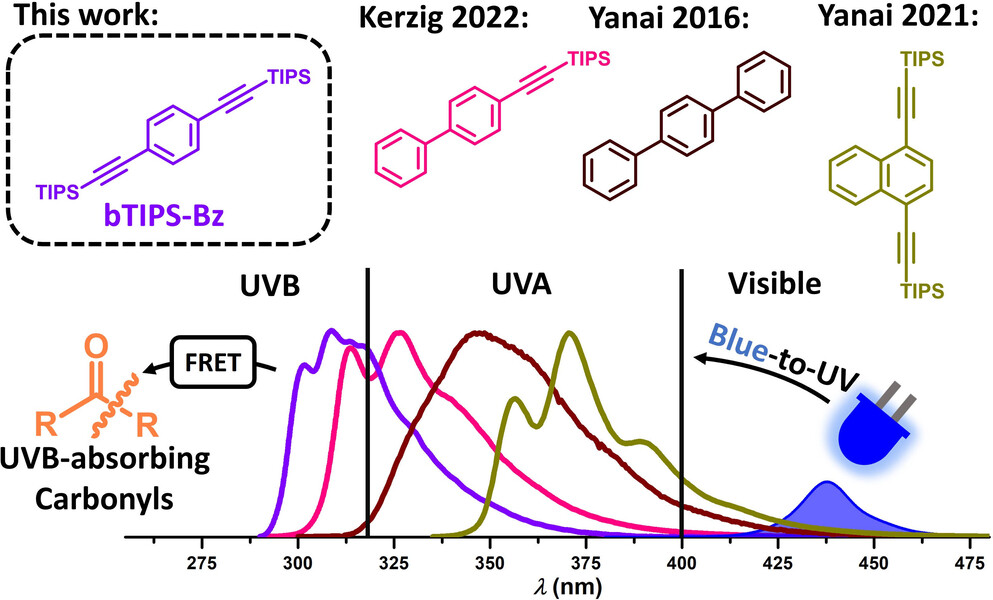

The first visible light-driven TTA-UC system with pronounced UV emission was reported in 2009.⁴² The interest in this methodology recently received a boost by some applications under remarkably mild conditions and pioneering observations such as the blue-light driven photocatalytic activation of aryl bromides,⁴³ water splitting,^{44, 45} the quantitative decomposition of a typical water pollutant,²⁸ and the development of systems with very high quantum yields for UVA generation.^46-48 Nevertheless, only a few basic structures for UV annihilators have been identified until now (biphenyl,^49-51 PPO and strongly related heterocycles,^{42, 48, 52-54} terphenyl,^{54, 55} quarterphenyl,⁵⁵ pyrene^{34, 56-58} as well as naphthalene^{28, 37, 46, 51, 54, 59-61}) and all these annihilators mainly show UVA and violet emission with either a negligible fraction of emitted UVB⁶² photons or no UVB emission at all. The identification of an annihilator with dominant UVB emission and the concomitant high excited singlet state energy well beyond 4 eV could expand the toolbox of photochemists drastically, given that Vis-to-UV upconversion holds great promise for energy-demanding photochemical applications.^{63, 64} Herein, we present the first compound that deserves the label UVB annihilator: Its emission peaks in the UVB region at 309 nm, about half of the photons emitted via fluorescence lie in the UVB range (Figure 1) and, in combination with a suitable blue light-absorbing sensitizer, blue-to-UV upconversion can be observed with diode-based light sources. The resulting upconversion system was characterized by in-depth mechanistic studies using several spectroscopic techniques and employed for an underexplored upconversion-Förster resonance energy transfer (UC-FRET)^{65, 66} reaction sequence. As we will show by meaningful proof-of-concept experiments, this novel strategy can not only be exploited for solvent excitation—a typical approach in synthetic UVB photochemistry^{1, 2, 6, 67}—but also for high-energy carbonyl photochemistry.^{68, 69}

Results and Discussion

Chemical intuition suggests that reducing the conjugated π-system from biphenyl to benzene would increase the annihilator's singlet-excited state energy and shift its peak emission from the UVA into the high-energy UVB region. However, the triplet of unsubstituted benzene at 3.9 eV⁷⁰ is inaccessible in blue light-driven upconversion schemes as the input photon energy is on the order of 2.7 eV in this case. Modifications on the annihilator scaffolds with the protection group TIPS-ethynyl (triisopropylsilylethynyl) have shown to lower the triplet energy substantially while maintaining relatively high energies of the upconverted emission.^{46, 50, 71-74} Hence, we speculated that benzene would follow a similar trend although previous calculations predicted a very pronounced HOMO–LUMO gap decrease.⁷⁵ Our DFT calculations of several benzene derivatives with different TIPS-ethynyl substitution patterns provided initial information about the triplet energies (Figure 2B, see Section S3 of the Supporting Information for details). While the calculated triplet energies of single-substituted TIPS-Bz (3.06 eV) and symmetrical threefold substituted tTIPS-Bz (2.97 eV) still exceed our input energy limit, the twofold substitution (bTIPS-Bz), however, yielded a rather low triplet energy of 2.57 eV. For that reason, we synthesized bTIPS-Bz (and reference compounds) via a Sonogashira coupling reaction (see Supporting Information for details, Section S2). The absorption and normalized emission spectra are shown in Figure 2C. As expected, the two TIPS-ethynyl substituents on benzene cause a red-shift of the absorption and emission peaks (compare Figure S5). Gratifyingly, the emission spectrum of bTIPS-Bz peaks in the UVB, about half of all emitted photons are in the UVB range, and its singlet-excited state energy is as high as 4.15 eV, corresponding to a photon energy of 299 nm. Owing to the superincrease of the molar absorptivity (Figure S5), the fluorescence rate constant of bTIPS-Bz is increased drastically compared to that of benzene.^76-78 In direct consequence, (i) the fluorescence lifetime in solution (Figure S14) is shortened from 30 ns (benzene) to 3.2 ns (bTIPS-Bz) and (ii) the fluorescence quantum yield reaches an attractive value of Φ_Fl=0.48 for bTIPS-Bz, compared to Φ_Fl=0.07 for benzene.^{79, 80} From 77 K phosphorescence measurements, we obtained a triplet energy of 2.64 eV for bTIPS-Bz (Figure S17), which is in very good agreement with that estimated by DFT calculations. Given that isoenergetic and even slightly uphill sensitization is feasible,^{31, 81-83} TTA-UC with bTIPS-Bz as annihilator is clearly within reach using blue photons.

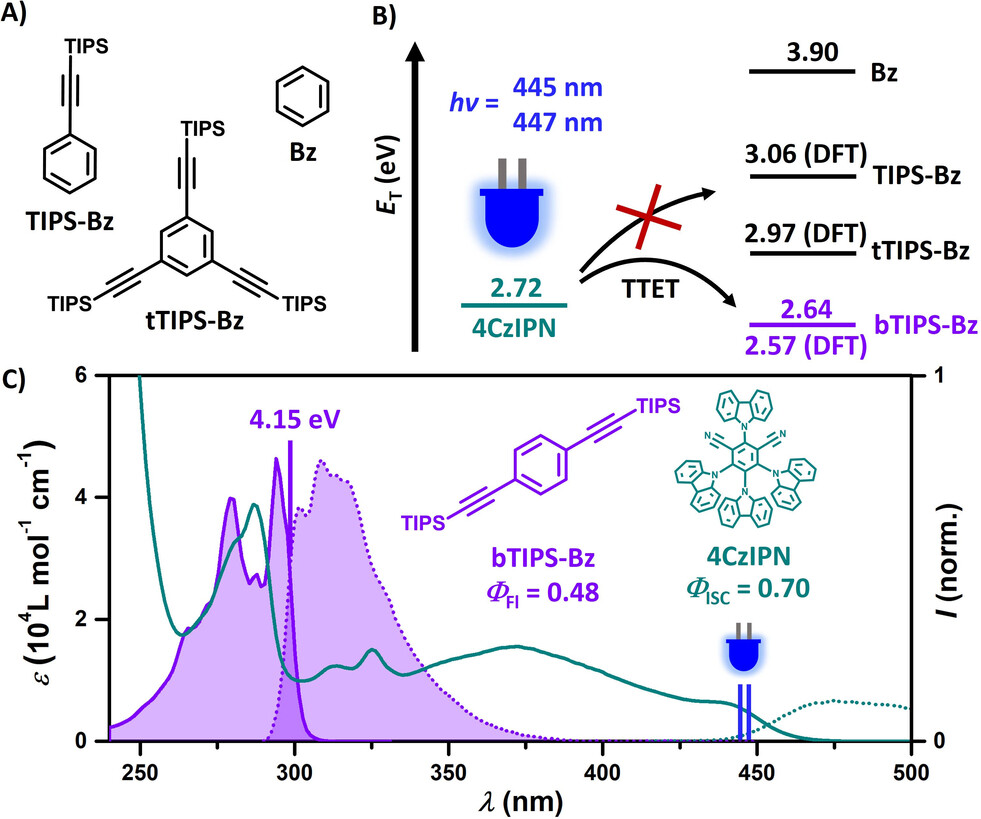

For this study, we have chosen the well-known carbazoyl dicyanobenzene-based TADF emitter 4CzIPN (Figure 2B and C) as the triplet sensitizer. In addition to OLED applications,⁸⁴ 4CzIPN has been successfully employed in energy transfer catalysis^{85, 86} and TTA-UC schemes.^{50, 55, 87} Its high triplet energy (2.72 eV in cyclohexane), high triplet formation yield (about 70 %)⁸⁸ and strong absorptivity in the blue make it ideal for our blue light-driven upconversion system.⁵⁰ For solubility reasons, toluene was used as co-solvent (10 vol. %), which does not negatively affect the pertinent properties of our photoactive compounds (see ref. ⁵⁰ and Figures S6/S14). The combined key properties of both 4CzIPN and bTIPS-Bz are summarized in Figures 2B and C. Transient absorption (TA) and emission spectroscopy using laser flash photolysis (LFP) were performed with a 355 nm laser (≈5 ns pulse duration) to investigate the upconversion system in detail. The initial energy transfer from ³4CzIPN to bTIPS-Bz proceeds with a quenching rate constant of k_TTET=6.2×10⁷ m⁻¹ s⁻¹ (Figure 3A), which is not only in line with the rather small triplet energy difference between ³bTIPS-Bz and ³4CzIPN but also sufficiently rapid for efficient quenching (>85 %) of ³4CzIPN at moderate concentrations (>9 mM). In contrast, no quenching of the other TIPS-ethynyl substituted benzenes—TIPS-Bz and tTIPS-Bz—was observed, highlighting the unique photochemical properties of bTIPS-Bz. Further TA measurements were carried out to monitor the quenching product. The ³4CzIPN quenching by bTIPS-Bz gave rise to a TA spectrum with a pronounced absorption band peaking at 348 nm (purple spectrum in Figure 3B) that completely returns to baseline (Figure S18) with wavelength-independent kinetics and a much longer lifetime (≈120 μs) compared to ³4CzIPN alone (7.9 μs, see Figure S12 and corresponding discussion for further explanations). TD-DFT calculations on ³bTIPS-Bz predict an intense absorption peak at 360 nm matching our experiments well (see calculated transitions in Figure 3B and Section S3 of the Supporting Information for details). We, therefore, assign the spectrum displayed in Figure 3B (purple) to ³bTIPS-Bz generated through triplet-triplet energy transfer TTET.

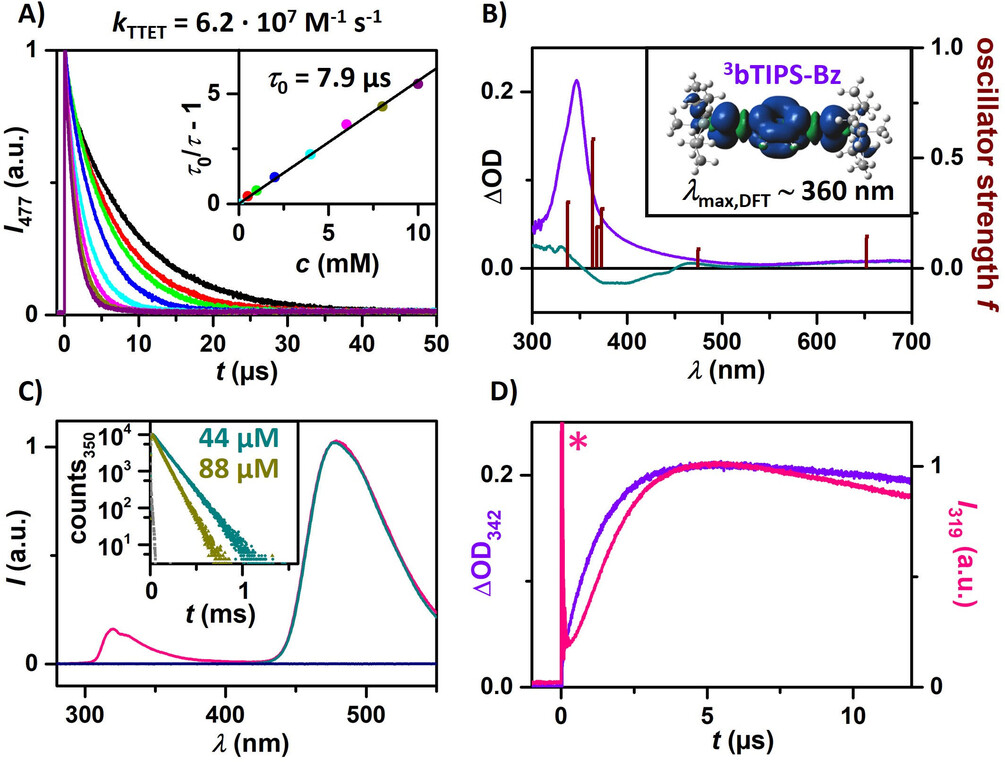

Having established sensitized annihilator triplet formation, we next examined the TTA step. Three solutions containing either bTIPS-Bz, 4CzIPN, or both in combination were prepared and investigated using time-gated emission spectroscopy. The detection window after 355 nm excitation was selected such that direct sensitizer and annihilator emission can be excluded. Out of the three solutions, only that with 4CzIPN and bTIPS-Bz shows the expected singlet emission in the UV (Figure 3C) providing evidence for delayed annihilator emission, which has to be a result of TTA. The similar triplet energies imply the possibility of back-energy transfer in the triplet manifold. Kinetic emission traces monitoring delayed ¹bTIPS-Bz* emission at 350 nm with increasing sensitizer concentration confirm a back-TTET (Figure 3C, inset), as indicated by the delayed emission lifetime decrease.^{28, 89, 90} Moreover, we observed that the triplet lifetime of ³bTIPS-Bz correlates with the weak elongated 4CzIPN emission from back-TTET (Figure S13), and we attribute the remaining spectral emission of 4CzIPN in Figure 3C to this energy transfer equilibrium.^{50, 89}

More direct evidence for the UV emission originating from TTA-UC is given in Figure 3D. Kinetic traces simultaneously monitoring ³bTIPS-Bz (absorption at 342 nm) and ¹bTIPS-Bz* (emission at 319 nm) show that both reach a maximum at t=6 μs. Owing to the bimolecular nature of the annihilation process, the rise and fall of the singlet emission intensity are in a quadratic relation to the triplet concentration [³bTIPS-Bz], resulting in the characteristic behavior displayed in Figure 3D.⁹¹ We then characterized the efficiency of this novel blue-to-UVB TTA-UC scheme with two blue diode-based cw lasers at either 447 nm or 445 nm (see Supporting Information for detailed descriptions of both setups). We found that a sensitizer concentration of 44 μm gave a good compromise between the overall quantum yield and the threshold intensity I_th. Although higher sensitizer concentrations are regarded to be beneficial for lowering I_th,⁹² i.e., for achieving high quantum yields at low light intensities, we found a higher I_th at 88 μm (see Figure S7). This observation is most likely a result of back-TTET with sensitizer ground state molecules as an additional deactivation pathway of the annihilator triplet.

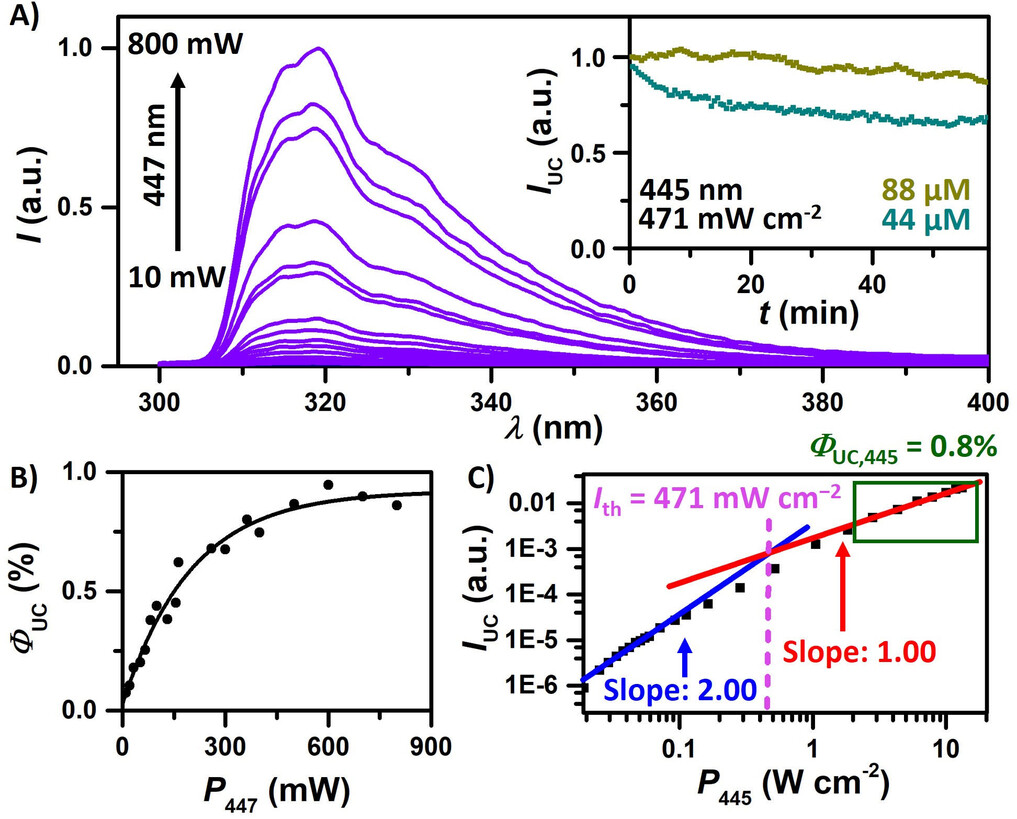

The main plot in Figure 4A collates the upconverted emission with increasing laser intensity (10–800 mW) peaking at 318 nm with intense emission in the UVB region. The higher annihilator concentration causes filter effects of the annihilator emission in its absorption-emission overlap region (compare spectra in Figures 2C and 4A), thereby shifting the apparent emission maximum. However, the absorption of the ¹bTIPS-Bz*-emitted photons by additives in solution could occur below 310 nm—it would simply compete with annihilator self-absorption. Using the observed UC emission maximum in combination with the absorption maximum of 4CzIPN (435 nm), the anti-Stokes shift amounts to 1.04 eV.¹⁶ A frequently employed but less conservative anti-Stokes shift determination would yield a value as high as 1.24 eV, taking the excitation wavelength (447 nm) and the bTIPS-Bz emission peak in the absence of inner filter effects (309 nm). Regardless of the actual method, the anti-Stokes shift of our system is among the largest reported so far for visible light-driven UC schemes.^{72, 82, 93-100}

Figures 4B and C focus on power-dependent UC measurements. The achievable upconversion quantum yields Φ_UC at the highest laser intensities amount to values close to 1 % (with a theoretical maximum of 50 %) using both 447 nm and 445 nm excitation. A rather low I_th of 471 mW cm⁻² was determined (using the 445 nm setup with higher beam quality), enabling decent UC efficiencies already with commercially available blue LEDs (Figure S15). Moreover, irradiating the UC system at the threshold intensity shows only minor degradation over one hour (Figure 4A, inset). Higher sensitizer concentrations (88 μm) seem to be beneficial for the photostability of this system. A more systematic understanding of the factors governing efficient upconversion into the UV region seems to be required, considering the typically poor performance parameters of most known Vis-to-UV UC systems.^{49, 101} The most straightforward future strategies for developing Vis-to-UVB UC systems with higher overall quantum yields are to increase the anninilator emission quantum yield (48%) by up to a factor of two and to avoid back-TTET with sensitizers possessing higher tripler energies that could also result in UC systems operating at lower annihilator concentrations (i.e., with less pronounced filter effects). Nevertheless, the promising efficiency and long-term stability led us to speculate that our unprecedented UC system with pronounced UVB emission could perhaps drive energy-demanding reactions that usually require high-energy UVB light sources, either with the singlet-excited annihilator as reacting key species or via an emission-reabsorption sequence.¹⁰²

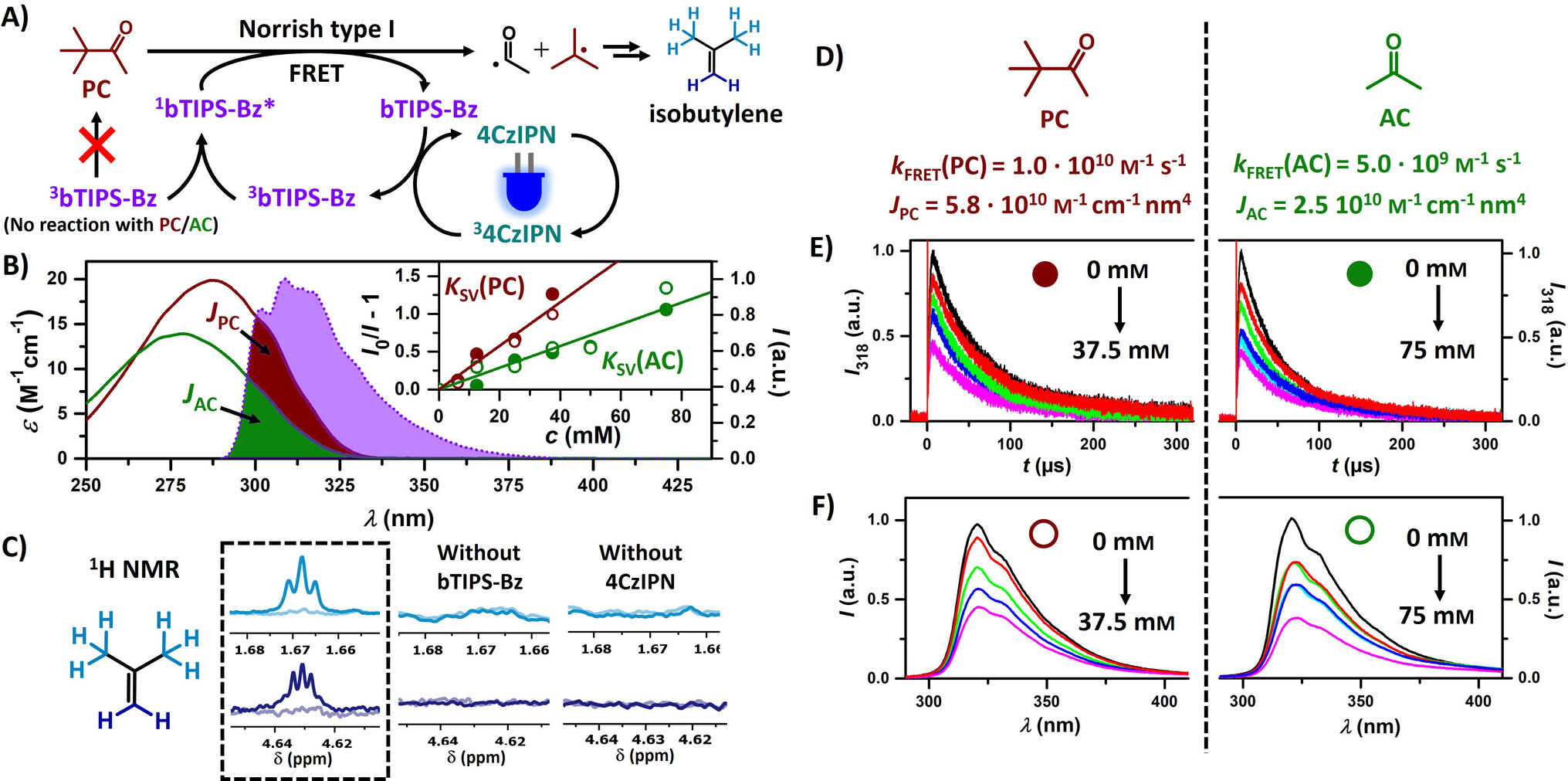

We proposed that the high singlet-excited state energy of bTIPS-Bz could be exploited for a subsequent FRET activation of relatively inert substances (Figure 5A) with a rich UV photochemistry. UC-FRET reaction sequences have been suggested with less energetic excited states of the energy acceptor that would be accessible with efficient LEDs,^{65, 66, 103} but in our high-energy case, such an alternative does not exist. For our study, we chose pinacolone (PC) and acetone (AC)—both absorb only below 320 nm and thus usually require harmful UVB light sources for excitation. Figure 5B visualizes the spectral overlap between the bTIPS-Bz emission and the absorption of the carbonyl compounds. Although the molar absorption coefficients of such aliphatic carbonyls are rather low due to the symmetry-forbidden nature of the nπ* transitions, the pronounced spectral overlap suggests that non-radiative energy transfer via the FRET mechanism is still feasible, whose efficiency linearly depends on the spectral overlap integrals.¹⁰⁴ NMR-scale and mechanistic LFP experiments were conducted to monitor the UC-FRET sequence. Figure 5E shows kinetic traces of the bTIPS-Bz emission at 318 nm with increasing PC and AC concentrations. While the formation and decay rates of the singlet emission signals are essentially unaffected by the addition of the carbonyl compound, the overall emission intensity is reduced drastically. This contrasts strongly with time-resolved measurements of the bTIPS-Bz triplet state where no change with the addition of PC or AC (neither in concentration nor in lifetime) is observed (Figure S8). Thus, the initial amount of ¹bTIPS-Bz* produced via annihilation has to be unaffected by the addition of the carbonyls and we conclude that the attenuated UC emission signal must originate from direct excited-singlet state quenching⁴³ (most likely via FRET) or reabsorption effects. An estimation of the latter, i.e., reabsorbed photons by the carbonyls through radiative energy transfer, revealed that non-radiative excited state quenching is the main pathway at our detection wavelength used in Figure 5E (see Supporting Information Section S6). Further time-gated spectra of the UV emission yielded a very similar decrease in intensity (Figure 5F). Moreover, the signal intensity in the region above 330 nm (where the carbonyls do not absorb) is almost equally reduced compared to the emission peak (318 nm) (Figure S9). All these findings are in perfect accordance with a FRET process between ¹bTIPS-Bz* and the carbonyls being the main quenching mechanism of the upconverted emission. Similar quenching experiments were also performed with a cw laser (447 nm) to demonstrate the feasibility of this energy transfer sequence with a non-pulsed visible light source (Figure S10). Next, we investigated the energy transfer efficiency in detail. In principle FRET is still feasible at larger molecular distances (up to 100 nm), meaning that the energy transfer rate can exceed the classical diffusion limit for collision-induced quenching. As a result of the low molar absorption coefficients of the carbonyls, we pre-calculated rather small Förster distances of 0.7 nm and 0.8 nm for AC and PC (Section S1.8 of the Supporting Information), suggesting that the quenching constant will be close to or slightly higher than the diffusion-controlled rate constant in cyclohexane (k_diff=6.7×10⁹ m⁻¹ s⁻¹).¹⁰⁵ The ¹bTIPS-Bz* emission intensity from either kinetic measurements (filled circle, raw data from Figure 5E) or time-gated spectra (open circle, raw data from Figure 5F) are plotted against the carbonyl concentration in a Stern–Volmer graph (Figure 5B, inset). Conventional Stern–Volmer analyses gave quenching constants k_FRET of 5.0×10⁹ m⁻¹ s⁻¹ for AC and 1.0×10¹⁰ m⁻¹ s⁻¹ for PC, respectively (Figure 5D). Direct fluorescence lifetime quenching experiments upon UVB excitation of bTIPS-Bz with different acetone concentrations gave a similar result (k_FRET=6.4×10⁹ m⁻¹ s⁻¹, see Figure S11 and corresponding discussion in the Supporting Information). The ratios of the energy transfer rate constants and the corresponding spectral overlap integrals J_PC and J_AC are practically identical, providing further evidence for the novel blue-to-UVB UC-FRET reaction sequence. Efficient photoredox reactions between the high-energy annihilator singlet and the carbonyl compounds or the sensitizer itself can be excluded as we could not detect any signatures of radical ions (Figures S8 and S18 in the Supporting Information).

The diverse photochemistry of carbonyl compounds is well described in the literature.^{1, 2, 67-69} Acetone almost quantitatively produces a highly energetic triplet state (triplet energy, ≈3.5 eV) upon direct excitation, which explains its dual use as solvent and sensitizer in conventional UVB photoreactions. Monitoring the acetone triplet produced via UC-FRET by spectroscopic methods is very challenging owing to its rather slow formation and the relatively high concentrations of potential triplet energy acceptors in our system. However, pinacolone undergoes efficient Norrish type I fragmentation generating a more stabilized carbon-centered radical (Figure 5A)¹⁰⁶ compared to that formed by acetone. This isobutyl radical is hard to track spectroscopically, but isobutylene as its stable disproportionation product¹⁰⁷ (Figure 5A) is sufficiently soluble in our mixture and possesses a characteristic ¹H NMR spectrum.¹⁰⁸ We, therefore, performed several NMR-scale irradiation experiments with PC. Irradiating the whole UC system together with 100 mm PC using our cw laser (447 nm) for 30 min resulted in the formation of new peaks in the NMR spectrum that unambiguously correspond to isobutylene (Figure 5C, see Section S8.2 for details). Control experiments with either annihilator or sensitizer missing did not show any evidence for product generation. To demonstrate that this high-energy Norrish chemistry is also viable with commercial blue LEDs, the same irradiation experiment was carried out with two blue LEDs (440 nm). Similar amounts of isobutylene were detected (Figure S29), confirming the promising performance parameters and the potential of our UC system for future lab-scale applications without UVB lamps.

Finally, we turned to the substrate dibenzyl ketone, which is known to undergo efficient Norrish fragmentation under UV photolysis (λ<325 nm) and subsequent C−C bond formation of the resulting radicals.⁶⁹ The coupling product dibenzyl has been observed clearly employing our UC-FRET strategy with blue LEDs (Figures S31–S33). This coupling reaction under mercury-free and very mild conditions highlights that more synthetically useful photoreactions are generally feasible employing our new approach.

Conclusion

In summary, we have demonstrated that UVB emitters can be incorporated in blue light-driven upconversion schemes. Reaching the UVB region with blue input photons for the first time is certainly beyond a pushing-the-limits study because this technology enables unreported substrate and solvent activation strategies that cannot be carried out with efficient and sustainable light sources in a direct manner. Our mechanistic investigations provide unambiguous evidence for a hitherto unreported blue-to-UVB UC-FRET sequence expanding the applicability of upconversion for driving challenging chemical reactions. These key findings pave the way for exploiting the full potential of this attractive two-photon mechanism in light-driven bond activation. The incorporation of such high-energy upconversion systems in solid or gel-like environments for large-scale applications might represent the next challenge and even LED-driven UVA-to-UVC upconversion systems, which have the potential to replace mercury lamps completely, seem to be within reach based on our results. The latter would require further efforts in developing both novel annihilators and energy-matched sensitizers that are highly photostable. For that, a deeper understanding of TTA^{73, 109-112} is required, and regarding sensitizer development, the upconversion community will strongly benefit from the recent progress in Dexter energy transfer catalysis.^{49, 113-116}
