Ablation of Ventricular and Atrial Arrhythmias in the Era of Cardiac Magnetic Resonance

2.1 Planning

A tailored planning approach is vital for ventricular ablation. A conventional 12-lead electrocardiogram (ECG) can already give important information about the localization of the exit of the arrhythmia, including whether it is endocardial or epicardial. However, its sensitivity and specificity are moderate and extremely variable from case to case, mainly due to extensive fibrosis and the use of anti-arrhythmic drugs [7, 8]. Gaining information on the exact location of the arrhythmic substrate in the ventricle is, however, crucial to guide procedural planning (e.g., whether an epicardial or endocardial approach is warranted) of the ablation, which may simultaneously shorten the procedural time.

Consequently, the most common approach is to outline the re-entry circuits by reconstructing an electro-anatomical map (EAM) of the ventricles in the EP lab through dedicated software. Mapping the re-entry circuit requires VT induction. However, many patients render non-inducible throughout a VT ablation procedure. In addition, patients are exposed to a risk of hemodynamic instability. During sinus rhythm, substrate mapping can be performed by identifying the areas of slow conduction. Yet, identifying all late potentials and local abnormal ventricular activity (LAVA) may be time-consuming.

On the contrary, scars responsible for the re-entry circuit can be easily visualized on CMR with different methods. The most utilized technique is late gadolinium enhancement (LGE) visualization after gadolinium injection, a contrast agent that spreads into fibrotic tissues due to extracellular volume (ECV) expansion. Conventional LGE imaging consists of T1-weighted sequences acquired 10–20 min after 0.15–0.2 mmol/kg gadolinium-based contrast agent administration [9]. To avoid artifacts, sequential breath-holds are required to the patient. The most used 2D sequences are the so-called “bright blood” sequences where myocardium appears hypointense, and blood appears hyperintense. Novel sequences such as dark blood and flow-independent dark blood delayed enhancement (FIDDLE) have been developed. They provide better contrast signal between blood and enhanced myocardium and help to perceive subtle subendocardial scars [10, 11]. However, studies utilizing the latter sequences for VA ablation are lacking.

An initial study by Andreu et al. evaluated the clinical significance of analyzing scarred ventricular tissue to determine the VA site and guide the appropriate ablation strategy [12]. The study underlined the importance of a pre-ablation assessment of cardiac LGE, in terms of presence/absence and of its localization (subendocardial, mid-myocardial, epicardial, and transmural). The presence of subepicardial LGE yielded a sensitivity of 84.5% and a specificity of 100% in predicting an epicardial origin of VA.

Subsequently, Malaczynska-Rajpold et al. compared post-infarct patients presenting either with sustained VT (case group) or without sustained VT (control group) [13]. The heterogeneous zone was visualized on 2D sequences LGE and was defined as scar tissue with signal density lower than normal scar (between two and three times the normal myocardium intensity) [14]. Islets of heterogeneity were significantly higher in the case group compared to the control group suggesting an association between islets of LGE heterogeneity and conducting channels [13]. Conducting channels refer to areas characterized by the presence of a slow conduction zone simultaneously surrounded by scar and connected to a healthy myocardium, that establishes the electrical substrate for re-entry [15].

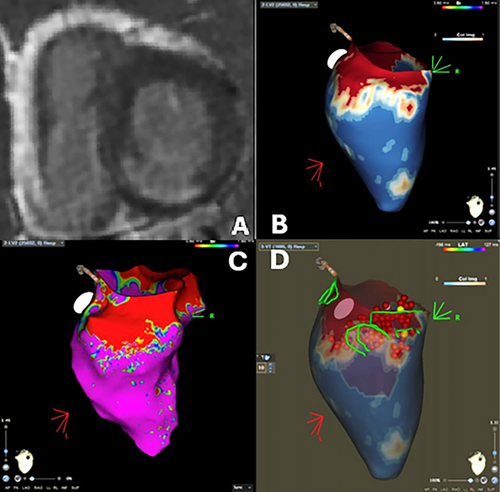

In recent years, novel CMR techniques have emerged. New 3D free-breathing LGE sequences led to higher spatial resolution allowing better reconstruction of the myocardium increasing the capability to evaluate its signal intensity. Multiple software has been designed to process 3D LGE information and define the extension and presence of conducting channels and have proved to be better than conventional 2D LGE sequences (Figure 1) [16, 17].

T1 mapping is also a valid option to assess fibrotic changes. T1 values increase along with the increase of fibrotic or watery content in the myocardium [18]. T1 mapping requires multiple image acquisitions with different T1 weightings in order to fit the signal intensities of the images into an equation. By doing so, the reader obtains a quantitative map that represents tissue characterization from which region of interest can be drawn to assess tissue changes. T1 mapping sequences have been proven to be more sensible for early or diffuse fibrosis compared to LGE, especially for non-ischemic cardiomyopathy [18]. After 10–15 min from contrast injection, post-contrast T1 mapping can be acquired. ECV can be estimated through the measurement of myocardial and blood T1 before and after contrast administration and the patient's hematocrit [18]. ECV is strictly correlated with variations in the inter-myocyte space. It tends to increase because of fibrotic and edematous deposition in this space. That being said, local or diffuse increases in ECV values can indicate a potential VT substrate, although in clinical practice, the identification of LGE still remains the mainstay of tissue characterization. In a retrospective study on patients without LGE that underwent VT ablation, T1 post-contrast value correlated with VT recurrence after ablation and the burden of diffuse fibrosis measured via T1 post contrast showed to be associated with the extent of the abnormal electrical substrate on EAM [19].

2.2 Intra-Procedural

2.2.1 LGE CMR Integration

At present, the vast majority of VT ablations are guided by EAMs. By registering the electrical characteristics of the mapped area, the anatomy of the heart is reconstructed and the conducting channels may be identified, thus reducing fluoroscopy times.

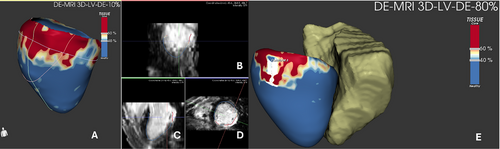

In a non-randomized, consecutive study, Andreu et al. merged a 3D CMR map with EAM in patients undergoing ablation due to sustained monomorphic VT. A pre-ablation CMR was acquired for every patient to create a 5-layer-shell of the left ventricle thickness. Then, pixel signal intensity (PSI) maps were derived and interpolated into the layers so that the delineation of scar areas and border zones was based on intensity thresholds and heterogeneous tissues channel (HTC) was defined as a continuous line, “corridor”, of border zone surrounded by scar tissue that connects two healthy myocardium zone on LGE 3D CMR reconstruction. The resulting 3D shell of the heart with scar and HTC identification was then integrated with the EAM to perform the VT ablation (Figure 2). Patients in the case group (where a CMR-aided VT ablation was performed) showed a significantly lower rate of VT inducibility after substrate ablation and higher rate of VA-free survival. In contrast to CMR-guided VT ablation, fluoroscopy times were not different between CMR-aided and EAM-only VT ablation procedures, and a possible explanation resides in the fact that CMR-aided VT ablation still requires an EAM to be performed as CMR could not be the only guidance for the procedure [20]. Similar results have been reported by multiple studies, whether the ablation was conducted with EAM integration or solely based on 3D-LGE CMR [20-22]. Moreover, a higher recurrence rate was observed even in patients who underwent previous CMR but with no interpolation during ablation, thus underlying the power of CMR-EAM integration [23].

2.3 Post-Ablation

The recurrence rate after VT ablation is still high (30%–40%) and it is often linked to the original re-entry circuit or LAVA areas [32, 33]. In this regard, it is believed that RF-induced lesion visualization can help predict arrhythmia recurrence. Lesion assessment using CMR after RF catheter ablation of VT can reveal the presence of edema, enhanced myocardium, and microvascular obstruction (MVO) after ablation [1, 34–36].

All these typical RF-induced alterations can be visualized through T1-weighted, T2-weighted, and LGE sequences. RF delivery induces coagulative necrosis and edema, which both lead to ECV expansion. However, the relationship between ECV and LGE changes is more complex than this statement suggests. Due to the transient nature of these changes, lesion can be overestimated using LGE or T2-weighted sequences and may not fully reflect the underlying tissue remodeling [37].

Several studies focused on native T1-weighted images for lesion visualization. In an animal study on swine, pre- and post-ablation CMRs were compared to pathology. Native T1-weighted images had a good correlation with the necrotic core of the lesion [38]. Kholomovski et al. analyzed acute and chronic left ventricular injuries in a canine model showing how acute T1-weighted lesion size showed a good correlation with chronic histological lesion while LGE appeared to overestimate it. No chronic lesion was observed on long time of inversion (TI) T1-weighted images thus resulting in a good predictor of chronic lesion size and a great distinguisher between acute or chronic lesions [39].

Krann et al. compared native and post-contrast sequences for the visualization of real-time lesions during an AT VT ablation in eight swine [33]. A core hypothesis of this study is that transient edema alters ECV and cell-to-cell coupling thus reducing electrical conduction and giving a misleading impression of successful ablation. The T2-weighted images, depicting edema, showed a larger lesion compared to the native T1-weighted depiction of the RF lesion, while bipolar voltages could not appreciate the differences. As edema tends to reduce over time, this could explain the late recurrences after ablations [1, 34].

Multiple studies have confirmed a significant lesion size shrinkage from the acute to chronic phase, appreciable in T2-weighted and LGE sequences, and a nearly complete regression of MVO [34, 40]. A recent study by Roca-Luque et al. compared the appearance of chronic ablated lesions in LGE CMR with pre-intervention CMR in patients who underwent first-procedure VT ablation [36]. In both CMRs, an LGE-based 3D volume rendering was performed through semi-automated segmentation on short axis with dedicated software. For both pre- and post-ablation CMRs, conducting channels were counted and their differences were compared to the clinical outcome obtained after ablation. The difference in terms of conducting channels correlated with the recurrence rate (a reduction of conducting channels <55% yielded a sensibility of 100% and a specificity of 61% to predict VT recurrence). Moreover, this study enlightens the non-significance of MVO presence in the acute phase as a marker for successful ablation [36]. This being said, enhanced sequences appear to be more suitable for pre- and post-procedural chronic visualization, while their peri-procedural usefulness is debatable due to the edema component.

All the previous studies focused on RF-induced lesions. Newer technologies such as pulsed field ablation (PFA) are still not approved for human VT ablation, but good results on animals and a few case reports on human subjects have been published [41]. PFA technology induces cellular apoptosis by disrupting myocyte cellular membrane with electrical pulses, thus reducing ECV expansion. To the best of our knowledge, no studies have been done focusing on the imaging assessment of ventricular ablation lesion performed using PFA.

3.1 Planning

Before atrial flutter or AF procedures, CMR can be used to study the anatomy of the left atrium and pulmonary veins and to rule out left atrial (LA) appendage thrombus. Moreover, CMR can be utilized to characterize the tissue of the left atrium.

Multiple studies have linked LGE and areas of low voltage in the EAM in patients with AF [46]. Additionally, LGE has been demonstrated to be more extensive in patients with persistent AF and those with greater LA remodeling, as opposed to patients with paroxysmal AF [44, 47]. Moreover, regardless of AF persistence at baseline, LA LGE extension >35% was found to be an independent factor for AF recurrence post-ablation [44].

Recently, new 3D-LGE sequences have been developed. They allow the imaging of the whole heart with high signal-to-noise and contrast-to-noise ratio and without slice gaps, enabling reformatted images in any desired plane.

The first developed sequences required multiple long (>20 s) breath-holds, making their application difficult on vulnerable patients. To overcome this issue, new free-breathing sequences are now used, combining phase-sensitive inversion recovery sequences with submillimeter voxel size and targeting diaphragm motion for the acquisition [48]. Despite the clear evidence that links fibrosis to AF onset and severity, there is no clear consensus on how to quantify LA fibrotic burden. Although picturing ventricular scar, the most common methods are based on signal intensity above normal myocardium, with 2-, 3-, 4-, 5-, or 6-standard deviations (SD) above the remote myocardium or the full width at half maximum (FWHM) technique [49]. The FWHM considers the threshold value as half of the maximal signal within the infarcted area [50]. To the best of our knowledge, there is no widespread consensus on whether SD-based or FWHM-based quantification is more suited for LA LGE. The FWHM is among the most reliable methods but yields intrinsic limitation when encountering homogeneous lesions [50]. A target lesion with a signal intensity 2 SD above the mean is generally considered statistically significant. That said, there is ongoing debate regarding the optimal SD gradient to use. Hwang et al. studied thirty-eight patients undergoing atrial ablation, comparing different SD thresholds to determine the most accurate one. Among the thresholds tested — 2-SD, 3-SD, 4-SD, 5-SD, and 6-SD — the 6-SD proved to be the most accurate. Moreover, FWHM was also evaluated, and together with the 6-SD threshold, it was found to be statistically reproducible, with an intraclass correlation coefficient greater than 0.7 [51]. In recent years, new methods involving intensity thresholds were proposed to allow for objective scar recognition and interpatient comparisons.

Khurram et al. proposed and validated a normalized measure, the image intensity ratio (IIR), for the assessment of scars. The IIR was calculated by dividing the myocardial signal intensity by the mean LA blood pool intensity. Higher local IIR thresholds correlated with lower bipolar voltage measured by EAM [52]. The added value of this method is the possible standardization of the local scars. Currently, a threshold of 1.2 is commonly used to demarcate fibrosis [53]. Nevertheless, this ratio is highly dependent on multiple factors influencing the blood pool signal intensity, both technical (e.g., time of acquisition, quantity, and modality of contrast administered, scanner field strength, voxel size, image acquisition parameters, and time of inversion choice) and patient-specific (e.g., contrast clearance rate and comorbidities).

Another method for the definition of fibrosis utilizes a threshold-based SD above the mean signal intensity of normal myocardium or blood pool.

The Utah group proposed a score based on the scar extension, where atrial involvement is categorized as mild (when LGE is <15%), moderate (15%–35%), and extensive (>35%) [54]. Scar delineation is based on the assessment of higher signal intensity in the involved myocardium compared to the normal one. The DECAAF I study used a SD-based method for evaluating the extension of LGE before the AF ablation. Results from this study show that the extent of LA LGE was associated with arrhythmia recurrence after the blanking period [55].

Hopman et al. compared a 3-SD-based and an IIR-based methods for LA fibrosis quantification on two different software (CEMRG and ADAS 3D). The two software were used to measure fibrosis through IIR. Moreover, CEMRG was implemented to calculate fibrosis with the 3 SD method. To compare LA fibrosis quantification methods and alternative post-processing software outputs, intraclass correlation coefficients were calculated. The LA fibrosis burden derived from the 1.2 threshold IIR was higher than that derived from 3 SD above the blood pool (29.80 ± 14.15% vs. 8.43 ± 5.42%; p < 0.001), to the point that one-third of the patients were allocated to different fibrosis categories. Since these discrepancies might have clinical implications, further studies must be performed to verify which method has the best accuracy [56].

As per T1 and T2 mapping, few studies have investigated atrial T1 mapping and its possible role in the burden of AF. Beinart et al. outlined that an increase in post-contrast T1 mapping values obtained from the posterior LA wall was associated with an elevation of voltages registered on EAM [57].

In addition to tissue characterization, LA function assessed by feature tracking-CMR succeeded to stratify patients for AF recurrence after ablation. Lower baseline feature-tracked LA strain, strain rate, and total LA emptying function measured before ablation were associated with higher AF recurrency [58]. In another study, baseline intra-atrial dyssynchrony during sinus rhythm showed to be an independent predictor of recurrency [59]. Moreover, elevated LA sphericity index measured on CMR was linked to higher recurrence rate after AF ablation [60].

3.2 Intraprocedural

3.2.2 Real-Time Visualization

As described for VT ablations, CMR can be performed prior to the procedure, atria can be segmented and a 3D shell can be reconstructed and merged with the EAM data [61, 63]. Moreover, real-time CMR-guided procedures have been studied in the last few years, either with PT or AT [25, 28].

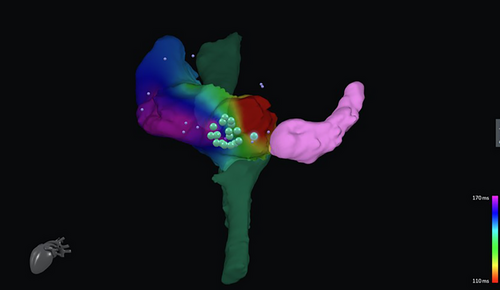

Animal studies have proven the feasibility of CMR real-time guidance at the level of the right atrium and right ventricle [64, 65]. Recently, CMR has been tested in human studies in patients with cavo tricuspid isthmus (CTI) dependent atrial flutter. Chubb et al. carried out fluoroscopy-free ablation first on animals, then on 10 patients. The overall time of the procedure was longer (with an average of 5 h per procedure rather than a conventional mean time of 1 h when fluoroscopic guidance is used), and the medium-term success rate was lower (72% vs. 85%–92% for conventional flutter ablation [25]. Similarly, Paetsch et al. performed atrial flutter ablation in 30 patients using pre-procedural 3D LGE CMRs and AT without fluoroscopy. CMR-guided atrial flutter ablation demonstrated to be feasible, with similar outcomes in terms of arrhythmia interruption and recurrence to conventional flutter ablations [66]. In addition, new vendor-neutral software has been developed and showed to be feasible in RF ablation of flutter ablation (Figure 3) [67]. Although both studies stated that difficulties were initially encountered by the electrophysiologist performing the ablation, the potential reduction in radiation dose of the procedure plus the similar results in terms of recurrence rate suggest a major role for CMR in the future of atrial arrhythmia in those centers aiming to a zero- or near-zero-ionizing dose ablation [25, 66].

3.2.3 Post-Ablation

Atrial edema is also assessed with T2-weighted sequences. Similar to ventricular locations, edema spreads outside of the actual ablation lesion, leading to overestimation of the ablation lesion with T2-weighted images [68]. As interstitial edema expands the ECV, LGE in the acute settings overestimates the ablation lesion.

Native T1 sequences can be also used to identify atrial ablation lesions, such the novel long inversion time T1w (TWILITE) sequence and the T1 mapping. TWILITE has been validated in a swine study, showing it to be effective in identifying lesions in the acute setting as confirmed by a subsequent histological evaluation. The ablation leads to the oxidation of iron in myoglobin and hemoglobin. As the oxidated iron (ferric iron) is paramagnetic, T1 shortening occurs [69].

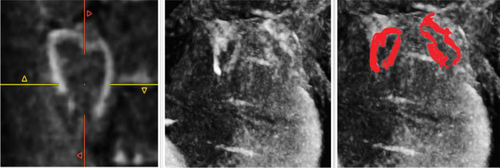

Guglielmo et al. demonstrated how TWILITE is more feasible than LGE in depicting the core of the lesions in a first human study, without the need for contrast agents. Nevertheless, TWILITE's ability to detect lesions was noticeably diminished when assessing posterior antral lesions [69, 70] (Figure 4).

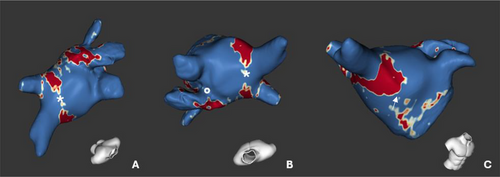

In a chronic setting, LGE CMR was able to predict durable PVI with very high positive predictive value (Figure 5) [71].

PFA is a novel, less invasive, nonthermal ablative that demonstrated to be feasible [72]. PFA induces cell lesion through electroporation resulting in cell death via multiple pathways: apoptosis, necrosis, necroptosis, or pyroptosis. In the acute setting, PFA lesions are characterized by interstitial edema while structural integrity remains mostly intacted [73]. These subtle alterations may contribute to reduced scar tissue formation compared to thermal ablation. Consequentially, the acute lesion size can be assessed with LGE, but since the ECV expansion is subtle, no lesion is appreciable in the chronic setting even with complete resolution of the arrhythmia [74, 75].
