Therapeutic potentials and modulatory mechanisms of fatty acids in bone

Minyue Bao

Minyue Bao

State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, West China Hospital of Stomatology, Sichuan University, Chengdu, China

Search for more papers by this author
Kaiwen Zhang

Kaiwen Zhang

State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, West China Hospital of Stomatology, Sichuan University, Chengdu, China

Search for more papers by this author
Yangyini Wei

Yangyini Wei

State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, West China Hospital of Stomatology, Sichuan University, Chengdu, China

Search for more papers by this author
Weihan Hua

Weihan Hua

State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, West China Hospital of Stomatology, Sichuan University, Chengdu, China

Search for more papers by this author
Yanzi Gao

Yanzi Gao

State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, West China Hospital of Stomatology, Sichuan University, Chengdu, China

Search for more papers by this author
Xin Li

Corresponding Author

Xin Li

State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, West China Hospital of Stomatology, Sichuan University, Chengdu, China

Correspondence

Xin Li, State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, West China Hospital of Stomatology, Sichuan University, Chengdu, China.

Email: [email protected]

Ling Ye, State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, Department of Cariology and Endodontics, West China Hospital of Stomatology, Sichuan University, Chengdu, China.

Email: [email protected]

Search for more papers by this author
Ling Ye

Corresponding Author

Ling Ye

State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, West China Hospital of Stomatology, Sichuan University, Chengdu, China

State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, Department of Cariology and Endodontics, West China Hospital of Stomatology, Sichuan University, Chengdu, China

Correspondence

Xin Li, State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, West China Hospital of Stomatology, Sichuan University, Chengdu, China.

Email: [email protected]

Ling Ye, State Key Laboratory of Oral Diseases, National Clinical Research Center for Oral Diseases, Department of Cariology and Endodontics, West China Hospital of Stomatology, Sichuan University, Chengdu, China.

Email: [email protected]

Search for more papers by this author
First published: 04 December 2019
Citations: 84

Abstract

Bone metabolism is a lifelong process that includes bone formation and resorption. Osteoblasts and osteoclasts are the predominant cell types associated with bone metabolism, which is facilitated by other cells such as bone marrow mesenchymal stem cells (BMMSCs), osteocytes and chondrocytes. As an important component in our daily diet, fatty acids are mainly categorized as long-chain fatty acids including polyunsaturated fatty acids (LCPUFAs), monounsaturated fatty acids (LCMUFAs), saturated fatty acids (LCSFAs), medium-/short-chain fatty acids (MCFAs/SCFAs) as well as their metabolites. Fatty acids are closely associated with bone metabolism and associated bone disorders. In this review, we summarized the important roles and potential therapeutic implications of fatty acids in multiple bone disorders, reviewed the diverse range of critical effects displayed by fatty acids on bone metabolism, and elucidated their modulatory roles and mechanisms on specific bone cell types. The evidence supporting close implications of fatty acids in bone metabolism and disorders suggests fatty acids as potential therapeutic and nutritional agents for the treatment and prevention of metabolic bone diseases.

1 INTRODUCTION

Bone metabolism including osteoclasts-mediated bone resorption and osteoblasts-mediated bone formation is a lifelong process occurring within cancellous as well as cortical bones. Bone resorption starts with recruitment of osteoclasts to mineralized bone tissues and leads to acidification of extracellular microenvironment. Osteoclasts dissolve hydroxyapatite mineral crystals by producing hydrogen ions and digesting organic bone matrix via synthesis of hydrolytic enzymes, both resulting in calcium transfer from bone tissue into blood.1, 2 Bone formation is initiated by bone marrow mesenchymal stem cells (BMMSCs) migrating from vascular channels circulation to bone surface. Osteoblasts deposit organic bone matrix and regulate its mineralization and eventually differentiate into osteocytes that are embedded in the cavities of mineralized matrix.2, 3 In addition to osteoclasts, BMMSCs and osteoblasts, other bone cell types participating in bone metabolism include macrophages, surface bone-lining cells, chondrocytes as well as osteocytes (Figure 1).4-10

Details are in the caption following the image
The microenvironment within bone. This figure displays the composition of bone microenvironment at cellular level. BMMSCs are multipotent cells capable of differentiating into multiple cell types such as osteoblasts. Osteoblasts are mononuclear cells responsible for bone formation. Bone lining cells are flat-shaped cells located along the bony surfaces, maintaining their proliferative ability into other osteogenic cells. Macrophages are common precursors of osteoclasts and bone marrow-resident macrophages in bone tissue. Osteoclasts are multinucleated giant cells with bone resorptive activity. Osteocytes are cells reside in bone lacunae and support bone structure, also with capacity to regulate the activities of both osteoclasts and osteoblasts. Chondrocytes are the main cartilage cell type existing in cartilaginous interstitium and cartilage lacuna. All these cell types existing in microenvironment within bone are implicated in bone homeostasis and thereby bone diseases

Accumulating evidence has established essential roles of fatty acids in bone metabolism 11 (Table 1). Categorization of fatty acids involved in bone metabolism has been reviewed by Natalia S. Harasymowicz et al12 In general, ω-3 long-chain polyunsaturated fatty acids (LCPUFAs) are a group of well-known fatty acids obtained from diet and supplemented via in vivo synthesis,13 and eicosapentaenoic acid (EPA), alpha-linolenic acid (ALA) and docosahexaenoic acid (DHA) are the three major representatives of ω-3 LCPUFAs. ω-3 LCPUFAs could mediate bone metabolism via processes including lipid oxidation, calcium absorption and prostaglandin synthesis,14 and they can exert beneficial effects on bone remodelling by inhibiting osteoclast activity and enhancing osteoblast activity.15 Several studies have investigated the therapeutic properties of ω-3 LCPUFAs. By promoting bone formation, ω-3 LCPUFAs significantly affect peak bone mass,16 increase bone calcium levels as well as bone mineral content (BMC) and density.17-20 Therefore, they represent a non-pharmacological strategy for preventing bone loss and accelerating fracture healing 21 and thus to reduce risks of osteoporosis and rheumatoid arthritis.16, 22, 23 In addition, ingestion of ω-3 LCPUFAs eliminates adriamycin- or cyclophosphamide-induced toxicity in bone marrow and bone tissues, suggesting potential roles of ω-3 LCPUFAs in combating side effects of specific bone-targeted drugs.24

Table 1. Overview of fatty acids involved in specific bone cell types and bone diseases
Fatty acid Effects on bone metabolism Molecular formula Structural formula Class Targeted cell Receptor Pathway Relevant disease References
Eicosapentaenoic acid (EPA) Promote bone formation C20H30O2 image

ω-3

LCPUFAs

Osteoblasts

Osteoclasts

BMMSCs

Chondrocytes

PPAR-γ

PTH1R

GPR120

GPR40

MAPK

mTOR

Rheumatoid arthritis; Periodontitis; Osteocarcinoma 181-184, 205
Docosahexaenoic acid (DHA)

Promote bone formation;

Inhibit bone resorption

C22H32O2 image

ω-3

LCPUFAs

Osteoblasts

Osteoclasts

BMMSCs

Chondrocytes

PPAR-γ

PTH1R

TLR4

GPR120

GPR40

MAPK

NF-kB

Rheumatoid arthritis; Periodontitis; Bone fracture;

Osteocarcinoma

181-184, 205
a-Linolenic Acid (ALA) Inhibit bone resorption C18H30O2 image

ω-6

LCPUFAs

Osteoclasts

Chondrocytes

GPR40

MAPK

NF-kB

181
Arachidonic Acid (AA) Inhibit bone resorption C20H32O2 image

ω-6

LCPUFAs

Osteoclasts

Chondrocytes

TLR4

MAPK

NF-kB

Rheumatoid arthritis;

Bone fracture

181-184, 205
Myristic acid(MA) Inhibit bone resorption C14H26O2 image ω-5 LCMUFAs Osteoclasts

GPR40

RANKL

Osteolysis;

Osteoporosis

25, 26
Palmitoleic acid(PLA) Inhibit bone resorption C16H30O2 image

ω-7

LCMUFAs

Osteoclasts

GPR40

NF-kB

MAPK

Rheumatoid arthritis;

Osteoporosis;

Osteosclerosis

166
Oleic acid (OA) Inhibit bone resorption C18H34O2 image ω-9 LCMUFAs

Osteoclasts

BMMSCs

GPR40

NF-kB

MAPK

Bone healing;

Osteoporosis;

Periodontitis

168, 202
Palmitic acid (PA)

Enhance bone resorption;

Inhibit bone formation

C16H32O2 image LCSFAs

Osteoclasts, Osteoblasts

BMMSCs

Osteocytes

Chondrocytes

TLR4

PPAR-γ

MAPK, mTOR

BMP

NF-kB

Osteoarthritis;

Bone loss;

Periodontitis

105, 180
Stearic acid(SA)

Enhance bone resorption;

Inhibit bone formation

C18H36O2 image LCSFAs Chondrocytes

NF-kB

Capric acid(CA) Inhibit bone resorption C10H20O2 image MCFAs Osteoclasts

GPR120

GPR40

GPR84

MAPK,

NF-kB

Osteoporosis;

Rheumatoid arthritis

214
Short chain FAs

Osteoclasts

Osteoblasts

Chondrocytes

GPR41

GPR43

GPR109

Inflammatory bone loss;

Arthritis;

Osteoporosis

29, 64
ResolvinE1 (RvE1)

Promote bone formation;

Inhibit bone resorption

C20H30O5 image EPA metabolites

Osteoblasts

Osteoclasts

ChemR23 NF-κB, MAPK Periodontitis 151
Lipoxin A4 (LXA4) Inhibit bone resorption C20H32O5 image AA metabolites Osteoclasts FPR2/ALX

NF-κB, MAPK

mTOR

215
Prostaglandin E2 (PGE2)

Promote bone formation;

Enhance bone resorption

C20H32O5 image AA metabolites

Osteoblasts

Osteoclasts

Osteocytes

Chondrocytes

EP2, EP4 RANKL

Periodontitis;

Bone fracture

276

Long-chain monounsaturated fatty acids (LCMUFAs) such as ω-5, ω-7 and ω-9 categories are commonly recognized as potential agents against osteoporosis and other osteolytic diseases. They promote bone formation and inhibit bone degeneration and thereby facilitate bone metabolism. By contrast, long-chain saturated fatty acids (LCSFAs) might negatively affect bone metabolism. Intake of common dietary SFAs such as lauric acid (LA, C12:0), myristic acid (MA, C14:0), palmitic acid (PA, C16:0) or stearic acid (SA, C18:0) might initiate inflammatory osteoarthritis and obesity.25-27 Moreover, medium-chain fatty acids (MCFAs) such as capric acid (CA) have been reported to suppress osteoclastogenesis and thereby alleviate bone resorption. Short-chain fatty acids (SCFAs)28-30 including acetate, butyrate and propionate have been suggested to inhibit bone resorption and combat inflammation. As a result, SCFAs are promising in the prevention of inflammatory bone loss and arthritis. Furthermore, fatty acid derivatives such as lipoxin A4 (LXA4) and resolvin E1 (RvE1) have also been involved in bone resorption attenuation. Therefore, considering large quantities of fatty acids in our daily diets, it is worthwhile to understand influences of fatty acids on bone metabolism and the underlying mechanisms, for further exploring their beneficial therapeutic applications in a wide variety of metabolic bone disorders.

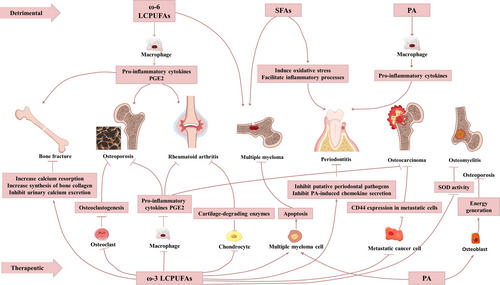

2 IMPLICATIONS OF FATTY ACIDS IN BONE DISEASES

2.1 Periodontitis

Periodontitis is a chronic bacterial infection disease characterized by primary gingival and extended alveolar bone inflammation, accompanied by periodontal tissue damage 31, 32 with connective tissue degradation and even tooth loss.33 Consistent links between fatty acids and periodontitis have been established by evidence derived from animal and human subjects. Investigations in animal models from different groups such as Bendyk et al34 and Azuma et al35, 36 come to conclusions that tissue levels of ω-3 LCPUFAs is inversely associated with periodontic alveolar bone loss,34 and ω-3 LCPUFAs EPA metabolite RvE1 is also established to enhance bone formation and reduce bone resorption in rabbit periodontitis models.37 As for the anti-inflammatory effects, LCMUFAs oleic acid (OA) exhibits anti-inflammatory potentials to decrease alveolar bone loss, while LCSFAs PA shows contrary effects with elevated tumour necrosis factor α (TNF-α) levels in obesity mice models,38 suggesting that the anti-inflammatory potentials of fatty acids in periodontitis might be varied based on specific fatty acids types. In human subjects, increased concentrations of specific SCFAs (lactic acid, propionic acid, butyric acid, isovaleric acid) have been found in the gingival fluid of periodontitis patients, demonstrating a possible association between SCFAs and inflammatory alveolar bone loss.39, 40 Moreover, a preliminary clinical study by El-Sharkawy et al suggests that dietary supplementation of ω-3 LCPUFAs might have therapeutic values against periodontitis.41-45 However, there are also clinical investigations report that benefits of dietary ω-3 LCPUFAs might not be applied to periodontitis prevention and treatment.44, 46

In mechanism, fatty acids might exert effects on periodontitis pathogenesis and intervention via direct and indirect mechanisms. Fatty acids could directly affect periodontitis-associated bone destruction. LCSFAs such as PA could trigger P gingivalis-induced alveolar bone loss directly.31 In benefit, EPA metabolite RvE1 could target BLT1 receptors in osteoclasts to inhibit osteoclast fusion and maturation, and RvE1 can induce the release of osteoprotegerin (OPG) to antagonize the proresorptive role of osteoclast-stimulating receptor activator of nuclear kappa-β ligand (RANKL), and thus facilitates the prevention of alveolar bone loss and enhances periodontal bone regeneration in periodontitis patients.47 The indirect effects of fatty acids in periodontitis are mainly through inflammatory response. Studies have shown that LCSFAs (such as PA) at high levels in plasma may facilitate P gingivalis-induced chemokine production in human gingival fibroblasts and further promote inflammatory response in periodontium.31 PA-induced chemokine secretion in human gingival fibroblasts could be inhibited by LCPUFAs (such as DHA), and such effects presumably involving the suppression of toll-like receptor (TLR) dimerization as well as nuclear factor-kappa B (NF-κB) activation.48 In addition to exert effects on chemokine, fatty acids such as RvE1 could also act on inflammatory cells by enhancing the migration of monocytes and neutrophils and promoting the clearance of apoptotic neutrophils to enhance pro-inflammatory response.31 Last but not the least, ω-3 fatty acids such as DHA and EPA exhibit extensive antibacterial effects against putative periodontal pathogens including F nucleatum and P gingivalis, and SCFA butyrate derived from anaerobic bacterial metabolism could inhibit the differentiation of gingival fibroblasts to promote chronic periodontitis.49 Given that refractory periodontitis significantly decreases the life quality of patients, studies investigating the interaction between fatty acids and periodontitis are required to develop novel intervention strategies.

2.2 Osteoporosis

Osteoporosis, marked by low bone mineral density (BMD) and deteriorated bone tissue microarchitecture, contributes to a high incidence of bone fracture on average up to 50% of women > 50 years.50 Osteoporosis is mainly caused by excessive bone resorption resulting from imbalance between overactive osteoclasts and inactive osteoblasts.51, 52 Hence, inhibiting bone resorption or promoting bone formation are promising strategies for osteoporosis prevention and treatment.53 It has been well acknowledged that osteoporosis is associated with levels of fatty acid in bone microenvironment.54 As reviewed earlier by Salari et al,55 investigations conducted in humans have shown inconsistent correlations between fatty acids and osteoporosis, while studies in animal models have confirmed that supplementation of ω-3 LCPUFAs alleviates osteoporosis by suppressing bone breakdown, promoting calcium absorption from diet, reducing prostaglandin E2 (PGE2) production and increasing skeletal calcium.56 In mechanism, ω-6 LCPUFAs intake results in a high ratio of ω-6 versus ω-3 LCPUFAs, and thus facilitating osteoporosis by promoting low-grade chronic inflammation and regulating MSC lineage commitment.57 ω-3 LCPUFAs inhibit osteoclastogenesis, decrease PGE2 content, and thus increasing BMD to benefit osteoporosis prevention and alleviation.51, 58 In addition, fatty acids such as palmitate could enhance energy generation for osteoblast differentiation, thus accelerating bone formation.52 Moreover, since LCPUFAs are highly prone to reactive oxygen species (ROS)-induced oxidative damage, adoption of antioxidant CoQ as adjuvant could eliminate the disadvantages of LCPUFAs during osteoporosis therapeutics.59, 60

Estrogen deficiency-induced postmenopausal osteoporosis is the most common type of osteoporosis. Along with decrease in estrogen levels, reduction in OPG delays osteoblast maturation and attenuates bone formation61; also, drop in OPG/RANKL ratio enhances osteoclast differentiation and promotes bone resorption and eventually results in bone loss.47 Moreover, endogenous fatty acids could serve as energy sources of skeletal and bone marrow cells to contribute to postmenopausal women bone health,62 while exogenous supply of fatty acids might favour or harm postmenopausal women bone condition. As illustrated by animal models, supplementation of fatty acids such as and SCFAs63 and ω-3 LCPUFAs56 substantially reduces bone loss and restores bone mass and thus ameliorates postmenopausal bone loss in ovariectomized mice, and the protective roles of SCFAs on bone loss were mainly attributed to the suppression of osteoclast differentiation and function.64 According to data derived from human subjects, although earlier investigations indicate that ω-3 LCPUFAs intake plays positive roles in enhancing bone mass and limiting postmenopausal osteoporosis risks,65 effects of PUFAs on bone are shown to be contradictory in general. For example, there is one study demonstrated that PUFA supplementation significantly enhanced lumbar spine and femoral neck BMD in a population of 65 postmenopausal women; however, another trial reported no significant therapeutic effects in 42 postmenopausal women receiving similar PUFA supplements.56 Taken together, understanding the functions and mechanisms of fatty acids in osteoporosis might help to develop novel preventive or therapeutic strategies to benefit bone health maintenance in osteoporotic patients.60, 66

2.3 Bone fracture

The high risk of bone fractures may result from osteoporosis with low BMD, or more specifically, deterioration of bone structure and loss of bone mass.67-69 Studies in mice models have suggested that endogenously produced ω-3 LCPUFAs could facilitate fracture healing process, and supplementation of ω-3 LCPUFAs exert positive effects on fracture healing.21 Consistently, investigations in human subjects by Sadeghi et al68 and Harris et al 67 have indicated that increased intake of total PUFAs is positively correlated with higher BMD and reduced bone fracture risk in populations including elder men. However, epidemiological investigation by Virtanen et al demonstrates that low total PUFA, ω-6 PUFA or LA intakes might promote the risk of hip fractures in women.70 Apart from heterogeneity in study design, sample inclusion and data process among different studies, diversity in fatty acid types might be an important factor contributing to the conflicting involvement of fatty acids in bone fractures. Correspondingly, specific mechanisms of fatty acid modulation on bone fractures vary a lot. For example, ω-6 LCPUFAs such as arachidonic acid (AA) could stimulate PGE2 production to regulate bone metabolism and fracture healing, while ω-3 PUFAs increase BMD by increasing calcium resorption and bone collagen synthesis, decreasing urinary calcium excretion, and thus inhibiting bone resorption.67, 68 Overall, fatty acids of different types might exert differential effects on bone fractures pathophysiology, and much more work needs to be done on exploiting them for bone fractures prevention and therapeutics.

2.4 Rheumatoid arthritis

Rheumatoid arthritis, with manifestations of arthralgia, redness and swelling, and limited range of motion,71 is a chronic and autoimmune inflammatory disease affecting 0.5%−1% of the world population.72-74 If left untreated or ineffectively treated, rheumatoid arthritis typically leads to primary joints destruction caused by erosion of cartilage and bone, as well as subsequent systemic complications and even death.72-75 Several studies have investigated the individual and combinational protective effects of LCPUFAs in rheumatoid arthritis. For example, ω-3 LCPUFAs could lower the risk of cardiovascular disease in rheumatoid arthritis patients,23 and combinational utilization of ω-3 LCPUFAs with low-dose vitamin E could substantially reduce the side effects of disease-modifying anti-rheumatic drugs (DMARDs).75 The attenuation effects of ω-3 LCPUFAs on rheumatoid arthritis-induced bone and cartilage destruction are mainly mediated by reduced synthesis of cartilage-degrading enzymes as well as the inflammatory response cytokines. ω-3 LCPUFAs, especially EPA and DHA,23, 76 could alleviate morning stiffness and decrease number of swollen and tender joints in patients with rheumatoid arthritis and thus show anti-inflammatory and restorative effects against rheumatoid arthritis. Importantly, since LCPUFAs AA could drive the synthesis of pro-inflammatory cytokines, restriction of AA enhances ω-3 LCPUFAs-mediated anti-inflammatory responses by decreasing the production of metalloproteinases and pro-inflammatory cytokines as well as the migration of leucocytes in vivo, and thus strengthens the action of ω-3 LCPUFAs in combating rheumatoid arthritis.75, 76 Another kind of LCPUFAs, ω-6 LCPUFAs are eventually metabolized into AA and inflammatory eicosanoids and function as pro-inflammatory agents,75, 77 ω-3 LCPUFAs could reduce the synthesis of ω-6 LCPUFAs by competing with the rate-limiting delta-6 desaturation enzyme and thus exert a therapeutic effect on rheumatoid arthritis.75, 78, 79 Moreover, SCFAs also play crucial roles in bone metabolism and immune responses in pathological bone loss and thus regulate systemic bone mass and protect from rheumatoid arthritis.64 Investigations are needed to further elucidate mechanisms underlying the pharmacological roles and therapeutic potentials of multiple types of fatty acids in arthritis such as temporomandibular joint arthritis.66

2.5 Tumour-associated bone destruction

Multiple myeloma is a destructive cancer that mainly occurs in bone marrow.80 Studies have shown that fatty acids of different types play either pro-death or pro-survival roles in multiple myeloma. For example, PA could activate apoptosis in multiple myeloma cells and thereby serves as a potentially direct anti-myeloma strategy.81 EPA and DHA could also initiate apoptosis and promote drug sensitivity in multiple myeloma cells, with a mechanism involving NF-κB inhibition concomitant with activation of mitochondrial defects leading to caspase-3 activation and apoptosis.82 In addition, EPA and DHA modulate p53/miR-34a/Bcl-2 axis to enhance dexamethasone (Dex)-sensitivity in multiple myeloma cells where they trigger p53 expression and subsequent increase of miR-34a levels in U266 cells, and finally activate Bcl-2 to induce apoptosis of multiple myeloma cells.83-85 By contrast, SFAs and ω-6 LCPUFAs represent energy sources for multiple myeloma cells, and ratio of ω-3/ω-6 fatty acid intake is critical for the maintenance of multiple myeloma cell survival.86, 87

Bone metastasis is a pernicious complication88 occurring in virtually 60% of patients with osteolytic breast or osteogenic prostate cancers and at a smaller rate in patients with other cancer types.89, 90 Patients with bone metastasis suffer from severe pain, bone fracture and osteolytic lesions, which symptoms are primarily attributed to aberrant bone resorption mediated by osteoclasts.91, 92 In osteolytic metastasis mice model originating from MDA-MB-231 human breast cancer, researchers found that supplementation with DHA and EPA-enriched fish oil prevented breast cancer metastasis-induced bone osteolysis,93 suggesting potential therapeutic effects of fatty acids for osteolytic bone metastasis. In mechanism, both DHA and EPA reduce the mRNA and protein levels of CD44 in breast cancer cells to inhibit cancer invasion; moreover, compared to EPA, DHA has profound anti-inflammatory effects via inhibiting TNF-α secretion and NF-κB activation in macrophages and thus exhibits stronger suppression of osteoclast activity to attenuate the related osteolysis.94 However, in osteogenic metastasis derived from prostate cancer, fatty acids such as AA could facilitate metastatic cancer cell implantation and propagation via preparation of bone microenvironment “soil” for cancer cells by activating bone marrow adipocyte formation,95 demonstrating promotional roles of fatty acids in favour of osteogenic bone metastasis. This might be explained by the fact that fatty acids synthesized by bone marrow adipocytes could serve as energy source for certain types of tumour cells engaged in metastasis. During bone metastasis of prostate cancer, free fatty acid influx into cells induces the expression of lipid transport mediator fatty acid-binding protein (FABP4), and expression of FABP4 between tumour cells and adipocytes could mediate adipocyte-induced metabolic switch in prostate microenvironment and thus promotes osteogenic prostate cancer metastasis.96 Such roles of fatty acids in facilitating bone metastasis have also been confirmed in melanoma cancer,89 where bone marrow adipocytes play a pivotal role in bone metastasis by releasing free fatty acids to meet the energy demands of metastatic cancer cells for survival and growth. Therefore, fatty acids of different types behave significantly differently in cancer bone metastasis, and osteolytic or osteogenic or mixed bone lesion conditions derived from specific cancer types should be definitely taken into account when employing fatty acids for cancer bone metastasis therapeutics.

2.6 Other bone disorders

Fatty acids are also involved in non-typical skeletal diseases such as osteomyelitis, a bone inflammatory process initiated by infection of pyogenic organisms 97 that predominantly occurs in long bones of children, and in hips, feet, jaws and spine of adults.98-100 This disease is characterized by severe damage to bone tissue and bone marrow, and probably accompanied by high morbidity and mortality.100 Accumulating evidence has shown that ω-3 LCPUFAs could effectively combat microbial pathogenesis in osteomyelitis.101-103 Furthermore, combination of vancomycin and ω-3 LCPUFAs has been suggested to be a reliable therapeutic strategy against S aureus-induced osteomyelitis, with a mechanism involving inflammation alleviation by reducing TNF-α and interleukin 6 (IL-6) levels as well as antioxidant activity by decreasing SOD activity.97

Taken together, according to currently available pre-clinical experiments (Table 2) and clinical studies (Table 3), various factors contribute to implications of different fatty acids types in multiple bone disorders. With most associations between fatty acids and bone disorders remain obscure (Figure 2), much more work needs to be done by collaboration of biological and clinical researchers to maximize the therapeutic potentials and minimize the side effects of fatty acids against bone diseases.

Table 2. Animal experimental studies evaluating effects of fatty acids in bone disorders
Class Disease Animal Treatment Study period Bone-related outcome Conclusion Year Reference
ω-3 LCPUFAs Periodontitis Male Wistar rats

Control group (C)

Group 1:ω-3 PUFAs (C + O)

Group 2: pulp exposure-induced apical periodontitis (AP)

Group 3: pulp exposure-induced AP + ω-3 PUFAs (AP + O)

45d Areas of bone resorption/inflammatory intensity :AP group > AP + O, C + O and C groups ω-3 LCPUFAs decrease inflammatory cell infiltration and AP bone resorption 2018 35
Osteoporosis Male piglets

Diet: suckling/standard formula/formula containing LCPUFAs

Drug: placebo/ dexamethasone (DEX)

15d

DEX group: BMC of whole body, femur, and lumbar spine ↓

Suckled group: highest BMC of femur and whole body

LCPUFA group: PGE2↑

ω-3 LCPUFAs give rise to BMC of femur and whole body 2002 277
Osteoporosis

c57Bl/6 mice

High-fat diet/normal control 24w

Trabecula number and surface↑

Trabecular separation↓

HFD-induced obesity promotes bone formation 2010 278
Osteoporosis Fat-1 mice

Group 1: Fat-1 mice sham

Group 2: Fat-1 mice ovariectomized (OVX)

Group 3: WT sham

Group 4: OVX

5mo

Bone marrow adiposity↓

Bone parameters↑in the distal femoral metaphysis

ω-3 LCPUFAs improve osteoblastogenesis to treat osteoporosis

2013 279
Osteoporosis Fat-1 mice

Ovariectomized (Ovx) and sham operated

AIN-93M diet containing 10% corn oil

24w

Osteotropic factors↓

BMD↑

ω-3 LCPUFAs effectively prevent post-menopausal osteoporosis 2009 280
Aging-related bone loss Gonad-intact middle-aged male rats

Group 1: ω-6 + ω-3 diet (control)

Group 2: ω-6 diet (almost devoid of ω-3 LCPUFA)

Group 3: ω-3 diet (rich in ω-3 LCPUFA)

20w

Group 1:BMD↓

Group 2: bone PGE2 production↑

Group 3: bone-specific alkaline phosphatase activity↑ + highest bone mineral and BMD

ω-3 LCPUFAs protect gonad-intact middle-aged male rats from bone loss

2005 281
Aging-related bone loss Male Wistar rats Diet: virgin olive oil/ sunflower oil/ (ω-6 LCPUFAs)/ fish oil (ω-3 LCPUFAs) 24mo

Bone loss:sunflower oil (+++)

fish oil (++)

virgin olive oil (+)

Dietary ω-3 LCPUFAs prevent aging-associated bone loss

ω-6 LCPUFAs prevent aging-related alveolar bone loss

2013 282
Aging-related bone loss

Female

Polycystic kidney disease (PKD) rats

Group 1:casein + corn oil (Casein + CO)

Group 2: casein + soybean oil (Casein + SO)

Group 3: soy protein isolate + soybean oil (SPI + SO)

Group 4: soy protein isolate + 1:1 soybean oil:salmon oil blend (SPI + SB)

12w Femur length: SPI + SO < Casein + CO ω-3 LCPUFAs influence bone longitudinal growth and mineral balance 2015 283
Aging-related bone loss Male Wistar rats

Group 1: fish oil

Group 2: fish oil + coenzyme Q10 (CoQ10)

24mo

Aged rats bone mineral density: group 1<group 2 CoQ10 avoids aging-related bone loss 2017 59
Osteoarthritis Guinea pigs High ω-3 diet/typical western diet 20w ω-3 diet group: OA average histological scores↓; cartilage parameters modified ω-3 LCPUFAs decrease OA in prone strain and increase no marker of pathology in either strain 2011 284
Bone fracture Fat-1 ± C57BL/6 mice Diets containing 10% corn oil 12w Fat-1 + C57BL/6 mice exhibited acceleration in endochondral ossification, callus formationand remodeling process compared to fat-1 -C57BL/6 mice group ω-3 PUFAs positively affect fracture healing 2017 21
Bone growth Female white rabbits

Diet: soy bean oil (SBO control)/sesame oil (SO)/fish oil (FO)/algae oil

100d

Bone marrow fatty acids ↑

FO diet:highest ω-3 LCPUFAs

SBO diet:highest ω-6 LCPUFAs

ω-6/ω-3 LCPUFAs ratios are involved in bone resorption decrease and bone mass improvement during growth 2014 285
Bone growth Post-partum female Wistar rats Diet: flaxseed flour + semi-purified diet

51d

Bone maximum force/breaking strength/ rigidity/ femoral head radiodensity ↑ ω-3 LCPUFAs enhance bone density and bone strength 2017 286
Cancer bone metastasis Immune-compromised (nu/nu) mice Lab chow diet/fish oil + intracardiac injection of the MDA-MB-231 cells 6w Fish oil diet group:osteolytic lesions ↓; migration of breast cancer cells↓; CD44 expression ↓ ω-3 LCPUFAs prevent breast cancer bone metastasis 2011 93
Cancer bone metastasis Female BALB/c mice ω-3/ω-6 LCPUFAs diet + orthotopic implantation of 4T1 mammary tumor cells 147d Bone metastases frequencies: ω-3 group<ω-6 group Dietary ω-3 LCPUFAs reduce tumor metastasis to bone 2018 287
ω-6 LCPUFAs

Periodontitis

C57BL/6 mice

Group 1: palmitic acid (PA)-enriched high-fat diet

Group 2: oleic acid (OA)-enriched high-fat diet

Group 3: normal caloric diet

16w

Weight↑(group 1 and group 2)

alveolar bone loss and TNF-α levels:

group 1 (+++)

bone remodeling markers:

group 3 (+++)

group 2 (++)

group 1 (+)

PA aggravates alveolar bone loss and osteoclast inflammation 2016 38
Aging-related bone loss Male Wistar rats Diet: virgin olive oil/sunflower oil/(ω-6 LCPUFAs)/fish oil (ω-3 LCPUFAs) 24mo

Bone loss:sunflower oil (+++)

fish oil (++)

virgin olive oil (+)

ω-3 PUFAs prevent aging-related bone loss

ω-6 LCPUFAs are associated with aging-related alveolar bone loss

2013 282
Aging-related bone loss Male Wistar rats Diet: virgin olive oil (V group)/ sunflower oil (S group) 24mo Bone Mineral Density/Bone Mineral Content/ Bone Areal Size:V group>S group MUFAs prevent aging-related BMD decrease 2017 288
Osteoarthritis Female mice

Group 1: C2/C3/C4 supplementation

Group 2: fibre-rich diet

Group 3: bacterial transfer

8w

Group 1: bone volume per tissue volume↑, trabecular separation↓

Group 2: systemic bone mass↑, trabecular separation↓

Group 3: osteoclast numbers↓, systemic bone mass↓

SCFAs regulate bone metabolism to optimize arthritis severity 2018 64
Osteoarthritis 8-week-old female mice

Group 1: C2/C3/C4 supplementation

Group 2: fibre-rich diet

Group 3: Prevotella transfer into WT mice

8w

Group 1: bone volume per tissue volume↑, trabecular separation↓

Group 2: systemic bone mass↑, trabecular separation↓

Group 3: osteoclast numbers↓, systemic bone mass↓

SCFAs regulate bone metabolism and immune responses to alleviate arthritis 2018 64
Partum-related bone loss

Wistar rats

Control goup: placebo

Test group: flaxseed flour

51d

Test group:

arachidonic acid (ARA)↓

alpha-linolenic acid (ALA) eicosapentaenoic (EPA)↑

femoral head radiodensity↑

ALA together with calcium increase bone density in post-partum period

2017 286
SFAs Periodontitis Male C57BL/6 mice Diet:regular chow/ high-fat diet 16w

LPS-induce alveolar bone loss↑

LPS-induce osteoclastogenesis ↑

SFAs are potentially involved in MetS-related periodontitis 2015 36
Osteoarthritis Male rats

H group:20% beef tallow

HLA group: 20% lauric acid

HAS group: 20% stearic acid

16w

Articular cartilage degeneration

Bone architecture changes

Average osteocyte lacunae↓

SFAs prevent OA development 2017 260
MUFAs Periodontitis

C57BL/6 mice

Group 1: PA-enriched high-fat diet

Group 2: OA-enriched high-fat diet

Group 3: normal caloric diet

16w

Weight↑(group 1 and group 2)

alveolar bone loss and TNF-α levels:

group 1 (+++)

bone remodeling markers:

group 3 (+++)

group 2 (++)

group 1 (+)

OA can aggravate the alveolar bone loss and inflammation of osteoclasts 2016 38
Table 3. Epidemiological and clinical studies evaluating effects of fatty acids in bone disorders
Class Disease Intervention Study Period Enrolment Bone-related outcome Conclusion Year Reference
ω-3 LCPUFAs Periodontitis

Control group: placebo

Test group: DHA

3mo 55

IL-1β↓

mean pocket depth↓

gingival index↓

DHA greatly contributes to moderate periodontitis and gingival inflammation 2014 45
Periodontitis

Group 1: EPA 500 mg

Group 2: borage oil 500 mg

Group 3: EPA 500 mg and borage oil 5oo mg

12w 30

Periodontal probing depth and gingival inflammation

group 1 (+)

group 2 (+++)

group 3 (++)

Borage oil have better influences on periodontal inflammation than EPA 2003 289
Periodontitis

Control group: decalcified freeze dried bone allograft (DFDBA) + placebo

Test group: DFDBA + omega-3 polyunsaturated fatty acids combined with low-dose aspirin o

6mo 40

Probing pocket depth↓(T)

IL-1b and IL-10↓(T)

ω-3 LCPUFAs combined with low-dose aspirin decrease gingival inflammation, pocket depth and attachment level gain

2011 290
Rheumatoid arthritis

Control group: placebo

Test group: daily liquid nutrient supplementation

4mo 66

EPA, DHA and docosapentaenoic acid↑

arachidonic acid↓

EPA and GLA do not benefit RA patients at test doses

2004 291
Rheumatoid arthritis

Control group: diet group regarding the fatty acid intake

Test group: Mediterranean diet

52w 13

Ratio of ω-6 to ω-3 fatty acids↓

intake of ω-3 fatty acids↑

Revealed by dietary assessments and through fatty acids in s-phospholipids, the fatty acid profile is different in the Cretan Mediterranean diet 2005 292
Rheumatoid arthritis

2 mL/kg fish oil emulsion intra- venously

5mo 34

Short-term efficacy↑

rapid onset

excellent tolerability

ω-3 PUFAs are safe and effective for RA 2006 293
Rheumatoid arthritis

Drug: cod liver oi

Drug: placebo

9mo 97 Daily NSAID requirement↓

ω-3 LCPUFAs decrease NSAID- sparing agents

2008 294
Rheumatoid arthritis

Control group: placebo

Test group:

Step 1:0.2g of fish oil emulsion/kg intravenously

Step 2:0.05 g of fish oil/kg orally

14d 23

Swollen joint count↓

Tender joint count↓

ω-3 LCPUFAs improve symptoms of RA and extend the beneficial effects of infusion therapy

2010 295
Rheumatoid arthritis

Drug: ω-3 LCPUFAs

Drug: Placebo

12w 60

Clinical benefit

concomitant analgesic medication↓

no weight change

ω-3 LCPUFAs decrease use of concomitant analgesic without weight changes 2015 75
Rheumatoid arthritis High-dose/Low-dose fish oil + disease-modifying anti-rheumatic drug(DMARD) 12mo 140 Failure of DMARD therapy ↓ ω-3 LCPUFAs increase RA remission and decrease DMARD therapy failure 2015 296
Rheumatoid arthritis RA-free participants at increased risk for RA 10y 136 Percent of ω-3 LCPUFAs in red blood cells↑→ rheumatoid factor (RF) positivity in shared epitope (SE)-positive participants↓ ω-3 LCPUFAs exert pronounced effects on RA-related autoimmunity 2017 297
2166 ω-3 LCPUFAs supplement use↑→RF positivity in SE-positive participants↓
ω-6 LCPUFAs Periodontitis

Group 1: EPA 500 mg

Group 2: borage oil 500 mg

Group 3: EPA 500 mg and borage oil 5oo mg

12w 30

Periodontal probing depth and gingival inflammation

group 1 (+)

group 2 (+++)

group 3 (++)

Borage oil has better effects on periodontal inflammation than EPA 2003 289
SCFAs Periodontitis Periodontal treatment, 6mo 21

Levels of formic acid↑

Levels of lactic acid, propionic acid, butyric acid and isovaleric acid↓

Formic acid in gingival crevicular fluid is inversely associated with periodontitis severity

Butyric and isovelaric acids can indicate development and progression of periodontitis

2012 39
Details are in the caption following the image
Implications of fatty acids in bone diseases. Fatty acids exert dual effects on bone either by alleviating or initiating bone diseases. ω-6 LCPUFAs, SFAs and PA predominantly promote pathological bone remodelling by facilitating pro-inflammatory processes and lead to osteoporosis, rheumatoid arthritis, periodontitis, etc Other fatty acids like ω-3 LCPUFAs have therapeutic value in blocking bone disorders. Their targets include bone tissue components such as osteoblasts, osteoclasts, macrophages, chondrocytes and aberrant multiple myeloma cells, metastatic cancer cells, suppressing skeletal inflammation, carcinoma and bone fracture through complicated mechanisms. LCPUFAs, long-chain polyunsaturated fatty acids; SFAs, saturated fatty acids; PA, palmitic acid

3 SIGNALLING PATHYWAYS INVOLVED IN FATTY ACIDS-MODULATED BONE METABOLISM

Fatty acids and their metabolites could modulate bone metabolism via mechanisms such as inflammation,104 apoptosis,105 autophagy 106 and oxidative stress.104 Normally, fatty acids bind to specific cellular membrane-bound or nucleus-located targets, induce subsequent transduction of transmembrane/nucleus-specific signals, further result in modulation of target gene transcription and protein synthesis and finally contribute to the regulation of cell growth, behaviour and function. Given that a multitude of factors are involved in these processes, understanding the underlying mechanisms will substantially facilitate the nutritional and therapeutic applications of fatty acids in bone homeostasis and disorders.

3.1 Receptors involved in fatty acids-modulated bone metabolism

Cellular membrane-bound and nuclear receptors, such as G protein-coupled receptors (GPRs), peroxisome proliferator-activated receptors (PPARs), TLRs and receptors for metabolites such as chemokine-like receptor (ChemR), play essential roles in mediating the effects of fatty acids on bone metabolism.

GPRs are a superfamily of more than 1000 distinct membrane receptors; several GRPs among these have been reported to be modulated by fatty acids. GPR18, GPR41, GPR43 and GPR109A are receptors for SCFAs (C2-C5) found in both osteoclasts and osteoblasts, where GPR41 could regulate leptin production, while GPR43 is the main receptor in mediating effects of SCFAs on osteoclasts.30, 107, 108 GPR40, which is expressed on osteoclasts and could be activated by medium/long-chain fatty acids with a chain length of C8-C22,109-111 positively affects bone metabolism by downregulating osteoclastogenesis, combating bone loss and protecting cartilage.112-114 GPR84, whose expression in macrophages and adipocytes could be enhanced under inflammatory conditions, is a receptor for MCFAs (C9-C14).115-117 GPR120, which is expressed on osteoblasts and osteoclasts and could be stimulated by long-chain saturated (C14-C18) and long-chain unsaturated fatty acids (C16-C22),109-111 has been shown to mediate the anti-inflammatory effects of DHA in macrophages.118 And GRP120 could enhance ω-3 LCPUFAs-induced osteoblastic bone formation by inducing β-catenin activation and reduce osteoclastic bone resorption by suppressing NF-κB signalling,14 and GPR120 could also modulate the bi-potential differentiation of BMMSC in a dose-dependent manner.119 In addition to the acknowledged roles of GPR40 and GPR120 in preventing bone disorders such as osteoporosis and osteoarthritis,120 GPR2 family member parathyroid hormone type 1 receptor (PTH1R) also plays a role in bone metabolism. PTH1R could mediate ω-3 LCPUFAs-induced activation of extracellular signal-regulated kinases (ERK) to enhance osteoblasts proliferation and differentiation121, 122; moreover, EPA and DHA could act as agonists of PTH1R to attenuate osteoblast apoptosis and promote bone formation.123

PPARs, with known ligands including LCPUFAs and metabolites such as PGE2, are nuclear receptors that regulate lipid metabolism by acting as transcription factors in BMMSCs, osteoblasts and osteoclasts.124-128 When BMMSCs are exposed to a mixture of palmitic, oleic and linoleic acids, upregulation of PPARs and reduction of Runx2 facilitate differentiation of towards adipocyte-like cells.129 Influences of PPARs on osteoblasts and osteoclasts depend on specific receptor isoform. Specifically, PPARα/β promotes bone resorption,130 whereas PPARγ is known inhibitors of osteoclastogenesis.131 Roles of PPARγ in osteoblasts are still disputed; it has been shown that conditional deletion of PPARγ in osteoblasts enhances bone mass and increased bone formation by activating mTOR signalling,132 while studies from other groups reported conflicting results.133-135 Moreover, recent findings have indicated that treatment of multiple myeloma cells with PPARs resulted in apoptotic effects,136 suggesting PPARs might serve as promising therapeutic targets for bone diseases.

TLRs mainly mediate the inflammatory action of fatty acids in bone cells. PA particularly activates TLR2 and induces IL-1β expression and secretion to promote inflammatory response.137-139 Binding of SFAs to TLR4 on osteoclasts induces chronic inflammation 140-142 by enhancing the expression of macrophage inflammatory protein-1a, which leads to hyperactivation of NF-κB and subsequent enhancement of osteoclastic activities 143 as well as further decrease in bone size, BMC and BMD.144 Moreover, studies have shown that DHA treatment could block the pro-inflammatory effects of lauric acid-induced TLR2/4 activation in Raw264.7 cells,145 suggesting TLRs might be involved in the crosstalk among multiple downstream signalling pathways of different fatty acids types.

ChemR23 can act as chemerin receptor 146, 147 as well as RvE1 receptor in bone tissue cells such as monocytes.148 Binding of RvE1with ChemR23 could prevent inflammation by inhibiting NF-κB activation,149 enhancing bone formation150 and reducing bone loss via RANKL/OPG ratio modulation,151, 152 while the detailed mechanisms involved in the downstream of Chem23 have yet to be fully elucidated.

3.2 RANK/RANKL/OPG signalling in fatty acids-modulated bone metabolism

To our knowledge, various signalling pathways including RANKL,153 NF-κB,154 mitogen-activated protein kinase (MAPK),155 Wnt,156 Notch,157 Hedgehog,158 transforming growth factor-β (TGF-β),155 mTOR 159 and bone morphogenetic protein (BMP)155 are involved in bone metabolism. Among these, RANK/RANKL/OPG signalling is most frequently implicated in bone remodelling via modulation by a wide variety of fatty acids160, 161 (Figure 3). Upon activation, RANK/RANKL/OPG signalling substantially inhibits osteoclastogenesis but enhances osteogenesis via downstream signalling cascades such as MAPK, NF-κB and phosphatidylinositol 3-kinase (PI3K)/mTOR.160 Specifically, MAPK signalling162-165 could be activated by ω-7 LCMUFAs,166 PA and MCFAs167 and activation of MAPK signalling normally leads to enhanced proliferation of both osteoblasts and chondrocytes.155, 163, 165 By contrast, ALA,168 ω-7 LCMUFAs166 and MCFAs167 could inhibit NF-κB cascade, and repression of NF-κB cascade attenuates osteoclastogenesis by enhancing both cell death and differentiation.154, 165, 169, 170 Moreover, PI3K/mTOR pathway could be downregulated by EPA or LXA4 but upregulated by PA159 and thus involved in BMMSC differentiation, osteoblast function and osteocyte formation during bone metabolism.171-177

Details are in the caption following the image

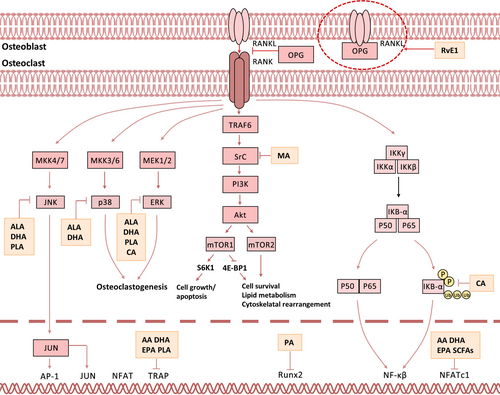

RANK/RANKL/OPG pathway in fatty acids-modulated bone metabolism. The well-documented RANKL signalling pathway exerts essential role in osteoclastogenesis. RANKL binds to RANK on the surface of osteoclast precursor cells and activates three distinct downstream signalling pathways. The MAPK pathways characterized by downstream factors ERK, p38 and JNK play pivotal role in cell death and survival. The NF-κB signalling pathway is activated following IκBα phosphorylation and degradation. The p50 and p65 subunits of NF-κB are released and translocated into the nucleus to activate the transcription of target genes. The PI3K/mTOR pathway is also activated upon binding of RANKL to RANK, which triggers the activation of PDK1s and Akt leading to the inhibition of the TSC complex and subsequent mTORC1 formation. The mTORC1 phosphorylates S6K1 as well as 4E-BP1, which further regulate protein synthesis, cell proliferation, angiogenesis and autophagy. However, mTORC2 acts as an essential modulator of actin cytoskeleton, cell survival and lipid metabolism. RANKL, receptor activator of nuclear kappa-β ligand; TGF-β, transforming growth factor β; JNK, c-jun NH2-terminal kinase; Akt, protein kinase B; S6Ks, S6 kinases; 4E-BP1, 4E-binding protein 1

4 MODULATION OF FATTY ACIDS ON SPECIFIC BONE CELL TYPES

4.1 Fatty acids and osteoblasts

Osteoblasts are mononuclear cells predominantly involved in bone formation 4, 5. A growing body of evidence supports the promotional or inhibitory action of fatty acids on osteoblasts. In general, fatty acids such as PA suppress osteoblast function, whereas EPA, DHA and RvE1 predominantly promote osteoblastic function. Exploring the modulation effects of fatty acids on osteoblasts might provide new insights into therapeutic intervention targeting skeletal disorders associated with dysregulated bone formation.

4.1.1 Fatty acids as negative regulators of osteoblasts

Palmitate, a kind of LCSFAs, impedes osteoblast differentiation and induces cell death via lipotoxicity.105 Palmitate could induce autophagy in osteoblasts dependent on Beclin and PI3K,178 and autophagy serves as a protection mechanism in preserving osteoblasts from lipotoxicity.179 Palmitate also promotes apoptosis of osteoblasts through both extrinsic and intrinsic pathways, and PA-induced high expression of cytosolic cytochrome C could be disrupted by inhibition of c-Jun N-terminal kinase (JNK).105 In foetal rat calvarial cell cultures, palmitate affects neither proliferation nor apoptosis of calvarial cells but represses BMP-7-induced osteoblastic differentiation by reducing the activity of transcription factor SMAD, and thus further abrogating expression of osteogenic markers Runx2, osteocalcin, alkaline phosphatase and bone sialoprotein.180 Interestingly, enhancing fatty acid oxidation could block all lipotoxic effects of palmitate suggested above, indicating that fatty acid oxidation might relieve the negative effects of palmitate on osteoblasts.105

4.1.2 Fatty acids as positive regulators of osteoblasts

LCPUFAs and SCFAs

ω-3 LCPUFAs such as EPA and DHA could stimulate osteoblasts survival by activating pro-survival Akt signal and suppressing glucocorticoid-induced pro-death pathway.123 They also promote osteoblastogenesis and prevent bone resorption by altering membrane function, regulating calcium balance and enhancing osteoblast activity.57 Involvement of EPA and DHA in preosteoblasts differentiation and maturation is largely associated with their anti-inflammatory effects, which function by reducing the synthesis of inflammatory ARA-derived PGE2,181 modulating PPAR-γ signalling and thus lower levels of inflammatory cytokines such as IL-1, IL-6 and TNF-α,182 and suppressing AA-derived synthesis of eicosanoids183 as well as activity of cyclooxygenase and 5-lipoxygenase.184 Therefore, as illustrated above, intake of EPA and DHA might have potent therapeutic implications in inflammatory bone disorders such as osteoporosis.24

ω-6 LCPUFAs are activators of PPARγ, and lower dietary ratio of ω-6/ω-3 LCPUFAs blocks PPAR-γ activation and thus enhancing osteoblastogenesis.56 Besides, SCFAs such as butyrate promote osteoblast formation and differentiation by enhancing production of bone sialoprotein and osteopontin; moreover, it stimulates osteoblasts to secret OPG and thus facilitating the blocking of osteoclast differentiation.185

Fatty acids derivatives

RvE1 is an EPA metabolite that is closely associated with inflammation-induced bone disorders. In IL-6-stimulated osteoblasts, supplement of RvE1 leads to significant disruption of PI3K-Akt pathway, which interacts with NF-κB, MAPK and p53 signalling to modulate protein synthesis, cell differentiation and apoptosis. In inflammatory bone disorders, changes in production of pro-inflammatory cytokines such as TNF-α, IL-6, IL-1 and Gas6 186 modulate RANKL/OPG ratio and downstream events151, 152 and thus enhance osteoclasts-mediated pathological inflammation-induced bone resorption.

As a metabolite of AA, PGE2 exerts its effects on BMMSCs, osteoblasts and osteoclasts in dose-dependent manner. In BMMSCs, PGE2 binds with EP4 receptor, which activates sphingosine kinase and inhibits caspases activities and thus prevents apoptosis of BMMSCs.187 In osteoblasts, intermittent administration,188 short-term exposure to high doses or prolonged treatment with lower doses of PGE2189 could enhance proliferation and activity of osteoblasts and lead to remarkably enhanced bone formation; such influences of PGE2 on osteoblasts are mediated by EP2/EP4-MAPK signalling pathways.190 In addition, effects of PGE2 on osteoblasts are accompanied by osteoclast stimulation, which might reverse the overall influence of PGE2 on bone system.191

4.2 Fatty acids and osteoclasts

Osteoclasts are multinucleated giant cells with bone resorptive activity. Two essential factors secreted by osteoblasts, macrophage colony-stimulating factor (M-CSF) and RANKL, are responsible for osteoclast precursors proliferation and osteoclastogenesis. Importantly, RANKL could prevent apoptosis of osteoclasts3, 4 and induce expression of osteoclast-specific markers and transcription factors such as nuclear factor of activated T cells c1(NFATc1).4, 6 As bone-resorbing cells,192-195 osteoclasts highly express bone resorption-associated proteins including osteoclast-specific markers cathepsin K (CTSK), tartrate resistant acid phosphatase (TRAP) and matrix metalloproteinase 9 (MMP-9).4, 196 Specifically, CTSK breaks down organic components in bone,197, 198 TRAP is implicated in cell adhesion upon activation by CTSK,199, 200 and high levels of MMP-9 commonly occur in resorption lacunae.201 Multiple fatty acids have been found to promote or suppress osteoclast activity, in most cases via regulation of RANKL signalling. Effects of fatty acids on osteoclast functions demonstrate their potential applications as therapeutic reagents against resorption-associated bone disorders such as osteoporosis and rheumatoid arthritis.

4.2.1 Fatty acids as positive regulators of osteoclasts

Accumulating evidence has shown that PA enhances RANKL-mediated differentiation of osteoclasts by upregulating expression levels of RANK; importantly, PA has been reported to be sufficient for osteoclast differentiation in conditions even without RANKL.202

4.2.2 Fatty acids as negative regulators of osteoclasts

LCPUFAs

LCPUFAs such as DHA and AA could exert inhibitory effects on osteoclast proliferation, differentiation and maturation. In mechanism, DHA intervention could inhibit osteoclast precursors proliferation by inhibiting M-CSF-induced activation of AKT and expression of cyclin D1/D2, and DHA triggers apoptosis of mature osteoclasts by inducing Bim expression and thus leads to defective osteoclast formation.203 In addition, DHA and AA could regulate migration and adhesion of osteoclasts in bone by downregulating expression of RANK and VNR.204 As for osteoclastogenesis process, LCPUFAs including DHA and AA suppress the expression of osteoclast-specific genes such as CTSK, TRAP, MMP-9, NFATc1, c-Fos and DC-STAMP in differentiating osteoclasts, thus decreasing osteoclast numbers and bone resorption.110, 205-207 In detail, DHA and AA bind to TLR4 on cell membrane to suppress TLR4 signalling, MAPK pathways and NF-κB signalling.208 This further leads to downregulation of c-Fos205 and NFATc1,209 which is the master regulator for osteoclast proliferation and differentiation. Also, levels of key cell-to-cell fusion mediator DC-STAMP179, 210 are decreased, followed by substantial reduction in osteoclast formation and osteoclast number. Of note, there are certain differences between DHA and AA in combating bone resorption. Specifically, AA displays a more profound effect than DHA in inhibiting osteoclast function at equal concentrations,206, 207 which probably results from a more significant inhibition of CA2 expression205 and further prevention of resorption lacunae acidification with facilitation of CTSK and MMP-9 enzymatic activities.205 These findings provide molecular mechanisms underlying the benefits of DHA supplement, and intake of high doses of EPA and DHA supplements has been suggested to attenuate bone loss associated with breast cancer.211

And, ALA intervention leads to apoptosis reactivation and RANKL signalling repression in osteoclasts. In mechanism, ALA reduces RANKL-stimulated phosphorylation of JNK, ERK and AKT together with NF-κB and BCL-2 proteins to exert pro-apoptotic action,212 reduces inflammatory bone loss via downregulating NF-kB-iNOS-COX-2 signalling axis and further inhibits RANKL-induced osteoclast differentiation. Moreover, ALA can be converted into downstream fatty acids and several eicosanoids such as DHA and EPA and further exerts more complicated effects on osteoclastogenesis.181

LCMUFAs

Studies have shown that MA could suppress N-myristoyl-transferase, a critical enzyme involved in Src myristicylation26 to endoplasmic membrane and further phosphorylation.25 MA-induced Src inhibition then affects a large number of cytoskeletal changes in osteoclasts, reduces latter stages of osteoclast differentiation and prevents RANKL-induced bone loss in vivo.25 Such inhibitory effects against osteoclast formation and function suggest MA might serve as a new therapeutic agent against osteolytic bone disorders. In addition, investigations by Heerden et al have suggested that PLA could inhibit RANKL-induced osteoclast formation and promote apoptosis of mature osteoclasts.166 In mechanism, PLA downregulates the activity of NF-κB, MAPKs, JNK and ERK, inhibits expression of genes involved in osteoclast activity such as DC-STAMP and resorption markers CTSK, MMP9 and TRAP and reduces number of TRAP-positive osteoclasts by repressing actin ring formation and blocking their osteolytic capability,166 suggesting PLA as a potential therapeutic option for bone disorders related to excessive osteoclast formation. Moreover, as stated previously, PA enhances RANKL-mediated osteoclastogenesis by facilitating expression of TNF-α and RANK; conversely, OA could increase expression of DGAT1 and intracellular accumulation of triglycerides in osteoclasts to attenuate PA-induced osteoclastogenesis.202 In addition, OA might facilitate osteogenic differentiation of adipose tissue-derived stromal cells168 and thus serve as potential bone induction agent.

SCFAs

SCFAs represent useful supplements to inhibit bone resorption and restore bone metabolism balance.64 Among SCFAs, although concentrations of these molecules in vivo are too low to affect bone metabolism, in vitro investigations suggest that butyrate and propionate alone or mixed could inhibit osteoclast differentiation.28 In mechanism, SCFAs exert effects on bone metabolism (mainly inhibit bone resorption) via direct30or indirect64 mechanisms. Directly, SCFAs bind to receptors (GPR18, GPR41, GPR43, GPR109A)30 present on osteoclast precursors; in specific, acetate and propionate show higher affinity for GPR41, while butyrate exerts effects mostly via GPR43 activation.30 Indirectly,64 SCFAs regulate bone mineral absorption by influencing signalling pathways and gene expression. Butyrate and propionate induce metabolic reprogramming of osteoclasts to enhance glycolysis and thus downregulating critical genes in osteoclasts such as TRAF6 and NFATc1.29 In addition, production of SCFAs increases serum IGF-1 and peripheral serotonin levels, which affects bone metabolism and decreases PTH levels to inhibit bone resorption.28, 63, 213 And, SCFAs might play a role in immunoregulation by modulating inflammatory events to prevent inflammatory bone loss such as arthritis.

MCFAs

CA inhibits RANKL-modulated osteoclastogenesis in bone marrow-derived macrophages by preventing M-CSF and RANKL-induced cytoskeletal reorganization, suppresses RANKL-stimulated IκBα phosphorylation and enhanced NF-κB transcription and diminishes RANKL-induced NFATc1 activation.214 Moreover, CA could promote apoptosis of mature osteoclasts by initiating Bim expression and inhibiting M-CSF-induced ERK activation,214 demonstrating CA treatment represents a potential strategy for amelioration of bone resorption-associated diseases.214

Fatty acids derivatives

As a metabolite of AA generated by lipoxidase, LXA4 could dose-dependently reduce levels of ROS, the expression of osteoclast-specific genes and osteoclast-related transcription factors and thus attenuate osteoclasts-mediated bone loss.215 And exposure to EPA-derived RvE1 could downregulate STAT1 and subsequently attenuate MAPK and NF-κB signalling,152 which further restore favourable receptor inducer for RANKL/OPG ratio and rescue OPG production, thus regulating osteoclast differentiation.151 Moreover, PGE2 could induce activation of osteoclasts in a dose-dependent manner. In vivo studies have revealed that continuous treatment of rats with PGE2 results in bone loss owing to increased osteoclasts stimulation, and higher rates of bone resorption compared with bone formation due to longer bone resorption period.188 In vitro, PGE2 has been shown to increase osteoclast size, enhance resorptive pit formation and reduce osteoclast apoptosis.216 In mechanism, PGE2 could trigger osteoclastogenesis in murine bone marrow cultures treated with RANKL and M-CSF, possibly caused by EP2 and EP4 receptor-modulated induction of adenylate cyclase,191, 217 and by suppression of OPG and osteoblast-induced RANKL secretion and enhanced RANK expression in osteoclasts.218, 219

4.3 Fatty acids and BMMSCs

BMMSCs are multipotent cells characterized by surface markers of CD105, CD73, CD90, CD44, CD29 and CD1469 with differential potentials into osteoblasts, chondroblasts and bone marrow adipocytes.7 BMMSCs are critical in maintaining the dynamic homeostasis of bone tissue, and deficiencies of BMMSCs proliferation are correlated with reduced bone mass.220, 221 Various signalling pathways including Wnt, Notch, Hedgehog, TGF-β and BMP are involved in BMMSCs osteogenesis. Notably, Runx2 plays the most pivotal role in this process by promoting expression of osteogenesis-related genes, regulating cell cycle progression and improving bone microenvironments.8

4.3.1 Fatty acids as positive activators of BMMSCs

DHA, a special lipid component of osteoblast membrane, has been reported to fuel wide lipidomic remodelling of BMMSCs. DHA supplementation enhances Akt activation at plasma membrane and thereby potentiates osteogenic differentiation.222 Long-term and high-dose treatment of inflammatory diseases with Dex facilitates apoptosis of BMMSCs, leading to bone loss and associated metabolic bone diseases.223, 224 These effects can be eliminated by EPA via activating autophagy and suppressing apoptosis of BMMSCs. More specifically in the case of Dex-induced apoptosis, activation of GPR120 by EPA triggers Ras-Erk1/2 cascade, leading to suppression of Dex-induced apoptosis, accompanied by activation of AMPK/mTOR to initiate autophagy.223, 224 Interestingly, EPA treatment in the absence of Dex has limited effects on autophagy induction,223, 224 demonstrating potential therapeutic role of EPA in managing long-term side effects of Dex abuse.225

Oleate inhibits palmitate (palm)-induced apoptosis and increases BMMSCs proliferation.27 Palm has been shown to induce lipotoxicity, whereas oleate fully neutralizes palm-induced lipotoxicity and pro-inflammatory response. Oleate exhibits cytoprotective effects by deactivating palm-induced pathways and fostering esterification of Palm into triglycerides.226 More specifically, Ole inhibits palm-induced activation of ERK and NF-κB signalling, which results in pro-apoptotic effects in BMMSCs.226, 227 Also, decline in IL-6 and IL-8 expression and secretion levels by Ole treatment was also observed.228 Furthermore, Ole maintains the oxidative levels of palmitate.27 Hence, OA represents a potential therapeutic agent in combating PA-induced lipotoxicity in the bone.

4.3.2 Fatty acids as negative regulators of BMMSCs

As mentioned above, palmitate triggers BMMSCs apoptosis and reduces their proliferation.27 Gillet et al have reported that palmitate exerts cytotoxic effects by inducing endoplasmic reticulum stress and activating NF-κB and ERK signalling pathways, thus further regulating secretion of cytokines and chemokines in BMMSCs and inducing binding of exogenous ligands to TLRs. Moreover, palmitate triggers pro-inflammatory responses via upregulating TLR4 expression accompanied with enhanced expression and secretion of IL-6 and IL-8, whose overproduction facilitates differentiation of osteoclast precursor cells into mature osteoclasts and results in impaired bone formation and enhanced bone resorption.229-232 And undifferentiated BMMSCs have been found to be less sensitive to lipotoxicity than BMMSC-derived osteoblastic cells.226

4.4 Fatty acids and osteocytes

Osteocytes are osteoblast-derived cells located in lacunae surrounded by mineralized bone matrix, with the ability to support bone structure and receive machine sensation. Importantly, osteocytes can serve as endocrine cells to synthesize and express important regulatory molecules including RANKL, Dickkopf-1 (DKK1) and sclerostin (SOST)233-235 and thus participating in bone resorption and formation regulation by coupling osteoclast and osteoblast activities.6 Studies have shown that fatty acids such as PA and PGE2 have noteworthy influences on osteocyte metabolism, which might provide novel therapeutic strategies for bone diseases like osteoporosis.

4.4.1 Fatty acids in osteocytes-mediated bone metabolism

PGE2 released by osteocytes are important regulators of bone formation. For example, PGE2 produced by low-intensity pulsed ultrasound-stimulated osteocytes could enhance osteoblasts differentiation but inhibit their proliferation in vitro.236 In addition, mechanical loading or fluid flow shear stress on osteocytes can release PGE2 to regulate osteoblast proliferation and differentiation.237 In mechanism, loading-induced PGE2 can activate EP2/EP4 receptors to stimulate downstream PI3K/Akt pathway,238 which further facilitates gap junction communication by transcriptional regulation of Cx43 to promote osteocytes survival.239 And PGE2 can activate MAPK and subsequently induce phosphorylation of Cx43 at S279/282 and closure of Cx43 hemichannels, which thus modulating bone anabolism and protecting osteocytes from harmful effects caused by sustained hemichannels opening.239 Moreover, PGE2 could promote production of 8-nitro-cGMP in osteocytes to enhance osteoclasts differentiation.240

4.4.2 Fatty acids in osteocytes-associated bone disorders

Investigations have suggested that PA can cause lipotoxicity in osteocytes. PA results in apoptosis and inhibits survival in osteocytes by induction of autophagy failure, which is indicated by conspicuous increase in LC3-II and reduction of autophagosomes/lysosomes in cytoplasm.234 In addition, PA exerts effects on bone turnover by decreasing expression of DKK1, RANKL and sclerostin in osteocytes.234 Given osteocytes apoptosis and dysfunction are two common changes in osteoporotic bone, PA might play a part in the pathogenesis as well as potential therapeutic applications in osteoporosis. In addition, fatty acids oxidation can serve as energy source for osteocytes.241 In vivo evidence has shown that fatty acid oxidation could compensate dysfunction of energy metabolism and osteocytes formation caused by glucose transporter-4 deficiency in osteoblasts and osteocytes of mice.242 Importantly, activation of β-catenin regulated by Wnt-Lrp5 signalling affects oxidative potential and fatty acids utilization in osteocytes and thus is responsible for expression of key enzymes during fatty acid oxidation.241 Therefore, fatty acid oxidation in osteocytes exerts regulatory effects on bone fat and body mass, which might have regulatory roles and therapeutic applications in metabolic disease-associated bone disorders.

4.5 Fatty acids and chondrocytes

Chondrocytes is the main cartilage cell type existing in cartilaginous interstitium and cartilage lacuna, and they can produce cartilage extra cellular matrix that composed mainly of proteoglycans and collagen.243 Fatty acids are integrated into chondrocytes mainly in the form of phosphatidylcholine and triacylglycerols and then mediate downstream signalling pathways via receptors expressed on chondrocytes membrane such as GPR40, GPR120, CD36 and TLR4, as well as a few LRP and PPAR family members.12, 244 As an energy source for chondrocytes, fatty acids participate in chondrocytes energy metabolism245 and further alleviate or enhance chondrocytes damage and cartilage degeneration via multiple mechanisms. Understanding the regulation effects of fatty acids in chondrocytes might help to explore their potential therapeutic values for bone disorders associated with chondrocytes inflammation and cartilage degeneration.

4.5.1 Fatty acids as positive regulators of chondrocytes

ω-3 PUFAs and metabolites

EPA plays anti-inflammatory roles by competitively suppressing AA oxidation pathway,246 and EPA treatment could delay IL-α-induced chondrocyte death.247 In addition, EPA treatment could inhibit oxidative stress-induced chondrocyte apoptosis via poly (ADP-ribose) polymerase and caspase 3 cleavage, p38 MAPK, p53 phosphorylation and MMPs expression and thus ameliorating cartilage degeneration.248 p38 MAPK-dependent mechanism is also involved in DHA-involved alleviation of cartilage damage.249

EPA and DHA can be converted to SPM and novel bioactive lipid mediators such as resolvins in vivo.250 Articular chondrocytes could participate in SPM metabolism by expressing biosynthetic enzymes like15-LO type 1,251 and SPM exhibits a more potent anti-inflammatory effect than their precursors in protecting chondrocytes and cartilage.12, 250 As for resolvins, resolvin D1 demonstrated anti-arthritic nature in a model of inflammatory arthritis indicated by significantly attenuated arthritic score and hind paw oedema and reduced leucocytes infiltration within paw.252

Resolvin D3 also shows similar effect on arthritis model.253 In mechanism, investigations by Benabdoune et al in an experimental osteoarthritis in human chondrocytes have found that RvD1 inhibits IL-1β-induced COX2, PGE2, inducible NO and MMP-13 by stifling IL-1β-induced activation of p38/MAPK, JNK1/2 and NF-κB/p65.254 Moreover, resolvin D1 could maintain cartilage integrity in inflammatory arthritis by stimulating the production of chondrocytes extracellular matrix and inhibiting IL-1β-induced cells degradation via direct ALX/FPR2 receptor ligation.252 And, resolvin D1 could reduce 4-hydroxynonenal-induced oxidative stress and chondrocytes apoptosis.254 These findings suggest that it is promising to develop novel therapeutic strategies based on the functional mechanisms of SPM for the therapeutics of chondrocyte-related diseases such as osteoarthritis.251

AA derivatives

As epoxide metabolites of AA, epoxyeicosatrienoic acids (EETs) have been reported to reduce inflammatory cytokines such as TNF-α and IL-6 and decrease cytotoxicity in canine chondrocytes. However, since EETs could be rapidly metabolized into corresponding vicinal diols by soluble epoxide hydrolase (sEH), sEH inhibitors that are able to stabilize anti-inflammatory EETs might have therapeutic potentials for chondrocytes survival and cartilage protection.255

SCFAs

Butyric acid and butyrate can reduce cartilage destruction mainly by inhibiting inflammation and MMPs expression. Studies have shown that in human chondrocytes, butyric acid could dose-dependently suppress IL-1β-induced PGE2 synthesis as well as TNF-α/IL-17-induced PGE2 production, with a mechanism involving COX-2 expression inhibition.256 And butyric acid can reduce the release of IL-1β-induced proteoglycan from cartilage explants.256 Butyrate could inhibit the production of key MMPs in chondrocytes via pro-inflammatory cytokines at both mRNA and protein levels, which further potently inhibit cartilage collagen breakdown.257 Moreover, sodium butyrate markedly inhibits IL-1β-induced expression of MMPs and ADAMTSs by suppressing phosphorylation of IκBα, NF-κB p65 and IKK to abolish inflammatory NF-κB activation.258 Importantly, GPR43 receptor is greatly relevant to efficacy of butyrate in inhibiting IL-1β-induced inflammation in chondrocytes and its chemoattractant effects.259

4.5.2 Fatty acids as negative regulators of chondrocytes

SFA and its metabolites

Several studies have shown that animals fed with high-SFAs diet exhibit accelerated cartilage degeneration,260 and long-chain SFAs are considered as important negative regulators of chondrocyte metabolism. Studies have shown that BMMSCs and adipose stem cells-derived chondrocytes which generate long-chain SFAs have decreased cartilaginous matrix production,261 and SFAs with different chain lengths might exert relative effects in chondrocytes. It has been found that diet rich in longer chain SFAs such as PA and SA promotes more expression of collagenase-10 and MMP-13 and increases much more chondrocyte apoptosis than diet rich in shorter chain SFAs.260

PA and SA have been reported to participate in inflammatory reactions by augmenting pro-inflammatory markers such as IL-6 in human chondrocytes.262 In primary mouse chondrocytes, SA could promote lactate dehydrogenase-dependent production of lactate to stabilize HIF1α protein and facilitate pro-inflammatory cytokines expression263 SA-stimulated NF-κβ p65 activation and pro-inflammatory cytokines expression in chondrocytes could be attenuated by miRNA-26a; conversely, NF-κB p65 could also inhibit miRNA-26a production by directly targeting the promoter region of miRNA-26a.264 In addition, PA and SA treatment could enhance autophagy activation in chondrocytes, which is strongly associated with increased activation of NF-κB signalling pathway,265 while opposite effects have been observed upon LA stimulation.

Palmitate has been reported to synergize with IL-1β to induce caspase activation and chondrocyte apoptosis, as well as increase expression of cyclooxygenase 2 and IL-6 in chondrocytes via TLR-4 signalling, which are all involved in the pathological processes of cartilage destruction.266, 267 Lipotoxicity of palmitate could also be mediated by endoplasmic reticulum (ER) stress and further suppresses IGF-1-mediated signalling and succedent proteoglycans and collagen type II synthesis in chondrocytes.268 And utilization of either JNK inhibitor or small molecule chemical chaperone could weaken the effect of palmitate to facilitate cartilage matrix synthesis and chondrocytes survival.269, 270 Importantly, palmitate-induced ER stress could activate unfolded protein response signalling and subsequently promote apoptosis of meniscus cells to affect the development of obesity-related osteoarthritis.271 Moreover, in human chondrocytes, palmitate could induce expression of pro-apoptotic molecules such as cleaved caspase-3 (CC3) and negative cell survival regulators such as tribbles related protein 3 (TRB3) and nuclear protein 1 (Nupr1) and thus induces apoptosis of chondrocytes.272 Taken together, palmitate has potent therapeutic implications for inflammatory bone diseases such as osteoarthritis.

ω-6 PUFAs and their metabolites

A growing body of evidence has shown that a higher ratio of ω-6-to-ω-3 PUFAs might exert negative influences on cartilage.273 As for specific mechanisms, ω-6 PUFAs such as ALA and AA aggravate cartilage damage by serving as precursors for pro-inflammatory prostanoids, while ω-3 PUFAs such as EPA and DHA protect cartilage by being metabolized to anti-inflammatory mediators such as protectins and resolvins.273, 274 Moreover, AA-derived PGE2 could serve as important inflammatory mediator to regulate inflammatory reactions of chondrocytes. Studies have shown that PGE2 could suppress differentiation of chondrocytes by activating downstream receptors protein kinase A (PKA) and protein kinase C (PKC), which might be responsible for activation of transcription factors associated with collagen X production.275

Taken together, fatty acids exert multiple effects on specific bone cell types and thereby associated bone diseases (Table 4), which might be mediated via distinct mechanisms at cellular and molecular levels (Figure 4). Understanding the mechanistic implications of fatty acids in bone cells will greatly benefit their further utilization in related bone disorders.

Table 4. Modulatory roles and therapeutic potentials of fatty acids for bone diseases
Disease Pathologic mechanism Fatty acid Detrimental mechanism Potential drug formula Therapeutic mechanism Reference
Periodontitis

Specific bacterial colonization

Increased function of osteoclasts

Increased dysfunction of osteoblasts

PA Induces pro-inflammatory response ω-3 LCPUFAs

Inhibit putative periodontal pathogens

Inhibit PA-induced chemokine secretion

31, 33, 49
Butyrate Inhibit differentiation of HGFs Resolvin D1

Inhibit putative periodontal pathogens

Inhibit PA-induced chemokine secretion

SFAs

Induce oxidative stress

Facilitate inflammatory processes

RvE1

Reduce inflammation

Inhibit osteoclast activities

Osteoporosis

Increased function of osteoclasts

Increased dysfunction of osteoblasts

ω-6 LCPUFAs

Induce chronic inflammation

Induce MSC chronic deregulation

ω-3 LCPUFAs

Inhibit osteoclastogenesis

Reduce PGE2

51, 52, 58
PA Provide energy generation for differentiation of osteoblasts
Osteoporosis

Reduced OPG

Facilitated osteoclast differentiation

ω-3 LCPUFAs

Inhibit osteoclastogenesis

Reduce PGE2

47, 61, 64, 65
SCFAs

Inhibit osteoclast differentiation

Provide energy generation for differentiation of osteoblasts

Bone fracture

Deterioration of bone structure

Loss of bone mineral

ω-6 LCPUFAs Induce PGE2 production ω-3 LCPUFAs

Increase calcium resorption

Increase synthesis of bone collagen

Inhibit urinary calcium excretion

67, 68
Rheumatoid arthritis Autoimmune inflammatory disease of unknown aetiology ω-6 LCPUFAs Induce production of pro-inflammatory cytokines ω-3 LCPUFAs

Reduce inflammation

Reduce cartilage-degrading enzymes

75, 76
Osteocarcinoma Derives from primary bone sarcomas or prostate cancer, breast cancer etc AA Supports implantation and propagation of metastatic cells DHA

Reduce CD44 expression in metastatic cells

Inhibit osteoclast formation

88-92, 94-96
EPA Reduce CD44 expression in metastatic cells
Osteomyelitis Bone infection of pyogenic organisms ω-3 LCPUFAs

Reduce levels of TNF-α and IL-6

Reduce SOD activity

97, 101-103, 298
Multiple myeloma Cancer growing in bone marrow SFAs PA Activate multiple myeloma cell apoptosis 94-101
ω-6 LCPUFAs ω-3 LCPUFAs

Promote drug sensitivity of myeloma cell apoptosis

Activate multiple myeloma cell apoptosis

Inhibit function of ω-6 LCPUFAs

Details are in the caption following the image

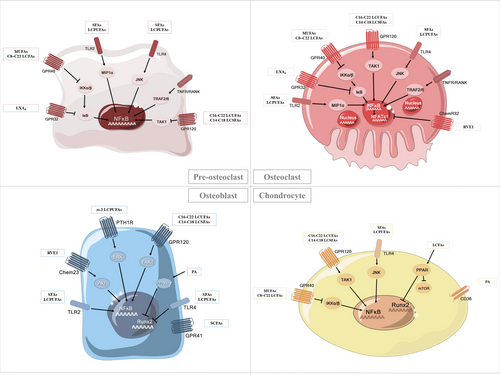

Modulation of fatty acids on specific bone cell types. Multiple receptors for fatty acids including GPRs, ChemR23, TLRs and PPARs are found in pre-osteoclasts, mature osteoclasts, osteoblasts and chondrocytes. Several GPRs including GPR18, GPR41, GPR43 and GPR109A are receptors for SCFAs (C2-C5) expressed in both osteoclasts and osteoblasts. GPR40, found on osteoclasts, could be activated by medium/long-chain fatty acids with a chain length of C8-C22. GPR84, whose expression in macrophages and adipocytes could be enhanced under inflammatory conditions, is a receptor for MCFAs (C9-C14). GPR120 is expressed on osteoblasts and osteoclasts and could be stimulated by LCSFAs (C14-C18) and LCUFAs (C16-C22). PTH1R, belonging to GPR2 family, could be antagonized by ω-3 LCPUFAs to promote osteoblast activity. PPARs, with known ligands including LCPUFAs and metabolites such as PGE2, are nuclear receptors that regulate lipid metabolism by acting as transcription factors in BMMSCs, osteoblasts, osteoclasts and chondrocytes. TLRs, including TLR2 and TLR4, are found in osteoblasts, pre-osteoclasts, osteoclasts and chondrocytes. Their ligands are mainly SFAs and LCPUFAs and are involved in inflammatory action. ChemR23 can act as chemerin receptor as well as RvE1 receptor in bone tissue cells such as osteoclasts and osteoblasts. Interactions of fatty acids with specific receptors induce transduction of transmembrane specific signals and activation of various downstream signalling pathways including NF-κB, NFATc1 or Runx2-mediated transcriptional regulation, and further modulating bone microenvironment homeostasis and pathological bone remodelling. GPRs, G protein-coupled receptors; chemR, chemokine-like receptor; TLR, toll-like receptor; SCFAs, short-chain fatty acids; MCFAs, medium-chain fatty acids; LCSFAs, long-chain saturated fatty acids; LCUFAs, long-chain unsaturated fatty acids; PTH1R, parathyroid hormone type 1 receptor; LCPUFAs, long-chain polyunsaturated fatty acids; PPARs, peroxisome proliferator-activated receptors; PGE2, prostaglandin E2; SFAs, saturated fatty acids; RvE1, resolvin E1; NF-κB, nuclear factor-kappa B; NFATc1, nuclear factor of activated T-cell cytoplasmic 1; Runx2, runt-related transcription factor 2

5 CONCLUDING REMARKS

In this review, we reviewed impacts of fatty acids on bone metabolism, summarized molecular mechanisms involved in actions of fatty acids in distinct bone cell types, and discussed their potential implications for metabolic bone disorders. Currently available findings imply that LCPUFAs mainly exert protective functions on bone by promoting functions of BMMSCs and osteoblasts while inhibiting activities of osteoclasts. MCFAs such as CA suppress osteoclastogenesis and thereby alleviate bone resorption. SCFAs and associated combinational treatment might inhibit bone resorption and inflammatory response for potential therapeutics against inflammatory bone loss including arthritis. Overall, these fatty acids might serve as potential therapeutic and nutritional agents in managing metabolic bone disorders such as osteoporosis, rheumatoid arthritis and oral-maxillofacial diseases such as periodontitis. Moreover, as natural compounds occurring widely in human body, fatty acids are available in a variety of ways and might be potent to antagonize possible side effects of current drug therapies. Nevertheless, currently available investigations have only reported roles of fatty acids in a limited number of bone disorder conditions, and further bench and clinical investigations are needed to comprehensively elucidate the underlying mechanisms for their possible applications in additional skeletal disorders such as temporomandibular joint disorder and osteosarcoma. Taken together, we conclude that involvement of fatty acids in bone diseases pathogenesis might provide potential therapeutic targets for interventions of bone disorders, and promising fatty acids with therapeutic effects might be used directly or indirectly in nutritional or drug formulations for prevention and treatment of specific types of bone disorders.

ACKNOWLEDGEMENTS

This work was supported by grants from the National Natural Science Foundation of China for Distinguished Young Scholars (81825005) to Prof. Ling Ye, and grants from the project of Science & Technology Department of Sichuan Province (2018JY0568) and the National Natural Science Foundation of China (81903033) to Dr Xin Li.

    CONFLICT OF INTERESTS

    The authors declare no conflicts of interest.

    AUTHOR CONTRIBUTIONS

    Bao M and Zhang K gathered relevant literature and wrote the manuscript; Wei Y, Hua W and Gao Y interpreted data from pathological and experimental studies; and Li X and Ye L provided financial support, revised and reviewed the manuscript.

    DATA AVAILABILITY STATEMENT

    The data that support the findings of this study are available from the corresponding author upon reasonable request.

      The full text of this article hosted at iucr.org is unavailable due to technical difficulties.
