2.1 Elucidation of Internal Crystallite Nanostructure via Electron and X-ray Diffraction

Pristine and NP-containing P3HT NFs were prepared directly onto indium tin oxide (ITO) coated glass substrates using the electrospinning protocol outlined by Schofield et al.^[16] P3HT and other conjugated polymers produce low entanglement in solution, and therefore poly(ethylene oxide) (PEO) is added to increase solution viscosity. During electrospinning, PEO entanglement resists the elongational forces generated by the electric field upon the charged jet, impeding fiber break-up or beading, and promoting uniform/homogeneous morphologies.^{[31, 32]} The addition of AuNPs (capped with oleylamine) or AgNPs (produced in situ following the introduction of AgNO₃) reduces the viscosity and increases the conductivity of PEO solutions over time,^[33] which reduces the diameter of fibers produced from solutions aged for longer before spinning.^[16]

Thus, P3HT/PEO-based NFs were first prepared from blend solutions, aged for 96 h (Figure 1a), and P3HT NFs were then obtained by submerging in isopropanol (IPA), heated above the glass transition temperature of PEO (Figure 1b). In our previous work, thermogravimetric analysis was used to demonstrate that this procedure was up to 98.5% effective at selectively removing PEO.^[16] The resultant NP-containing fibers measure ≈55 nm in depth (diameter normal to the substrate) by 100 nm wide (in the plane of the substrate). Pristine NFs are larger, at 100 nm deep by 330 nm wide.^[16]

Figure 1e depicts a simplified P3HT crystal lattice, defining the directional terminology and (hkl) axes used in the following section. Hole mobility in P3HT is fastest along the backbone, then in the π–π direction, and slowest in the lamellae direction,^[34] while longer crystallite coherence lengths reduce resistance to charge transport. As OOP charge transport is vital for carrier collection in OPVs,^[35] it is essential to understand the orientation of crystallites within the nanofibrous active layers wrt the substrate. To investigate the influence of electrospinning on the crystallite orientation, we utilize 4D-STEM and 2D Grazing Incidence X-ray Diffraction (2D GI-XRD). These studies reveal a preferential alignment of P3HT crystallites within the electrospun fibers, more specifically, that presented in Figure 1f.

Direct observation of crystallites within beam-sensitive organic materials is challenging,^[36-39] due to rapid loss of polymer crystallinity via radiolysis upon electron exposure.^[40] In 4D-STEM nanobeam diffraction, an electron beam, ≈2 nm in diameter, is raster scanned across a specimen and a 2D diffraction pattern is recorded at each beam position. At non-cryogenic conditions, low electron doses (<6 e⁻ Å⁻²) in combination with a blind fiber selection strategy, were sufficient to reduce beam damage and enable the collection of clear diffraction from P3HT/AuNP NFs, shown in the virtual dark field (vDF) image in Figure 1g. The mean and maximum diffraction patterns produced by this NF are displayed in Figure 1h,i. Bragg spots, originating from P3HT (020) π–π and (100) lamellar stacking, are visible at 0.525 Å⁻¹ (0.38 nm) and ≈0.131 Å⁻¹ (≈1.53 nm), respectively. A representative selection of diffraction patterns is given in Figure S1 (Supporting Information).

The mean diffraction pattern in Figure 1h is dominated by the prominent P3HT (020) diffraction. However, in the maximum diffraction pattern in Figure 1i, each pixel is assigned the greatest intensity recorded across all probe positions. Thereby, Bragg spots which are present at very few electron probe positions can be visualized. In this scheme, diffraction by the (111), (200), (220), (311), and (222) planes of the AuNPs, dispersed within the polymer matrix, is better defined (labeled in Figure S2, Supporting Information) and P3HT (100) stacking is observed beside the central disc.

Perfect P3HT crystals produce a series of well-defined Bragg spots,^{[41, 42]} however, the diffuse (020) and (100) scattering recorded here, indicates that the fibers are polycrystalline—consistent with select-area electron diffraction (SAED) analysis on P3HT:PCBM fibers, electrospun by Bedford et al.^[13] Although, conversely to that report, we find that the (020) and (100) scattering is localized to azimuthal ranges at 90° β to each other. This reveals that a preferential orientation is generated within the fibers, with the observed scattering behavior consistent with end-on crystallites, or a combination of two or more configurations, as conveyed in Figure 1k. P3HT configurations are typically denoted wrt the substrate, or the plane of the TEM grid in this case.

The vDF in Figure 1g is generated by placing a virtual annular aperture in the (020) scattering region of the raw diffraction patterns (shown in Figure S3b, Supporting Information) and reveals the anisotropic shape of these features, which appear as a series of long striations along the fiber axis. P3HT lamellar features or the AuNPs may also be visualized analogously, see Figures S3 and S4 (Supporting Information). Using a cross-correlation template matching technique (parameter tuning in Figure S5, Supporting Information), the position of all Bragg reflections in the 4D dataset are identified. This protocol detects the Bragg peaks generated by crystalline regions by finding the cross-correlation maxima, or features of closest similarity, to a template of the vacuum probe.^{[37, 43, 44]} This reduces the background scattering intensity in the Bragg vector map (BVM) as contributions from amorphous scattering and noise do not match the structure of the template, limiting false detection.^[43] Therefore, in the BVM presented in Figure 1j, higher-order P3HT (200) and (300) spacings are also resolved. Following the rotation calibration, it is revealed that the [0k0] crystallite axis is oriented along the fiber, whilst the [h00] axis is found across the fiber.

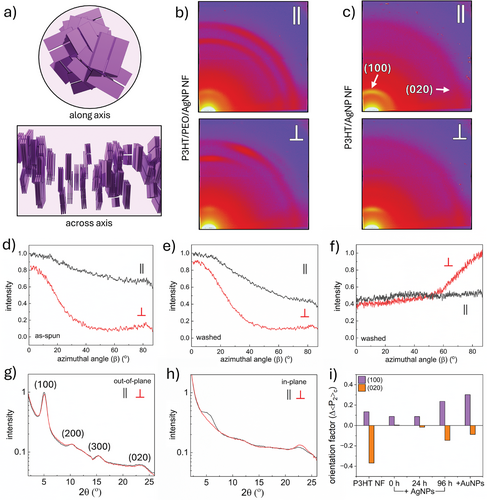

To elucidate the specific crystallite configurations, 2D GI-XRD is employed in Figure 2, wherein the X-ray radiation is incident parallel and perpendicular to the fiber axes (see Figures S6–S10, Supporting Information), with the parallel view enabling investigation of the “radial” preference of crystallites within the fiber. This is achieved using a rotating collector to generate fiber-to-fiber alignment in a common direction. In Figure 2a, the cross–sectional and side view of the proposed fiber nanostructure from Figure 1f is presented.

As the fiber jet twists during the flight from the spinneret to the collector, one may not expect a preferred crystallite orientation wrt the fiber radius to exist. Indeed, with the parallel (ǁ) fiber-to-beam view, the 2D detector images in Figure 2b contain largely isotropic Debye-Scherrer rings from P3HT (100) scattering, at 5–5.5° 2θ, and PEO scattering at 19° and 23° 2θ, predominantly arising from (112) and (120) planes, respectively. The broader intensity of IP scattering is discussed in Figure S7 (Supporting Information). Conveyed in Figure 2d, the azimuthal traces, extracted from the OOP meridian, 0° β, to the IP axis, 87° β, indicate a continuum of (100) planes oriented from approximately parallel to the substrate (scattering OOP) to perpendicular (scattering IP). The IP (100) scattering intensity reaches 70% of its OOP maximum, and therefore, there is some preference for the edge-on orientation overall. When the fiber is collected, the residual solvent could provide polymer chain lability to enrich the relative proportion of edge-on crystallites, as it is thermodynamically favorable for alkyl side-chains to be located at the substrate-fiber interface. Thermal treatment during PEO removal further enhances the edge-on preference, and in response, the IP (100) intensity drops to 40% versus OOP (Figure 2e). This is accelerated by NF slumping during washing, which increases the substrate-fiber interfacial area.

It is clear from the along-axis (parallel) view in Figure 2a, that P3HT (020) planes should not produce scattering with this X-ray orientation, however, imperfect crystallite alignment and macroscopic fiber-to-fiber alignment deliver a weak, isotropic (020) ring. This is observed in Figure 2c at 22–23° 2θ after PEO dissolution.

When X-rays are perpendicular (⊥) to the fiber, equivalent diffraction characteristics to that presented in Figure 1j are generated. This indicates that (100) planes that satisfy the Bragg condition are oriented parallel to the substrate, producing a strong preference for OOP scattering (see ⊥ in Figure 2b–e). (020) planes are perpendicular to the substrate, producing the opposite IP scattering preference (see ⊥ in Figure 2c,f). Randomly-oriented fiber mats produce averaged behavior of each X-ray orientation, Figure S11 (Supporting Information).

These results corroborate a regime where crystallites, with the [0k0] axis oriented along the fiber length, are rotated about the fiber axis, reducing the radial preference and producing a continuum of crystallite orientations from edge-on to end-on wrt the substrate. Inspection of the extracted 1D OOP (0- 10 °β) and IP (77- 87 °β) profiles in Figure 2g,h, relay a similar story, with almost identical OOP scattering regardless of the orientation. Meanwhile, IP (100) and (020) scattering are higher under parallel and perpendicular fiber-to-beam conditions, respectively.

Hermans’ orientation factors (<P₂>) can determine the extent of alignment from the azimuthal traces (discussion following Figure S12 and Table S1, Supporting Information). Δ<P₂>, or the level of along-fiber alignment, is estimated from the difference between the factors calculated with parallel and perpendicular X-ray illumination. In Figure 2i, Δ<P₂> of NFs spun after the initial AgNO₃ addition drops to near-zero. Yet as the solution is aged before fiber spinning, Δ<P₂> increases alongside the diameter reduction (see also Figures S13–S16, Supporting Information). The ultra-thin NP-containing P3HT NFs (aged for 96 h) possess greater alignment of (100) planes parallel to the substrate than their thicker, pristine counterparts. However, the pristine NFs retain a greater perpendicular alignment wrt (020) planes. Therefore, a systematic relationship between the degree of crystallite alignment and diameter is not found.

Crystallites are frequently reported to form with the polymer backbone oriented along the fiber^{[13, 45]} as stretching forces extend polymer chains in the direction of elongation during the early stages of electrospinning. As the fiber dries, the chains template crystallization, with the [00l] axis orientation becoming kinetically trapped along the fiber. This nanostructure would produce greater OOP (100) and (020) scattering in the perpendicular X-ray regime.^{[13, 45-48]}

With the perpendicular fiber-to-beam orientation, PEO crystallites in the as-spun fibers present scattering behavior akin to studies wherein the backbone is oriented along the fiber axis with no radial preference- supported by the isotropic scattering character with the parallel X-ray beam.^{[49, 50]} Furthermore, in our previous study on these P3HT NFs, polarized absorption spectroscopy revealed an overall preference for the polymer chains to be oriented along the fiber backbone.^[16] Therefore, it was intriguing that the polymer chains in the crystallites are found to be orthogonal to the fiber. Although this is precedented, the origin of its formation has remained elusive.^{[51, 52]} The aforementioned polarized absorption is a sum of amorphous and crystalline polymer contributions. In combination, these analyses reveal that our electrospun NFs present a unique internal structure; one wherein polymer chains in amorphous domains are oriented along the fiber backbone, whilst polymer in crystalline regions possesses an orthogonal orientation.

To reveal the mechanism for this nanostructure's formation, vDF images are constructed from the 4D-STEM BVM from the (100) and (020) scattering regions. Probe positions are assigned values according to the maximum recorded intensity of (100) and (020) diffraction, and the angle between a line drawn from the central disc to the Bragg peak, and the y-axis. The corresponding maps are displayed in Figure 3a,b. After Bragg detection, the crystalline features in Figure 3a,b are more distinct than Figure 1g and Figure S3 (Supporting Information), and now reveal the spatial distribution and anisotropic shape of the crystallites– with π–π coherence lengths imaged up to 80 nm (≈10 nm wide).

Combining the intensity and angular position of the Bragg peaks generates an intensity-weighted angle map presented in Figure 3c, using intensity to assign opacity to each pixel. (100) scattering is detected at fewer probe positions than (020), as (020) planes will satisfy the scattering condition throughout the rotation of a P3HT crystallite about its [0k0] axis. Conversely, a 2° tilt from the [00l] axis, attenuates (100) scattering (Figure S17, Supporting Information). Histograms of intensity and Bragg peak angle, are shown in Figure 3d,e. The intensity-weighted angle map (Figure 3c) demonstrates the high degree of common orientation imparted by the electrospinning process within a single fiber. The <P₂> factor of the (020) map in Figure 3d is 0.639 (0.593 ± 0.116, n = 7) rising to 0.743 (0.636 ± 0.110) when weighted for intensity; greater alignment is determined than with X-rays due to the removal of amorphous contribution under the Bragg detection method. The intensity-weighted (020) map of a nanoweb containing several randomly-oriented fibers is displayed in Figure 3f. The inset BVM presents isotropic behavior across the full field of view, however 4D-STEM reveals the alignment within each fiber.

In Figure 3d, a sub-peak is present 90° β to the major (020) peak, attributed to either (020) or (002) scattering, which possess similar d-spacings. If ascribed to (002), this indicates that pre-aggregation produces substantial order in the backbone direction, not observed in thin films or previously reported electrospun P3HT fibers. If attributed to (020), this would be ascribed to crystallites formed during electrospinning, templated by dissolved polymer chains that are aligned parallel to the fiber prior to crystallization.

The development of vibronic peaks over time in Figure 3g, co-existing with the π→π* transition of well-dissolved P3HT at 451 nm, indicates that pre-aggregation of crystallites occurs in solution following N,N'-dimethylformamide (DMF) addition and aging. In fact, non-solvent addition or slow cooling are routine methods used to produce self-assembled crystals.^{[41, 42]} These crystals are often anisotropic, with P3HT growing preferentially by π–π stacking, and are therefore longest in this direction, as in Figure 3a–c.^{[38, 53-55]} Therein, we reveal that the formation mechanism for crystalline domains containing orthogonally-oriented chains is the very same driving force that aligns the polymer in amorphous regions along the axis- uniaxial elongation. Dissolved polymer chains are extended along the fiber axis as the molecule is longest in the backbone direction. However, once assembled into nanocrystals, the longer aspect is in the (0k0) direction, orthogonal to the (00l) backbone. Thereby, elongation delivers the opposite backbone orientation.

These findings suggest that polymer crystallinity is dominated by crystallites formed by pre-aggregation before spinning, rather than during the spinning process. Both high and low crystallinity in electrospun fibers versus films have been frequently observed.^{[10, 52]} Here, it is evident that rapid evaporation of the volatile solvent, chloroform, does not allow for significant additional crystallization to occur during electrospinning. X-ray studies of the P3HT/AgNP NFs prepared from lesser-aged solutions (0- 24 h) appear to indicate a lower extent of crystallinity, as the P3HT crystallites pre-assemble over time (see Figures S13 and S14, Supporting Information). This finding is significant as it reveals that pre-aggregation via solution aging or non-solvent addition provides a means to tune the extent of crystallinity within electrospun organic semiconductor fibers toward charge mobility optimization. As crystallites may be aligned after their formation via this approach, it provides an advantage over annealing, as thermal treatment reportedly degrades the electrospinning-induced alignment and charge mobility, despite increasing crystallinity.^{[56, 57]} As crystalline regions are not percolated within P3HT thin films, transport through the often rate-limiting amorphous regions is required.^{[58, 59]} However, crystallites can be considered electrically continuous if a tie-chain, with a conjugation length comparable to the inter-crystallite distance, spans the gap.^[60] The alignment of amorphous chains along the NF could improve crystallite interconnectivity by extending tie-chains and their conjugation lengths, thus, offsetting the effect of lower crystallinity.

The axial alignment of uninterrupted, long-range π–π stacking along the fiber length should be advantageous for efficient in-plane charge transport. This direction of transport is highly desirable within devices such as organic field-effect transistors. Additionally, the range/continuum of edge-on to end-on configurations found in the NFs holds the potential for enhanced OOP (vertical) mobility, owing to the increased prevalence of the end-on configuration versus thin films, directing transport along the polymer backbone.

Edge-on epitaxy is well reported for P3HT thin films produced by spin-coating slow-drying solutions, Figure S9b (Supporting Information).^[61] However, the end-on or face-on orientations are theoretically preferred for OOP mobility.^{[61, 62]} Face-on (or isotropic) orientations can be produced in rapidly-drying films due to kinetic trapping, but the crystallites are of lower quality and offer inferior performance,^{[63, 64]} whilst the end-on configuration is challenging to achieve.^[65] In the BHJ blend, electron acceptor introduction disrupts epitaxy/crystallization (Figure S18a, Supporting Information), and so, thermal^[66] or solvent^[67] annealing is used ubiquitously, which re-generates edge-on epitaxy. Hence, edge-on P3HT BHJs provide sub-optimal OOP mobility due to the insulating alkyl side-chains interdigitated in the lamellae direction. This disruption is not observed when electrospun P3HT NFs are infiltrated with PBCM to produce a nanofibrous active layer, Figure S18b (Supporting Information). Therefore, the crystallite structure of the fibers in this architecture shows promise for enhancing both IP and OOP charge transport, due to long persistence lengths and a greater end-on population wrt the substrate.

2.2 Competitive Exciton Separation Within Nanofibrous Active Layers

Noble metal NP addition to P3HT NFs produces broadband light-harvesting enhancements, with LSPR and in-plane polymer alignment delivering integrated absorptance enhancements of 48% (AgNPs) and 58% (AuNPs) versus films.^[16] However, to lead to an improvement in photovoltaic performance, the exciton populations formed in the NFs must reach the donor: acceptor heterojunction before quenching, for charge separation. Therefore, exciton dissociation within the active layer is evaluated by PL quenching and fs-TAS experiments.

Pristine and NP-containing P3HT NF webs were electrospun onto ITO for 120 s before the interstitial space was backfilled with PCBM via spin-coating from dichloromethane (DCM). The SEM micrograph in Figure 1c confirms successful fiber encapsulation and the formation of a nanofibrous heterojunction with a thickness of 200- 300 nm (Figure S19a, Supporting Information). Atomic Force Microscopy (AFM) height micrographs reveal that the fibrous active layer possesses a root mean square (RMS) surface roughness of 1.3 ± 0.2 nm, exceeding that of the BHJ (0.5 ± 0.1 nm). (Figure S19b,c, Supporting Information) This finding/value is consistent with previous works wherein electrospun mats have been infiltrated with BHJ blends.^{[13, 15]} This increased roughness can be advantageous for charge extraction.^[68] However, the pinholes in the PCBM film should be alleviated to avoid shunting concerns in final devices. Energy-dispersive X-ray (EDX) studies were conducted on a low-density P3HT/AuNP NF: PCBM active layer to confirm that the fiber morphology is retained after exposure to the orthogonal solvent (Figure S20, Supporting Information). Long-range NP pathways are maintained within the active layer and line-scans (S Kα1) indicate that sulfur-containing P3HT is localized to these regions. AFM topology (Figure S21, Supporting Information) of the nanoweb before and after spin-coating pure DCM reveals that infiltration reduces the web depth from ≈500 to ≈140 nm. This NF densification helps prevent the formation of excessively large acceptor domains, dictated by the interstitial space.

PL quenching efficiency can be used to predict eventual performance, with higher efficiency coinciding with greater quenching probability.^{[69, 70]} Prior to PCBM introduction in Figure 4a, there is significant radiative quenching of excitons formed within the NFs. Following infiltration, >95% of PL emission is attenuated, signifying successful electron transfer to the fullerene region. Equivalent analysis of a P3HT:PCBM BHJ shows that 99.85% of PL emission measured from a P3HT thin-film is quenched upon PCBM blending (Figure S22a, Supporting Information). Kim et al. previously demonstrated that PL quenching was intimately linked to diameter, as thinner fibers deliver shorter exciton diffusion pathways.^{[10, 11]} However, in Figure S22 (Supporting Information), the pristine P3HT NF:PCBM active layer outperformed expectations, despite the fiber diameters being a magnitude larger than typical P3HT diffusion lengths (≈10 nm). This is likely due to significant PCBM diffusion into the P3HT NFs, despite the use of an orthogonal solvent,^[71] which reduces the distance to the interface. Alternatively, there exists evidence of greater exciton diffusion lengths within electrospun donor polymer fibers.^[72] Recently, Sneyd et al. reported that long π–π coherence lengths in self-assembled crystallites, which we have postulated exist within these NFs, offer diffusion lengths up to 300 nm.^[38] Such performance indicates that ideal NFs for OPVs can exceed a diameter of twice the exciton diffusion length, yet ultra-thin diameters remain advantageous for delivering a high chain and crystallite alignment.

We note that the NF PL possesses an enhanced (0-0) vibronic transition at 660 nm, relative to (0–1) at 720 nm, compared to the thin-film, rising from 0.73 (film) to 0.90 (NFs). This is indicative of reduced H-aggregate character versus thin films with increasing intrachain interactions.^[73-75] The (0–0) transition is red-shifted by 8 nm upon electrospinning, signifying longer polymer conjugation lengths.

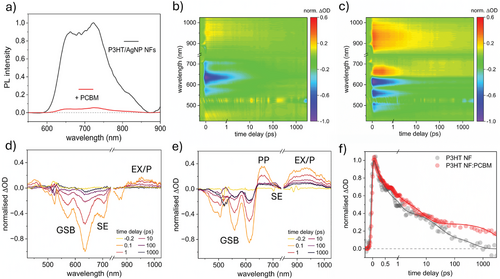

To produce direct evidence that PL quenching results in the generation of free charge carriers, fs-TAS studies were conducted on the NFs before and after PCBM infiltration in the temporal range of 40 fs to 3 ns. In Figure 4b, the TAS false color heat maps of the P3HT NFs are given, from which differential optical density (ΔOD) spectra are extracted at select time delays, presented in Figure 4d. Negative ΔOD signals arise from ground state bleaching (GSB) upon molecular photoexcitation by the 520 nm pump pulse. The peaks at ≈635 nm and 570 nm relate to the (0–0) and (0–1) P3HT vibronic transitions. In the corresponding plots after PCBM backfill in Figure 4c,e, these peaks blue-shift to ≈615 nm (0–0) and 560 nm (0–1). The (0–2) transition is also visible at ≈495 nm. Blue-shift may arise due to attenuation of the (0–0) transition as PCBM disrupts packing and conjugation lengths, and the evolution of a photoinduced absorption (PIA) signal, centered at 660 nm.

The positive peak at 660 nm has been most convincingly assigned to polaron pairs (PP, an intermediate charge-transfer state)^{[76, 77]} but also to P3HT polarons^[78] (a charge carrier plus the electronic distortion) in crystalline domains.^[79] Distinctly, without PCBM, this peak is not present (Figure 4b,d). Instead, a negative ΔOD signal is observed at ≈720 nm, attributed to the stimulated emission (SE) of P3HT excitons^[76] which relaxes within 100 ps (Figure S23, Supporting Information).^[28] Weak SE is found in the TAS spectra of the P3HT NF:PCBM architecture as an inflection upon the more intense PP signal.

Singlet P3HT excitons (EX) are typically observed as a broad peak at 1200 nm (spanning 800–1400 nm).^{[38, 80]} In this study, the initial PIA at >850 nm captures the shoulder of this exciton peak. In the presence of PCBM, excitons are rapidly dissociated within 10s of ps,^[28] leaving a relatively long-lived polaron signal (on the order of ns) centered at ≈950–1000 nm.^[73] As polarons evolve from exciton separation, signal relaxation at 950 nm probe wavelength is convolved. However, the signal immediately after photo-excitation is representative of the exciton population, and after ≈1 ns, beyond the temporal window of exciton dissociation, the residual signal at 950 nm is attributed to successfully separated polarons. This time delay was selected due to its use by Wu et al. to investigate nanoparticle-associated recombination in P3HT:PCBM BHJs.^[28]

Kinetics were fitted using a tri-component exponential decay function and the polaron population 1 ns after the pump, relative to the initial excitation population, was estimated using absorption coefficients (ε) proposed by Okhita et al. at a 950 nm probe wavelength (details in Figure S24, Supporting Information discussion).^[76] Standard errors for the decay profiles at this probe wavelength are also provided in Figure S24e (Supporting Information).

In Figure 4f, the normalized 950 nm signal decays slower in the infiltrated active layer versus pristine NFs, indicating the formation of free charges. At 1 ns, the polaron signal in the NFs is just 0.8% wrt exciton generation (Table 1). Conversely, polaron concentration in the nanofibrous active layer is 11.6% wrt generated excitons, a 15-fold increase. This figure represents polarons persisting for at least 1 ns, not the total polaron generation rate. Poor polaron formation in the absence of PCBM arises as self-dissociation in P3HT is uncommon, only enabled by a small driving force at crystalline/amorphous region interfaces,^{[81, 82]} or hot excitons^[76] (0.7 eV above the bandgap^[83]), not generated by 520 nm excitation.^[38]

In Table S2 (Supporting Information), the fitted time constants and component amplitudes are provided. Previously, the first two components have been ascribed to excitons in intermixed regions (A₁, τ₁) and crystalline domains (A₂, τ₂).^[84] These time constants decrease upon PCBM introduction, indicative of rapid exciton dissociation. The amplitude of the third component, ascribed to polarons,^[84] is proportional to the total polaron population, which doubles from 12.5% to 25.5% with acceptor backfill. Furthermore, τ₃ increases by an order of magnitude, to >3 ns. Combined, PL and fs-TAS provide clear evidence that 95- 97% of excitons produced in nanofibrous active layers are quenched at the acceptor, and this process leads to the generation of free charge carriers – thus, concluding that these electrospun NFs are of a suitable diameter for OPV implementation.

2.3 Influence of Plasmonic Nanoparticles on Polaron Dynamics

For plasmonic, nanofibrous active layers to boost eventual OPV performance beyond the BHJ or pristine fibrous architectures, it is imperative that NP addition does not introduce recombination mechanisms. The resulting exciton or charge quenching can prevent the translation of LSPR-enhanced exciton populations into correspondingly high polaron/carrier populations in the BHJ. In Figure 5a–c, false color heat maps of the BHJ and Ag/AuNP-containing P3HT NF:PCBM active layers are presented, with extracted line-cuts in Figure 5d–f.

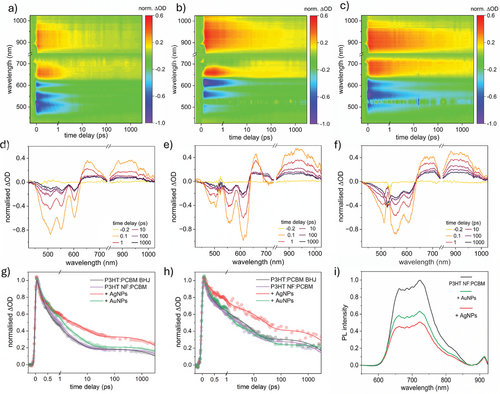

Normalized (0–1) GSB (≈560 nm probe, proportional to initial photoexcitation and the exciton/polaron populations) and exciton/polaron (950 nm probe) signal relaxation kinetics are displayed in Figure 5g,h, respectively (PP signal relaxation at 660 nm, Figure S24a, Supporting Information). Upon initial inspection, the pristine and AuNP-containing fibrous active layers possess similar decay to the BHJ. Meanwhile, AgNP introduction slows the signal decay rate significantly. Likewise, a lesser AgNP addition produced a marginal reduction, see Figure S24b–d (Supporting Information). Slower decays indicate either increased photoinduced species’ lifetimes and/or a greater polaron generation rate and are in contrast to previous reports. Bare and oleylamine-capped AgNPs have previously induced faster transient exction/polaron signal relaxation, owing to charge trapping, accumulation, and ultimately, quenching.^{[28, 29, 85]} Therefore, nanofibrous active layers are promising for harnessing the full potential of plasmonic NP addition.

Fitted time constants/amplitudes are similar in pristine thin-film and fiber-based layers, however, Table S2 (Supporting Information) further conveys the NP influence upon the photoexcited species. The fibrous heterojunction possesses enhanced polaron populations in the presence of AgNPs, as A₃ rises from 28.9% (BHJ) to 39.6% absolute (a 37% relative improvement). Whilst longer polaron lifetimes are fitted with both NP types, they are extrapolated beyond the temporal window of 3 ns. Table 1 estimates that AgNPs generate a 46% larger free carrier population persisting for ≥1 ns, per exciton, relative to the BHJ.

Compounded with the harvesting enhancements reported within our previous study,^[16] the P3HT/AgNP NF:PCBM active layer contains 116% more polarons at 1 ns. Despite a 9% reduction in the polaron population per exciton in the AuNP-containing active layer versus the BHJ, once additional photon absorption is considered, the active layer still contains 43% additional polarons at this time delay. The initial exciton generation enhancement is successfully translated into an enhanced density of free carriers.

Assuming accurate fitting, exciton lifetimes were also longer, perhaps due to a reduction in exciton recombination, dissociation, or exciton-exciton annihilation. In Figure 5i, steady-state NF PL before PCBM infiltration reveals that despite equal electrospinning time, the NP-containing fibers produce 47% (AgNP) and 34% (AuNP) lower integrated PL. Thus, the metal cores may be involved in exciton quenching, either by increasing detrimental recombination or useful dissociation into free charges. With a flux of 70 µJ cm⁻², some non-negligible rate of bimolecular recombination is expected. However, as NP-containing architectures harvest additional photons, one would expect the annihilation rate to be greater. This leaves the possibility of a reduced rate of exciton recombination for future study.

We suggest that NP addition to the nanofibrous active layer is not parasitic for two reasons. First, insulating ligands such as oleylamine or PEO, could provide electrical isolation from the active layer to prevent charge trapping. Due to the AuNP synthesis in neat oleylamine, the capping layer may be denser or thicker than in previous reports where trapping was observed.^[28] This observation would be consistent with previous works wherein the appropriate organic ligands (or ultrathin oxide layers) have been demonstrated to act as insulating barriers,^[85-87] and increasing the thickness of the capping layer reduces the probability of exciton or charge quenching.^{[30, 88]} Additionally, within a BHJ, the NPs are in contact with both the donor and acceptor and reports have suggested that the NP-assisted recombination events occur at the interface or involve fullerene molecules.^{[28, 29]} Although we report evidence of PCBM diffusion, sequential deposition of the components may allow for a reduction in NP-fullerene interactions via spatial separation, ameliorating these mechanisms. If plasmonic, nanofibrous devices can be optimized for efficient charge extraction, these novel active layers offer an exciting alternative to the BHJ.
