1 Introduction

Bovine mastitis is one of the diseases with high economic impact in the world dairy industry and S. aureus is the facultative anaerobic Gram-positive coccus responsible for this bovine disease.^[1-4] S. aureus produce staphylococcal enterotoxins that can cause diarrhea, abdominal cramps, and nausea.^[1] Moreover, S. aureus can survive pasteurization and thermal sterilization processes, and staphylococcal enterotoxins are stable and cannot be eradicated easily by common hygienic procedures once they are formed in dairy products.^[1] For that reason, efficient methods to isolate S. aureus bacteria from dairy products for it removal or identification are in high demand and important for the dairy industry.

Several important pathogenic bacteria produce immunoglobulin binding proteins that are thought to help these bacteria evade the host immune response.^[5] Examples include protein A of S. aureus, protein G of group C and G streptococci, and protein L of Peptostreptococcus magnus.^[6] Further, immunoglobulin binding proteins have been identified also in mycoplasmas such as Mycoplasma pneumoniae^[7] and the bovine pathogen M. bovis.^[8] The ability of these proteins to bind immunoglobulins can be used to selectively bind pathogenic bacteria for their isolation and identification while leaving harmless and beneficial bacteria in solution.

Evolving micro/nanorobots technology justifies expectations to address some unmet biomedical and environmental issues.^[9-13] Recently, micro/nanorobots have been used to isolate and eradicate planktonic bacteria^{[14, 15]} as well as bacterial biofilms,^[16-19] which is important to address the growing risk of pathogen resistance to antibiotics. Moreover, the use of antibiotics to eradicate bacteria in food samples can affect food quality as well as decrease its sensitivity. Micro/nanorobots are able to move using chemical fuels^{[20, 21]} or external energy sources (light, magnetic, or ultrasound fields)^[22-35] and they can achieve multiple applications, including drug delivery,^{[36, 37]} bio/sensing,^[38-40] and pathogenic biofilm destroying^[15-19] as well as environmental remediation^[41-45] and energy harvesting.^{[46, 47]} Magnetically propelled micro/nanorobots represent one of the most promising categories that can be used in many applications because they are biocompatible (toxic fuel-free), have strong power propulsion, are remotely maneuverable, and are reconfigurable and programmable.^{[9, 47-49]}

Many microrobotic systems have been used to isolate bacteria, spores, and viruses by using various bioreceptors.^{[12, 50-53]} Particularly for S. aureus isolation, platelets were used as bioreceptors loaded on magnetic and ultrasonic microrobots.^{[50, 51]} However, this bioreceptor, although efficient, was not specific.

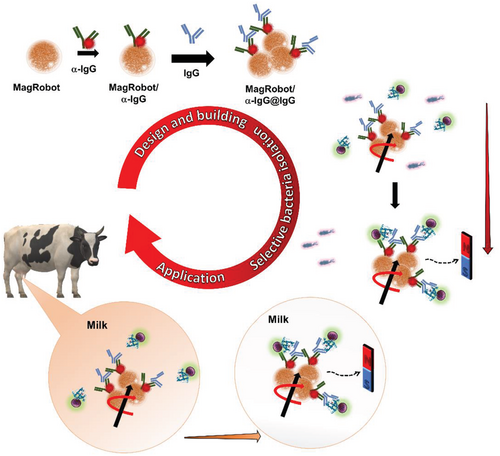

In this work, we have developed magnetic microrobots that we named “MagRobots,” which are able to load, transport, and isolate S. aureus. These MagRobots are modified with anti-rabbit IgG produced in goat (αIgG) labeled with rhodamine B (RhB) and IgG from rabbit serum (IgG) (see Scheme 1, top). IgG loaded on the MagRobots’ surface is specifically bound by the S. aureus protein A present on the surface of the S. aureus cell wall. Using this approach, S. aureus was isolated from the mixture with E. coli, which lacks protein A and, therefore, does not bind to the IgG displayed on the MagRobots’ surface (see Scheme 1, right). In addition, MagRobots–αIgG/RhB@IgG were used to remove S. aureus from milk (Scheme 1, bottom), which is a complex mixture containing also milk microbiota. Moreover, anti-rabbit IgG produced in goat and IgG from rabbit serum are more cost effective than commercially available anti-S. aureus antibodies; for scalability of the system, this should also be taken into account. The results obtained in this work, to our knowledge, have not been previously reported.

2 Results and Discussion

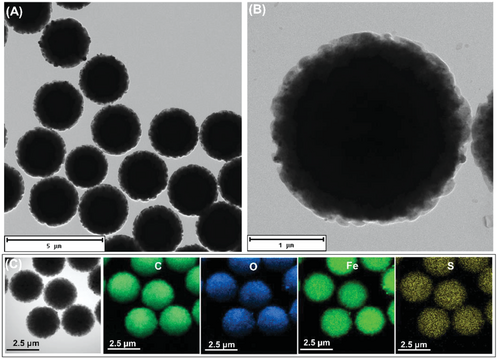

Paramagnetic microparticles modified with tosyl (toluenesulfonyl) groups were used to prepare the MagRobots. As can be seen in Figure 1A,B, transmission electron microscopy (TEM) images at different magnification reveal the homogeneous size distribution of around 2.8 µm in diameter of MagRobots. In addition, energy-dispersive X-ray spectroscopy (EDS) elemental mapping from TEM images shows the chemical composition of MagRobots; Fe and O confirm the presence of Fe₃O₄ while C and S correspond to tosyl groups (Figure 1C).

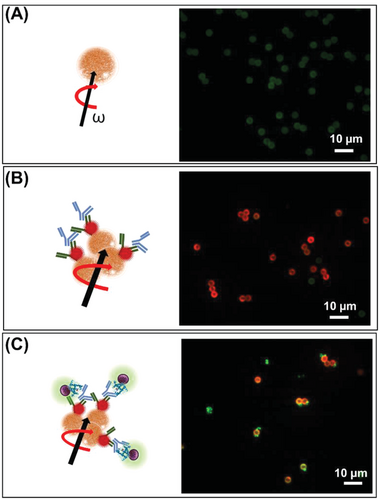

Tosyl groups that cover MagRobots allow their conjugation with polyclonal αIgG labeled with RhB (αIgG/RhB) and subsequent loading of IgG from rabbit serum (IgG) (see Scheme 1, top). Serum IgG is bound by protein A, which is exposed on the cell wall of S. aureus and allows the MagRobots to load and retrieve the bacteria to clean liquid samples. To confirm that the MagRobots were modified with αIgG, they were inspected by confocal microscopy. For this aim, αIgG/RhB was used as a fluorescent tag. Figure 2 shows confocal microscopy images of MagRobots with αIgG/RhB and pristine robots used as a control. It can be seen that in the absence of αIgG/RhB, only background auto-fluorescence of pristine microrobots was observed (Figure 2A). This background auto-fluorescence at blue (488 nm) and green excitation (566 nm) is inherent to the tosyl-activated Dynabeads M-280 used in this work.^[54-56] However, when microrobots were modified with αIgG/RhB, they showed bright red fluorescence (Figure 2B). After confirming successful modification with αIgG/RhB, the MagRobots were loaded with serum IgG (MagRobots–αIgG/RhB@IgG). The purpose of RhB was to investigate the immobilization of αIgG on the MagRobots’ surface as indicated by the fluorescence changing from the faint green auto-fluorescence of pristine MagRobots to the red fluorescence of MagRobots–αIgG/RhB. RhB was only used for surface characterization of the MagRobots and should be omitted in practical applications.

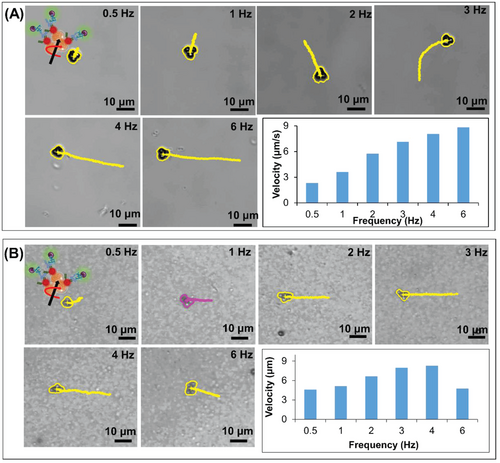

Once successful preparation of the MagRobots–αIgG/RhB@IgG was confirmed, their performance under magnetic actuation was evaluated. MagRobots–αIgG/RhB@IgG were driven by a transversal rotating magnetic field using a homemade 3D-printed 6-coil system adapted to an Olympus inverted microscope table. The magnetic field was applied at intensity of 5 mT. In addition, the magnetic-driven motion of MagRobots–αIgG/RhB@IgG was evaluated in two solutions, PBS/Tween20 (Figure 3A) and milk (Figure 3B), and different frequencies applied (Video S1, Supporting Information). As expected, the speed of the MagRobots increased as a function of the frequency applied. This trend is observed in both solutions (PBS/Tween20 and milk). However, in the presence of milk the MagRobots–αIgG/RhB@IgG move faster but at 6 Hz they lose synchronization and begin to slow down. It appears that the viscosity of milk is favorable to the motion of MagRobots–αIgG/RhB@IgG and there is no need to add any surfactant.

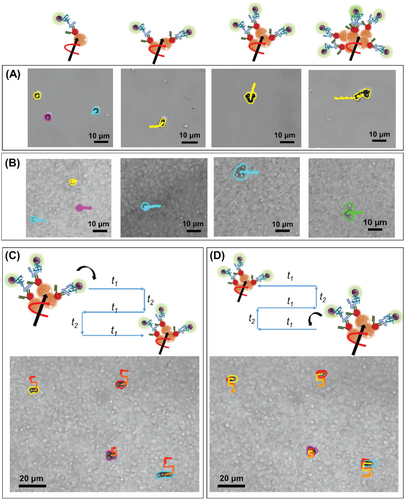

Interestingly, if single paramagnetic particles were driven under a magnetic rotating field in PBS/Tween20 solution, they moved very slowly or remained motionless. The real movement started when at least two particles met and their speed increased as a function of the number of particles (Figure 4A). However, the same trend was observed in the suspension of milk but the movement of MagRobots–αIgG/RhB@IgG was faster (Figure 4B). This phenomenon was reported previously by our previous work and by Tasci et al.^{[38, 57]}

In addition, to prevent the motion of MagRobots–αIgG/RhB@IgG in only one direction and their accumulation on one side of the test tube, a programmed automated motion mode was used (see Figure 4C,D and Video S2 in the Supporting Information). A predefined rectangular trajectory of MagRobots–αIgG/RhB@IgG under a transversal rotating magnetic field was used to cause MagRobots to “walk” in three rows and two columns, and then return.

After the magnetic actuation of MagRobots–αIgG/RhB@IgG was evaluated, they were placed in a suspension of S. aureus (≈10⁵ CFU) and a transversal rotating magnetic field applied for 1 h with intensity of 5 mT at 2 Hz. The MagRobots–αIgG/RhB@IgG that load S. aureus were retrieved using a permanent magnet. The binding of S. aureus to the robots was evaluated by confocal microscopy. Figure 2C shows an overlay of fluorescence signals of MagRobots with red fluorescence and green fluorescence that correspond to αIgG/RhB and S. aureus stained with SYTO 9 DNA probe, respectively. In addition, a 3D confocal reconstruction video of MagRobotsαIgG/RhB@IgG alone and bound with S. aureus is presented in Video S3 in the Supporting Information. The images clearly show binding of S. aureus onto the MagRobots–αIgG/RhB @IgG.

In addition, we made a video of MagRobots–αIgG/RhB@IgG propelled in a suspension of S. aureus by transversal rotating magnetic field with intensity of 5 mT at 2 Hz. Video S4 in the Supporting Information was recorded immediately after MagRobots–αIgG/RhB@IgG were placed in the S. aureus suspension. Initially, isolated particles were observed, but when the transversal rotating magnetic field was applied, they started to form chains and move faster, and for longer distances (Video S4, left panel, Supporting Information). The chains did not disassemble after switching off the transversal rotating magnetic field (Video S4, right panel, Supporting Information). After 5 min, the MagRobots–αIgG/RhB@IgG chains loaded visible amounts of S. aureus as seen in Video S5 (Supporting Information), which was recorded at magnetic field intensity of 5 mT at 2 Hz.

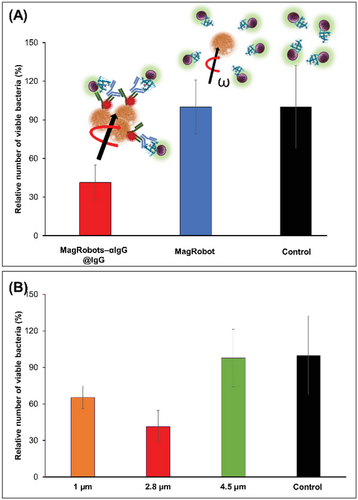

Once the loading and retrieval of S. aureus by MagRobots–αIgG/RhB@IgG were confirmed, the efficiency of S. aureus removal was evaluated by quantification of bacteria in the robots-treated suspension using a cultivation method (see details in the Experimental Section). Figure 5A summarizes the percentage of relative number of viable bacteria of S. aureus remaining in the solution after their retrieval using MagRobots–αIgG/RhB@IgG (red column) and not IgG-coated on MagRobots (blue column). Clearly, it can be seen that MagRobots–αIgG/RhB@IgG were able to remove ≈60% of S. aureus cells in 1 h, whereas the control MagRobots did not remove any bacteria as indicated by the ≈100% relative number of viable bacteria compared to the bacterial concentration in the original solution (see black column). In addition, we have evaluated bacteria removal using MagRobots of various sizes with diameters of 1, 2.8, and 5 µm (see Figure 5B). MagRobots of diameter 5 µm almost failed to bind S. aureus as documented by removal of only ≈2% (Figure 5B, orange column) followed by the 1 µm MagRobots that removed ≈35% of S. aureus (Figure 5B, green column). In contrast, 2.8 µm MagRobots removed ≈60% of bacteria (Figure 5B, red column). Therefore, for the following experiment, 2.8 µm MagRobots were used. The most plausible reason for the poor performance of 5 µm MagRobots is that the amount of αIgG used was not sufficient to modify their surface and, in consequence, bovine serum albumin (BSA) blocked their surface and IgG was not loaded efficiently to isolate S. aureus.

To prove the selective retrieval of S. aureus (i.e., bacteria that produce immunoglobulin binding protein A), MagRobots–αIgG/RhB@IgG were mixed with E. coli (bacteria that does not produce immunoglobulin binding protein) and confocal microscopy images were taken. Staphylococcus aureus and E. coli cells were at the same concentration. Figure 6A shows clearly that E. coli did not attach to the surface of MagRobots–αIgG/RhB@IgG as only S. aureus was observed on the robots despite the presence of both bacteria in the solution (Figure 6B). This confirms the selectivity of the interaction of IgG with the protein A exposed on the cell wall of S. aureus.

In addition, the selective S. aureus retrieval by MagRobots-modified αIgG/RhB@IgG was evaluated by the quantification of bacteria using a cultivation method (see the Experimental Section for details). For this aim, MagRobots/anti-IgG@RhB/IgG were placed in a mixed suspension of both bacteria. After 1 h of applying a transversal rotating magnetic field, the bacteria attached to MagRobots were retrieved using a permanent magnet and the bacteria remaining in the sample were quantified. Figure 6C shows digital photographs of one droplet of bacterial solution cultivated overnight before and after treatment with MagRobots–αIgG/RhB@IgG. The left panel shows colony-forming units of E. coli (big dots) and S. aureus (small dots) grown from inoculum from an untreated bacterial suspension. The photograph in the right panel shows one drop of the solution remaining after the bacteria retrieval. Clearly, it can be seen that the number of E. coli colonies is similar in the untreated (Figure 6C, left panel) and treated bacterial suspensions (Figure 6C, right panel). However, the number of S. aureus colonies decreased significantly upon treatment with the MagRobots–αIgG/RhB@IgG and the robots’ subsequent retrieval using a permanent magnet (Figure 6C, right panel). The same results were observed by quantification of the relative number of bacteria of E. coli and S. aureus before and after they were treated with MagRobots–αIgG/RhB@IgG (Figure 6D). Blue and red columns correspond to the relative number of viable E. coli and S. aureus, respectively, before (columns with patter fill) and after (columns with solid fill) treatment with MagRobots–αIgG/RhB@IgG. Viable S. aureus cells decreased by 50% after their removal by MagRobots–αIgG/RhB@IgG. In addition, when applying the t-test statistical analysis with a confidence interval of 95%, the mean values for the relative number of viable E. coli after and before treatment with MagRobots were not statistically different with p = 0.4199, whereas the mean values for the relative number of viable S. aureus after and before treatment with MagRobots were statistically different with p = 0.0329 and a confidence interval of 95%. Additional experiments to ensure the selectivity of MagRobots–αIgG/RhB@IgG were performed using Lactobacillus rhamnosus (L. rhamnosus) and Enterobacter cloacae (E. cloacae) (see Figure S1 in the Supporting Information). In both cases, no significant differences in the number of viable bacteria before and after treatment with MagRobots–αIgG/RhB@IgG were observed.

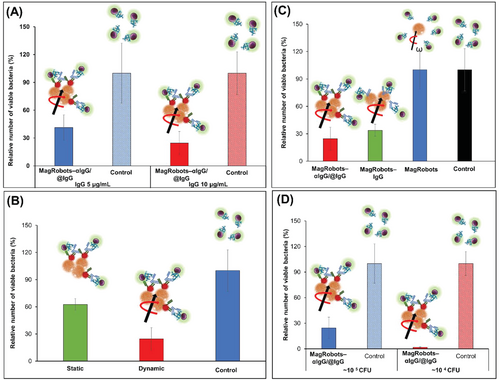

Next, we investigated the effect of different concentrations of IgG used to prepare MagRobots–αIgG/RhB@IgG. For this aim, two concentrations of IgG were used: 5 and 10 µg mL⁻¹. Figure 7A shows that 10 µg mL⁻¹ of IgG applied onto MagRobots–αIgG/RhB@IgG can effectively remove ≈75% of S. aureus, whereas 5 µg mL⁻¹ MagRobots–αIgG/RhB@IgG removed ≈60% of S. aureus. In both cases, 60 min were needed to remove S. aureus. Following the effective removal of S. aureus using MagRobots–αIgG/RhB@IgG, their propulsion effect on S. aureus removal was evaluated (Figure 7B). Immotile (static mode) MagRobots–αIgG/RhB@IgG (ordinary magnetic separation) can remove around 37% of S. aureus cells while propelled MagRobots–αIgG/RhB@IgG (dynamic mode) are capable of removing twice as many bacteria (75.4%). This result demonstrates the importance of the MagRobots’ mobility in removing S. aureus from a bacterial suspension.

The magnetic separation for bacterial separation and subsequent identification, quantification, or removal is a well-known methodology.^{[58, 59]} However, in this case, the microparticles are static or need an external shaker; hence, its implementation in milk factory pipelines is not practical.

Each MagRobots–αIgG/RhB@IgG component is scrutinized to understand and affirm their role (Figure 7C). Bare MagRobots were not able to remove S. aureus (blue column), whereas MagRobots–αIgG/RhB@IgG were able to remove around 64% of S. aureus (red column). However, MagRobots–αIgG/RhB@IgG with anti-IgG antibody enhanced S. aureus removal. We suggest that the enhancement is due to the possibility to load more IgG on the surface of the MagRobots using the primarily bound anti-IgG (αIgG).

An additional experiment was performed using lower concentration of S. aureus and the same concentration of MagRobots–αIgG/RhB@IgG. The result is shown in Figure 7D, when the initial concentration of S. aureus (about 10⁴ CFU) was reduced by 98%. Moreover, the effect of different MagRobot speeds was evaluated at different frequencies (see Figure S2 in the Supporting Information). The relative number of viable bacteria slightly increased as the frequency decreased, indicating that MagRobots–αIgG/RhB@IgG speed affects in some way the efficiency of bacteria isolation.

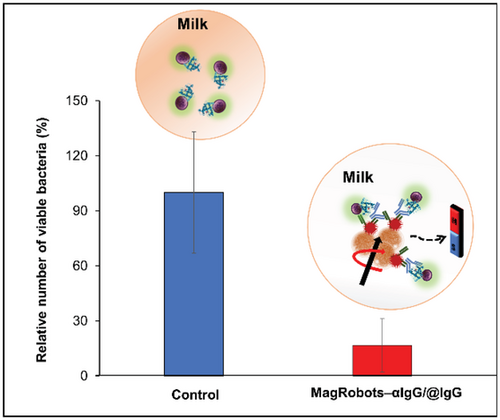

Finally, S. aureus removal from milk samples using MagRobots–αIgG/RhB@IgG and under a transversal rotating magnetic field was evaluated. In this experiment, pasteurized milk samples were spiked with S. aureus bacteria with a concentration of about 10⁴ CFU. Then, MagRobots–αIgG/RhB@IgG were placed in the milk with S. aureus samples and a transversal rotating magnetic field applied with intensity of 5 mT at 2 Hz for 1 h under programmed automated motion mode. The MagRobots–αIgG/RhB@IgG were then retrieved using a magnetic field gradient and the remaining S. aureus in milk samples were quantified. As can be seen in Figure 8, the motors were able to isolate efficiently around 83% of S. aureus present in the milk samples.

Low levels of S. aureus may be found in raw milk even when produced using good manufacturing practices. Furthermore, the pasteurization process does not kill efficiently S. aureus bacteria.^[60] According to FDA guidance,^[61] excessive numbers of S. aureus in raw milk or other dairy products, i.e., greater than or equal to 10⁴ colony forming units per gram (cfu g⁻¹) indicates that the product was produced under unsanitary conditions. MagRobots–αIgG/RhB@IgG developed here were able to remove 3.42 10⁴ cfu g⁻¹ of S. aureus. In consequence, these results indicate that our system can successfully remove S. aureus remaining after the milk has been pasteurized. Moreover, this fuel-free removal system based on magnetic robots is specific to S. aureus bacteria and does not affect the natural milk microbiota or add toxic compounds resulting from fuel catalysis. To the best of our knowledge, no similar results have been published before using microrobot technology.

In addition, to evaluate the safety of MagRobots used in this application, an in vitro cytotoxicity assay was carried out in two cell lines (HeLa and MRC). Pristine MagRobots and MagRobots modified with αIgG/RhB@IgG at seven concentrations were exposed for 1 and 48 h. After these times, cytotoxicity was evaluated using a resazurin method assay. Figure S3 in the Supporting Information shows the toxicological profiles that indicate that the cell viability expressed as metabolic activity was not affected upon the introduction of MagRobots in all concentrations tested.

The performance of MagRobots–αIgG/RhB@IgG in terms of bacteria isolation efficiency and time employed to do it was compared with previous reports where different robots modified with different receptors were able to remove bacteria, spores, and pseudo-viruses (see Table S1 in the Supporting Information).^{[12, 49-52]} In terms of isolation time, MagRobots–αIgG/RhB@IgG showed similar performance with catalytic micromotors used to isolate B. globigii spores^[51] and better than the algae-robots used to isolate SARSCoV-2 pseudo-virus.^[52] However, catalytic micromotors and algae-robots lack propulsion control because they are self-propelled by chemical fuel and their intrinsic mobility, respectively. This fact makes microorganism retrieval difficult in real applications because the motors/robots must be separated by centrifugation. Moreover, catalytic micromotors move by using a high concentration of toxic H₂O₂.^{[12, 51]} In addition, the isolation time of MagRobots–αIgG/RhB@IgG was worse than for helical nanomotors and gold nanowires propelled by rotating magnetic field and ultrasound.^{[49, 50]} Nevertheless, helical nanomotors and gold nanowires use platelets as receptors, which lack specificity. Finally the isolation efficiency was similar in all cases (see Table S1 in the Supporting Information).

3 Conclusion

We developed magnetic microrobots capable of the efficient and specific removal of S. aureus (as a representative of bacteria that produce immunoglobulin binding proteins) from liquid samples. These MagRobots were modified with anti-rabbit IgG produced in goat and IgG from rabbit serum. Protein A, which is present on the cell wall of S. aureus, binds IgG and loads the bacterial cells onto the surface of the MagRobots. The selective removal of S. aureus by MagRobots–αIgG/RhB@IgG was evaluated using E. coli as the negative control. A mixture of both bacteria (S. aureus and E. coli) was treated with MagRobots–αIgG/RhB@IgG and it was proved that these MagRobots were able to remove specifically S. aureus. Overall, surface modification of the micro/nanorobots used in this work could be used to remove not only S. aureus but also other bacteria that produce immunoglobulin binding proteins. Indeed, surface modification of the micro/nanorobots by antibodies against specific surface proteins of pathogenic bacteria offers an attractive strategy for the targeted removal of a variety of pathogens. In addition, MagRobots–αIgG/RhB@IgG were used to remove S. aureus from a dairy product (milk). The removal of S. aureus from dairy products is a challenge because this bacterium can survive the pasteurization process and the use of antibiotics can compromise the quality of the food. MagRobots–αIgG/RhB@IgG offer a promising alternative to removing bacteria in the dairy products industry. However, this research is a proof-of-concept where the experiments were done in laboratory-scale using expensive commercial reagents. In the case of real and large-scale applications, the cost of the motors can be very low as the MagRobots are based on Fe₃O₄ and polymers. Also, it should be noted that these MagRobots can enter hard-to-reach places within a milk production plant and operate wirelessly. Finally, these motors can remove bacteria and also specifically isolate S. aureus for their subsequent determination and quantification.

4 Experimental Section

Conflict of Interest

The authors declare no conflict of interest.
