Comprehensive analysis of lncRNA-TF crosstalks and identification of prognostic regulatory feedback loops of glioblastoma using lncRNA/TF-mediated ceRNA network

2.1 Data set of lncRNAs and TFs in GBM

We downloaded the genome-wide lncRNA and TF expression data of GBM from TCGA (https://portal.gdc.cancer.gov/). In brief, TCGA transcript level RNA-seq data set was converted into lncRNA/gene level. Genes with reads per kilobase of transcript, per million mapped reads (RPKM)  = 0 in all of the samples were removed. Genes with RPKM = 0 that occurred in part of the samples were set to 0.1 to perform log transformation. To allow survival analysis, only samples with clinical information were retained. As a result, GBM-related RNA-seq data with 155 samples were obtained.

2.2 miRNA-TF and miRNA-lncRNA interactions

Previous studies have demonstrated to identify endogenous interactions between miRNAs and targets by using crosslinking and Argonaute (Ago) immunoprecipitation coupled with high-throughput sequencing (CLIP-Seq).14 starBase is a database curated interaction networks of lncRNAs, miRNAs, and mRNAs that processed by CLIP-Seq (HITS-CLIP, PAR-CLIP, iCLIP, CLASH) data.15 In total, we download 423 975 miRNA-mRNA interactions from starBase, including 13 861 mRNAs and 386 miRNAs. We also downloaded all the human TFs from previous studies and then mapped them to the miRNA-mRNA interactions to extract the miRNA-TF interactions. Furthermore, we downloaded all the lncRNA sequences from GENCODE database and TF targeted miRNAs sequences from miRbase database. Miranda algorithm was performed to identify significant miRNA-lncRNA interactions (parameters: default).

2.3 Construction of a GLTN

Secondly, Pearson correlation coefficients (PCCs) of all the candidate lncRNA-TF pairs were computed. Only the candidate lncRNA-TF pairs with PCC grater than 0.6 and P less than .05 were defined as significant lncRNA-TF pairs. Then, GLTN was constructed by combining all significant TF-lncRNA pairs. Cytoscape (http://www.cytoscape.org/) was used for network visualization.

2.4 Construction of HALTN

In network topology, degree is defined as the number of edges that link to a node. Hub genes with higher degrees in biological networks are more important than others.16 Thus, in this study, we selected the top 10% nodes (including lncRNAs and TFs) with the highest degrees in the GLTN as the hubs. HALTN was finally constructed by mapping these hub nodes to the GLTN and extracting all the related edges connecting them.

2.5 Topological analysis of networks

We calculated multiple topological characters of the GLTN and HALTN by running the “igraph” package in R language. For the average path length of the network, 1000 random degree-conserved networks were chosen as control, and the measurement of average path length in each random network was counted. P values were calculated by the fraction of the number of average path length in random network larger than that in the real network.

2.6 Identification of core lncRNA-TF modules

lncRNAs are demonstrated to tend to function in modules.17 To identify core lncRNA-TF modules, we imported the HALTN to the Cytoscape software, and used the plug-in of “MCODE” to identify the functional modules (parameters: “Haircut”, “Fluff”, Node Score Cutoff: 0.2). DAVID (https://david.ncifcrf.gov/) and PATHWAX (http://pathwax.sbc.su.se/) were used for Gene Ontology (GO) and pathway enrichment analysis.

2.7 Construction of the risk score model

2.8 Survival analysis

A Kaplan-Meier survival analysis was performed for high- and low-risk groups of patients. Log-rank test (P less than .05) was used to yield statistical significance. All analyses were performed using the R 3.3.0 software.

2.9 DNA regulatory elements and motif analysis

To identify active enhancers in GBM, we downloaded the H3K27ac ChIP-seq data (GSE61852) from GEO database. TopHat and MACs were respectively used to align to human genome (hg19) and identify ChIP-seq peaks. Enhancers were defined as the ChIP-seq peaks that located more than 2 kb from transcription start site (TSS). Promoters were defined as ±2kb from TSS. For the motif analysis, we used FIMO with a P value less than 1e−4 to scan enhancer and promoter regions.18

3.1 Construction and analysis of GLTN

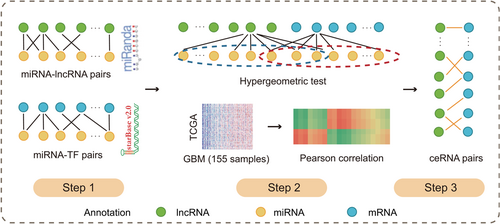

Recent studies have found that lncRNAs played crucial roles in the pathological processes of cancers. TFs can bind the promoters or enhancers to regulate the expression of lncRNAs. The ceRNA crosstalks were composed between TFs and lncRNAs that mediated by miRNAs in the posttranscriptional levels. Based on the complex regulatory structure, in this study, to evaluate the functional roles of lncRNAs in GBM, we downloaded the expression matrix of GBM with 155 cancer samples from TCGA data portal. Then we constructed a network named GLTN via a pipeline that encompasses multiple steps (Figure 1, details in methods). In brief, firstly, we mapped all the human TFs to the mRNAs of expression matrix and only reserved the mapped TF-related expression matrix. Then we downloaded and extracted all the AGO-CLIP supported miRNA-TF interactions from starBase database. All the miRNA-lncRNA interactions were obtained from bioinformatics algorithm software miRanda. A candidate lncRNA-TF pair was generated if they competed for at least one common miRNA. We counted the number of common miRNAs that shared between every candidate lncRNA-TF pair. Finally, all the lncRNA-TF ceRNA pairs were identified by performing hypergeometric test at the threshold of P value less than .05 and Pearson correlation test at the threshold of PCC greater than 0.6 and P value less than .05, which composed a binary regulatory network named GLTN. As a result, GLTN contained 507 lncRNA nodes, 437 TF nodes and 2759 edges (Figure 2A).

3.2 Topological features of GLTN

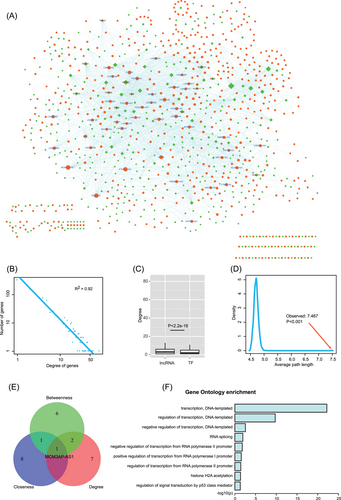

To evaluate the biological functions of lncRNAs and TFs, topological analysis was performed to GLTN. We performed the degree distribution to the network and found that all the nodes followed the power-law distribution (Figure 2B, R² = .92), indicating that GLTN network is scale free with a small subset of high-degree genes (defined as hub genes) connecting the other genes. We also found that lncRNA nodes usually had higher degrees compared to TF nodes (Figure 2C), implying that a TF could bind to more than one lncRNAs to exert regulatory function. Next, we calculated average path length of GLTN and found average path length of the real network substantially larger than that of random networks (Figure 2D, 1000 times random network, P less than .001), suggesting that GLTN had reduced global efficiency. Above results indicated that lncRNA-TF ceRNA interactions prefer to form regional modules and hub genes might mediate all regional modules. Furthermore, studies found that nodes with central topology features in biological network played key roles in biological processes. Thus, topology features of degree, betweenness and closeness were calculated for nodes in network, respectively. We then selected top 10 crucial nodes of each topological feature and results showed the little intersection among the three features. Even so, we still found an lncRNA named MCM3AP-AS1 ranked in the top of any one topological feature (Figure 2E), indicating that this lncRNA might play important roles in the pathological processes in GBM. Interestingly, some studies have found that this lncRNA MCM3AP-AS1 participated in the regulatory processes of GBM. For instance, Yang et al found that MCM3AP-AS1 was associated with cell viability and migration. Knockdown of MCM3AP-AS1 can repress tube formation of glioma-associated endothelial cells, leading to angiogenesis inhibition of GBM in vitro. Furthermore, knockdown of MCM3AP-AS1 can activate miR-211. KLF5 is the downstream target of miR-211 and is associated with the promoter region of AGGF1. Knockdown of KLF5 repressed AGGF1 expression, which further resulted in inhibiting the activation of PI3K/AKT and ERK1/2 signaling pathways.19 We performed GO and pathway enrichment analysis to the MCM3AP-AS1-related TFs in GLTN (Figures 2F and S1). Results showed that these genes were associated with some basal functions in transcription, such as “regulation of transcription” and “histone acetylation.” Notably, MCM3AP-AS1 might control the P53-related signal transduction. These results suggested that the crucial “hubs” might locate in the central of GLTN and regulate multiple processes in GBM.

3.3 Identification and analysis of hub nodes in GLTN

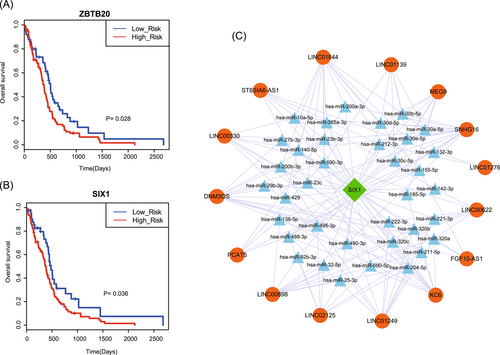

Based on previous studies, a small subset of genes with high degrees was defined as hub genes. In our study, we selected the top 10% nodes (including lncRNAs and TFs) with the highest degrees in the GLTN as the hubs. As a result, 42 lncRNAs and 52 TFs were selected as hubs. Next, to investigate whether single hub gene with specific properties were prognostic factors in GBM, we performed Cox regression analysis for all ceRNAs and obtained 28 lncRNAs and 26 TFs as prognostic factors (Table S1 and S2). Unexpectedly, for lncRNAs hubs, none of them had a significant effect on survival; and for TF hubs, only two TFs (zinc finger and BTB domain containing 20 [ZBTB20], sine oculis homeobox homolog 1 [SIX1]) were prognostic factors in GBM (Figure 3A and 3B). Furthermore, to investigate the topological features of prognostic factors, we compared the degrees of prognostic factors to other nodes. Results showed that degrees of most prognostic factors were relatively small, indicating that these genes located in the corner of GLTN. This phenomenon was also validated by other studies. Interestingly, we found that TF SIX1 connected with multiple hub lncRNAs in GLTN. Many studies have demonstrated that SIX1 is a crucial regulatory factor in GBM. Tian et al demonstrated that silencing of SIX1 by shRNA would subsequently inhibit cell proliferation and invasion in GBM. Moreover, overexpression of SIX1-induced CTGF upregulation in GBM and significantly enhanced activity of CTGF promoter. Meanwhile, repression of CTGF expression could block SIX1-induced cell proliferation and invasion, revealing that SIX1 participated in GBM growth and metastasis combined with CTCF.20 Then, we performed a comprehensive analysis for triple network that composed of SIX1 and the connected hub lncRNAs (Figure 3C). In the triple network, some miRNAs that mediated the ceRNA pairs have been demonstrated to play complex roles in pathological processes of GBM. For instance, previous studies found that reduction of Dicer levels in human GBM cell lines caused activation of p27 (Kip1) and repression of cell proliferation. p27 (Kip1) is the downstream target of miRNA 221/222, indicating that these microRNAs played a crucial role in promoting the aggressive growth of human GBM.21 Xia et al22 found that overexpression of miR-204-5p suppressed glioma cell growth, migration and invasion, and further suppressed tumorigenesis and increased overall survival in glioma cells. Sun et al demonstrated that miR-320c could suppress cell proliferation and metastasis by targeting E2F1. When suppressing miR-320c in multiple glioma cell lines, cell proliferation and migration will be enhanced.23 All these results indicated that hub gene-related ceRNA crosstalks participated in the regulatory processes of GBM and dysfunction of ceRNA crosstalks might lead to the change of pathology.

3.4 Construction and analysis of HALTN

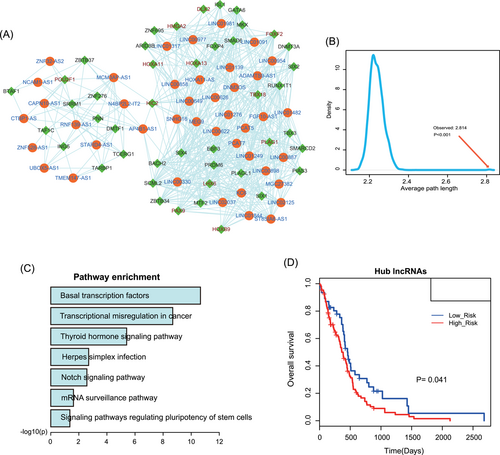

Results of last section suggested that the regulatory roles of ceRNA pairs between hub genes are important. Thus, we extracted all the hub-hub associated ceRNA pairs and constructed HALTN (Figure 4A). HALTN composed of 86 hubs (42 lncRNAs and 44 TFs) and 588 edges. We can see two components in HALTN visually. We calculated the average path length of HALTN, which was substantially larger than that of random networks (Figure 4B, 1000 times random network, P less than .001). This result implied that the network had reduced global efficiency and multiple modules were mediated by betweenness centrally genes. To investigate the biological functions of HALTN in GBM, we performed pathway enrichment to the hub TFs in network (Figure 4C). Result showed that some basal pathways, such as “Basal transcription factors” and “Transcriptional misregulation in cancer” have been enriched, indicating these hubs controlled the fate of other genes in GBM. “Notch signaling pathway”, which has been validated as a key regulatory path in GBM, has also enriched in HALTN.24 Single hub gene has weak effects on prognosis of GBM patients. Some studies have suggested that multiple combined genes have strong effect on survival. Therefore, to determine whether these hubs were prognostic factors for GBM, we constructed a risk model. Firstly, we detected the prognosis effects of all lncRNA hubs and all TF hubs, respectively. Results showed that all lncRNA hubs but not all TF hubs have significant effect on prognosis of GBM (Figures 4D and S2). However, when we combined all lncRNA and TF hubs into a risk factor, a stronger prognosis effect has occurred than the prognosis effect of only lncRNA hubs, indicating that ceRNA crosstalks could improve the prognosis effect.

3.5 Identification of functional modules in HALTN

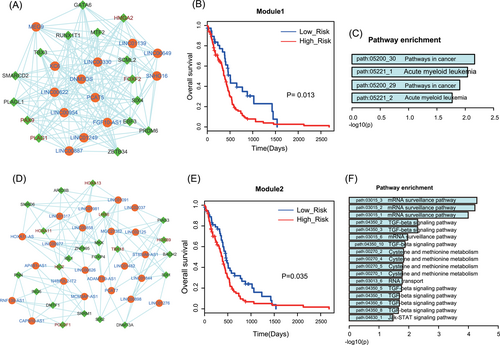

Previous studies have found that lncRNAs exerted functions in close modules. After importing HALTN to Cytoscape, we used a plugin “MCODE” to identify functional modules. Coincidentally, two modules were identified in the two component of HALTN, respectively. The module 1 was composed of 28 nodes (13 lncRNAs and 15 TFs) and 164 edges (Figure 5A). We performed the subpathway enrichment to TFs in module 1 (Figure 5C) and showed that 4 subpathways were enriched because of the fewer genes. Even so, this module also encompassed some crucial genes, such as high mobility group AT-hook 2 (HMGA2), GATA binding protein 6 (GATA6) and forkhead box F2 (FOXF2). Kaur et al identified that the expression level of HMGA2 was activated in primary human GBM tumors and cell lines. Knockdown of HMGA2 led to decreased stemness, invasion and tumorigenicity of GBM.25 Some studies devoted to investigating the methylation levels of GATA6 DNA regulators, indicating the importance of methylation of gene GATA6 in GBM patient outcome.26 Additionally, FOXF2 has also been demonstrated to suppress the transcription of p21Cip1 CDK inhibitor with FoxF1, which synergistically promoted rhabdomyosarcoma carcinogenesis.27 Module 2 encompassed 44 nodes (22 lncRNAs and 22 TFs) and 120 edges (Figure 5D). Subpathway enrichment results showed that this module was related to basal functions, “TGF-beta signaling pathway” and “Jak-STAT signaling pathway” (Figure 5F). Previous studies have found that the transforming growth factor β (TGF-β) pathway functions as an pan-cancer oncogenic factor and is regarded as a therapeutic target.28 TGF-beta increased the self-renewal capacity of Glioma-initiating cells via activating Smad/LIF/JAK-STAT axis. And the effect of TGF-beta and LIF on Glioma-initiating cells promotes oncogenesis.29 Furthermore, Senft et al30 found that suppression of the JAK-2/STAT3 pathway decreased the migratory and invasive potential of GBM cells. Module 2 also contained numbers of known GBM-related TFs, such as SIX1, HOXA11.

Functional modules often showed a stronger prognosis effect than single genes. To determine whether the two modules have the prognosis effects on GBM, we integrated expression profiles of genes into a risk model to perform survival analysis. As a result, we classified the training GBM patients into high- and low-risk groups with different clinical outcomes, respectively (Figure 5B and 5E). These results suggested that synergistic, competing modules composed of lncRNAs and TFs have significant prognosis effects and could be used as biomarkers in GBM.

3.6 Identification of core lncRNA-TF crosstalks

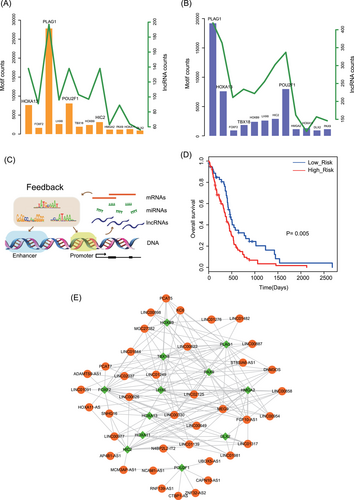

Recent studies have found that TFs can bind the DNA regulatory elements to control the expression of lncRNAs. Thus, to investigate the binding motifs between TFs and lncRNAs, we performed motif searching analysis to the DNA regulatory elements of all lncRNAs. As a result, we find amount of TF binding sites in the enhancers and promoters of lncRNAs, respectively (Figure 6A and 6B). Hub genes often play important roles in the biological processes, so we extracted the motif searching results of 12 hub TFs. In the enhancer regions, TF PLAG1 has the most numerous binding sites and target lncRNAs (Figure 6A). PLAG1 was reported as a oncogene that involved in the Wnt pathway to regulate cancer pathology.31 HOXA13 and POU2F1 also have large amount of binding sites and target lncRNAs. Previous studies found that increased HOXA13 expression can lead to enhanced cell proliferation and invasion. HOXA13 suppressed expressions of β-catenin and phospho-smad2/3 in the nucleus and activated phospho-β-catenin in the cytoplasm. Downregulation of HOXA13 resulted in decreased tumor growth.32 In the promoter regions, PLAG1, HOXA13 and POU2F1 also had the most binding sites and bound the majority of lncRNAs (Figure 6B). All these results implied that hub TFs might function as core TFs that bind the enhancers and promoters of abundant lncRNAs and form the “feedback loops” to participate in cancer biology (Figure 6C). Next, we extracted all hub TF-hub lncRNA regulatory pairs that occurred in enhancers and promoters from motif searching results. Totally, 167 pairs that encompassed 12 TFs and 39 lncRNAs were identified (Figure 6E). These core lncRNA-TF crosstalks had a significant prognosis effect on GBM (Figure 6D). These results suggested that the synergy of core lncRNA-TF crosstalks not only maintained the key pathological function, but also had an impact on patient survival.
