Protein kinase C (PKC) participates in acetaminophen hepatotoxicity through c-jun-N-terminal kinase (JNK)-dependent and -independent signaling pathways

Materials

All inhibitors (Ro-31-8425, Go6983, Go6976, Compound C) and the activator (AMPK activator III, DHPO) were purchased from Calbiochem (San Diego, CA).

Antisense oligonucleotide (ASO) targeting mouse PKC-α (Isis Pharmaceuticals, Carlsbad, CA) and a chemical control oligonucleotide were synthesized as 20-nt uniform phosphorothioate chimeric oligonucleotide and purified. Oligonucleotides were chimeric oligonucleotides containing five nuclease resistant 2′-O-methoxyethylribose-modified phosphorothioateresidues on the 5′ and 3′-ends, flanking a 2′-deoxyribonucleotide/phosphorothioate region that supports RNase H-based cleavage of the targeted mRNA. Mice were injected intraperitoneally with PKC-α ASO or control ASO (scrambled) six times (50 mg/kg every other day).

Animals

Male mice (C57 BL/6; 6-8 weeks of age) were obtained from Harlan Bioproducts (Indianapolis, IN). The animals were fasted overnight (water was available) prior to experiments. All the treatments were administered intraperitoneally; APAP (Sigma) was dissolved in warm phosphate-buffered saline (PBS; 55°C) and cooled to 37°C before injection into mice (300 mg/kg). In experiments with PKC inhibitor (Ro-31-8425), PKC inhibitor was dissolved in dimethyl sulfoxide (DMSO) (8.3%, v/v) and PBS (1 mg in 125 μL of DMSO diluted with 1,375 μL of PBS). PKC inhibitor (10 mg/kg) was injected (intraperitoneally, 0.3 mL injection) into mice 1 hour prior to APAP injection (500-800 mg/kg). Since DMSO reduces APAP-induced liver injury by inhibiting NAPQI production, studies with PKC inhibitors dissolved in PBS-DMSO require higher APAP doses (500-800 mg/kg APAP) to induce liver injury than studies using ASO (300 mg/kg APAP), where DMSO is not used.

Isolation of Liver Mitochondria and Cytoplasm

Mitochondria were isolated from the livers by differential centrifugation.28 Livers were excised and homogenized in H-medium (210 mM mannitol, 70 mM sucrose, 2 mM HEPES, 0.05% BSA [w/v], plus protease and phosphatase inhibitors). The homogenate was centrifuged at 800g for 10 minutes, the pellet removed, and the centrifugation process repeated. The resulting supernatant was centrifuged at 8,500g for 15 minutes. The supernatant (“cytoplasmic” postmitochondrial S9 fraction) was collected and stored. The pellet (mitochondrial fraction) was washed with H-medium and the centrifugation repeated. The mitochondria were resuspended in H-medium before oxygen electrode and western blot analysis.

Measurements of Respiration in Isolated Mitochondria

Respiration was measured in freshly isolated mitochondria by monitoring oxygen consumption with a Clark-type electrode (Hanstech, UK) in respiration buffer (230 mM mannitol, 70 mM sucrose, 30 mM Tris-HCl, 5 mM KH₂PO₄, 1 mM EDTA, pH 7.4).3 Isolated mitochondria (0.50-0.70 mg) were added to 1 ml of respiration buffer and oxygen consumption (state III respiration) was monitored in the presence of mitochondrial substrates (succinate 7.5 mM −complex II substrate) with ADP (250 mM).

Cell Culture

Primary mouse hepatocytes were isolated as previously described from C57BL/6 mice.9 Cell culture experiments were performed in two different ways with inhibitors being added before or after APAP treatment: pretreatment or posttreatment. In pretreatment, first hepatocytes were treated with various inhibitors. One hour later hepatocytes were treated with various doses of acetaminophen in medium in the presence of an inhibitor. In the posttreatment protocol, hepatocytes were first exposed to different doses of APAP in media. After 2 hours exposure to APAP, the culture media was changed and the APAP was removed; then hepatocytes were treated overnight with various inhibitors, such as PKC inhibitors, or compound C.

Additional studies were done without removal of APAP in the presence or absence of PKC inhibitors.

Determination of Apoptosis and Necrosis

After 16-24 hours of various treatments, cells were double-stained with 8 μg/mL Hoechst 33258 and 1 μM Sytox green. Hepatocytes were treated for 15 minutes with Hoechst 33258, a nucleic acid stain that binds dsDNA of both live and dead cells in order to assess nuclear fragmentation. Sytox green, a nucleic acid dye that stains dead cells (cells with compromised membranes) was added just before analysis. After the cells were stained, culture dishes were observed under an Olympus fluorescent microscope. Quantitation of total and necrotic cells (Sytox green-positive) was performed as previously described by counting >1,000 cells in 10 different fields.9 Very little apoptosis (nuclear fragmentation) was observed (<5%) in hepatocytes with either APAP or PKC inhibitor treatments.

Immunoblot

AMPK-α, p-AMPK-α (thr172), JNK, p-JNK (p46 and p54), LC3A/B, LC3B, SQSTMI/P62, prohibitin1, and β-actin antibodies were obtained from Cell Signaling Technologies (Danvers, MD). PKC-α and PKC-ε antibodies were obtained from Santa Cruz Biologicals (Santa Cruz, CA). PKC activity was assessed in hepatocyte lysate by western blot using an antibody (Cell Signaling Technologies) that recognizes proteins phosphorylated by PKC (PKC recognition motif: serine residues surrounded by arginine or lysine at the −2 and +2 positions and a hydrophobic residue at the +1 position). The antiserum to the NAPQI protein adducts was provided by Drs. Jack A. Hinson and Laura James of the University of Arkansas. Cyp2e1 antibody was obtained from Stressgen Biotechnologies (San Diego, CA). All gels shown were representative samples from three experiments. Densitometry was performed using the NIH Image J program.

Histological Analysis

Livers were removed, fixed with 10% buffered formalin, embedded in paraffin, and cut into 5-μm thick sections. All specimens were stained with hematoxylin/eosin and evaluated under a light microscope.

HPLC Measurements for GSH and GSSG

GSH and GSSG were detected using reverse-phase high-performance liquid chromatography (HPLC) and a Coulochem II electrochemical detector (ESA Laboratories, Chelmsford, MA) as described.3 At collection timepoints, samples were treated with 5% metaphosphoric acid to prevent GSH autoxidation.

Statistical Analysis

Statistical analyses were performed using paired Student t test or analysis of variance (ANOVA). P ≤ 0.05 was defined as statistically significant.

PKC Plays an Important Role in APAP-Induced Necrosis in Primary Cultured Hepatocytes

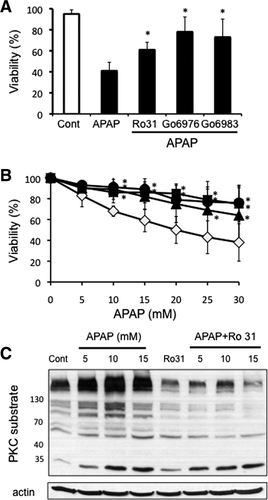

Pretreatment of primary cultured hepatocytes with two different broad-spectrum PKC inhibitors (Ro-31-8425, Go6983) and a classical PKC inhibitor (Go6976), significantly protected against APAP cytotoxicity (Fig. 1A). To ensure that PKC inhibitors protect against APAP cytotoxicity without affecting APAP metabolism, in subsequent experiments PKC inhibitors were added 2 hours after APAP treatment, at the time the APAP was removed (posttreatment). Similar to pretreatment experiments, posttreatment with PKC inhibitors significantly protected against APAP-induced hepatocyte necrosis (Fig. 1B). The posttreatment model required higher APAP concentrations to cause cytotoxicity, since APAP was removed after 2 hours to eliminate the possibility that PKC inhibitors could protect against APAP by modulating GSH depletion or covalent binding. As expected, posttreatment with PKC inhibitor did not affect covalent binding of NAPQI (Supporting Fig. 1A).

PKC activation (proteins phosphorylated by PKC) increased in a dose-dependent manner following APAP treatment and was inhibited by broad-spectrum PKC inhibitor, Ro-31-8425 treatment (posttreatment; Fig. 1C). Similar inhibition of APAP-induced PKC activation was observed with Go6983 and Go6976 treatment (Supporting Fig. 1B). These findings suggest that PKC(s) are activated by APAP treatment in hepatocytes and play an important role in mediating necrotic cell death induced by APAP.

PKC Inhibitors Protect Against APAP Cytotoxicity Through JNK-Dependent and -Independent Pathways

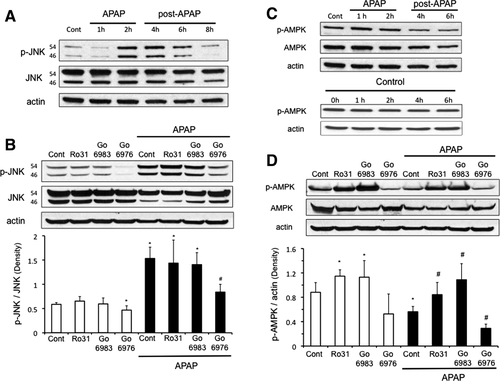

We next examined whether or not the protection of PKC inhibitors against APAP in cultured hepatocytes was mediated through an effect on JNK. As expected, APAP treatment in cultured hepatocytes activated JNK, starting around 2 hours (Fig. 2A). Treatment of hepatocytes with broad-spectrum PKC inhibitors, Go6983 or Ro-31-8425 (posttreatment), did not affect the enhanced p-JNK levels induced by APAP treatment (Fig. 2B). In contrast, the classical PKC inhibitor, Go6976, decreased p-JNK levels under basal conditions and in the presence of APAP. This suggests that broad-spectrum PKC inhibitors protected against APAP through a JNK-independent pathway, while classical PKC inhibitor protected through a JNK-dependent pathway.

Broad-Spectrum PKC Inhibitors Modulate p-AMPK to Protect Hepatocytes From APAP Cytotoxicity

APAP treatment caused a decline in p-AMPK levels, which was due in part to an overall decline in AMPK levels in cultured hepatocytes (Fig. 2C). p-AMPK levels were not altered with time in untreated, control samples (Fig. 2C). Broad-spectrum PKC inhibitors increased the basal levels of p-AMPK and increased p-AMPK levels in the presence of APAP, even though total AMPK levels still remained suppressed (Fig. 2D). In contrast, the classical PKC inhibitor Go6976 caused a further decline in p-AMPK and AMPK levels triggered by APAP treatment. This difference between the effect of broad-spectrum and classical PKC inhibitors on p-AMPK levels suggests that APAP treatment possibly activates novel and/or atypical PKC(s) that have an inhibitory effect on p-AMPK, which is blocked by broad-spectrum PKC inhibitors, but not classical PKC inhibitors.

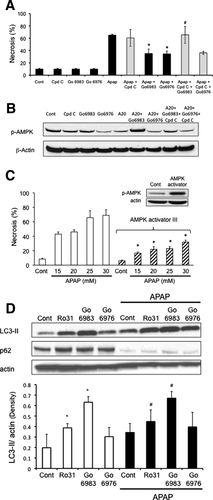

To confirm the importance of p-AMPK in APAP cytotoxicity, we modulated AMPK activity using an inhibitor and an activator. The AMPK inhibitor, compound C (Cpd C), prevented p-AMPK up-regulation induced by the broad-spectrum PKC inhibitor Go6983 and reversed its protective effect against APAP cytotoxicity (Fig. 3A,B). On the other hand, in hepatocytes treated with Go6976 and APAP, Cpd C treatment did not reverse the protective effect against APAP cytotoxicity, presumably because p-AMPK levels were already markedly decreased. These data support the interpretation that broad-spectrum PKC inhibitors protect through an AMPK-dependent but JNK-independent pathway, while the classical PKC inhibitor Go6976 protects through an AMPK-independent but JNK-dependent pathway. To further confirm that activation of AMPK is important in APAP cytotoxicity, hepatocytes were treated with an AMPK activator (AMPK activator III, Calbiochem). AMPK activator significantly protected against APAP cytotoxicity in primary cultured hepatocytes in the posttreatment protocol (Fig. 3C).

p-AMPK Regulates Survival Pathways, Including Autophagy, That Are Important in Regulating APAP Cytotoxicity

We next examined possible downstream targets of p-AMPK that may be involved in protecting hepatocytes against APAP. p-AMPK is known to activate autophagy through inhibition of mTORC1, which has been suggested to be protective against APAP cytotoxicity.24, 26 APAP treatment alone to cultured hepatocytes appears to enhance autophagy as indicated by a key marker of autophagy, nucleoporin 62 (p62) degradation (Fig. 3D). Another marker of autophagy, microtubule-associated protein light chain 3-II (LC3-II) formation also appeared to increase with APAP treatment, although the increase was not statistically significant. Broad-spectrum PKC inhibitors, which enhanced p-AMPK levels, enhanced LC3-II formation alone or in the presence of APAP (Fig. 3D). Go6983, which protected against APAP cytotoxicity more effectively than Ro-31-8425, was more effective than Ro-31-8425 in enhancing LC3-II formation. P62 levels were already maximally depleted with APAP treatment, and thus could not be used to assess differences with PKC inhibitors. The classical PKC inhibitor Go6976 showed a trend of increasing LC3-II formation, but this was not statistically significant. Taken together, the data suggest that broad-spectrum PKC inhibitor treatment may be protecting against APAP, even when JNK activity is sustained, at least to some extent through an AMPK-dependent increase of autophagy.

PKC Inhibitor Ro-31-8425 Protects Against APAP-Induced Liver Injury In Vivo Despite Sustained JNK Activation

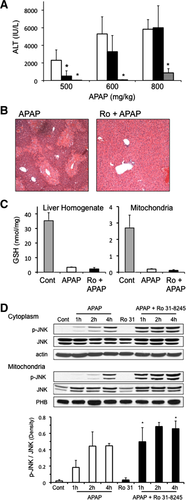

We next determined if the PKC inhibitor Ro-31-8425 could protect against APAP in vivo. Other inhibitors could not be studied due to solubility issues requiring excessive DMSO. Mice were pretreated with Ro-31-8425 (10 mg/kg dissolved in DMSO and PBS) 1 hour prior to treatment with various doses of APAP. Ro-31-8425 treatment significantly protected against an APAP dose of 500 mg/kg, but not at higher doses of APAP, as observed with JNK inhibitor treatment (Fig. 4A). Centrilobular necrosis caused by APAP was markedly reduced with Ro-31-8425. Ro-31-8425 did not affect GSH depletion caused by APAP (Fig. 4C). In addition, Ro-31-8425 pretreatment significantly enhanced JNK phosphorylation and translocation to mitochondria caused by APAP treatment (Fig. 4D). Thus, as observed in vitro, Ro-31-8425 could protect against APAP hepatotoxicity even though JNK activity was sustained, or even elevated in vivo, with Ro-31-8425 treatment.

Protection Against APAP-Induced Liver Injury by Ro-31-8425 Treatment Is Associated With Enhanced p-AMPK Levels and Enhanced Autophagy

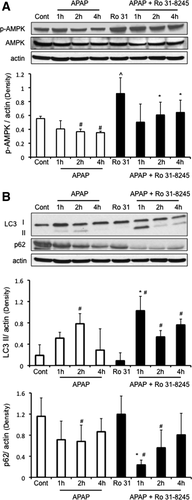

As seen in vitro, APAP treatment caused a significant decline in p-AMPK levels in the liver. Ro-31-8425 treatment enhanced p-AMPK levels, alone and in the presence of APAP, despite some decline in total AMPK levels (Fig. 5A). The enhanced p-AMPK levels found with Ro-31-8425 pretreatment in vivo were associated with an enhanced autophagy in the liver. APAP treatment alone enhanced LC3-II formation and p62 degradation significantly at 2 hours in the liver, suggesting an induction of autophagy by APAP treatment (Fig. 5B). Ro-31-8425 pretreatment, on the other hand, significantly enhanced LC3-II formation at all timepoints examined following APAP treatment and increased p62 degradation at 1 and 2 hours following APAP treatment. The enhancement of autophagy by Ro-31-8425 treatment was most prominent at the 1-hour APAP treatment timepoint, where a significant LC3-I to LC3-II conversion and increase in p62 degradation were observed compared to APAP treatment alone. These data suggest that Ro-31-8425 treatment in vivo enhances autophagy (especially at 1 hour following APAP), which has been suggested to protect against APAP.26

Silencing PKC-α Using Antisense Protects Against APAP-Induced Liver Injury Through a JNK-Dependent Pathway In Vivo

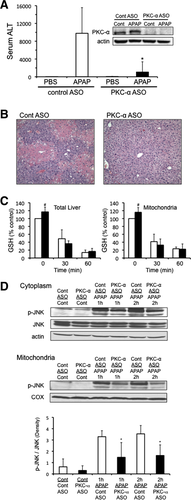

We next silenced PKC-α expression using antisense (ASO) to determine if PKC-α was responsible for the JNK-dependent protection observed with classical PKC inhibitor Go6976 treatment in cultured hepatocytes. Silencing PKC-α using ASO protected against APAP-induced liver injury in mice, as seen by a significant decline in the alanine aminotransferase (ALT) levels and decreased centrilobular necrosis (Fig. 6A,B). Silencing PKC-α caused a slight increase in basal GSH levels in the liver and liver mitochondria (Fig. 6C), while also increasing Cyp2e1 levels in the liver (Supporting Fig. 2A). However, silencing PKC-α did not affect the rate of GSH depletion caused by APAP (Fig. 6C). As observed with Go6976 treatment in vitro, silencing PKC-α significantly inhibited JNK phosphorylation and translocation to mitochondria (Fig. 6D). This suggests that PKC-α plays a key role in activating and/or sustaining JNK during APAP hepatotoxicity.

We previously observed that silencing PKC-α also affects PKC-ε levels, possibly due to regulation of PKC-ε by PKC-α.9 To confirm that the protective effects of PKC-α ASO against APAP were due to PKC-α and not PKC-ε, APAP hepatotoxicity was tested in PKC-ε knockout mice. PKC-ε knockout mice were not protected against APAP-induced liver injury (Supporting Fig. 2B), suggesting that PKC-ε is not involved in APAP hepatotoxicity.

PKC-α Translocates to Mitochondria and Inhibits Mitochondrial Respiration During APAP-Induced Liver Injury

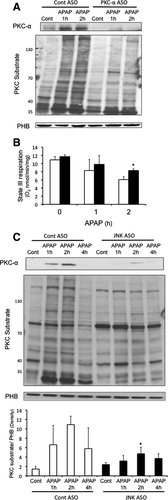

PKC-α, like JNK, has been reported to translocate to mitochondria to decrease respiration and enhance ROS generation.29 We observed that APAP treatment caused PKC-α translocation to mitochondria, which was associated with increased phosphorylation of mitochondrial proteins by PKC (Fig. 7A). Silencing of PKC-α with ASO decreased the level of mitochondrial proteins phosphorylated by PKC. APAP-induced mitochondrial dysfunction was also reduced in PKC-α silenced mice (Fig. 7B), suggesting that PKC-α translocation and phosphorylation may play a role in mitochondrial dysfunction during APAP hepatotoxicity.

The fact that silencing PKC-α reduced JNK activation and translocation to mitochondria suggested that JNK may be downstream of PKC-α. To confirm the sequence of signaling events, we silenced JNK 1 and 2 using ASO and examined the effect on PKC-α translocation to mitochondria. Surprisingly, silencing JNK reduced PKC-α translocation to mitochondria and reduced the level of mitochondrial proteins phosphorylated by PKC (Fig. 7C). Although some variability and aberrant changes in a few phosphorylated PKC substrate proteins were observed, overall there was a dramatic decrease in proteins phosphorylated after APAP treatment in the JNK ASO-treated mice. This suggests that PKC-α and JNK participate jointly through a feed-forward interconnected mechanism to mediate APAP-induced liver injury.

PKC Plays an Important Role in APAP Hepatotoxicity

APAP hepatotoxicity is mediated by a signal transduction pathway involving JNK activation and translocation to mitochondria.3 In this study using a wide variety of PKC inhibitors and silencing of PKC-α, we observed that the PKC family members also play an important role in APAP hepatotoxicity. The mechanism of protection by PKC inhibitors differed markedly, with broad-spectrum PKC inhibitors (Go6983 or Ro-31-8425) protecting through a JNK-independent, AMPK-dependent pathway, and the classical PKC inhibitor (Go6976) or silencing PKC-α protecting through a JNK-dependent, AMPK-independent pathway.

Broad-Spectrum PKC Inhibitors Protect Against APAP Hepatotoxicity Through an AMPK-Dependent, JNK-Independent Pathway

Our findings with broad-spectrum PKC inhibitors suggest that APAP activates various PKC isoforms that modulate p-AMPK. However, although chemically distinct, these small molecule broad-spectrum PKC inhibitors could have off-target effects and other proteins besides PKC might be inhibited.30 Regardless, our work with PKC inhibitors uncovered the importance of p-AMPK in modulating APAP hepatotoxicity. APAP treatment decreased the level of p-AMPK in hepatocytes and the liver, which was prevented by broad-spectrum PKC inhibitors. The loss of p-AMPK may therefore be an important contributing mechanism in mediating APAP hepatotoxicity.

AMPK is known to promote autophagy, a prosurvival pathway, through inhibition of mTORC1. APAP treatment alone increased LC3-II formation and p62 degradation both in vitro and in vivo, suggesting APAP treatment promotes autophagy, as previously reported.26 Enhancement of AMPK by broad-spectrum PKC inhibitors was associated with an enhancement of autophagy markers both in vitro (increase LC3-II formation) and in vivo (increase LC3-II formation, p62 degradation). Broad-spectrum PKC inhibitor may be protecting against APAP both in vitro and in vivo by enhancing autophagy, a protective mechanism against APAP.26 However, autophagy is difficult to accurately measure, particularly in vivo, and more work is needed to definitively assert that broad-spectrum PKC inhibitors enhance autophagy through an AMPK-dependent pathway.

Overall, our work demonstrates for the first time that protection against APAP hepatotoxicity can occur despite sustained JNK activation. Many signaling pathways have been shown to modulate APAP hepatotoxicity, but they do so by modulating JNK signaling. Thus, it was surprising that Ro-31-8425 protected against APAP hepatotoxicity both in cultured hepatocytes and in vivo, despite enhanced JNK phosphorylation and translocation to mitochondria. Although APAP hepatotoxicity requires activation of JNK-mediated cell death pathways, AMPK may concomitantly contribute by suppressing or counteracting the downstream effects of p-JNK binding to mitochondrial Sab (Fig. 8). Thus, broad-spectrum PKC inhibitors up-regulate AMPK, which promotes survival pathways (i.e., autophagy) in parallel with JNK death pathways, resetting the threshold for cell death.

Another surprising finding in this study was that Ro-31-8425 treatment further enhanced APAP-induced JNK phosphorylation in vivo. This finding would suggest that a PKC isoform is involved in suppressing JNK phosphorylation following APAP treatment. APAP treatment leads to activation of ASK, MLK3, and GSK-3β, which are upstream of JNK activation, but APAP may simultaneously activate a PKC isoform or other protein (inhibitable by Ro-31-8425) that partially dampens JNK activation. In RALA and other cell lines, oxidative stress has been shown to activate PKC-n (inhibited by Ro-31-8425), which suppresses JNK activity through a PKD-dependent mechanism.31, 32 However, the existence of PKC-n and PKD in hepatocytes has not been determined. Whether PKC-n and PKD, or other proteins that can be inhibited by Ro-31-8425, negatively regulate JNK in the liver will require further work.

PKC-α Protects Against APAP Hepatotoxicity Through a JNK-Dependent Pathway

The classical PKC inhibitor Go6976 protected against APAP, through an AMPK-independent (not inhibited by compound C) and JNK-dependent pathway. We found that PKC-α plays an important role in activating and/or sustaining JNK to mediate APAP hepatotoxicity. This presents an apparent contradiction with the observation that Ro-31-8425, a strong PKC-α inhibitor, did not inhibit JNK activation caused by APAP (Fig. 4D). However, as previously mentioned, the broad-spectrum PKC inhibitors may be targeting atypical or unconventional PKCs, which inhibit pathways that down-regulate JNK, resulting in enhanced p-JNK levels while at the same time activating AMPK survival mechanisms that are either downstream, or completely separate from JNK. APAP treatment caused PKC-α translocation to mitochondria and concomitantly increased PKC-dependent phosphorylation of mitochondrial proteins, which was accompanied by mitochondrial dysfunction. Previous studies have also suggested that PKC-α translocates to mitochondria, inhibiting mitochondrial respiration.29 Silencing of PKC-α expression reduced mitochondrial dysfunction caused by APAP, suggesting that PKC-α was involved in disrupting mitochondrial respiration. However, whether mitochondria dysfunction was due directly to PKC-α or due to JNK translocation to mitochondria or both will require further investigation. Thus, both JNK and PKC-α translocation to mitochondria may be required for maximal inhibition of mitochondrial respiration, and consequently increased ROS generation important in sustaining JNK activity during APAP hepatotoxicity.

In summary, using a wide variety of PKC inhibitors and silencing of PKC-α, we observed that PKC family members play an important role in APAP hepatotoxicity. The mechanism of protection by PKC inhibitors differed markedly. Both inhibition of classical PKCs by an inhibitor and silencing PKC-α protected through a JNK-dependent, AMPK-independent pathway. In contrast, two different broad-spectrum PKC inhibitors protected through a JNK-independent, AMPK-dependent pathway, which likely involves enhanced survival-energy pathways that exert a prosurvival effect despite the unique enhancement of sustained JNK activation.
