Development of a fermented quinoa-based beverage

2.1 Raw materials and nutritional composition

Two different quinoa varieties, Rosada de Huancayo (RH) and Pasankalla (PK), both cultivated in Junín, Peru, were compared during the study. PK was originally from the Andean Plateau of Puno, Peru (4,000–5,000 m of altitude), but has been adapted to lower altitude in order to improve its yield (Jancurova et al., 2009). RH has yields of 3–3.5 t/ha and a physiological maturity of 170 days. The yield for PK is a little lower, 3 t/ha, but the plant reaches its physiological maturity in only 140 days. RH is a white variety, whereas PK is a red variety.

The nutritional composition (moisture, protein, fat, crude fiber, and ash) of the two quinoa varieties was determined by standard methods (AOAC, 2005). Total carbohydrate content was calculated by subtracting the percentage sum of moisture, protein, fat, crude fiber, and ash from 100%. Saponin content was determined by the standard afrosimetric method (Koziol, 1991). Briefly, quinoa seeds (0.5 g) were mixed with 5 ml of distilled water in a capped tube and shaken vigorously for 30 s (four shakes/s, up and down). After a 30 min rest, the tube was shaken vigorously again for 30 s. This was done twice and after 5 min rest, foam height was read. The percentage of saponin was obtained from the following calculation:

2.2 Bacterial strains and culture conditions

Three bacterial strains were used as starter culture for the fermentation of the quinoa-based fermented beverage: Lactobacillus plantarum Q823, Lactobacillus casei Q11, and Lactococcus lactis ARH74. They were selected for their diverse technological and functional properties (Ruiz Rodríguez et al., 2016), L. plantarum being a potential probiotic bacterium (Vera-Pingitore et al., 2016). L. plantarum Q823 and L. casei Q11 were isolated from quinoa grains. L. lactis ARH74 is a commercial strain (Valio Oy, Helsinki, Finland) well characterized as an exopolysaccharide producer (Lehto & Salminen, 1997). Overnight broth cultures of the strains were prepared the day before the fermentation and incubated at 30°C. Strains Q823 and Q11 were grown in MRS broth (Lab M, Bury, Lancashire, UK) and strain ARH74 in M17 broth (Oxoid Ltd., Hampshire, UK).

2.3 Samples preparation

Quinoa seeds were separated from impurities (leaves, stones, etc.) and washed thoroughly to remove saponins (foamless). The seeds were subsequently dried at 60°C for exactly 8 hr, reaching a moisture of 2.26% for PK and 3.72% for RH. After drying, quinoa seeds were milled. Quinoa flour had a final particle size of around 100 μm in both varieties.

For the processing of the fermented quinoa-based beverage, quinoa flours (each variety separately) were mixed with water at a concentration of 15% (w/v) (the experimentally selected minimum concentration required to prevent syneresis). The resulting quinoa slurries (250 ml) were then gelatinized/pasteurized (95°C for 10 min) and cooled down to ambient temperature before the start of fermentation. All three bacteria were inoculated at a concentration of 1% and samples were subsequently fermented for 6 hr at 30°C (Figure 1). After fermentation, 100 ml samples were stored at 5-7°C for 28 days. Three biological replicates were done for each sample.

The pH, Total Titratable Acidity (TTA), and viscosity (Rotary Viscometer PCR-RVI3, Model 20, UK) of the samples were monitored before and after fermentation, and at 1, 12, and 28 days of storage. TTA was titrated with 0.1 mol/L NaOH to a final pH of 8.5, detected by a pH meter. TTA was expressed as ml of 0.1 mol/L NaOH needed to achieve pH 8.5.

2.4 Culture viability determination

To determine the fermentation capacity of the bacterial strains and their viability during the storage time of the product, bacterial counts were measured. Samples were taken before and after fermentation, and at 1, 12 and 28 days of storage. Bacterial numbers were determined by plating 0.1 ml of three appropriate dilutions, in duplicate, on MRS agar (Lab M) plates. MRS agar plates were incubated at 30°C for 2 days and total bacterial colonies counted. Moreover, each bacterial strain was monitored separately based on their morphological colony differentiation: The colonies from L. plantarum Q823 are big white and shiny; the colonies from L. casei Q11 have irregular borders; and the colonies from L. lactis ARH74 are small, opaque, flat, and translucent.

2.5 Metabolic activity during fermentation

The metabolic activity of the fermented beverage was monitored by measuring the amounts of glucose, maltose, and sucrose, as well as the lactic, acetic, and malic acid, before and after the fermentation, and at 1, 12 and 28 days of storage. All analyses were performed with capillary zone electrophoresis (CE).

Before CE analysis of sugars, 2 g of homogenized, unfrozen (3 hr in room temperature) sample was diluted with 6–7 ml of ultrapure water and mixed thoroughly. A quantity of 100 μl of Carrez reagent I (potassium hexacyanoferrate (II) trihydrate, MERCK KGaA, Darmstadt, Germany) and Carrez reagent II (zinc sulfate heptahydrate, J.T. Baker, Deventer, Netherlands) were added to the suspension and the pH was adjusted to 7–8 with 0.1 mol/L sodium hydroxide (NaOH, J.T. Baker). The mixture was centrifuged at 3000 rpm, for 2 min at room temperature. Subsequently, the supernatant was collected and adjusted to 10 ml with ultrapure water, followed by filtration through a 0.45 μm syringe filter (VWR International, Darmstadt, Germany).

For the analysis of organic acids, the extracts were prepared in a similar fashion except that the Carrez reagents and subsequent pH adjustments were omitted.

The CE instrument used was P/ACE MDQ capillary electrophoresis system by Beckman Coulter Inc. ( Fullerton, CA, USA) with a diode array detector. The UV detection was at 270 nm and indirect detection at 232 nm for sucrose and organic acids, respectively. Sugars were measured with modified method of Rovio, Yli-Kauhaluoma, and Siren (2007) applying buffer solution of 130 mmol/L NaOH and 36 mmol/L disodium hydrogen phosphate (Na₂HPO₄, MERCK) at pH 12.6. The separations were undertaken at 16°C in uncoated fused-silica capillary with I.D. of 25 μm and total length of 40 cm (effective length of 30 cm). Separation voltage was 12 kV. Standard solutions of D(+)-sucrose (VWR), D(+)-maltose (Sigma-Aldrich, Steinheim, Germany), D(+)-glucose (VWR), and samples were introduced to capillary with pressure injection of 0.5 psi for 10 s.

Buffer system of BIS-Tris/Pyridine dicarboxylic acid (pH 6.5) and Tris/Pyridine dicarboxylic acid (pH 8.1) by Analis along with their method (CEofix KIT, Anions 8) were used to analyze organic acids. Uncoated fused-silica capillary with I.D. of 75 μm and total length of 60 cm (effective length of 50 cm) at a temperature of 20°C was employed. Before runs, capillary was conditioned with the buffers and flushed after with NaOH and ultrapure water. Separation was achieved with voltage of 30 kV using reversed polarity. Pressure injection of 0.5 psi for 5 s was applied for samples, and standard solutions of formic acid (ACROS Organics, Geel, Belgium), L(-)-malic acid (Fluka, Sigma-Aldrich, St. Louis, USA), and acetic acid (Supelco, Bellefonte, USA) were used for quantitative analysis.

All CE analyses were performed as triplicates using L(+)-arabinose (Fluka) as an internal standard for sugars and quinic acid (MERCK) as an internal standard for organic acids.

2.6 Preliminary organoleptic acceptability of the final product

The final products were evaluated by 20 volunteers. Four different products were evaluated: RH, PK, RH mixed with bilberry jam (20% bilberry and 3% of sugar), and PK mixed with dark chocolate (12%, Fazer Oy, Helsinki, Finland). The additives were chosen according to the most suitable final color. The acceptability of the appearance, color, texture, and flavor was expressed by a hedonic scale (Nicolas, Marquilly, & O'Mahony, 2010).

2.7 Statistical analysis

The experimental data were evaluated using analysis of variance (anova) and Tukey test, both considering a significance level of p < .05. The analyses were performed with statgraphics Centurion XV software (StatPoint Technologies, Inc., Warrenton, VA). All the analyses were carried out in triplicates except for the pH and TTA (duplicates).

3.1 Nutritional and functional differences between quinoa varieties

The superior nutritional value of quinoa compared to many other cereals or grains is well documented (Bhargava et al., 2006; Comai et al., 2007; Vega-Galvez et al., 2010). However, the nutritional composition of quinoa varieties may differ considerably (Repo-Carrasco-Valencia, Hellstrom, Pihlava, & Mattila, 2010). Although adequate comparative studies in this respect have apparently not been done yet, it is known that the nutritional composition of quinoa varieties is influenced by strong genetic variability, environmental and climatic factors (Gonzalez, Konishi, Bruno, Valoy, & Prado, 2012). In this study, the nutritional value of two quinoa varieties was studied. Quinoa PK showed significantly (p < .05) higher content of protein and fiber, and lower content of total carbohydrates and saponin than RH, whereas the fat content was similar between both the varieties (Table 1).

The quinoa flours were mixed with water at a concentration of 15% (w/v). This concentration was assessed beforehand (data not shown) and it was the minimum concentration required to obtain a drink without syneresis (water phase separation) during the storage time for both varieties. However, the viscosities of the flour-water slurries were substantially different in the beginning of the process. Quinoa's starch granules have very good pasting properties and can be used to produce high-viscosity dough. Quinoa starch has also excellent stability under freezing and retrogradation processes (Abugoch James, 2009; Ahamed et al., 1996). However, differences between quinoa varieties are not well studied. In our study, before fermentation, the RH drink was significantly (p < .05) more viscous than the PK one, which was not expected due to the fact that higher protein in PK is known to lead to a harder and more cohesive texture (Wu, Morris, & Murphy, 2014). After fermentation, although the viscosity was reduced with both quinoa varieties, the effect was more prominent with RH. Consequently, by the end of the storage time, both quinoa varieties had the same viscosity (Table 2).

The pH decreased and TTA increased significantly in the drinks as a result of the fermentation. Fermented beverages require acid pH (4.0–4.5) in order to survive storage (Gupta, Cox, & Abu-Ghannam, 2010). No significant change was seen during the storage time although there was a slight decrease in pH and proportional increase in TTA (Table 2). Similar behavior was observed in oat-based fermented beverages where these factor dynamics were low (Angelov, Gotcheva, Kuncheva, & Hristozova, 2006; Gupta et al., 2010). Between quinoa varieties, there was no statistical significant difference in pH and TTA.

These results showed that not only quinoa varieties have significantly different nutritional contents but that the flours behave differently when slurried in water. These differences will be studied in more detailed in the future.

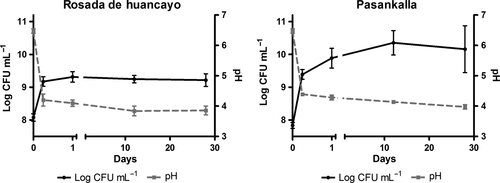

3.2 Bacterial strains, growth, and viability

Fermentation as a food processing technique is not a novel procedure. However, fermentation with proper starter cultures can reduce the use of artificial additives such as stabilizers, thickeners, or flavors (Tiwari, Norton, & Holden, 2013). Fermentation by known lactic acid bacteria was used for the elaboration of the quinoa-based fermented beverage reported herein. The inoculation of 1% (v/v) of each bacterial strain into the quinoa beverage resulted in initial bacterial counts of approximately log 8 CFU/ml (Figure 2). After 6 hr at 30°C, these bacteria were able to grow to a level of log 9.5 CFU/ml and decrease the pH to around 4. During the storage period, the bacteria (with the exception of ARH74) proved to be quite stable with even some increase in numbers in the PK beverage (Figure 2). After a 28-day storage period, L. plantarum Q823 and L. casei Q11 were detected at levels more than log 9 CFU/ml. Previous studies have also reported high stability with L. plantarum during storage at 4°C in oat-fermented beverages for 21 days (Angelov et al., 2006; Gupta et al., 2010). However, L. lactis ARH74 was lost during the storage time (data not shown). The use of PK or RH variety did not significantly affect the growth or viability of the strains.

The number of bacterial cells in food products that claim probiotic properties and the number associated with significant outcomes in clinical trials are in the range of 1–10 billion CFU per dose (Naidu, Adam, & Govender, 2002; Reid, 2005; Guarner et al. 2012). We have previously reported that L. plantarum Q823 can survive the passage through the human intestinal tract and thus, be a potential probiotic bacterium (Vera-Pingitore et al., 2016). Moreover, the quinoa-based fermented beverage developed and reported herein is able to reach a L. plantarum Q823 population higher than log 9 CFU/ml and thus be on the range for having probiotic activities. Consequently, the quinoa-based fermented beverage has the potential to be used as a functional food even though the actual health benefits should be proven in a long-term human clinical trial in order to claim that any food product has probiotic properties.

3.3 Metabolic activity

Fermentation is a food processing technique that can help to improve texture, structure, nutritional value, staling rate, and shelf life of food products. These qualities are associated with the production of organic acids, exopolysaccharides, aroma compounds, and antifungal compounds by lactic acid bacteria (LAB) (Wolter et al., 2014). In this study, sugars and organic acids were monitored during fermentation and storage time of the developed food product.

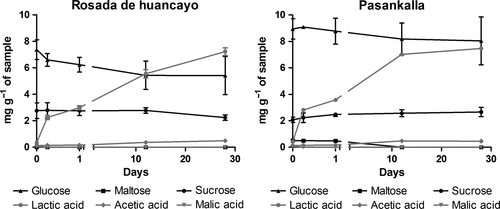

The concentration of glucose, sucrose, and maltose before fermentation shows that there are significant differences between the quinoa varieties (Figure 3). Glucose concentration in RH was 7.4 mg/g, whereas in PK, it was 9.0 mg/g. Glucose concentrations decreased in both varieties during the storage time to levels of 5.2 and 8.0 mg/g in RH and PK, respectively. Sucrose and maltose were not significantly different between quinoa varieties (Figure 3).

There was a rapid increase in lactic acid concentration but not in acetic or malic acid during the fermentation (Figure 3). During the storage period, lactic acid continued to increase reaching concentrations of 7.3 and 7.5 mg/g in RH and PK, respectively.

Although endogenous enzymes from the flours can influence the metabolic activity of the drinks, the decrease in glucose and increase in lactic acid was most likely due to the activity of the lactic acid bacteria. Surprisingly, acetic acid was practically absent indicating that the fermentation of the product was mostly homolactic. It is, however, unknown the wide difference in glucose concentration by the end of the storage time in both varieties, especially because the end lactic acid concentration was almost the same. This information will be studied more deeply in the future.

3.4 Preliminary organoleptic acceptability of the final products

The organoleptic acceptability of four final products was evaluated (Table 3). RH and PK were not well received as such due to the characteristic sour taste. However, the acceptability of these beverages was very good when bilberries (Vaccinium myrtillus) and chocolate were used as flavorings. There were not significant differences in the acceptability of the product made from PK flour compared to RH although the color of the final product was dark-brown and thus not so appealing.

Although this organoleptic acceptability trial was very preliminary and it is clear that extensive research should still be done on sensory attributes, it shows that quinoa-based drinks have the potential to be well received by consumers.
