Cross-Linking of Polyesters Based on Fatty Acids

2.1 Synthesis of Estolides from Methyl Ricinoleate and Methyl 12-Hydroxystearate

The polycondensation reactions were carried out in a round bottom flask equipped with a temperature-controlled oil bath and magnetic stirring. Methyl ricinoleate and methyl 12-hydroxystearate were dried at 70 °C under vacuum overnight prior to use. Next, each monomer was cooled down to room temperature under vacuum and titanium (IV) isopropoxide (1 wt%) in dichloromethane was added under nitrogen flow. The mixture was stirred at room temperature during 30 min under nitrogen atmosphere. Afterward, dynamic vacuum was applied. After 30 min of stirring at 70 °C, the temperature was raised to 120 °C for 1 h, subsequently to 140 °C for 1 h, and then to 180 °C for around 69 h.

Heating of the reaction mixture under nitrogen atmosphere and then under dynamic vacuum, in the presence of a transesterification catalyst (Ti(OiPr)₄), allowed the easy removal of the methanol condensate.

2.2 General Procedure for the Estolide Cross-Linking

Mixtures of the estolides with a curing agent (dicumyl peroxide or sulfur system) were prepared using micro-conical twin screw compounding extruder (Thermo Scientific HAAKE MiniCTW) by mixing during 30 min at 120 °C using screw speed of 50 rpm. The obtained blends were cross-linked by compression molding under the hydraulic press at the pressure of 10 bar during 1 h at 160 °C (sulfur vulcanization) or 170 °C (peroxide vulcanization). The sulfur system consisted of 100 phr of the estolide, 3 phr of ZnO, 2 phr of stearic acid, 4 phr of sulfur, and 15 phr of TBBS, (where phr means parts per hundred rubber). The amount of dicumyl peroxide applied in the mixture with estolide was equal to 10 wt%.

2.3 Swelling Tests

Swelling tests were carried out by immersing samples of about 30 mg into 10 mL of THF for 48 h. Samples were then dried under vacuum oven for 48 h at 40 °C. The gel fraction was determined from the equation $GF=\frac{W_d}{W_0}\times 100\%$, whereas soluble fraction was determined as $SF=\frac{W_0-W_d}{W_0}\times 100\%$, where W₀ is the mass of the sample before the swelling test and W_d is the mass of the dried sample.

2.4 Characterizations

NMR spectra were recorded using a Bruker AC-400 NMR, at room temperature, in deuterated chloroform (CDCl₃).

Fourier Transform Infrared (FT-IR) spectra were performed on a Bruker VERTEX 70 spectrometer equipped with diamond crystal (GladiATR PIKE technologies) for the attenuated total reflection (ATR) mode. The spectra were acquired from 400 to 4000 cm⁻¹ at room temperature using 32 scans at a resolution of 4 cm⁻¹.

Polymer molar masses were determined by size exclusion chromatography (SEC) using tetrahydrofuran (THF with 250 ppm of BHT as an inhibitor) as an eluent and trichlorobenzene as a flow marker. Measurements in THF were performed on a ThermoFisher Scientific Ultimate 3000 system equipped with Diode Array Detector, Wyatt light scattering detector, and RI detector. The separation was achieved on three Tosoh TSK gel columns: G4000HXL (particles of 5 mm, pore size of 200 Å, exclusion limit of 400 000 g mol⁻¹), G3000HXL (particles of 5 mm, pore size of 75 Å, exclusion limit of 60 000 g mol⁻¹), and G2000HXL (particles of 5 mm, pore size of 20 Å, exclusion limit of 10 000 g mol⁻¹), at flow rate of 1 mL min⁻¹. The injected volume was 20 µL. Columns’ temperature was held at 40 °C. Data were recorded and processed by Astra software from Wyatt. SEC was calibrated using polystyrene standards.

Thermogravimetric analysis (TGA) thermograms were obtained using a TGA Q500 apparatus from TA instruments. Samples (≈10 mg) were heated from room temperature to 700 °C at a rate of 10 °C min⁻¹ under nitrogen atmosphere.

Differential scanning calorimetry (DSC) measurements of samples (≈5 mg) were performed using a DSC Q 100 apparatus from TA Instruments over temperature range from −120 to 240 °C, in a heating-cooling mode of 10 °C min⁻¹. The analyses were carried out in a nitrogen atmosphere using aluminum pans. Glass transition temperatures and melting points were obtained from the second heating runs.

Dynamic mechanical analysis (DMA) measurements were carried out using a RSA3 apparatus from TA Instruments equipped with a liquid nitrogen cooling system. The thermomechanical properties of the samples (width ≅ 5 mm; thickness ≅ 2 mm, and length of the fixed section ≅ 10 mm) were studied from around −70 °C to T_m + 15 °C at a heating rate of 3 °C min⁻¹. The measurements were performed in tensile test at a frequency of 1 Hz, a strain sweep of 0.03% and an initial static force of 0.1 N.

Tensile tests were performed on extension mode test system using a RSA3 apparatus from TA Instruments. The measurements were carried out at room temperature for rectangular samples (width ≅ 5 mm; thickness ≅ 2 mm, and length of fixed section ≅ 10 mm) using a crosshead speed of 2 mm min⁻¹.

3.1 Part 1: Pre-Polymer Synthesis and Characterization

Methyl ricinoleate (MRic) and methyl 12-hydroxystearate (MHS) were transesterified using Ti(OiPr)₄ as a catalyst to prepare three estolides: polyricinoleate (PRic), polyhydroxystearate (PHS), and an equimolar copolymer of methyl ricinoleate and methyl 12-hydroxystearate P(Ric+HS). The polymer structures were confirmed by ¹H NMR and FT-IR spectroscopies (Figure 1; Figures S1–S5, Supporting Information).

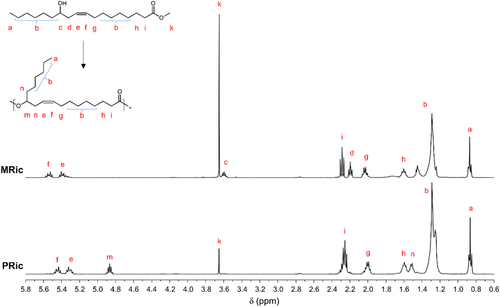

It can be observed, that in all ¹H NMR spectra, the characteristic peak of the methine proton ─CH─ (c) at 3.59 ppm linked to the carbon bearing the hydroxyl function in methyl ricinoleate and methyl 12-hydroxystearate is shifted downfield to 4.86 ppm (m) confirming the formation of ester linkages. Moreover, the lower intensity of the methyl protons ─OCH₃ (k) proves the reaction of methyl ester functions with hydroxyl functions of methyl ricinoleate or methyl 12-hydroxystearate. Finally, by FT-IR spectroscopy the bands coming from the vibrations of hydroxyl groups in the wavenumber range between 3000 cm⁻¹ and 3500 cm⁻¹ disappear as expected (see Figures S3–S5, Supporting Information).

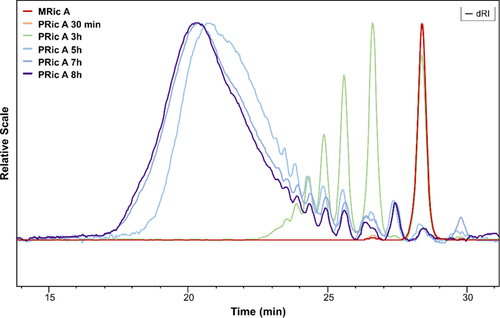

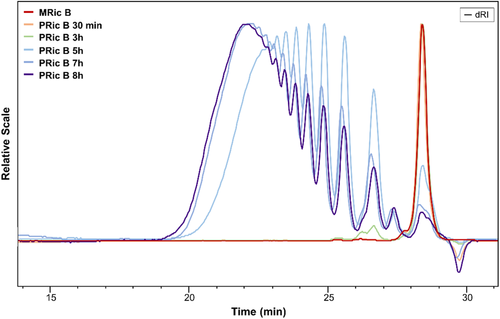

The synthesis of estolides was also monitored using SEC. Figures 2 and 3 show SEC traces of the reaction media during polycondensation of methyl ricinoleate (see Figures S6–S9, Supporting Information for the traces collected during the synthesis of PHS and P(Ric + HS)). Figure 2 presents SEC traces of PRic A from monomers with a GC purity ≥ 99% (Nu-Chek-Prep Inc.) whereas Figure 3 shows SEC traces of PRic B from monomers with a GC purity of 93%, as received from ITERG. The shift of the SEC traces to lower elution times with reaction progress revealed the efficiency of the AB self-polycondensation. The values of M_w, weight average molecular weight relative to PS calibration, and Đ, dispersity, obtained after 8 h of transesterification are noted in Table 1. PRic A exhibited the molecular weight $\overline{M_n}$ in the range of ≈7 kg mol⁻¹ and $\overline{M_w}$ of 19–22 kg mol⁻¹, while PRic B exhibited lower values of 3–4 kg mol⁻¹ and 5–8 kg mol⁻¹, respectively. The dispersity values were in the range 1.8–3.1. In the case of estolides (PRic B) obtained from less pure monomers, oligomers persist with time (Figures S8 and S9, Supporting Information). One can explain this feature by the presence of saturated fatty acid that could act as chain stopper.

The increase of the polycondensation time allowed enhancement of the molecular weight of estolides up to $\overline{M_w}$ values of 62.6 kg mol⁻¹ (Table 1; Figure S10, Supporting Information). However, dispersity increased dramatically (Đ > 4) indicating the occurrence of side reactions such as etherification.40

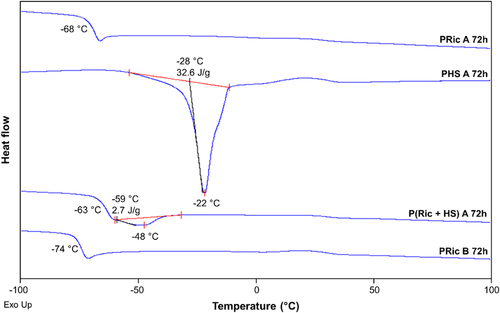

The good thermal stability of the estolides was confirmed by TGA (Table 2; Figure S11, Supporting Information). Temperatures of the 5% of degradation are high and their values are in the range of 306–317 °C. Polyricinoleates (PRic A 72 h, PRic B 72 h) exhibit glass transition temperatures of −68 and −74 °C, respectively (Figure 4). The 9 °C difference is due to the lower molecular weight of PRic B and the presence of oligomers, which act as plasticizers. While PRics are fully amorphous, polyhydroxystearate (PHS A) is a semi-crystalline polymer with a melting point of −48 °C (ΔH_f = 33 J g⁻¹). Finally the copolymer of methyl ricinoleate and methyl 12-hydroxystearate (P(Ric + HS) A 72 h) shows an intermediate behavior with a T_g of −63 °C and a melting temperature of −22 °C (ΔH_f =  3 Jg⁻¹).

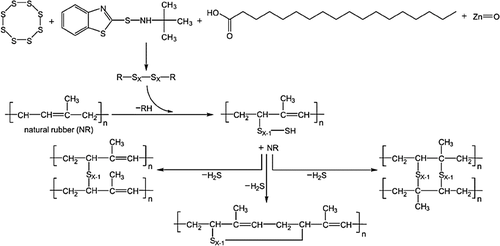

One fascinating property of estolides, especially polyricinoleate, which contains double bonds, is their ability to cross-link. A cross-linked material can be created by various processes such as high-temperature treatment, irradiation or by adding cross-linking agents.41 However, the cross-linking usually proceeds using sulfur or peroxide vulcanization. Because of the absence of unsaturation, polyhydroxystearate cannot be vulcanized with sulfur and is not very reactive toward peroxide curing. On the other hand, polyricinoleate and copolymer of methyl ricinoleate and methyl 12-hydroxystearate contain unsaturated double bonds in their structures. Thus, it is possible to obtain cross-linked materials using both sulfur and peroxide vulcanization.

3.2 Part 2: Synthesis of Elastomers from Estolides

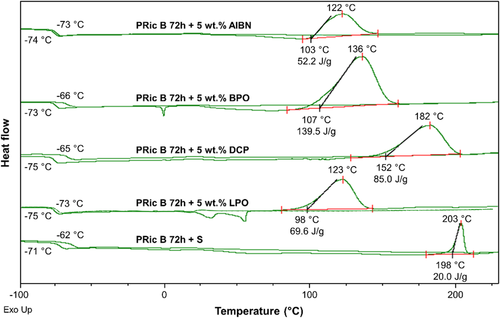

First, polyricinoleate cross-linking ability was determined by DSC on-line curing of PRic B 72 h (Figure 5) with sulfur system or common peroxides such as 2,2′-azobis(2-methylpropionitrile) (AIBN), benzoyl peroxide (BPO), dicumyl peroxide (DCP), and lauroyl peroxide (LPO).

Homogeneous mixture of the estolide and the curing agent is critical to obtain a uniform network. To ensure good mixing, the viscosity of the estolides need to be decreased by working at high temperature, i.e., 120 °C. Thus the curing needs to occur at a higher temperature. Based on this statement and from DSC online curing, sulfur, and dicumyl peroxide systems were selected for further study. The cross-linking tests were carried out using compression molding at 170 °C (peroxide vulcanization) or 160 °C (sulfur vulcanization) for 1 h after vigorous mixing of the components by extruder at 120 °C.

The formation of the network (cross-linking) was confirmed by THF swelling tests determining the soluble fraction (SF) and the gel fraction (GF) (Table 3). As expected, the gel fraction values were higher in the case of PRic A 72 h pre-polymer in regard to PRic B 72 h. Besides, one could observe the higher efficiency of DCP (entries 1, 4, and 6 in Table 3) in comparison to sulfur (entries 2, 5, and 7 in Table 3). The GF values of the cross-linked estolides after solubility tests were higher in the case of pre-polymers cured using DCP. In the case of sulfur vulcanization of estolides, GF values were lower since SF consists mainly from sulfur vulcanization system, which did not take part in the cross-linking process. Moreover, it can be observed that the SF decreases with increasing $\overline{M_w}$ value of the estolide. The SF value of DCP-cross-linked PRic A 72 h (59.2 kg mol⁻¹) is equal to 10% while 13% are obtained for PRic B 72 h (11.5 kg mol⁻¹). Same trend is observed for sulfur-cross-linked PRic (i.e., the SF values are 18% and 24%, respectively). The decrease of SF with the molecular weight can be explained by the increasing probability of cross-linking of estolide having higher molecular weight.

The soluble fractions (SF) were analyzed by SEC chromatography (Table 3; Figure S12, Supporting Information) and ¹H NMR (Figure S13, Supporting Information). The latter appeared to be mainly constituted of short chains with a decrease of $\overline{M_w}$ by a factor 2–20 compared to the initial polymer. Moreover in the case of sulfur cross-linking, TBBS is also a non-neglectible part of the SF.

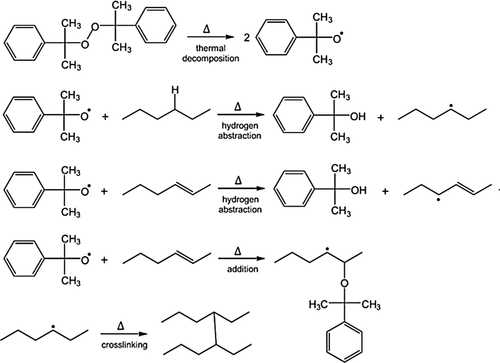

Estolide PHS A 72 h cross-linked using DCP possess the highest GF value of 96% among analyzed cross-linked materials. PHS A 72 h having $\overline{M_w}$ value of 33.4 kg mol⁻¹ did not contain C═C double bonds in the structure causing the radical cross-linking process only through hydrogen abstraction mechanism, followed by combination of the resulting macroradicals forming very stable C─C single bonds..42

The thermal and mechanical properties of the cross-linked estolides were investigated by TGA (Figure 6; Figure S14, Supporting Information), DSC (Figure 7), DMA (Figures 8 and 9), and tensile tests (Figure 10).

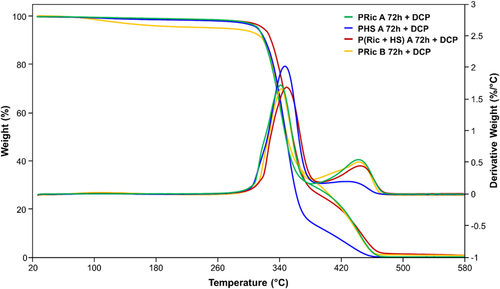

TGA analysis revealed high thermal stability of estolide networks (Table 4) with, in all cases, a two-step degradation exhibiting maximum around 350 and 450 °C, respectively. Higher T_5% values (260–318 °C) were observed for DCP-vulcanized samples in comparison to the ones obtained for sulfur-vulcanized networks (T_5% = 203–217 °C). Char values at 500 °C slightly differed with respect to the method of vulcanization: for DCP cross-linking, these values were significantly lower (0.6–1.5%) in comparison to the sulfur cross-linking method (4.1–7.7%).

DSC was employed to gain insight into the evaluation of glass transition temperature being one of the fundamental indicators of the cross-linking effect (Table S1, Supporting Information). T_g values of the estolide networks ranged from −69 to −54 °C. These values were slightly higher of 4–7 °C (DCP vulcanization) and 9–14 °C (sulfur vulcanization) to the ones of estolide precursors. Surprisingly, cross-linked PHS exhibits a melting point (T_m = −24 °C) as its precursor with a slight decrease of the melting enthalpy by a factor of 1.6. This crystallization may be due to the 4% of the soluble uncross-linked polymers.

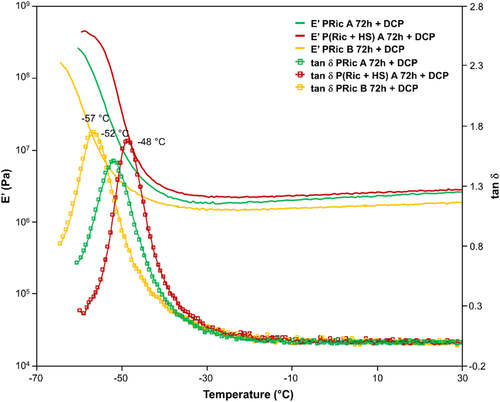

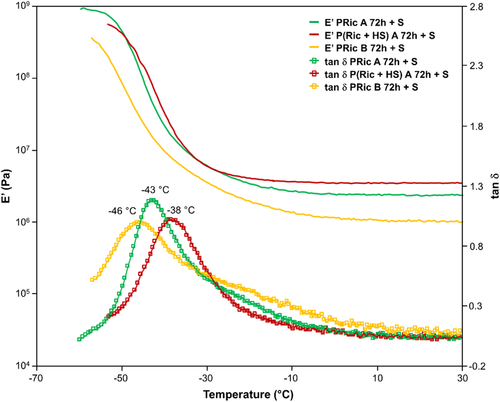

Figures 8 and 9 show a plot overlay of storage modulus E′ and loss factor tan δ of cross-linked high molecular weight estolides (PRic A 72 h + DCP, PRic A 72 h + S, PHS A 72 h + DCP, P(Ric + HS) A 72 h + DCP, P(Ric+HS) A 72 h + S, PRic B 72 h + DCP, PRic B 72 h + S) as a function of temperature. All the thermomechanical data of cross-linked estolides are given in Table 4.

In all cases, DMA curves are typical of cross-linked materials with two plateaus, glassy zone and rubbery plateau, respectively, before and after the T_α. Cross-linked estolides by DCP exhibit slightly lower glassy modulus than sulfur cross-linked estolides. Besides, as expected this plateau is lower for Pric B whatever the cross-linking systems used. T_α values are in agreement to the T_g obtained by DSC with a slight shift toward higher temperature. Moreover, one can observe different widths of the tan δ peaks. Narrower tan δ peaks are obtained for DCP-cross-linked estolides whereas broader ones are noticed for sulfur-cross-linked estolides. A broad tan δ peak is usually due to inhomogeneity in the network, which in the case of sulfur systems, could be explained by the nature of -S_x- bridges. Indeed an -S- bridge is completely different, in term of mobility for example, from an -S₈- bridge. Finally, the rubbery plateau confirms the cross-linking of the materials and its value is directly proportional to the cross-linking density (Table 4). Contrary to the glassy zone, this plateau is slightly higher in the case of sulfur cross-linking and is lower for Pric B in both cases. Surprisingly the highest plateau is obtained for the copolymer P(Ric + HS), this may be explained by the lower SF for this copolymers compared to Pric A (16% compared to 18% for the sulfur system). Indeed the soluble fraction will act as a plasticizer decreasing the storage moduli of the materials.

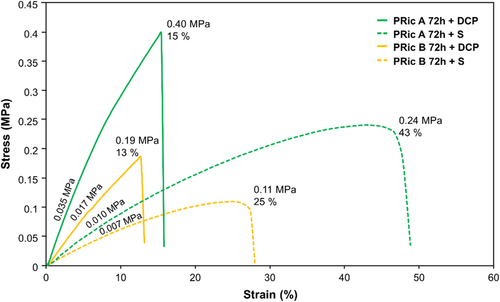

Additionally, tensile tests were performed in order to determine the values of tensile strength and elongation at break of cross-linked estolides (Figure 10). It can be observed that elastomers obtained from sulfur vulcanization, i.e., PRic A 72 h + S and PRic B 72 h + S exhibit lower values of tensile strength (0.11–0.24 MPa) and higher values of elongation at break (25–43%) than elastomers obtained by peroxide vulcanization, i.e., PRic A 72 h + DCP and PRic B 72 h + DCP (0.19–0.40 MPa and 13–15%, respectively). Additionally, cross-linked estolides with lower $\overline{M_w}$ of 11.5 kg mol⁻¹ (PRic B 72 h) experienced lower elongations at break in comparison to the ones having higher $\overline{M_w}$ of 59.2 kg mol⁻¹. Based on the Young modulus values, it can be stated that estolides cross-linked using dicumyl peroxide, i.e., PRic A 72 h + DCP and PRic B 72 h + DCP are more stiffen (0.017–0.035 MPa) than estolides cross-linked by sulfur vulcanization system, i.e., PRic A 72 h + S and PRic B 72 h + S (0.007–0.010 MPa). The results obtained by tensile tests can be correlated with the material cross-link density. The elongation at break and the tensile strength increase with the increasing cross-link density. The peroxide cross-linked estolides, i.e., PRic A 72 h + DCP and PRic B 72 h + DCP with cross-link density values of 0.87 and 0.73 × 10³ mol m⁻³ exhibited worse tensile properties than sulfur-cross-linked ones having values of 1.29 and 0.80 × 10³ mol m⁻³, respectively.

The results of the performed experiments suggest that high molecular weight estolides coming from fatty acid methyl esters such as methyl ricinoleate and methyl 12-hydroxystearate are promising bio-based source of cross-linked materials. So far the data presented in the literature considering the synthesis of high $\overline{M_w}$ estolides (50–100 kg mol ⁻¹) were based on the methyl ricinoleate polycondensation using lipase-catalyzed polycondensation.30, 31 In this study, we have investigated the polycondensation of methyl ricinoleate (from two different sources: pure commercial one and less pure industrial grade from ITERG company) as well as methyl 12-hydroxystearate and copolymers thereof using titanium (IV) isopropoxide catalyst (Ti(OiPr₄). We were able to obtain high molecular weight estolides with different $\overline{M_w}$ values depending on the monomer purity, ranging from 11.5 to 62.6 kg mol⁻¹. The control over the cross-linking of estolides (using dicumyl peroxide or sulfur system) has an influence over the properties of resulted polymers.
