Descending projections from the basal forebrain to the orexin neurons in mice

2.1 Animals

We used female Cre-expressing mice weighing 20 to 30 g (n = 15–20 of each line). These recombinant mice have very similar designs, with an IRES-Cre cassette inserted just after the stop codon of the genes coding for choline acetyltransferase (ChAT), vesicular glutamate transporter 2 (vGluT2), or vesicular GABA transporter (vGAT). The vGAT- and vGluT2-Cre mice have been previously validated and show excellent alignment of vGAT and vGluT2 mRNA with recombinase activity in a reporter line (Vong et al., 2011). Glutamate can be packaged into synaptic vesicles by vGluT1, vGluT2, or vGluT3, and in the BF, vGluT2 is the major vesicular glutamate transporter (Henny & Jones, 2006b; Harkany et al., 2003; Nickerson Poulin, Guerci, El Mestikawy, & Semba, 2006; www.alleninstitute.org). vGAT transports GABA into synaptic vesicles, and vGAT-Cre mice show recombination only in GABAergic neurons. The ChAT-Cre mice have been validated in prior studies (Higley et al., 2011; Rossi et al., 2011).

We housed these mice on a 12-hr:12-hr light:dark cycle with lights on at 0700 at 22 °C ambient temperature with ad libitum access to food and water. All protocols and care of the mice followed National Institutes of Health guidelines and were approved by the Beth Israel Deaconess Medical Center Institutional Animal Care and Use Committee.

2.2 Conditional anterograde tracing

We used conditional anterograde tracing to map projections from the three major populations of BF neurons to the orexin neurons. We injected the BF of Cre-expressing mice with an adeno-associated viral vector (AAV8-EF1α-DIO-hChR2(H134R)-mCherry, 6 × 10¹² pfu/ml, UNC Vector Core, Chapel Hill, NC) coding for Cre-dependent channelrhodopsin (ChR2) tagged with the red fluorescent protein mCherry (AAV-ChR2-mCherry). In this AAV, the ChR2-mCherry sequence is inverted and surrounded by pairs of loxP and lox2272 sites, thus preventing nonspecific expression of ChR2-mCherry. By injecting this AAV into mice that express Cre recombinase selectively in GABA (vGAT-Cre), glutamate (vGluT2-Cre), or acetylcholine (ChAT-Cre) neurons, ChR2-mCherry expression was limited just to neurochemically specific populations of BF neurons.

We anesthetized mice with ketamine/xylazine (100/10 mg/kg. i.p.) and unilaterally microinjected 3 to 6 nl of AAV-ChR2-mCherry into the BF. Injections were targeted at the major nuclei of the BF: medial septum (MS; AP + 0.74, RL 0.09, DV −3.7 from the top of the skull); rostral part of the horizontal band of the diagonal band of Broca (HDB; AP + 1.0, RL 0.45, DV −5.1); caudal part of the horizontal band of the diagonal band of Broca (HDB; AP + 0.40, RL 1.1, DV −5.3); magnocellular preoptic nucleus (MCPO; + 0.4, RL 1.25, DV −5.25); and substantia innominata (SI; AP −0.12, RL 1.80, DV −4.8). Researchers debate the definition of the SI (Canteras, Simerly, & Swanson, 1995; Heimer, Harlan, Alheid, Garcia, & de Olmos, 1997; Alheid, 2003), and for simplicity, we use the term SI to describe the loosely packed, subcommissural group of neurons within the boundary of magnocellular cholinergic neurons dorsal to the more densely packed MCPO and HDB. Rostrocaudally, our SI injections ranged from the decussation of the anterior commissure back to the level of the caudal edge of the supraoptic nucleus.

Four weeks later, at around 10:00 am (3 hr after lights on), we deeply anesthetized mice with ketamine/xylazine (150/15 mg/kg i.p.) and transcardially perfused them with 50 ml of phosphate-buffered saline (PBS; pH 7.4) followed by 50 ml of buffered 10% formalin (pH 7.0; Fisher Scientific, Fair Lawn, NJ). We removed and postfixed the brains for 12 hr in 10% formalin and then cryoprotected them in PBS containing 20% sucrose. We later coronally sectioned the brains at 30 μm into a 1:4 series on a freezing microtome.

2.3 Immunohistochemistry

We defined the BF by the boundaries of the cholinergic population as others have done previously (Hedreen, Struble, Whitehouse, & Price, 1984; Schwaber, Rogers, Satoh, & Fibiger, 1987; Semba, 2000). To establish that AAV-ChR2-mCherry injections were within the borders of the BF, we double-immunolabeled one series of sections from each mouse black for DsRed (which labels mCherry) and brown for ChAT with 3,3′-diaminobenzidine (DAB) (Figure 1). Methodological details such as PBS washes were followed as described in Yoshida et al. (2006). In brief, we placed BF sections in 0.3% hydrogen peroxide prepared in PBT (PBS, pH 7.4, with 0.25% Triton X-100) for 30 min to inactivate endogenous peroxidases and then incubated them overnight in rabbit anti-DsRed (Clontech, Mountain View, CA, Cat# 632496, RRID: AB_10013483, rabbit, polyclonal) and goat anti-ChAT (Millipore, Billerica, MA, Cat# AB144P, RRID: AB_262156, goat, polyclonal) prepared in PBT with normal horse serum (Table 1). The next day, we incubated sections for 1 hr in biotinylated donkey anti-rabbit IgG secondary antiserum (1:500; Jackson ImmunoResearch, West Grove, PA, Cat# 711-065-152) followed by 1 hr in avidin–biotin complex (ABC; Vectastain ABC Elite Kit; Vector, Burlingame, CA). We labeled mCherry black with DAB in tris-buffered saline (TBS) with 0.024% hydrogen peroxide solution and 0.2% ammonium nickel (II) sulfate. To visualize ChAT, we placed sections for 1 hr in biotinylated donkey anti-goat IgG secondary antiserum (1:500; Jackson ImmunoResearch, Cat# 705-065-147) followed by 1 hr in ABC, and stained them brown with DAB in TBS with 0.024% hydrogen peroxide.

To visualize the BF innervation of orexin neurons, we double-immunolabeled one series of sections black for mCherry and brown for orexin-A with DAB. We placed lateral hypothalamic sections in 0.3% hydrogen peroxide for 30 min and then incubated them overnight in rabbit anti-DsRed and goat anti-orexin-A (Santa Cruz Biotechnology, Santa Cruz, CA, Cat# sc-8070, RRID: AB_653610, goat, polyclonal). We stained the DsRed black with nickel-DAB, followed by staining orexin-A brown with DAB, as described above.

To analyze BF innervation of the orexin field with confocal microscopy, we fluorescently double-labeled sections for DsRed and orexin. We incubated hypothalamic sections overnight in rabbit anti-DsRed (1:2,000) and goat anti-orexin-A. Then we placed sections in donkey anti-rabbit IgG conjugated to Alexa Fluor 555 (1:1,000; Invitrogen, Carlsbad, CA, Cat# A31572) and donkey anti-goat IgG conjugated to Alexa Fluor 488 (1:1,000; Invitrogen, Cat# A11055) for 1 hr to stain mCherry-containing terminals red and orexin neurons green.

After DAB or fluorescent immunolabeling, we mounted and air-dried sections on Superfrost Plus slides. For sections with fluorescence immunolabeling, we coverslipped with fade-retardant aqueous mounting medium containing 4,6-diamidino-2-phenylindole (DAPI; Vectashield, Vector). For DAB-labeled tissue, we dehydrated sections in graded ethanols for 3 min each and cleared them in xylenes for more than 1 hr before coverslipping with a toluene-based mounting media (Cytoseal, Thermo Scientific, Waltham, MA). The final thickness of these dehydrated sections was ∼12 to 15 µm.

The GFP and DsRed antisera produced no labeling in wild-type mice lacking these peptides, and the orexin antisera produced no staining in orexin knockout mice.

2.4 Validation of neurochemical specificity

To confirm that mCherry was expressed only in the correct types of neurons, we immunolabeled BF sections for mCherry and markers of cholinergic, glutamatergic, and GABAergic neurons.

We incubated BF sections from ChAT-Cre mice overnight in rabbit anti-DsRed (1:2,000) and goat anti-ChAT (1:1,000). The next day, we incubated sections for 1 hr in donkey anti-rabbit IgG conjugated to Alexa Fluor 555 and donkey anti-goat IgG conjugated to Alexa Fluor 488 to label mCherry neurons red and ChAT neurons green (Figure 2). We imaged whole sections using an Olympus VS120 slide scanner at a final magnification of 200×, and used a z-stack at 1-µm intervals to image through the section. We viewed stacks of images using OlyVIA software and counted double-labeled cells. In the Chat-Cre tissue, 100% of neurons that expressed mCherry were also immunolabeled for ChAT.

In the vGluT2-Cre and vGAT-Cre mice, we performed in situ hybridization histochemistry (ISHH) for vGluT2 and vGAT mRNA, respectively, followed by immunolabeling for marker proteins. We rinsed the brain sections in diethylpyrocarbonate (DEPC)–PBS and then incubated the tissue in hybridization buffer (50% formamide, Fisher Scientific, Hampton, NH; 5 × standard saline citrate [SSC], Promega, Madison, WI; 0.5 mg/mL t-RNA, Roche, Indianapolis, IN; 5% dextran, Sigma, St. Louis, MO; 1 × Denhardt's solution, Sigma; 0.1% Tween-20, Sigma; DEPC-water) for 1 hr at 54 °C. The digoxigenin (DIG)-RNA vGAT (542 bp, refer to NM_009508.2, bp 874–1,416) and vGluT2 probes (458 bp, refer to NM_080853.3; bp 829–1,287) were transcribed from a pGEM-TEasy plasmid. We linearized the plasmid with Sac1 (New England Biolabs, Ipswich, MA) and transcribed riboprobes with T7 polymerase (Roche) in the presence of DIG-conjugated UTP (Roche, DIG RNA labeling mix #11277073910). DIG-labeled antisense riboprobe (300 ng/µL probe) was added to each well and incubated at 54 °C overnight.

We washed the tissue in 2 × SSC in 50% formamide for 45 min at 54 °C, followed by two 30-min washes in 2 × SSC. Nonhybridized RNA probes were eliminated with an RNaseA step: sections were washed twice for 5 min at room temperature in RNase buffer (0.5 M NaCl and 10 mM Tris-HCl) before and after a 30-min incubation at 37 °C in RNase A (50 µg/ml). We washed the sections in 2 × SSC (5 min at room temperature), then 2 × SSC–50% formamide (5 min at 54 °C), followed by 1 × SSC–50% formamide in DEPC-H₂O (twice for 5 min at room temperature), and then TBS (three times for 5 min at room temperature). We incubated the sections in Roche's Boehringer Blocking Reagent (diluted to 5% w/v in TBS with 0.1% Tween, dissolved for 5 min) at 54 °C for 30 min. We next added anti-DIG–POD Fab fragments (Roche, Cat#11-207-733-910; lot# 14299300) to this blocking solution at a 1:200 dilution for overnight incubation at room temperature. We washed the sections in TBS 3 times for 10 min each in preparation for the fluorescence tyramide signal amplification (TSA) step. We incubated the tissue for 30 min at room temperature in a solution of biotinylated tyramide solution (PerkinElmer, Waltham, MA, Cat# FP1019, lot#1673734) diluted 1:50 in solution #FP1050 (lot#1734999). We washed the tissue in TBS (5 min), PBS (rinse), PBS (10 min), and then PBT (2 hr), and incubated the tissue in streptavidin–Alexa Fluor 488 (1:1,000; Invitrogen, Cat# S11223) for 2 hr at room temperature to label the mRNA green. For the electrophysiology experiments (described below) we used AAV-ChR2-YFP, so we labeled mRNA red with streptavidin–Alexa Fluor 555 (1:1,000; Invitrogen, Cat# S32355). We then washed sections three times in PBS for 5 min each.

After the ISHH, we incubated the sections overnight in rabbit anti-DsRed to label the ChR2-mCherry and then placed sections in donkey anti-rabbit IgG conjugated to Alexa Fluor 555 as above to label soma red. We found that 91% and 98% of the mCherry-labeled cells were also labeled for vGluT2 and vGAT, respectively. For electrophysiology experiments, we used AAV-ChR2-YFP, so after ISHH, we incubated sections overnight with chicken anti-GFP (Life Technologies, Carlsbad, CA, Cat# A10262, RRID: AB_11180610, polyclonal), which binds YFP, followed by donkey anti-chicken IgG conjugated to Alexa Fluor 488 (1:500; Jackson ImmunoResearch, Cat# 703-545-155) for 1 hr to stain YFP-containing soma green. We then imaged tissue using a confocal microscope and counted cells. We found that 93% and 99% of the YFP-labeled cells were also labeled for vGluT2 and vGAT, respectively. For Figure 2, we collapsed the confocal stacks into one image using the Z Project function in ImageJ.

To establish that the BF vGAT and vGluT2 neurons are distinct from the cholinergic neurons, we used double fluorescent immunolabeling with rabbit anti-DsRed and goat anti-ChAT in BF sections from vGAT and vGluT2-Cre mice injected with AAV-ChR2-mCherry, followed by 1 hr in donkey anti-rabbit IgG conjugated to Alexa Fluor 555 and donkey anti-goat IgG conjugated to Alexa Fluor 488 to label mCherry neurons red and ChAT neurons green.

2.5 Analysis of anterograde tracing

We targeted our injections at the MS, HDB, MCPO, or SI and then selected cases that were limited to each part of the BF (n = 3 for each region and for each Cre line). Criteria for inclusion were that the injection was confined to the boundaries of the cholinergic BF neurons. We excluded 7/47 cases as misses and used them as anatomical controls to contrast with BF injections. These controls included injections in the globus pallidus and preoptic area.

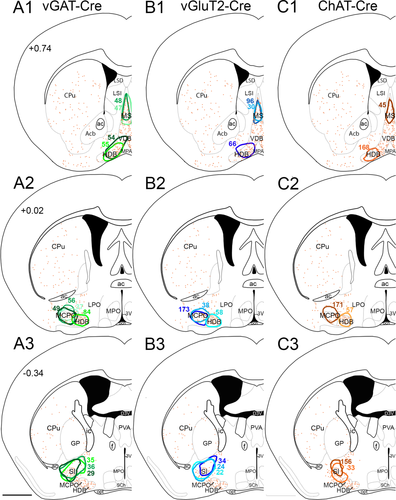

We plotted injection sites onto template drawings representing three levels of the BF (Figure 3). Specifically, we scanned BF sections using brightfield on a slide scanner (Olympus VS120; UPlanSApo 10 × objective, 0.40 numerical aperture [NA]) and traced the center of the injection site onto a template using Photoshop (Adobe, San Jose, CA). The center of the injection site was defined as the section in the middle of the rostrocaudal extent of the injection, and then we traced around the entire border of the transfected cells.

To quantify innervation of the orexin neurons, we counted the number of orexin neurons apposed by mCherry-labeled synaptic boutons. First, we selected sections from the rostral, central, and caudal parts of the orexin field spaced 240 µm apart (Figure 4A). To determine if a cell was apposed by a nerve terminal from the BF, we examined each orexin neuron containing a nucleus using brightfield microscopy (Zeiss Axioplan 2; 100 × oil objective [Plan-Neofluar 1.3 NA] with a Zeiss achromatic–aplanatic universal condenser 0.9), adjusting the focus to maximize visibility of appositions. An orexin neuron was considered innervated if there was at least one mCherry-labeled bouton immediately adjacent to the soma or proximal dendrites (Figure 4B). On a photomicrograph of the section, we marked each orexin neuron with a blue dot if it was innervated or a red dot if it was not (Figure 5). To examine regional changes across the orexin field, we counted appositions in the three rostral–caudal levels and also in the lateral, perifornical, and medial parts of the orexin field.

2.6 Confocal microscopy and analysis

We used confocal microscopy to confirm that BF neurons form close appositions on orexin neurons. First, we fluorescently labeled LH sections green for orexin and red for the mCherry-filled BF terminals. We then photographed double-labeled sections in 1-µm optical sections using a Zeiss LSM 510 META confocal microscope with a Zeiss Plan-ApoChromat 63 × oil objective (1.4 NA). We scrolled through the 20 z-stack images using ImageJ (NIH, Bethesda, MD) and counted orexin neurons that received at least one BF apposition immediately adjacent to the soma and proximal dendrites. We used Photoshop to adjust brightness and contrast when needed, and in some images, we pseudo-colored red as magenta.

2.7 Synaptophysin labeling

To establish further whether the anatomical appositions form synapses, we labeled presynaptic terminals with mCherry fused to synaptophysin, a presynaptic vesicle glycoprotein (Rizzoli, 2014). Using the same three lines of mice, we injected the SI with an AAV coding for Cre-dependent synaptophysin fused to mCherry (AAV8-hEF1α-DIO-synaptophysin-mCherry-WPRE) (Garfield et al., 2014). After 4 weeks, we perfused the mice and immunostained mCherry black with DAB-Ni and orexin neurons brown with DAB, using the protocol described above. The synaptophysin-mCherry produced black punctate labeling of synaptic boutons with minimal labeling of axons, and we counted synaptophysin-immunolabeled boutons apposing orexin neurons as described above using the 100 × oil objective.

2.8 CRACM

To confirm that projections from the BF form functional synapses onto orexin neurons, we used in vitro CRACM with dual AAV injections. We unilaterally microinjected the SI of 7- to 9-week-old vGAT-Cre (n = 7 mice) and vGluT2-Cre (n = 7 mice, but 2 were excluded for missed injection sites) female mice with 3 to 6 nl of an AAV coding for ChR2 fused to enhanced yellow fluorescent protein (EYFP; AAV10-EF1α-DIO-hChR2(H134R)–EYFP; 1 × 10¹² pfu/ml; a kind gift of the Fuller Lab; Chen et al., 2015). This conditional YFP labeled BF soma and terminals as strongly as the mCherry labeling used in other experiments. To identify the orexin neurons in recording slices, we also injected the orexin field with an AAV in which a 1.3-kb fragment of the human prepro-orexin promoter drives expression of tdTomato (AAV8-horexin-tdTomato; 1.7 × 10¹³ pfu/ml); the AAV construct was a kind gift of Takeshi Sakurai, Kanazawa University, Japan (Saito et al., 2013). We unilaterally targeted 15-nl AAV injections at the medial and lateral parts of the orexin field (AP: 1.53 mm; DV: −5.1 mm; ML: 0.8 and 1.2 mm). We recorded 25 orexin neurons from across the medial–lateral extent of the orexin field in five vGluT2-Cre mice. We recorded 46 neurons (39 orexin neurons + 7 non-orexin neurons) in seven vGAT-Cre mice. We recorded an average of five to seven neurons per mouse.

To determine if AAV-horexin-tdTomato labels only orexin neurons, we fluorescently immunolabeled LH sections for DsRed and orexin, and found that 82% of the tdTomato-labeled neurons were also double-labeled for orexin. The tdTomato-labeled neurons lacking orexin were small (<10 µm) and ventral and lateral to the orexin field. Therefore, our recordings targeted only large (>20 µm) tdTomato-labeled neurons in the orexin field, and all had the typical physiological characteristics previously described for orexin neurons (Schone, Venner, Knowles, Karnani, & Burdakov, 2011).

Eight weeks after AAV injections, we prepared LH slices for electrophysiological recordings. We deeply anesthetized mice with isoflurane via inhalation at ∼10:00 am (3 hr after lights on), and transcardially perfused them with ice-cold cutting artificial cerebrospinal fluid (ACSF; N-methyl-D-glucamine, NMDG-based solution) containing (in mM): 100 NMDG, 2.5 KCl, 1.24 NaH₂PO₄, 30 NaHCO₃, 25 glucose, 20 HEPES, 2 thiourea, 5 Na-L-ascorbate, 3 Na-pyruvate, 0.5 CaCl₂, 10 MgSO₄ (pH 7.3 with HCl when carbogenated with 95% O₂ and 5% CO₂). We quickly removed the mouse brains and sectioned them in coronal slices (250 µm thick) in ice-cold cutting ACSF using a vibrating microtome (VT1000S, Leica, Bannockburn, IL). We transferred the slices containing the orexin field to normal ACSF containing (in mM): 120 NaCl, 2.5 KCl, 1.3 MgCl₂, 10 glucose, 26 NaHCO₃, 1.24 NaH₂PO₄, 4 CaCl₂, 2 thiourea, 1 Na-L-ascorbate, 3 Na-pyruvate (pH 7.4 when carbogenated with 95% O₂ and 5% CO₂, 310–320 mOsm).

We recorded from large neurons across the orexin field that expressed tdTomato using a combination of fluorescence and infrared differential interference contrast (IR-DIC) video microscopy. As controls, we also recorded from non-orexin neurons lacking tdTomato that lay within the orexin field. For these recordings, we used a fixed stage upright microscope (BX51WI, Olympus America, Center Valley, PA) equipped with a 40 × Olympus Nomarski water immersion objective (0.8 NAW) and IR-sensitive CCD camera (ORCA-ER, Hamamatsu, Bridgewater, NJ), and we used AxioVision software (Carl Zeiss MicroImaging, Thornwood, NJ) to acquire real-time images. We recorded in whole-cell configuration using a Multiclamp 700B amplifier (Molecular Devices, Foster City, CA), a Digidata 1322A interface, and Clampex 9.0 software (Molecular Devices). We photostimulated BF axons and synaptic terminals expressing ChR2 using full-field 5-ms flashes of light (∼10 mW/mm², 1-mm beam width) from a 5-W LUXEON blue light-emitting diode (470-nm wavelength; Thorlabs, Newton, NJ, Cat# M470L2-C4) coupled to the epifluorescence pathway of the microscope. We used a three-light pulse protocol at 3 Hz, and we repeated this protocol every 5 s (0.5 Hz) for 30 trials. For most of our recordings, we used a K-gluconate–based pipette solution containing (in mM): 120 K-gluconate, 10 KCl, 3 MgCl₂, 10 HEPES, 2.5 K-ATP, 0.5 Na-GTP (pH 7.2 adjusted with KOH; 280 mOsm), that allowed us to verify the firing properties of the recorded cells. We recorded photo-evoked excitatory postsynaptic currents (EPSCs) in slices from vGluT2-Cre mice at Vh = −60 mV in ACSF using a K-gluconate–based pipette solution. We initially recorded photo-evoked inhibitory postsynaptic currents (IPSCs) with a K-gluconate–based pipette solution in slices from one mouse (Vh = −40 mV in ACSF; Cl⁻ reversal potential = −64 mV), then with a Cs-methane-sulfonate–based pipette solution in slices from two mice (Vh = 0 mV in ACSF; Cl⁻ reversal potential = −64 mV), and then with a KCl-based pipette solution from four mice (Vh = −60 mV in ACSF + kynurenic acid 1 mM; Cl⁻ reversal potential = 1.77 mV). Composition of the Cs-methane-sulfonate–based pipette solution was (in mM): 125 Cs-methane-sulfonate, 11 KCl, 10 HEPES, 0.1 CaCl₂, 1 EGTA, 5 Mg-ATP, and 0.3 Na-GTP (pH adjusted to 7.2 with CsOH 280 mOsm). Composition of the KCl-based pipette solution was (in mM): 140 KCl, 1 MgCl₂, 10 HEPES, 1 EGTA, 0.3 CaCl₂, 5 Mg-ATP, 0.3 Na-GTP (pH adjusted to 7.2 with KOH, 280 mOsm). To record photo-evoked synaptic events in the presence of tetrodotoxin (TTX; 1 µM), we bath applied the potassium blocker 4-AP (1 mM) (Hull, Adesnik, & Scanziani, 2009). We identified orexin neurons by expression of td-Tomato and confirmed this based on their firing properties (Schone et al., 2011).

We analyzed the electrophysiological data using Clampfit 9.0 (Molecular Devices) and IGOR Pro 6 (WaveMetrics, Lake Oswego, OR). We analyzed the synaptic events off-line using Mini Analysis 6 (Synaptosoft, Leonia, NJ). We calculated the latency of the photo-evoked EPSCs and IPSCs as the time difference between the start of the light pulse and the 5% rise point of the first EPSC (Hull et al., 2009).

2.9 Statistical analysis

We report data as mean ± SEM. We used the Kruskal–Wallis rank sum test to compare cell counts between different levels of the orexin field, followed by a Dunn's multiple comparison test to identify significant pairwise differences (StatView, SAS Institute, Cary, NC).

3.1 Conditional anterograde tracing

We injected AAV-ChR2-mCherry into the BF of ChAT-Cre, vGluT2-Cre, and vGAT-Cre mice. The injection sites were small, with typical diameters of 720 to 960 µm (Figure 1). We double-labeled sections for mCherry and ChAT, and selected three cases limited to the MS, HDB, MCPO, or SI for each of the three lines of mice (Figures 2 and 3). In ChAT-Cre mice, all mCherry-containing neurons also labeled for ChAT. In vGluT2-Cre and vGAT-Cre mice, mCherry never colocalized with ChAT, demonstrating that the vGAT and vGluT2 neurons are distinct from the cholinergic neurons, as indicated in prior studies (Gritti et al., 2006; Xu et al., 2015).

This method produced robust and selective anterograde labeling in GABAergic, glutamatergic, and cholinergic BF neurons, with the heaviest innervation of the orexin field arising from the lateral and caudal parts of the BF (SI and MCPO). We estimated the percentage of orexin neurons innervated by each BF cell type by counting the number of orexin neurons with at least one closely apposing bouton from each of the different BF areas (Figure 4 and Table 2). While the identification of a single apposition on orexin neurons provided a minimal criterion for counting a neuron targeted by each BF region, most orexin neurons were apposed by multiple GABAergic and glutamatergic boutons. The GABAergic and glutamatergic neurons also formed ascending projections to the cortex, hippocampus, and amygdala plus descending projections to many additional regions including the posterior hypothalamus, supramammillary nucleus, habenula, VTA, and parabrachial nucleus that we will describe in a separate report.

3.2 Innervation of the orexin neurons by the substantia innominata

Among the BF regions, the SI most densely innervated the orexin neurons. Injections in the caudal SI at the level of the posterior part of the anterior commissure (Figure 3A3,B3) formed mostly ipsilateral projections, with axons descending through the medial forebrain bundle. A large part of this projection terminated in the LH, though many axons continued on to more caudal regions. In the hypothalamus, fibers were densest in the lateral portion of the LH adjacent to the internal capsule, extended medially across the orexin neuron field, and heavily terminated in the lateral posterior hypothalamus (LHp); fibers were sparser in medial regions such as the paraventricular nucleus (PVH), ventromedial hypothalamus, and dorsomedial nucleus (DMH). Both GABAergic and glutamatergic SI neurons densely innervated the orexin field, but cholinergic fibers in the orexin field were completely absent.

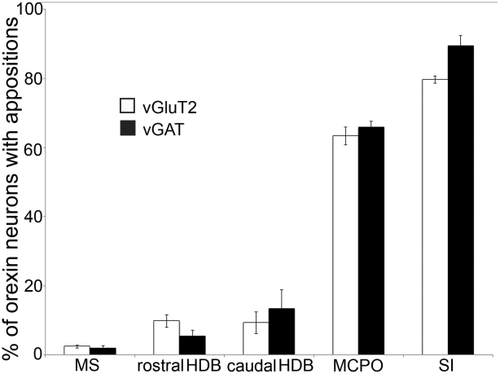

Over the entire orexin field, the GABAergic and glutamatergic boutons originating from the SI formed close appositions on 89% ± 3% and 80% ± 1% of the orexin neurons, respectively (Figure 5 and Table 2). The conditional tracing method also worked well in the cholinergic BF neurons, producing heavy labeling of axons to the cortex, hippocampus, basolateral amygdala, and other regions. However, within the orexin field, cholinergic axons were absent, and we found no orexin neurons with cholinergic appositions from the BF.

The medial and lateral parts of the orexin field are hypothesized to mediate different functions (Estabrooke et al., 2001; Harris & Aston-Jones, 2006; Yoshida et al., 2006), so we subdivided our mapping of glutamatergic and GABAergic appositions on orexin neurons into three medial to lateral divisions and three rostral–caudal levels. Boutons from GABAergic SI neurons formed close appositions on orexin neurons across the lateral, perifornical, and medial parts of the orexin field (95% ± 2%, 91% ± 3%, 84% ± 3%; P = 0.11) (Figure 5). In contrast, glutamatergic innervation was strong in the lateral field and moderate medially (91% ± 1%, 79% ± 1%, 63% ± 2%; P = 0.03); pairwise comparisons showed significant differences between the lateral and medial divisions (P < 0.05). Across the rostral, mid, and caudal levels of the orexin field, there was little variation in the GABAergic innervation (91% ± 2%, 90% ± 3%, 87% ± 5%), and glutamatergic innervation (77% ± 2%, 79% ± 1%, and 85% ± 5%) of the orexin neurons.

Synaptophysin is a reliable marker of presynaptic protein complexes (Rizzoli, 2014), and the frequency of appositions on orexin neurons was similar in mice with AAV-synaptophysin-mCherry injected into the SI. Specifically, 79% and 77% of orexin neurons received mCherry-labeled boutons in vGluT2-Cre and vGAT-Cre mice, respectively, but there were no appositions in ChAT-Cre mice. The slightly lower numbers of appositions with this method may be due to lower transduction efficiency with this AAV or fewer false-positive appositions than in the ChR2 sections in which irregularities in axons occasionally resemble axon boutons.

We analyzed all confocal images to determine if the BF boutons labeled with ChR2-mCherry form close appositions on the orexin neurons. We acquired 20 images per z-stack and examined each 1-µm optical section for appositions. We acquired images in the lateral, perifornical, and medial aspects of the orexin field. We found that about 78% and 80% of the orexin neurons received glutamatergic and GABAergic appositions, respectively.

3.3 Innervation of the orexin neurons by other BF regions

Innervation of the orexin neurons varied greatly across BF regions. GABAergic and glutamatergic neurons of the MCPO innervated the orexin neurons almost as heavily as those of the SI, but innervation from the HDB and MS was light (Figure 6 and Table 2). Unlike projections from the SI, none of these BF regions showed statistically significant topographical variations across the medial–lateral extent of the orexin field. No BF region showed variations in apposition density along the rostral–caudal extent of the orexin field. Across all BF regions, cholinergic neurons did not innervate the orexin neurons.

Each BF region projected to the orexin field via moderately distinct descending pathways, and GABAergic and glutamatergic BF neurons followed similar paths. Sparse, descending projections from the MS mostly ran adjacent to the optic tract with a few axons running through the medial forebrain bundle, innervating only 1 to 2% of the orexin neurons. The rostral and caudal HDB innervated mainly orexin neurons in the ventral part of the orexin field (GABAergic and glutamatergic boutons opposed about 5% and 9% of the orexin neurons, respectively), with fibers descending in a pattern similar to those of the MS. These HDB injections extended slightly into the rostral SI or MCPO, which likely increased the apparent density of this projection. Fibers from the MCPO projected through the medial forebrain bundle to the orexin neurons, mainly innervating the mid and ventral parts of the orexin field. The SI innervated the entire orexin field, with especially heavy innervation of the dorsal part.

We placed control injection in the ventromedial globus pallidus (just dorsal to the SI), and we did not see projections to the orexin field. Control injections into the lateral and medial preoptic area revealed strong projections to the ventral orexin field, so in analyzing our BF series, we excluded cases with any extension of tracer medial to the BF.

3.4 CRACM of SI-to-orexin projections

We used CRACM to test for synaptic connectivity between glutamatergic and GABAergic neurons of the SI and the orexin neurons (Figure 7). We injected AAV-ChR2-EYFP virus in the SI region and AAV-horexin-tdTomato in the perifornical region of vGluT2-Cre mice and vGAT-Cre mice. YFP expression was limited to glutamatergic or GABAergic neurons of the SI, and tdTomato was strongly expressed in the orexin neurons.

Photostimulation of SI glutamatergic axons and terminals evoked release of glutamate and firing of orexin neurons. In voltage-clamp recordings, photostimulation of glutamatergic projections rapidly evoked EPSCs in 23/25 recorded orexin neurons (peak amplitude of the photo-evoked EPSCs: 36.35 ± 5.18 pA). This effect was blocked by 6,7-dinitroquinoxaline-2,3-dione (DNQX; = (20 µM), indicating that these responses were mediated by postsynaptic AMPA receptors. The EPSCs had short latencies (4.92 ± 0.21 ms; n = 23) and were maintained in TTX (n = 6), suggesting direct monosynaptic connectivity between SI glutamatergic terminals and the orexin neurons. Additionally, we did not see IPSPs after photostimulation, indicating no release of GABA from the BF terminals in vGluT2-Cre mice.

In contrast, photostimulation of GABAergic projections rarely evoked postsynaptic responses in orexin neurons. Initially, we recorded from orexin neurons using a K-gluconate–based pipette solution (n = 5 neurons) or a Cs-methane-sulfonate–based pipette solution (n = 8). Orexin neurons demonstrated spontaneous IPSCs that were blocked by bicuculline (10 µM), but these events were not synchronized to photostimulation. As a positive control, we recorded from non-orexin neurons within the orexin field and found that short latency (5.44 ± 0.74 ms) evoked IPSCs in 4/7 neurons. We then recorded from an additional 26 orexin neurons using a KCl-based pipette solution to increase the detection of photo-evoked IPSCs. Under this condition, we found that photostimulation of GABAergic projections evoked IPSCs in 4/26 recorded orexin neurons (IPSC latency: 4.68 ± 1.18 ms and IPSC peak amplitude: 60.59 ± 42.9 pA). Additionally, we did not see EPSCs after photostimulation under any conditions, indicating no release of glutamate from the BF terminals in vGAT-Cre mice. These results demonstrate that photostimulation of SI GABAergic terminals can evoke release of GABA onto the orexin neurons, but the number of functional synapses is low.

4.1 Pattern of SI BF projections to the orexin neurons

The descending glutamatergic and GABAergic projections from the SI and MCPO densely innervate the LH. We found that the SI glutamatergic input is heaviest in the lateral part of the orexin field, but the GABAergic projection from the SI is uniformly strong across the entire orexin field. Studies investigating functional divisions among orexin neurons suggest that more medial orexin neurons are involved with arousal, whereas lateral orexin neurons are involved in reward-seeking behaviors (Estabrooke et al., 2001; Fadel, Bubser, & Deutch, 2002; Harris, Wimmer, & Aston-Jones, 2005; Harris & Aston-Jones, 2006). In addition, noncholinergic BF neurons fire in association with changes in sleep/wake states and also encode motivational salience (Lin & Nicolelis, 2008; Hassani, Lee, Henny, & Jones, 2009; Raver & Lin, 2015). Perhaps the BF glutamatergic innervation of the orexin neurons that we describe mainly reinforces reward-seeking or motivated behaviors.

To confirm that these ChR2-mCherry appositions were true synaptic specializations, we used another conditional tracer in which mCherry is fused to synaptophysin and found that 79% and 77% of the orexin neurons received appositions from SI glutamatergic and GABAergic neurons, respectively. For comparison, ChR2-mCherry labeled glutamatergic and GABAergic appositions on 80% and 89% of the orexin neurons, respectively. The slightly lower numbers of appositions with the synaptophysin method may be due to lower transduction efficiency with this AAV or fewer false-positive appositions than in the ChR2 sections in which irregularities in axons occasionally resemble axon boutons.

4.2 Variations in projections from different BF nuclei

We find that the heaviest BF projections to the orexin neurons arise from the most lateral and caudal parts of the BF, but innervation from medial and rostral BF regions is sparse to nonexistent. In fact, the lateral–medial dimension may be most important, as innervation is light from medial but relatively caudal regions such as the caudal HDB but moderately strong from the lateral but rostral part of the SI (data not shown). This pattern is in keeping with prior tracing studies in rats that showed moderate input to the orexin neurons from the SI but minimal to no input from the MS and HDB (Grove, 1988; Yoshida et al., 2006).

Our small injections into specific BF regions further demonstrate the anatomical heterogeneity among BF subnuclei, especially the differences between the MCPO and HDB. These adjacent structures are defined by loose clusters of magnocellular cholinergic neurons (Dinopoulos, Parnavelas, & Eckenstein, 1986; Brashear, Zaborszky, & Heimer, 1986), but their boundaries can be indistinct and they are often considered together. We find that neurons in the HDB innervate very few orexin neurons whereas slightly more lateral neurons in the MCPO form strong projections. These distinctions highlight the general topology of the hypothalamus and BF proposed by Swanson and others, which emphasizes anatomically and functionally distinct medial and lateral “columns” such that the lateral parts of the BF and the LH are anatomically and functionally linked (Swanson, 2000).

While only the lateral parts of the BF innervate the orexin neurons, the orexin neurons innervate the entire BF including the medial septum (Peyron et al., 1998), with preferential innervation of the BF from the medial orexin neurons (España, Reis, Valentino, & Berridge, 2005). All BF regions express orexin receptors (Marcus et al., 2001), and orexins (orexin-A and orexin-B) excite cholinergic and noncholinergic BF neurons in the medial septum, HDB, and MCPO (Eggermann et al., 2001; Wu, Zaborszky, Hajszan, van den Pol, & Alreja, 2004; Arrigoni et al., 2010). In addition, microinjection of orexin-A into the MS or SI rapidly increases wake (España, Baldo, Kelley, & Berridge, 2001; Thakkar, Ramesh, Strecker, & McCarley, 2001), even in the absence of cholinergic neurons (Blanco-Centurion, Shiromani, Winston, & Shiromani, 2006). Thus, orexins excite cholinergic and noncholinergic neurons across the BF, but feedback from the BF arises only from noncholinergic neurons of the SI and MCPO. This asymmetry suggests that while the orexin neurons activate the entire BF, functions are segregated across the BF. Specifically, reciprocal connections between the lateral BF and orexin neurons may reflect shared roles in regulating arousal, motivation, and other functions.

4.3 Comparison and contrast with prior research

Henny and Jones (2006a) mapped the projections from SI and MCPO to the orexin neurons in rats using injections of biotinylated dextran amines (BDAs), and then double labeling boutons for neurochemical markers. They found that 41% of the orexin neurons within the lateral hypothalamus were contacted by BDA-positive appositions, and of these neurons, 31% and 67% had appositions positive for VGlut2 and VGAT, respectively. This would suggest that roughly 13% and 27% of the LH orexin neurons receive glutamatergic and GABAergic innervation from the BF, respectively, and even less if one considers the less heavily innervated orexin neurons in the perifornical region and dorsomedial nucleus. Furthermore, Henny and Jones (2006a) reported postsynaptic scaffolding proteins on an even smaller percentage of orexin neurons, suggesting the connectivity is even lower. Using conditional tracing in mice, we found more numerous glutamatergic and GABAergic appositions (∼80% and 90%, respectively) on the orexin neurons. This difference in intensity of innervation could be due to species differences, size of injections, and location with the BF, but we suspect that conditional tracing is more sensitive, as conditional tracing produces large amounts of marker protein, and the method does not require double or triple labeling of nerve terminals. Future experiments should be able to establish which method is more sensitive by direct comparison of conditional and conventional tracers.

Although projections from glutamatergic and GABAergic BF neurons are very strong, we found that BF cholinergic neurons do not innervate the orexin neurons. One study using transgenic mice reported that cholinergic BF neurons innervated the orexin neurons (Sakurai et al., 2005), but this may have been a methodological artifact as other studies using conventional anterograde and retrograde tracers found very little to no innervation by BF cholinergic neurons (Gritti, Mainville, & Jones, 1994; Henny & Jones, 2006a). The orexin neurons are excited by the cholinergic agonist carbachol (Yamanaka, Muraki, Tsujino, Goto, & Sakurai, 2003; Bayer et al., 2005; Ohno, Hondo, & Sakurai, 2008), but these cholinergic signals likely arise from other regions such as the pedunculopontine tegmental nucleus or the laterodorsal tegmental nucleus (Semba, Reiner, McGeer, & Fibiger, 1988; Hallanger & Wainer, 1988; Satoh & Fibiger, 1986).

4.4 Possible functions of the glutamatergic BF projection

Our study provides strong evidence that glutamatergic MCPO and SI neurons can excite the orexin neurons. Henny and colleagues (2006a) found that some orexin neurons contain the postsynaptic scaffolding protein PSD-95 opposite vGluT2-labeled boutons from the SI. We now show that about 80% of the orexin neurons are innervated by glutamatergic SI boutons, and about 80% of the orexin neurons respond to optogenetic stimulation of glutamatergic SI terminals.

Most research on the BF has focused on the cholinergic and GABAergic neurons, but much less is known about the functions of the glutamatergic BF neurons. Hassani and colleagues (2009) used extracellular recordings with juxtacellular labeling to study putative glutamatergic BF neurons in vivo, and found that these neurons are mainly active during wakefulness and REM sleep. Specifically, these noncholinergic, non-GABAergic neurons primarily fire in association with fast cortical rhythms, although a few may be more active during NREM sleep. A recent study (Xu et al., 2015) using optrode recordings in reporter mice confirms that these vGluT2 + BF cells primarily fire during wake and REM sleep, and are less active during NREM sleep, and optogenetic activation of these neurons induced a rapid transition from NREM sleep to wakefulness.

The orexin neurons are clearly active during wake. In rodents, FOS studies plus juxtacellular and unit recordings show that orexin neurons are mostly active during wakefulness (Estabrooke et al., 2001; Mileykovskiy, Kiyashchenko, & Siegel, 2005; Lee, Hassani, & Jones, 2005), and in humans, extracellular levels of orexin-A can be six times higher during wake than during sleep (Blouin et al., 2013). In cats, brain and CSF orexin peptide concentrations are increased during wake (Kiyashchenko et al., 2002). Furthermore, NMDA administration in the LH increases wakefulness in wild-type mice but less so in orexin knockout mice (Kostin, Siegel, & Alam, 2014). Lastly, prolonged wakefulness and food deprivation increase EPSCs on orexin neurons (Horvath & Gao, 2005; Rao et al., 2007).

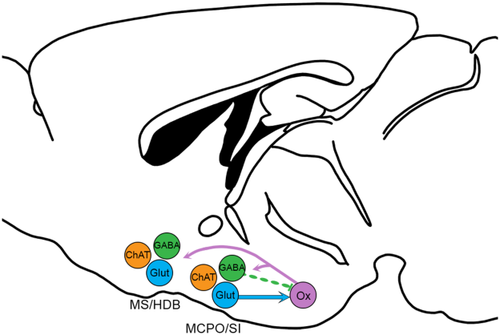

Most likely, glutamatergic BF neurons and orexin neurons excite each other during wake, and this positive feedback promotes arousal. Additionally, both the BF and orexin neurons have been implicated in motivated behaviors. As adequate arousal is required for all motivated behaviors, this circuit may promote both arousal and motivation.

4.5 Possible functions of the GABAergic BF projection

With brightfield and fluorescence microscopy, GABAergic BF neurons formed numerous apparent synapses on orexin neurons, but CRACM showed few direct responses. This was unexpected, as these GABAergic boutons contain synaptophysin presynaptically, and Henny & Jones (2006) demonstrated that in rats, orexin neurons express the postsynaptic scaffolding protein gephyrin opposite boutons from BF GABAergic neurons, suggesting the presence of functional synapses. In addition, GABA can inhibit the orexin neurons (Yamanaka et al., 2003; Xie et al., 2006), and photostimulation of GABAergic fibers from the POA rapidly inhibits the orexin neurons (Saito et al., 2013). Most importantly, the CRACM method was clearly effective, as it elicited GABA release from SI terminals and short-latency IPSPs on adjacent non-orexin neurons. Sleep deprivation can increase the expression of GABA_A receptors on orexin neurons (Toossi, Del Cid-Pellitero, & Jones, 2016), and it is possible that CRACM would show stronger connectivity after sleep deprivation.

Researchers have long appreciated that light microscopy can suggest false-positive synaptic connectivity. For example, Meredith and Wouterlood (1990) found that hippocampal projections formed apparent appositions on cholinergic neurons in the nucleus accumbens when studied with light microscopy, but they could not detect any synaptic contacts with electron microscopy. Instead, the hippocampal projections synapsed on adjacent, noncholinergic neurons. Similarly, it seems most likely that the GABAergic terminals from the SI synapse on non-orexin LH neurons. In ongoing research, we are now examining whether these non-orexin neurons form a local circuit through which they influence the orexin neurons.

BF GABAergic neurons are functionally heterogeneous, and these populations may have distinct effects on the orexin and other LH neurons. GABAergic BF neurons can differ in their expression of peptides such as parvalbumin, calbindin, and somatostatin (Gritti, Manns, Mainville, & Jones, 2003; Xu et al., 2015), basic membrane properties (McKenna et al., 2013), and in vivo firing patterns (Hassani et al., 2009). Hassani and colleagues (2009) showed that most GABAergic neurons in the SI and MCPO fire during wake and/or REM sleep, but 28% fire mainly during NREM sleep. Cortically projecting GABAergic neurons likely fire in association with fast electroencephalographic (EEG) frequencies (Manns, Alonso, & Jones, 2000; Kim et al., 2015). Xu and colleagues (2015) showed that optogenetic stimulation of parvalbumin and somatostatin BF neurons caused a significant increase in wakefulness and NREM sleep, respectively, but which types of GABAergic neurons innervate the LH remains unknown. Unilateral inhibition of the BF can induce Fos in ipsilateral orexin neurons, suggesting that some BF neurons inhibit the orexin neurons (Satoh et al., 2003), but a wake-active GABAergic projection onto the orexin neurons seems counterproductive for wake maintenance. Therefore, wake-active GABAergic neurons probably do not directly innervate the orexin neurons, but they may indirectly excite the orexin neurons via an inhibitory LH interneuron. Clearly, more work is needed to define the anatomy and functions of these large, descending GABAergic projections.

4.6 Limitations

One potential limitation of our experiments is that we focused on glutamatergic signaling mediated by neurons containing vGluT2. Most glutamatergic BF neurons contain vGluT2, but a subset of ChAT and potentially parvalbumin-containing BF neurons contain vGlut3 (Harkany et al., 2003; Nickerson Poulin et al., 2006; Gritti et al., 2006). Thus, it is possible that some cholinergic BF neurons corelease glutamate, as has been shown in cholinergic interneurons in the striatum (Higley et al., 2011). However, this is unlikely to be a glutamatergic influence on the orexin neurons, as cholinergic BF neurons do not innervate the orexin neurons in mice. In addition, we have seen no evidence of glutamate release from GABAergic BF neurons using optogenetics (present experiments and unpublished results).

Research on the SI is confounded by definitions that differ between research groups. Nomenclature to describe or subdivide this region includes the SI, ventral pallidum (VP), extended amydgala, nucleus basalis, and interstitial nucleus of the posterior limb of the anterior commissure (IPAC). While some refer to this entire region as the SI (Canteras et al., 1995), others propose that the VP and extended amygdala are rostral and caudal divisions of the SI (Heimer et al., 1997; Alheid, 2003). In part, this complexity arises from differences in BF anatomy across species, as cholinergic groups form tighter clusters and are defined differently in primates than in rodents. We operationally define the SI as the loosely packed subcommissural group of neurons within the boundary of magnocellular cholinergic neurons that are located dorsal to the more densely packed MCPO and HDB, and ventral/medial to the GP (Figure 3). The basal nucleus, ventral pallidum, and extended amygdala, as described by others, may overlap with the region we define as the SI, or they may be distinct subregions. We appreciate the complexity of the nomenclature and the difficulty of categorizing the neurons in this area; hopefully, future research will identify specific neuronal markers to better define the SI, especially in relation to the VP and extended amygdala.

Another limitation is the challenge of tracing pathways in the small brains of mice. We injected very small (3–6 nl) volumes of AAV-ChR2-mCherry, but injections occasionally spread into adjacent parts of the BF. We managed this problem by limiting our analysis to injections confined to specific BF regions and within cholinergic boundaries, as is typical with many anatomical studies. Conversely, because our injections were small, our analyses may underestimate of the density of the projections from a given BF structure.

Finally, several factors could affect the accuracy of counting appositions with light microscopy. We counted BF appositions only at the soma and proximal dendrites of orexin neurons, as it is challenging to analyze appositions onto distal dendrites. Conversely, although we counted only appositions that appeared immediately adjacent to the orexin neurons, we may have overcounted appositions that actually contacted nearby structures such as another neuron or presynaptic terminals. In addition, dehydration and shrinkage of sections could have made boutons and orexin neurons appear closer. Regardless of the precision in counting appositions, light microscopy is only a start for identifying potential synapses, and the presence of true synapses needs to be established using electron microscopy or electrophysiology.
