Nowadays, nearly 50% of pediatric AML patients in developed countries would experience relapse and finally succumb to disease progression, with 5-year event-free survival rate less than 60%, which is even worse in developing countries. Therefore, novel therapeutic strategies are highly needed for relapsed/refractory acute myeloid leukemia (R/R-AML) therapy.

Though multiple agents have been developed, their clinical translation remains obscure due to the benefit to specific AML subpopulation, systemic toxicities, and acquired drug resistance later on,¹ particularly for the pediatric population. Chimeric antigen receptor (CAR) T-cells therapy, an adoptive cell therapy, is becoming an attractive candidate. Attractively, anti-CLL1-based CAR T-cells have been proven clinically safe and well responded in R/R-AML,^2-4 holding the promise as a new therapy for R/R-AML. However, the clinical translation of CAR T-cells is still facing a lot of challenges, including lack of tumor-specific CAR T target antigens, T-cell aplasia, malignant T-cell contamination, and fratricide in T-ALL patients, antigen-shift in AML.^{5, 6} Thus, further studies are warranted to achieve a better treatment outcome.

Co-stimulatory domains play an indispensable role, that is, CAR T-cells activation, persistence, and its targeted cytotoxicity.^7-9 However, the impact of different co-stimulatory elements on anti-CLL1-based CAR T-cells in treating AML has not been investigated so far. To this end, we here preliminarily compared the safety and efficacy index of anti-CLL1-based CAR T-cells between those equipped with 4-1-BB domain and CD27/CD28 domain in treating children with R/R-AML.

All the medical data were collected, and critically reviewed for all these enrolled R/R-AML patients receiving anti-CLL1-based CAR T-cells therapy from September 2018 to December 2020. Prior to anti-CLL1 CAR T-cells infusion, all patients received lymphodepletion chemotherapy (cyclophosphamide, 500–900 mg/m²/day, from Day 4 to Day −1; fludarabine, 25 mg/m²/day, from Day −2 to Day −1 depending on the AML burden).^{2, 3, 10} NCCN guidelines version 3.0 on AML was used to assess the treatment efficacy.¹¹ Side effect was defined as an unrelated pharmacological effect occurring within 4 weeks after CAR T-cells therapy. The adverse effects of anti-CLL1 CAR T-cells therapy were evaluated and graded using the CTCAE 5.0 criteria. In the meanwhile, the CAR T-cells therapy-related toxicities, for example, cytokine release syndrome (CRS), immune effector cell-associated neurotoxicity syndrome (ICANS), hemophagocytic lymphohistiocytosis (HLH), and macrophage activation syndrome (MAS), were evaluated using the management system proposed by Santomasso et al.^{12, 13}

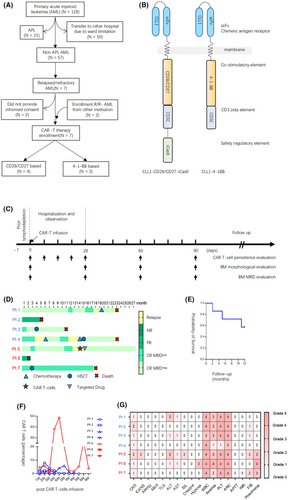

Seven patients were included in this prospective study; four were treated with CD28/CD27-equipped anti-CLL1-based CAR T-cells while three were treated with 4-1-BB-equipped anti-CLL1-based CAR T-cells (Figure 1A and Table 1). The illustration of CAR constructs is shown in Figure 1B. The median age of patients was 8.4 years (range, 5.8–13.5 years), The median white blood cells (WBC) counts were 1.0 × 10⁹/L (range 0.4–1.5) and 0.4 × 10⁹/L (range 0.1–0.7) in the CD28/CD27 and 4-1-BB groups, respectively. The minimal leukemic burden varied from 0.04% to 96.4% as reflected by flow cytometry. These patients received anti-CLL1-based CAR T-cells varying from 0.94 to 1.98 × 10⁶/kg body weight after prior lymphodepletion therapy (Figure 1C).

The early treatment response was monthly evaluated in the first 3 months. Five patients achieved complete remission (CR) with three patients negative and two patients positive for minimal residual disease (MRD) (Figure 1D). The overall response rate was 75% (3/4) and 67% (2/3) in the CD28/CD27 and 4-1-BB groups, respectively (Figure 1D). Meanwhile, the 1-year survival was 57.1% among these seven enrollment cases (Figure 1E). In this report, we monitored the level of anti-CLL1 CAR T-cells to evaluate the association between CAR T-cells efficacy and CAR T-cells expansion. The CAR T-cells of three patients (patients 1, 3, and 5) were successfully expanded and persisted with an average of 6 months (Figure 1F). Interestingly, all these three patients achieved CR with MRD negativity. At the time of submission, the latest follow-up via telephone for all these seven patients was completed. The follow-up duration varied from 2 to 27 months among these seven patients. As illustrated in Figure 1D, patients 2 and 6 died of disease progression after 5 and 2 months of anti-CLL1 therapy, respectively. For patient 1, CR was achieved and maintained for 18 months, with MRD negative for 12 months. Unfortunately, patient 1 experienced relapse 18 months after CAR T-cells therapy and received chemotherapy again. Within ~6 months of the second CR, patient 1 succumbed to leukemia recurrence. Patient 3 received haploidentical 7/10 HLA-matched allogeneic hematopoietic stem cell transplantation (allo-HSCT) 2 months after anti-CLL1 CAR T-cells infusion and remained negative for AML blast for 8 months. Unluckily, he died of gastrointestinal graft-versus-host disease (GVHD) and thrombotic microangiopathy 9 months after the transplant. Patient 4 did not respond to CAR T-cells therapy, presented with persistent MRD and experienced relapse 4 months later. He received a combination of hypomethylating agents-based chemotherapy and venetoclax. Though the disease was improved again for 6 months long, he eventually experienced relapse again 12 months after CAR T-cells therapy. Even though proceeding to allo-HSCT therapy, patient 4 died of disease progression eventually. Patient 7 received allo-HSCT 3 months after CAR T-cells therapy and remained morphologic leukemia-free status for 14 months. Unfortunately, patient 7 died of relapse after 18 months of CAR T-cells therapy. At the time of manuscript submission, only patient 5 is still alive, achieving 12 months of CR after CAR T-cells therapy. Without proceeding to allo-HSCT, patient 5 experienced relapsed at the 13th month and was maintained on venetoclax treatment after receiving a second autologous anti-CLL1 CAR T-cells therapy, and remained leukemia-free status.

To address the safety issue, we critically reviewed the clinical data and presented the adverse events (AEs) in Figure 1G. All seven patients experienced Grade 1 or 2 CRS manifested by fever without evidence of infection during the first month as reflected by increased serum IL-6 level (Figure S1). Among these patients, patient 5 experienced Grade 2 ICANS as presented with transientl attention loss, speech impediment, and tremors. Two patients (patients 1 and 5) had Grade 3 impaired liver function as reflected by increased alanine aminotransferase level, and patient 5 was accompanied by Grade 2 increased bilirubin level. It is well established that CLL1 is expressed on lung parenchyma, we observed Grade 3 pneumonia without hypoxia in patients treated with 4-1-BB anti-CLL1-based CAR T-cells but not in the CD28/CD27 group, suggesting the potential role of 4-1-BB in CLL1-targetin-related lung injury. Further studies are warranted to determine whether anti-CLL1-based CAR T-cells impair lung parenchyma. According to the hematologic toxicities, all these seven patients developed Grade 3 or 4 WBC counts decrease and neutropenia, five of them developed Grade 3 or 4 anemia, and six of them developed thrombocytopenia. The monocytopenia was observed in most responded patients, suggesting the potential role of monocyte ablation in reflecting anti-CLL1 CAR T-cells therapy. (Figure 1G, Figure S2). No allergy, MAS, and HLHs were observed.

In the present study, we summarized the treatment outcome of seven children with R/R-AML treated with anti-CLL1-based CAR T-cell therapy, aiming to shed new light on the translation of anti-CD19 CAR T-cell therapy in B-ALL into R/R-AML treatment. The 1-year survival rate was 57.1% among these seven cases, while the 1-year survival rate was 80% if poorly responded patients were excluded (Figure S3). Only Grades 1 or 2 CRS were observed and successfully managed. Though CLL1 is constitutively expressed on lung parenchyma, we observed that all three patients receiving 4-1-BB anti-CLL1-based CAR T-cells developed pneumonia in the first month of CAR T-cells therapy, suggesting the potential role of 4-1-BB in CLL1-targeting related lung injury. Further studies are warranted to determine whether anti-CLL1-based CAR T-cells impair lung parenchyma.

Recent studies have demonstrated that CD28-based CAR T-cells act as effector-memory T cells with glycolytic enhancement. In contrast, 4-1-BB-based CAR T-cells play a central memory T cells, relying on proper fatty acid metabolism.^14-16 The distinctive role on CAR T-cells makes the development of higher generation of CAR combining all these advantage to achieve better treatment outcomes. However, treatment strategies with either CAR T-cells co-expressing different co-stimulatory domains or combining CAR T-cells expressing different co-stimulatory domain remains to be addressed in the future, which is critical for further precision translation. Interestingly, it has been shown that 4-1-BB but not CD28 co-stimulatory element can activate noncanonical nuclear factor-κB (NF-kB) signaling.

Due to the small cohort size, we could not analyze the impact on survival incurred by co-stimulatory domains. Though the sample size is too small to draw any conclusion with statistical significance, our preliminary data demonstrate that our anti-CLL1-based CAR T-cells therapy is more suitable for allo-HSCT bridging therapy but not a curable option. Meanwhile, we preliminarily demonstrated that the efficacy and safety of anti-CLL1-based CAR T-cells in R/R-AML treatment were unrelated to the co-stimulatory elements. Indeed, a recent study by Li et al. has added more evidence to show the promising role of anti-CLL1-based CAR T-cells (CD28/CD27 co-stimulatory) in children with R/R-AML, which is consistence with our previous report.² To this end, data on the safety and efficacy of anti-CLL1-based CAR T-cells on R/R-AML remain very few, which should be addressed in a multicenter study in the near future.

AUTHOR CONTRIBUTIONS

Kunlin Pei: Writing – original draft (equal); writing – review and editing (equal). Haoyu xu: Writing – original draft (equal). Pengfei Wang: Data curation (supporting). Wenting Gan: Data curation (supporting). Zhengbin Hu: Data curation (supporting). Xiaoling Su: Data curation (supporting). Hui Zhang: Investigation (lead); validation (lead); writing – review and editing (lead). Yingyi He: Resources (lead); writing – original draft (lead); writing – review and editing (equal).

FUNDING INFORMATION

This work was partially supported by grants from National Natural Science Foundation of China (82170152) (H.Z).

CONFLICT OF INTEREST STATEMENT

The authors had no potential conflicts of interest to disclose. All the authors have critically reviewed the manuscript and approved the final submission.

ETHICS STATEMENT

The ethical approval (2018050201, 2018050202, 2018050803, and 2020–23) was obtained from the ethics committee at Guangzhou Women and Children's Medical Center.

PATIENT CONSENT STATEMENT

Informed consent was completed by the parents and/or patients themselves if they were over 8 years old, according to the Declaration of Helsinki.

CLINICAL TRIAL REGISTRATION NUMBERS

The study was registered at www.chictr.org.cn (ChiCTR1900027684, 4-1-BB) and https://clinicaltrials.gov/ (NCT03222674, CD28/CD27).
