Recognition of HER2 expression in hepatocellular carcinoma and its significance in postoperative tumor recurrence

2.1 Gene expression data and clinical data of HCC patients from the dataset

The ERBB2 (HER2 encoding gene) expression patterns in normal liver tissues and HCC tissues were compared from TCGA HCC cohort, GSE89377 and GSE115018. The clinico-pathological characteristics of TCGA HCC cohort were summarized in Table S1 and two gene expression datasets, GSE89377 and GSE115018 were described in Supplemental Materials and Methods.

2.2 Clinical data and study population

Seventeen patients with HCC receiving hepatectomy or liver transplantation at our department from May 2015 to October 2016 were included in this study. The inclusion criteria, the exclusion criteria, clinical characteristics, and pathologic findings of the 17 HCC patients were described in Supplemental Materials and Methods and Table S2.

2.3 Determination of HER2 expression in hepatoma cells and HCC-related samples

In order to determine the status of HER2 expression in HCC, we selected hepatoma cell lines (H4IIE, HepG2, JM1, McA-RH7777) and the archive materials of 17 HCC patients with immunohistochemistry (IHC) and western blotting (WB). Breast cancer sample, which was confirmed with positive HER2 expression from the pathology report, and H4IIE hepatoma cell line, which was reported HER2 positive,20 were used as positive control. And rat normal liver tissue, which was reported HER2 negative,20 was regarded as negative control.

To induce epithelial-to-mesenchymal transition (EMT) of hepatoma cell, JM1 cells (JM1/C) were coincubated with transforming growth factor beta (TGF-β, 0.5 ng/mL, MyBioScience, San Diego, CA) or vehicle for indicated number (n: JM1/n) of passages (JM1/6+).21 Hepatoma cells grouped with the naïve cells (JM1/C) and the cocultured cells (JM1/1+ and JM1/6+) were used for further measurements. Tumor cells were harvested for further investigation of the expression of HER2, E-cadherin, Vimentin, β-catenin, CD133, and MMP-9.

2.4 Tumor cell inoculation and animal surgical model

Inbred male Fischer 344 rats (NHsd; Harlan Laboratories, Boxmeer, Netherlands), weighing 230-280 g and aged 9-12 weeks, were used for the experiments. In vivo inoculation of JM1/C hepatoma cells in the synergetic Fischer 344 rat was modified from the 70% hepatectomy model.21 After inoculation of tumor cells and surgery, animals were randomly grouped into the treatment group (Group T, N = 5) receiving Trastuzumab with 8 mg/kg as intravenous infusion through tail vein and the control group (Group C, N = 5) receiving saline. When animals were euthanized 21 days after hepatectomy, tumor volume and the presence of metastasis were recorded and compared in between the treatment group and the control group.

2.5 Immunostaining analysis (IHC and WB) and evaluation of IHC

IHC and WB were performed, and immunohistochemical staining was determined as previously described.22 Antibodies against HER2, pERBB2, E-cadherin, Vimentin, AKT, pAKT, ERK, pERK, β-catenin, SMAD2/3, pSMAD2/3, pSMAD2, CD133, MMP-9, β-tubulin, and anti-β-catenin activity were described in Supplemental Materials and Methods.

2.6 Cell proliferation assay (MTT assay)

Hepatoma cells (4  10⁵ cells per well) were grown in 6-well plates overnight and then treated with various concentrations of Trastuzumab (low concentrations of 0 and 10 g/mL, and high concentrations of 30 and 100 g/mL) for 48 hours. Trypan blue staining confirmed >90% cell viability, and cell numbers were determined by MTT.23

2.7 Transient transfection

Transit transfection of McA cells was performed with LipofectAMINE 2000 according to the manufacturer's protocol. Transfection was described and characterized in Supplemental Materials and Methods.

2.8 Statistics

Kaplan-Meier analysis was used to analysis the association of tumorous ERBB2-expression with the prognosis of HCC patients. Differences between two groups were analyzed by the two-tailed Student's t test and Wilcoxon signed-rank test, and differences of more than two groups by one-way analysis of variance (ANOVA). The association between the tumor expressions of HER2, E-cadherin, Vimentin, and tumor stage was analyzed with the nonparametric correlation Spearman correlation analysis. The statistical tests were employed by using SPSS version 16.0 (IBM, Armonk, New York, NY), and the results for t test, ANOVA, and Spearman correlation were denoted as t, F, and correlation coefficient. A probability level of less than 5% (P < 0.05) was considered statistically significant.

3.1 ERBB2 mRNA declines with increasing HCC grade and predicts worse overall survival

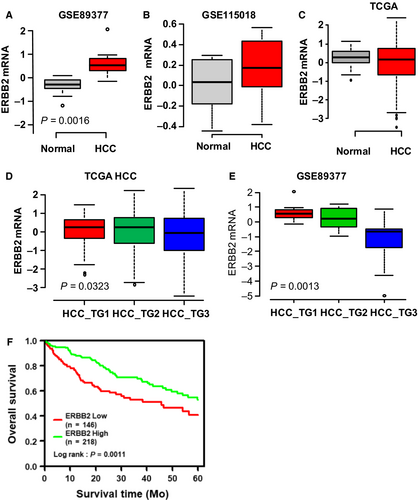

We firstly analyzed the expression of ERBB2 mRNA in normal and malignant liver tissues in three public gene expression datasets of TCGA HCC cohort, GSE89377 and GSE115018. The results showed an increased median level of ERBB2 mRNA expression in HCC tissues compared with normal liver tissues in GSE89377 (P = 0.0016, Figure 1A) and GSE115018 (P = 0.128, Figure 1B), but not in the TCGA cohort (Figure 1C).

Next we analyzed the correlation between ERBB2 and various clinico-pathological characteristics, including gender, age (<55 and ≥55 years), TNM stage, risk factors (HBV infection, HCV infection, nonalcoholic fatty liver disease), and alcohol abuse, using the TCGA cohort (Table S1). No significant correlation was found between ERBB2 mRNA expression and most of the characteristics but tumor grade (Figure S1). The result showed that ERBB2 mRNA expression declined significantly along with increasing tumor grade in the TCGA cohort (P = 0.0323) and GSE89377 dataset (P = 0.0013, Figure 1D-E). In accordance with this correlation, Kaplan-Meier analysis showed a low tumorous ERBB2-expression was significantly associated with a poor prognosis with within a 5-year observation (N = 364, P = 0.0011, Figure 1F).

3.2 HER2 protein is overexpressed in both HCC cell lines and HCC tissues, and HER2 expression pattern correlates with tumor stage and phenotypes of EMT

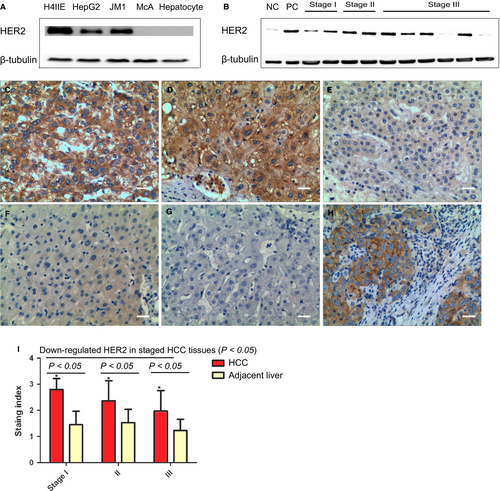

As discrepancy was observed when comparing ERBB2 mRNA expression between normal and tumor tissues (Figure 1A-C), we next assessed the HER2 protein in both hepatoma cells and the resected HCC tissues with WB and IHC. The results showed that HER2 was widely overexpressed in both hepatoma cells and the resected HCC samples, while HER2 was low-expressed in primary hepatocytes20 and the adjacent normal liver from the resected HCC patients (Figure 2A-B). Interestingly, in contrast to membranous HER2 overexpression in the breast cancer as positive control, a significant proportion of HCC (82%, 14/17) showed both cytoplasmic and membranous overexpression (Figure 2C-H).

The semi-quantification of IHC indicated a significant upregulation of HER2 of HCC patients compared with the adjacent liver (t = 9.218, 4.973 and 4.919, P = 0.001, Figure 2I). Besides, consistent with the observation of HER2 expression pattern from GSE89377, HER2 expression in stage I (100%, 4/4), II (83%, 5/6), and III (71%, 5/7) showed a downregulation along with the progression of the tumor stage (F = 8.879, P = 0.001). Spearman correlation analysis indicated that tumor stage was negatively correlated with HER2 expression (correlation coefficient −0.423, P = 0.001).

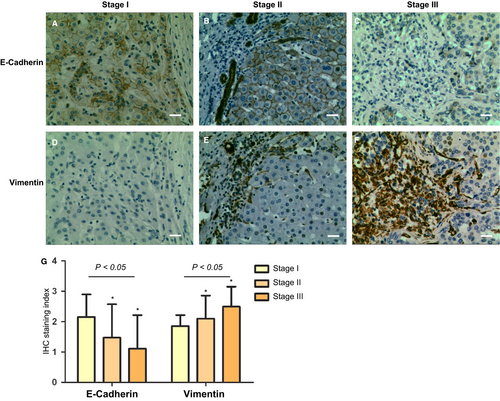

Tumorous expression of E-cadherin and Vimentin was found a significant difference from stage I to stage III (N = 17, F = 6.869 and 6.763, P = 0.002) with semi-quantification of IHC (Figure 3A-G). In addition, there was a negative correlation of E-cadherin expression with tumor stage (correlation coefficient −0.364, P = 0.001), while there was a positive correlation between Vimentin staining and tumor stage (correlation coefficient 0.398, P = 0.001). Correlation analysis of the tumor stage and expressions of HER2, E-cadherin, and Vimentin indicated that regulation of HER2 expression is related with EMT phenotypes of and tumor progression.

3.3 HER2 is related with in vitro and in vivo proliferation and EMT of HCC

To further explore the function of HER2, both HER2-transfection in HER2-negative expressed McA cells and monoclonal antibody targeting HER2, Trastuzumab, were applied in HCC cells, including HepG2, JM1, and HER2-transfected McA cells, to test the effect of HER2 on biological characteristics.

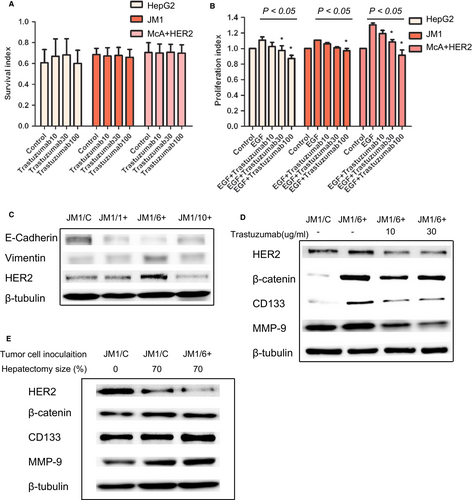

Firstly, Trastuzumab within the concentration of between 10 and 100 g/mL was employed for 48 hours to test the cell survival with MTT assay. Results showed that Trastuzumab treatment did not confer to a survival decrease in HCC tumor cells (F = 0.082361, 0.022506, and 0.002358, P = 0.968, 0.995, and 0.999) (Figure 4A).

Since the specific ligand to HER2 receptor is unidentified,24 and HER2 may function as didiemer more with EGFR in HepG2 cells,25 cell proliferation ability was assessed through EGF stimulation in serum free medium. Trastuzumab with the high concentrations of 30 and 100 g/mL suppressed slightly (10%-20%) the proliferation of HepG2, JM1, and HER2-transfected McA cells, (F = 3.422, 17.174, and 10.001, P = 0.029, 0.001, and 0.001) (Figure 4B), indicating HER2 may function as a proliferation receptor through receptor dimerization with EGFR after EGF stimulation.

In the coculture model to induce EMT in JM1 cells, WB analysis found upregulated HER2 expression along with downregulated E-cadherin and upregulated Vimentin, especially in the JM1/6+ cells (Figure 4C), indicating that regulation of HER2 may be associated with tumor EMT. Furthermore, based on the previous study,21 expression of β-catenin, CD133, and MMP-9 in JM1/6+ cells was upregulated when compared with JM1/C cells. Trastuzumab with the low concentrations of 10 and 30 g/mL suppressed the expression of HER2, β-catenin, CD133, and MMP-9 in JM1/6+ cells, which justified the contribution of HER2 to EMT (Figure 4D).

Previous studies have demonstrated that HER2 overexpression leads to an increased invasion in in vitro matrigel assays.26 Our previous study21 indicated an increased growth and invasion of the in vivo tumor through EMT during the liver regeneration. In order to further determine whether HER2 may affect tumor growth and invasion, Trastuzumab was injected in Fischer 344 rats with JM1 inoculation. Twenty-one days after tumor inoculation and hepatectomy, there was a significant decrease in the tumor size and metastases of the animals in Group T, compared with those animals in Group C (t = 6.132 and 3.464, P = 0.001 and 0.009, Table S3). The results indicated that Trastuzumab, through downregulation of HER2 at early stage, might inhibit tumor growth and metastasis in the in vivo microenvironment.

3.4 HER2 mediates cell signaling through β-catenin and SMAD3 pathways

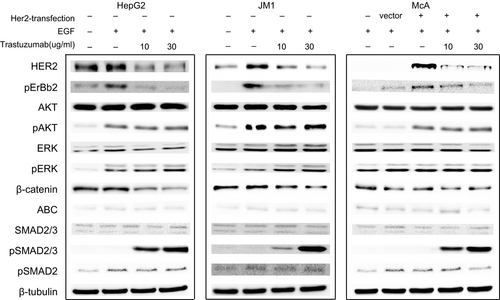

Since HER2 may function as heterodiemerization with EGFR, HER2-mediated cellular signaling pathways were assessed through EGF stimulation. After transfection of HER2 in McA cells, phosphorylated levels of AKT and ERK were increased at 10 minutes after EGF stimulation. In HER2-overexpressed hepatoma cells, HepG2, JM1, and HER2-transfected McA cells, phosphorylated levels of HER2, AKT, ERK, and β-catenin were increased at 10 minutes after EGF stimulation (Figure 5). Application of 10 and 30 g/mL Trastuzumab inhibited phosphorylated HER2 and β-catenin, and phosphorylated levels of AKT, ERK, and SMAD2 were unchanged; phosphorylated level of SMAD2/3 was increased in a dose-dependent manner (Figure 5). After pretreatment with TGF-β type I receptor inhibitor SD-208,27 the upregulation of phosphorylated level of SMAD2/3 was not suppressed.

The findings above indicated that HER2 may function through upregulation of β-catenin and inhibition of SMAD2/3 complex after EGF stimulation, while activation of AKT and ERK is independent of HER2. HER2 degradation by Trastuzumab may function through β-catenin suppression and activation of SMAD3 independent of TGF-β receptor.
