2.1 Animals

Nineteen (10 male and 9 female) adult Long Evans rats were purchased from Charles River Laboratory (Wilmington, MA). Rats were housed in specific pathogen-free conditions on a 12 h/12 h light/day cycle using Teklad (West Lafayette, IN) corn cob bedding and Teklad 2918 feed ad libitum. Male rats were 210–370 g and female rats 150–240 g at the initiation of catheter surgeries. Thirty-six (18 male and 18 female) C57BL/6J adult mice were purchased from Jackson Laboratory (Bar Harbor, ME). Mice were 6–8 weeks old at the beginning of CPP experiments. Mice were housed in a conventional setting on a 12 h/12 h light/day cycle in Teklad corn cob bedding and Teklad 2918 feed ad libitum. All experiments involving animals were approved by the University of Minnesota Institutional Animal Care and Use Committee.

2.2 Intravenous Self-Administration

IVSA studies were run similar to previous studies (Mavrikaki et al. 2017). Surgeries for jugular catheter implant (SAI infusions, RSB-SA-7.5CF and RSB-SA-7.5CM; Lake Villa, IL) were done under isoflurane anesthesia (1%–5%). Catheters were flushed daily with heparin/saline mixture (0.2 mL; 30 units/ml; I.V.) and twice weekly with gentamicin (0.2 mL; 10 mg/ml; I.V.). Catheter patency was confirmed with intravenous Brevital (0.1 mL females; 0.2 males of 10 mg/ml I.V.) before the self-administration experiment began and at the beginning of extinction. Intravenous oxycodone self-administration (IVSA) was carried out in single chamber Med Associates boxes (Fairfax, VT) on a fixed ratio 1 (FR1) schedule of reinforcement. Two levers with respective cue lights and a house light on the opposing wall were present. One lever was assigned as the active lever and the other as the inactive lever. At the beginning of the session, the house light turned on. When the active lever was pressed the house light turned off, the associated cue light turned on for 10 s, and 0.01 mg/kg oxycodone per infusion was delivered over 4 s through the intravenous catheter. This dose was selected based on previous dose-response curves finding 0.01 mg/kg/infusion resulted in the highest number of infusions between a range of 0.0003 and 0.3 mg/kg/infusion (Mavrikaki et al. 2017; Hinds et al. 2023). During the 10 s, active lever presses were recorded but did not initiate additional drug delivery. Once the cue light turned back on, the active lever could again be pressed for drug delivery. Pressing of the inactive lever did not turn off the house light, did not turn on its associated cue light, and no drug was delivered. Rats began with 3 days of short access (1 h/day) sessions to learn the task before moving to 10 days of long access (4 h/day). After long access, rats began 10 days of extinction (2 h/day). During extinction, pressing the active lever no longer turned on its associated cue light, nor turned off the house light, and no drug was delivered. After each of the final six extinction sessions, rats were injected intraperitoneally (i.p.) with 50 mg/kg MC-100093 (093) or saline. This dose of 093 has previously been demonstrated to be the most efficacious at modulating NAc GLT-1 expression in rats (Knackstedt et al. 2021). Rats were assigned to either the saline or 093 group by ranking them based on the total number of active lever presses during long access and then equally splitting them into two balanced groups. After the final extinction session, rats underwent a single 2-h cue-induced reinstatement session. During reinstatement, pressing the active lever turned on its associated cue light and turned off the house light but the drug was not delivered. Reinstatement active lever pressing was compared to the average lever pressing of the last 3-days of extinction. A MATLAB (MathWorks; Natick, MA) script was written to analyze within-session active lever pressing from Med Associates timestamps.

2.3 CPP for Cocaine and Oxycodone

Mouse CPP experiments were performed using a 25 × 45 cm two-chamber apparatus constructed in-house. One of the chambers had mesh flooring with the center paneling painted white while the other had rod flooring with the center paneling painted black. No other spatial cues were present. The CPP protocol entailed two days of preference pre-test, followed by eight days of conditioning, and a preference test on the following day. Animals then underwent seven days of home cage-forced abstinence with daily saline injections followed by a final preference retest. This protocol was previously used to identify differences in GLT-1 following CPP for cocaine (Niedzielska-Andres et al. 2019). During the pretest, animals were injected with 0.1 mL/kg of saline and placed in their CPP box for 20 min. A biased design was selected as we expected the development of a preference for the drug-paired side. For the biased design, the conditioned stimulus side (CS+) was assigned to the side in which the animal spent the least amount of time on average during the two days of the pretest. Conditioning was done by alternating days of injecting the conditioned stimulus (15 mg/kg cocaine; 3 mg/kg oxycodone) in the assigned CS+ side or saline on the CS- side for 30 min. After four pairings across eight days, animals’ preference was tested. During this session, the barrier separating entry between the two sides was removed, and after saline injection, animals were free to roam the apparatus for 20 min. The preference score was calculated by finding the difference between times spent on the conditioned side versus the unconditioned side. The retest session was identical to the preference test.

2.4 CPP for MC-100093

The general methods for the 093 CPP (50 mg/kg 093 on CS+ days) were the same as those for cocaine and oxycodone except for two differences. First, an unbiased design was used as it was not known whether the compound would produce a preference or aversion to the paired side. Second, these animals did not undergo a seven-day forced home cage abstinence and subsequent retest. That was done in order to replicate a study to identify changes in GLT-1 expression, while this experiment's goal was to see specifically whether 093 generated a preference or aversion to the paired side. The chosen dose of 093 (50 mg/kg) has previously been used in studies with mice (Hinds et al. 2023).

2.5 Tissue Homogenization and Fractionation

Twenty-four hours after IVSA reinstatement or the final CPP test, animals were deeply anesthetized with isoflurane and rapidly decapitated. Both the left and right NAc were dissected out and immediately frozen at −80°C until further processing. For processing, frozen tissue was placed immediately into freshly made ice-cold homogenization buffer: 320 mM sucrose, 4 mM HEPES, 1:100 HALT Protease + Phosphatase Inhibitors (Thermo Scientific 78440; Waltham, MA), 1:100 EDTA, and 10 mM DTT. 500 uL of homogenization buffer was used for the rat accumbens tissue while 200 uL of buffer was used for the mouse tissue. Tissue was homogenized with the following repetitive passages with a 1 mL insulin syringe: 3x no needle, 5x-18G, 5x-22G, and 5x-25G. Lysates subsequently underwent sequential microcentrifugation to produce a membrane-enriched fraction, as previously described (Knackstedt et al. 2010, 2021). In brief, homogenized lysates were initially spun at 1600 × g for 5 min. Supernatants were removed and placed in a new tube while pellets (P1) were saved and frozen. The supernatants were spun again at 10k RPM for 10 min. The resulting supernatant (S1) was saved and frozen. The pellet was resuspended with 200 uL of tissue buffer (320 mM sucrose and 4 mM HEPES) and spun a final time at 11k RPM for 15 min. The final supernatant (S2) was removed and frozen. Bulk rat forebrain tissue was used for protocol validation and the final pellet (P2) was reconstituted with RIPA buffer (Thermo Scientific 89900) with an additional 0.9% SDS (final concentration of 1.0% SDS). All spins were performed at 4°C in a Microfuge 20R with an FA241.5P rotor (Beckman Coulter; Brea, CA). To test the hypothesis that RIPA buffer was in part responsible for the presence of higher molecular weight GLT-1 bands, we homogenized and fractionated a separate set of lysates. Before the final spin to generate the P2 pellet, each lysate was split in half to examine how different reconstitution buffers affected multimerization from the same source sample. The two sets went through the final spin and following removal of the supernatant, one set of the P2 pellets was reconstituted with RIPA buffer + 1% SDS while the other was reconstituted with a standard tissue buffer (320 mM sucrose + 4 mM HEPES) + 1% SDS. The two sets of P2 lysates were examined by western blot and probed for GLT-1 and calnexin, another membrane protein more often used in GLT-1 studies (Fujio et al. 2005). We also tested if boiling the samples before loading the gel was exacerbating this phenomenon, as this behavior has been previously described for GLT-1 (Zou et al. 2011).

2.6 Western Blot for GLT-1

The final membrane fraction for experimental samples was not reconstituted with RIPA buffer but rather with a standard tissue buffer (320 mM sucrose and 4 mM HEPES) + 1% SDS. The protein concentration was determined with the Pierce BCA Protein Assay Kit (Thermo Scientific 23227). To assess changes in GLT-1 with SDS-PAGE, 5 uL of Laemmli loading buffer (Invitrogen LC2676; Waltham, MA) with β-ME (1:100) were added to 7 µg of protein lysate and loaded into 15-well Novex 10% Tris-Glycine gels (Invitrogen XP00105BOX). Importantly, experimental samples were not heated to 95°C prior to loading the gel which was run for 2.5 h at 80 V. Protein was then transferred for 2 h onto nitrocellulose membranes (Thermo Scientific 88025) at 0.4A. After blocking for 1 h with 5% BSA (Tocris 52–171; Bristol, UK) in TBS + 0.1% Tween-20 (TBST), membranes were incubated with GLT-1 (Sigma-Aldrich AB1783; Burlington, MA) and calnexin (Enzo ADI-SPA-860; Farmingdale, NY) or pan-cadherin (Cell Signaling 4073; Danvers, MA) primary antibodies overnight at 4°C. The following day, membranes were washed with 5 × 5 min of TBST. Membranes were subsequently incubated again with secondary antibodies donkey α guinea pig IR800 (LI-COR 926–32411; Lincoln, NE) and goat α rabbit IR680 (LI-COR 926–68071) for 1 h in 5% BSA in TBST at room temperature. Following 5 × 5 min washes with TBST, membranes were imaged on a LI-COR Odyssey and quantified with ImageJ (NIH; Bethesda, MD). GLT-1 signal was normalized to each sample's respective calnexin signal. A subset of animals (n = 7) in the oxycodone IVSA experiment did not have their tissue collected within 24 h of the cue-induced reinstatement session and were not included in the western blot analyses. All mice in the cocaine and oxycodone CPP cohorts had their tissue collected within the 24-h time frame of the final preference retest and were included in the western blot studies.

2.7 Statistical Analysis

All statistical tests were done in JMP (JMP Statistical Discovery; Cary, NC). Normal distributions were tested with the Shapiro–Wilk test and equal variances with the Levene test. For experiments with non-normal distributions, unequal variances, or small/uneven sample sizes, the Wilcoxon exact test was used. One-factor comparisons that satisfied parametric assumptions were analyzed with Student's t-test. One-factor analyses with multiple comparisons were done with Bonferroni corrections. Experiments involving more than two repeated measurements were analyzed by mixed models. Repeated measurement experiments with only two observation points that satisfied parametric assumptions were analyzed with paired Student's t-test. Due to limited group sizes when split by sex, sex as a variable was only tested for in the IVSA study. Complete statistical tests can be found in Table 1.

3.1 Treatment With 093 During Extinction of Oxycodone IVSA Does Not Reduce Cue-Induced Reinstatement

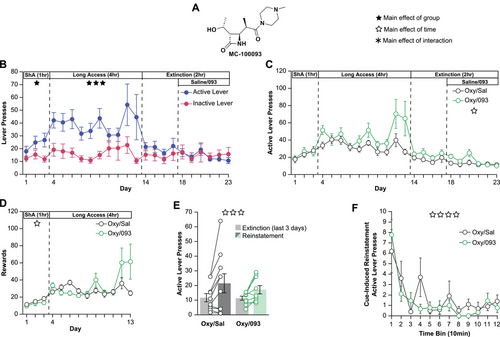

To determine if 093 (Figure 1A) attenuates drug-seeking for oxycodone, rats underwent intravenous self-administration of 0.01 mg/kg oxycodone per infusion on an FR1 schedule. During the first three days of short access (ShA, 1 h/day), rats learned to discriminate between the active and inactive levers (Figure 1B, ShA). Rats transitioned to long access (LgA, 4 h/day) for ten days. During this time, they maintained their lever discrimination by engaging with the active lever significantly more than the inactive lever (Figure 1B, LgA). Upon initiation of extinction sessions (Ext, 4 days, 2 h/day), active lever pressing immediately dropped and the animals no longer discriminated between the active and inactive lever (Figure 1B, Ext). Rats received 50 mg/kg of 093 i.p., or saline, at the end of each of the last six extinction sessions (Figure 1B, Ext+Rx, 6 days, 2 h/day). We anecdotally observed acute hind limb motor deficits for approximately 10–15 min following i.p. injection of 093 in the absence of overt pain. No differences were observed in active lever presses between the oxycodone and saline (Oxy/Sal) or oxycodone and 093 (Oxy/093) groups throughout self-administration (Figure 1C; ShA, LgA). In addition, no differences between the two groups were observed during the extinction sessions (Figure 1C; Ext). Consistent with previous findings with cocaine, 093 treatment did not alter extinction behavior compared to saline but both groups continued to reduce their active lever pressing over time (Figure 1C; Ext+Rx) (Knackstedt et al. 2021). Total rewards per session were recorded and no differences were seen between the Oxy/Sal and Oxy/093 groups during ShA (Figure 1D; ShA) or LgA (Figure 1D; LgA) sessions.

Twenty-four hours after the last extinction session, rats went through a 2-h cue-induced reinstatement period. During this session, both groups reinstated self-administration behavior by increasing their active lever presses (Figure 1E). However, there was no effect of treatment or the treatment*session interaction. We hypothesized that differences in active lever pressing patterns within the session could be present even in the absence of differences in total magnitude. We looked at active lever pressing during the cue-induced reinstatement session in 10-min bins and found no differences between the Oxy/Sal and Oxy/093 groups (Figure 1F).

Lastly, we analyzed our oxycodone self-administration data considering sex as an additional variable (Figure S1). When comparing the active and inactive lever pressing by sex during the short access sessions, mixed model analyses revealed a significant main effect of the lever, but no main effect of sex, day, or any of the interactions (Figure S1A; ShA). Over the course of the long access sessions, alongside a significant main effect of Lever, there was a significant effect of the Sex*Day interaction. Post-hoc Tukey pairwise comparisons identified differences between Female Day 7 and Female Day 12 as well as Female Day 8 and Female Day 12 (Figure S1A; LgA). These differences were driven by a single female animal drastically increasing their lever pressing during the final days of long access (Figure S1B,C). A similar Sex*Day interaction was found during the first stage of extinction, with no significant post-hoc pairwise comparisons (Figure S1A; Ext). Similarly, when comparing the saline and 093 groups by sex, there was a significant Sex*Day interaction during long access but no significant post-hoc pairwise comparisons (Supp.1D; LgA). Again, these findings were most likely driven by the single female animal highly engaging with the levers towards the end of long access (Figure S1B,C). A significant Sex*Day*Treatment interaction was also identified when comparing active lever presses and rewards earned by sex and treatment during short access, but no significant pairwise comparisons (Figure S1D,E; ShA). Finally, when evaluating reinstatement by treatment and sex, there was a significant main effect of session, indicating reinstatement, but no main effect of sex, treatment, or any of the interactions (Figure S1F). Taken together, these results suggest the sex of the rats was unlikely to be playing a substantial role in our self-administration study.

3.2 Treatment With 093 During Extinction to Oxycodone IVSA Does Not Increase Membrane GLT-1 Expression in the NAc

Beta-lactams are thought to reduce drug-seeking by increasing membrane expression of the astrocytic glutamate transporter GLT-1 within the NAc (Knackstedt et al. 2010, 2021). Because 093 did not reduce cue-induced reinstatement of oxycodone self-administration, we hypothesized that 093 failed to upregulate membrane GLT-1 expression. To test this, we performed western blot experiments on NAc tissue from the rats that underwent oxycodone self-administration using a fractionation protocol often used in the study of membrane GLT-1 (Knackstedt et al. 2010; Knackstedt et al. 2021; Sari et al. 2024; Shen et al. 2014; Sepulveda-Orengo et al. 2018). We first sought to validate the protocol in our own hands and ran western blots of the P1 (crude), S1 (cytoplasmic), and P2 (membrane) fractions to confirm the separation of cytoplasmic and membrane proteins (Figure 2A, Supp.2A). Both GLT-1 and pan-cadherin, a membrane marker, were observed in P1 (lanes 1–3). However, the protein that was successfully fractionated out from P1 was able to segregate between cytoplasmic (lanes 4–6) and membrane (lanes 7–9) fractions as only small amounts of GLT-1 and almost no pan-cadherin were observed in S1.

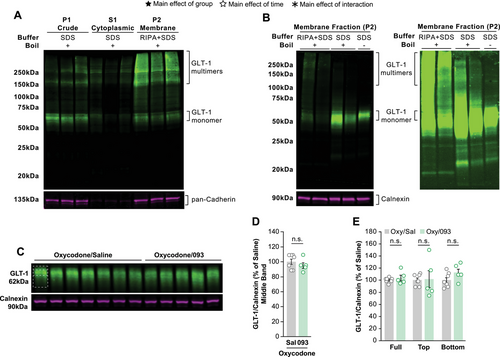

In addition, we detected the presence of higher molecular weight bands of GLT-1 (Figure 2A; Figure S2A). We identified the reconstitution of the membrane fraction with RIPA buffer as a potential factor in this oligomerization. When membrane fractions were instead reconstituted in the absence of RIPA buffer, we observed a reduction in this higher molecular weight signal (Figure 2B; Figure S2B lanes 3–4). When samples reconstituted without RIPA buffer were additionally not boiled before loading, almost no signal was detected above the expected 62 kDa molecular weight of the GLT-1 monomer (Figure 2B lane 5). As such, all subsequent experiments examining membrane GLT-1 were performed in the absence of RIPA buffer and without boiling the lysates before loading the western blot.

We next tested the hypothesis that 093 treatment during extinction did not alter cue-induced reinstatement to oxycodone self-administration because it did not upregulate membrane expression of GLT-1 in the NAc. Membrane fractions of NAc tissue from this cohort were examined by western blot (Figure 2C; Supp.2C). Our modified fractionation and loading protocol reproduced the removal of higher molecular weight GLT-1 bands. We identified a prominent central GLT-1 band at 62 kDa alongside a softened signal above and below this central band. GLT-1 is known to undergo significant post-translational modifications (PTMs) which could be reflected in these additional smeared signals around the middle band (Pajarillo et al. 2019; Peterson and Binder 2019). Accordingly, we quantified this central band, the upper and lower “bands”, as well as the full signal. Measuring just the middle band revealed no differences in NAc membrane GLT-1 expression between the Oxy/Sal and Oxy/093 groups following cue-induced reinstatement (Figure 2D). Similarly, there were no differences in the top, middle, or full band quantifications (Figure 2E). Due to small group sizes when separating groups by sex and treatment, sex was not considered as a factor during statistical testing.

3.3 Membrane GLT-1 Expression Is Decreased Following CPP for Cocaine

Interestingly, previous reports have shown that beta-lactams such as ceftriaxone do not modulate membrane GLT-1 expression within the NAc of naïve animals (Knackstedt et al. 2010; Smaga et al. 2020). In other words, beta-lactams appear to require an exposure-dependent decrease in GLT-1, such as cocaine, to influence its expression. It has been consistently shown that repeated exposure to cocaine, both self-administered and experimenter-delivered, reduces membrane expression of GLT-1 in the NAc (Knackstedt et al. 2010; Smaga et al. 2020, Niedzielska-Andres et al. 2019). However, this has yet to be shown for oxycodone. We hypothesized that 093's inability to positively modulate GLT-1's membrane expression in our IVSA experiment was because oxycodone alone did not create the exposure-dependent decrease needed for beta-lactams to have an effect.

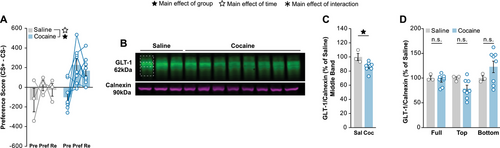

We first looked to confirm that our modified western blot protocol would be able to detect differences in GLT-1 expression. To do so, we ran CPP in mice for 15 mg/kg cocaine using a protocol identical to ones previously used to detect differences in membrane GLT-1 expression by cocaine (Niedzielska-Andres et al. 2019). As expected, cocaine-treated mice exhibited CPP to the drug-injection side (Figure 3A). NAc tissue was collected, and the membrane fraction was examined by western blot (Figure 3B; Supp.2D). When quantifying only the middle band of the GLT-1 signal we found a slight but significant decrease in membrane expression within the NAc of cocaine-treated animals compare to saline-treated (Figure 3C). This difference is of comparable magnitude to previous reports using this cocaine CPP paradigm as well as in IVSA for cocaine (Knackstedt et al. 2010; Niedzielska-Andres et al. 2019, Knackstedt et al. 2021). The full, top, and bottom bands showed no differences between the saline and cocaine-treated animals (Figure 3D). Sex was not considered as a factor due to small group sizes when separating groups by treatment and sex.

3.4 Membrane GLT-1 Expression Is Not Decreased Following CPP for Oxycodone

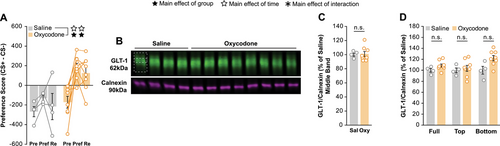

After confirming our CPP paradigm and western blot protocol were sensitive to changes in membrane GLT-1 expression, we proceeded to test our hypothesis. To examine whether oxycodone alone modulates membrane GLT-1 in the NAc, we ran the same CPP experiment outlined above but with oxycodone. Similar to cocaine, oxycodone produced a strong preference for the conditioned side that saline did not (Figure 4A), and membrane fractions of NAc tissue were subsequently probed for GLT-1 by western blot (Figure 4B; Supp.2E). Quantification revealed no differences between the saline and oxycodone treated animals in the middle GLT-1 band (Figure 4C). In addition, we detected no differences in the top band (Figure 4D). Interestingly, we did find a trend for an increase in GLT-1 in the full and bottom band of oxycodone-treated animals compared to saline-treated (Figure 4D).

We ran a final CPP for 50 mg/kg 093 alone to test whether the beta-lactam intrinsically produced a preference or aversion. The acute motor deficit produced by 093 in the rats was recapitulated in these mice. Despite this, the mice did not develop a preference or aversion to the side conditioned to 093 (Supp.3A). The locomotor activity during the conditioning days was recorded and revealed that the animals traveled significantly less on days they received 093 compared to days they got saline (Supp.3B). We also sought to characterize the temporal aspect of this deficit and investigated the within-session locomotion for the first (P1) and third (P3) 093/saline pairings. When examining 1-min bins, on days the animals received 093 they traveled significantly less for the first 15 min before renormalizing their activity to the saline-treated days (Supp.3C). Separating groups by treatment and sex resulted in group sizes too small to consider sex as a factor.
