Compounds in this Work and Their Thermograms

A series of new monomers, dimers, and polymers has been synthesized. The basic unit, the Vinm-n monomer, contains a 4-ring aromatic rod-like core (the “mesogen”) terminated by three flexible alkyl chains n carbons long on a phenyl ring (the “fan”) and with an ω-alkenyl chain m carbons long at the other end (the “spacer”)—see Figure 1a. The compounds are typical “polycatenar” (multichain) LC building blocks.^{[6, 7]} The dimers Dim-n have two such monomers joined via a disiloxane unit, while in the polymers Sim-n they are attached to a poly(methylsiloxane) backbone. A stylized monomer which, by the way, has no chiral center, is shown in Figure 1b in two interconvertible enantiomeric conformations, and the shapes of all molecules in this work, with their differences, are depicted schematically on the right in Figure 1c. In order to investigate the effect of substituent groups, in two monomers the R hydrogen is replaced by an electron-withdrawing group, either nitro (Vin9-7NO₂) or a fluorine (Vin9-7F). The exact chemical structures are shown in Section 9 (Supporting Information), where details of synthesis and chemical characterization can also be found. Polymer Si9-12 has been synthesized recently, and the structure of its LC phases studied.^[8] Experimentally, the self-assembly of the current compounds is studied using optical microscopy, conventional and modulated differential scanning calorimetry (DSC and MDSC), small-angle X-ray scattering (SAXS), circular dichroism (CD) spectroscopy, and optical rotation measurement. Details are given in Section 8 (Supporting Information).

Figure 1c shows the cooling DSC thermograms of the compounds. As can be seen, the thermograms all show a C_p hump within the melt range, seen as a broad exotherm (shaded) above the phase transition to one of the LC states (the sharp exotherms colored blue). The enthalpies contained in the hump and the LC transition are listed in joules per gram below the thermograms. The C_p hump is attributed to molecular pre-assembly in the Iso melt. Remarkably, as can be seen, it contains on average ca. 95% of the entropy of assembly, the transition itself being left with only the final ∼5%.

The width of the C_p hump in Figure 1c varies widely, from the narrowest in Di3-10 (full-width-at-half-height FWHH ∼20 K) to the broad and shallow ones in polymers Si9-10 and Si9-12 (FWHH ∼60 K). The broad exotherm is also present where crystallization proceeds directly from melt (Vin9-7, Vin9-7F). For all monomers and dimers, the peak is centered almost at the same temperature of 80–90 °C, while in polymers this is significantly higher, around 140 °C. Interestingly, despite the diversity of compound structure, the integral excess enthalpies under the broad hump are similar, all between 8.0 and 11.5 J g⁻¹. This suggests that the bulk of the enthalpy release comes from aggregation of the aromatic mesogens, which is one thing all compounds have in common. It should, however, be mentioned that the length of the pendant alkyl chains also affects the enthalpy of the hump.^[4] Note also the significant effect of fluorine and nitro groups in Vin9-7F and Vin9-7NO₂ on broadening the C_p maximum. Our explanation will be given in Section ‘Interpretation of Experimental Results.’

The Ordered Phases

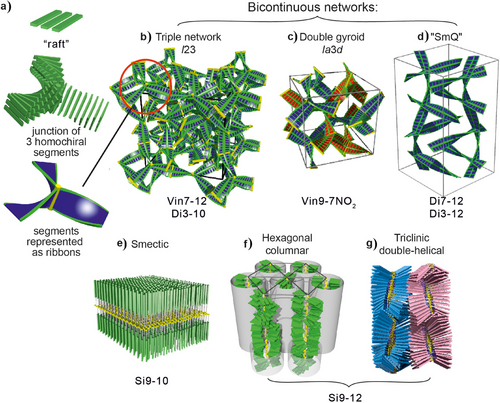

The LC phases that form through the first-order transition in our compounds (blue exotherms in Figure 1c) are shown in Figure 2. The nonpolymers form three bicontinuous phases consisting of infinite interpenetrating networks of mesogens: the double-network “gyroid” cubic, space group $$,^{[2, 10]} the triple-network cubic,^[13] space group I23,^[9] and the double-network tetragonal “Smectic-Q,” space group I4₁22,^[12] (Figure 2a–c). An alternative to the triple network structure has also been proposed.^[14] Today we know that these phases,^[11] as well as some recently discovered columnar types,^{[15, 16]} contain chiral ribbons formed from stacked “rafts” of 2–4 parallel molecules each—see inset in Figure 2a and further below. The rafts are successively rotated by a relatively small angle (10 ± 3)°, alleviating repulsion between the bulky end-chains while maximizing the strong aromatic-core π–π interaction.^[15] In Figures 2a–c, the phase structures are represented as networks of twisted ribbons, each rib on the ribbon representing a raft with the molecules parallel to the rib. In reality, the rafts are not meant to be flat, distinct species, as sketched schematically in this and subsequent figures. The idea of such slow-twisting ribbons came after it was realized that the triple network phase is always optically active, whether or not it contains chiral molecules.^[11] Similarly, it is now known that the SmQ, being always optically active, contains two isochiral networks.^[12] The third phase, the well-known gyroid $$, is achiral because in its two networks the twist sense is opposite, except in strongly chiral compounds where the helicity of one of the networks can invert.^[17] In all these phases, the long-range chirality of the networks is maintained by molecular close-packing in the junctions, requiring that all adjoining ribbons be isochiral (see inset in Figure 2a).

The smectic in Si9-10 contains double layers of side groups with the polymer backbones sandwiched between these sub-layers (Figure 2d). The columnar phase in polymer Si9-12 can be thought of as consisting of straight bundles of polymer backbones on a 2D hexagonal lattice, each bundle surrounded by a sheath of side groups^{[6, 8]} (Figure 2e). In the triclinic LC phase below, the columns transform into antichiral squashed double helices.^[8] Optical micrographs of these two phases are shown in Figures S1 and S2 (Supporting Information). X-ray evidence of all LC phases is shown in Figure S3 and Tables S2–S9. The smectic and columnar nature of the LC phases below the hump in the polymers suggests that the C_p anomaly may accompany any LC phase except nematic.

The small exothermic peak colored red in Figure 1c, seen in all monomers and dimers except Vin9-7NO₂, is the transition from normal Iso liquid to the chiral liquid Iso*, to be discussed further below.

C_p Hump in Other Systems

The appearance of a broad C_p hump in the melt above the temperature of the transition to a LRO phase is not unique to the present and closely related systems. It appears to be a widespread phenomenon. As already mentioned, a C_p hump was noted above the two then-known bicontinuous cubic phases already in the 1990s.^{[4, 18]} The C_p anomaly was referred to as “Iso1-Iso2”^[4] or, later, as “Iso-to-cybotactic Iso” transition.^[5] Other examples of a diffuse C_p maximum above the true transition are illustrated in Figure 3.

In some chiral LCs, the remarkable “blue-fog-phase III” (BP-III)^[19-21] has no long-range order of any kind and is in fact not separate from the normal isotropic liquid, even though the two phases are “separated” by a broad C_p maximum—see Figure 3a. While the two ordered blue phases I and II have intense color due to monochromatic light diffracted on their regular helices, the “fog” of BPIII comes from diffuse light scattering on its irregular helical domains.^[22] This is equivalent to the diffuse X-ray scattering on helical clusters described here in the Iso liquid in our compounds (Figure 4a–c), but having a pitch 100 times longer.

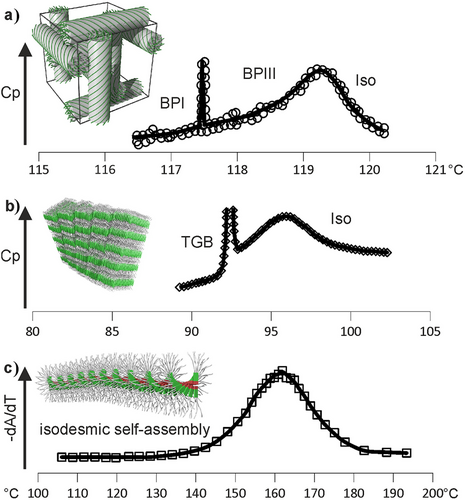

A similar C_p hump in Iso phase was also found above the twist-grain-boundary (TGB) smectic phases (both TGBA and TGBC) in highly chiral mesogens (see Figure 3b), where the isotropic liquid state below the hump was named “L-phase.”^[23-25] This term was also used for the Iso phase in chiral compounds observed above the Smectic-Q phase, the structure of which was unknown at the time.^{[26, 27]}

In all the above cases, the bulk of the entropy loss through self-assembly happens within the broad C_p hump in the melt with, in most cases, only a marginal final drop at the actual phase transition. While in isolation, the above phenomena have been noted previously, the link between them is missing.

Another “missing link” in the field of self-assembly is that between assembly from melt (i.e., in the bulk) and the formation of fibrous and helical aggregates from dilute solution. The latter is usually referred to as “supramolecular polymerization.” These isodesmic or weakly cooperative equilibrium self-assembly processes^[29-34] are also characterized by a C_p maximum^[29] although, because of the low DSC signal, the thermograms are usually of poor quality and highly noisy (see Figure 3A in Ref.^[29]) Instead, in Figure 3c, we present the derivative of the cumulative degree of assembly (equivalent to degree of crystallinity) measured by UV spectroscopy,^[29] which should be proportional to C_p. As normally there cannot be long-range order in dilute solutions, the process lacks the sharp transition at a lower temperature. In comparison, in “dry” thermotropic systems the equivalent isodesmic process in the melt is only a prelude to the eventual transition to LRO. Notably, the assembly processes in solution have also been compared to living polymerization, similarly displaying a C_p maximum.^[35]

It should be mentioned that a C_p maximum has also been observed in liquid tertiary alcohols.^{[36, 37]} In alcohols, like in water, molecules associate through hydrogen bonding at lower T and dissociate at higher T, which contributes to their C_p. However, in hindered tertiary alcohols, the OH group is limited to forming only small oligomers, so the association part of the C_p drops to zero on cooling as there are no more oligomers to form and the existing ones cannot continue growing. These cases are quite special and fundamentally different from those discussed here, since they do not lead to the formation of ordered structures. They can be placed in the category of “self-limited aggregation,”^[38] some other examples being helically twisted bundles of fibrous entities^{[39, 40]} or crystallization of thin layers on curved surfaces.^[41]

Chiral Isotropic Liquid

Adding to the complexity of the Iso liquid, a new kind of isotropic liquid was discovered in 2014 that is chiral, even though the molecules forming it are not.^{[42, 43]} The phase, labeled here Iso*, is separated from the normal nonchiral liquid (Iso) by a clear phase transition. Iso* was observed at temperatures above one of the bicontinuous phases mentioned above and often only on cooling.^[11] In the present compounds, the Iso–Iso* transition is detected in all but one nonpolymer as a small asymmetric DSC peak colored red in Figure 1c and marked by an asterisk. So far little is known about the nature of the Iso* phase or of its transition.^[44]

It is fortunate that in our compounds, as in a previous report,^[5] both of the “unusual” isotropic liquid phases are present, the “cybotactic Iso” and the chiral Iso*. This helps highlight their difference and better understand their relationship. It should be mentioned, though, that the Iso* phase observed in most current compounds is actually metastable, with the equilibrium Cub–Iso temperature virtually coinciding with that of the Iso*–Iso transition on heating (Figure S6). However, in Vin7-10 and in some previously reported cases,^[45] Iso*–Iso transition occurs ca. 10 K above the LC–Iso* transition on heating, with Iso* the thermodynamically stable phase.

Additional Experimental Results on Current Compounds

Additional experimental results related to the C_p maximum in the present compounds are summarized in Figure 4. Temperature evolution of small-angle X-ray scattering is shown in Figure 4a–c for the dimer Di7-12 and polymers Si9-10 and Si9-12, respectively. These cases were chosen to demonstrate the presence of pre-assembly in melt not only above bicontinuous but also above smectic and columnar LC phases. In all cases, the scatter is seen to undergo pronounced narrowing as the Iso–LC transition temperature is approached from above. This indicates an accelerated increase in cluster size on cooling the melt. Based on the scattering curves, coherence length ξ(T) was calculated and compared with theory, as will be shown further below.

Figure 4d shows the temperature dependence of optical rotation angle φ of Vin7-12 starting with no rotation in the Iso melt, rising sharply at the transition to the chiral Iso* melt, and then gradually level off on further cooling. This behavior provides the so far missing information on the nature of the Iso–Iso* phase transition, showing that it is clearly second-order. Furthermore, it is interesting that upon the subsequent 1st-order transition to the triple-network I23 cubic, there is no noticeable further change in φ. This suggests that the local structure of the Iso* liquid closely resembles the long-range structure of the I23, i.e., that it already contains sizeable fragments of isochiral networks.

The 2nd-order nature of the Iso–Iso* transition is also indicated by temperature evolution of circular dichroism, shown in Figure 4e. The CD-induced ellipticity of 315 nm UV light passing through a thin film of Vin7-12 is shown both on heating and cooling. On heating, the I23 cubic melts directly into the achiral Iso liquid, the CD signal showing a steep yet finite-width pre-transitional decay and final disappearance. On cooling, CD develops more slowly below T_Iso–Iso*, again consistent with the critical nature of the Iso–Iso* transition. As with optical rotation, no jump in CD is observed at T_Iso*–I23. One should bear in mind that the Vin7-12, like all other current compounds, is achiral, and that in repeated experiments the sign of CD changes randomly.

Near-equilibrium calorimetry was performed in the T-range of interest by modulated DSC (also known as AC-calorimetry), where, superimposed on a very slow linear cool (0.04 K min⁻¹), was a sinusoidal oscillating temperature deviation of 0.07 K amplitude. As an example, two MDSC thermograms of Di3-10 are shown in Figure 4f, one with the oscillation period 20 s and the other with 60 s. The top traces show the part of the heat capacity based on heat flow that reverses in each cycle (C_p^rev). The bottom traces show the small phase lag between temperature and heat flow. While with a 20 s period, there is still a residual phase lag around the C_p hump and the Iso–Iso* transition, when the period was extended to 60 s, the phase signal remained at zero, meaning that the system was kept at equilibrium with all relaxation times below 1 min. Incidentally, because of the hysteresis of the 1st-order Iso*–I23 phase transition exceeding the oscillation amplitude, the heat flow from released transition enthalpy is nonreversing, hence not showing either in C_p^rev or in the phase, leaving only the step drop in C_p^rev at the transition at 75 °C. The C_p^rev curves from MDSC are used in theoretical analysis, as described below.

Although against the odds, we also tried to see if it might be possible to image the Iso* liquid. We have polymerized a monomer compound (Vin9-7F) by UV irradiation in the Iso* state and then quenched it to room temperature. We used freeze-fracture transmission electron microscopy and atomic force microscopy. However, neither method gave any recognizable texture, as can be seen from the images in Figures S38 and S39.

Theory

An example of a thermodynamic system that could display both a broad C_p hump and a sharp order–disorder (OD) transition was, in fact, given by Onsager in his seminar paper on 2D Ising model.^[47] The model considered only nearest neighbor spin interactions on a rectangular lattice, with interaction energy different in vertical (J) and horizontal (J’) directions (Figure 5a). By increasing J’/J, thermodynamic behavior of the system changes from the 1D (J’/J = 0), via anisotropic 2D (0 < J’/J < 1) to isotropic 2D (J’/J = 1). In 1D, there is no OD transition, and a continuous C_p curve with a maximum at T = ∼0.83 J k_B⁻¹ is predicted (Figure 5b, dotted line). The diffuse part is normally known as “Schottky anomaly,” and in the simplest case demonstrated by a 1D Ising model with only nearest neighbor spin interactions. Through the broad C_p maximum, correlation length increases with decreasing temperature. An OD transition is found as soon as a nonzero J’ is introduced. If J’ is kept sufficiently small, i.e., ≤0.01 J, the OD transition is clearly separated from the original C_p maximum, appearing at a lower T (Figure 5b, solid line). At higher J’/J ratios, the broad hump disappears (dot-dash line). Such behavior has indeed been observed in magnetic systems with anisotropic spin interactions at temperatures near 0 K (Figure 5c).^[48]

A qualitative analogy can be drawn between Onsager's model and self-assembly of rod-like molecules, between which there is strong anisotropy in interaction. The formation of columnar clusters through strong core–core interaction can be treated as pseudo-1D, so that only a broad C_p hump is expected. The correlation length in such clusters increases continuously on cooling until it reaches a critical value where the much weaker lateral interactions between clusters accumulate sufficiently to trigger the transition to an LRO state.

However, there are quantitative difficulties using the Onsager model directly. The C_p hump in 1D Ising is very broad, its width (FWHM) is even larger than the temperature of its maximum, T_max. By contrast, our experimental FWHM is typically <10% of T_max. Furthermore, in Onsager's model, the transition to ordered phase occurs at a temperature much lower than T_max.

Although our molecules adopt many conformations in the Iso and the LRO phases, the base for our modification of the Onsager model is the fact that these conformations can be divided into two groups, either left- or right-handed (blue and red in Figure 5d(I)). The key barrier separating the two is the clash between atoms circled in Figure 1a. Two to four of such molecules, packing parallel to each other, form a raft that can be left- or right-handed (Figure 2a and Figure 5d(II)). The rafts, successively rotated by ∼10°, stack to form chiral columnar segments (Figure 5d(III)).^{[15, 16]}

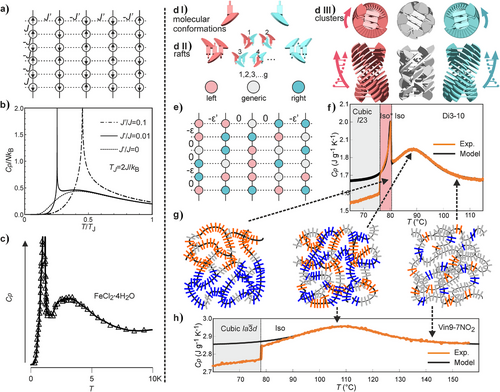

Figure 5h shows an example for Vin9-7NO₂, which does not display the Iso–Iso* transition. The experimental curve is virtually at equilibrium, derived by modulated DSC. The fit is almost perfect at T > 90 °C, the deviation below being due to transition to the $$ cubic phase at 78.1 °C and associated pre-transitional effects. Fitting parameters are ε = 14.6 kJ mol⁻¹, g = 9.75, and mass of the unit (raft) M_raft = 2850 g mol⁻¹. While ε and g values determine T_max and the FWHM of the C_p hump, respectively, M_raft is linked to its height. As the mass of Vin9-7NO₂ molecule is 926 g mol⁻¹, each raft in the melt should contain ∼3 molecules. This fits well with the above network model of bicontinuous phases (Figures 2a and 4d).^{[9, 11, 15, 49]} Considering the energy of typical van der Waals bonds augmented by π–π interaction between aromatic groups, $$= 14.6 kJ mol⁻¹ between two rafts is of the expected order of magnitude. The degeneracy g of ∼10 fits roughly the number of molecules in the raft too. Assuming that each molecule can adopt either a left- or a right-handed conformation, then out of the total 2³ = 8 states for a 3-molecule raft, there would be 6 mixed (generic) states for any one, say, left-handed state.

This energy change can be affected by changing the value of λ from e^βε to e^{β(ε + Δε)}. Through iteration, we can arrive at a set of self-consistent p, λ, E, and C values at different temperatures numerically (for details, see Equations S9–S13 in Supporting Information). The results are able to explain quantitatively both the C_p hump in Iso as well as the 2nd-order transition to Iso*. An example is given in Figure 5f for Di3-10 (see also Figures S10–S14).

In our system, the Iso* phase, when it is observed, is always below the C_p hump, due to the fact that ε’/ε is small. For completeness, in Figure S8 we show three C_p curves calculated by our theory for ε’/ε = 0, 0.0343, and 0.1. As in Figure 5a, with no weak interactions, only a broad hump is seen. As ε’/ε = 0.0343 falls within the range of our current monomers and dimers, the 0.0343 curve is of the same type as observed in those compounds (Figure 1). However, when ε’/ε = 0.1, the hump is lost under the substantially enhanced transition peak.

Interpretation of Experimental Results

The best-fit parameters to experimental MDSC curves (Figures 4 and S10–S14) are listed in Table 1. The strong interaction energies ε have similar values (∼14 kJ mol⁻¹) per monomer repeat unit (MRU) for Vin molecules (1 MRU) and Si polymers and somewhat higher (∼17 kJ mol⁻¹) for dimers (i.e., ∼34 per molecule). This is plausible since, according to the best-fit M_raft, in the dimers there are ∼4 MRUs in each raft (2 molecules) instead of ∼2–3 for Vin molecules and polymers. The increased ϵ; therefore, comes from the increased lateral interaction energy within the raft. This also makes the degeneracy g of the generic state in dimers the highest (15–20). This explains the very obvious narrowing of the C_p hump in the dimers (Figure 1c). In contrast, g is the lowest, g = 7.1, in polymer Si9-12, consistent with its small N_mono and, being a polymer, its restricted number of conformations (hence g) in the melt. As C_p maximum happens at T_max≅ε/(2k_Bln g), for Si9-10 and Si9-12, it is shifted to much higher temperatures compared to the nonpolymers. For monomers and dimers, T_max values are similar since an increase in ε (T_max ↑) is compensated by an increase in g (T_max ↓), both determined by N_mono. Interestingly, replacing a hydrogen with fluorine in Vin9-7F or with NO₂ in Vin9-7NO₂, reduces g in both cases, attributed to dipolar coupling restricting the number of configurations in the melt. As in the conformationally restricted polymers, the small g value broadens the C_p hump, meaning less cooperativity of the assembly process. The strong polarity and electron-withdrawing effect of NO₂ (high Hammett constant^[50]) seem to increase not only ε of the rafts in melt but also in the LC, lifting the Iso–LC temperature above T_Iso–Iso*.

ε′ has similar values for different compounds, and so does T_Iso–Iso*. This is understandable since all studied compounds contain the same mesogen. T_Iso–Iso* follows the same trend as T_max, i.e., both are higher when the mesogen is longer and more rigid.^{[11, 45]}

The self-assembly sequence on cooling of our compounds in the melt is schematically presented in Figure 5g. At higher temperatures in the melt, assuming the rafts have already formed, they are mostly generic, while chiral rafts are very weakly correlated. On cooling, chiral rafts become more correlated and start to aggregate in larger clusters. At the C_p maximum, more than half of the rafts are in chiral states, and their average cluster length is ∼10 ± 2 rafts (∼4.5 ± 1 nm), without any long-range segregation of left- and right-handed segments. However, on further cooling, such separation does happen due to the weaker ε′ inter-columnar interactions, resulting in the Iso–Iso* transition. At T_Iso–Iso*, more than p_c = 80% of the rafts are chiral, and the average cluster length is ∼20 ± 5 rafts (∼9 ± 2 nm).

Based on the profound narrowing of the diffuse SAXS as the compounds are cooled through the C_p hump (Figure 4a), coherence length (“crystal size”) ξ was obtained using the diffuse peak's width and the Scherrer equation. Experimental ξ(T) is plotted in Figure 6a for Di7-12, along with its derivative in Figure 6b. For comparison, shown in Figure 6c is ξ versus T calculated from our model. The match between theory and experiment is very satisfactory. Noteworthy in particular is the small-sharp negative peak in dξ/dT, seen in both experimental and theoretical curves, signaling a discontinuous step-up in ξ with decreasing T, coinciding with the Iso–Iso* transition. Also notably, for all studied compounds, at Iso–Iso* transition ξ has virtually the same value of ∼15 nm, similar to that calculated from the theory.

Comparison of heating and cooling DSC traces for another Vin monomer, Vin7-10 (Figure S6), shows reversibility of the C_p hump and the Iso* transition, as well as the hysteresis of the 1st-order LC transition. The shape and reversibility of the Iso–Iso* transition are consistent with its 2nd-order nature. This is confirmed by MDSC, where full reversibility of C_p(T), indicated by zero heat-flow phase lag, is observed on a 60 s time scale (Figure 4f). Moreover, 2nd order character of the Iso–Iso* transition is confirmed chirooptically, both by optical rotation angle φ(T) within a domain (Figures 4d and S7) and by CD spectroscopy (Figure 4e).

It is worth noting that T_Iso–Iso* is found within a relatively narrow range of (74 ± 6) °C, irrespective of whether the compounds are monomers or dimers and, seemingly, uncorrelated with the T_Iso–LC. Thus, in compound Vin9-7NO₂ and in the polymers, the Iso–Iso* transition is not observed even on cooling as T_Iso–LC is raised above T_Iso–Iso*. Why T_Iso–LC is raised is clear from T_Iso–LC = ΔH/ΔS, where ΔH and ΔS are enthalpy and entropy of the transition. As already mentioned, in Vin9-7NO₂ the strong dipolar interaction between nitro groups lowers H_LC. In the polymers, it is S_Iso that is lowered relative to that of the monomers and dimers. The small variation in T_Iso–Iso* suggests that it is dominated by the nature of the rod-like mesogenic group, which is what all our compounds have in common.

Why Hump?

Although the answer to this question is implicit in the theory described above, here we try to give a qualitative answer, a simple physical picture of the phenomenon. A C_p maximum means that heat capacity decreases both on heating and on cooling. On heating, the decrease at high T happens because all clusters are already disassembled and there is no further de-aggregation left to absorb energy. Of course, the baseline C_p still continues to increase as new degrees of freedom at higher energy become accessible. But why the drop in C_p at lower T? Because although the size of the clusters and the coherence length continue increasing on cooling below T_max, this increase happens mainly through merger of already existing clusters, not requiring formation of many new bonds. Or, coming from below, upon heating toward T_max C_p increases because an ever-increasing number of bonds must be broken to keep reducing the cluster size and maintain equilibrium. This feature is what distinguishes the phenomenon of a C_p maximum from the usual pre-transitional ordering, where C_p only increases as the transition T is approached from above. The drop in C_p below T_max will be greater the more suppressed the temperature of the transition to LRO.

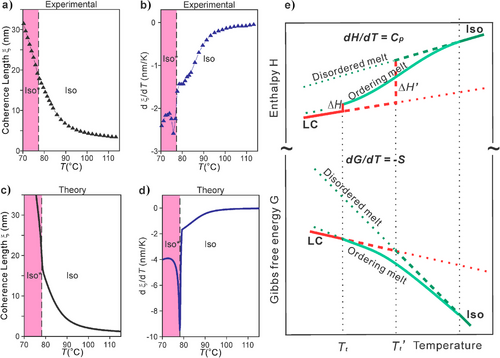

In Figure 6e, a simple schematic thermodynamic scheme illustrates the difference between an ordinary 1st-order phase transition, such as melting/crystallization, where free energy versus T of the melt and the crystal can be approximated by straight lines (strictly they slowly curve), where the melting enthalpy changes by a large amount ΔH’ at the intersection of the two lines at T_t’. In contrast, cluster formation stabilizes the melt, lowering its enthalpy and relative free energy as it is cooled through the C_p maximum. This delays its intersection with the free energy of the ordered LC. As a consequence, the enthalpy ΔH of the transition that eventually happens at a lower temperature T_t is significantly reduced.

Finally, while in Section ‘C_p Hump in Other Systems,’ we mentioned other examples of systems where formation of a LRO phase is preceded by a C_p hump, there is a particularly interesting group of mesogens whose complex LC phases form from the melt without an obvious C_p anomaly. These are bent-core (BC) mesogens forming smectic phases that can show spontaneous chirality and polarity. There is some frustration in these phases, but in contrast to the straight-core molecules whose interactions favor flat layers, in BC compounds they favor twisted or saddle-deformed layers in the ground state. Their bend^[51] or saddle-splay^[52] elastic constant is negative. In some BC compounds, this results in layer stacks that are twisted or have Gaussian curvature with no true LRO, respectively, in the so-called helical nanofilament (HNF)^[53] and dark conglomerate (DC)^[54] phases. Notably, however, unlike in, e.g., a TGB phase of straight-rod but chiral molecules, in BC compounds it is the flat-layer phase, such as SmCP (B2), that forms directly from Iso melt and is stable at high T, where the orientational freedom that flat layers allow dominates. Only at lower T, the energy-favored layer distortion becomes dominant, leading to HNF or DC phases through quite a spectacular sequence of structural jumps accompanied by a series of unusually sharp exotherms.^[55] The C_p hump in the melt is absent, since this inverse frustration plays out below rather than above the T-range of the LRO phase.
