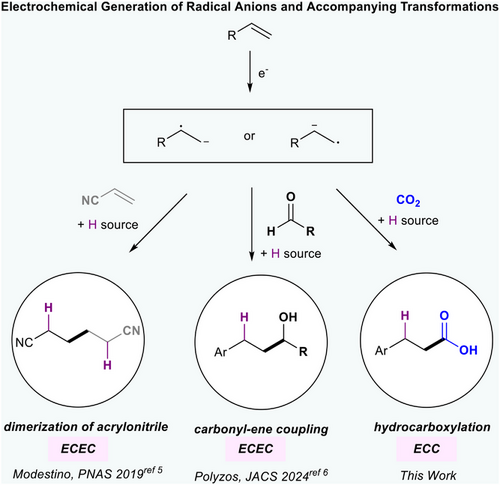

Alternating polarity (AP) electrolysis has been used to modulate selectivity in electrochemical reactions by controlling the number of electron transfers in the reaction mechanism.^[1] AP can also prevent electrode passivation.^{[2, 3]} Compared to polar reactions, transformations involving single electron processes to generate radical intermediates have increased product selectivity.^[4] Nevertheless, the use of AP to reductively generate radical intermediates from olefins is underdeveloped (Figure 1).^{[5, 6]} Specifically, AP has been used by Modestino and coworkers to prevent overreduction of acrylonitrile during its dimerization to form adiponitrile (Figure 1).^[5] Polyzos et al. utilize AP to enable aromatic alkene–aldehyde coupling via a radical intermediate (Figure 1).^[6] An interesting case where reaction selectivity and overreduction could be improved by favoring a radical intermediate rather than an anion is electrochemical styrene hydrocarboxylation (Figure 2a).

Styrene hydrocarboxylation combines the renewable resource CO₂ with an inexpensive feedstock olefin, yielding carboxylic acids. These compounds are high-value industry precursors used in the materials, cosmetics, and pharmaceuticals sectors among others.^{[7, 8]} Traditional thermal or photocatalytic methods for styrene carboxylation often employ expensive transition metal catalysts and toxic metal reductants.^[9-20] Electrochemical systems for olefin carboxylation result in varied selectivity for terminal versus branched versus dicarboxylated products or solely favor the dicarboxylated product.^[21-27] The generally poor selectivity for carboxylation toward the β site of the olefin hinders access to the more industrially valuable carboxylic acid product.

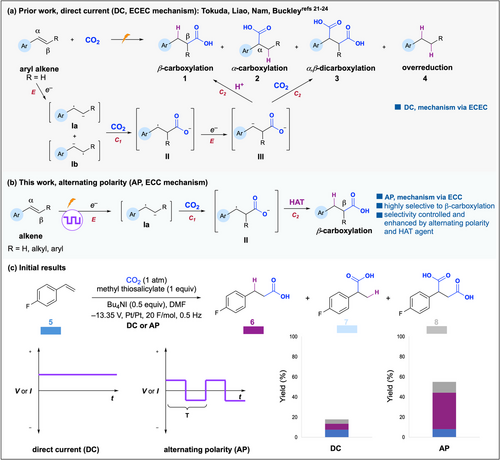

The electrochemical carboxylation of olefins begins with the single electron reduction (E) of alkene starting material to yield intermediate I and subsequent carboxylation (C₁) to yield intermediate II (Figure 2a). Intermediate II then undergoes a second reduction (E) to yield intermediate III, which is either protonated to give 1 or carboxylated to give 3 (C₂). Buckley et al. and Nam et al. implicate this ECEC mechanism for the formation of 1 in their work.^{[21, 23]}

We believed electrochemical olefin hydrocarboxylation would be an ideal model reaction for understanding how AP impacts the generation of radical intermediates from olefins. Instead of a constant applied potential or current, AP is a square wave, alternating the identity of the cathode and anode at a set frequency (Figure 2c). This alternation regenerates the diffusion layer near the electrode surface, driving intermediates that are repelled by the newly formed diffusion layer to move into the bulk solution and undergo a chemical reaction. We hypothesized that AP would hinder the formation of intermediate III and enable a subsequent HAT process that could promote selectivity for terminal product 1 via ECC mechanism (Figure 2b).

Our initial result demonstrates that the use of AP at 0.5 Hz frequency dramatically improves mass balance and yield, and terminal product 6 was favored significantly over all other products (Figure 2c). Armed with this initial indication of the multifaceted impact of AP, we explored its mechanistic control and effect on the carboxylation of other olefin substrates. Herein, we report the AP effect on the electrochemical carboxylation of olefins, highlighting its impact on selectivity, yield, conversion, and mass balance. This work's novelty lies in the use of AP to selectively generate radical anions from olefins, which had not been reported until recently during the revision of this work. This investigation provides new insights into the impact of AP on reductive electrosynthesis and promises more controlled mechanisms for olefin hydrofunctionalization.

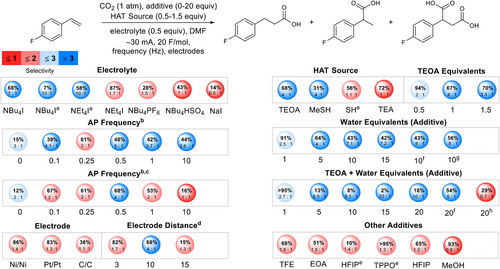

After initial observation of the AP effect, we began exploring the influence of AP with other reaction parameters. Figure 3 outlines the results of this investigation by showing total yields and the ratio of b to c and d (combined). Although NBu₄I electrolyte initially showed favorable interactions with AP, yield decreased by over 60% after the addition of 0.5 equivalents of water. Meanwhile, conditions with NEt₄I showed a 30% yield decrease while maintaining high selectivity. The small alkyl chains on NEt₄I likely allow for better coordination to anion intermediates, faster reorganization of the electric double layer (EDL), and improved access of species to the EDL.^[28] Frequencies below or above 0.5 Hz decrease both yield and selectivity. In cases with poor selectivity, the rate of EDL regeneration is likely not aligned with the diffusion rate of intermediate II (Figure 2a). Additionally, implementation of AP creates an overall lower current. This experienced current is ideal for selectivity outcomes and emphasizes the AP effect.^[29] The AP effect persists under both constant current and constant potential regimes, and 0.5 Hz is the ideal frequency in both systems. Ni foam electrodes (Ni) increase yield by only 3% and selectivity by 0.1 compared to Pt electrodes. Inspired by previous works that highlight the synergy between AP and carbon-based electrode materials, we explored carbon fiber (C), graphite, and reticulated vitreous carbon (RVC) electrodes.^{[1, 30]} Carbon fiber electrodes resulted in lower yields, probably due to passivation.^{[2, 3]} Graphite and RVC resulted in poor conversion and mass balance, respectively (Figure S1). An interelectrode distance of 10 mm is ideal and provided over twice the selectivity for the terminal product compared to 3 and 15 mm. Electrode distance regulates the cell potential, interplaying with AP via the capacitance of the EDL.^[29]

We also investigated the compatibility between AP and several HAT sources and other additives. Triethanolamine (TEOA) has been explored as a sacrificial reductant in carboxylation and other chemistries, but we hypothesized it could also act as an HAT source once oxidized.^{[23, 31]} We found that one equivalent of TEOA in combination with 0.5 Hz AP resulted in the greatest selectivity for the terminal product. Through comparison with triethylamine (TEA), we determined that the hydroxyl groups on TEOA are essential for high selectivity. Replacement of TEOA with 5–15 equivalents of water improved selectivity (4:1–8:1) but reduced yields by up to 20%. Combining TEOA with water proved ideal. Observed bubbling suggests water undergoes the hydrogen evolution reaction (HER) generating H₂ and OH⁻.^[21] Although the addition of 5–20 equivalents of water to conditions containing TEOA improves selectivity but reduces yields, extending F mol⁻¹ to 40 increases yield to 56%, suggesting reduction of the olefin is delayed because of HER. Replacement of TEOA with alcohols, such as trifluoroethanol (TFE), or primary amines, such as ethanolamine (EOA), does not yield the same selectivity or conversion, indicating the need for a tertiary amine. Methyl thiosalicylate (MeSH) and thiophenol (SH) as HAT agents and sacrificial reductants are either not as selective for the terminal product or lead to reduced yields, even in combination with TEOA. Optimal conditions highlighting the AP effect are described in Figure 4.

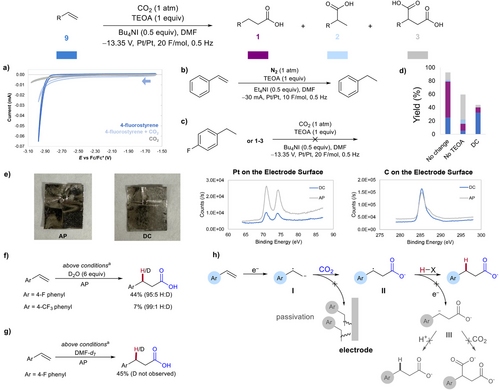

We further explored the mechanistic details of how AP and TEOA enhance selectivity for terminal products. We first determined whether CO₂ or the olefin undergo reduction first. Using cyclic voltammetry, we found the reduction potential of CO₂ is at or beyond the reduction limit of the solvent window, and 4-fluorostyrene reduces much earlier, at about −3.05 V versus Fc/Fc⁺ (Figure 4a). In the presence of CO₂, a significant decrease in current is observed denoting EC mechanism. These results are consistent with the olefin undergoing reduction to the radical anion, which then reacts with CO₂ to form intermediate II (Figure 2b). In the absence of CO₂, ethyl benzene is observed as the major product, further suggesting that alkene is reduced before CO₂ under the reaction conditions (Figure 4b).

To investigate potential side reactions, we tested each carboxylated (6c-d) and noncarboxylated (4-fluoroethylbenzene) byproducts under the reaction conditions (Figure 4c). In all cases, no product formation was detected, and all starting materials were recovered, indicating that the formation of the desired product 6b does not arise from the decarboxylation or carboxylation of byproducts. Additionally, we examined the role of AP in maintaining mass balance and enhancing selectivity for the terminal product (Figure 4d). Omitting TEOA resulted in a shift toward the dicarboxylated product, whereas the absence of AP led to poor mass balance and minimal selectivity for the terminal product. Both TEOA and AP are crucial for optimal selectivity, yield, conversion, and mass balance. X-ray photoelectron spectroscopy (XPS) revealed greater electrode passivation without AP compared to conditions with AP (Figure 4e). Increased passivation results in limited platinum availability on the electrode surface and higher carbon deposition. We hypothesize that AP enhances electron transfer efficiency to the styrene substrate and facilitates the oxidation of the sacrificial reductant by keeping the electrode surface exposed.

Earlier, we hypothesized that the application of AP would improve the selectivity of the terminal product by hindering the second reduction. If the radical intermediate II were to undergo a second reduction, the terminal product would result from protonation rather than HAT. This proton could be sourced from the hydroxyl group of TEOA or from water when used as an additive. However, the protonation versus HAT pathways would be indistinguishable. Notably, Buckley's work proposes a second reduction step followed by protonation via deuteration studies using D₂O, denoting an overall ECEC mechanism.^[14] We performed our reaction with added D₂O to assess whether a second reduction of II and subsequent protonation occurs. Trace deuterated terminal product was observed via ²H NMR (see Supporting Information) with 4-fluorostyrene and 4-triflouromethylstyrene, suggesting that AP limits the second reduction and favors HAT process rather than protonation (Figure 4f). To distinguish between the α-H on TEOA•+ and the acetic H on DMF as the H atom source, we used d₇-DMF as the solvent (Figure 4g).^{[32, 33]} Products showed no evidence of deuteration, confirming TEOA•+ as the H atom source. When TEMPO was added to the reaction conditions, no TEMPO adduct was observed but yield was reduced to 1% (see Supporting Information). This finding cannot confirm the presence of a radical intermediate in the reaction mechanism as it may result from the reversible oxidation and reduction of TEMPO outcompeting the reduction of starting material. Overall, AP plays a key role in: a) mitigating electrode passivation, b) preventing the second reduction of the radical intermediate II that improves selectivity over dicarboxylation, and c) invoking HAT termination step. This AP effect generates a unique mechanism compared to other electrochemical works that target the terminal product via protonation (Figure 2a).^[12-15]

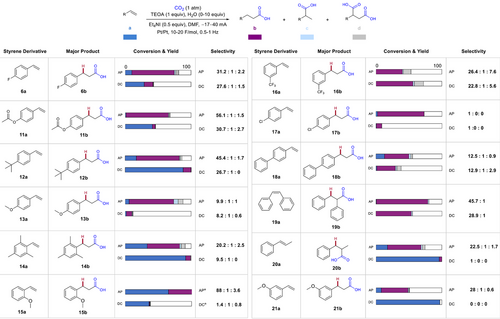

Finally, we investigated the AP effect with other styrene derivatives (Figure 5). Notably, reactions with 11a, 13a–15a, 17a, and 20a–21a do not result in greater than 10% yield unless AP is applied and then are highly selective for the terminal product. This effect is especially apparent for 20a, which shows almost 0% conversion without AP. The reaction with 11a becomes over twice as selective for the terminal product once AP is applied. The system tolerates disubstituted alkenes (19a–20a), and AP significantly improves conversion/yield of 20a. Based on an additive screening, silyl ethers, alkynes, and boronates are mildly tolerated. Their presence reduces yield and slightly lowers selectivity for terminal over dicarboxylated product (see Supporting Information). AP shows a dramatic mass balance effect on halogenated substrate 6a, along with improvements in yield and selectivity. AP also improves yield of 17b without dehalogenated side product observed in other works.^[23] For substrates 6a–16a, AP also improves selectivity for the terminal product (b) over branched product (c). We wondered if this change was due to the reversibility of substrate reduction at different frequencies. So, we conducted a CV scan rate experiment (Figure S4).^[34] However, we did not observe reversibility and could not draw this conclusion. The DC reaction with 16a results in slightly better yield and mass balance compared to the AP reaction. Because of its less negative reduction potential (Figure S1), 16a likely undergoes the initial reduction very rapidly, minimizing the effect of AP on starting material grafting or decomposition. Further optimization of current or frequency may be needed for substrates with electron withdrawing groups.

In summary, our investigation has revealed a significant AP effect on the generation of radical anions from olefins. Using electrochemical olefin hydroxarboxylation as a model reaction, we confirmed that AP reduces electrode passivation and prevents the secondary reduction of reaction intermediates, promoting a novel ECC mechanism for the formation of the linear carboxylate. Additionally, AP selectively favors the formation of linear products over branched products. This report demonstrates the impact of alternating polarity on olefin hydrofunctionalization via the selective generation of radical anions. Future work includes the investigation of the AP effect on radical generation from unactivated olefin substrates and in other olefin transformations.
