In recent years, mechanochemistry has emerged as a revolutionary tool in modern synthetic chemistry.¹ Especially en route to more sustainable and environmentally benign chemical processes, mechanochemical transformations are privileged,² since this approach offers a unique advantage: the ability to conduct conventional synthetic reactions without the need for solvents coupled with rapid reaction kinetics. These unique features make mechanochemistry highly attractive for both industrial applications³ and fundamental research across diverse fields, including material science, inorganic chemistry, and organic chemistry.^{1a, 2c, 2d, 4}

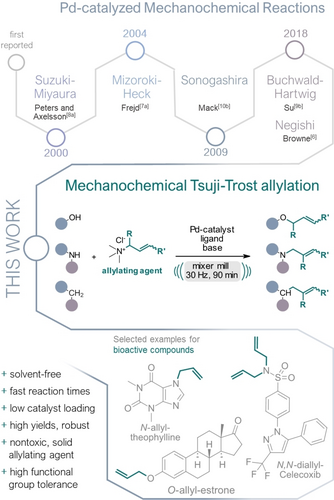

In the past few years, significant efforts have been made to devising more economical protocols for palladium-catalyzed reactions employing ball milling setups that rely solely on mechanical force for energy input.⁵ To date, mechanochemical adaptions of various fundamental Pd-catalyzed reactions, such as the Negishi,⁶ Mizoroki–Heck,⁷ Suzuki–Miyaura,⁸ Buchwald–Hartwig,⁹ Sonogashira,¹⁰ a C−S coupling¹¹ and C−H arylation¹² have been successfully established. To further enrich this “green” toolbox, we present a novel and solvent-free protocol for a mechanochemical palladium-catalyzed Tsuji–Trost allylation of O-, N-, and C-nucleophiles using a ball mill reactor (Figure 1).

Our endeavor prioritized the development of an environmentally benign and entirely safe process, aligning with the principles of green chemistry.

In the Tsuji–Trost reaction, the presence of a leaving group in the allylic position of the substrate is crucial.¹³ Numerous protocols have been developed for various leaving groups, encompassing halides, carbonates, acetates, hydroxy groups, and amides.¹⁴ Notably, quaternary ammonium moieties in allylic positions are seldomly employed as leaving groups with only limited examples documented in literature.¹⁵ Nevertheless, harnessing these quaternary ammonium salts as the allyl source presents a distinctive advantage, especially when considering the potential hazards and toxicity associated with traditionally applied allylating agents, such as allyl chloride or bromide. Quaternary ammonium salts are nontoxic and pose significantly fewer health and safety risks. Moreover, their solid nature drastically simplifies the handling. Consequently, they represent a valuable and sustainable alternative to hazardous reagents.¹⁶

The allylic trimethylammonium chlorides employed in this protocol solely release gaseous trimethylamine as the leaving group, obviating the need for an additional byproduct separation step. This feature can be particularly advantageous in the pharmaceutical industry¹⁷ or when the product is intended for use in subsequent reactions without further purification.

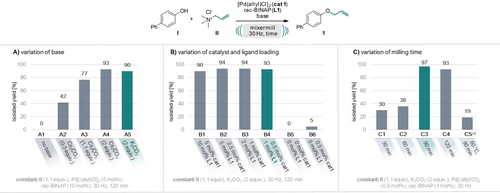

Building upon our prior research involving ammonium salts as solid alkylating agents,^{16, 18} we initiated our current investigation using allyl trimethylammonium chloride as the allylating agent (II), paired with 4-hydroxybiphenyl (I) serving as the nucleophile. Based on mechanistic considerations¹⁹ of the catalytic cycle for Tsuji–Trost allylation, where a leaving group elimination prompts the formation of an η₃ π-allyl-Pd^II complex, we commenced our optimization studies (see Figure 2) by selecting a known and robust catalytic system of [Pd(allyl)Cl]₂ (cat 1) with cheap rac-[2,2′-bis(diphenylphosphino)-1,1′-binaphthyl] (rac-BINAP) ligand (L1).²⁰ Initially, 30 mol % of Cs₂CO₃ were added, aligning with precedent literature recommendations^{20, 21} and the allylated product was obtained in 42 % yield (entry A2). Increasing the amount of base to 1.1 equiv. drastically increased the yield of 1 to 77 % and even 93 % when 2 equiv. were used. As no significant difference in yields could be observed when using Cs₂CO₃ or K₂CO₃ as the base, we continued our studies with the latter cheaper base (cf. entry A4 and A5). Through systematic optimization, we achieved a remarkable reduction of catalyst and ligand loadings to as little as 0.5 mol % and 1 mol % (entry B4), respectively, and reduction of the milling time to as short as 90 min, while still attaining an excellent yield of 97 % (entry C3). Excluding both the catalyst and the ligand (entry B5) or the ligand only (entry B6), no or only 5 % product formation could be observed. These findings prove that the reaction requires the catalytic system to operate, distinctively from a conventional nucleophilic substitution mechanism. Finally, we conducted a reaction in toluene (0.5 M) at 60 °C with a comparable reaction time of 90 min (entry C5). Only 19 % product formation could be observed, underscoring the typically accelerated reaction kinetics inherent to mechanochemical reactions.^2b

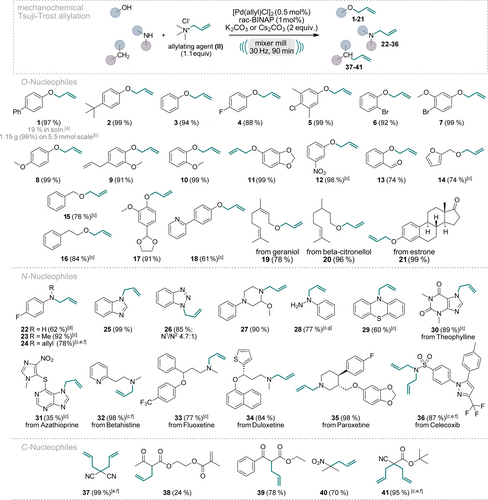

We initiated our scope evaluation by testing various nucleophiles (Scheme 1), including O-, N-, and C-nucleophiles, with commercially available allyl trimethylammonium chloride (II) under the optimized reaction conditions (Figure 2, entry C3). The choice between potassium or cesium carbonate as the base depended on the specific reaction‘s yield. For most substrates, pure allylated product was obtained solely through silica filtration (for further details see the SI). Phenol nucleophiles consistently delivered excellent yields ranging from 61 % to 99 % (1–13, 17, 18, and 21) independent of their substitution pattern. Electron-donating (1, 2, 8–11, and 17) and electron-withdrawing (4–6, 12, 13) groups as well as combinations thereof (5 and 7), were tolerated at various positions on the aryl ring. Aliphatic (15, 16, and 20) and allylic (19) alcohols also readily underwent allylation, with yields reaching 96 %. Even the complex bioactive compound estrone was quantitatively allylated (21). To underscore the robustness and practicality of this approach, we conducted the synthesis of product 1 on a 1 g scale. The reaction scale-up involved an increase of the dimensions of the milling vessels and the milling balls, yet the reaction yielded comparable results, with silica filtration sufficing to obtain pure product 1 in a quantitative yield of 1.15 g.

Given the significance of nitrogen-containing motifs in biologically active compounds, we next focused on N-nucleophiles, particularly in small molecule drugs and frequently encountered motifs thereof.²² Aniline derivatives could be mono- or bis-allylated (22–24). However, primary amines showed diminished yields due to the challenging prevention of over-alkylation (22). Secondary amines, on the other hand, gave excellent allylation yields without overalkylation concerns (23, 27, 32–35).

Nitrogen containing heterocycles are important motifs due to their presence in numerous biologically active compounds. Gratifyingly, our protocol allowed efficient allylation of many N-heterocyclic systems, both aromatic and aliphatic ones. Benzotriazole gave a high overall yield of 85 % (26), with the allylation occurring predominantly at the N¹-position, and to some extent at position N² at a 4.75 : 1 ratio. Notably, column chromatography easily separated these two isomers. Other N-heterocyclic compounds were allylated with excellent yields, including benzimidazole towards product 25 and Theophylline giving product 30. Unfortunately, bioactive Azathioprine could be allylated only in a modest yield of 35 % (31), likely due to its steric congestion. Phenylhydrazine was exclusively allylated at the N¹-position, consistent with recent literature reports²³ (product 28). The sulfonamide moiety in Celecoxib was fully bis-allylated as its high nucleophilicity hampers a monoselective reaction (36). This mild protocol successfully facilitated the allylation of several complex N-containing small molecule drugs (30–36), highlighting its potential in late-stage modifications.

C-nucleophiles bearing electron-withdrawing groups in alpha-position could be mono-allylated, giving products 38–40, or fully converted to the bis-allylated products (37 and 41) with yields up to 99 %. Notably, in the case of product 39, the competitive byproduct formed via O-allylation of the enolate was significantly reduced when K₂CO₃ was employed as the base, rather than Cs₂CO₃.

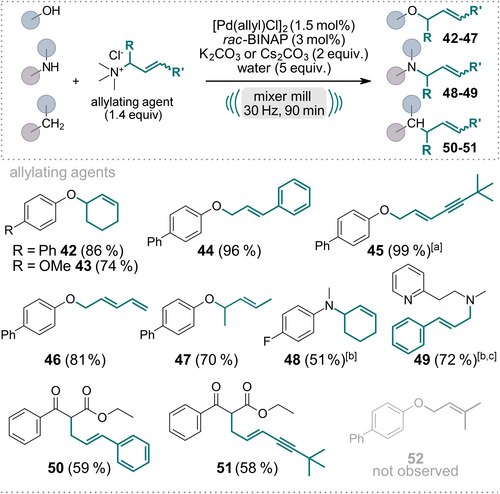

Subsequently, we explored the versatility of substituted allyl ammonium salts (Scheme 2) with O-, N-, and C-nucleophiles (42–51). These salts can be readily derived from the respective allyl chlorides by reacting with Me₃N solution. Initially, when employing the freshly synthesized and recrystallized ammonium salt from cinnamyl chloride, the yield of product 44 did not exceed 20 %. However, as others have calculated, we made the noteworthy discovery that the addition of water significantly accelerated the reaction.²⁴ Specifically, when we conducted the reaction with 4-hydroxybiphenyl as the nucleophile and dried cinnamyl trimethylammonium chloride as the allylating agent, only 6 % of product 44 was obtained when additional molecular sieves were added to the milling vessel. In contrast, when 2 equivalents of water were added, the yield of 44 increased to 63 %, and upon the addition of 5 equivalents of water, the reaction proceeded with complete conversion, and an isolated yield of 96 %. This water-mediated enhancement of reaction rates was consistently observed with all other synthesized allyl ammonium salts employed in this protocol. Alternatively, the acceleration of the reaction by addition of water might be due to the effect of liquid assisted grinding,²⁵ or a combination of both factors. Interestingly, when employing terminal allyl ammonium compounds, exclusively linear products were obtained with moderate to excellent yields (44–46, 49–51). To ensure a cleaner reaction, we slightly increased the catalyst loading to 1.5 mol % since it resulted in the exclusive formation of the trans-isomer. Due to competing bis-allylation, yields for the C-allylated products 50 and 51 were diminished. Interestingly, the 3,3-dimethylallyl trimethylammonium chloride did not give the desired product 52 but only starting material was recovered, assumingly due to steric hindrance upon Pd-allyl complex formation and subsequent nucleophilic attack.

This novel reaction, employing allyl trimethylammonium chloride as the allylating agent, achieves an exceptional level of selectivity, yielding only a single product. This is in stark contrast to using the corresponding allyl chloride directly under the conditions outlined. For example, using cinnamyl chloride instead of cinnamyl trimethylammonium chloride under the reaction conditions described in Scheme 2, the crude NMR reveals a complex mixture of products and starting material. Conversely, when alternative cinnamyl trimethylammonium chloride is utilized, the reaction yields pure product 44 after simple silica filtration.

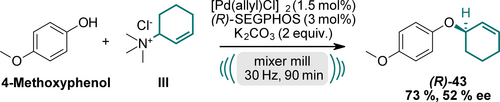

Prompted by our results, we explored the potential for enantioselective reactions using chiral ligands (Scheme 3, for further details see SI). Several enantioselective reactions using ball milling conditions are already established under organocatalytic conditions.²⁶ In contrast, metal-catalyzed mechanochemical reactions have received only limited attention so far. Employing a chiral (R)-BINAP ligand, we achieved an enantiomeric excess (ee) of 28 % under the described conditions. Gratifyingly, using a chiral (R)-5,5′-bi(diphenylphosphino)-4,4′-bi-1,3-benzodioxole ((R)-SEGPHOS) ligand, we obtained compound (R)-43 in a yield of 73 % with a moderate ee of 52 %. Further investigations to improve the ee-values are currently underway in our laboratories.

In summary, we have established a solvent-free, robust, and high-yielding protocol for a palladium-catalyzed mechanochemical Tsuji–Trost allylation. This method offers an easy setup without the need for air or moisture precautions, very low catalyst and ligand loading, very mild reaction conditions, short reaction times, and high conversion rates. The outstanding functional group tolerance allows clean and mild late-stage allylation of complex bioactive compounds. This study underscores the underappreciated potential of solid, nontoxic allyl ammonium salts as allylating agents in Tsuji–Trost reactions, offering a valuable and environmentally friendly alternative to traditional hazardous allylation reactions.
