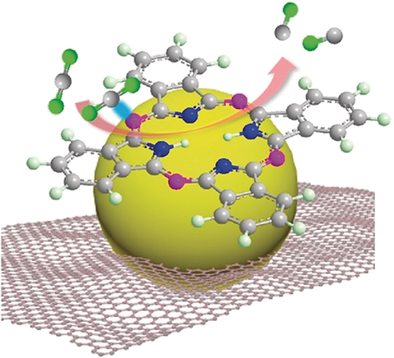

Nitrogen-doped carbon catalysts are presented for application in the electrochemical CO2 reduction reaction (CO2RR). Molecular probes were designed to clarify the genuine catalytically active sites. CO2RR takes place preferentially on pyridinic rather than pyrrolic nitrogen, and metallic cobalt nanoparticles enhance the CO2RR on pyridinic nitrogen significantly.
Abstract
Nitrogen-doped carbon materials (N-Cmat) are emerging as low-cost metal-free electrocatalysts for the electrochemical CO2 reduction reaction (CO2RR), although the activities are still unsatisfactory and the genuine active site is still under debate. We demonstrate that the CO2RR to CO preferentially takes place on pyridinic N rather than pyrrolic N using phthalocyanine (Pc) and porphyrin with well-defined N-Cmat configurations as molecular model catalysts. Systematic experiments and theoretic calculations further reveal that the CO2RR performance on pyridinic N can be significantly boosted by electronic modulation from in-situ-generated metallic Co nanoparticles. By introducing Co nanoparticles, Co@Pc/C can achieve a Faradaic efficiency of 84 % and CO current density of 28 mA cm−2 at −0.9 V, which are 18 and 47 times higher than Pc/C without Co, respectively. These findings provide new insights into the CO2RR on N-Cmat, which may guide the exploration of cost-effective electrocatalysts for efficient CO2 reduction.
