Electric-Field Modulation of Component Exchange in Constitutional Dynamic Liquid Crystals†
Nicolas Giuseppone Dr.,
Jean-Marie Lehn Prof. Dr.,
Nicolas Giuseppone Dr.
Institut de Science et d'Ingénierie Supramoléculaires, 8 Allée Gaspard-Monge, BP 70028, 67083 Strasbourg, France, Fax: (+33) 390-245-140
Search for more papers by this authorJean-Marie Lehn Prof. Dr.
Institut de Science et d'Ingénierie Supramoléculaires, 8 Allée Gaspard-Monge, BP 70028, 67083 Strasbourg, France, Fax: (+33) 390-245-140
Search for more papers by this authorNicolas Giuseppone Dr.,
Jean-Marie Lehn Prof. Dr.,
Nicolas Giuseppone Dr.
Institut de Science et d'Ingénierie Supramoléculaires, 8 Allée Gaspard-Monge, BP 70028, 67083 Strasbourg, France, Fax: (+33) 390-245-140
Search for more papers by this authorJean-Marie Lehn Prof. Dr.
Institut de Science et d'Ingénierie Supramoléculaires, 8 Allée Gaspard-Monge, BP 70028, 67083 Strasbourg, France, Fax: (+33) 390-245-140
Search for more papers by this author†
We thank Dr. Jean-Louis Schmitt for checking the experimental results. We are grateful to Dr. Daniel Guillon, Dr. Jacques Malthête, and Dr. Jacques Prost for their constructive remarks on the manuscript.
Graphical Abstract

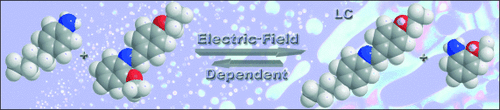

Playing the field: Application of an electric field to the thermodynamic equilibria of constitutionally dynamic sets of imines and amines that contain an imine with liquid-crystalline properties and a negative dielectric anisotropy leads to the amplification of the constituent that couples most strongly to the electric field, namely the liquid crystal (LC, see example). The field can thus induce a liquid to nematic phase transition.
