Tetrakis(phenylimino)cyclobutane (Tetrameric Phenyl Isocyanide)^†

Prof. Dr. Hans Jürgen Bestmann,

Prof. Dr. Hans Jürgen Bestmann

Institut für Organische Chemie der Universität Erlangen-Nürnberg, Henkestr. 42, D-8520 Erlangen (Germany)

Search for more papers by this author

Dr. Günter Schmid,

Dr. Günter Schmid

Institut für Organische Chemie der Universität Erlangen-Nürnberg, Henkestr. 42, D-8520 Erlangen (Germany)

Search for more papers by this author

Dr. Eberhard Wilhelm,

Corresponding Author

Dr. Eberhard Wilhelm

Institut für Organische Chemie der Universität Erlangen-Nürnberg, Henkestr. 42, D-8520 Erlangen (Germany)

Institut für Organische Chemie der Universität Erlangen-Nürnberg, Henkestr. 42, D-8520 Erlangen (Germany)Search for more papers by this author

Prof. Dr. Hans Jürgen Bestmann,

Prof. Dr. Hans Jürgen Bestmann

Institut für Organische Chemie der Universität Erlangen-Nürnberg, Henkestr. 42, D-8520 Erlangen (Germany)

Search for more papers by this author

Dr. Günter Schmid,

Dr. Günter Schmid

Institut für Organische Chemie der Universität Erlangen-Nürnberg, Henkestr. 42, D-8520 Erlangen (Germany)

Search for more papers by this author

Dr. Eberhard Wilhelm,

Corresponding Author

Dr. Eberhard Wilhelm

Institut für Organische Chemie der Universität Erlangen-Nürnberg, Henkestr. 42, D-8520 Erlangen (Germany)

Institut für Organische Chemie der Universität Erlangen-Nürnberg, Henkestr. 42, D-8520 Erlangen (Germany)Search for more papers by this author

First published: February 1980

https://doi.org/10.1002/anie.198001362

Citations: 7

^†

Dedicated to Professor Rolf Sammet on the occasion of his 60th birthday

About

PDF

Tools

Share a link

Email
Wechat
Bluesky

Graphical Abstract

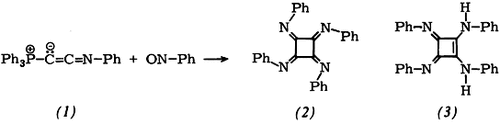

A nitrogen analogue of the hitherto unknown cyclobutane tetraone, the title compound (2), is formed as red-violet crystals from the phosphorane (1) and nitrobenzene in a one-pot reaction. The arrangement of phenyl groups indicated in the formula is confirmed by X-ray structure analysis. (2) is reduced, e.g. by phenylhydrazine, to (3), the first amidine of squaric acid whose N atoms are not linked in a ring.

References

1 S. Skujins, J. Delderfield, G. A. Webb, Tetrahedron 24, 4805 (1968);
10.1016/S0040-4020(01)98676-4
CAS Web of Science® Google Scholar
R. West, H. Y. Niu, M. Ito, J. Am. Chem. Soc. 85, 2584 (1963).
10.1021/ja00900a012
CAS Web of Science® Google Scholar
2 S. Hünig, H. Pütter, Angew. Chem. 84, 481 (1972);
10.1002/ange.19720841013
Google Scholar
Angew. Chem. 85, 143 (1973);
Web of Science® Google Scholar
Angew. Chem. Int. Ed. Engl. 11, 431 (1972);
10.1002/anie.197204311
CAS Web of Science® Google Scholar
Angew. Chem. Int. Ed. Engl. 12, 149 (1973);
10.1002/anie.197301491
Web of Science® Google Scholar
Chem. Ber. 110, 2524, 2532 (1977).
10.1002/cber.19771100711
CAS Web of Science® Google Scholar
3 E. Seitz, R. Matusch, K. Mann, Chem.-Ztg. 101, 557 (1977).
CAS Web of Science® Google Scholar
4 H. J. Bestmann, G. Schmid, Angew. Chem. 86, 274 (1974);
10.1002/ange.19740860709
CAS Google Scholar
Angew. Chem. Int. Ed. Engl. 13, 273 (1974).
Google Scholar
5 H. J. Bestmann, G. Schmid, D. Sandmeier, L. Kisielowski, Angew. Chem. 89, 275 (1977);
10.1002/ange.19770890432
CAS Google Scholar
Angew. Chem. Int. Ed. Engl. 16, 268 (1977).
10.1002/anie.197702681
Web of Science® Google Scholar
6 (10), orthorhombic crystals from tert-butanol/acetone, space group Pbca-D, a = 1163.1, b = 887.7, c = 2052.8 pm, Z = 4, ρ_calc = 1.29 g/cm³, 1309 independent reflections from 5581 measurements. From Z = 4 it follows that each molecule in the unit cell occupies a special position and thus must be centrosymmetric. The structure was solved and refined to R = 0.043 using the program system “CRYSTAN” [7].
Google Scholar
7 H. Burzlaff, R. Böhme, M. Gomm: CRYSTAN, a crystallographic programme system for minicomputers (1977). Institut für Angew. Physik, Lehrstuhl für Kristallographie, Loewenichstr. 22, D-8520 Erlangen, Germany. We thank Prof. Dr. H. Burzlaff for placing the program and computer PDP 11/45 at our disposal.
Google Scholar
8 R. Allmann, Crystal Struct. Commun. 3, 47 (1974).
Google Scholar
9 IR (K Br): broad band between 3600 and 2800 cm⁻¹ with distinguishable absorptions at 3130 and 3360 cm⁻¹; strong bands in the amidine region at 1640, 1590 and 1500 cm⁻¹. Raman spectrum (solid): 1619, 1558 (CN), 1601 cm⁻¹ (CC); MS: m/e = 414 (M), 311 (M⁺ – PhNC), 310 (M⁺ – PhNHC), 208, 207.
Google Scholar
