Owing to the crucial role of acidity in heterogeneous catalysis, much effort is devoted to control the reactivity and selectivity of zeolites through the variation of Brønsted acid sites distribution.¹ Acid sites are typically formed when [AlO₄]⁵⁻ tetrahedra substituting a certain amount of [SiO₄]⁴⁻ tetrahedra in the zeolite framework are compensated by protons, creating Brønsted sites Si−(OH)−Al. During zeolite formation, the interplay between the negative and positive charges in the growing framework has a significant effect on the zeolite phase selectivity and stability. Specifically, the distribution of charges, and the related electrostatic interactions, are expected to determine the distribution of negatively charged aluminum tetrahedra in zeolite frameworks. These charges are brought by (i) the forming elements sources (Si, Al), (ii) the organic or inorganic cations acting as structure directing agents (SDAs), and (iii) the mineralizing agents (F⁻ or OH⁻).

In this sense, one of the current strategies to tune Al sites distribution is based on the variations in positively charged SDAs. For instance, this strategy has been proposed in different approaches for ZSM-5 (Zeolite Socony Mobil-5), one of the widely used zeolites in industrial catalytic applications.² Al sitting variations can be achieved by tuning the relative proportions of tetrapropylammonium (TPA)—the most efficient organic SDA for this zeolite—and inorganic SDAs such as Na⁺,³ or by replacing, partially or totally, TPA by alcohol and amine molecules⁴ or other organic SDAs.⁵ The positioning of SDAs’ positive charges in the 10 membered ring (MR) channels (e.g. inorganic cations) or at their crossing (e.g. TPA) is thought to direct the positioning of Al at these locations,^3c although this is a matter of debate.⁶ Furthermore, this strategy improves the efficiency of the catalysts in terms of activity and selectivity.^{1c, 3c, 4a, 7}

An alternative strategy, not yet developed, is to exploit the mineralizing agents as a possible means to tune Brønsted acid sites distribution. When the amount of negatively charged Al tetrahedra in the zeolite is below that of the positive charges brought by the SDAs, the electrical neutrality is insured by negative charges coming from the mineralizing agents employed. It has been observed that using F⁻ anions as mineralizing agents and varying the Si/Al molar ratio affect the Al sites distribution of ZSM-5,⁸ and other zeolites.⁹ However this behavior remained unexplained. In addition, catalytic properties can vary with Si/Al ratios¹⁰ but no rationale on the effect of mineralizing agents was developed at this respect. Considering this example of the ZSM-5 zeolite, and a wide range of Si/Al ratios, we demonstrate here how F⁻ and OH⁻ anions affect oppositely Al sites distribution, and further zeolite acidity.

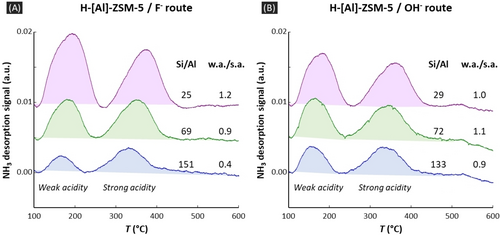

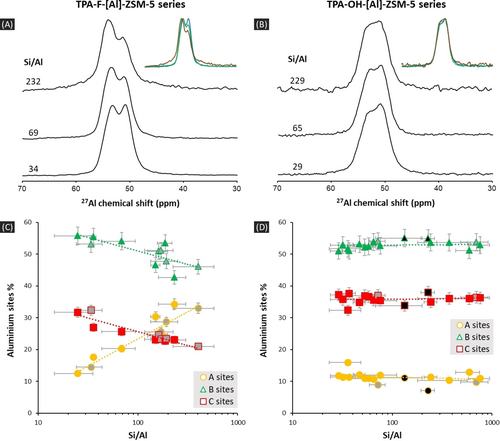

We chose to synthesize [Al]-ZSM-5 zeolites using TPA as single SDA in order to avoid any concomitant effect of other SDAs (see Supporting Information 1 for details). This choice leads to one positive charge per 24 tetrahedral T sites of the MFI (Mordenite Framework Inverted) framework of ZSM-5. The lowest reachable Si/Al molar ratio is therefore 23. Close to this ratio, the negative compensating charges coming from F⁻ or OH⁻ are scarce. In this case, ²⁷Al NMR MAS spectra of the as-synthesized TPA-[Al]-ZSM-5 exhibit characteristic peaks of [Al(OSi)₄] units forming a similar envelope regardless the mineralizing anion used (Figures 1A–B and S11–S14). When Si/Al increases, ²⁷Al spectra do change when fluoride is used as a mineralizing agent as it was noticed early.^8a On the contrary, and not noticed until now, no real evolution is observed for the hydroxide route (Figure 1B). Importantly, the same observations are made for the resulting calcined H-[Al]-ZSM-5 that would be used for catalysis (Figure S5). Moreover, for these calcined zeolites, we found interesting trends coming from temperature programmed desorption of ammonia (NH₃-TPD). The use of F⁻ anions as mineralizers, that favors aluminum A sites at high Si/Al (see below), also yields a higher proportion of strong acidity, while the use of OH⁻ doesn't (Figure 2, Table S6).

The differences in ²⁷Al peaks positions for tetrahedrally coordinated Al in [Al(OSi)₄] units are commonly related to differences in SiOAl angles,¹¹ and thus on Al siting positions. In the case of ZSM-5, the Al sites distribution is not random and some crystallographic sites are preferentially occupied as demonstrated by ²⁷Al NMR.^{3a, 8a} Therefore, the differences observed in 1D spectra are intimately related to differences in Al sites distribution. For a representative selection of TPA-F/OH-[Al]-ZSM-5 zeolites, we have recorded 2D ²⁷Al 3Q-MAS spectra at different magnetic fields (14.1 and 20.0 T). Three ²⁷Al peaks, located at isotropic chemical shifts of 55.5 ppm (A sites), 53.8 ppm (B sites) and 51.4 ppm (C sites), are identified by spectrum fitting (Tables S7–S8). They were used for quantifying the Al sites’ proportions using a robust 1D fitting procedure (Supporting Information 4). The variations of these proportions are plotted as a function of Si/Al in Figure 1C–D (Figure S15 for the results obtained at 20.0 T).

At low Si/Al, the percentages of the three ²⁷Al peaks are almost the same (±5 %) for both mineralizing agents: ca. 10, 55 and 35 % for the A, B and C sites respectively. In the case of F⁻ anions, there are important and gradual variations in sites’ percentages. A sites are promoted to ca. 35 % at the expenses of the other B and C sites when increasing Si/Al, and thus the F content, in line with previous observations.⁸ Noteworthy, changes in the Al precursors, Al(OH)₃ or Al(NO₃)₃, or in the initial amount of water (Table S1) do not modify the observed trend (Figure 1D). In the case of OH⁻, an opposite behavior is observed, with no significant variation in site percentages over the wide Si/Al range explored. Moreover, the chemical variations made in the synthesis's protocol (Si and Al precursors, initial H₂O/Si molar ratio), that do change crystal sizes (Figure S2), do not influence this result.

A possible explanation for these contrasted behaviors can be found in the relative location of charges within the zeolite framework. Positive charges are brought by the TPA cations at the crossing between channels in the MFI framework (one per 24 Si). Negative charges arise from Al insertion, and when Si/Al>23, also from F⁻ anions or silanolates SiO⁻ groups for F⁻ or OH⁻ mineralizing agents respectively. The silanolates are in interaction with silanol groups forming nests with a characteristic ¹H peak located at ca. 10 ppm.¹² For the ZSM-5 zeolites studied here, the relative signal area of this peak decreases consistently when Al content increases (Figure S16). It was previously shown that these silanol nests are spatially close to H_γ (methyl groups of TPA).¹³ In experimental or DFT optimized crystal structures,¹⁴ H_γ atoms are close to all T sites (distances between 2.8 and 4.5 Å), which is not the case for H_β and H_α atoms (methylene groups). This allows therefore various possibilities for the location of the silanolate groups, leading to a high degree of local disorder probed by ²⁹Si and ¹⁴N NMR for as-synthesized silicalite-1 obtained with the OH⁻ route.¹⁵ Surprisingly, this distribution of silanolates in ZSM-5 is not altering the Al sites distribution—which does not prevent the formation of Al pairs at low Si/Al,^{4b, 16}—whatever the initial gel composition. On the contrary, despite the preservation of the specific location of F⁻ within the [4¹5²6²] cage close to the 4 MR of the MFI framework at variable Si/Al,^,[17, 8b] the Al sites distribution is altered. This specific location might therefore be the reason of changing the Al distribution and favoring A sites.

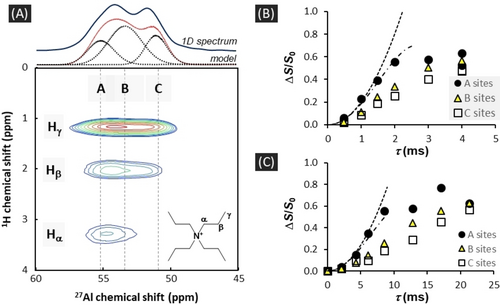

Spatial proximities between Al sites and TPA cations can be inferred from NMR experiments based on dipolar couplings. The improvement in ¹H resolution using very high magnetic field (20.0 T) and MAS frequencies (100 kHz) renders possible to clearly distinguish the TPA's peaks (H_α, H_β and H_γ). ¹H{²⁷Al} D-HMQC correlation spectra (Figure 3A) and ²⁷Al{¹H} REDOR experiments (Figure 3B and S17, Table S9), with ¹H selective π refocusing pulses irradiating only one type of ¹H resonance, demonstrate that H_α are spatially closer to Al in A sites (<3.5 Å) than in B and C sites (≤4.0 Å) while H_β and H_γ are at similar distances to all Al sites. This remains valid for both F⁻ and OH⁻ routes (Figure S6). Besides, we verified that similar ²⁷Al{¹H} REDOR spectra with H_α selection are obtained for a TPA-F-[Al]-ZSM-5 zeolites with contrasted Al contents (Si/Al=30 or 232) (Figure S18, Table S10). We also conducted a ²⁷Al{³¹P} REDOR analysis on ZSM-5 zeolite synthesized using tetrapropylphosphonium (TPP) instead of TPA, and a F⁻ route. The sample presents the same ²⁷Al spectrum as the related sample obtained with TPA at same Si/Al (Figure S8). The resulting ²⁷Al^–31P dipolar couplings can then give a good indication for the Al−N distances in standard TPA-F/OH-[Al]-ZSM-5 samples. The ²⁷Al{³¹P} REDOR curves, recorded at low T (≈243 K) to decrease the effect of motions, show a faster build-up for A sites (Figure 3C). This confirms the closer proximity of A sites to the center of the OSDA, with Al−P distances estimated around 5.0 Å (Table S9). If we refer to TPA-[Al]-ZSM-5 structures refined from X-rays diffraction data, this distance is the smallest that can be found for Al−N, and corresponds to tetrahedral sites T1 (d_AlN=5.0 Å, Pnma space group)¹⁹ or T13 (d_AlN=4.9 Å, Pn2₁a space group).²⁰ These T sites are located at the crossing between pore channels and bound to the 4 MR of the MFI framework, thus close to [4¹5²6²] cages. Such possible siting positions for A sites are consistent with a previous assignment made on the basis of DFT calculations.²¹ It is to note that T1/T13 sites belong to the preferential locations for Al in ZSM-5 often reported.^{3a, 20-22} Other short Al−N distances (d_AlN<5.3 Å) correspond to T sites in the [4¹5²6²] cages. In the case of B and C sites, the Al−P distances are between 5.6 and 6.1 Å (Table S9). In the TPA-[Al]-ZSM-5 structures, the related Al−N distances correspond to T sites that are located in the channels or at their crossing, usually far from the [4¹5²6²] cages.

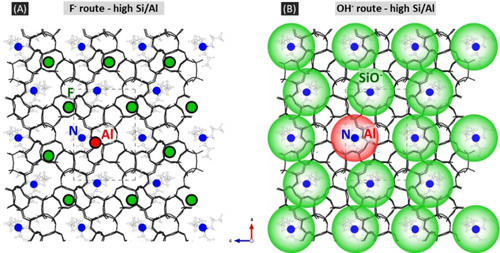

The above results can be understood by considering a balance between short- and long-range interactions. Preferential Al siting positions can be defined by strong short-range interactions between negatively charged framework areas and positively charged OSDA. This determines a distribution of Al sites that is identical at Si/Al close to 23 (one Al per OSDA) regardless of the mineralizing anions. For higher Si/Al values, the other negative compensating charges might tune or not the Al distribution. In silica zeolites, the specific location of F⁻ has shown to be influenced by long-range interactions with cationic OSDAs.²³ In [Al]-ZSM-5 this location at a single defined crystal position is preserved,^8b and certainly modify in turn the long-range electrostatic interactions. The Al sites that minimize the energy of these interactions the most are then more favored. They correspond here to Al in A sites close to the crystallographic positions of F (Figure 4A). On the contrary the distribution of silanolates over different crystallographic sites doesn't affect significantly long-range interactions, and the Al sites distribution does not vary over a wide range of Si/Al ratio (30 to 760).

This opposite effect of mineralizing anions on Al sites distribution sheds lights on the importance of considering the spatial distribution of all negative charges within the zeolite frameworks when discussing Al siting modulation. It also opens to simple means to control and tune the distribution of Brønsted acid sites and the acidity of zeolites, notably for high Si/Al ratios, and further their catalytic properties.
