Electrically Addressable Multistate Volatile Memory with Flip-Flop and Flip-Flap-Flop Logic Circuits on a Solid Support†
Graham de Ruiter
Department of Organic Chemistry, Weizmann Institute of Science, 76100 Rehovot (Israel), Fax: (+972)8-934-4142 http://www.weizmann.ac.il/oc/vanderboom/
Search for more papers by this authorLeila Motiei
Department of Organic Chemistry, Weizmann Institute of Science, 76100 Rehovot (Israel), Fax: (+972)8-934-4142 http://www.weizmann.ac.il/oc/vanderboom/
Search for more papers by this authorJoyanta Choudhury
Department of Organic Chemistry, Weizmann Institute of Science, 76100 Rehovot (Israel), Fax: (+972)8-934-4142 http://www.weizmann.ac.il/oc/vanderboom/
Search for more papers by this authorNoa Oded
Department of Computer Science and Applied Mathematics Weizmann Institute of Science, Rehovot (Israel)
Search for more papers by this authorMilko E. van der Boom Prof.
Department of Organic Chemistry, Weizmann Institute of Science, 76100 Rehovot (Israel), Fax: (+972)8-934-4142 http://www.weizmann.ac.il/oc/vanderboom/
Search for more papers by this authorGraham de Ruiter
Department of Organic Chemistry, Weizmann Institute of Science, 76100 Rehovot (Israel), Fax: (+972)8-934-4142 http://www.weizmann.ac.il/oc/vanderboom/
Search for more papers by this authorLeila Motiei
Department of Organic Chemistry, Weizmann Institute of Science, 76100 Rehovot (Israel), Fax: (+972)8-934-4142 http://www.weizmann.ac.il/oc/vanderboom/
Search for more papers by this authorJoyanta Choudhury
Department of Organic Chemistry, Weizmann Institute of Science, 76100 Rehovot (Israel), Fax: (+972)8-934-4142 http://www.weizmann.ac.il/oc/vanderboom/
Search for more papers by this authorNoa Oded
Department of Computer Science and Applied Mathematics Weizmann Institute of Science, Rehovot (Israel)
Search for more papers by this authorMilko E. van der Boom Prof.
Department of Organic Chemistry, Weizmann Institute of Science, 76100 Rehovot (Israel), Fax: (+972)8-934-4142 http://www.weizmann.ac.il/oc/vanderboom/
Search for more papers by this authorThis research was supported by the Helen and Martin Kimmel Center for Molecular Design, the Yeda-Sela Center for Basic Research, and the Israel Science Foundation (ISF). J.C. thanks the FP7 program for a Marie Curie Fellowship.
Graphical Abstract

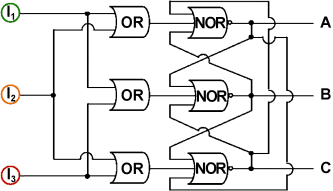

Flip-Flops: Auf der Grundlage elektrisch ansprechbarer Os2+-basierter Mehrfachschichten wurde ein mehrwertiger Arbeitsspeicher verwirklicht. Die kontrollierbaren optischen Eigenschaften der Mehrfachschichten ermöglichen den Aufbau von Speichereinheiten, die abhängig von der elektrischen Eingabe bis zu fünf verschiedene Zustände speichern können (siehe Bild). Die Speicheroperationen können durch sequenzielle, zu Flip-Flop-und Flip-Flap-Flop-Funktionseinheiten äquivalente Logikschaltkreise dargestellt werden.
