Stroke Recovery in Rats after 24-Hour–Delayed Intramuscular Neurotrophin-3 Infusion

Experimental Design

All surgical procedures and behavioral testing were performed using a randomized block design with experimenters and principal investigator blinded to treatment groups by a third party.27 All procedures were in accordance with the Animals (Scientific Procedures) Act of 1986. All protocols involving animals received prior approval by the King's College London Animal Welfare Ethical Review Board and were authorized by the UK Home Office Project (license number 70/7865, held by L.D.F.M.).

Stroke or Sham Lesions

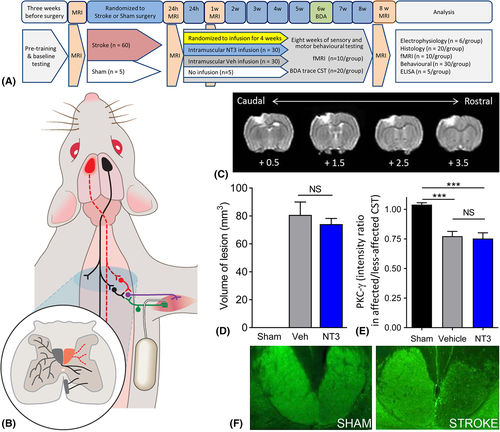

Sixty Lister Hooded outbred female rats (~4 months old, 200–300 g, Charles River, Wilmington, MA) received focal ischemic stroke in the sensorimotor cortex representing the dominant forelimb (Fig 1), defined by the cylinder test, as described for elderly rats16 (see Fig 1A, B) with minor modifications as described in detail elsewhere.27 Briefly, anesthetized animals were transferred to a stereotaxic frame where a midline incision was made, the cortex was then exposed via craniotomy using the following coordinates (defined as anteroposterior [AP] and mediolateral [ML]): AP 4 mm to −2 mm, ML 2 mm to 4 mm, relative to bregma. Endothelin-1 (ET-1; 400 pmol/μl in sterile saline; Calbiochem, San Diego, CA) was applied using a glass micropipette attached to a Hamilton syringe. One microliter of ET-1 was applied to the overlying dura to reduce bleeding, and immediately thereafter, the dura mater was incised and reflected. Four 1 μl volumes of ET-1 were administered topically, and four 1 μl volumes were microinjected intracortically (at a depth of 1 mm from the brain surface) at the following coordinates (from bregma and midline, respectively): (1) AP 3.5 mm, ML 2.8 mm; (2) AP 2.0 mm, ML 2.8 mm; (3) AP 0.5 mm, ML 2.8 mm; and (4) AP −1.0 mm, ML 2.8 mm. Temperature was maintained using a rectal probe connected to a homeothermic blanket (Harvard Apparatus, Holliston, MA) placed under the animal, which maintained rectal temperature at 36 ± 1°C. Prior to suturing, the animal was left undisturbed for 5 minutes. The skull fragment was then replaced and sealed using bone wax (Covidien, Gosport, UK). Five sham-operated rats received all procedures excluding craniotomy. All rats survived this surgery. Animals were given buprenorphine (0.01 mg/kg, subcutaneously).

Structural and Functional Magnetic Resonance Imaging

Structural magnetic resonance imaging (MRI) images were obtained prior to stroke, 24 hours after stroke, and at 1 and 8 weeks after stroke as described with full details elsewhere.16, 27 Functional MRI (fMRI) was performed prior to stroke and at 1 and 8 weeks after stroke during non-noxious stimulation of the affected wrist as described fully elsewhere27 in a subset of rats that did not receive intracortical injections of biotinylated dextran amine (BDA) tracer (n = 10/group). Two animals died following alpha chloralose anesthesia due to breathing difficulties in recovery.

NT3 or Vehicle Treatment

Twenty-four hours after stroke (immediately after MRI), rats were randomized to treatment using NT3 or vehicle, infused into affected triceps brachii muscles for 1 month via thin, flexible implanted catheters and subcutaneous osmotic minipumps (2ML2; Alzet, Cupertino, CA; 5 μl/h flow rate, 2 ml reservoir) compatible with MRI.27 Full technical details have been provided elsewhere.27 Treatments were vehicle (0.9% saline containing 0.1% bovine serum albumin; Sigma, St Louis, MO; A3059; 9048-46-8) or vehicle containing recombinant human NT3 (100 μg/ml; gift of Genentech, South San Francisco, CA). Pumps were replaced after 2 weeks and removed after 4 weeks. Skin was sutured and analgesic was administered as above. All rats survived this surgery. Pilot experiments showed that the pump flow rate (5 μl/h) was sufficient to deliver substances (0.9% saline containing 1% Fast Green, Sigma) to the entire volume of the triceps muscles. The identity of this preparation of NT3 was confirmed to consist of the ~14 kDa monomer and ~28 kDa dimer by sodium dodecyl sulfate–polyacrylamide gel electrophoresis and liquid chromatography–mass spectrometry.27 The NT3 dose (12 μg per 24 hours) was selected based on previous experiments.28

Enzyme-Linked Immunosorbent Assay

A random subset of rats (n = 5/group) were anesthetized (4 weeks following stroke, before pumps were removed) and triceps brachii and C7 spinal cord were rapidly dissected and snap frozen in liquid nitrogen prior to storage at −80°C. Tissue was homogenized in ice-cold lysis buffer containing 137 mM NaCl, 20 mM Tris-HCl (pH 8.0), 1% NP40, 10% glycerol, 1 mM phenylmethanesulfonylfluoride, 10 μg/ml aprotinin, 1 μg/ml leupeptin, and 0.5 mM sodium vanadate, using 10 μl buffer per milligram of tissue. Protein content was measured and NT3 enzyme-linked immunosorbent assay (ELISA) was carried out according to manufacturers’ instructions (Emax; Promega, Madison, WI). Full details have been given elsewhere.27

Behavioral Testing

Rats were handled and trained for 3 weeks on the horizontal ladder before the study began. Preoperative baseline scores for the horizontal ladder, the vertical cylinder, and the grip strength test were collected 1 week before surgery.

Assessment of Somatosensory Responsiveness

The “adhesive patch” test was used to measure (1) the time taken to contact stimuli on the wrists, (2) the time taken to remove stimuli from the wrists, and (3) the magnitude of lack of responsiveness to stimuli on the affected wrist as previously described.16, 27 To determine whether the rats preferentially removed a sticker from their less-affected wrist before their more-affected wrist, the order and side of label removal was recorded. This was repeated 4 times per session until a > 75% preference had been found; if this was not the case, a fifth trial was conducted. The magnitude of asymmetry was established using the 7 levels of stimulus pairs on both wrists as previously described (Fig 2A). From trial to trial, the size of the stimulus was progressively increased on the affected wrist and decreased on the less affected wrist by an equal amount (14.1mm²), until the rat removed the stimulus on the affected wrist first (reversal of original bias). The higher the score, the greater the degree of somatosensory impairment.

Anatomical Tracing

To visualize uninjured CST axons, 6 weeks after stroke, 10% BDA in phosphate-buffered saline (PBS; pH 7.4) was microinjected unilaterally into the uninjured sensorimotor cortex as described previously.16, 27 Briefly, animals were placed in a stereotaxic frame and 6 burr holes were made into the skull at the following coordinates: (1) AP 1 mm, ML 1.5 mm; (2) AP 0.5 mm, ML 2.5 mm; (3) AP 1.5 mm, ML 2.5 mm; (4) AP 0.5 mm, ML 3.5 mm; (5) AP 2.0 mm, ML 3.5 mm; and (6) AP − 0.5 mm, ML 3.5 mm, relative to bregma. At each site, 0.5 μl injections of BDA (10% in PBS) were delivered using a glass micropipette attached to a Hamilton syringe inserted 2 mm from the skull surface and delivered at a rate of 0.25 μl/min. Animals were left for 2 weeks before being perfused. Tract tracing was not performed in rats that were to undergo fMRI or neurophysiology.

Neurophysiology

We recorded from the ulnar nerve on the affected side and stimulated, in the pyramids, the CST corresponding to the affected or less-affected hemisphere, as described previously.27 At the end of the study, 18 rats (6 rats per group) were anesthetized with an intraperitoneal injection of 1.25 g/kg urethane (Sigma-Aldrich, St Louis, MO). The rats were kept at 37°C with a homeothermic blanket system and rectal thermometer probe. Tracheotomy was performed, and a tracheal cannula was inserted. The pyramids were then exposed ventrally by blunt dissection and removal of a small area of bone. The brachial plexus of the affected forelimb was exposed from a ventral approach by dissecting the pectoralis major. The ulnar and median nerves were dissected free from surrounding connective tissue and cut distally (to prevent twitches of target muscles). Skin flaps from the incision formed a pool, which was filled with paraffin oil. The proximal segment of the ulnar nerve was mounted on a pair of silver wire hook electrodes (with >1 cm separation). The concentric bipolar stimulation electrode (CBBPC75; FHC, Bowdoin, ME) was located 1 mm lateral to the midline and gently lowered through the pyramid up to a maximum depth of 1.5 mm while stimulating at 300 μA (4 pulses, square wave pulse width = 100 microseconds, frequency = 500 Hz). At the electrode location providing maximal ulnar nerve response, stimuli of increasing intensity were applied in the range of 50 to 400 μA, in 50 μA increments. Five sweeps were captured at each stimulus intensity. The signal was rectified, and the area under the curve was measured between 17 and 45 milliseconds. Data were analyzed using 2-way repeated measures analysis of variance (ANOVA). Graphs show mean and standard error of the mean for the area under the curve for stimuli given at 400 μA.

Histology

Eight weeks after stroke surgery and 2 weeks after injection of BDA, rats were terminally anesthetized with sodium pentobarbital (80 mg/kg intraperitoneal) and perfused with PBS for 5 minutes, followed by 500 ml of 4% paraformaldehyde in PBS for 15 minutes. The brain, C6–C8 spinal cord, C7 and C8 DRGs, and both arms were carefully dissected and stored in 4% paraformaldehyde in PBS for 2 hours and then transferred to 30% sucrose in PBS and stored at 2 to 5°C. Spinal cord segments C1 and C7 was embedded in OCT and 40 μm transverse slices were cut using a freezing stage microtome. Ten series of sections were collected.

Series of 40 μm-thick transverse sections of fixed spinal cord were immunolabeled as previously described.16, 27 Primary antibodies (overnight) were rabbit anti–protein kinase C gamma (PKCγ; 1:500, sc-211; Santa Cruz Biotechnology, Santa Cruz, CA) and rabbit antiserotonin (1:6,000, #20080; ImmunoStar, Hudson, WI). Secondary antibodies (3 hours) were: goat antirabbit IgG Alexa 488 (1:1,000; Invitrogen, Carlsbad, CA) with DAPI (1:50,000, Sigma).

BDA staining was performed as described before.16, 27 CST axons were counted that crossed the midline, at 2 more lateral planes and at an oblique plane (Fig 3A) on the affected side at C7 and C1. For each rat, we estimated the number of CST axons per cord segment by calculating the average number of CST axons per section and then multiplying by a scaling factor (number of sections per segment).

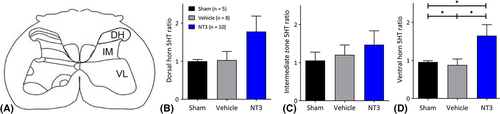

The total length of serotonergic processes was measured using a method14 that is well suited for quantification of dense terminal arbors. Processes were identified using the “adjust threshold” function in ImageJ, and fiber lengths were measured in 3 areas: the dorsal horn, intermediate horn, and ventral horn (Fig 4B) in 3 sections per rat. We calculated the ratio of the sides ipsilateral and contralateral to treatment for the 3 areas separately.

Immunofluorescence was visualized under a Zeiss (Oberkochen, Germany) Imager.Z1 microscope or a confocal Zeiss LSM 700 laser scanning microscope. Photographs were taken using the AxioCam and AxioVision LE Rel. 4.2 or LSM Image Browser software for image analysis.

Radiolabeling of NT3

NT3 protein was radiolabeled with 50 μCi (1.85 MBq) N-succinimidyl [2,3-³H]propionate (³H-NSP) and separated from unbound ³H-NSP using an ÄKTAprime (GE Healthcare, Chicago, IL) purification system using a modification of a previous method.29 Fifty micrograms of [³H]NT3 or [³H]albumin was injected intravenously as a 300 μl bolus into 95 adult C57Bl/6 mice (7–8 weeks old). This method had been optimized for mice. After 3, 15, 20, 30, 40, 60, or 90 minutes, brain, spinal cord, and serum were taken for scintillation counting. The rate of influx was calculated from the Patlak plot30 of the distribution volume (V_D) for [³H]NT3 and [³H]albumin against the plasma area under the curve.

The same treatment was repeated for mice 24 hours after stroke, with an incubation period of 40 minutes (n = 6). ¹⁴C sucrose (0.074 MBq; vascular marker) was injected toward the end of the incubation, and the brain tissue was taken for capillary depletion analysis. Brain tissue was homogenized in physiological buffer (30 μl/mg of tissue) and 26% dextran (40 μl/mg of tissue) as described previously.31 The homogenate was subjected to density gradient centrifugation (5,400 × g for 15 minutes at 4°C) to give an endothelial cell-enriched pellet and a fraction containing the brain parenchyma and interstitial fluid. The samples were solubilized and counted as described above. V_D was calculated. The values were corrected for ¹⁴C sucrose. Data were analyzed for capillary fraction, parenchymal fraction, and whole brain using 1-way ANOVA and Bonferroni t tests.

Statistics

A set of a priori sample size calculations were performed and reported previously for this ET-1 model and for 4 behavioral tests (Montoya staircase test, adhesive patch test, cylinder test, horizontal ladder; see Methods and Table 1 in Soleman et al32). G*Power 3.1 was used to estimate the effect size of the difference between the stroke and sham groups for each behavioral test using the post hoc algorithm for F tests (repeated measures, between factors). Next, G*Power was used33 to estimate the minimum sample sizes that would be required in experiments (using 2 groups) to identify treatment effects of 3 different magnitudes (25% recovery, 50% recovery, 75% recovery) using the a priori algorithm for F tests (repeated measures, between factors) using the following parameters: type I error threshold (α) ≤ 0.05 and power (1 − β) ≥ 0.80. The “correlation between repeated measures” parameter was derived by calculating the mean of the Pearson product-moment correlation coefficients for each of all possible (6) pairs of (4) time points in that study.32 In the present study, we chose n = 30 for the NT3 and vehicle groups to increase our chances of detecting small improvements in sensorimotor function based on these a priori power calculations. We knew from previous work using NT3 what typical effect sizes could be expected in this model.16

Statistical analyses were conducted using SPSS (v18.0; IBM, Armonk, NY). Graphs show means ± standard error of the mean, and n denotes number of rats or mice. The threshold for significance was 0.05. Corticospinal tract sprouting data were analyzed using 1-way ANOVA per plane and unpaired t tests. Serotonergic fiber lengths were analyzed by region using 1-way ANOVA and Bonferroni post hoc tests. Other histology and molecular biology data were assessed using Kruskal–Wallis and Mann–Whitney tests. Behavioral data were analyzed using linear models and restricted maximum likelihood estimation to accommodate data from rats with occasional missing values (using SPSS MIXED with Fisher least squares difference post hoc tests as described previously34). Baseline scores were used as covariates. Post hoc p values were only reported when the preceding global (protected) test (eg, factorial linear models, 1-way ANOVAs, or Kruskal–Wallis tests) was significant for the main effect or interaction term (p < 0.05). For transparency, post hoc p values are stated exactly (or when small, as p < 0.001, for example). Degrees of freedom are reported to the nearest integer. Normality was assessed using histograms. Tests were 2-tailed.

MRI Confirmed Equivalent Infarct Volumes between Stroke Groups

MRI confirmed that infarcts included the forelimb and hindlimb areas in sensorimotor cortex (see Fig 1). There was no difference in the mean infarct volume between stroke groups at 24 hours or 1 or 8 weeks after stroke. Loss of CST axons was assessed at 8 weeks in the upper cervical spinal cord using PKCγ immunofluorescence.35, 36 Stroke caused a 24% loss of CST axons in the dorsal columns of the upper cervical spinal cord relative to shams, with no difference between vehicle-treated and NT3-treated rats. Together, the MRI and PKCγ histology data indicate that there were no confounding pretreatment differences in mean infarct volumes and that NT3 did not act as a neuroprotective agent, as expected, based on our previous results16 and given that treatment was initiated after the majority of cell death would have occurred.

Delayed NT3 Improved Forelimb Sensory and Motor Function after Stroke

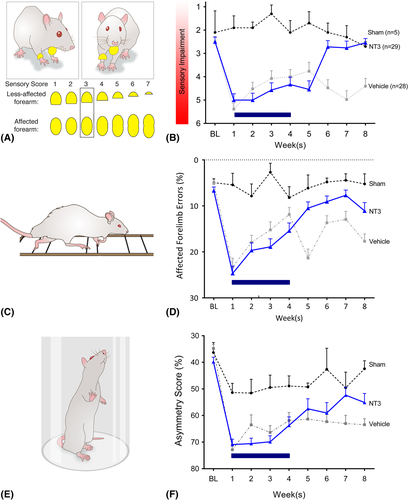

An adhesive patch was attached to each wrist of the rat, and the order of their removal was noted. From trial to trial, the size of the patch was progressively increased on the affected wrist and decreased on the less affected wrist by an equal amount (see Fig 2A), until the rat removed the patch on the affected wrist first. A high score (eg, 6) denotes a deficit (ie, that a rat preferentially removed the smaller stimulus from their less-affected wrist). The 2 stroke groups exhibited a similar lack of responsiveness to stimuli on their affected wrist after 1 week (see Fig 2B), and NT3 enhanced recovery compared to vehicle. Thus, NT3 improved responsiveness to tactile stimuli after stroke.

Walking was assessed using a horizontal ladder with irregularly spaced rungs (see Fig 2C). Accurate paw placement during crossing requires proprioceptive feedback from muscle spindles.20 After 1 week, the 2 stroke groups made a similar number of errors with their affected forelimb (see Fig 2D). NT3 caused a progressive recovery after stroke relative to vehicle-treated animals. This is consistent with previous experiments from our laboratory.14, 16 Stroke also caused modest long-lasting hindlimb deficits on the ladder; infusion of NT3 into the forelimb triceps brachii did not improve hindlimb movements (data in archive27).

NT3 also restored the use of the affected forelimb for lateral support when rats reared in a vertical cylinder (see Fig 2E). After stroke and vehicle treatment, rats used their affected forelimb less often than shams. NT3-treated rats showed more frequent use of the affected forelimb relative to vehicle-treated rats (see Fig 2F). Stroke caused transient weakness in forelimb grip strength in both groups, but infusion of NT3 into triceps brachii did not modify grip strength (data in archive27).

In summary, infusion of NT3 protein into the triceps brachii induced recovery on both sensory and motor tasks that require control of muscles by pathways including CSTs, serotonergic raphespinal pathways, and proprioceptive circuits. Accordingly, we hypothesized that NT3 would induce neuroplasticity in multiple pathways.

NT3 Induced Neuroplasticity in Multiple Spinal Locomotor Pathways

We examined neuroplasticity in the C7 cervical spinal cord because we knew from experiments using adult and elderly rats that the less-affected CST sprouts at this level after injection of AAV-NT3 into muscles, including triceps brachii.16 Anterograde tracing from the less-affected sensorimotor cortex (see Fig 1B) revealed that NT3 treatment increased sprouting of the CST in the C7 spinal cord (see Fig 3A, B) across the midline and into the affected side at 2 more lateral planes, and also from the ventral CST.

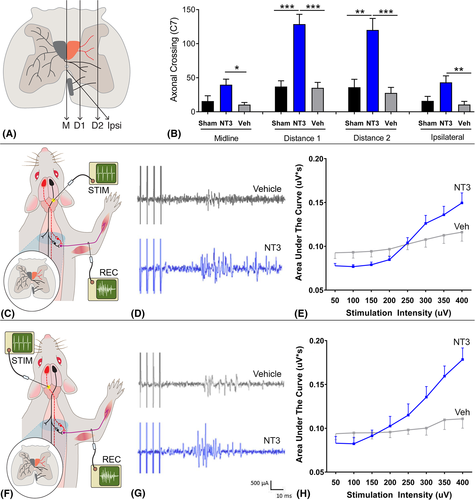

We assessed neural output in the ulnar nerve on the affected side, whose motor neurons are also found in C7 (range: C4–C8) and which supply muscles in the forearm, including the hand.37 To do this, we recorded responses during electrical stimulation of either the less-affected CST or the partially ablated CST in the medullary pyramids. NT3 treatment led to enhanced responses in the ulnar nerve during stimulation of the less-affected and more-affected pathways (see Fig 3). This result is consistent with the sprouting of traced CST axons at C7 (see Fig 3A, B) and indicates that CST axons from both the stroke hemisphere and the contralesional hemisphere strengthened connectivity to the cord on the treated side, most likely on premotor interneurons that lie between CST axons and motoneurons. We also found that NT3 treatment caused serotonergic axons to sprout in the ventral C7 spinal cord (see Fig 4). Anatomical and functional plasticity of corticospinal and serotonergic pathways is consistent with their expression of receptors for NT3.2, 3

We conclude that NT3 caused neuroplasticity in multiple descending locomotor pathways. These data are consistent with our findings14, 16 that intramuscular AAV-NT3 can, directly or indirectly, enhance spinal plasticity after stroke. Next, we assessed the biodistribution of NT3 after peripheral administration.

NT3 Enters the PNS and CNS after Peripheral Administration

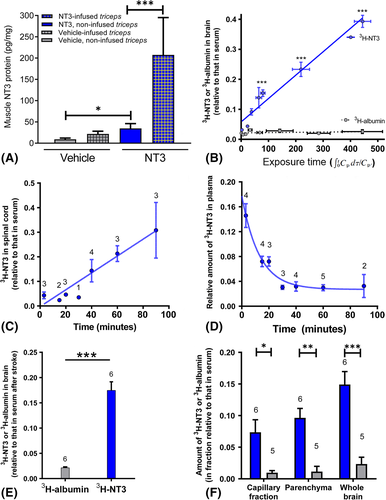

ELISA revealed an increase in total NT3 protein levels in the triceps brachii on the treated side (Fig 5A) and, surprisingly, on the untreated side (likely due to NT3 secreted into the bloodstream and taken up by endothelial cells; see below). We were not able to detect any small increases in exogenous human NT3 against the background of endogenous rat NT3 in the C7 spinal cord (data in archive27), because the amino acid sequences for mature human and rat NT3 are identical.38 Accordingly, we next used a more sensitive method for measuring trafficking of exogenous NT3 across the blood–CNS barrier.

Radiolabeled NT3 was injected intravenously into adult mice. Radiolabeled albumin was used as a control, because it does not enter the CNS efficiently from the bloodstream. After 3, 15, 20, 30, 40, 60, or 90 minutes, brain, spinal cord, and serum were taken for scintillation counting. [³H]NT3 progressively accumulated in the intact brain and cervical spinal cord (see Fig 5). In plasma, the half-life of NT3 was short. Our data are consistent with those of others22-24; for example, after injection of radiolabeled NT3 into the brachial vein (which provides drainage from the triceps brachii), NT3 accumulates in the cortex, striatum, brainstem, cerebellum, spinal cord, and sciatic nerve, although the majority of NT3 is cleared rapidly from the bloodstream.22, 23 Moreover, the blood–nerve barrier in DRGs is fenestrated and permeable to proteins like NT3.39

Next, [³H]NT3 or [³H]albumin was injected intravenously into adult mice 24 hours after cortical ischemia. Forty minutes later, tissues were taken for scintillation counting. Again, [³H]NT3 accumulated in the brain (see Fig 5E). To confirm entry of [³H]NT3 into brain parenchyma beyond endothelial cells, capillaries were depleted by gradient centrifugation to yield a fraction containing brain parenchyma and an endothelial cell–enriched pellet. [³H]NT3 entered parenchyma (depleted of endothelial cells) at a level above that seen for [³H]albumin (see Fig 5F). Transport of NT3 into the CNS is apparently a receptor-mediated process.6, 40

We conclude that neuroplasticity occurred in multiple locomotor pathways because peripherally administered NT3 bound to receptors in the PNS and CNS.

Blood Oxygenation Level–Dependent Signal in Perilesional Somatosensory Cortex Evoked by Stimulation of the Affected Wrist Recovers with Time after Stroke and Is Not Further Enhanced by NT3

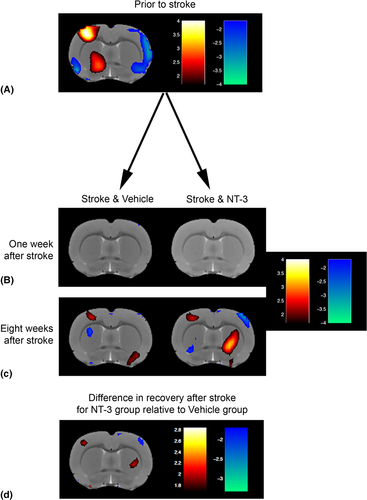

To explore the mechanism whereby NT3 improved responsiveness to stimuli attached to the affected wrist (see Fig 2B), we performed blood oxygenation level–dependent (BOLD)-fMRI during low intensity (non-noxious) electrical stimulation of the affected wrist (Fig 6). As expected, prior to stroke, stimulation of the wrist resulted in a higher probability of activation of the opposite somatosensory cortex. One week after stroke, somatosensory cortex was not active when the affected paw was stimulated in either vehicle-treated or NT3-treated rats (p values >0.05). fMRI performed 8 weeks after stroke revealed a trend toward perilesional reactivation of somatosensory cortex in both vehicle-treated and NT3-treated groups (p values <0.05). However, these probabilities of reactivation were not big enough to survive correction for testing of multiple voxels (threshold = 0.01).

A longitudinal analysis showed that at 8 weeks, there was some evidence that rats treated with NT3 showed increased probability of activation of perilesional cortex (p values <0.05; see Fig 6D) and showed decreased probability of activation of cortex in the less-affected hemisphere (p values <0.05) relative to vehicle-treated stroke rats. However, these apparent differences did not survive correction for testing of multiple voxels (threshold = 0.01). We conclude that both groups showed partial, spontaneous restoration of more-normal patterns of somatosensory cortex activation41 but, conservatively, that NT3 did not further increase probability of activation of any supraspinal areas. These conclusions are consistent with previous fMRI data from our laboratory;16 we propose that the additional recovery of somatosensory function after NT3 treatment (see Fig 2B) is due to changes in the spinal cord rather than in supraspinal areas.

NT3 Did Not Cause Detectable Hypersensitivity

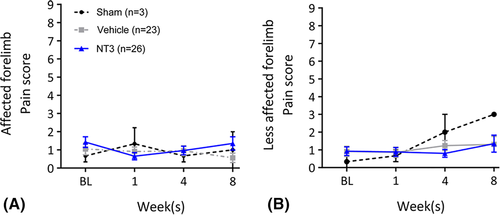

Finally, we also found no evidence that stroke or NT3 caused hypersensitivity in the forepaw, assessed by application of ice-cold acetone (Fig 7). This is consistent with our previous work showing a lack of mechanical hyperalgesia after NT3 treatment,14 with the lack of TrkC on adult nociceptors,5 and with the human clinical trial data showing that subcutaneous treatment with NT3 was safe and well tolerated.25, 26
